RF4 RF-C43B HDMI Output Liftable Thermal Imaging Workstation Suitable for Multiple Cameras

RF4 RF-C43B HDMI Output Liftable Thermal Imaging Workstation Suitable for Multiple Cameras

Features:

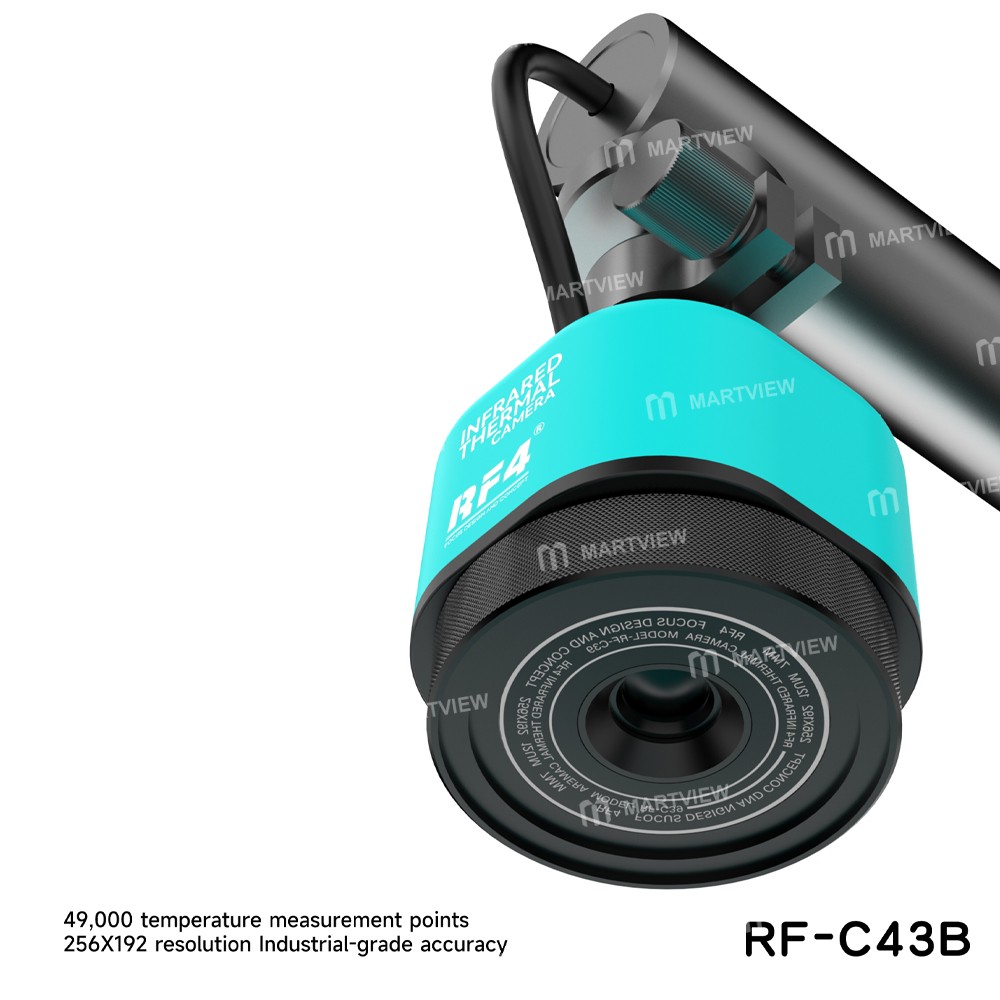

• 49000 temperature measurement points, 256 x 192 resolution Industrial-grade accuracy

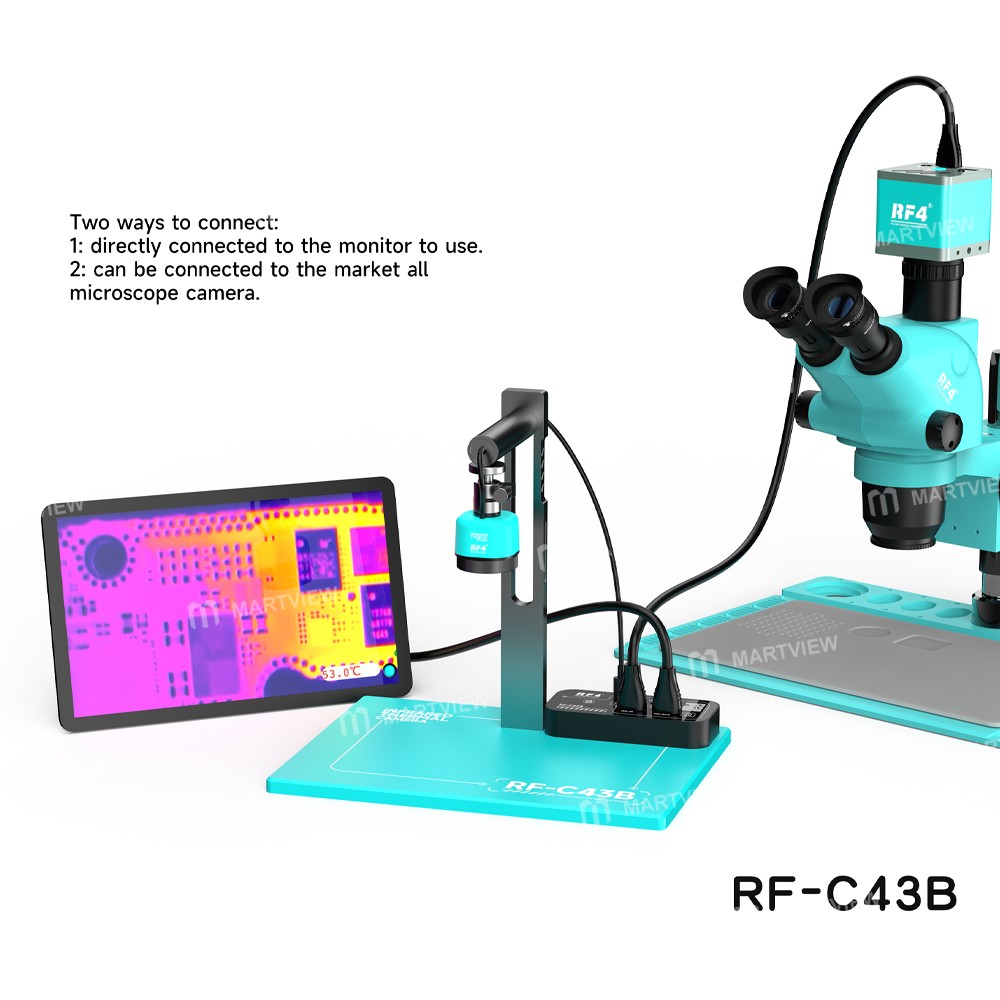

• Two ways to connect: Directly connected to the monitor to use; Can be connected to the market all microscope camera

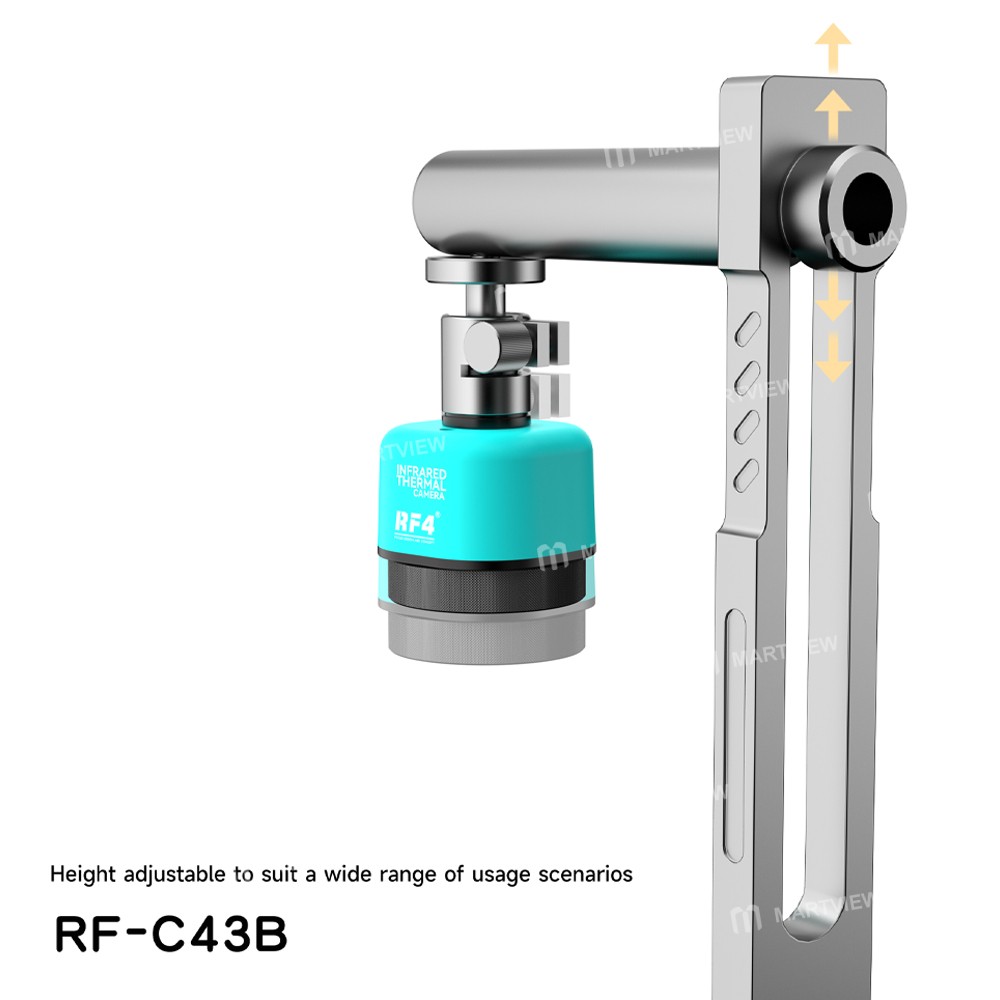

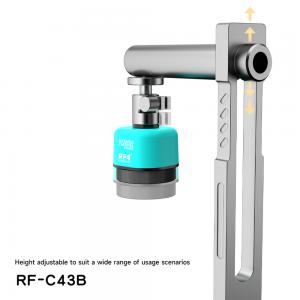

• Height adjustable to suit a wide range of usage scenarios

• Suitable for connecting multiple cameras to C43B

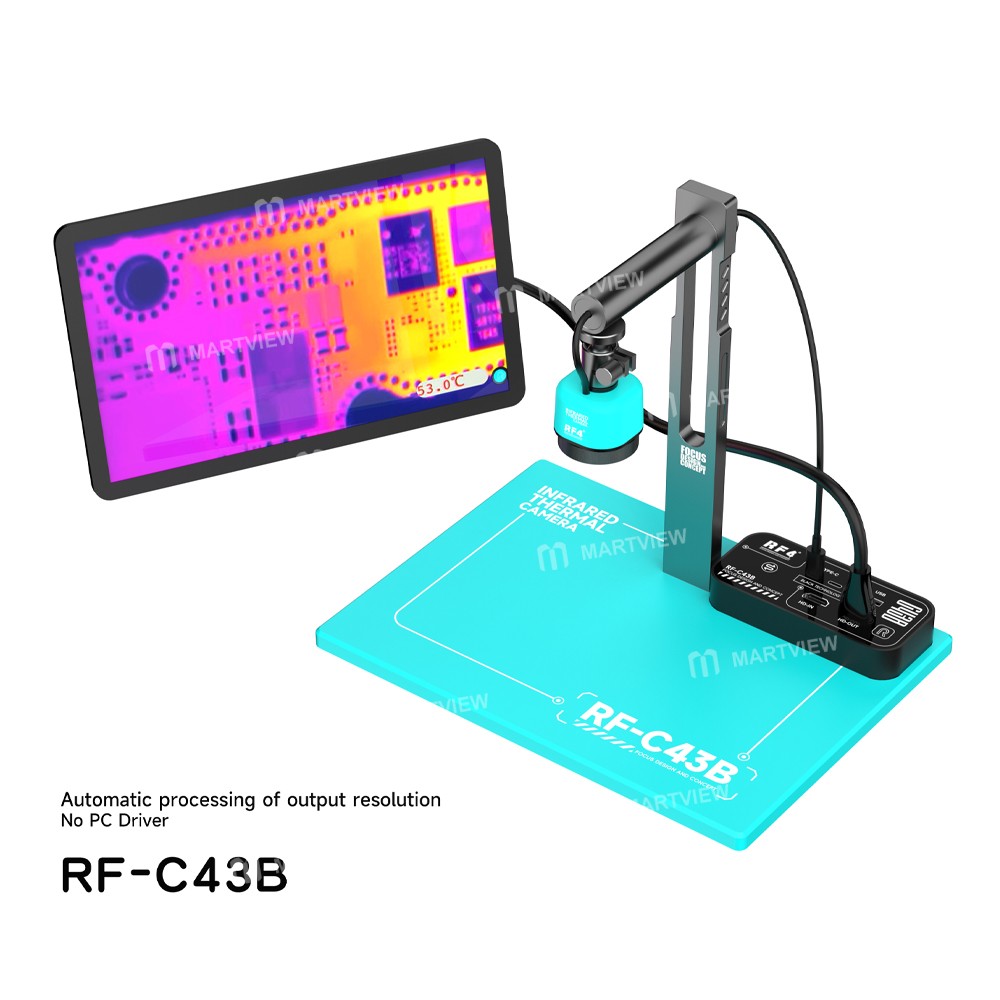

• Automatic processing of output resolution

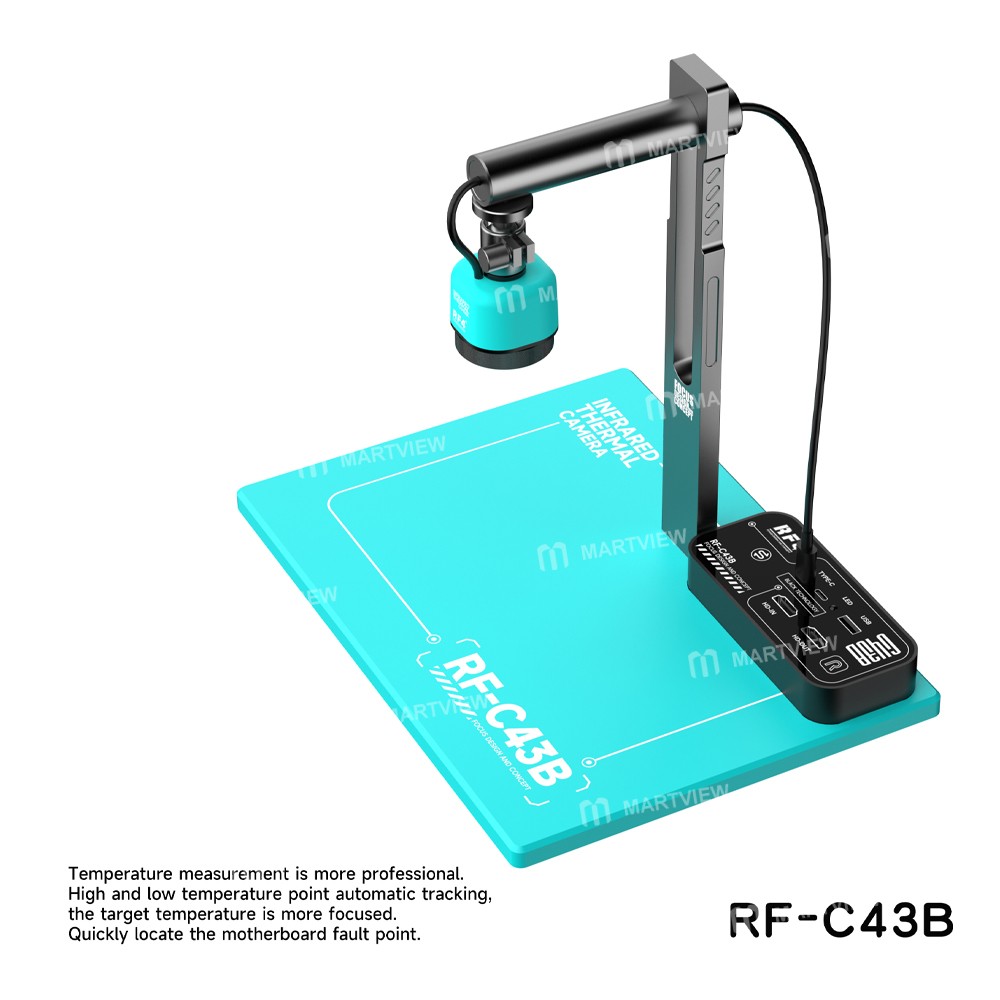

• Temperature measurement is more professional, high and low temperature point automatic tracking, the target temperature is more focused, quickly locate the motherboard fault point

Preparation for use:

• Mount the column on the base and attach the movable connecting rod to the column.

• Pass the Type-c cable from the Infrared thermal through the movable connecting rod and connect it to the C43B host

• Unscrew the lens cap and attach the Infrared thermal to the movable connecting rod (Note: remove the dust protection film on the front of the sensor)

• Connect the microscope camera with C43 through the HD-IN connector

• Connect the screen and C43 through the HD-OUT interface

• Connect the TYPE-C power cable, the power indicator turns from red to yellow to indicate that the camera is powered on

Specification:

• Sensor: 4.9MP image sensor

• USB interface: USB 2.0*1(connect mouse)

• Type-c interface: Infrared thermal interface *1; Power supply interface*1

• HDMI interface: Input interface *1; Output interface *1

• HDMI Output: Automatically handles the current screen resolution

• Input Voltage: Type-C DC 5V/2A

• Net Weight: 1.48KG

• Product Size 80*40*165mm (RF-C43 Control Hub: 116*53*26mm)

• Package Size: 190mm*150mm*80mm

Package includes:

• 1 x Thermal Imaging

• 1 x Base

• 1 x HDMI Cable

• 1 x Type-C Cable

• 1 x Column

• 1 x Movable Connecting Rod

• 1 x Mouse
