RF4 RF-C45 Infrared Thermal Imager Motherboard Fault Detector Compatible Cameras

RF4 RF-C45 Infrared Thermal Imager Motherboard Fault Detector Compatible Cameras

Features:

• A tool for quickly diagnosing circuit board faults. Utilizing high-sensitivity infrared thermal imaging technology, it accurately detects minute abnormal hot spots on circuit boards, providing diagnosis in seconds and resolving issues in a single step

• Ultra-Fast Troubleshooting: Pinpoints the fault area within seconds, boosting troubleshooting efficiency by over 90% and significantly reducing repair time

• Precise Localization: Features 49,000 built-in temperature measurement points to capture temperature differences with high precision—no minor heat anomalies can escape detection

• Equipped with an infrared detector, it is deeply optimized for measuring the temperature of tiny surface-mount components on circuit boards, offering fast imaging response and highly sensitive temperature detection

• With a high resolution of 256×192 pixels, it produces more detailed and nuanced thermal images compared to low-resolution devices, making every detail immediately apparent

• Each pixel serves as an independent temperature measurement point, precisely detecting abnormal heat from tiny components such as 0402 packages and ensuring no potential fault points are overlooked

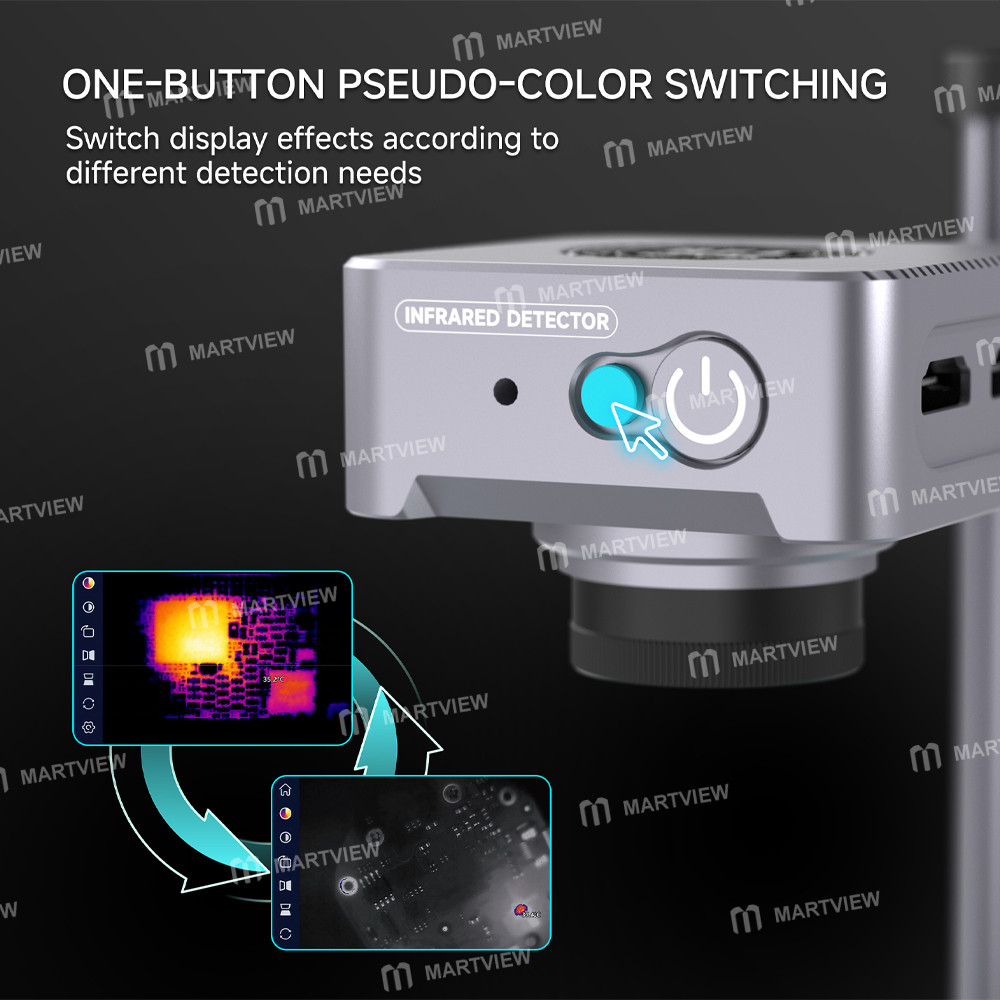

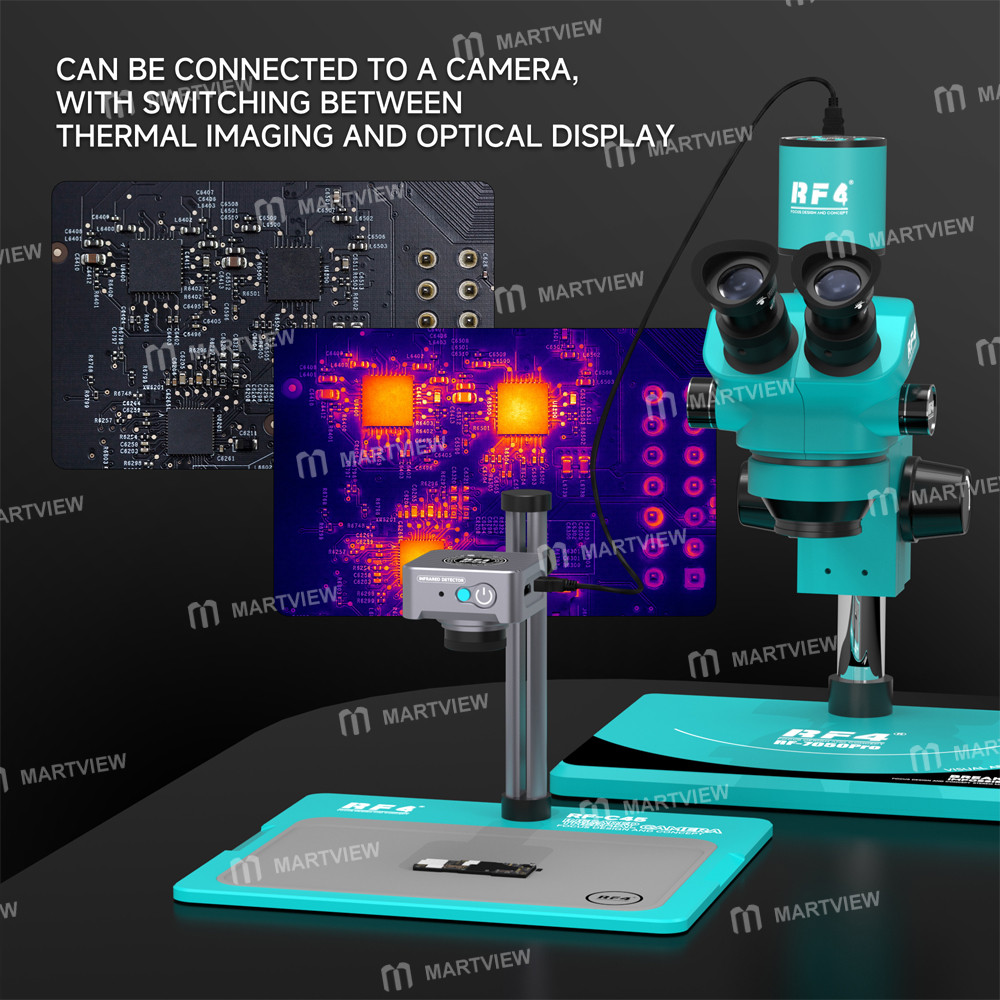

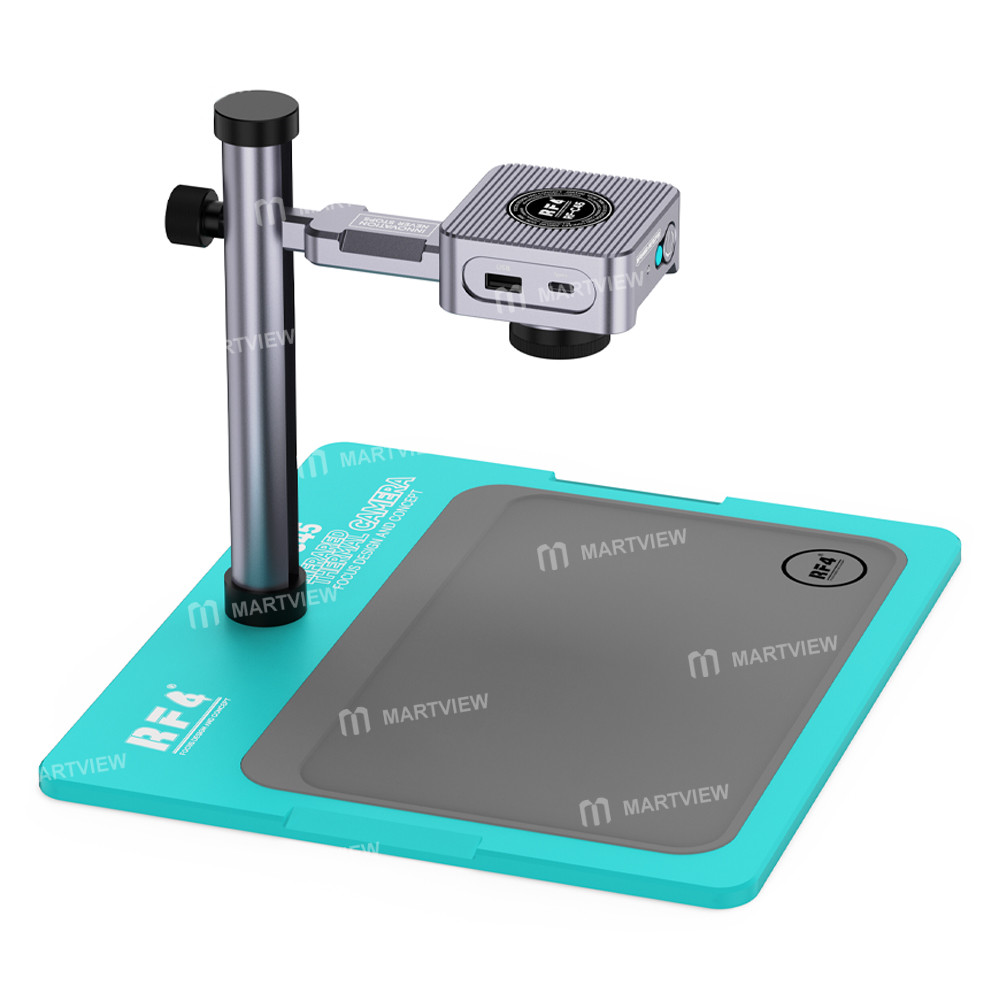

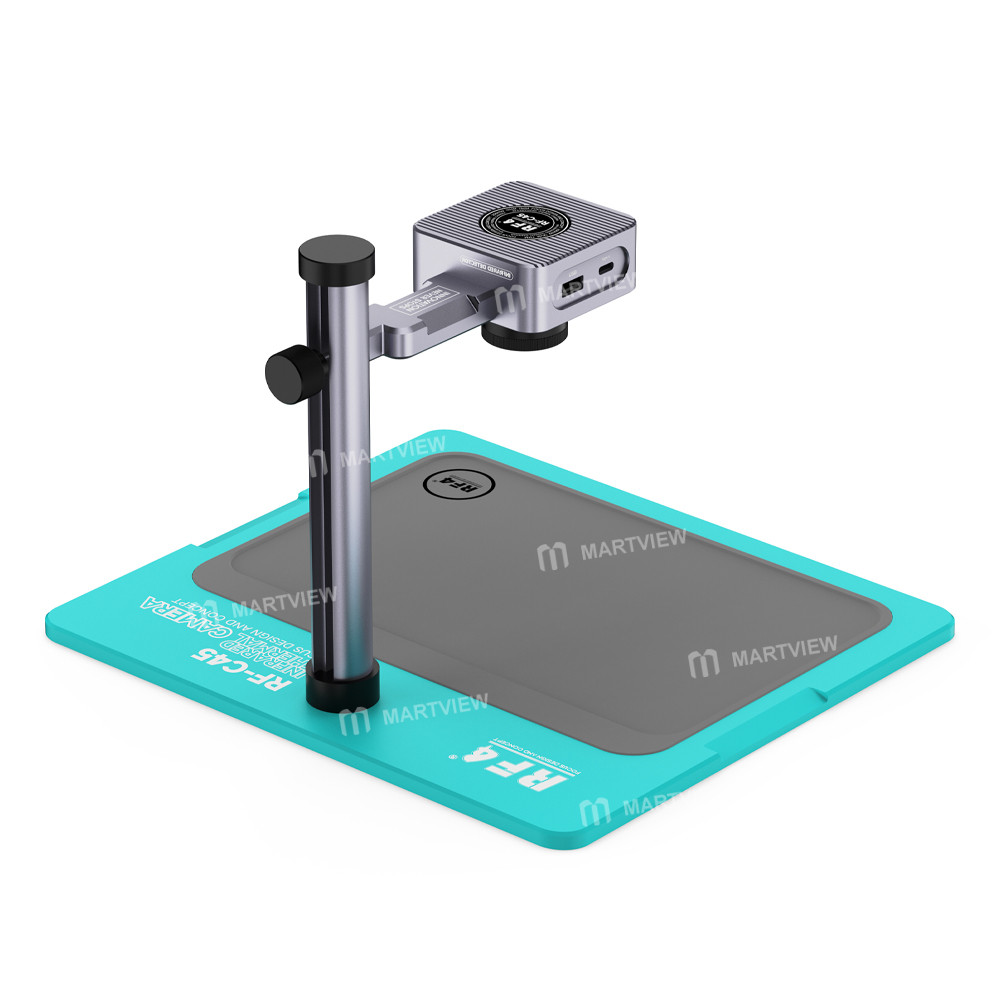

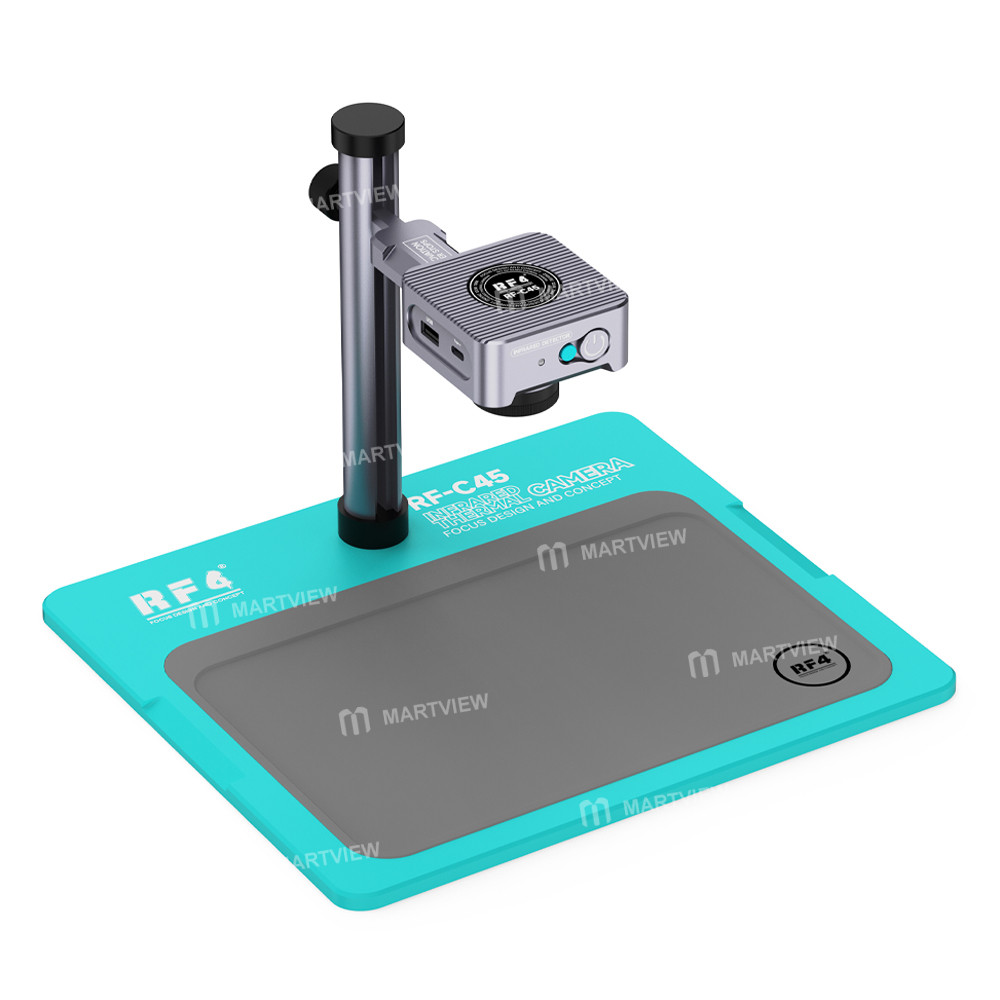

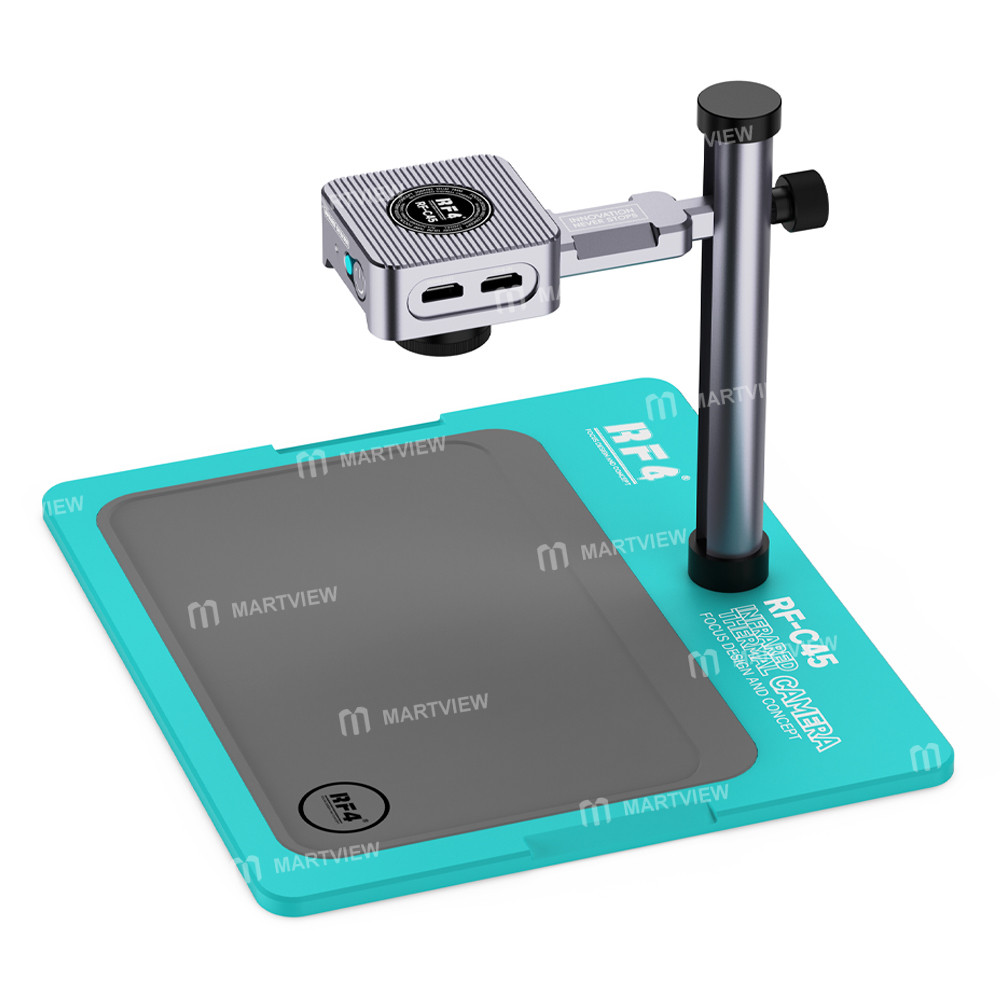

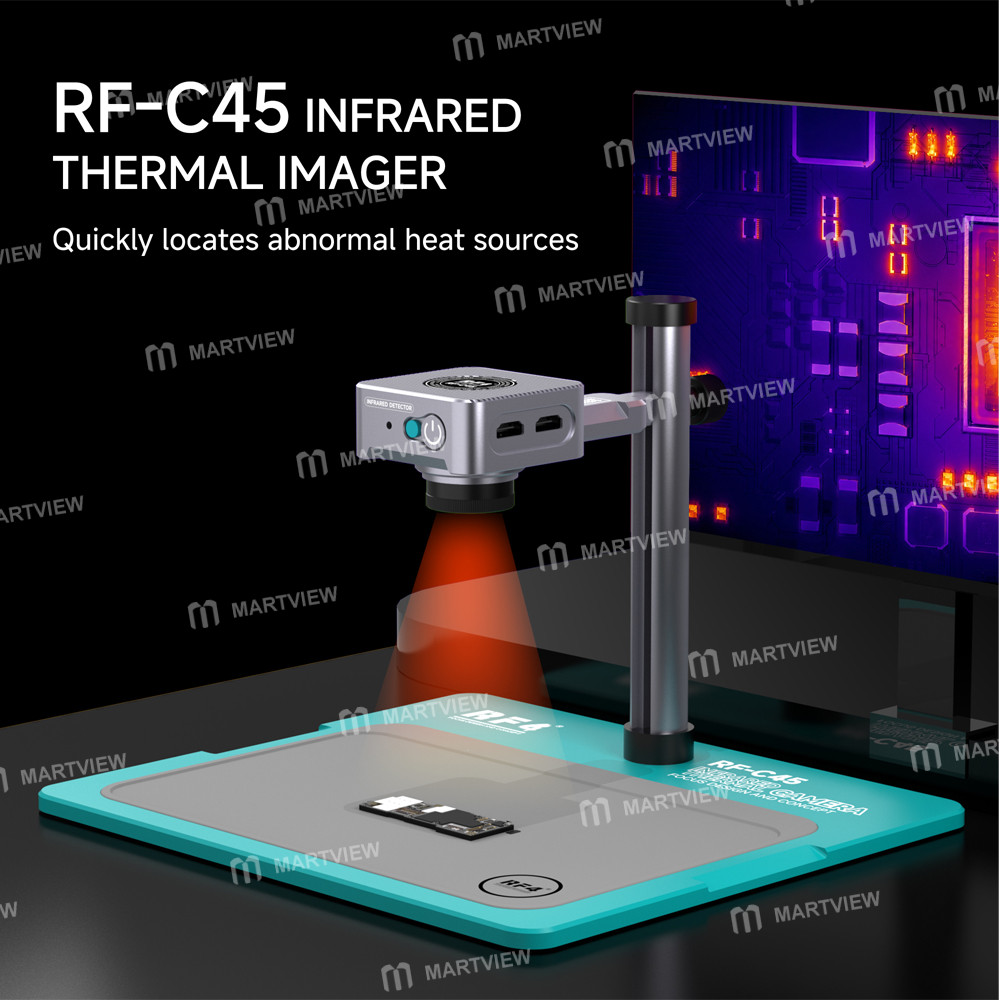

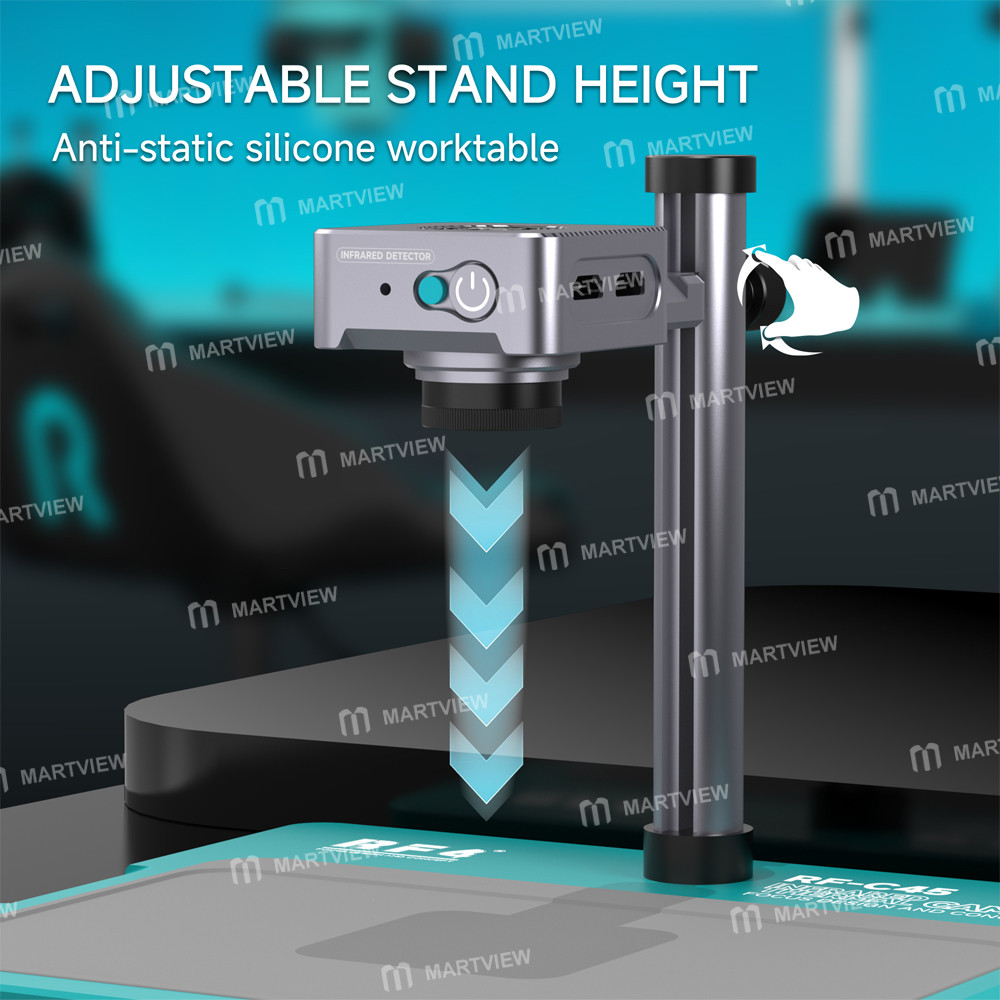

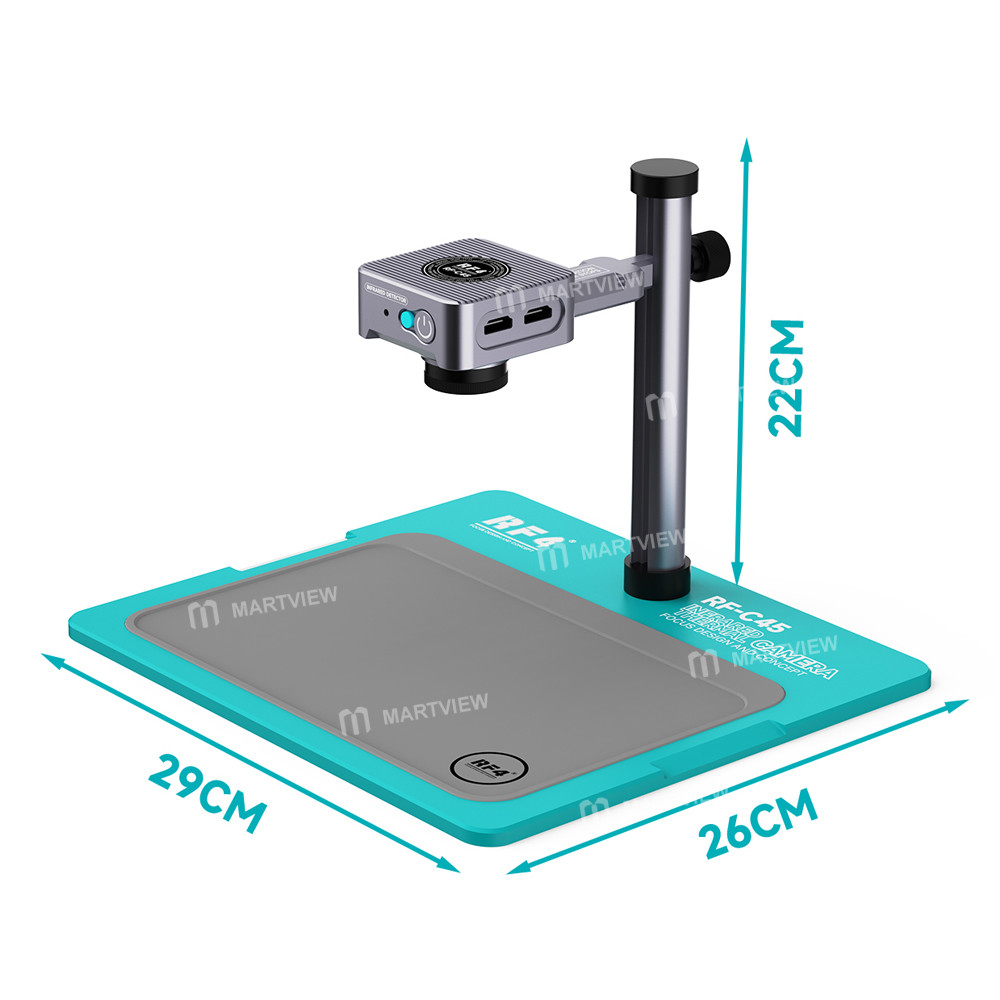

• The RF-C45 comes equipped with a dedicated workstation and stand, allowing you to set up a professional “thermal imaging diagnostic station” right next to your repair bench. It does not require a microscope, creating a dedicated and stable inspection environment

• As a standalone system, the device features a built-in high-performance image processing unit that operates independently of a computer host, completely eliminating the need for cumbersome driver installations and system compatibility steps, and enabling independent processing at the hardware level.

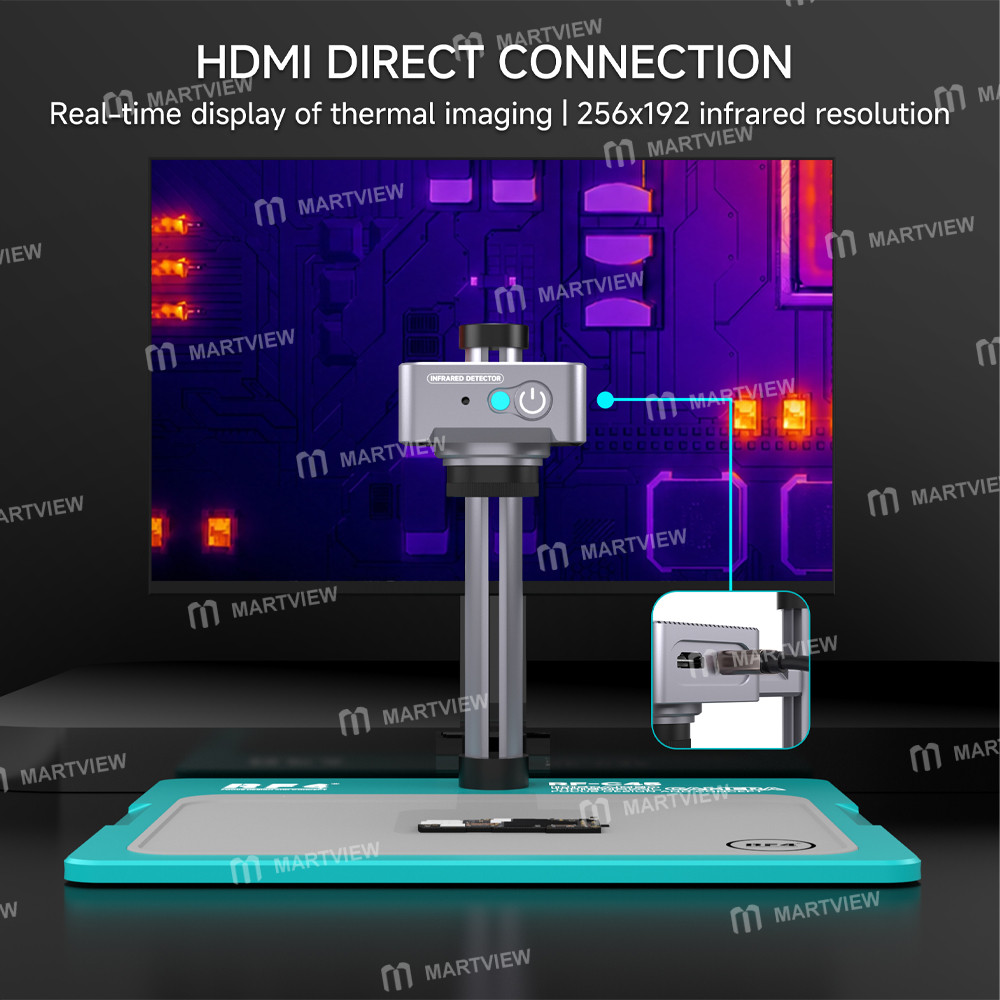

• Simply connect a standard HDMI cable to a monitor and power on the device to instantly display clear thermal images in real time. With no complex setup required and stable signal transmission, it is ready for immediate use.

• Anti-static integrated protection system: The work surface incorporates high-quality anti-static silicone pads to prevent static electricity at the source, effectively protecting sensitive electronic components from electrostatic discharge damage and ensuring safety during testing and repair processes.

• One-stop, closed-loop testing and repair: Eliminates the need for repeated handling of circuit boards. Power-on testing, thermal imaging fault localization, marking analysis, and simple repair operations can all be completed on the same workbench, significantly streamlining workflows and reducing the risk of secondary damage to components.

Specifications:

• Detector Type: Uncooled infrared focal plane array (FPA), featuring high-sensitivity sensors to ensure clear thermal imaging and detailed reproduction

• Resolution: 256 × 192 pixels, providing finer image detail than comparable devices and accurately capturing minute temperature variations

• Temperature Measurement Range: -20°C to +500°C, covering the temperature monitoring needs of the vast majority of industrial equipment, electrical facilities, and everyday environments

• Temperature Measurement Accuracy: ±2°C or ±2% (whichever is greater); strict accuracy standards ensure the reliability and reference value of temperature data

• Frame Rate: 25 Hz; the high frame rate ensures smooth, real-time display of thermal images without stuttering, allowing for clear capture of dynamic temperature changes

• Display Output: Directly connects to an HDMI monitor with plug-and-play support, eliminating the need for complex driver installations and enabling rapid setup of the display system to enhance operational efficiency

• Operating Temperature: 0°C to +50°C, suitable for a variety of indoor and outdoor working environments, ensuring stable operation in both high-temperature and normal-temperature conditions

• Power Supply: Powered by a DC 5V 2A power adapter, providing stable power to ensure the device’s reliability during prolonged continuous operation

Package includes:

• 1 x Thermal Imaging

• 1 x Column

• 1 x Base

• 1 x HDMI Cable

• 1 x Type-C Cable
