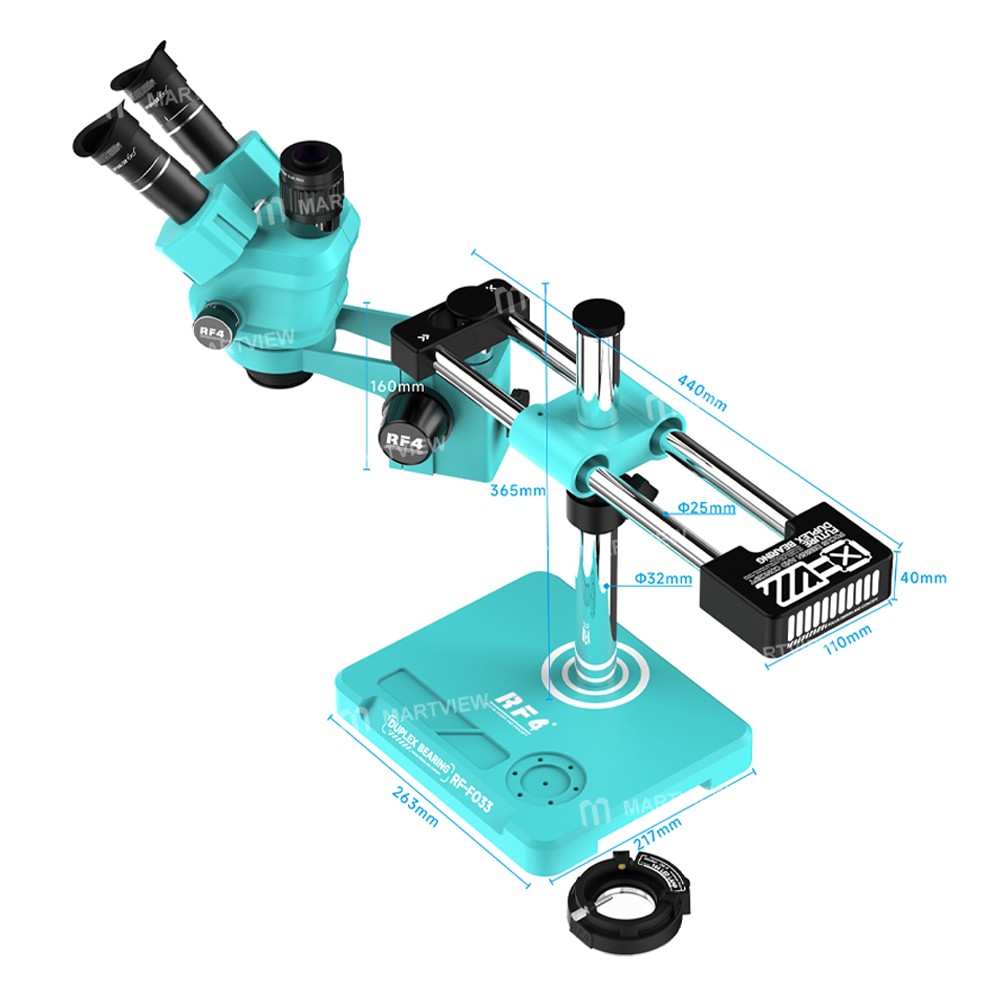

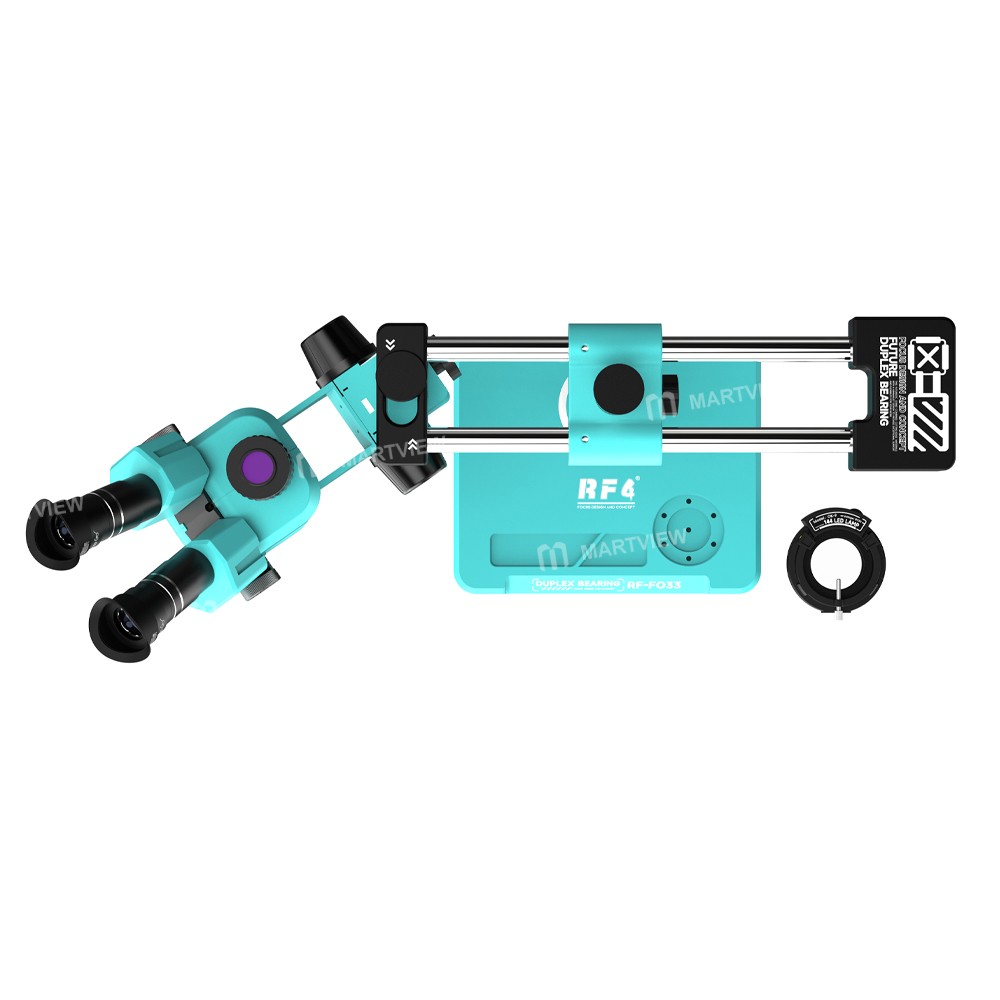

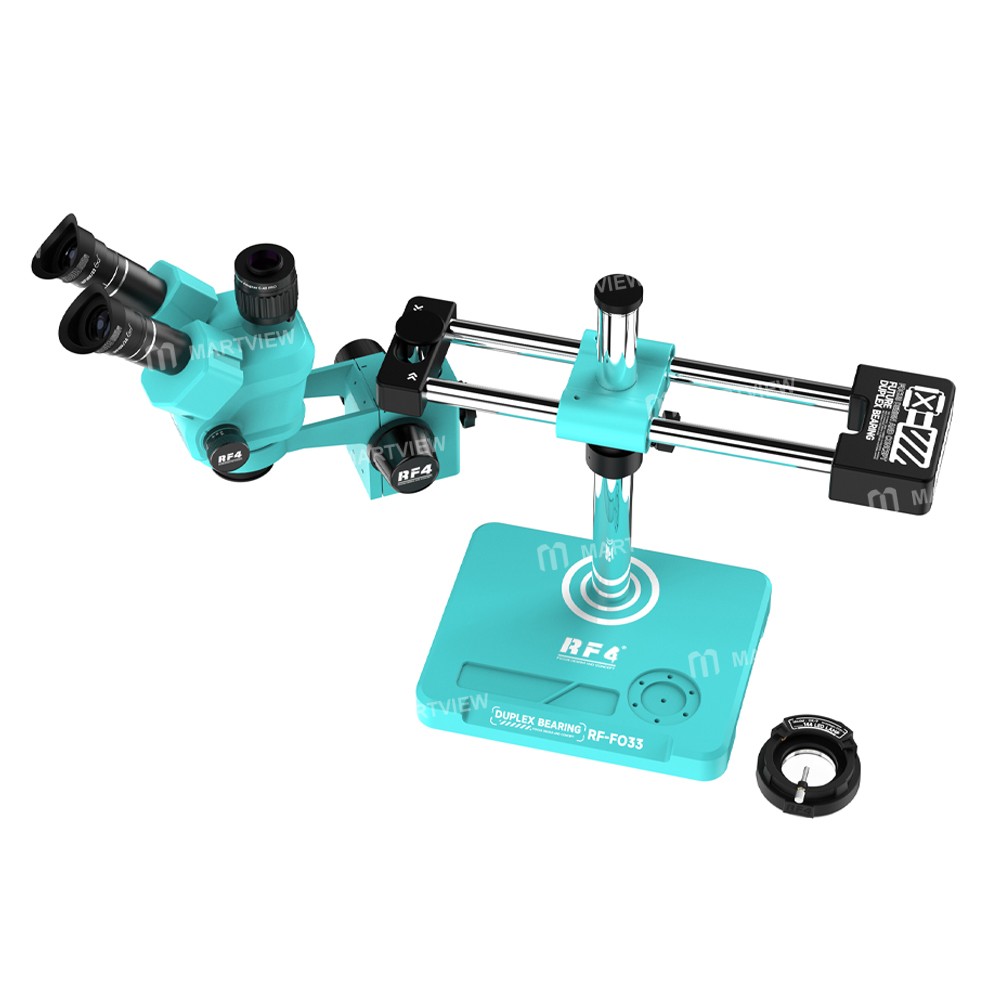

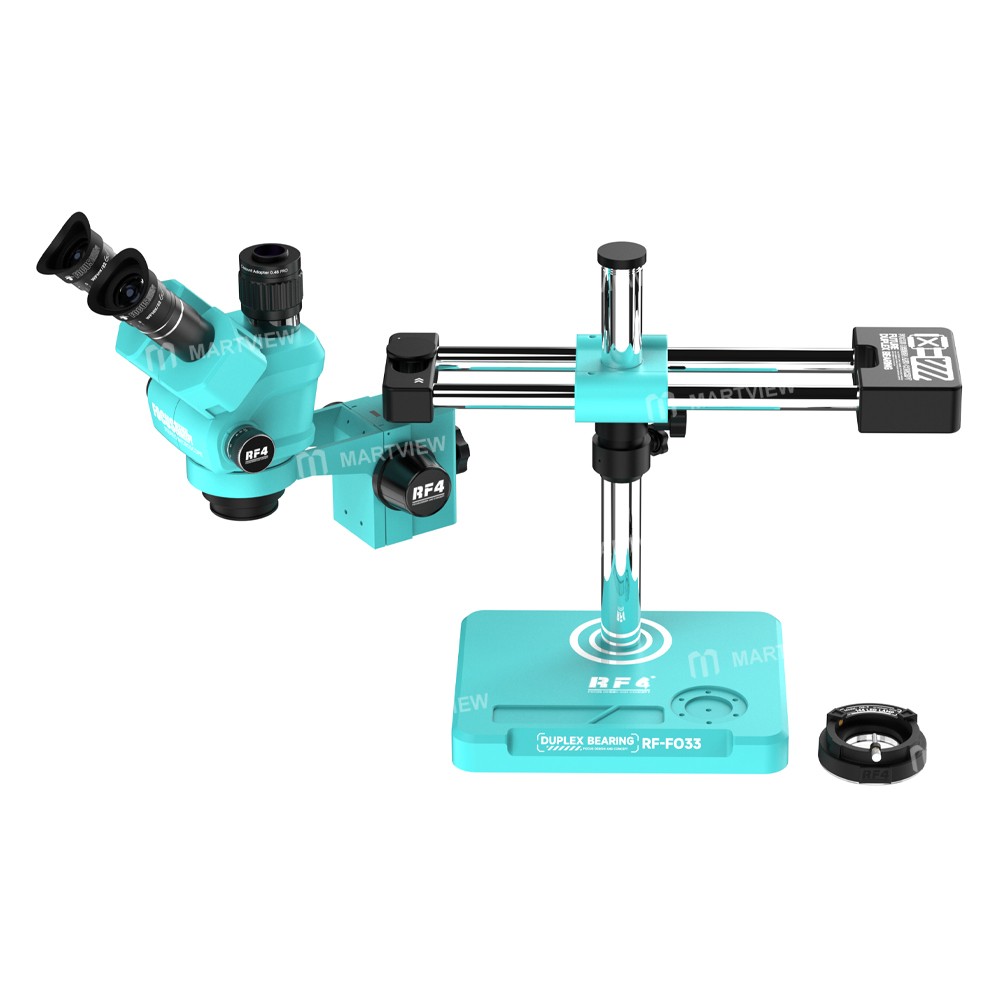

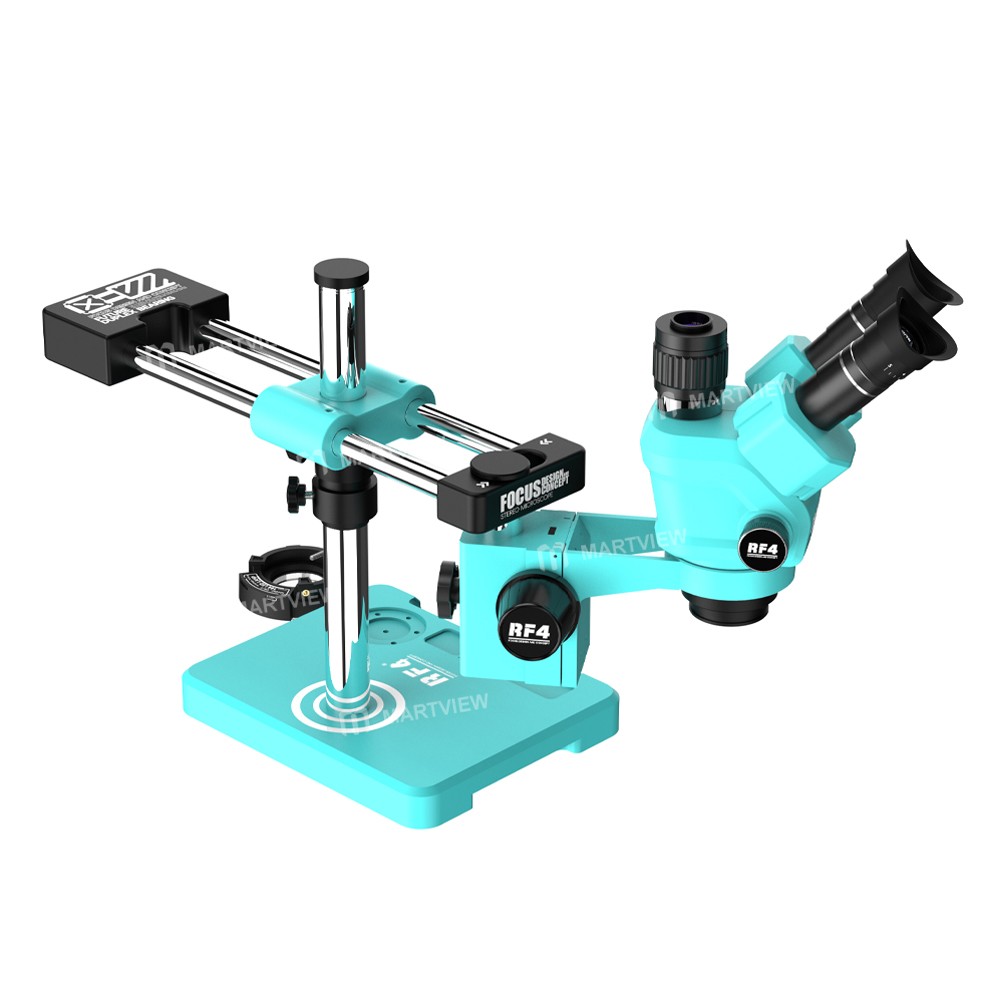

RF4 RF-FO33G (6555Pro Max) 6.5-55X Synchronous Zoom Trinocular Stereo Microscope with Large Double Arm Base

RF4 RF-FO33G (6555Pro Max) 6.5-55X Synchronous Zoom Trinocular Stereo Microscope with Large Double Arm Base

Please note that the EM5 eye mask shown in the image has been upgraded to the EM6 eye mask. To learn more about or purchase the EM6 eye mask, please Click Here

Specification:

• Magnification: Continuous zoom 6.5X to 55X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM adjustable

• Objective: 0.65~5.5X

• Zoom Knob: Metal knob 7 gear zoom

• Camera connector: 0.48Pro CTV (Monitor and eyepiece Synchronous zoom)

• Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup

Wide-angle Eyepieces 10X/22:

• Magnification: 10X

• Wide field of view 22mm

• Matching size: 30mm

• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.48X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

Support Parameters:

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

Base Parameters:

• Base size: 250*180mm

• Pillar: 365mm * φ32mm

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz

• Output: DC 12V, Max 700mA

• Light color: White

• Number of lights: 144 LEDs

• Inside diameter: 60mm

Package includes:

• 1 x Microscope

• 1 x Articulating Arm Bracket

• 1 x 144 LED Light

• 1 x Dustproof Len

• 1 x CTV Lens

• 1 x Silicone Pad
