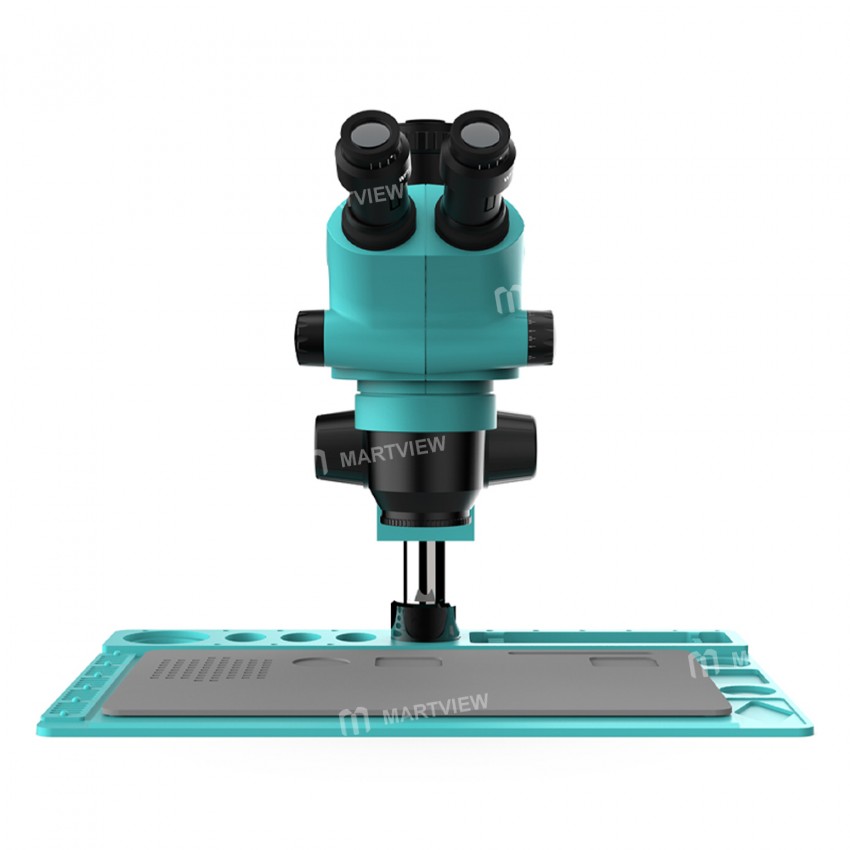

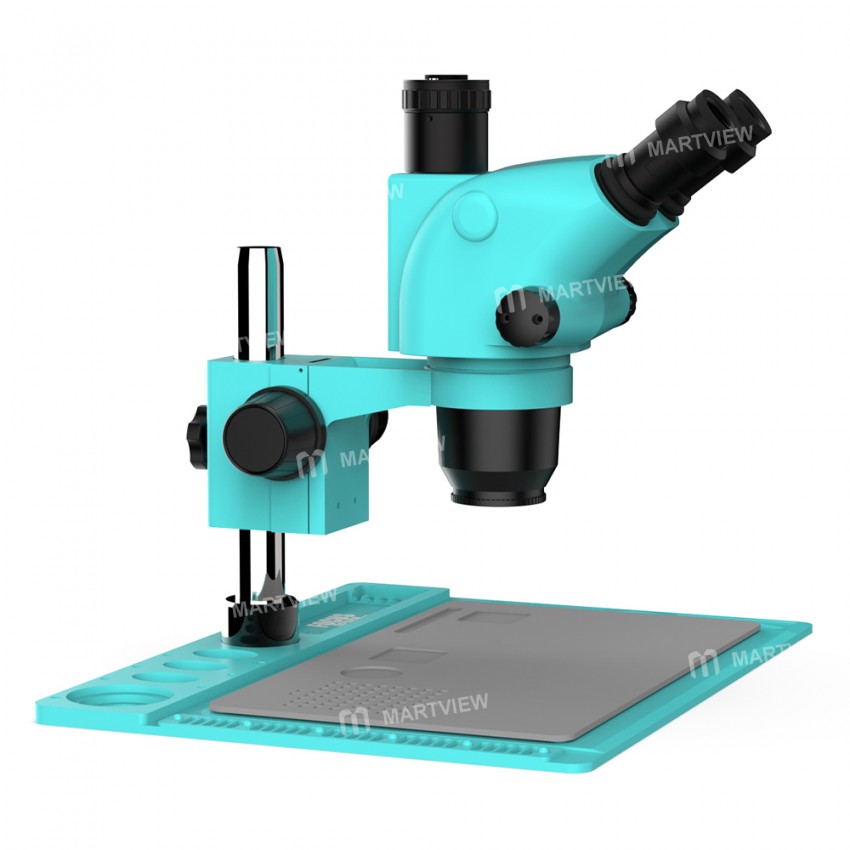

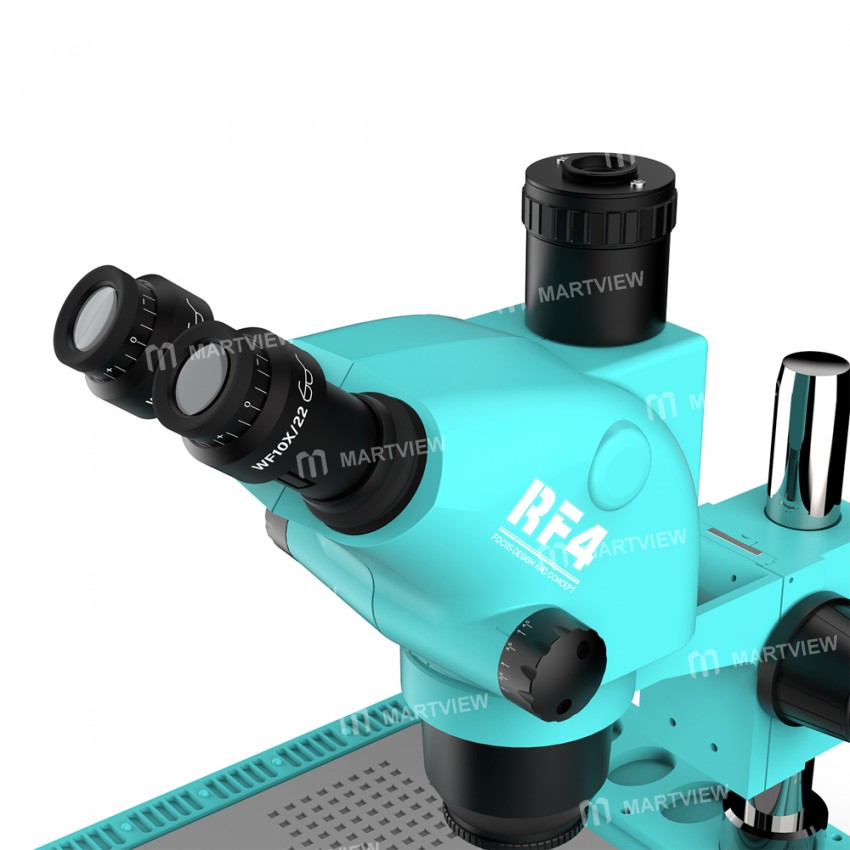

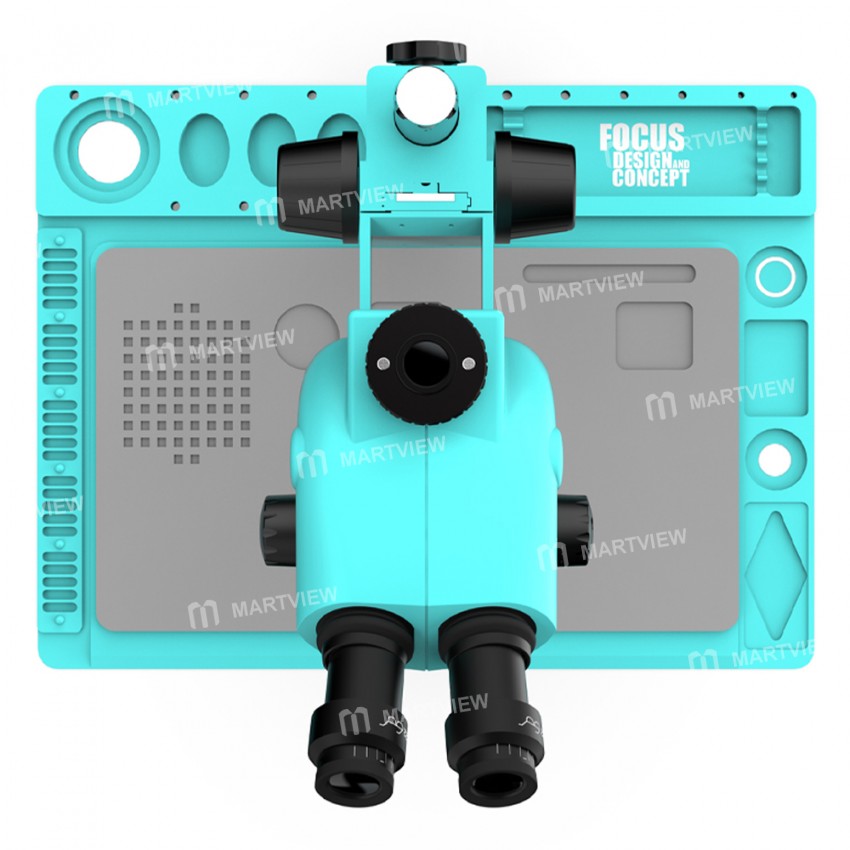

RF4 RF6565TVD2 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Base

RF4 RF6565TVD2 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Base

The OK-8 Ring Light included in this product has been upgraded to the OK-9 Ring Light; for more information about the OK-9 Ring Light, please Click Here

Specification:

• Magnification: Continuous zoom 6.5X to 65X

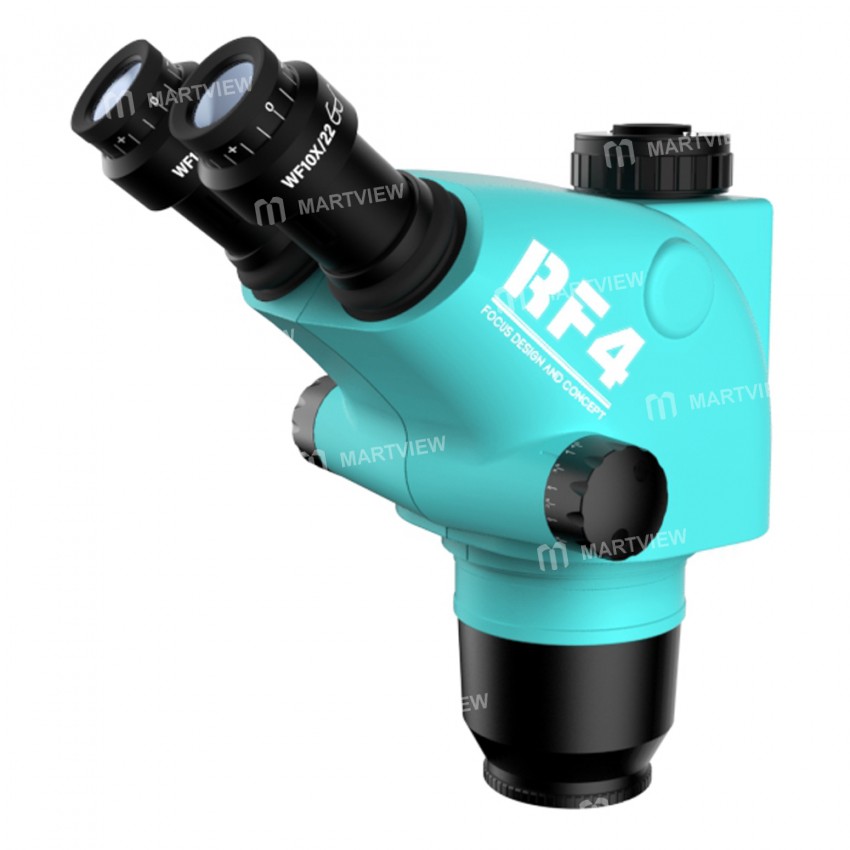

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM

• Objective: 0.65-6.5X

• Camera connector: 0.5X

• Monitor and eyepiece: Synchronous zoom

• Stand: 410*300mm

• Accessories: 144 adjustable led lights & dust proof Lens

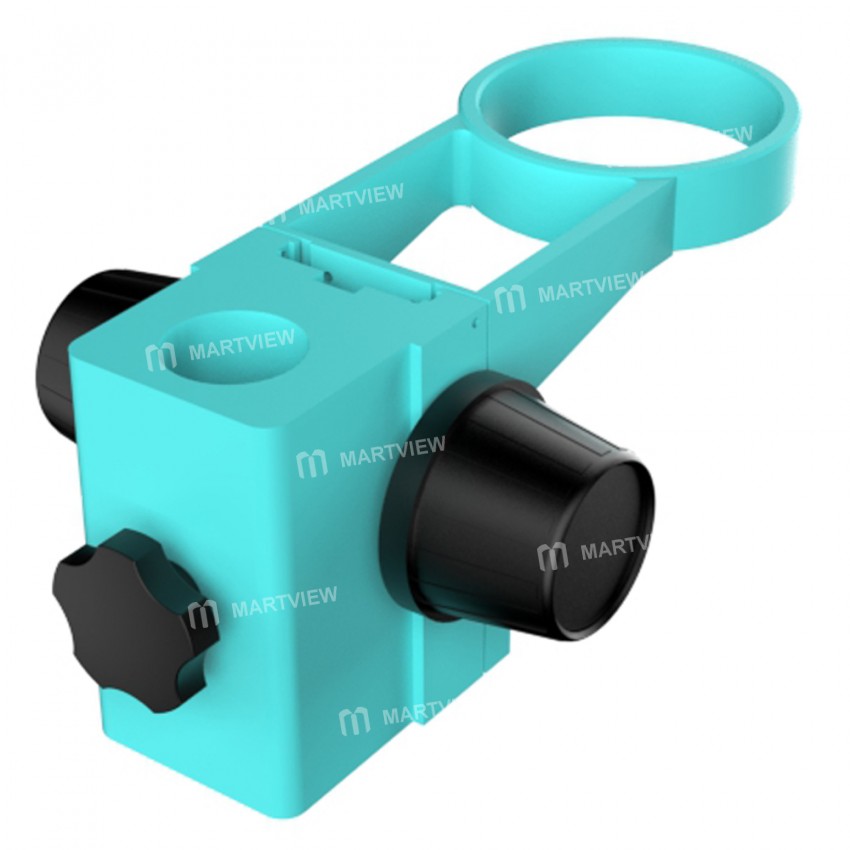

Support Parameters:

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

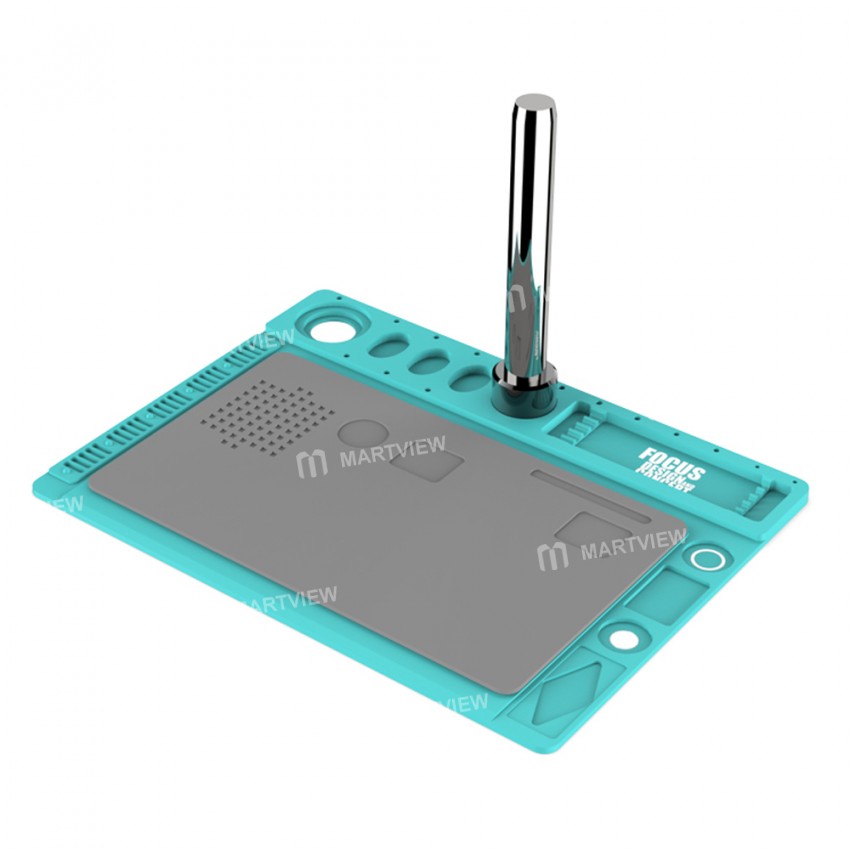

Base Parameters:

• Base size: 410*300mm

• Pillar: 240mm φ32mm

• Silicone pad size: 330*198mm

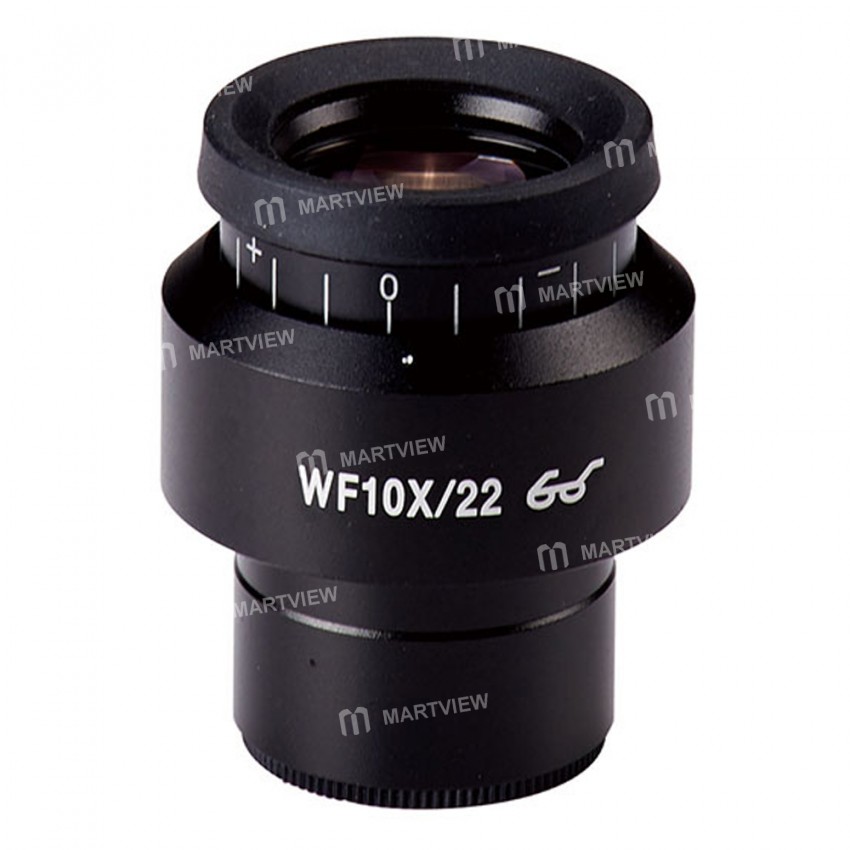

Wide-angle Eyepieces 10X/22:

• Magnification: 10X

• Wide field of view 22mm

• Matching size: 30mm

• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

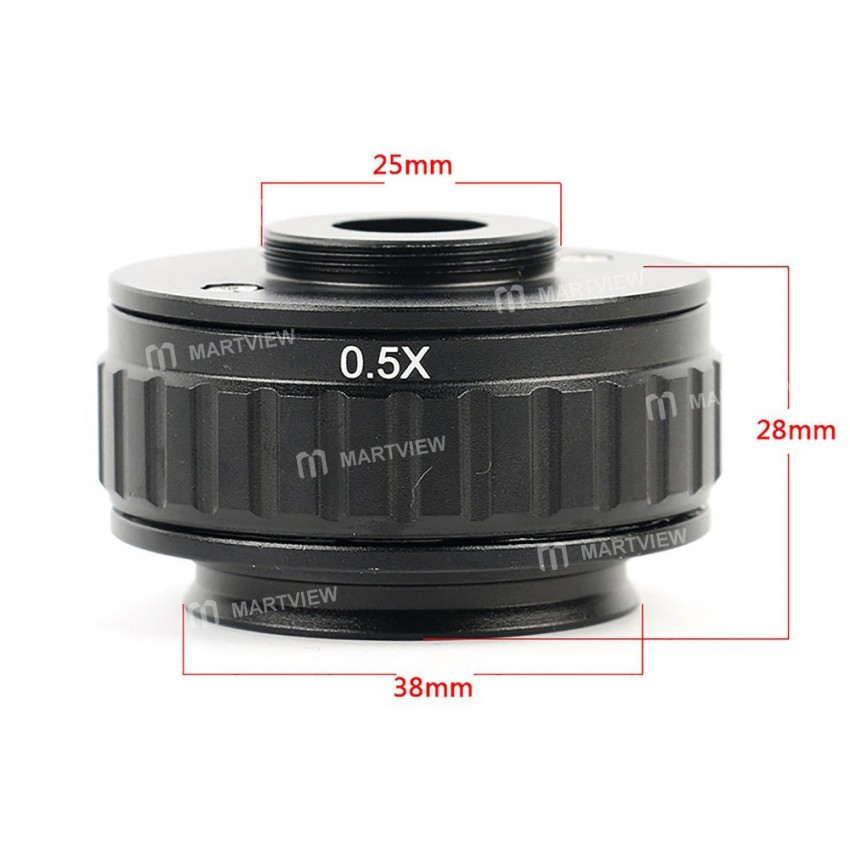

0.5X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz

• Output: DC 12V, Max 700mA

• Light color: White

• Number of lights: 144 LEDs

• Inside diameter: 60mm

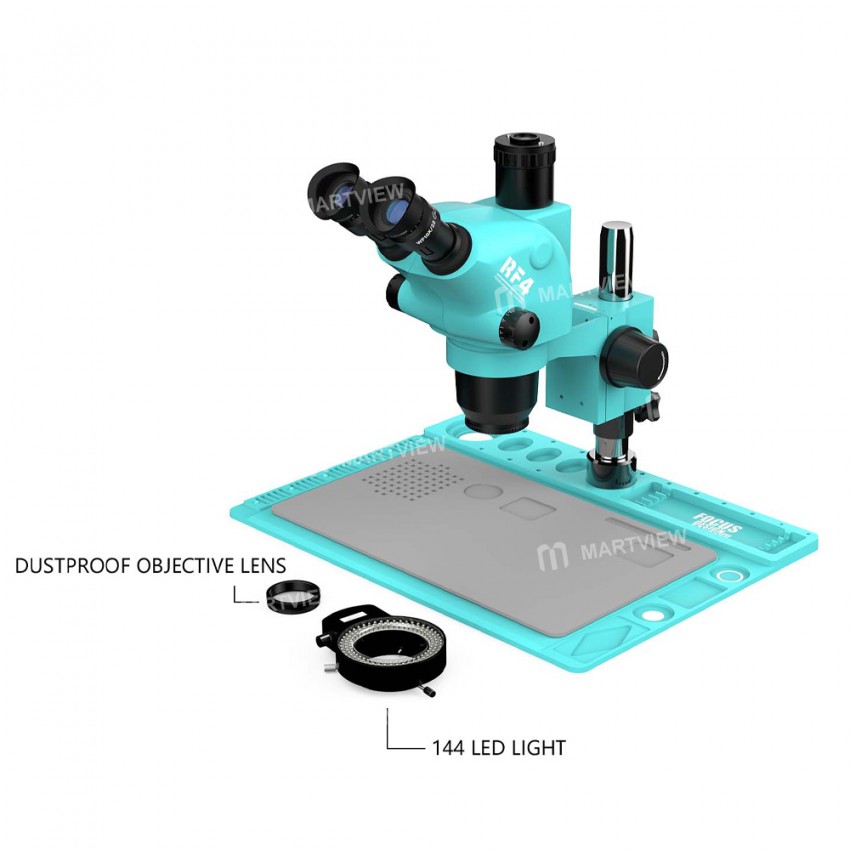

Package includes:

• 1 x Microscope

• 1 x Aluminum Alloy Plate

• 1 x 144 LED Light

• 1 x Dustproof Len

• 1 x 0.5X CTV Lens

• 1 x Silicone Pad
