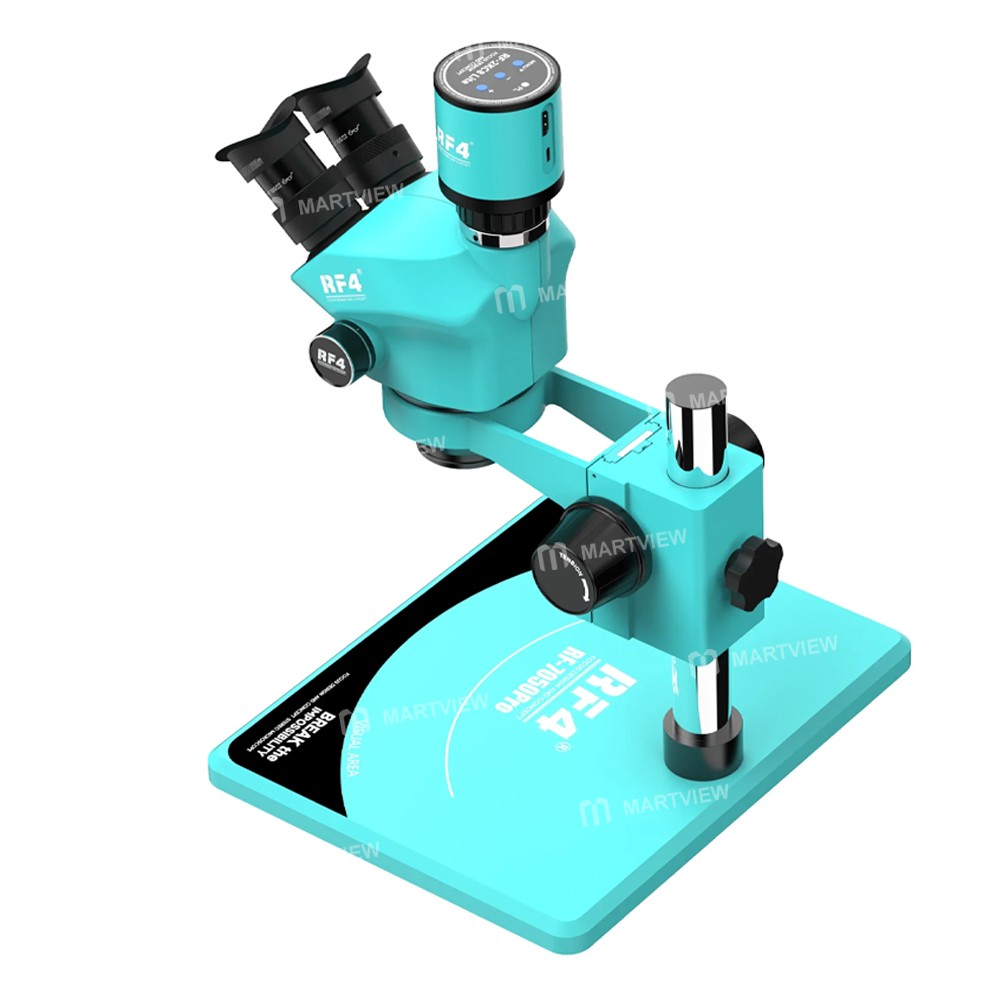

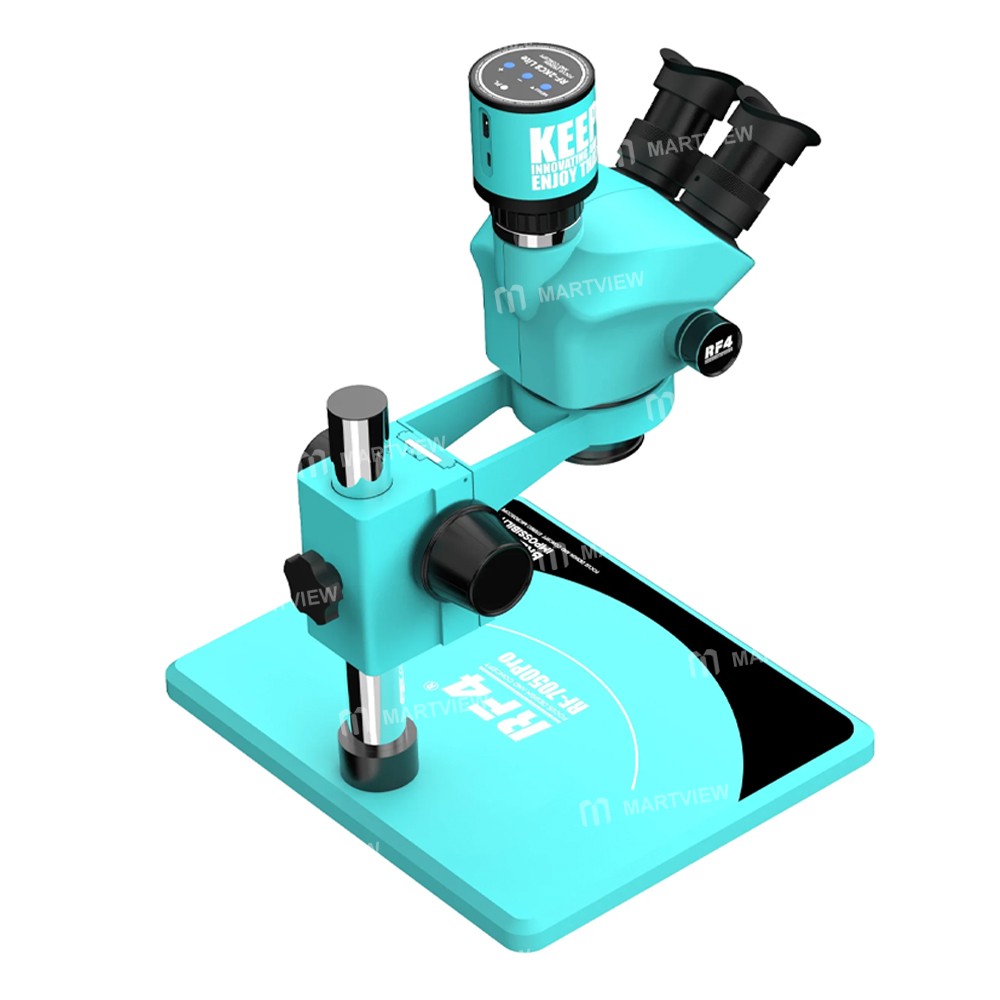

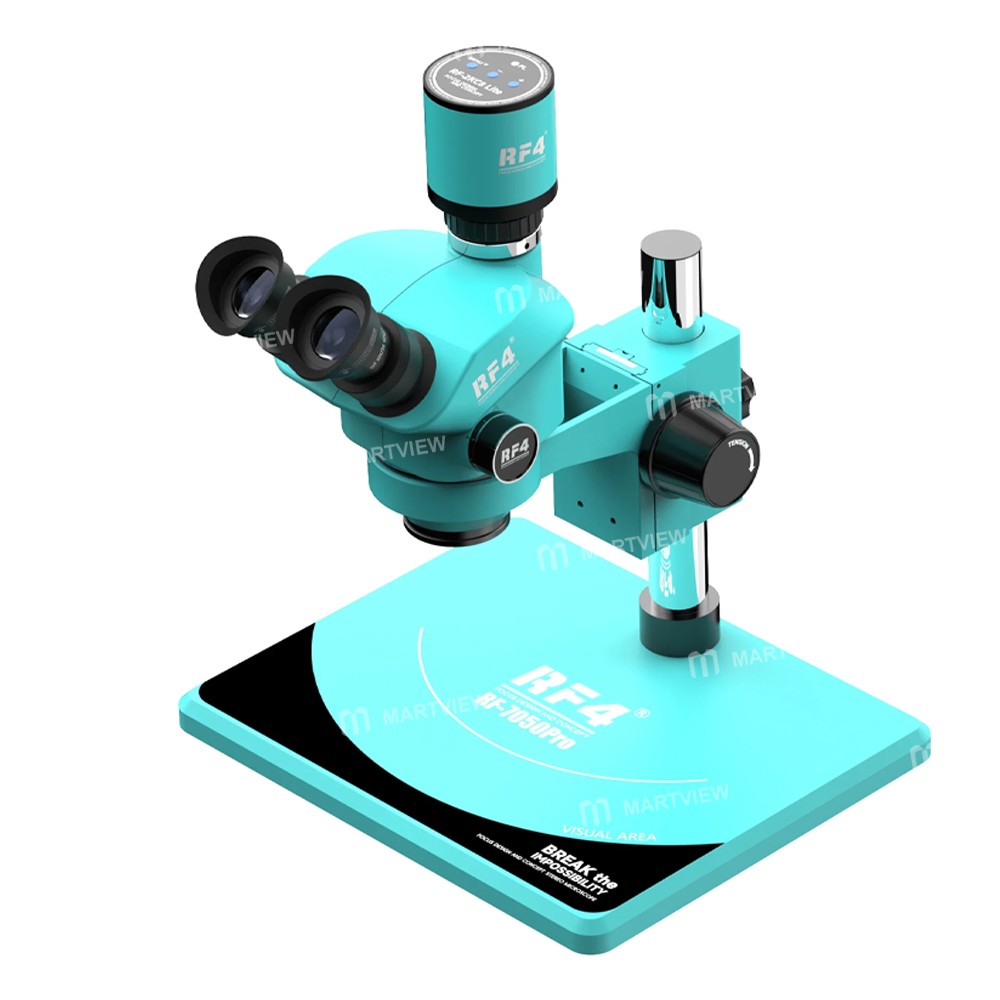

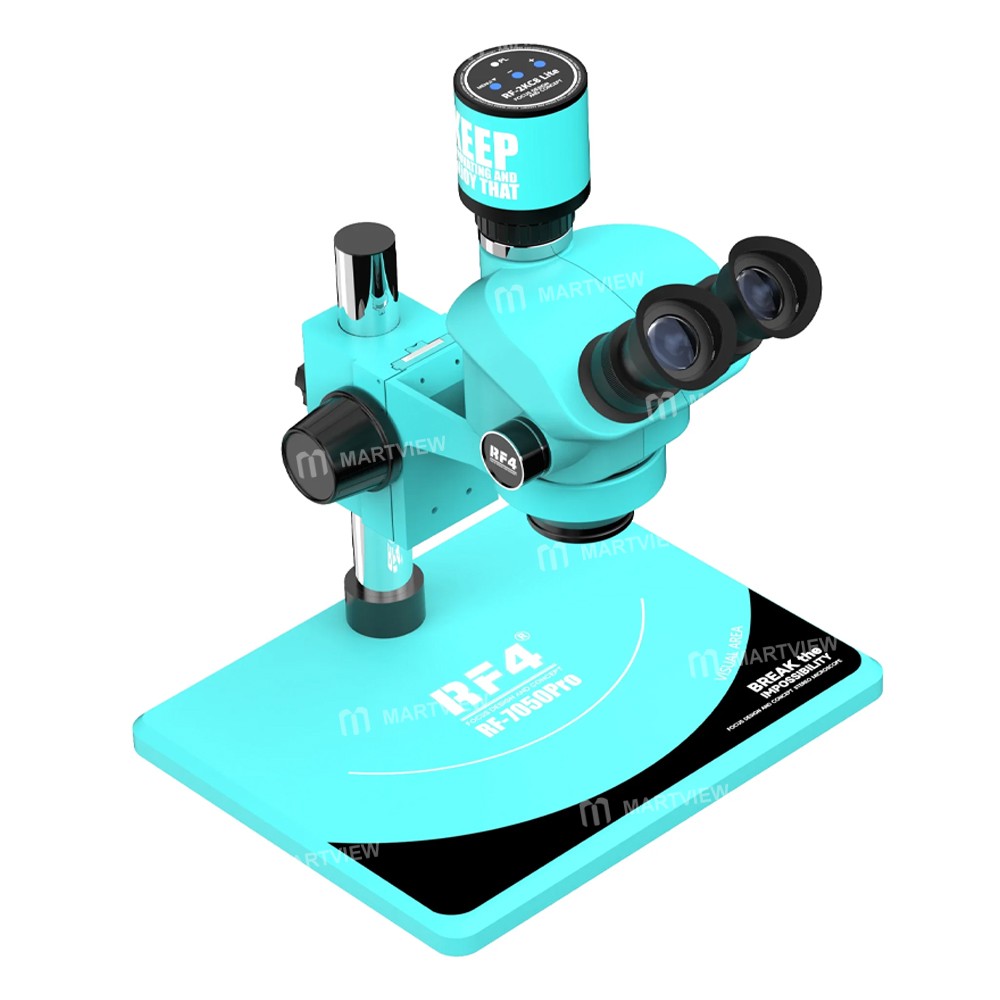

RF4 RF7050Pro-2KC8 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Base & 2K HD Camera

RF4 RF7050Pro-2KC8 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Base & 2K HD Camera

The OK-8 Ring Light included in this product has been upgraded to the OK-9 Ring Light; for more information about the OK-9 Ring Light, please Click Here

Specification:

• Magnification: Continuous zoom 7X to 50X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM

• Objective: 0.7-5.0X

• Camera connector: 0.5X

• Monitor and eyepiece: Synchronous zoom

• Accessories: 144 adjustable LED lights & proof Lens

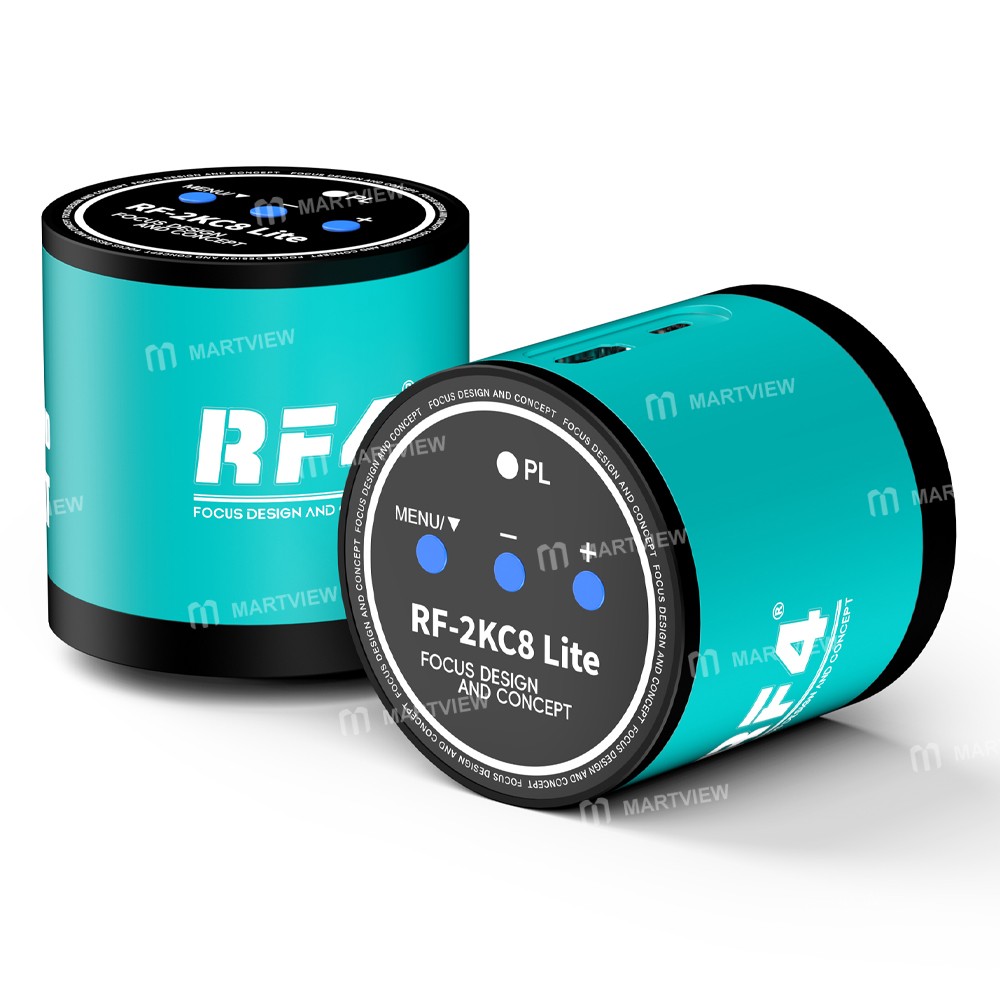

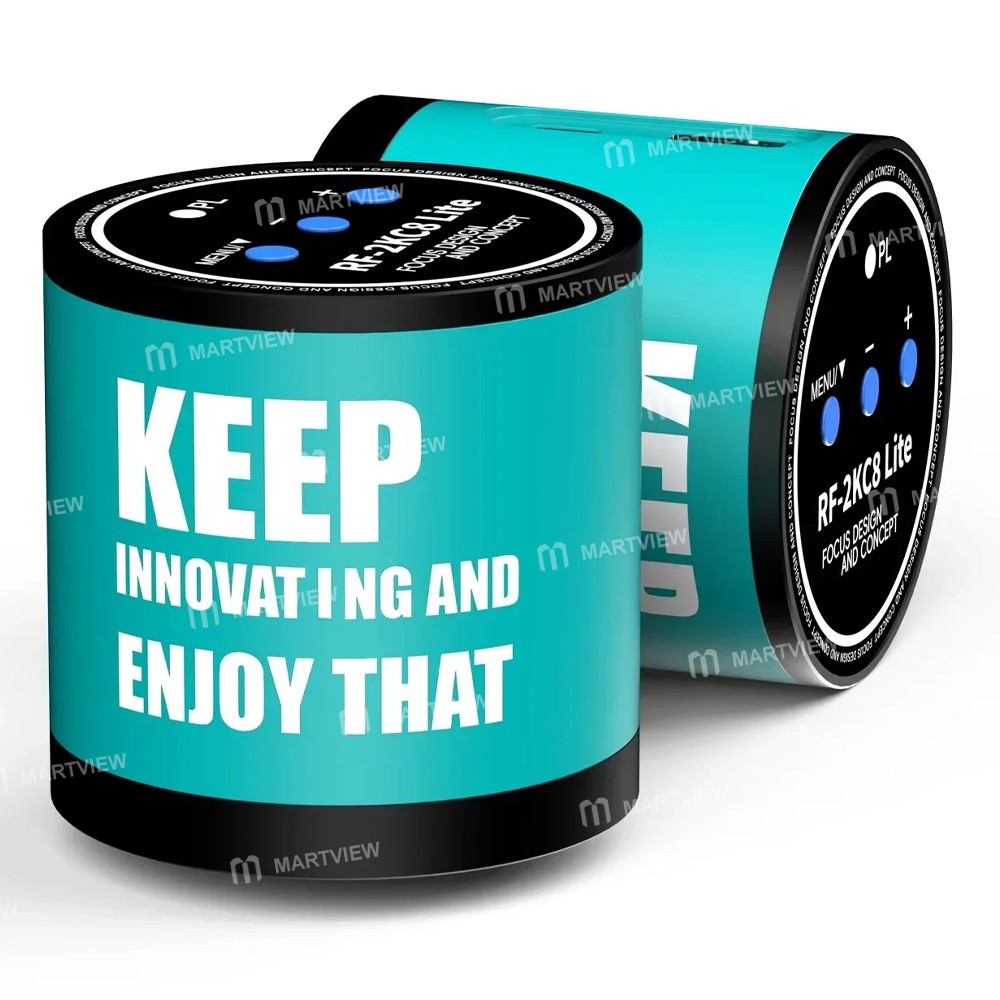

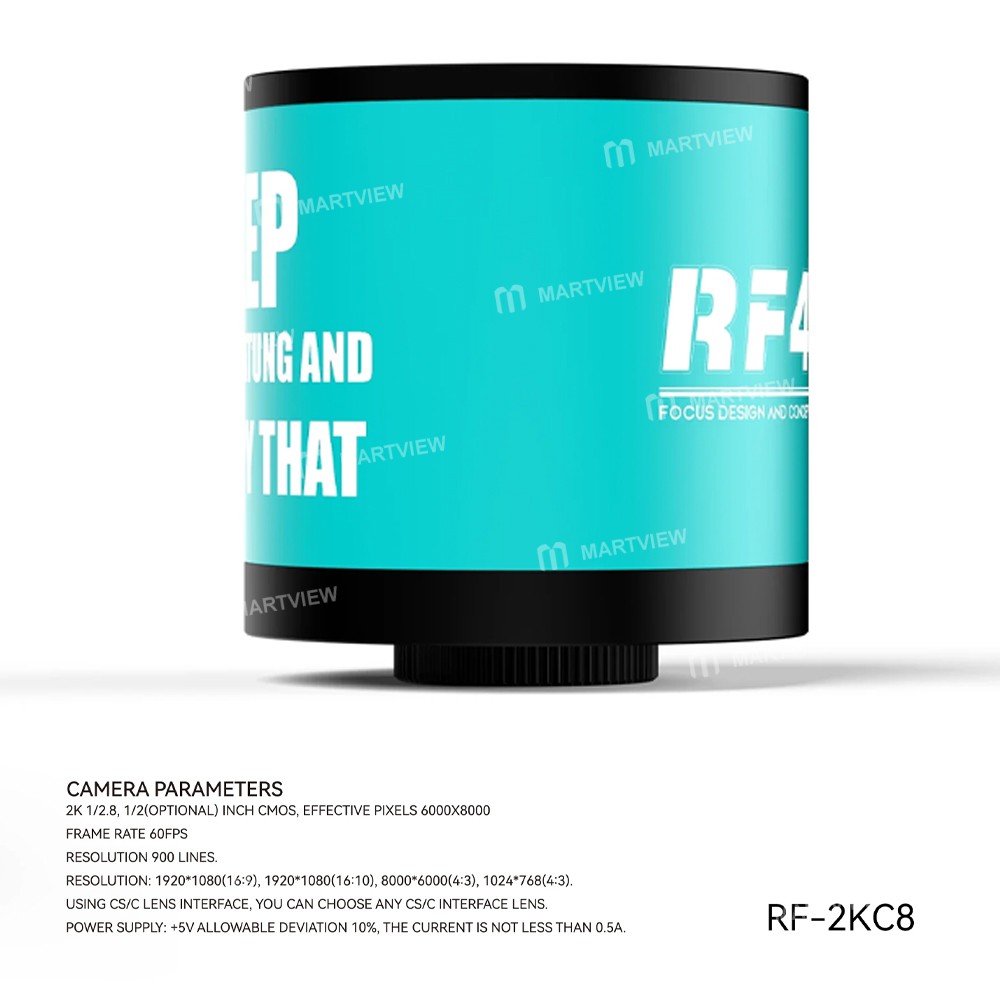

2K HD Camera:

• 2K 1/2.8, 1/2 (optional) inch CMOS

• Effective pixels: 6000*8000

• Frame rate: 60FPS

• Clear graduation: 900 lines

• Resolution: 1920*1080(16:9), 1920*1080(16:10), 1280*720(16:9), 1024*768(4:3)

• Adopting a CS/C lens interface allows you to choose any forgotten CS/C interface lens.

• Power supply: +5V allow deviation of 10%, the current is not less than 0.5A

Support Parameters:

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

Wide-angle Eyepieces 10X/22:

• Magnification: 10X

• Wide field of view 22mm

• Matching size: 30mm

• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.5X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz

• Output: DC 12V, Max 700mA

• Light color: White

• Number of lights: 144 LEDs

• Inside diameter: 60mm

Package includes:

• 1 x Microscope

• 1 x 2K HD Camera

• 1 x Aluminum Alloy Plate

• 1 x 144 LED Light

• 1 x Dustproof Len

• 1 x 0.5X CTV Lens
