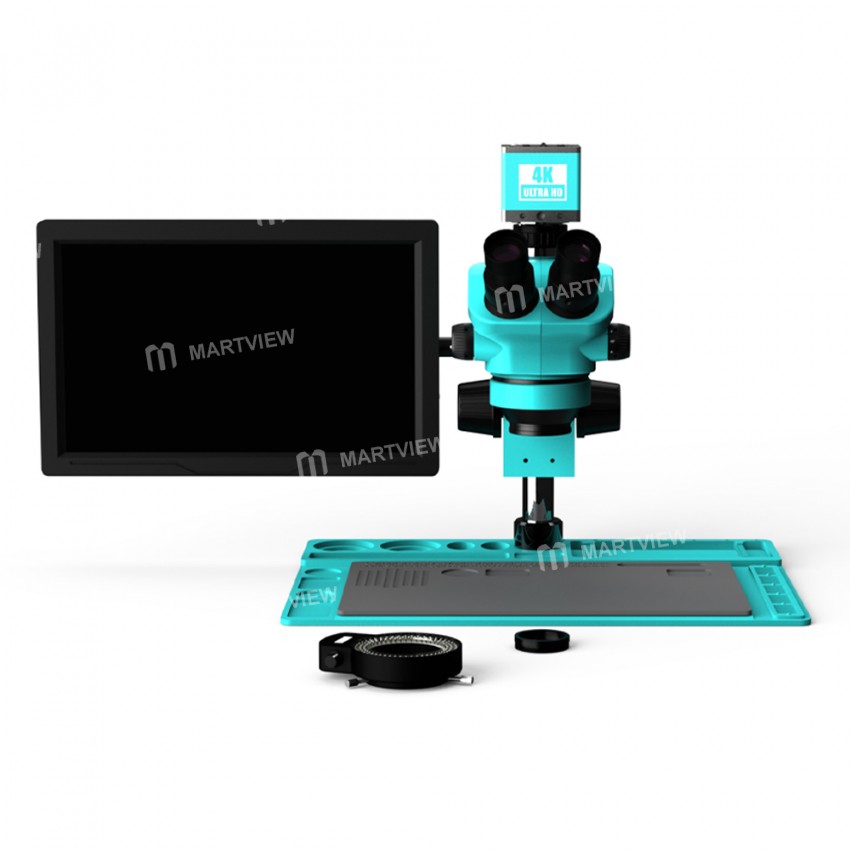

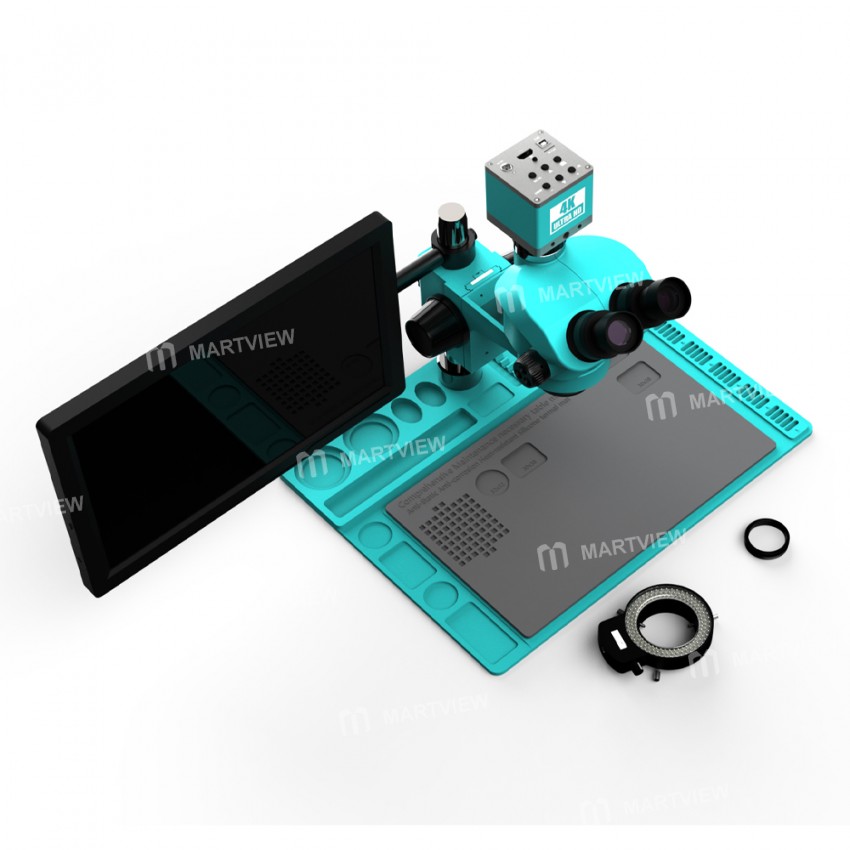

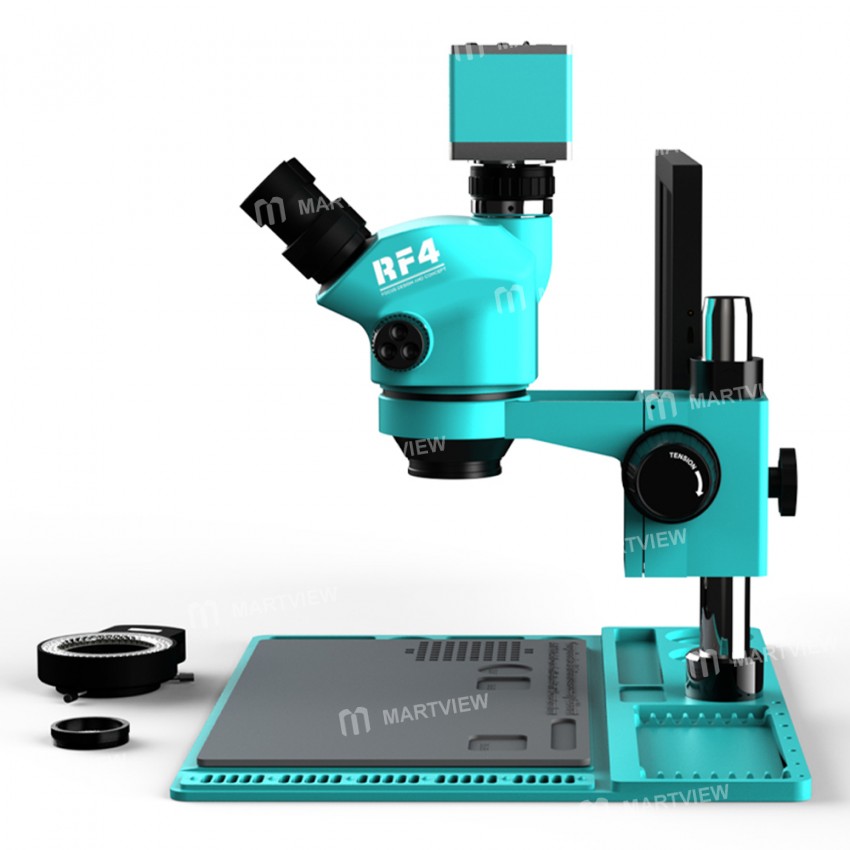

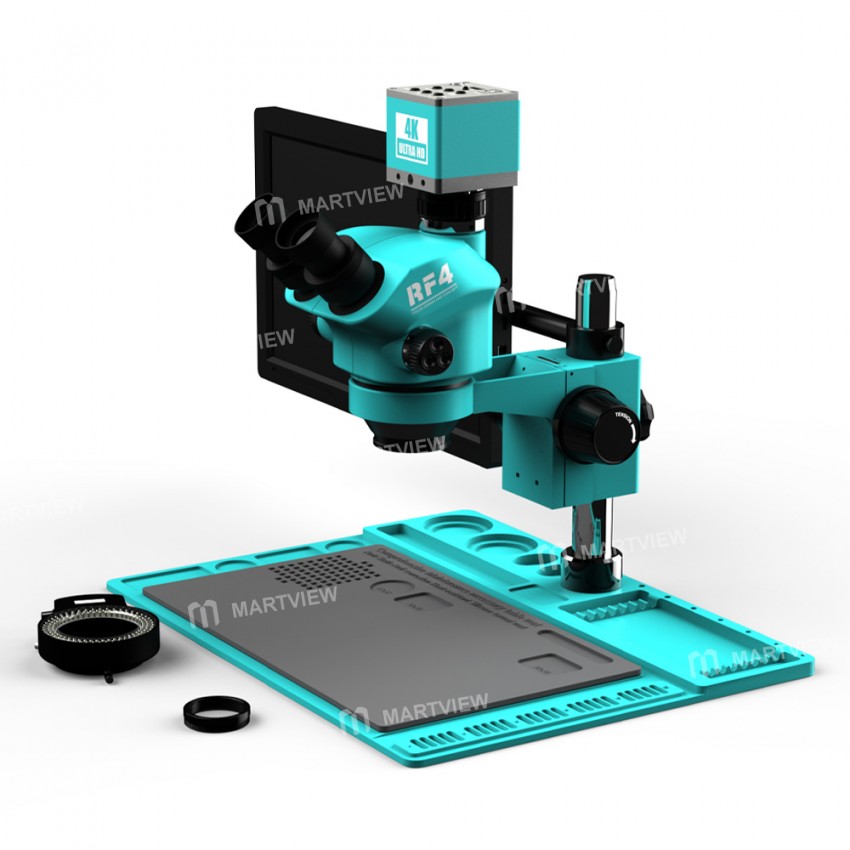

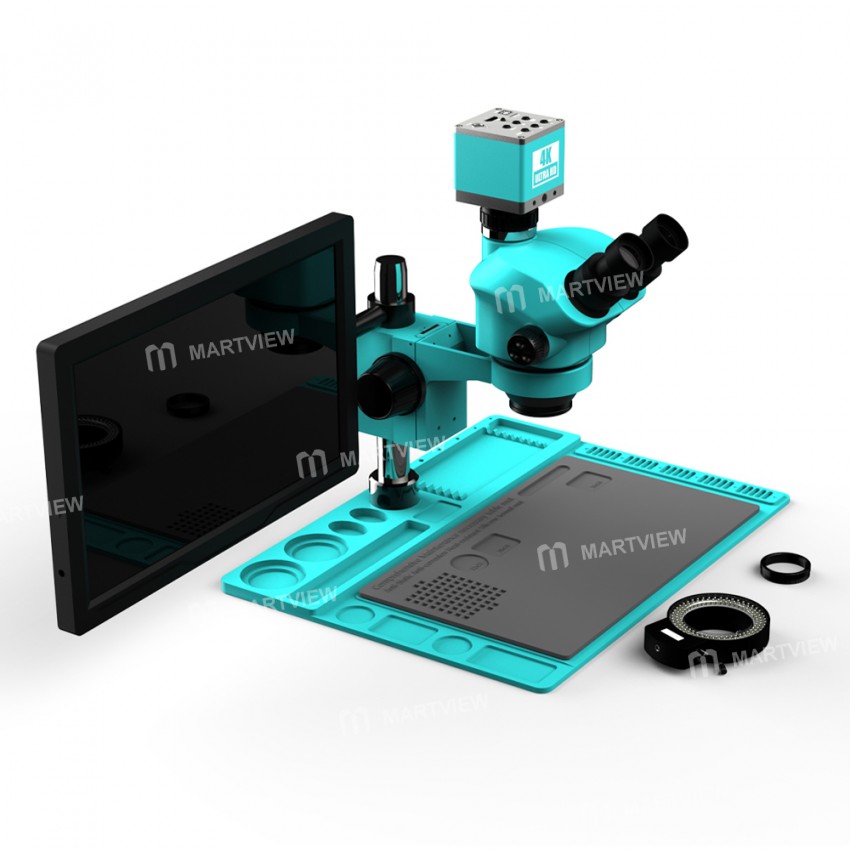

RF4 RF7050TVD2-4KC2-M156 7-50X Electronic Trinocular Microscope with 15.6-inch 4K Monitor & 4K Camera

RF4 RF7050TVD2-4KC2-M156 7-50X Electronic Trinocular Microscope with 15.6-inch 4K Monitor & 4K Camera

The OK-8 Ring Light included in this product has been upgraded to the OK-9 Ring Light; for more information about the OK-9 Ring Light, please Click Here

The 4KC2 Camera included in this product has been upgraded to a 4KC1 PRO Camera; for more information about the 4KC1 PRO Camera, please Click Here

Specification:

• Magnification: Continuous zoom 7X to 50X

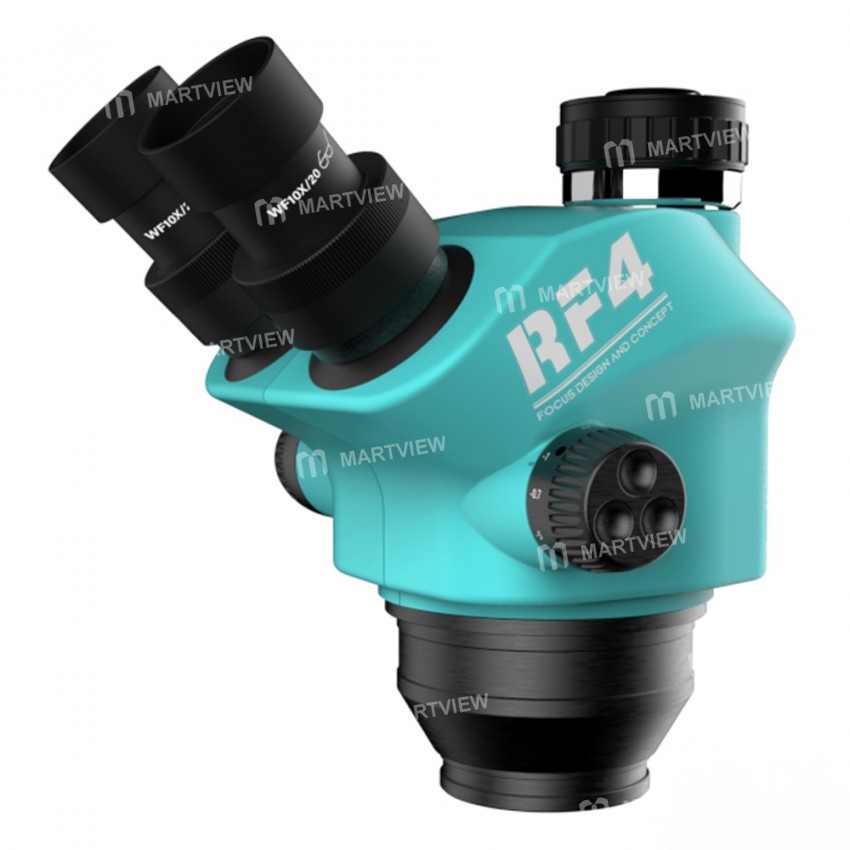

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM

• Objective: 0.7-5.0X

• Camera connector: 0.5X

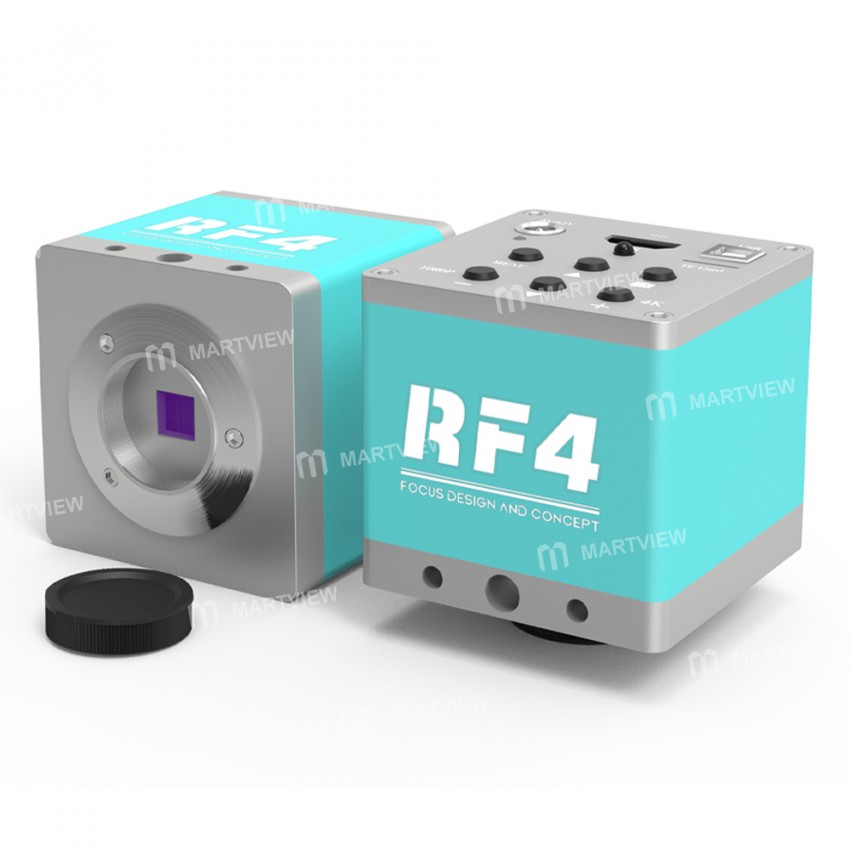

• Camera: 4K camera

• Monitor and eyepiece: Synchronous zoom

• Stand: 410*300mm

• Accessories: 144 adjustable led light & dust proof Lens

• Monitor: 15.6-inch 4K ultra HD monitor

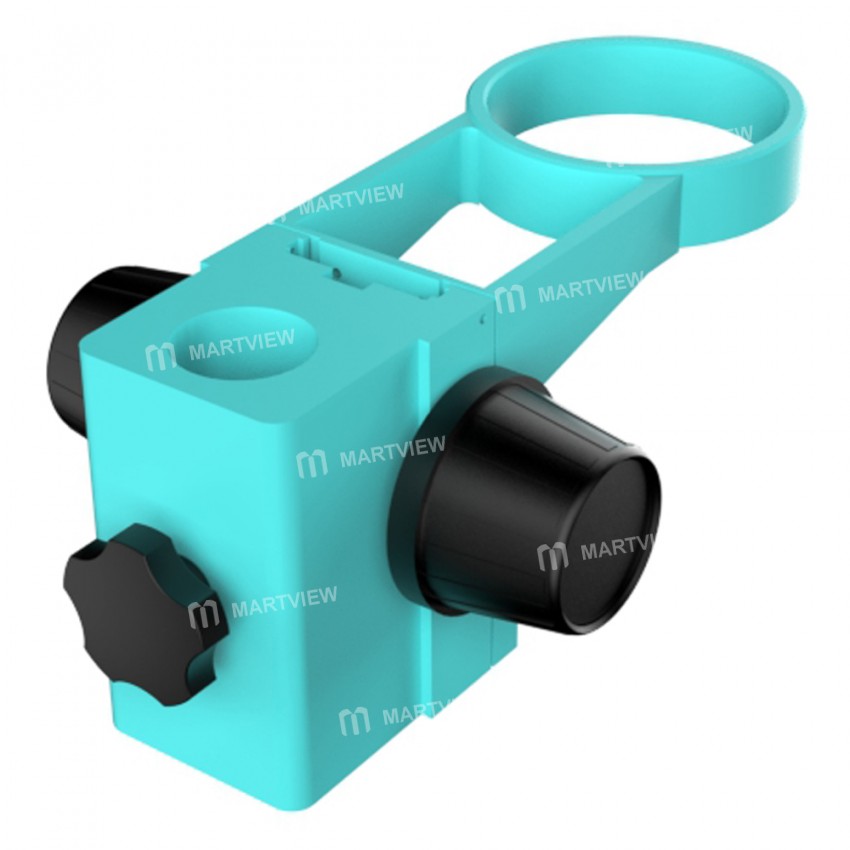

Support Parameters:

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

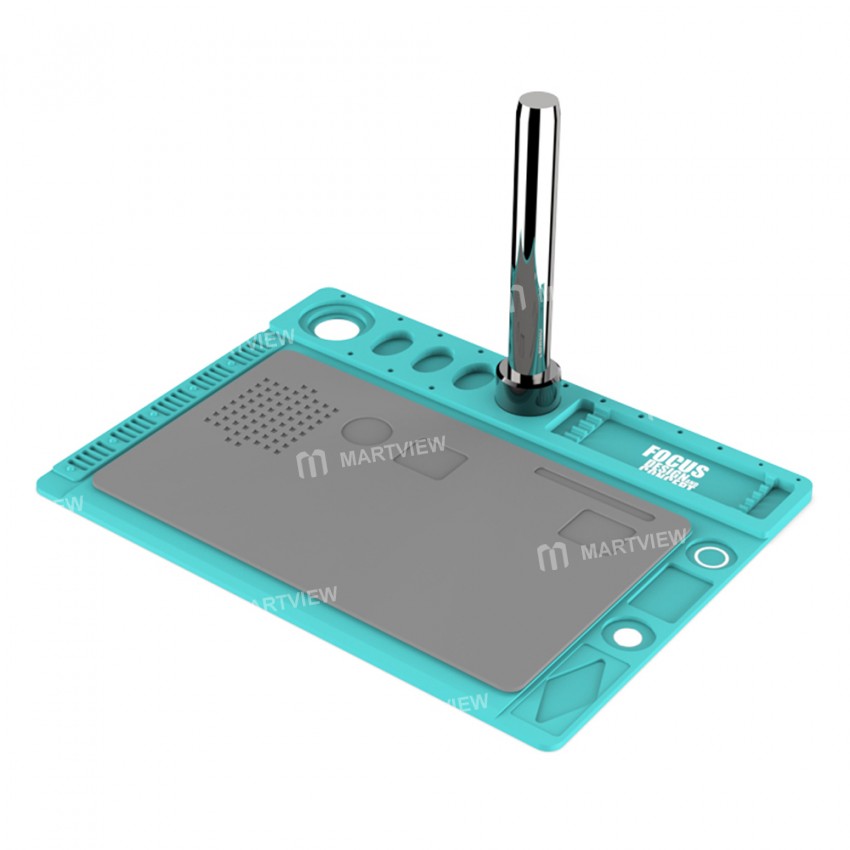

Base Parameters:

• Base size: 410*300mm

• Pillar: 240mm φ32mm

• Silicone pad size: 330*198mm

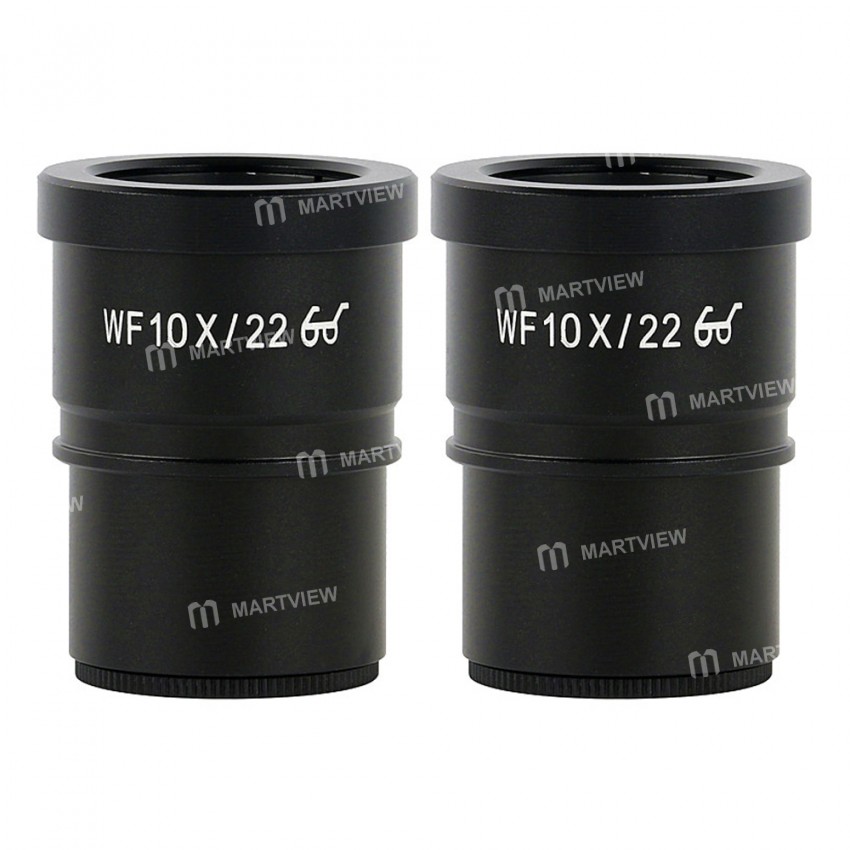

Wide-angle Eyepieces 10X/22:

• Magnification: 10X

• Wide field of view 22mm

• Matching size : 30mm

• Applicable models: Stereoscopic, fixed and continuous magnification microscopes

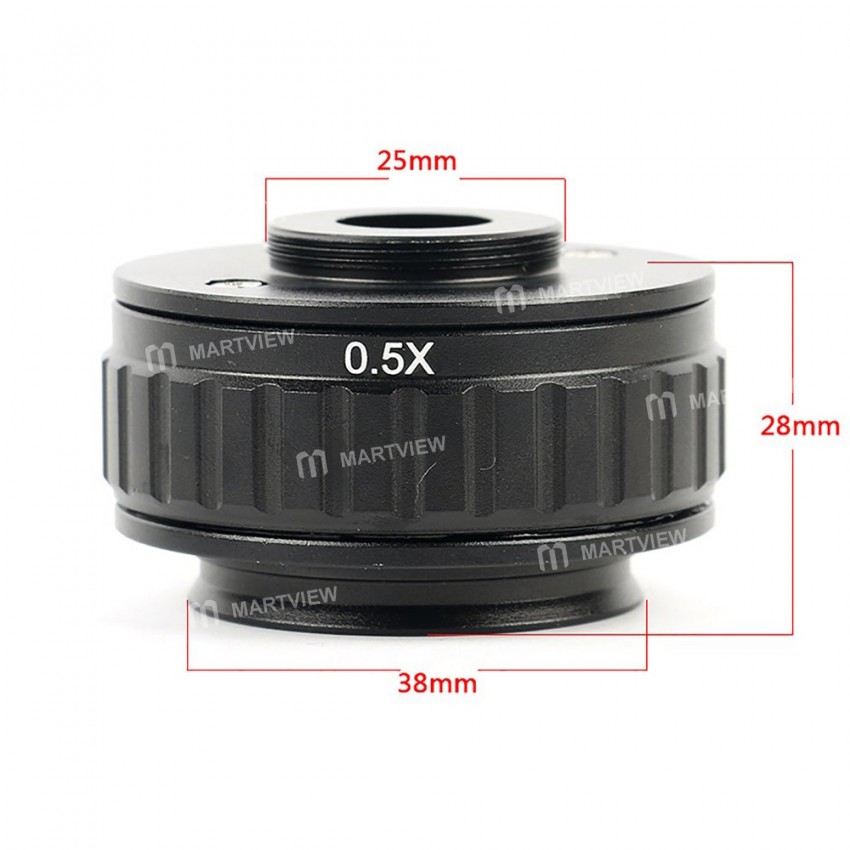

0.5X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming

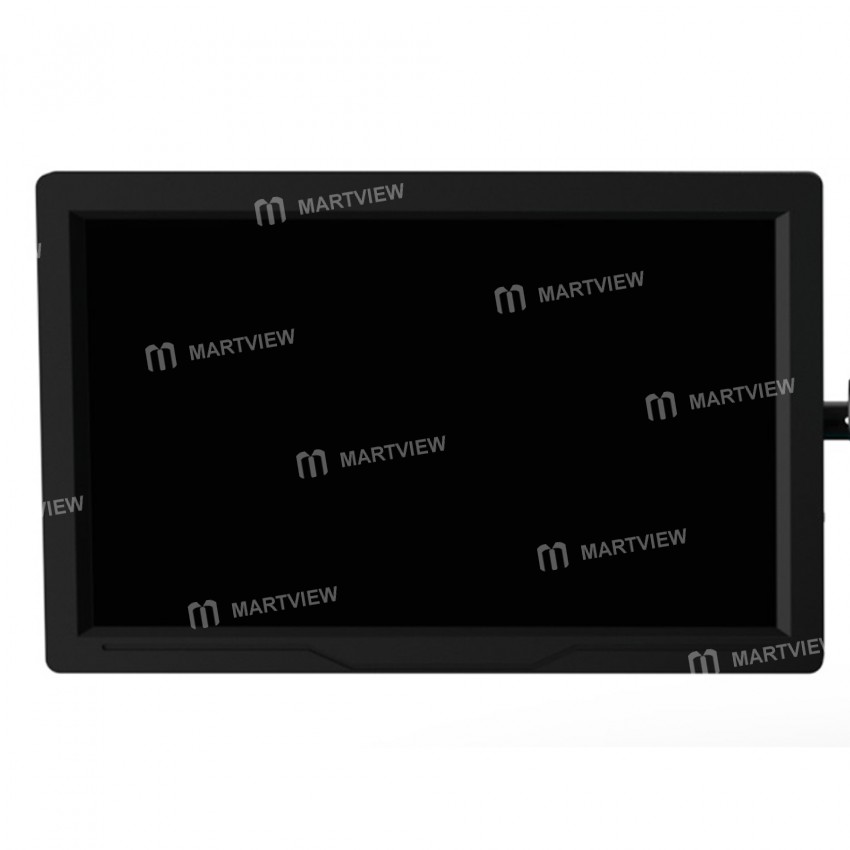

Monitor:

• 15.6-inch 4K ultra HD monitor

• Resolution ratio:3840*2160 30Hz

• Support for input resolution: 3840*2160@30Hz; 1920*1080@60Hz

• Proportion of the screen: 16 : 9

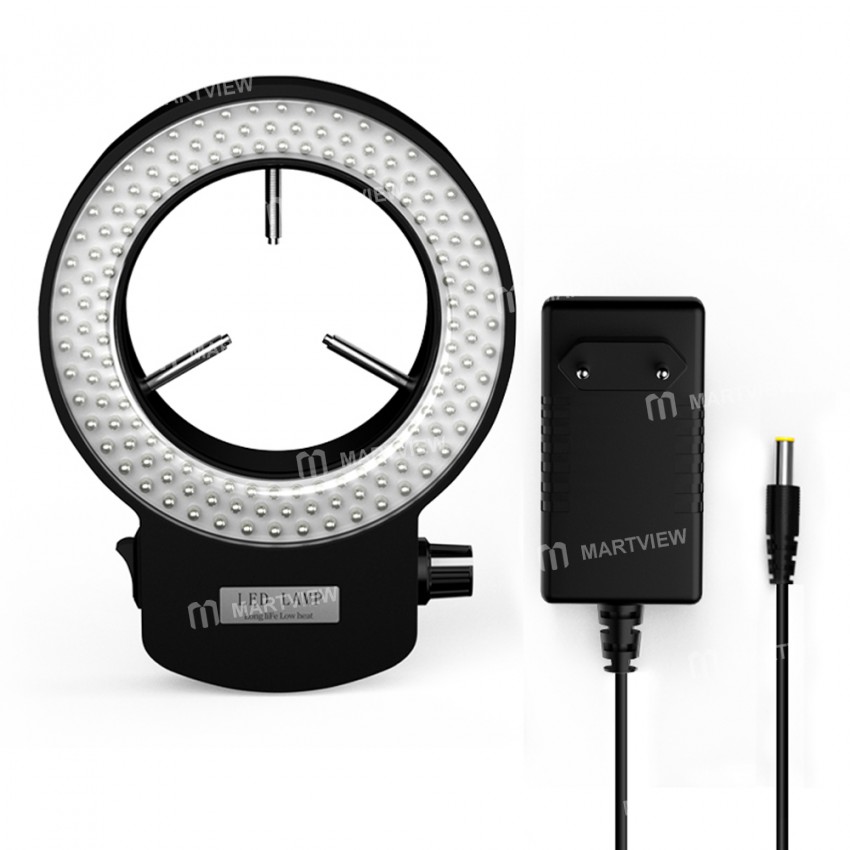

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz

• Output: DC 12V, Max 700mA

• Light color: White

• Number of lights: 144 LEDs

• Inside diameter: 60mm

Package includes:

• 1 x Microscope

• 1 x Aluminum alloy plate

• 1 x 144 LED light

• 1 x Dustproof len

• 1 x 0.5X CTV lens

• 1 x 4K CCD Camera

• 1 x Display

• 1 x Silicone pad
