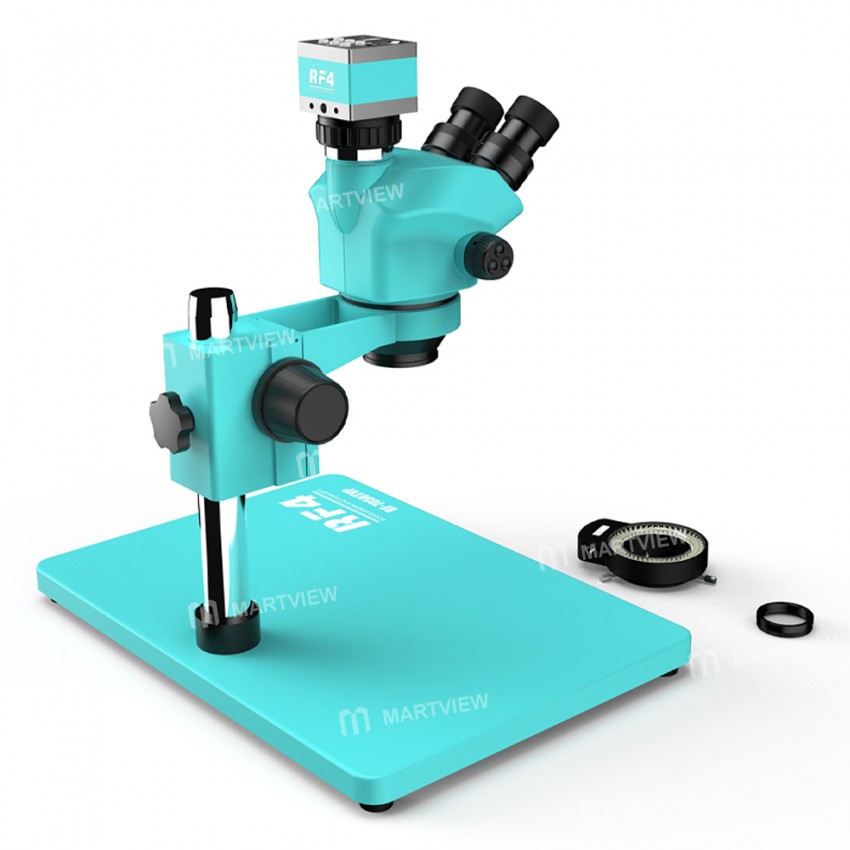

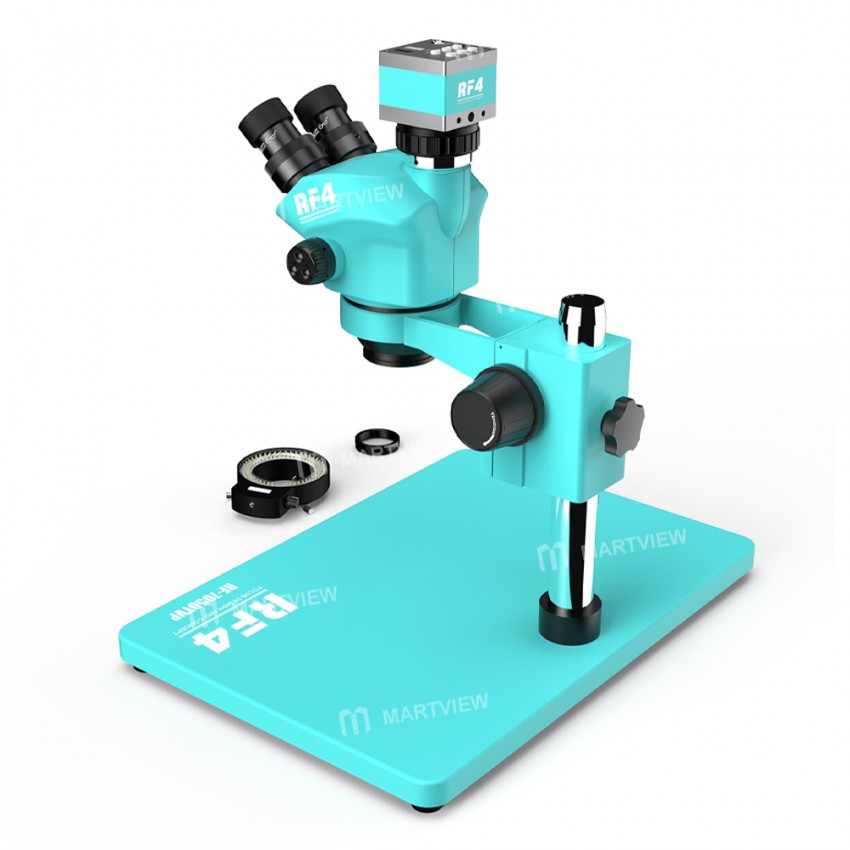

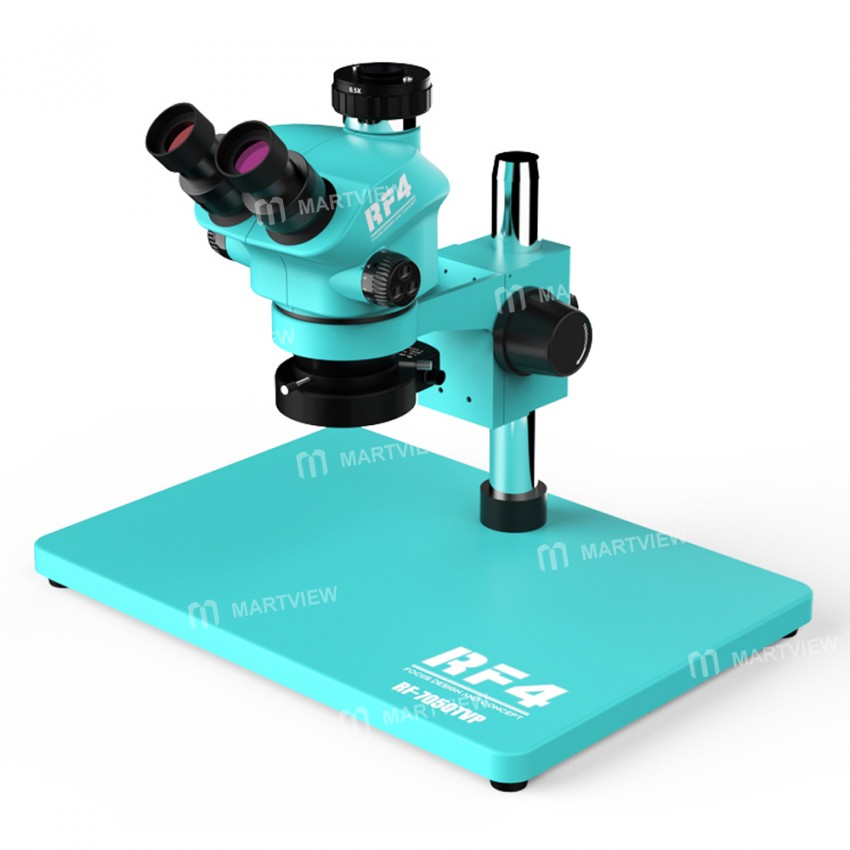

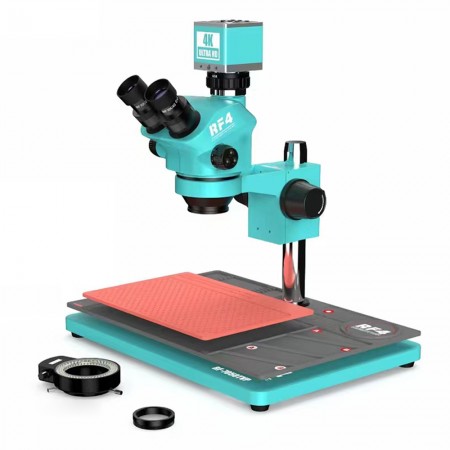

RF4 RF7050TVP-4K-PO2 Synchronous Zoom Stereo Microscope Workbench with 4K Ultra HD CCD Camera

RF4 RF7050TVP-4K-PO2 Synchronous Zoom Stereo Microscope Workbench with 4K Ultra HD CCD Camera

Features:

• Continuous zoom trinocular simultaneous observation, clear image/easy operation


• Large wide-angle lens/continuous zoom/adjustable LED/diopter adjustment

• 10x high-definition wide-angle eyepiece, large diameter, wide field of view, long-term use is not easy to fatigue

• The total magnification is 7X-50X, the standard working distance is up to 100mm, and the optical components are coated with a special film for clearer observation

• Adjustable ring LED light, adjustable brightness, and strong focusing type do not affect the operating space

• Comes with dust-proof, oil-proof, and high-temperature lenses to prevent eyepiece pollution, and safe and durable

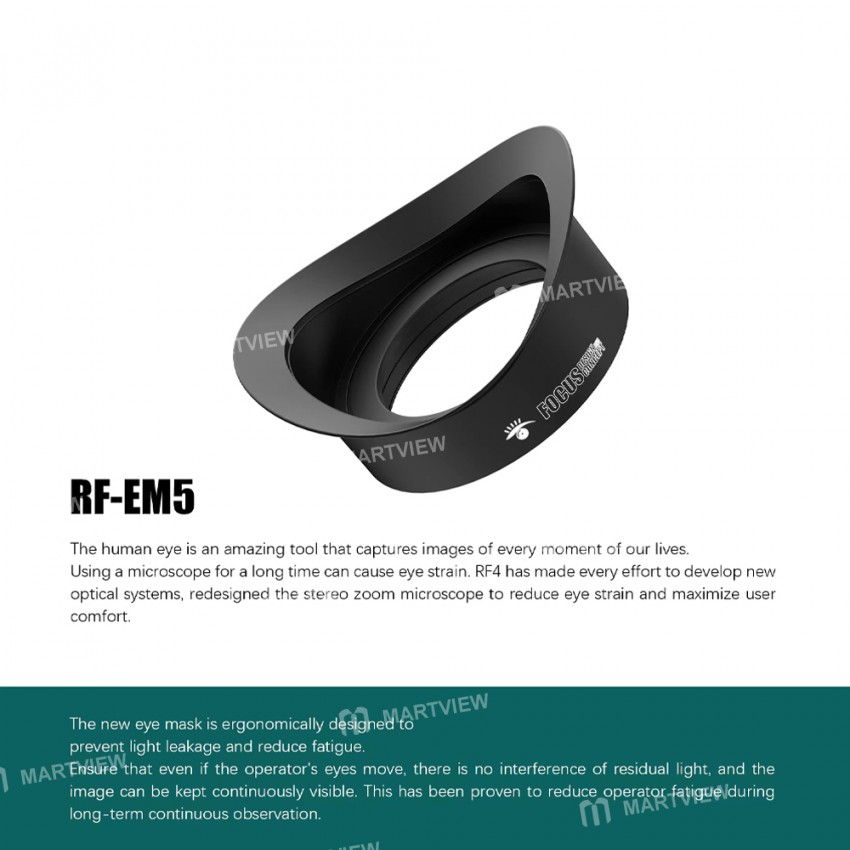

• Both eyes support diopter adjustment, adapt to people with different eye distances, and can observe even if you take off your glasses, which is in line with the ergonomic design

• The ultra-long working distance is conducive to spot welding by mobile phone maintenance, circuit board inspection, etc.

Specification:

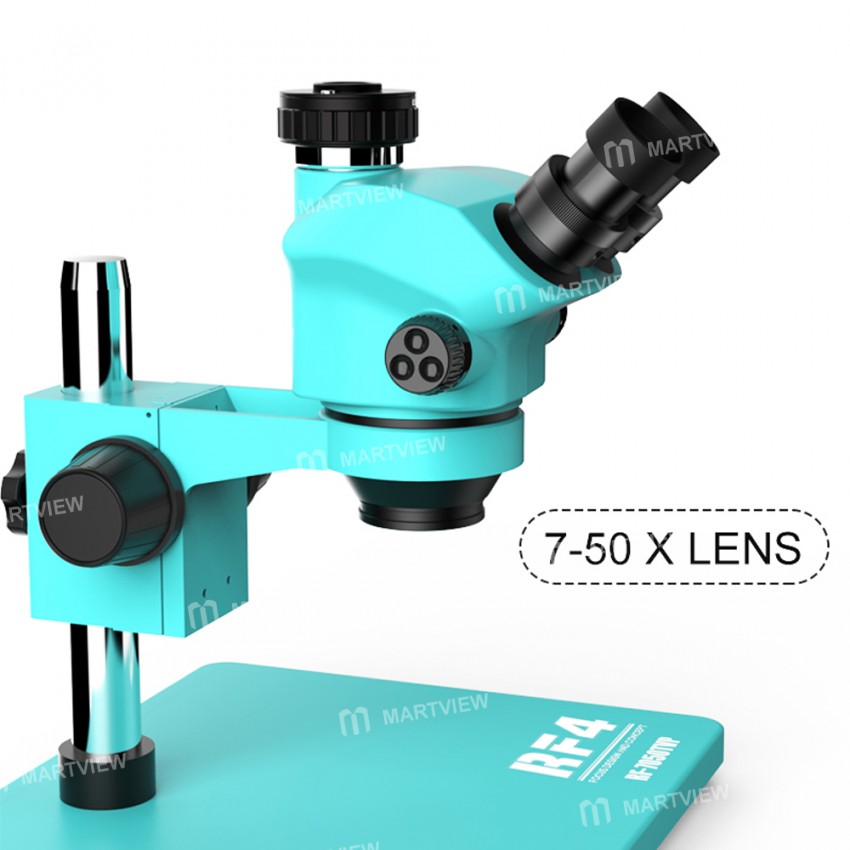

• Magnification: Continuous zoom 7X to 50X

• Head: 45-degree inclined 360-degree swiveling trinocular

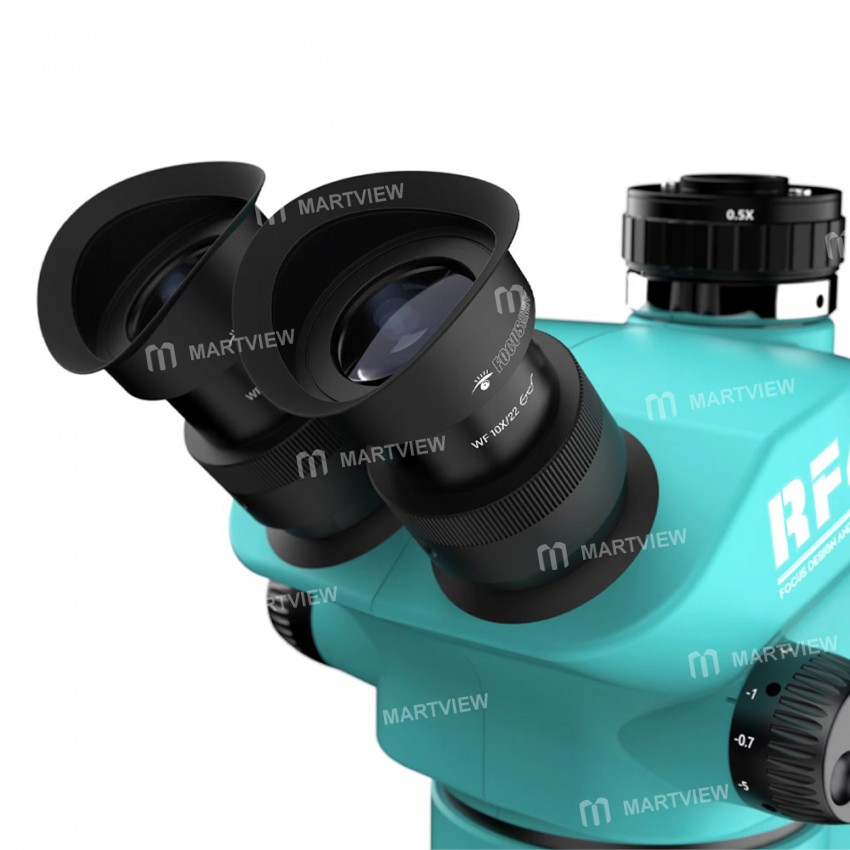

• Eyepiece: WF10X/22MM

• Barlow Lens: 0.5X & 0.7 & 2.0X(optional)

• Objective: 0.7-5.0X

• Camera connector: 1/2 CTV

• Camera: 4K Ultra HD

• Boom Stand: 250mm φ32mm pillar, 380mm*260mm base

• Accessories: 144 adjustable LED lights & dust proof  Lens

LED Ring Light:

• Input: AC 100~240V

• Output: DC 12V

• Max output: 4.5W-6W

• LED: 144 LEDs

• Illumination: Over 30000-35000Lux

• Color Temperature: 6000-7000K

• Light color: Black

• Inside diameter: 60mm

• Package: 144-LED Lamp Ring

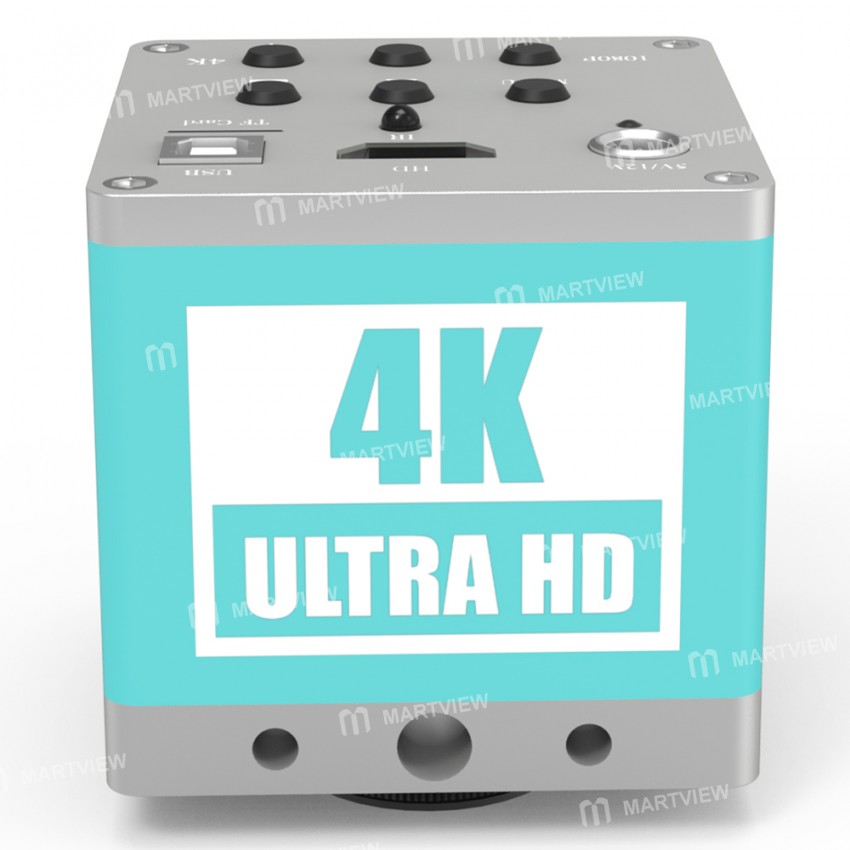

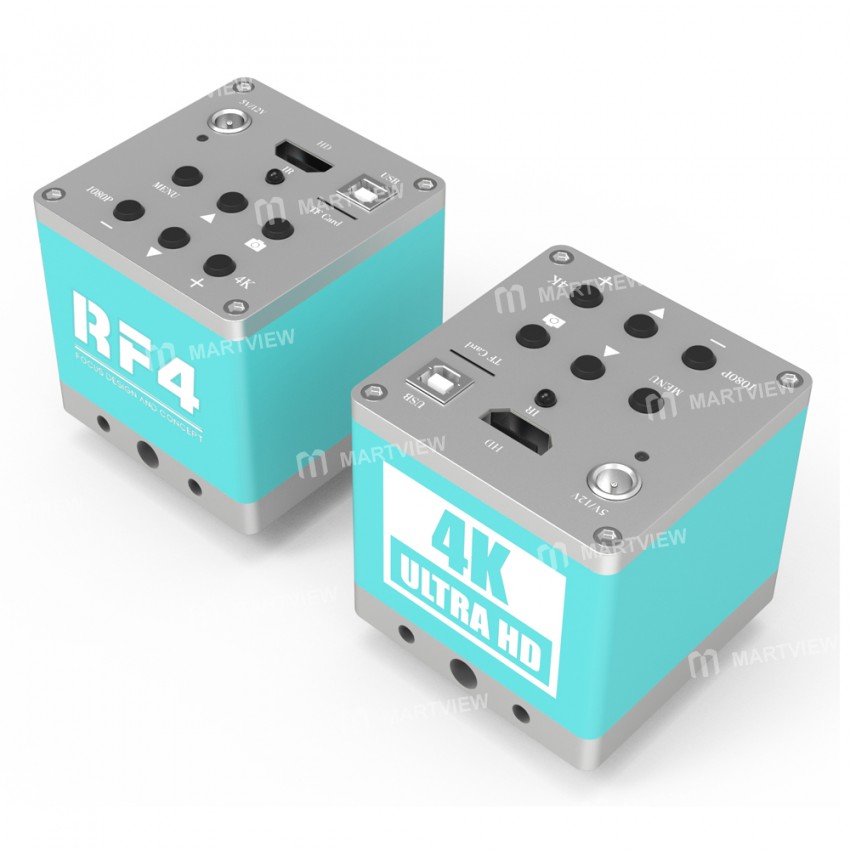

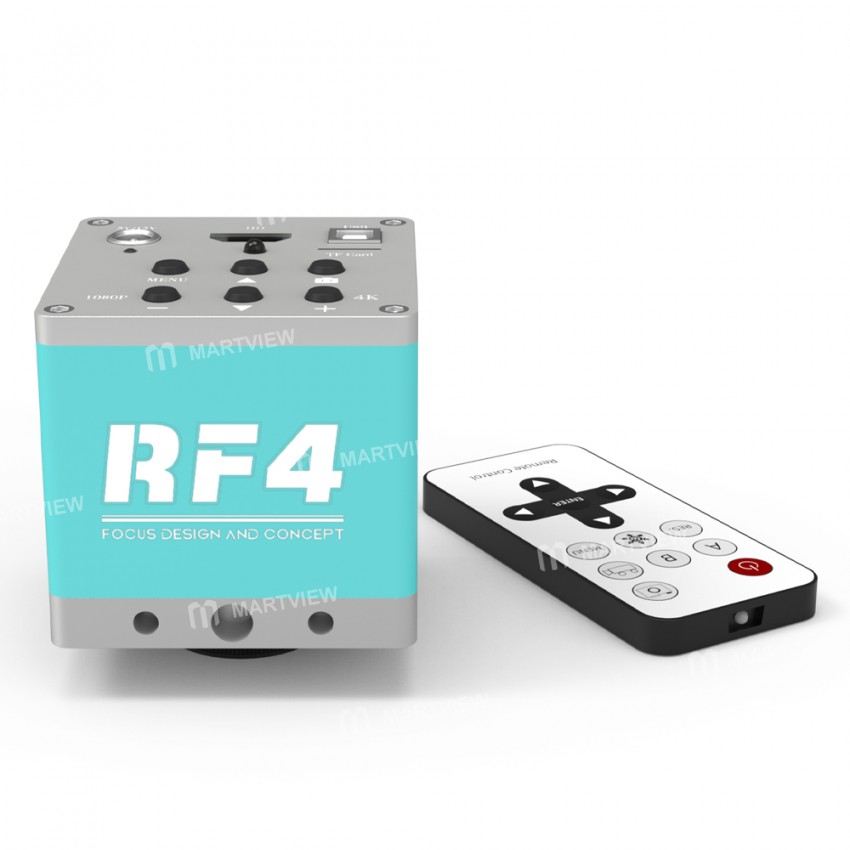

4K Ultra HD Camera:

• Sensor Target surface size: 1/2.8"

• The sensor resolution: 4K/3840*2160@30fps

• Output interface: HDMI 4k@30fps

• Mode of operation: Button

• Working voltage: DC 12V

• Storage: USB disk, capacity<=64GB

• The lens type: Supports C/CS interfaces

• Photograph: 8 million, JPG

• Video: 3840*2160 AVi

• Cross curve: 8*8 groups

• File Manager: With

• Parameter type: Specific parameter

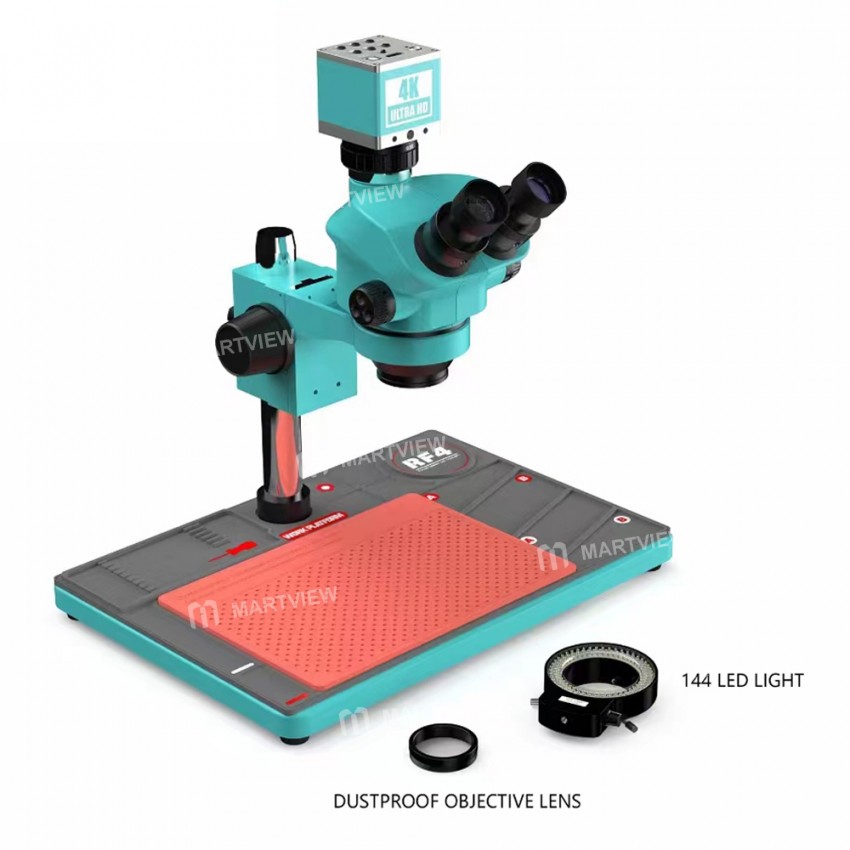

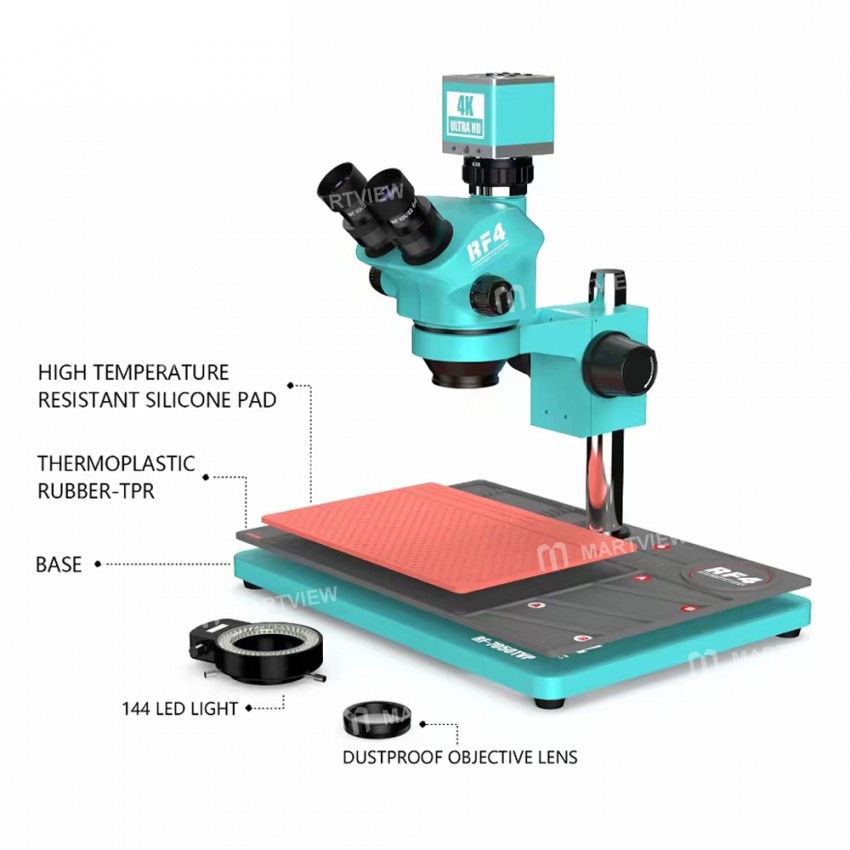

Package includes:

• 1 x Microscope

• 1 x Aluminum alloy plate

• 1 x 144 LED light

• 1 x Dustproof len

• 1 x 0.5X CTV lens

• 1 x 4K CCD Camera

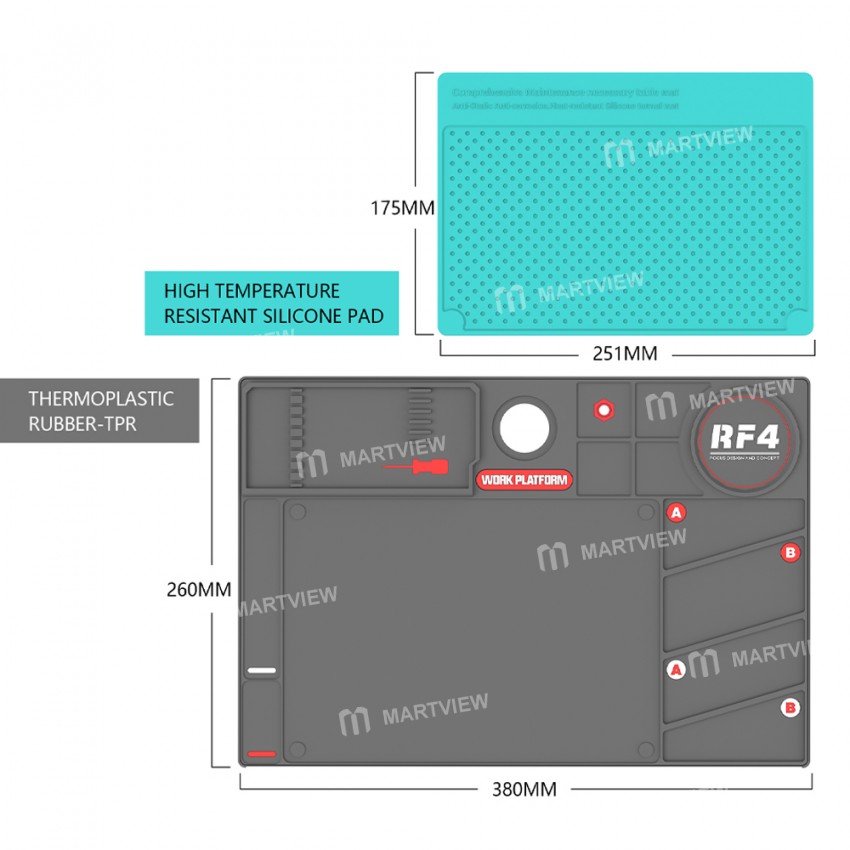

• 1 x Silicone pad (Random Color)
