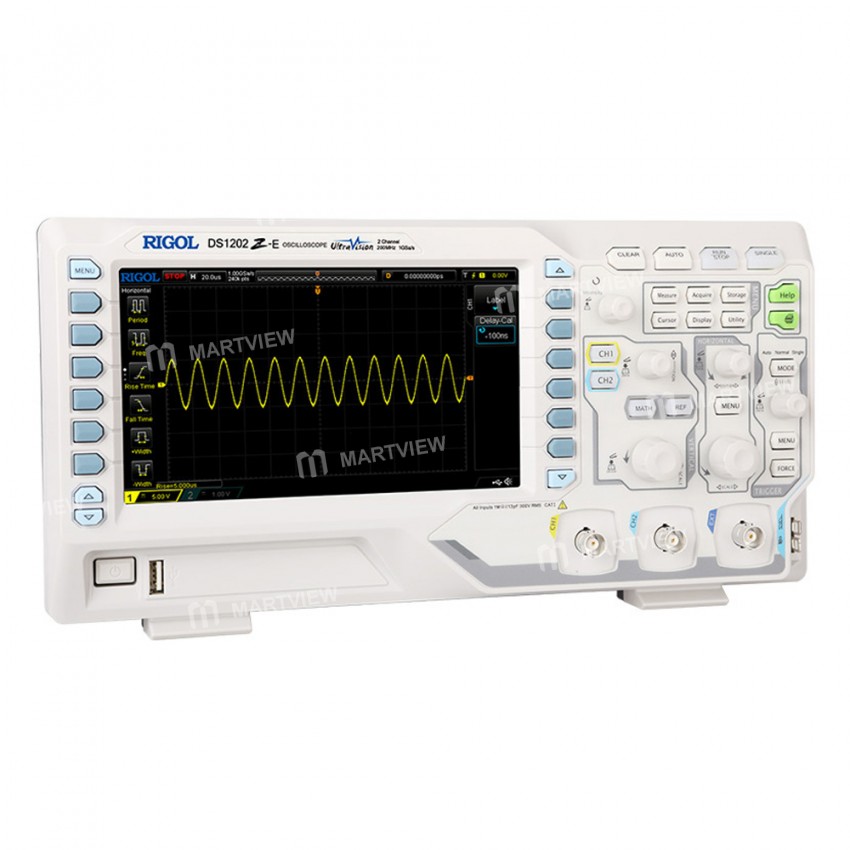

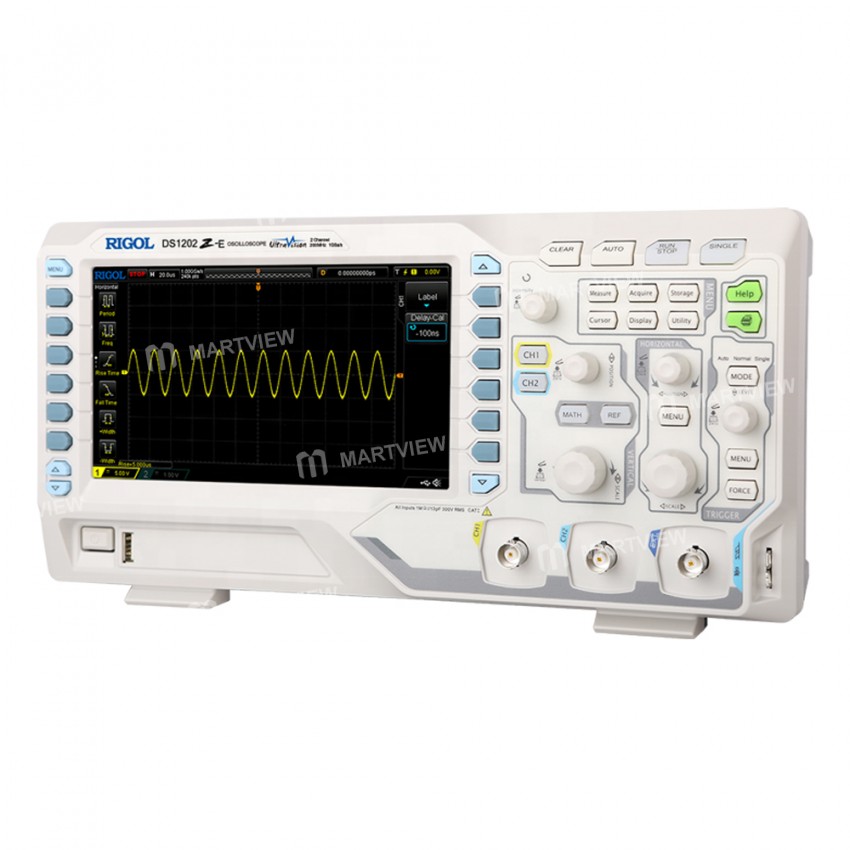

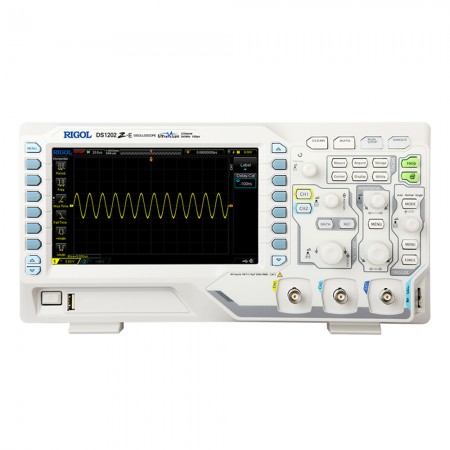

Rigol DS1202Z-E 200MHz 24M Storage Dual Channel Sampling Rate 1GSa / s Digital Oscilloscope

Rigol DS1202Z-E 200MHz 24M Storage Dual Channel Sampling Rate 1GSa/s Digital Oscilloscope

Features:

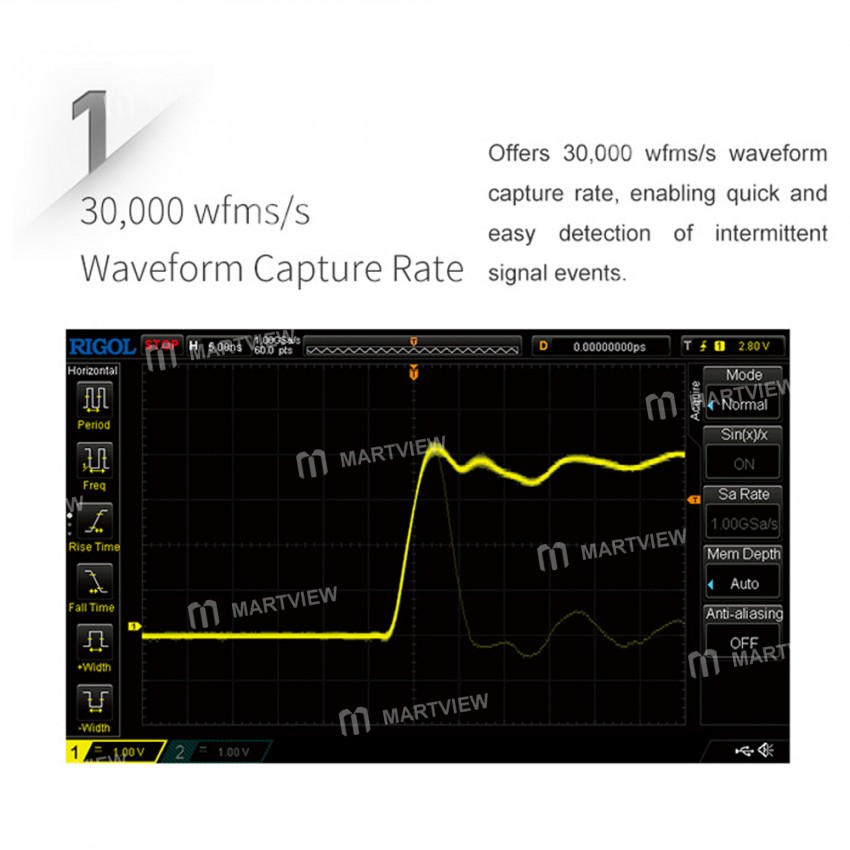

• The waveform capture rate is as high as 30,000 per second, making it easier to observe occasional waveforms, making fault interference nowhere to hide

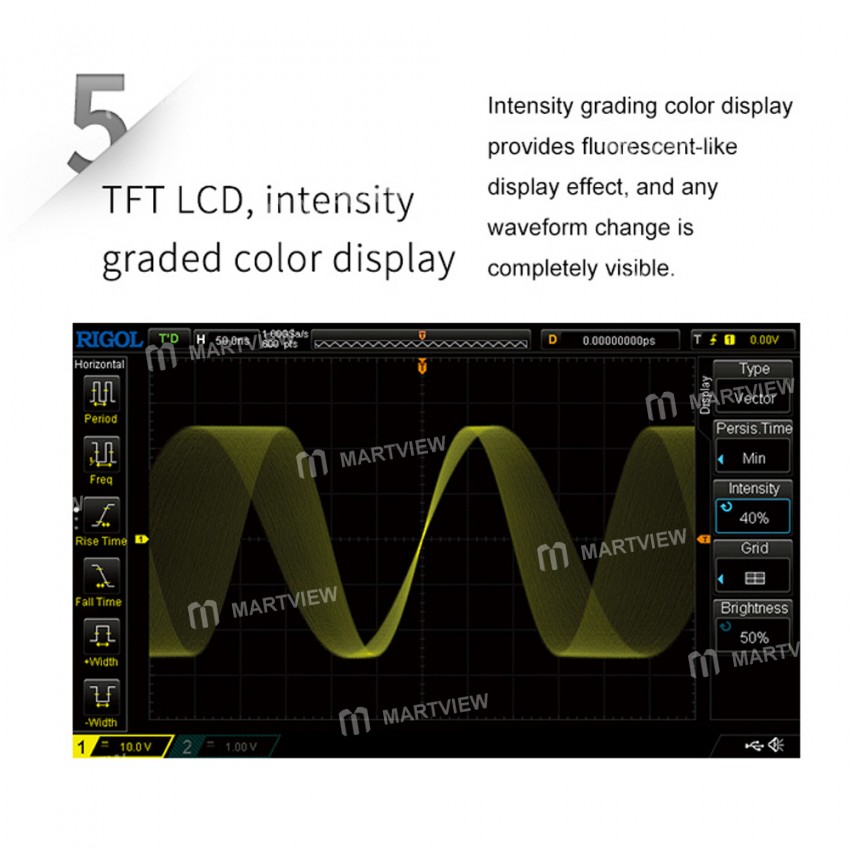

• Eye protection screen, the long-term operation will not tire the eyes, 7-inch fluorescent screen, 256-level gray color temperature, make the screen clearer

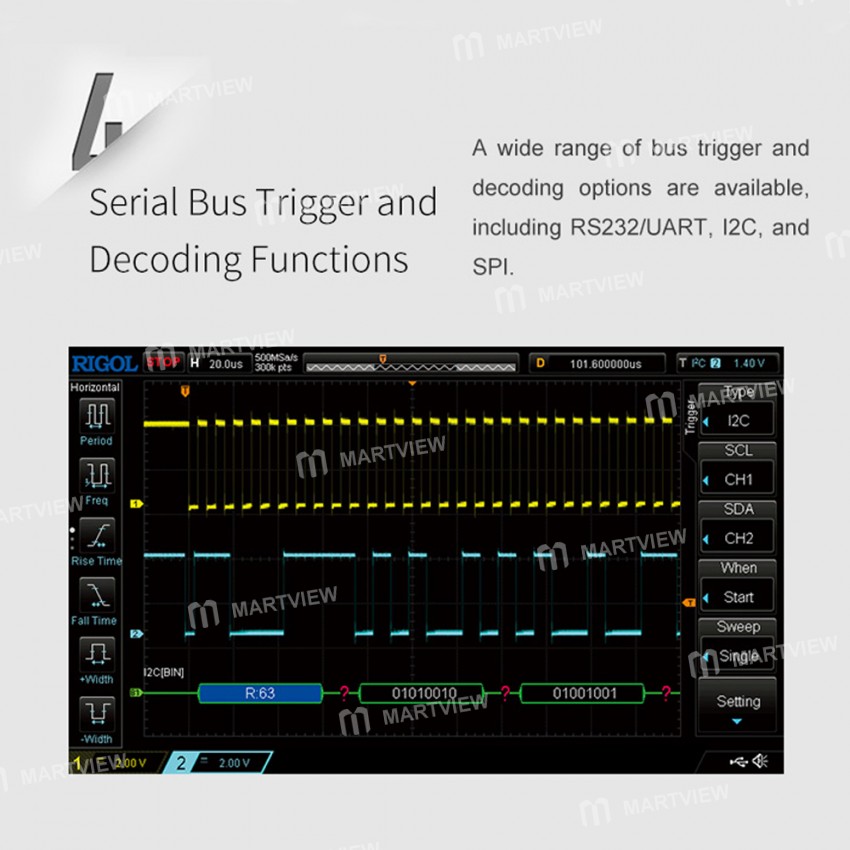

• Open serial bus decoding function, support RS232/UART, I2C, SPI bus

• The decoding function of the bus is built into the oscilloscope so that users of digital bus debugging can not only use the oscilloscope to analyze the waveform but also decode the content carried on the corresponding bus through the decoding software.

• Built-in Auto function, easy to operate

• Excellent waveform recording and playback capabilities

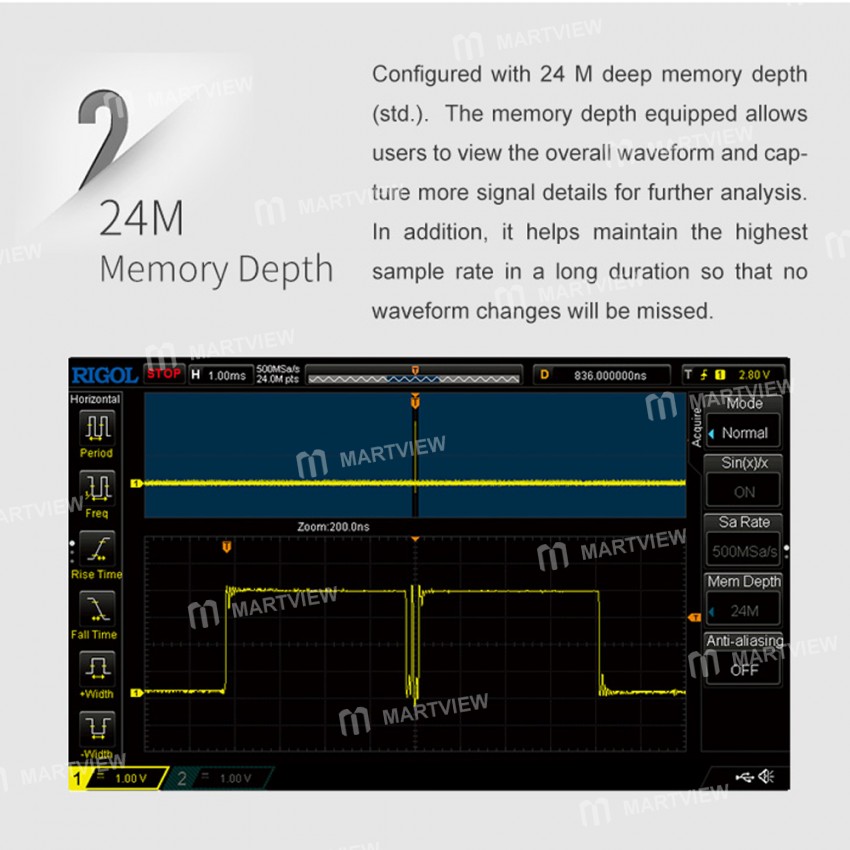

• 24Mpts deep storage can store up to 60,000 frames of waveforms, and can better capture waveform details

• Do not miss any waveform changes and ensure a high sampling rate for a long time

• Rich trigger functions, including edge trigger, pulse width trigger, slope trigger, video trigger, pattern trigger, Duration, Setup, Hold, etc.

Specifications:

• Model: DS1202Z-E

• Analog Channel Bandwidth: 200 MHz

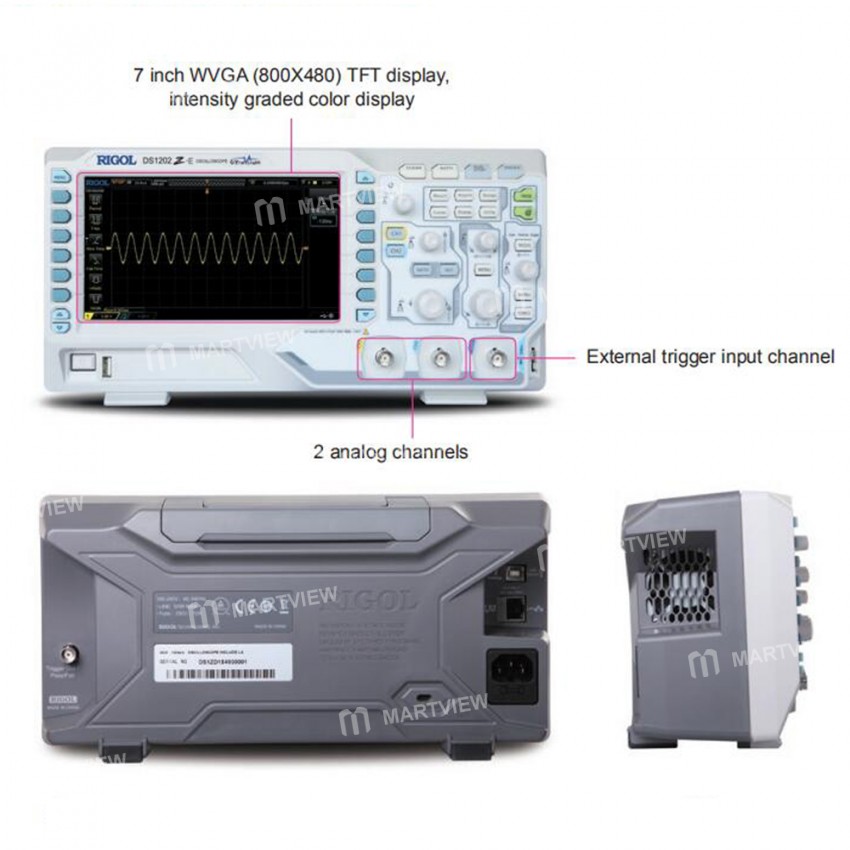

• Analog Channel: 2

• Max.Real-time Sample Rate: 1 GSa/s(single-channel), 500 MSa/s (dual-channel)

• Max.Memory Depth: 24 Mpts(single-channel), 12 Mpts(dual-channel) Standard

• Max.Waveform Capture Rate: 30,000 wfms/s

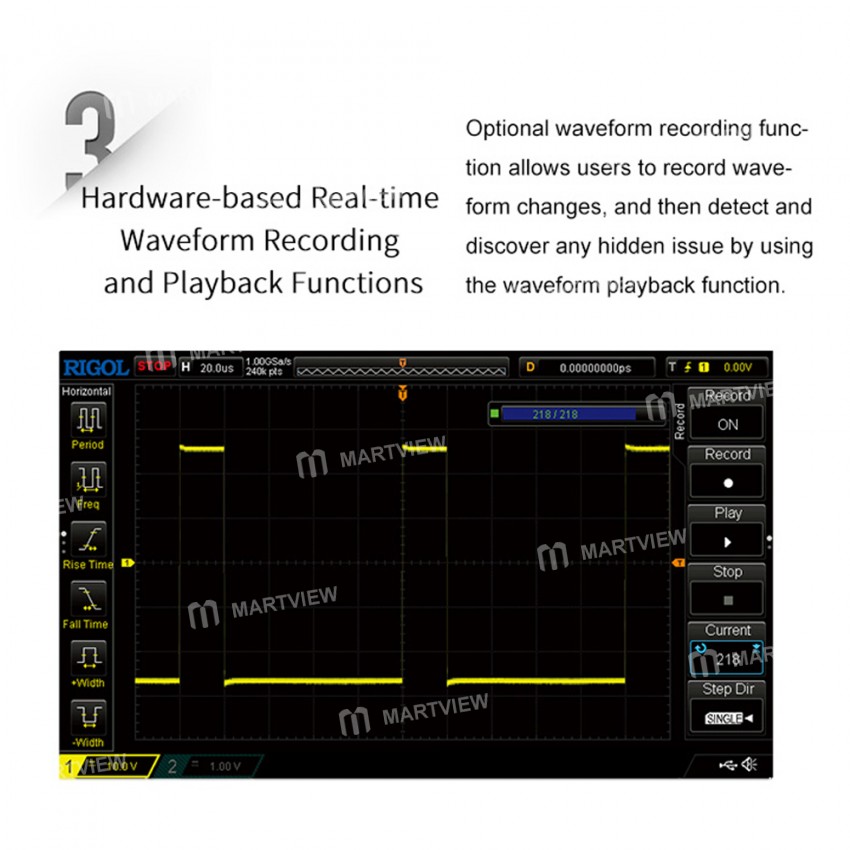

• Hardware Real-time Waveform Recording and Playback Functions: Recording up to 60, 000 frames

• Standard Probes: 2 * PVP2350 passive high-resistance probes (350 MHz)

Package includes:

• 1 x Oscilloscope

• 1 x Power Cable

• 1 x USB Cable

• 2 x Probes
