Sipeed MaixSense A010 / A075V RGBD TOF 3D Depth Vision MCU & ROS Camera

Sipeed MaixSense A010 / A075V RGBD TOF 3D Depth Vision MCU & ROS Camera

Features:

• An easy and low-cost way to sense the real 3D world from MCU to complex ROS

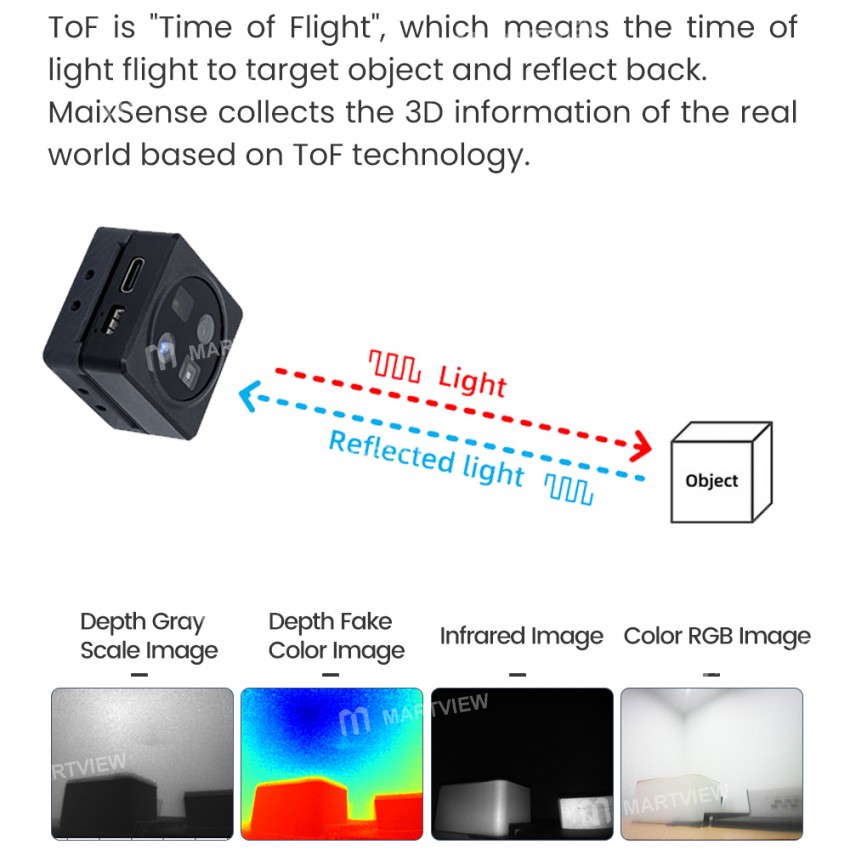

• ToF is "Time of Flight", which means the time of light flight to the target object and reflecting back

• MaixSense collects the 3D information of the real world based on ToF technology

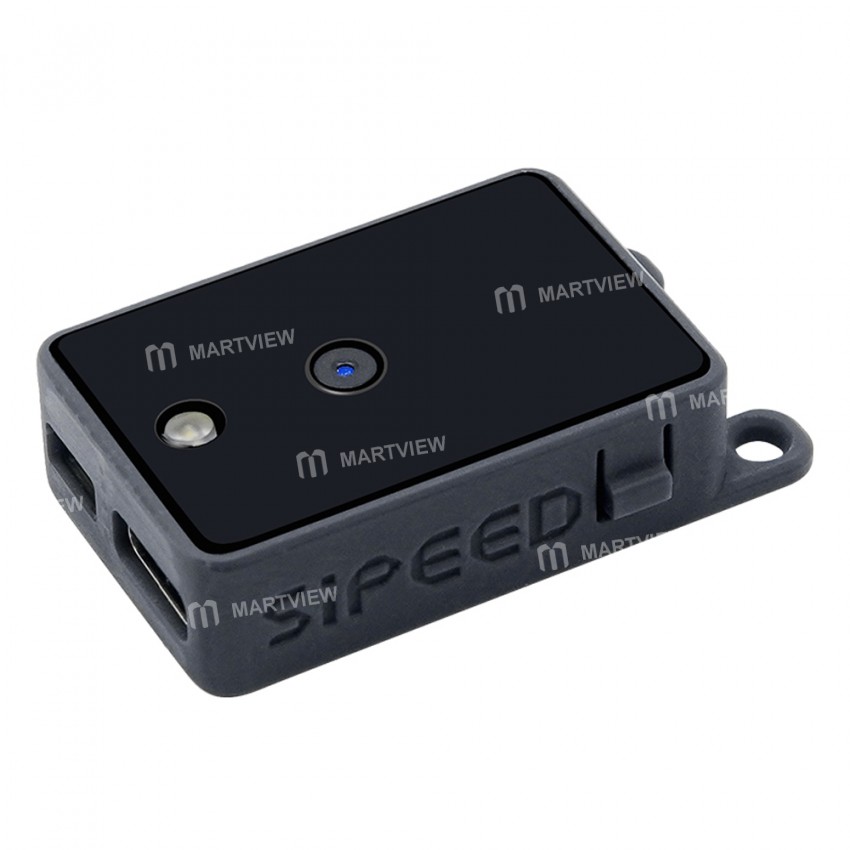

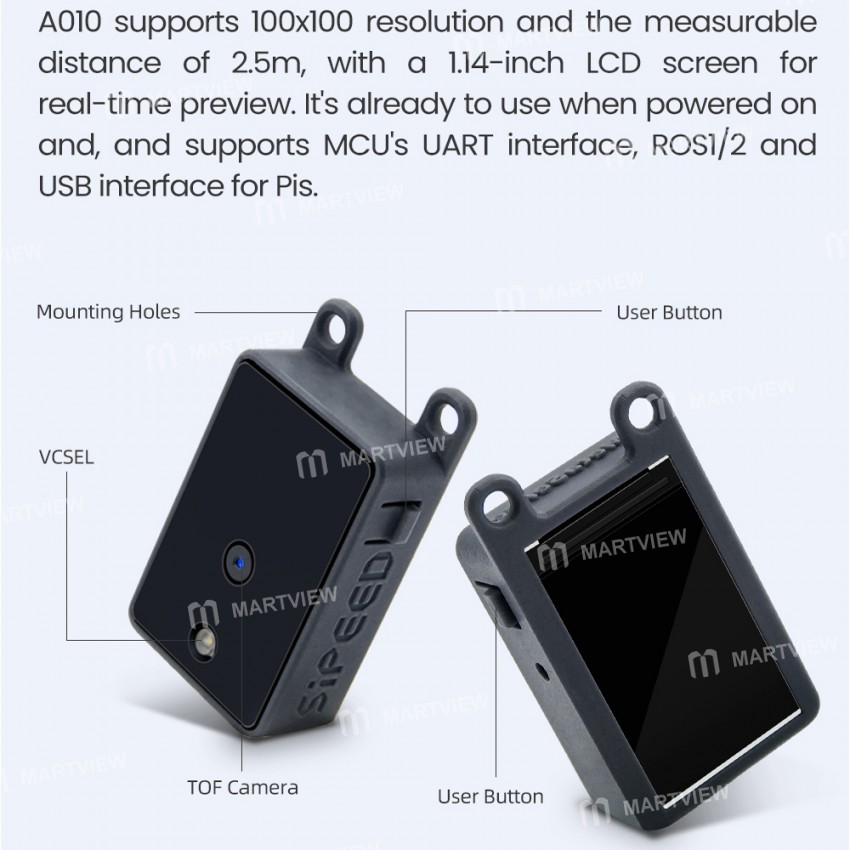

• A010 supports 100x100 resolution and a measurable distance of 2.5m, with a 1.14-inch LCD screen for real-time preview

• It's all ready to use when powered on and, and supports MCU's UART interface, ROS1/2, and USB interface for Pis

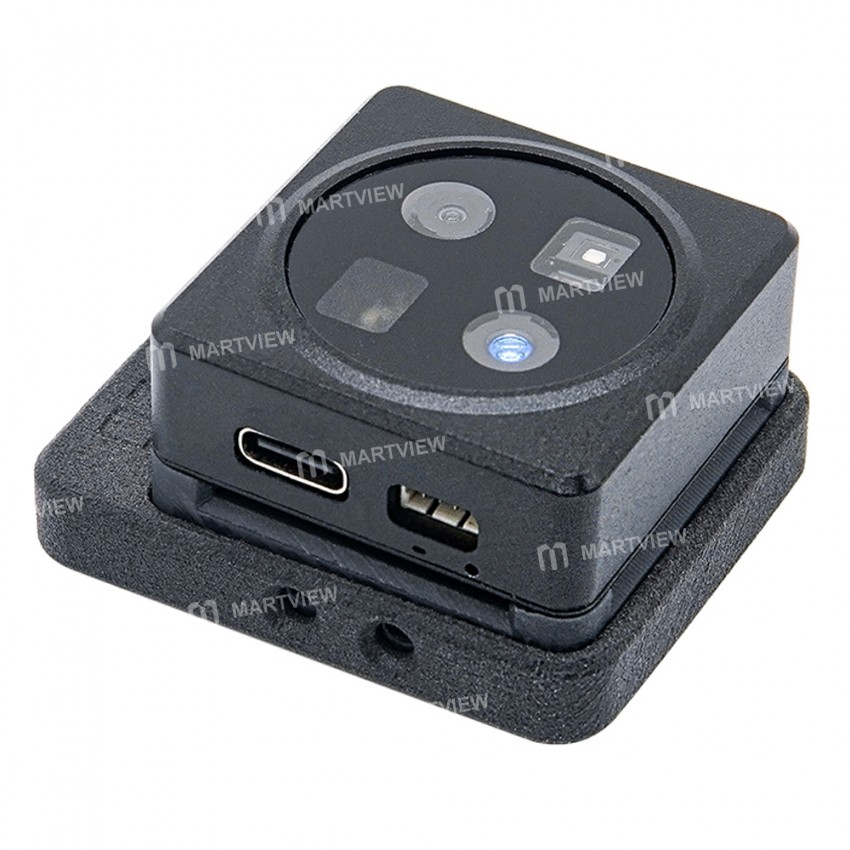

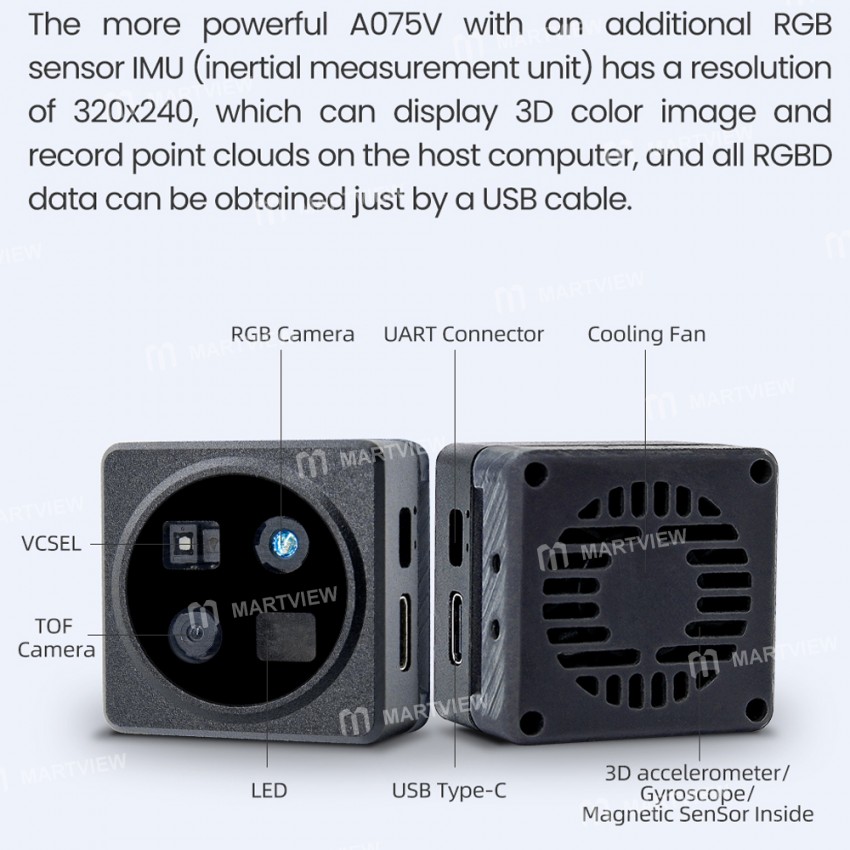

• The more powerful A075V with an additional RGB sensor IMU (inertial measurement unit) has a resolution of 320 x 240, which can display 3D color images and record point clouds on the host computer, and all RGBD data can be obtained just by a USB cable

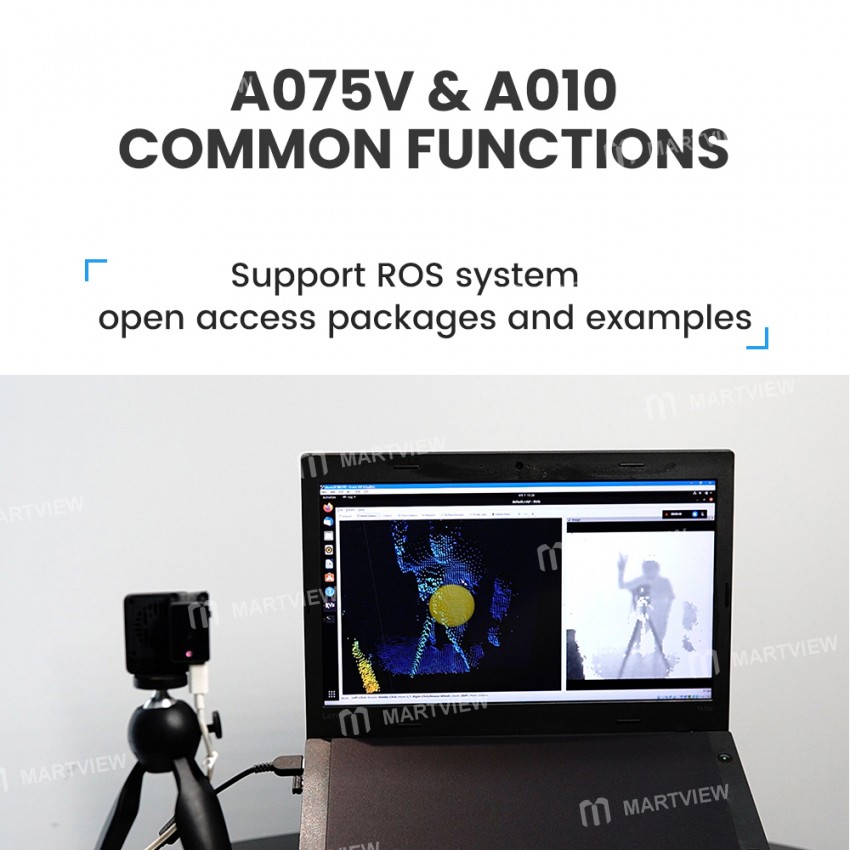

• A075V & A010 Common functions, support ROS system, open access packages, and examples

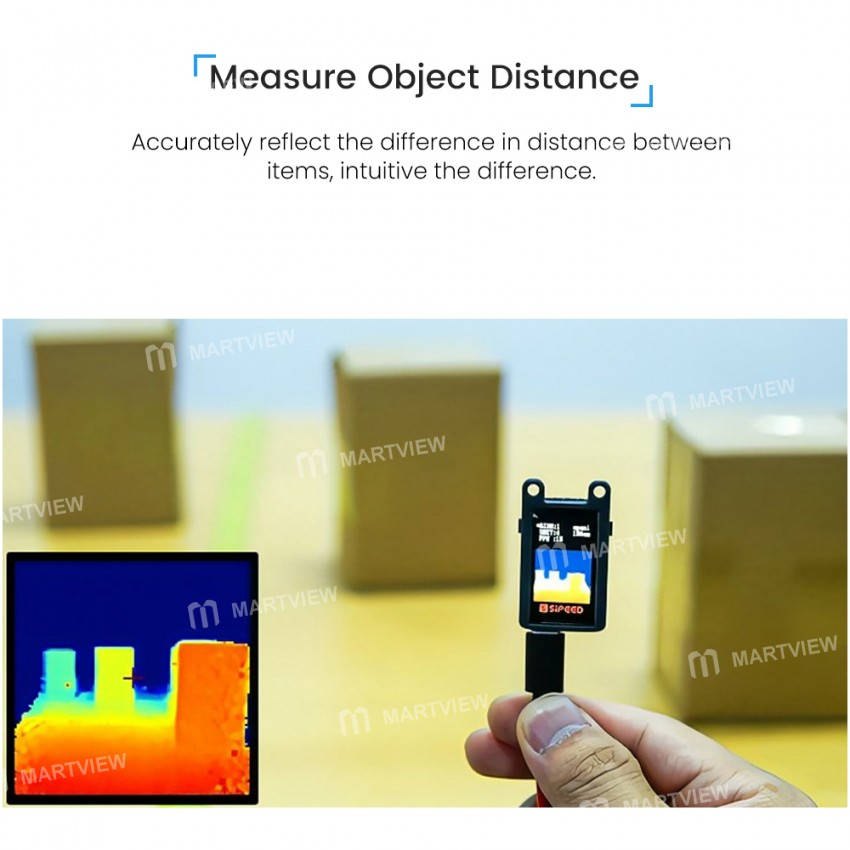

• Measure object distance, accurately reflect the difference in distance between items, intuitive the difference

• Monitor passenger flow in real-time, and carry out high-precision and large-resolution statistics

• A010 control application visual 3D depth image and data collection, config camera graphically

A010 Functions:

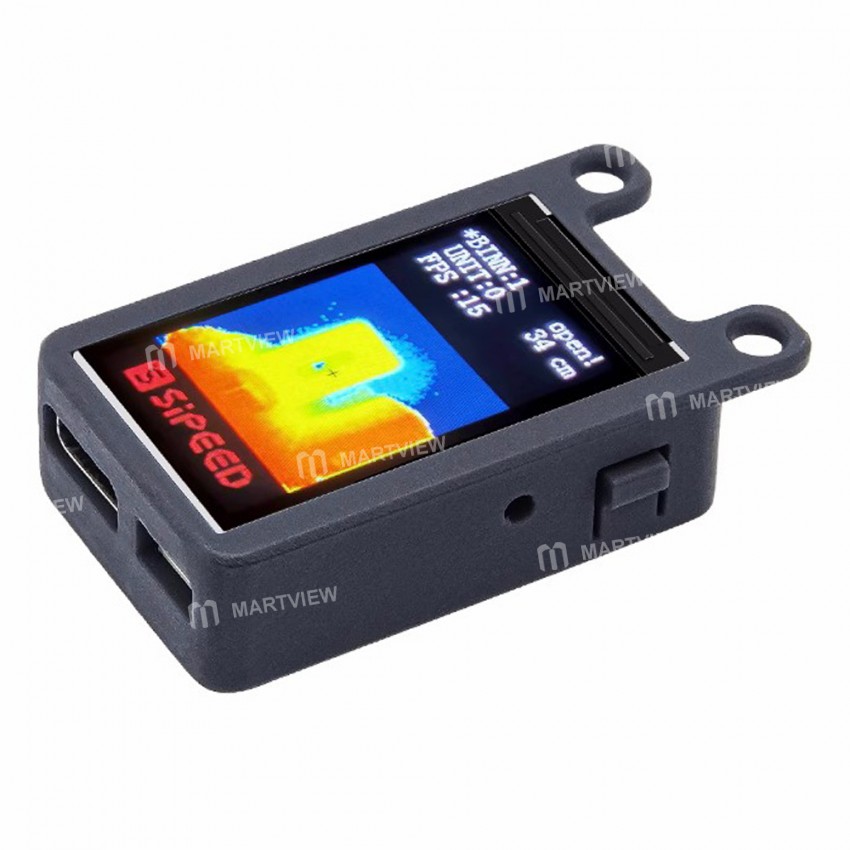

• Ready when powered on an LCD screen for real-time depth map preview

• Visual 3D depth image and data collection, config camera graphically

• IConnection with MCU access UART manual for users to develop

A075V Functions:

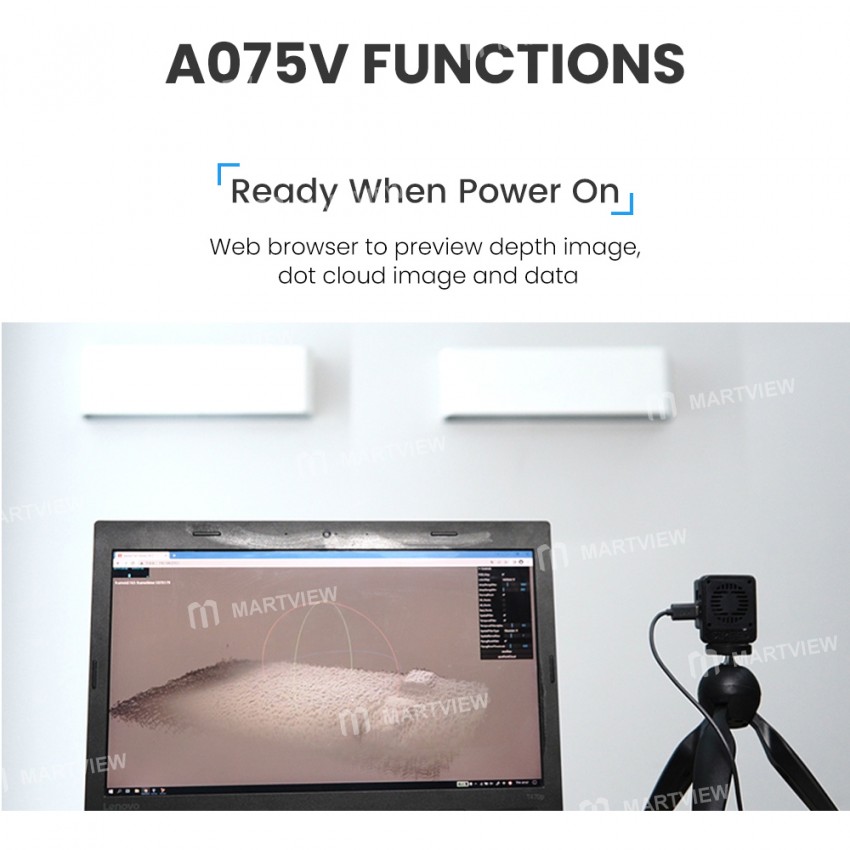

• Ready when powered on the Web browser to preview depth images, dot cloud images, and data

• With ROS, obstacles can be recognized, and cars can respond and accurately avoid obstacles

• By calculating the point cloud data, it's easy to realize face recognition, volume measurement, mechanical arm grasping slam mapping, and many other situations

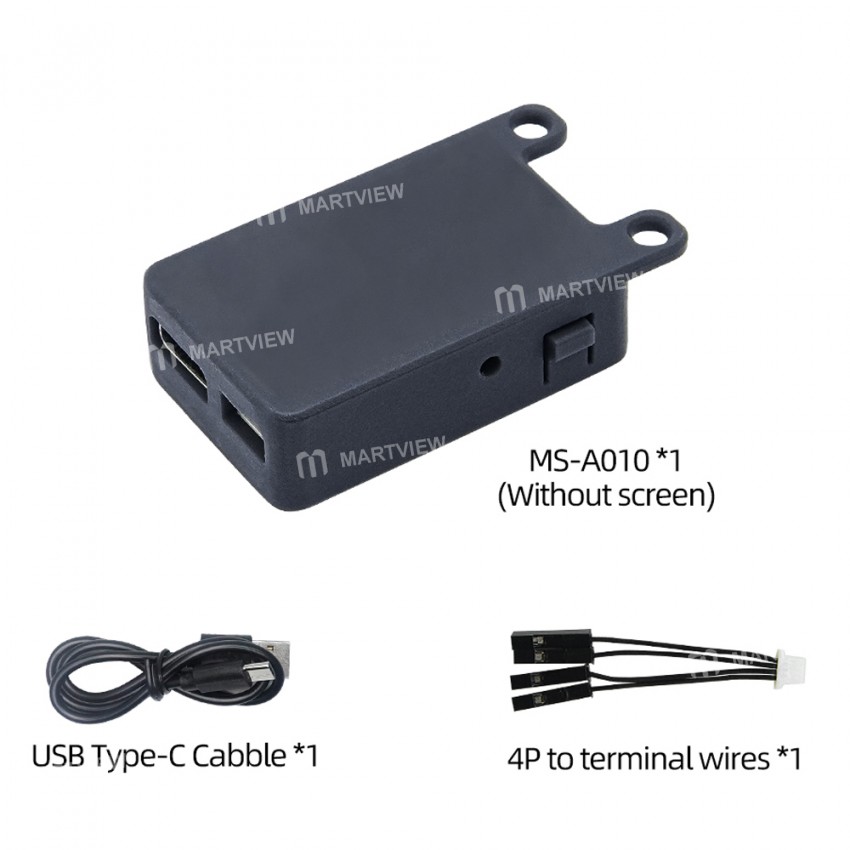

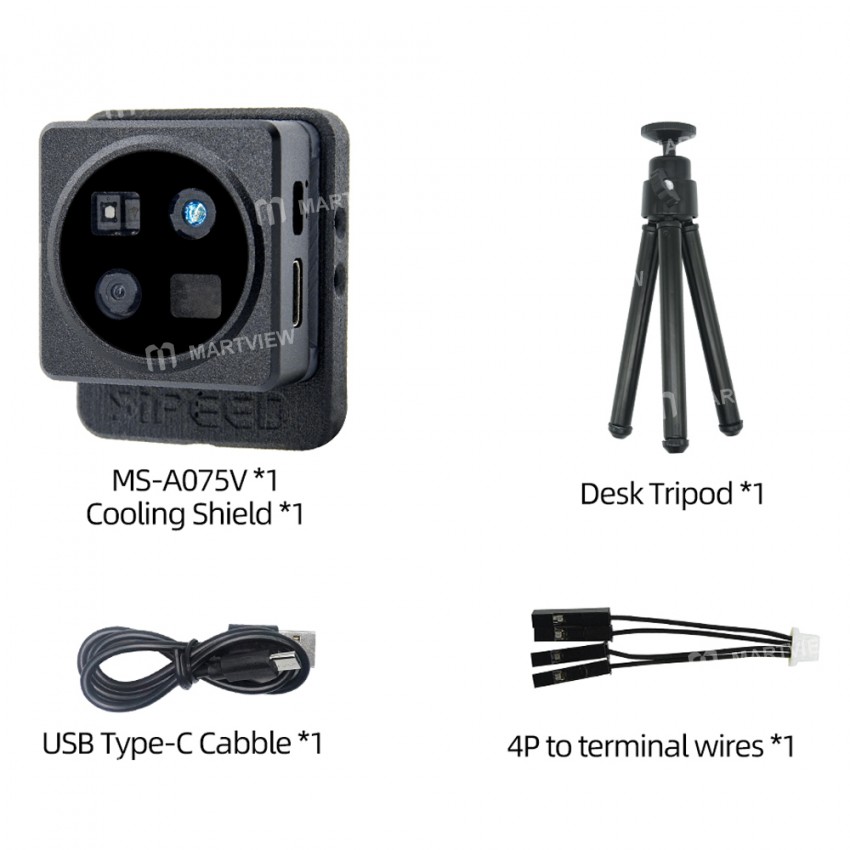

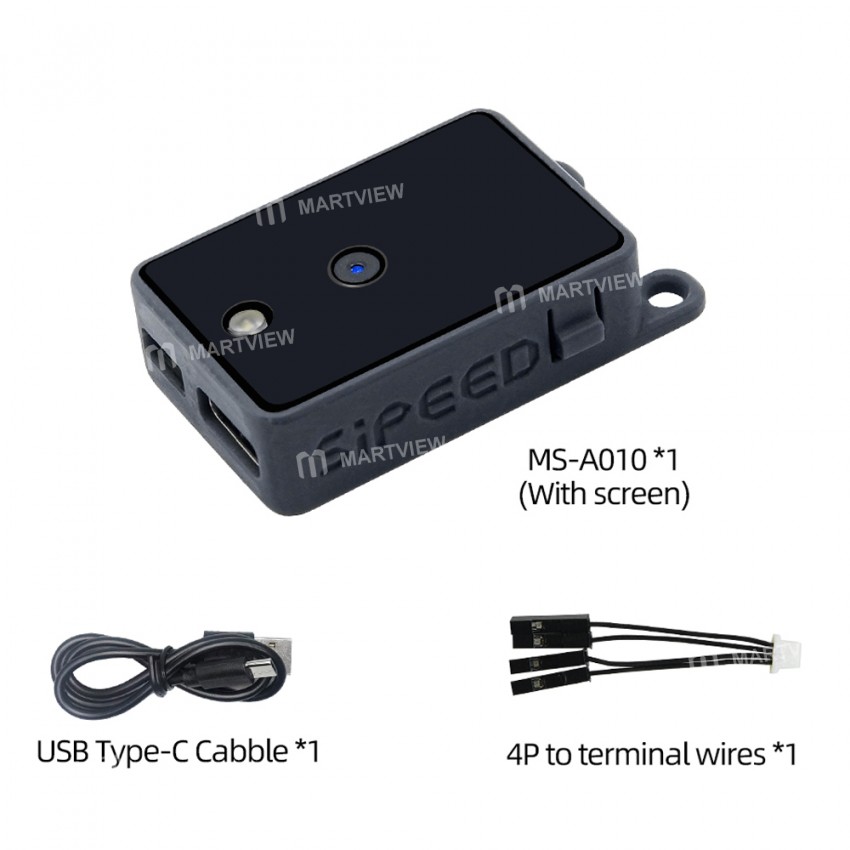

Package includes:

• 1 x MS-A010

• 1 x MS-A075V

• 1 x USB Type-C Cabble

• 1 x 4P to Terminal Wires
