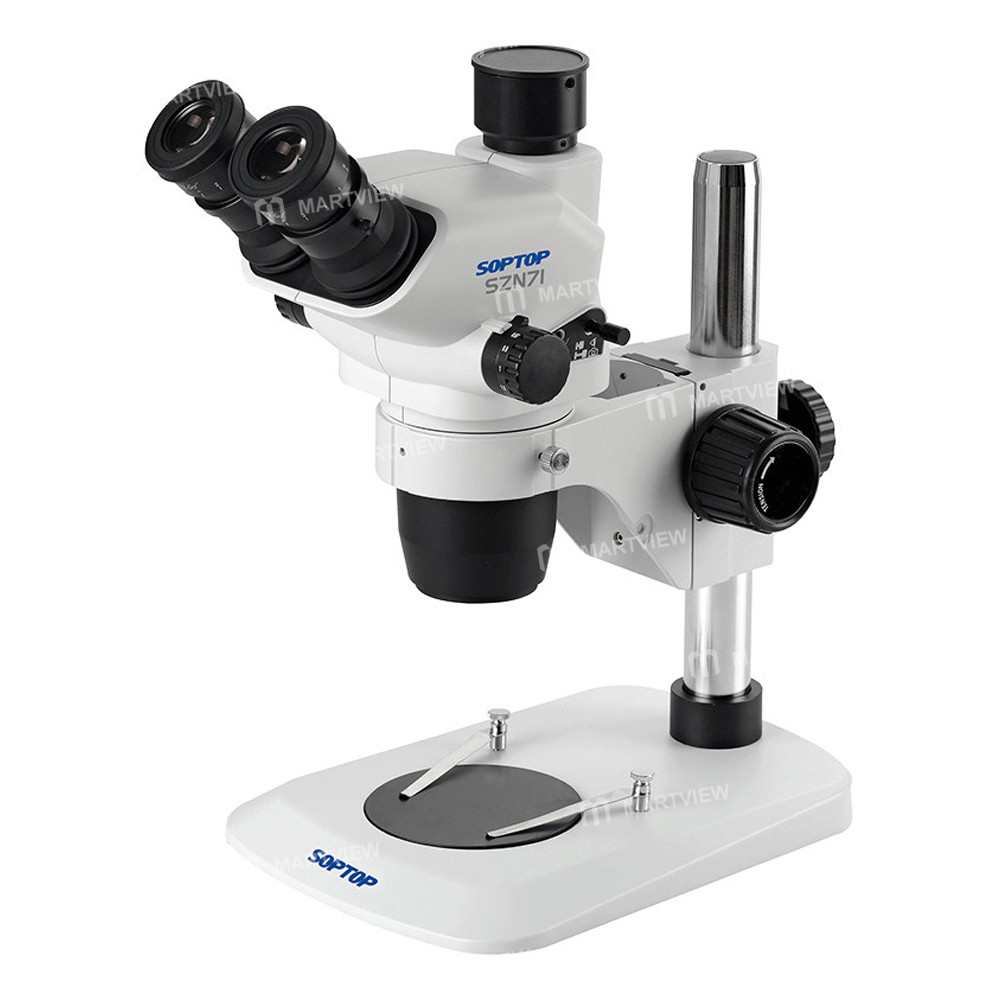

Soptop SZN71 6.7-45X Continuous Zoom Trinocular Stereo Microscope for BGA Repair

Soptop SZN71 6.7-45X Continuous Zoom Trinocular Stereo Microscope for BGA Repair

Features:

• 0.67~4.5X continuous zoom, 3D stereoscopic vision, trichromatic simultaneous imaging

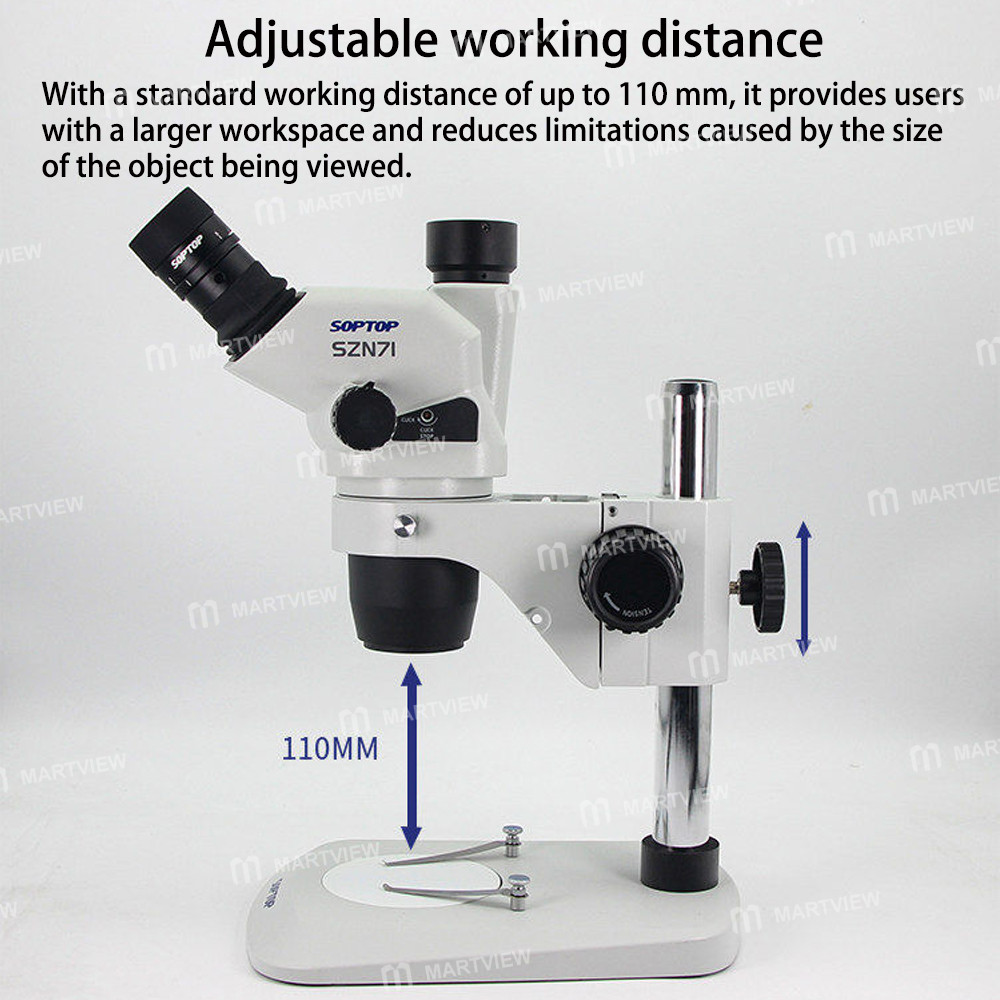

• Adjustable working distance: Standard working distance up to 110 mm, providing users with a larger workspace and reducing limitations caused by the size of the object being viewed

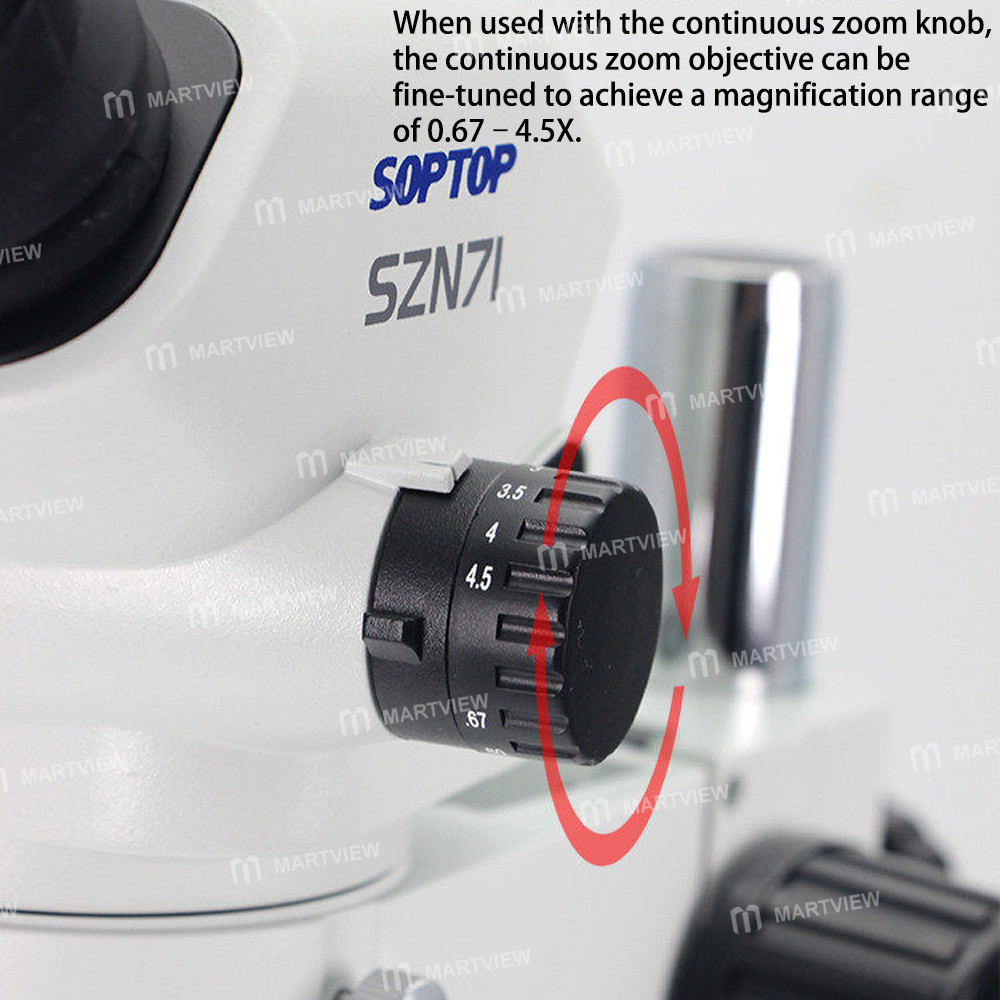

• 6.7~45X continuous zoom provides fast and clear imaging. The continuous zoom handwheel allows for fine-tuning of the continuous zoom objective, achieving a magnification range of 0.67~4.5X

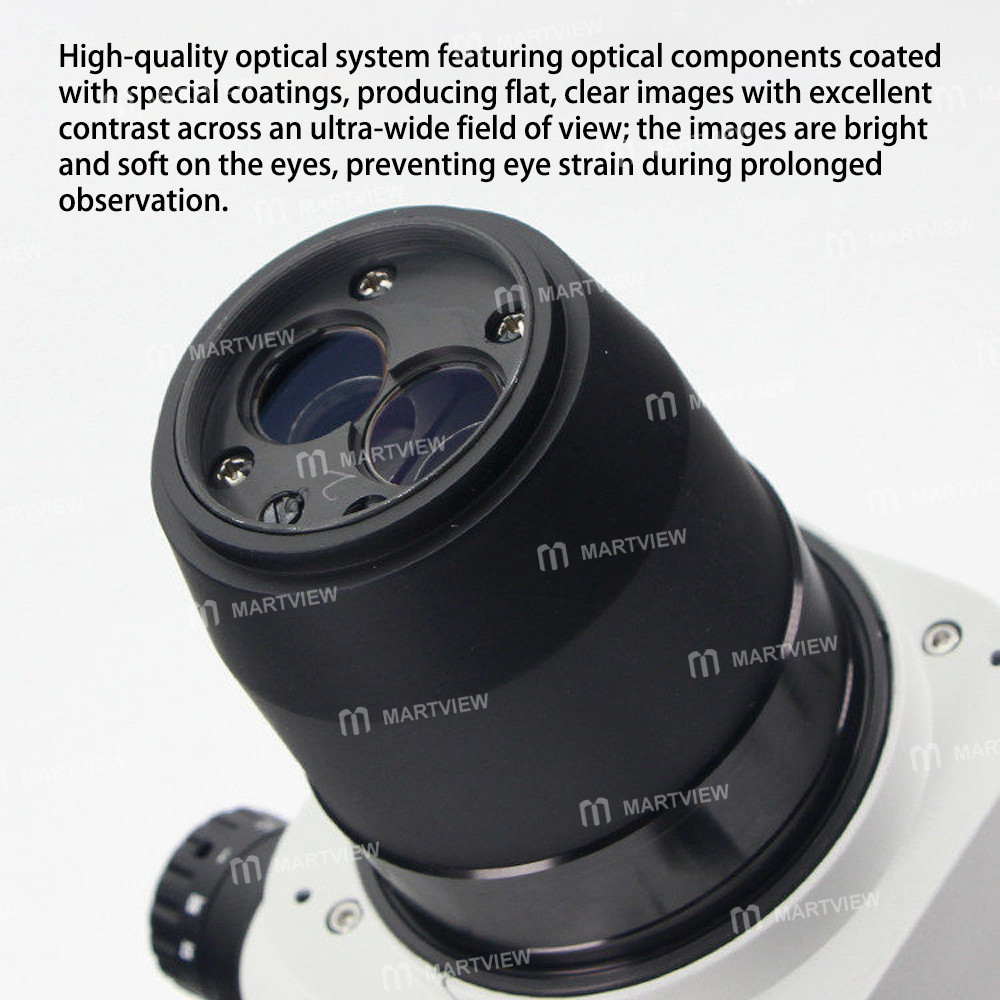

• High-quality optical system with optical components coated with special coatings produces flat, clear images with excellent contrast across an ultra-wide field of view. The image is bright, soft, and non-glare, reducing eye strain during prolonged observation

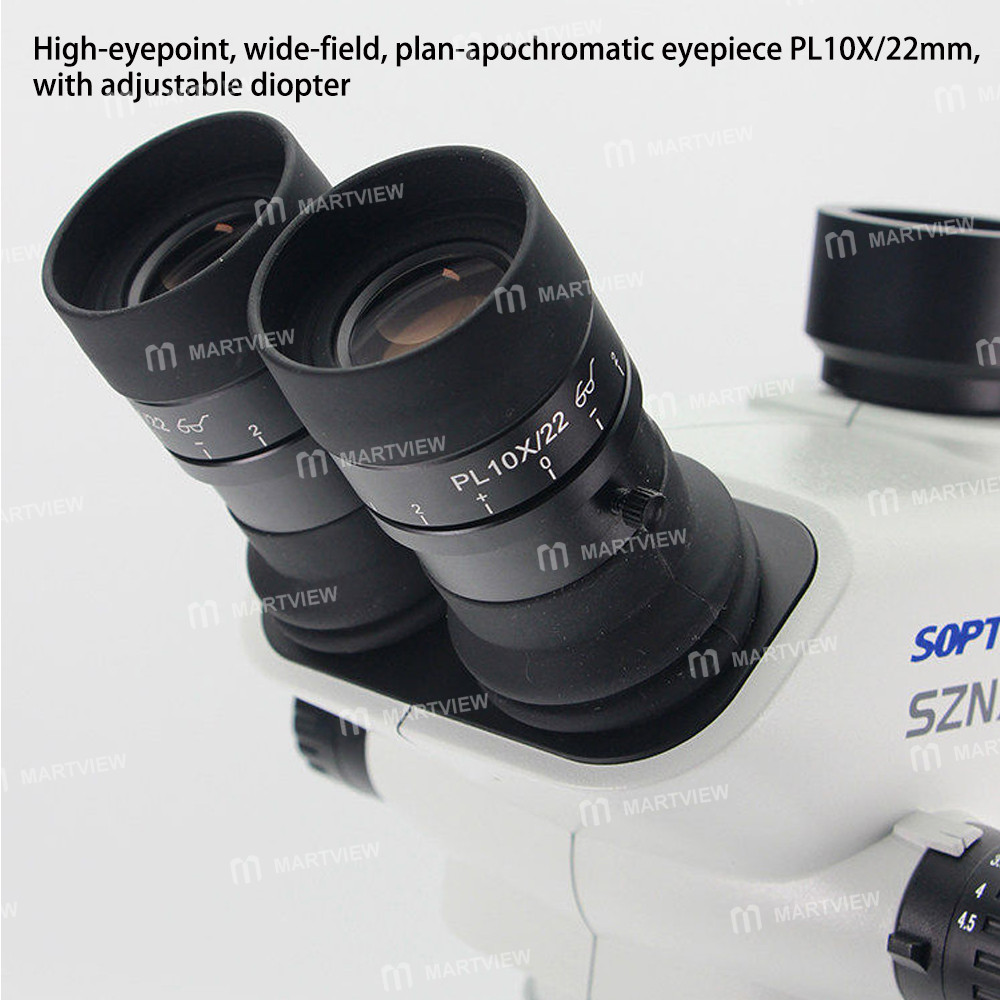

• High-eyepoint, wide-field, plan-apochromatic PL10X/22mm eyepieces with diopter adjustment

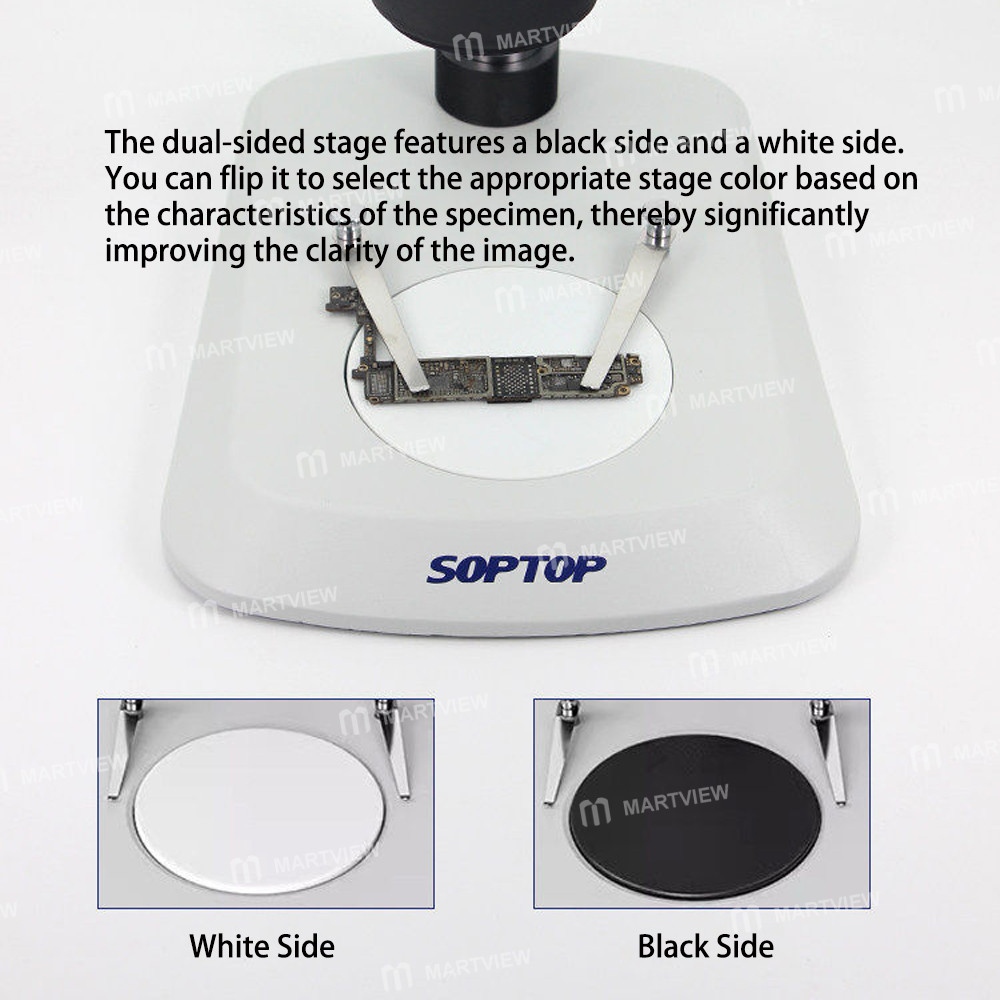

• Equipped with a dual-sided stage—one side black, the other white—allowing users to flip the stage to select the appropriate color based on the characteristics of the specimen, thereby effectively enhancing image clarity

Specifications:

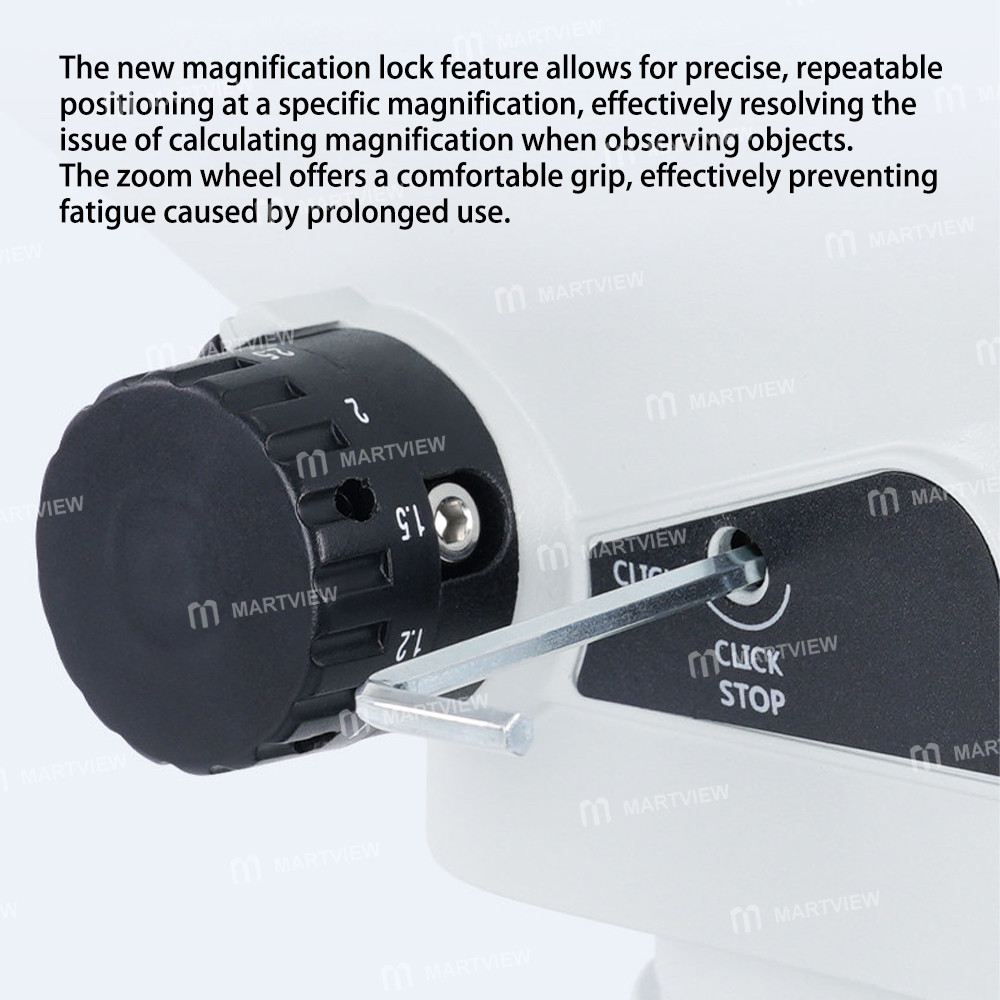

• Observation Head: Trinocular observation head, 45° inclined, interpupillary distance adjustment range 52mm~76mm, with built-in interlock mechanism, fixed eyepiece tubes, and a fixed magnification mechanism with magnification limit function

• Eyepieces: High-eyepoint, wide-field, plan-apochromatic eyepieces PL10X/22mm, diopter-adjustable

• Objective: Continuous zoom objective 0.67~4.5X, working distance 110 mm

• Auxiliary objectives: 0.5X/177 mm, 0.7X/116 mm, 1.5X/47 mm (optional)

• Stand: Split-column type, compatible with any microscope stand

• Stage: Standard stage

• Photography/videography adapter: C-mount

Package includes:

• 1 x Microscope Head

• 1 x 0.5X CTV Lens

• 1 x Focusing Support

• 1 x Pair of PL10X22 Eyepiece

• 1 x Column

• 1 x LED Light

• 1 x Base
