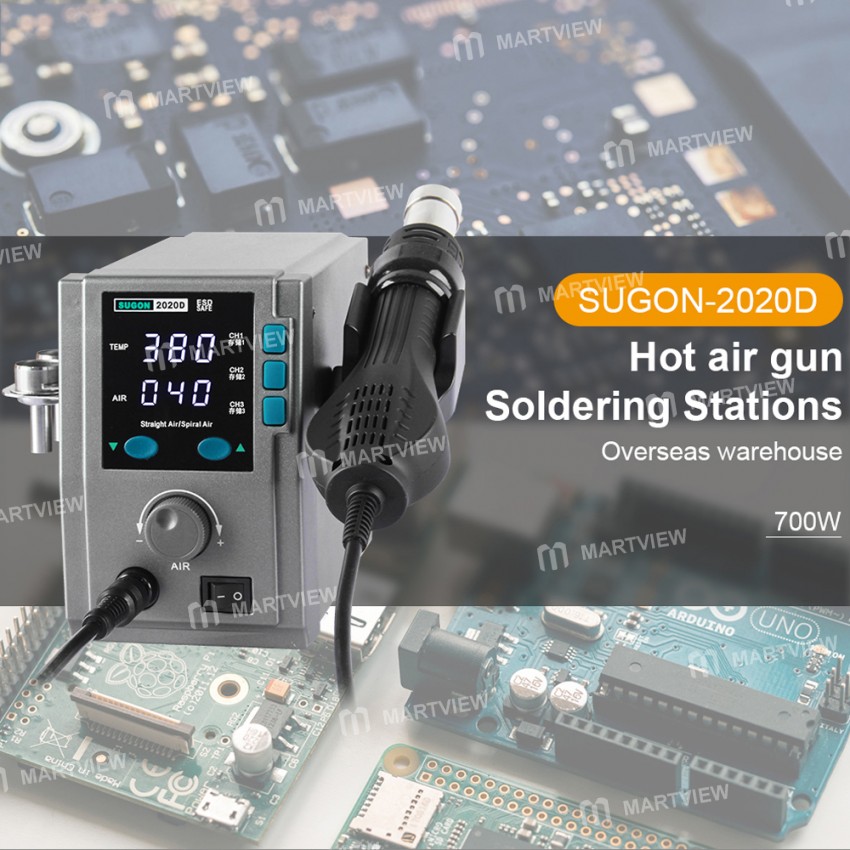

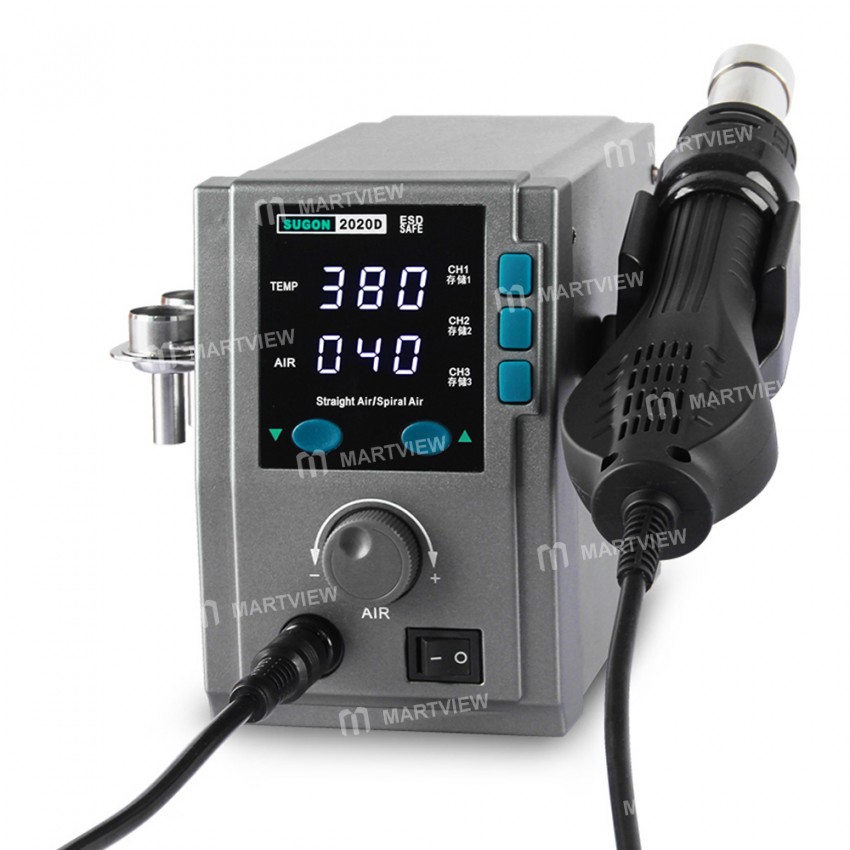

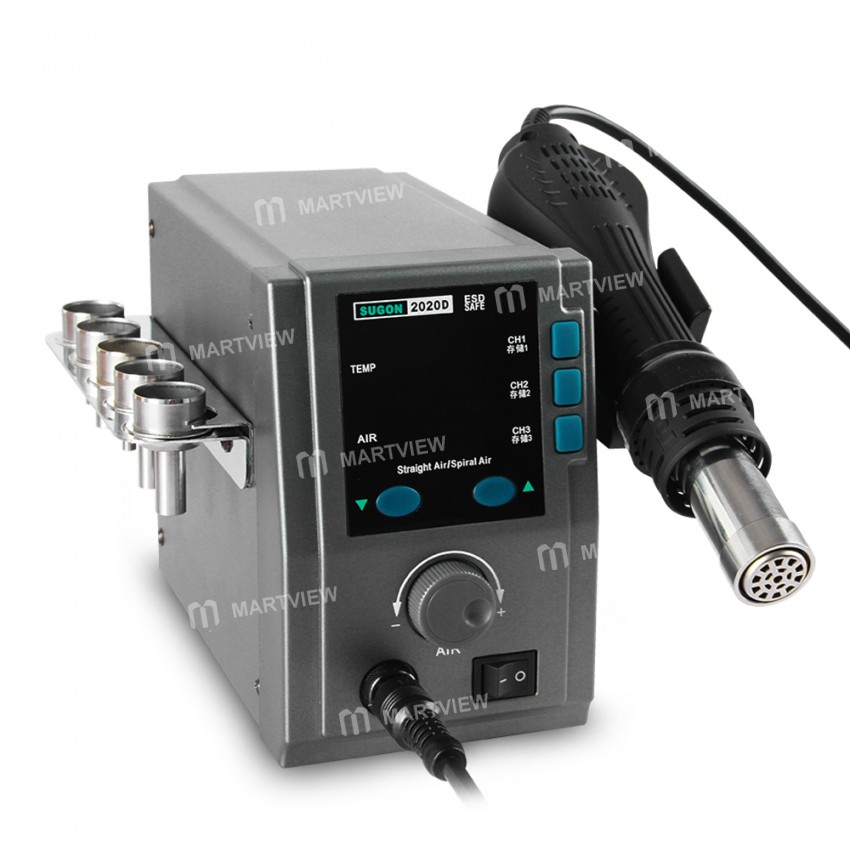

SUGON 2020D 700W Hot Air Gun Lead-Free Rework BGA SMD Soldering Station

SUGON 2020D 700W Hot Air Gun Lead-Free Rework BGA SMD Soldering Station

Features:

• Sensors, closed-circuit, the zero passage trigger temperature control of the microcomputer, LED display, big power, heating is rapid, accurate and stable temperature, not affected by the air volume, truly lead-free desoldering.

• Adjustable airflow, air volume big and soft wind, temperature control is convenient, can be suitable for a variety of purposes.

• The handle is equipped with an induction switch, as long as the handshake hands handle, the system can quickly enter the working mode; the Handle is released into the handle frame, the system will enter the standby mode, easy to operate in real-time.

• The system is equipped with an automatic air cooling function, which can prolong the life of the heating element and protect the heat gun.

• Adopts brushless fan very long life, small noise, using high-quality heating element under the same power efficiency can be doubled, and can effectively prolong the working life of the heating element and power saving.

• The machine is equipped with a safety protection function.

• Celsius and Fahrenheit temperature conversion.

• Calibration temperature function

• If the heating element is replaced, the temperature must be recalibrated.

• This machine uses the digital temperature calibration method to correct the incremental key input, easy and quick to adjust

• Power consumption: 700 w

• Airflow type: brushless fan soft wind

• Gas flow rate: 100 liters/minute.

• Temperature control range: 100 ° C - 500 ° C / 212℉-932℉

• Display form: LED digital (resolution 1 ° C)

• Handle component length: 120 cm

• Noise: less than 45 db


Applicable Use:
Desoldering is suitable for a variety of components, such as SOIC, CHIP, QFP, PLCC, BGA (especially suitable for a mobile phone line and row line of desoldering); Used for heat-shrinkable, drying, in addition to the paint, in addition to the glue, thawing, preheating, welding, etc.

Package includes:
1 x  SUGON 2020D
1 x  Power Cable

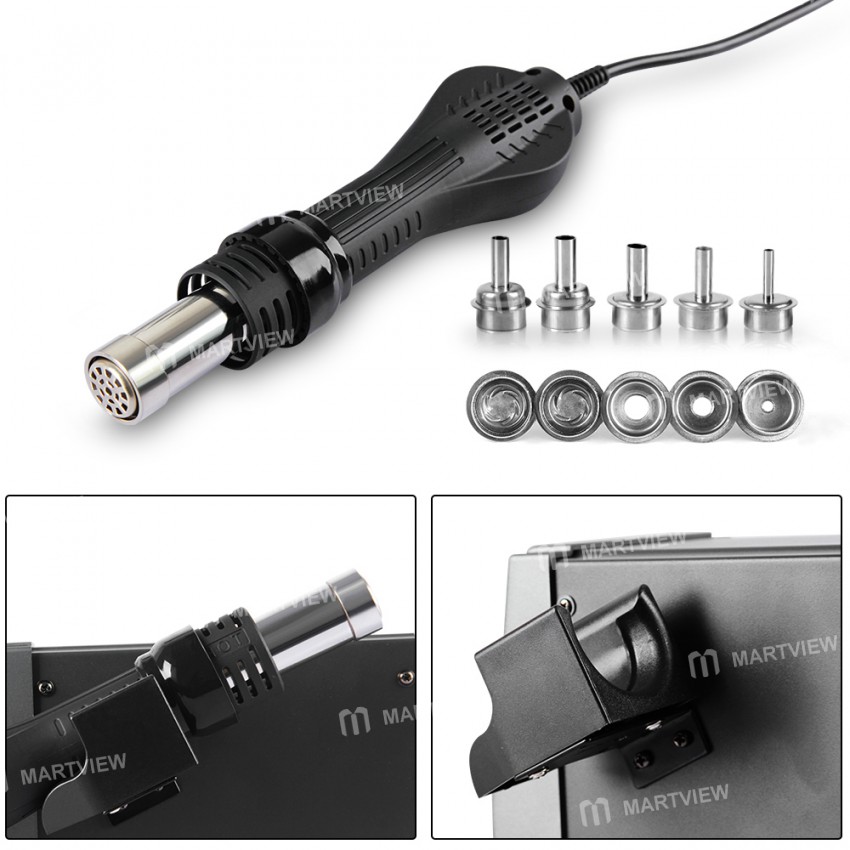

1 x  Handle
2 x  Cyclone nozzle (7mm,9mm)
3 x  Straight nozzle (4mm,7mm,9mm)
