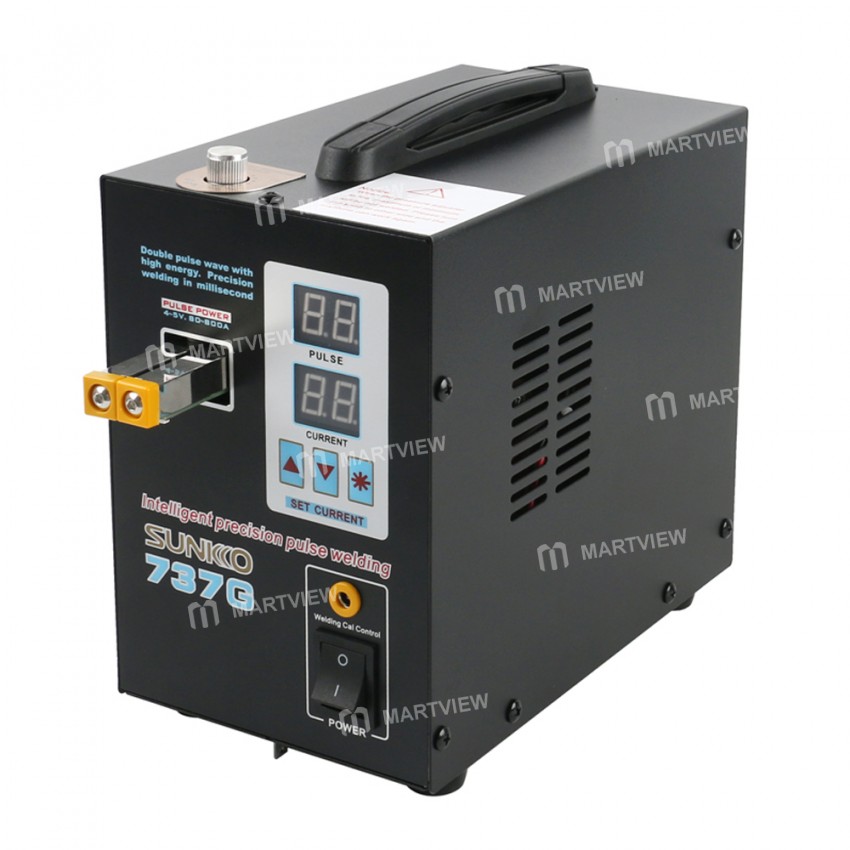

Sunkko 737G Double Pulse Dual Digital Display Lithium Battery Spot Welding Machine

Sunkko 737G Double Pulse Dual Digital Display Lithium Battery Spot Welding Machine

Features:

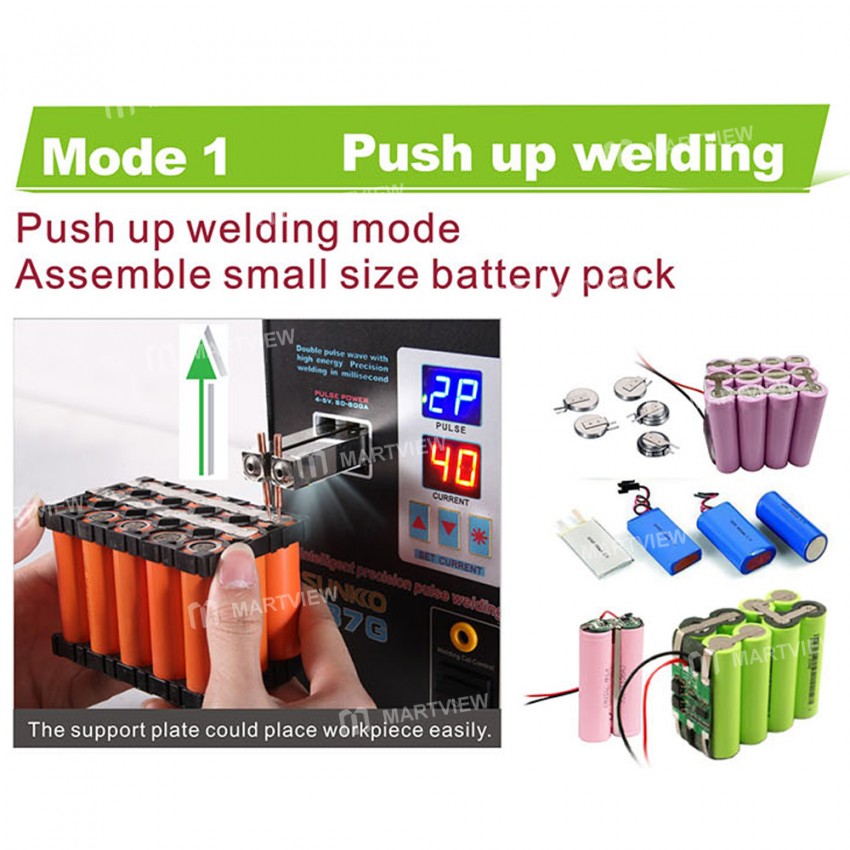

• The professional battery spot welding machine is for fixed battery spot welding and pedal-controlling welding

• The fixed weld head is made of a copper needle, and it can weld 0.12 mm pure nickel and 0.15 mm nickel plating

•  It can get firm, accurate & beautiful spot welding function done quickly.

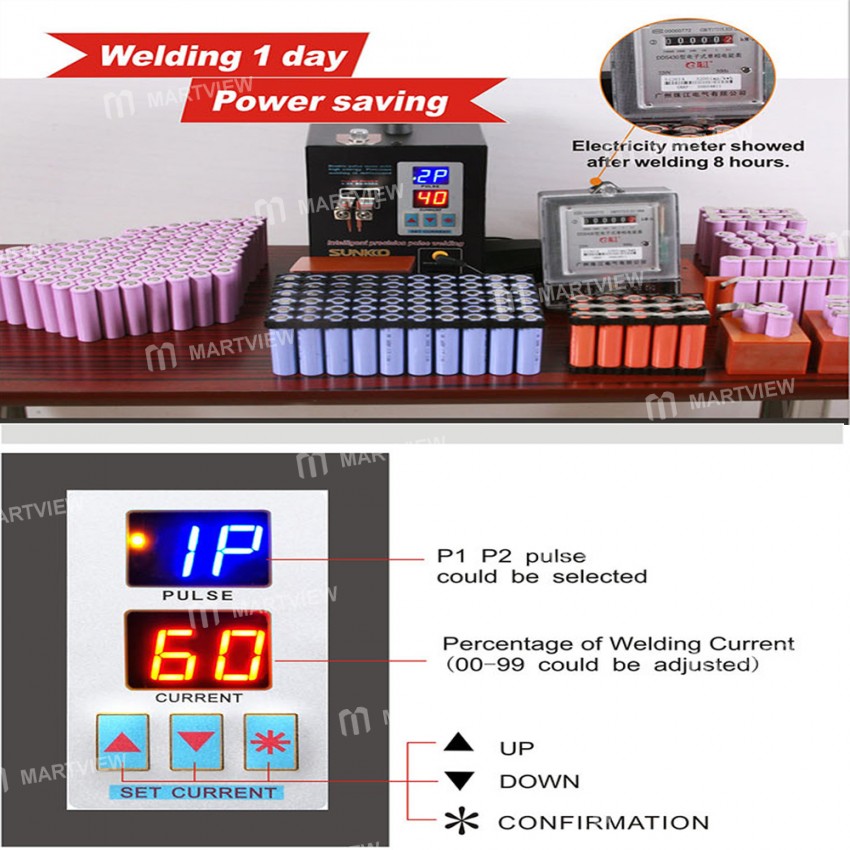

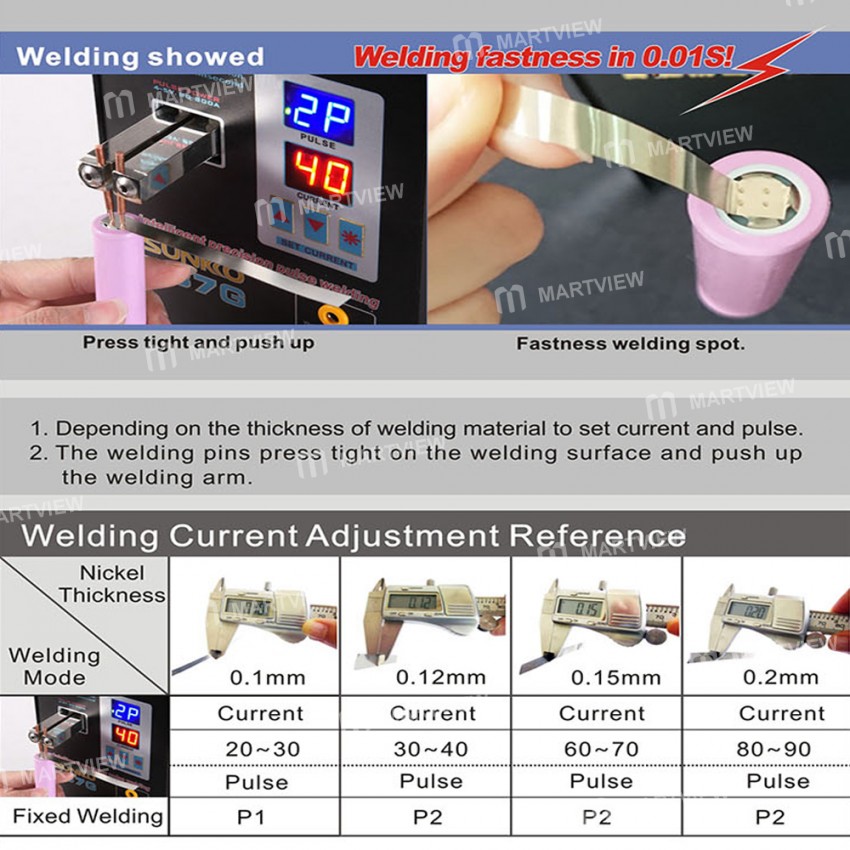

• Under spot welding, there are 1/2 pulse welding modes for a wider range of welding materials with an LCD pulse screen for your observation

• The stepless welding current adjustment ranges from 50 to 800 Amps.

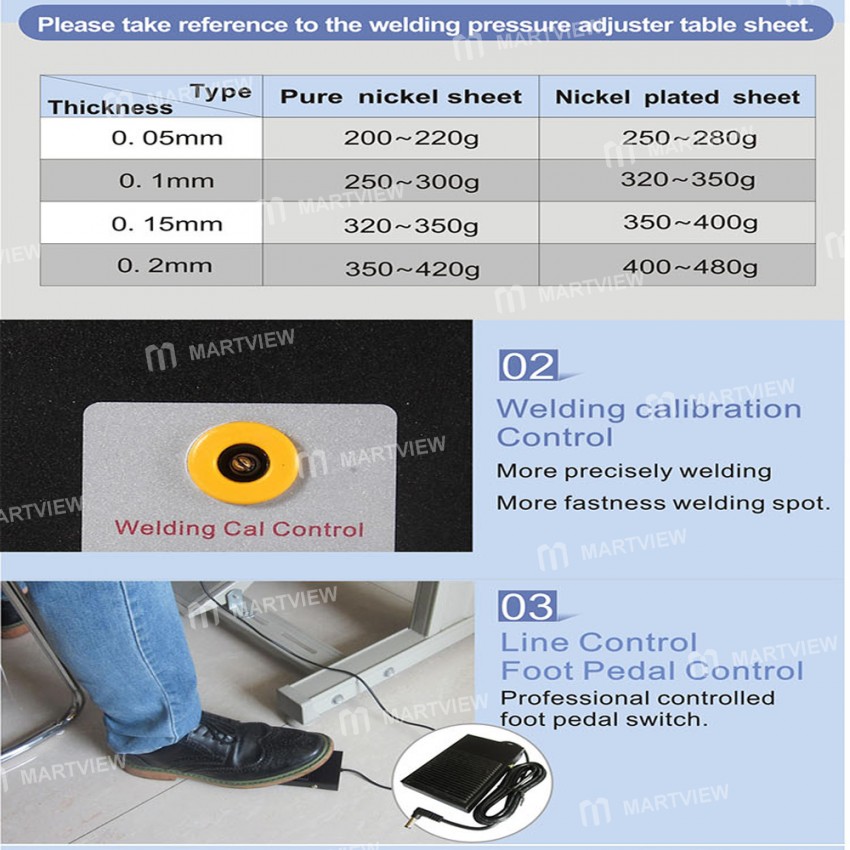

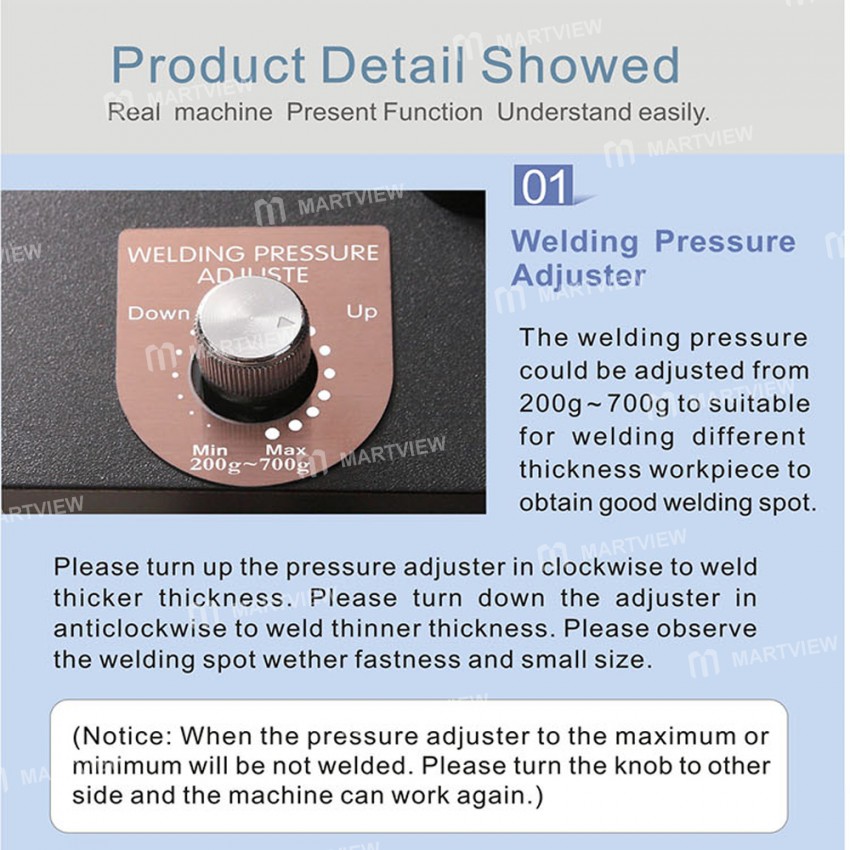

• The welding pressure adjuster (range: 200-700g) on top is designed for different thickness workpieces.

• The pulse spot welder can quickly weld the huge power battery packs

• The enhanced LED lighting version is easy to light the welding operation suitable for welding and assembling battery packs in a low luminance environment

• The spot welder comes with a foot controller, allowing you to stamp the pedal to control the machine to improve welding efficiency & accuracy

• The battery pulse spot welder is compact, easy to carry, and operate

• It suits various sizes of battery packs, button battery, polymer battery, electronics, maintenance, battery industry, welding, circuit board, etc

Specification:

• Voltage input: AC 110V/220V±10V

• Primary current: 2A~15A

• Welding current: 50A~800A

• Welding pressure: 200g~700g

• 1 Pulse: 0.05~0.12mm

• 2 Pulse: 0.12~0.2mm

• Size: 140*245*200mm

• Net Weight: 4.3kg

• Gross Weight: 6kg

• Package size: 215*370*310mm

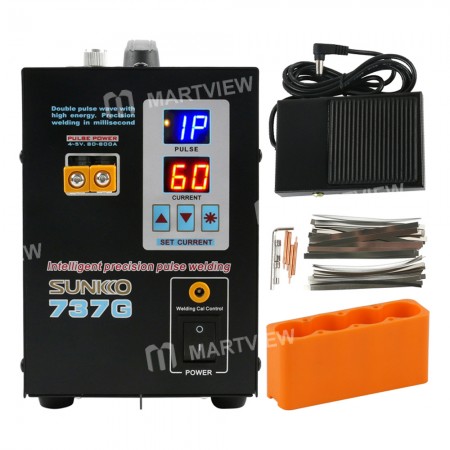

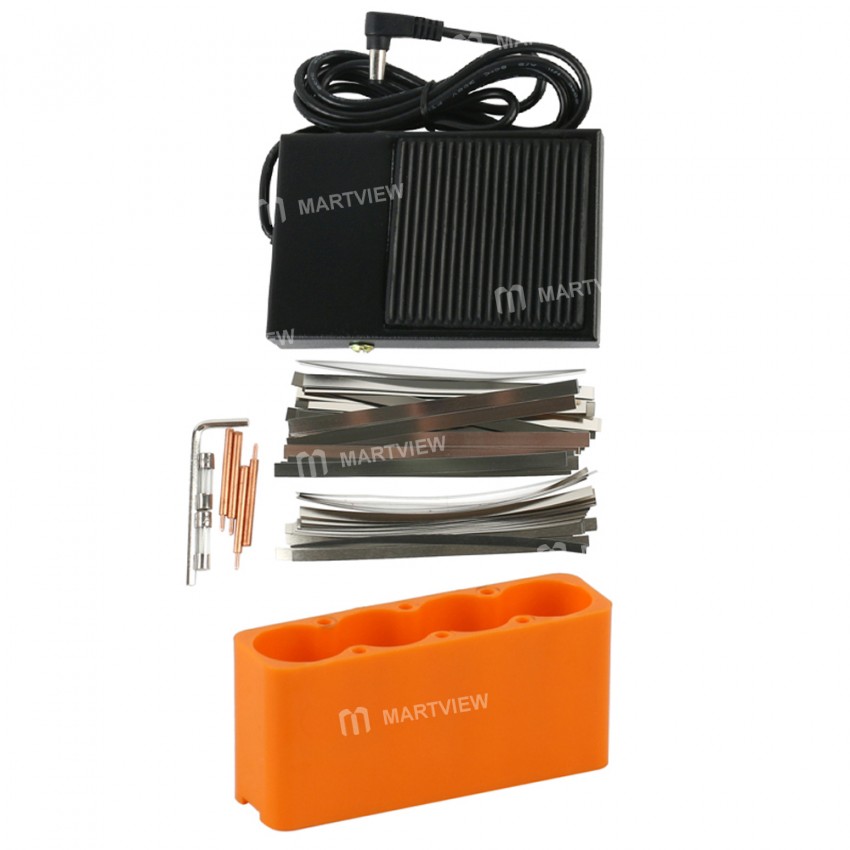

Package includes:

• 1 x 737G Spot Welder

• 1 x Foot Pedal Control

• 1 x Battery Holder

• 4 x Welding Needle

• 1 x Hex Wrench

• 2 x Fuse Tube

• 30 x 0.1*4*100mm Nickel Plated

• 30 x 0.15*5*100mm Nickel Plated
