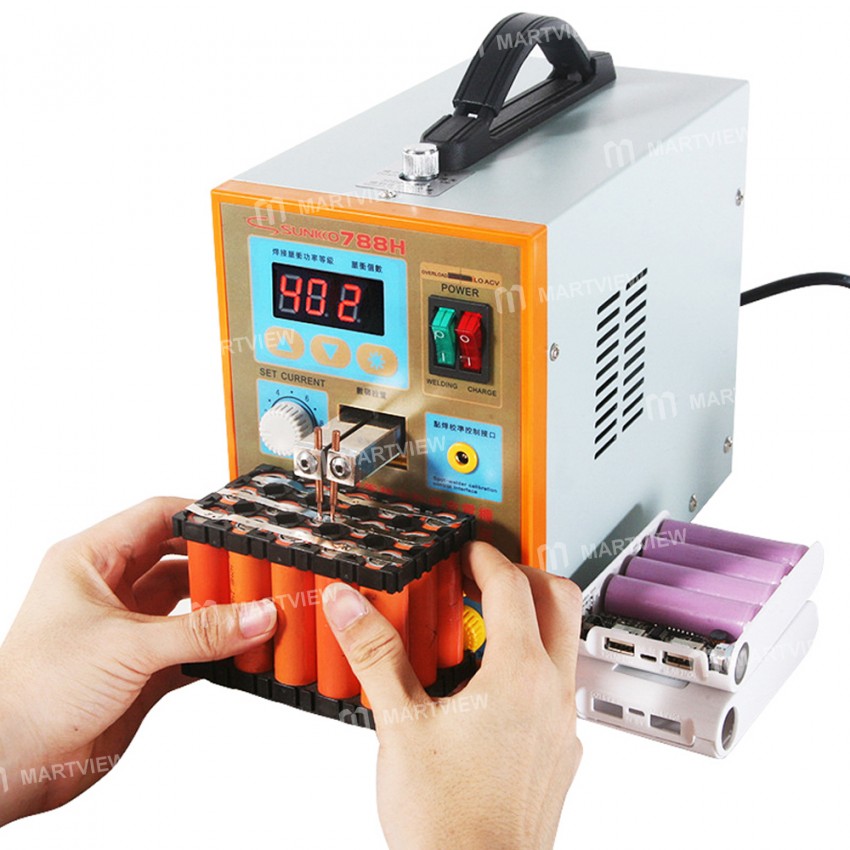

Sunkko 788H USB Dual-use Battery Pulse Spot Welder Welding Machine For 18650 Lithium Battery Pack Production Spot Welding

Sunkko 788H USB Dual-use Battery Pulse Spot Welder Welding Machine For 18650 Lithium Battery Pack Production Spot Welding

Features:

• The welding electrode is welded with a double LED high-brightness lighting device. LED lighting type enhanced version is easy to operate for low vision employees.

• The welding pin pressure can be continuously adjusted from 300g-750g to facilitate the welding of workpieces of different thicknesses, so as to obtain good and reliable solder joints.

• It shows pulse quantity and current when you are at work with this machine. The distinct panel also allows you to set current and pulse easily and quickly.

• The test function is also available, convenient for the charging and test of the battery. Therefore, you can get the internal resistance by selecting the appropriate charging current.

• Suits for various sizes of the battery pack, button battery, polymer battery and protection board, Apple mobile phone camera, stainless steel hardware, stainless steel mesh, etc.

Specifications

• Input: AC 110V(US)/AC 220V(EU/AU); 50-60Hz

• Primary Current: 2-15A

• Welding Current: 50-800A(The Corresponding Pulse Time: 1-19ms)

• Charging Voltage: 4.2-36V(Adjustable)

• Steel Plate Welding Thickness: 0.05-0.2mm

• Charging Current: 0-2A

• Power Adjust Level: 0-99*1; 0-99*2

• Voltage Testing Range: 0-50V DC

• Product Weight: 4.3kg / 9.4LB

• Product Size: 140*245*200mm

Package includes:

• 1 x 2 in 1 Spot Welder Battery Charger

• 1 x Foot Controller

• 1 x Battery Holder

• 2 x Fuse Tube

• 4 x Welding Pins for Fixed Welding

• 1 x Hex Wrench

• 1 x Plated Nickle Set(0.1*4*100mm; 0.15*5*100mm;0.2*5*100mm)

• 1 x Pure Nickle Set(0.15*8*100mm)
