Sunshine M-15 8.42 Million Pixels HDMI 4K 60fps HD Electronic Microscope Camera

Sunshine M-15 8.42 Million Pixels HDMI 4K 60fps HD Electronic Microscope Camera

Features:

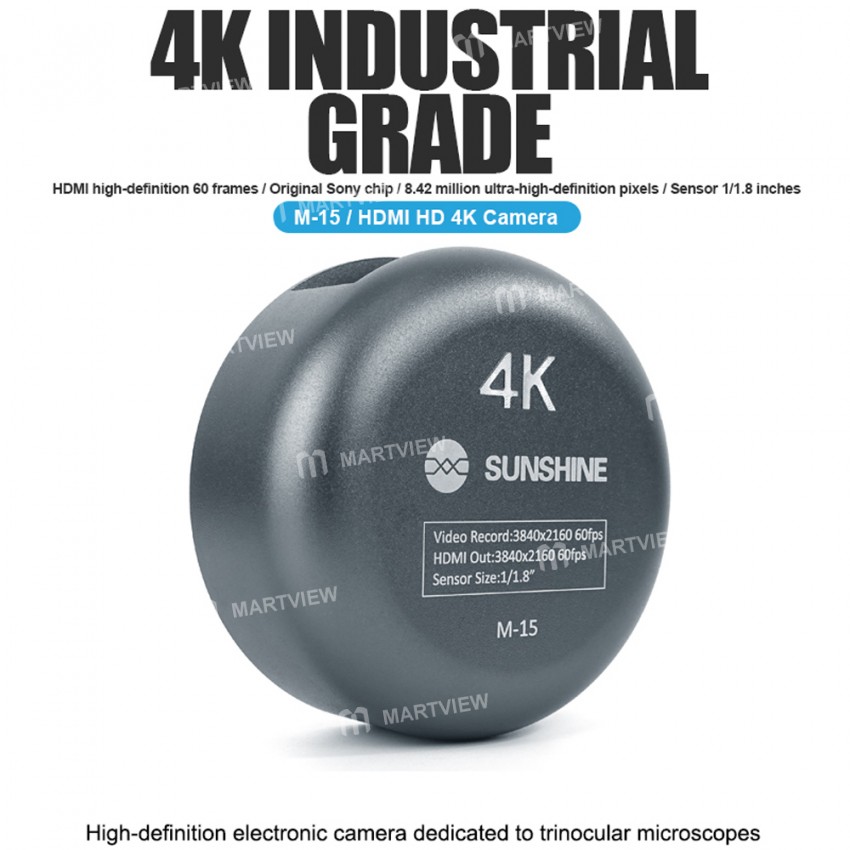

• HDMI high-definition 60 frames / original Sony chip / 8.42 million ultra-high-definition pixels / sensor 1/1.8 inches

• High-definition electronic camera dedicated to trinocular microscopes

• 4K/60 frame output/Sony chip/1/1.8 inch sensor/8.42 million pixels

• Using 8.42 million pixels Sony's new generation of high dynamic range CMOS 1/1.8 inch 4K image sensor, high sensitivity

• The resolution can reach 3840*2160, high-definition image output, no need to go through the computer host, the general computer display can be used; support photo/video, take photos without shaking, the image is clearer, support U disk storage

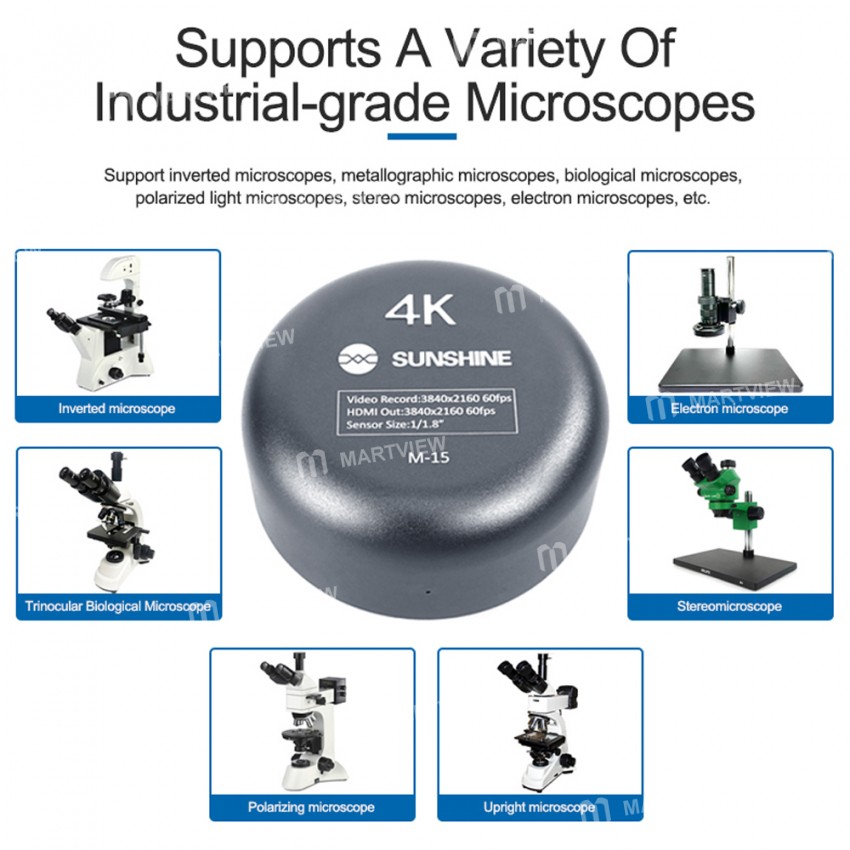

• Supports a variety of industrial-grade microscopes

• Support inverted microscopes, metallographic microscopes, biological microscopes, polarized light microscopes, stereo microscopes, electron microscopes, etc

• Clear interface and easy operation

• HDMI real-time output is connected to a high-definition HDMI display, and the built-in measurement system is used for real-time measurement, photographing and video recording, exporting measurement data to U disk, and image comparison

• Photo/Video/Freeze/Language/File Management

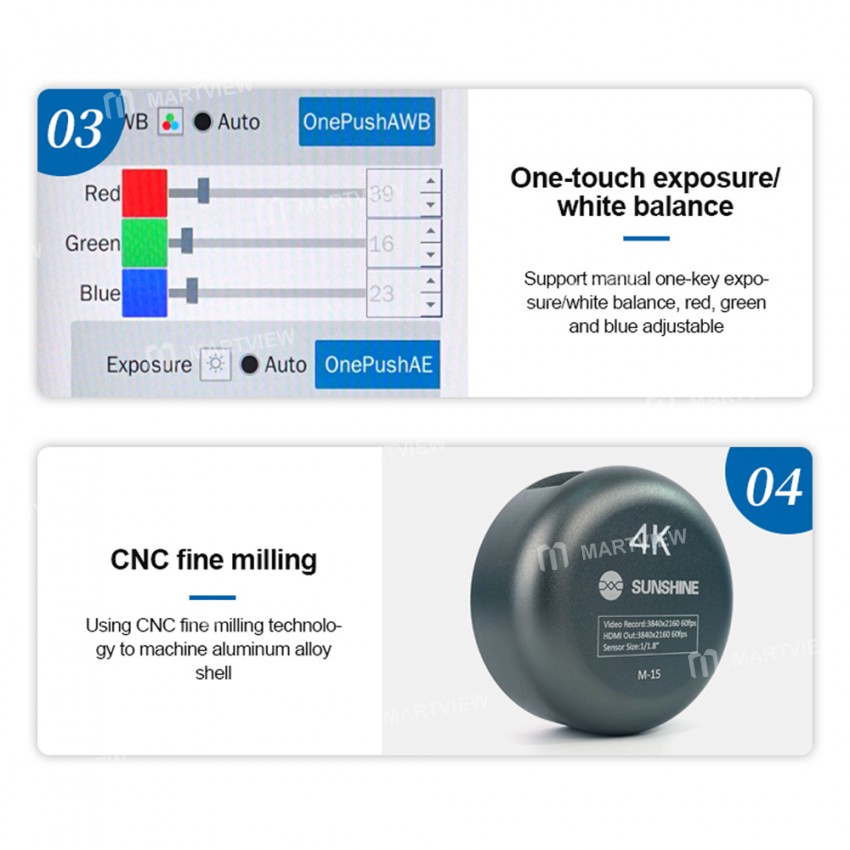

• Support manual one-key exposure/white balance, red, green, and blue adjustable

• Support 8 straight lines/color/thickness/position adjustable

• Using CNC fine milling technology to machine aluminum alloy shell

• Support Chinese/English/Traditional languages (default English)

Specification:

• Brand: Sunshine

• Product Name: HDMI HD 4K camera

• Model: M-15

• Net Weight: About 310g

• Gross Weight: About 690g

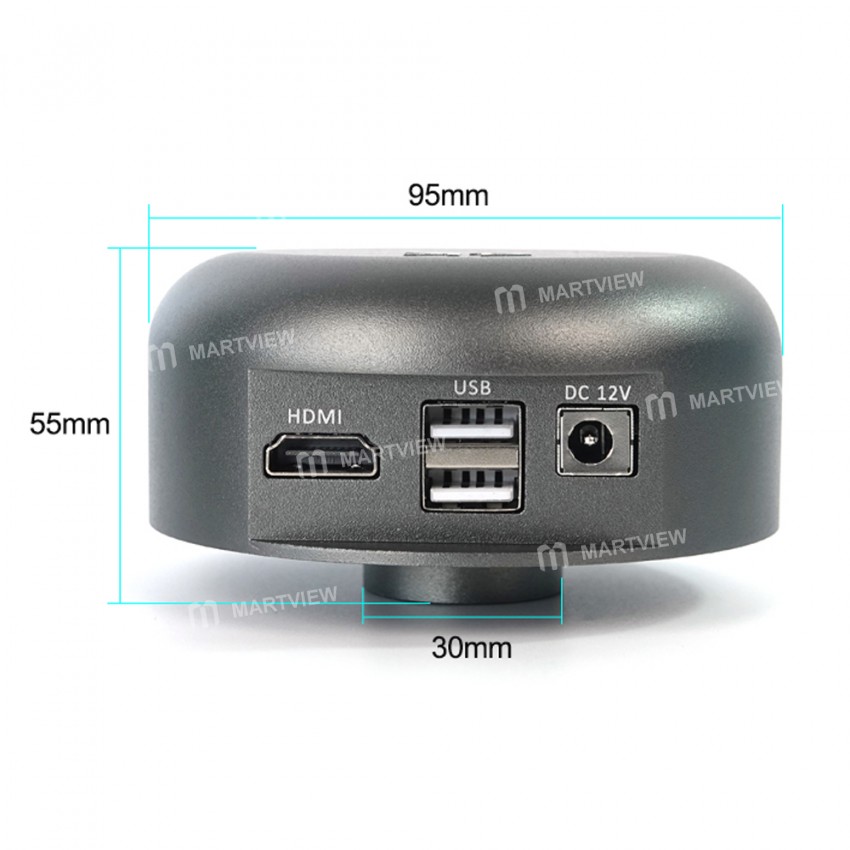

• Product Size: 95*95*55mm

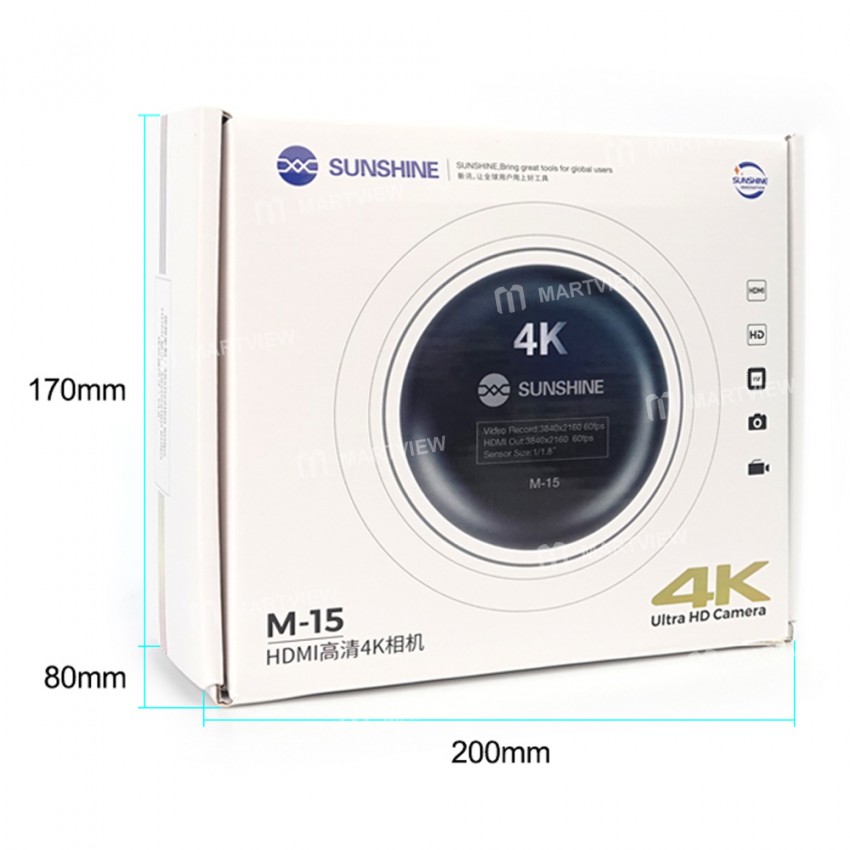

• Package Size: 200*170*80mm

• Sensor: 1/1.8-inch 2-megapixel Sony CMOS sensor

• Pixel Size: 2.0μm*2.0μm

• USB Interface: USB 2.0*2(mouse/u Disk)

• HDMI Output: 3840*2160 60 frames/1920*1080 60 frames

• Lens Mount: C interface

• Exposure: One-touch exposure/Auto exposure

• White Balance: One-touch white balance/Auto white balance

• Storage: Support U disk storage

• Input Voltage: DC 5V-12V

• Underline: Support 8 straight lines/color/thickness/position adjustable

• Mirror: Support horizontal/vertical flip

• Menu Language: Chinese/English/Traditional

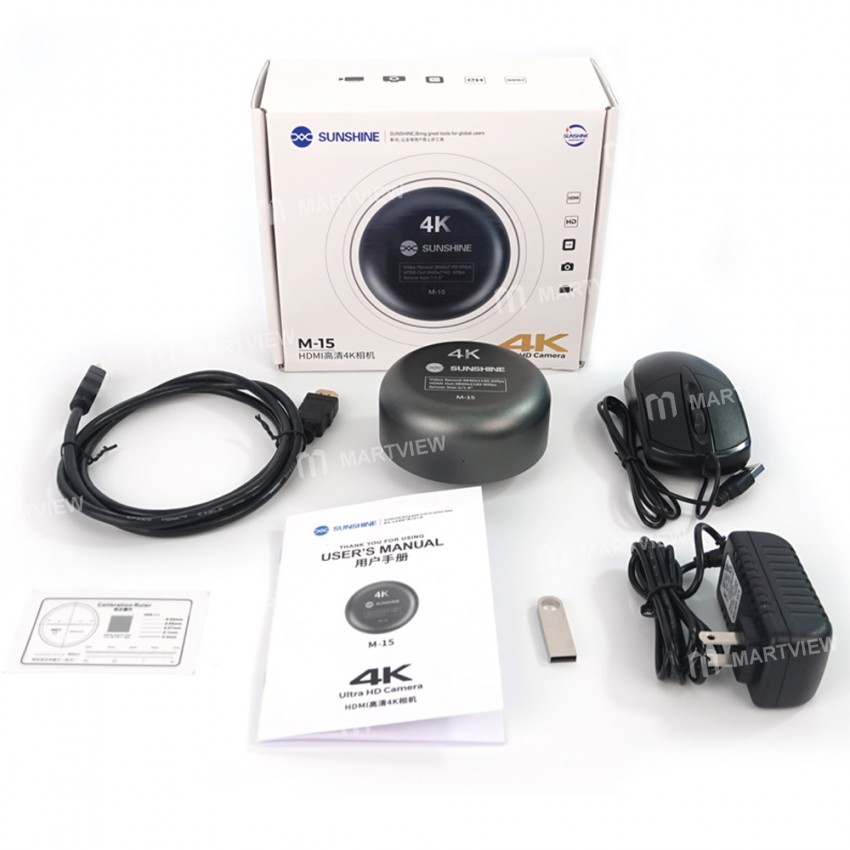

Package includes:

• 1 x Host

• 1 x HDMI Cable

• 1 x U Disk

• 1 x Mouse

• 1 x Power Cord

• 1 x Calibration Card
