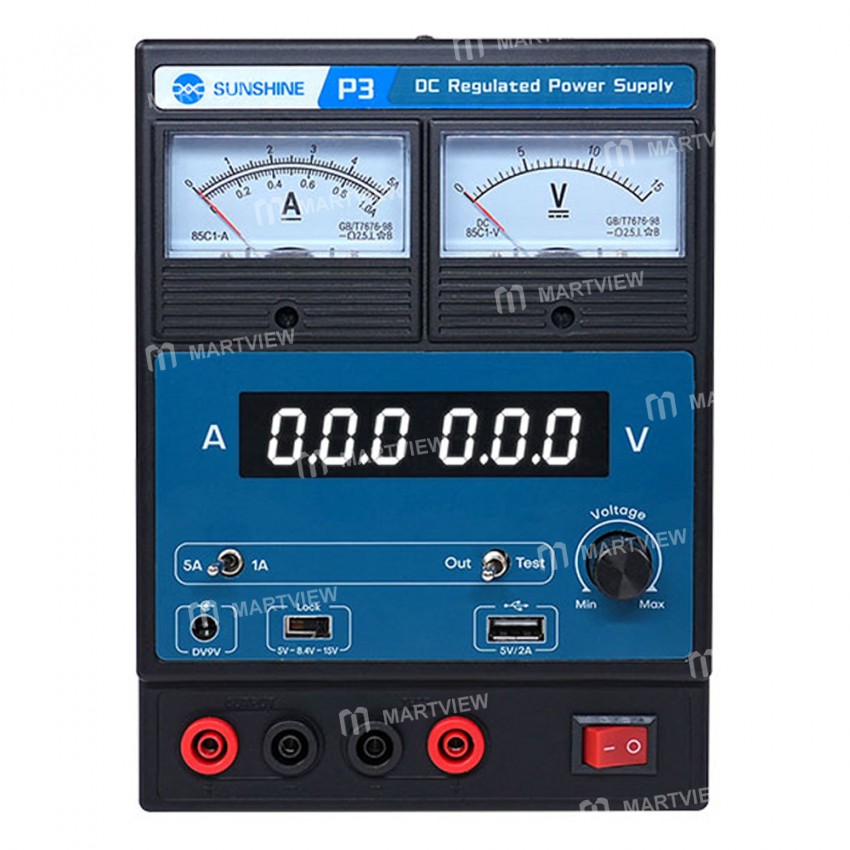

Sunshine P3 5V / 8.4V / 15V Switching & Dual LED Dual Pointer Display DC Regulated Power Supply

Sunshine P3 5V / 8.4V / 15V Switching & Dual LED Dual Pointer Display DC Regulated Power Supply

Features:

• Sunshine P3 DC regulated power supply, 5V/8.4V/15V switching, A/V dual digital display dual pointers, automatic short circuit protection

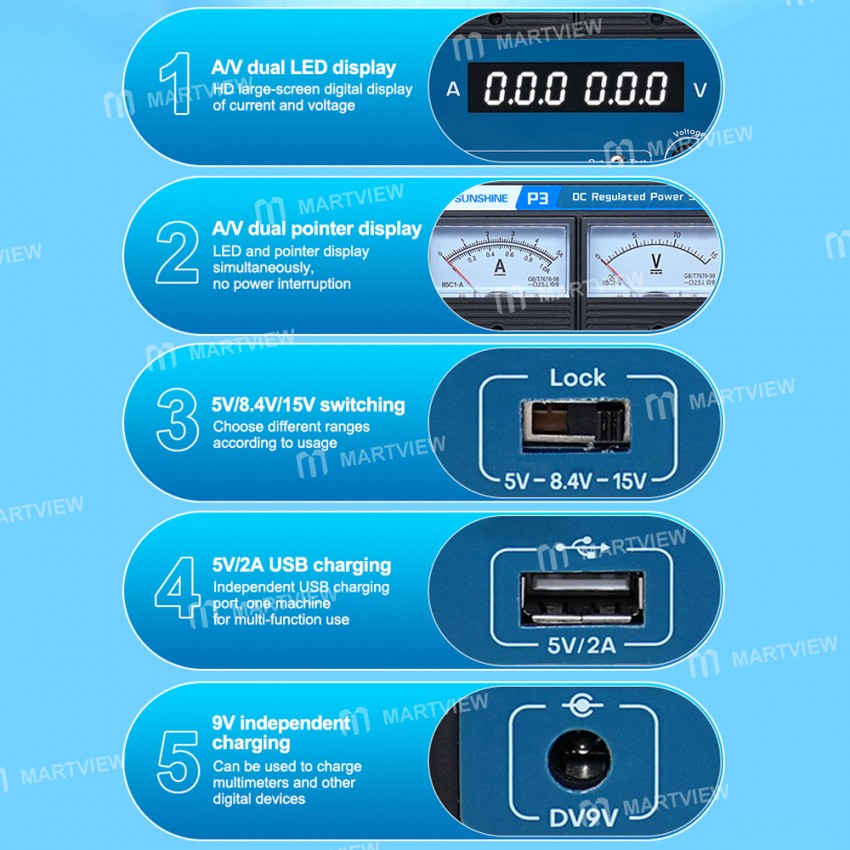

• HD large-screen digital display of current and voltage, LED and pointer display simultaneously, no power interruption

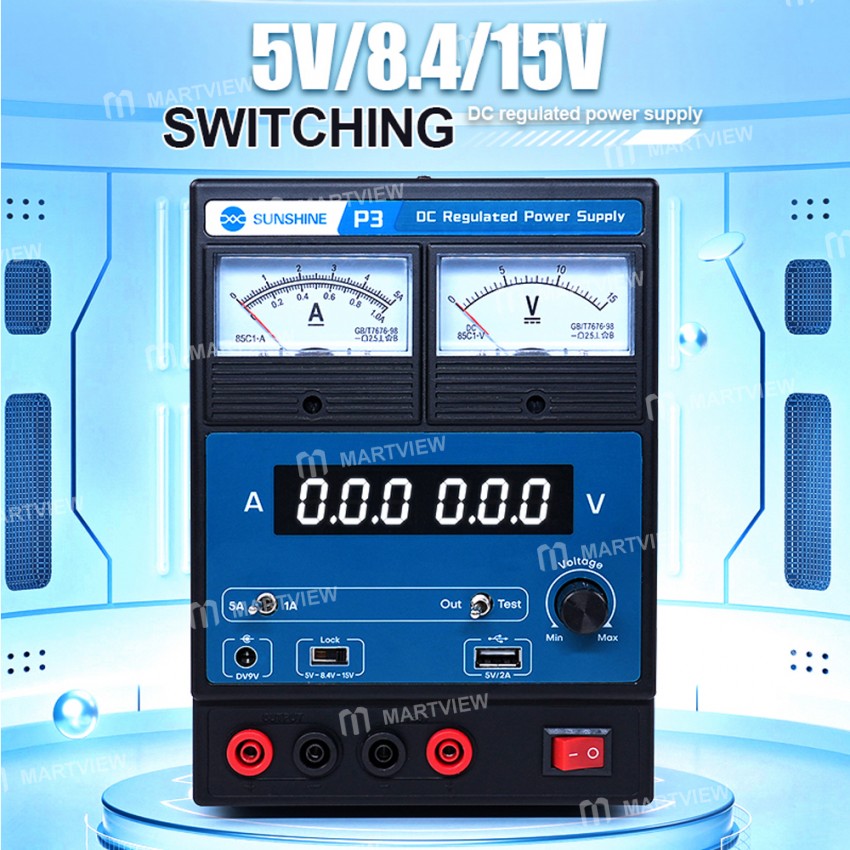

• 5V/8.4V/15V switching can choose different ranges according to usage

• 5V/2A USB charging, independent USB charging port, one machine for multi-function use

• 9V independent charging, can be used to charge multimeters and other digital devices

• Excellent electronic repair services, stabilize voltage and current, strengthen multiple protections, and improve operating efficiency

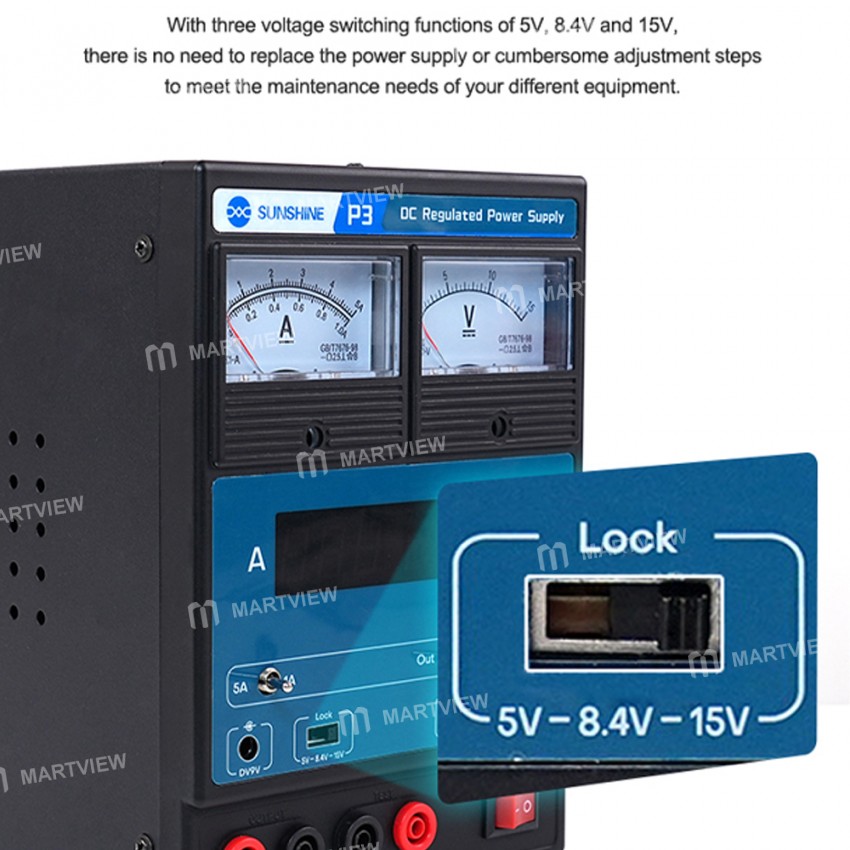

• With three voltage switching functions of 5V, 8.4V, and 15V, there is no need to replace the power supply or cumbersome adjustment steps to meet the maintenance needs of your different equipment

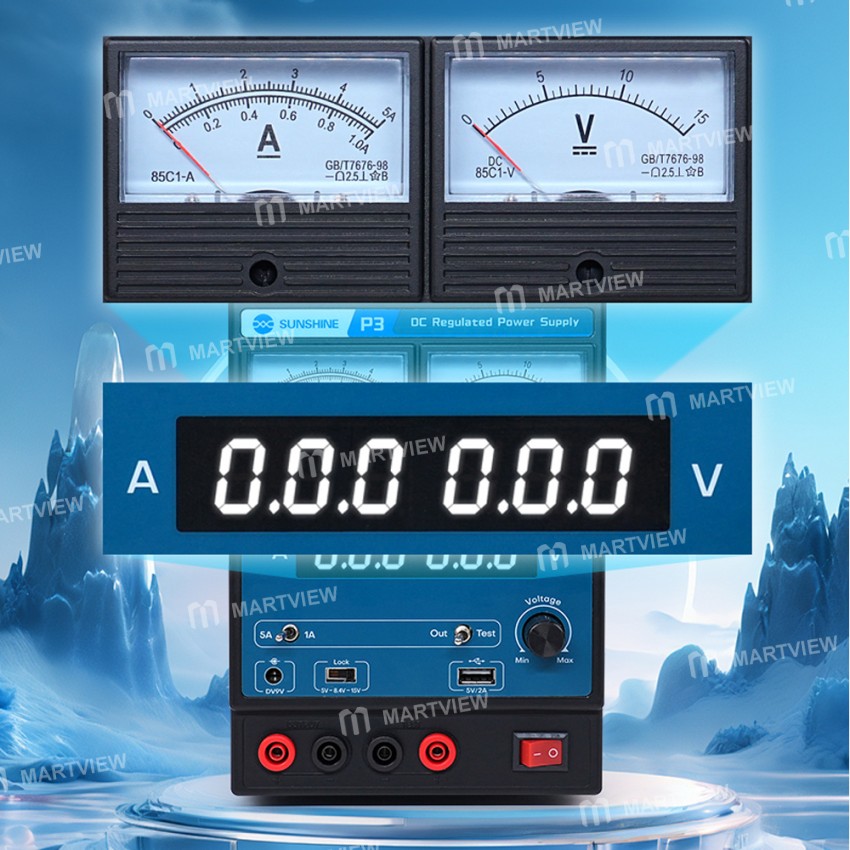

• Dual digital display and dual pointer meter, LED and pointer are displayed simultaneously; large-screen LED digital display of current and voltage values is more accurate and clearer

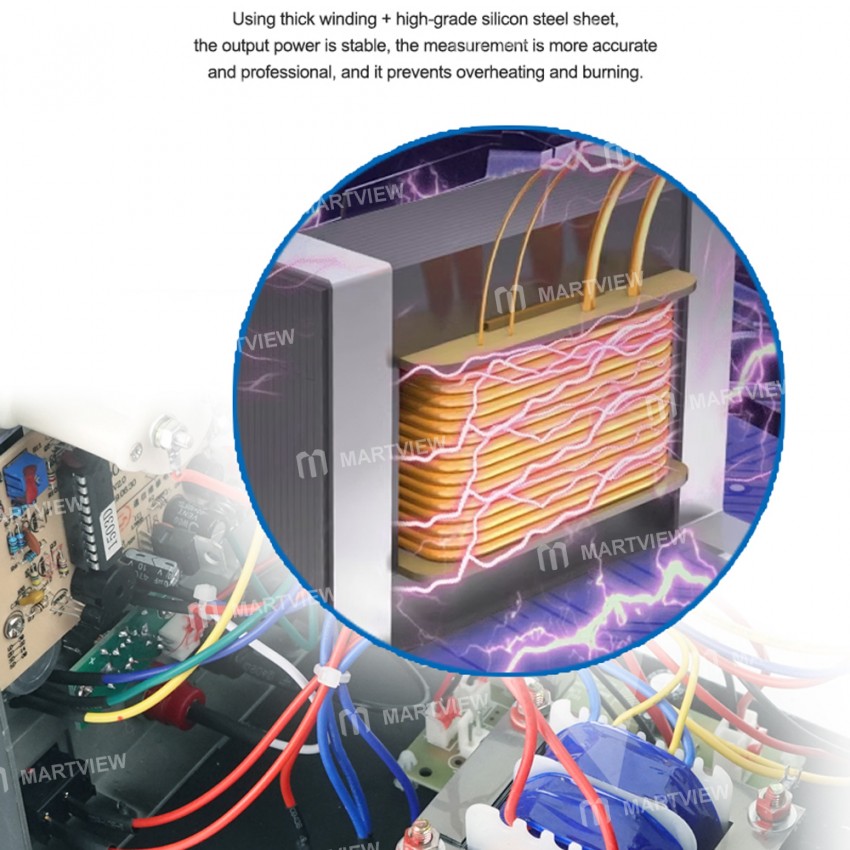

• Using thick winding + high-grade silicon steel sheet, the output power is stable, the measurement is more accurate and professional, and it prevents overheating and burning

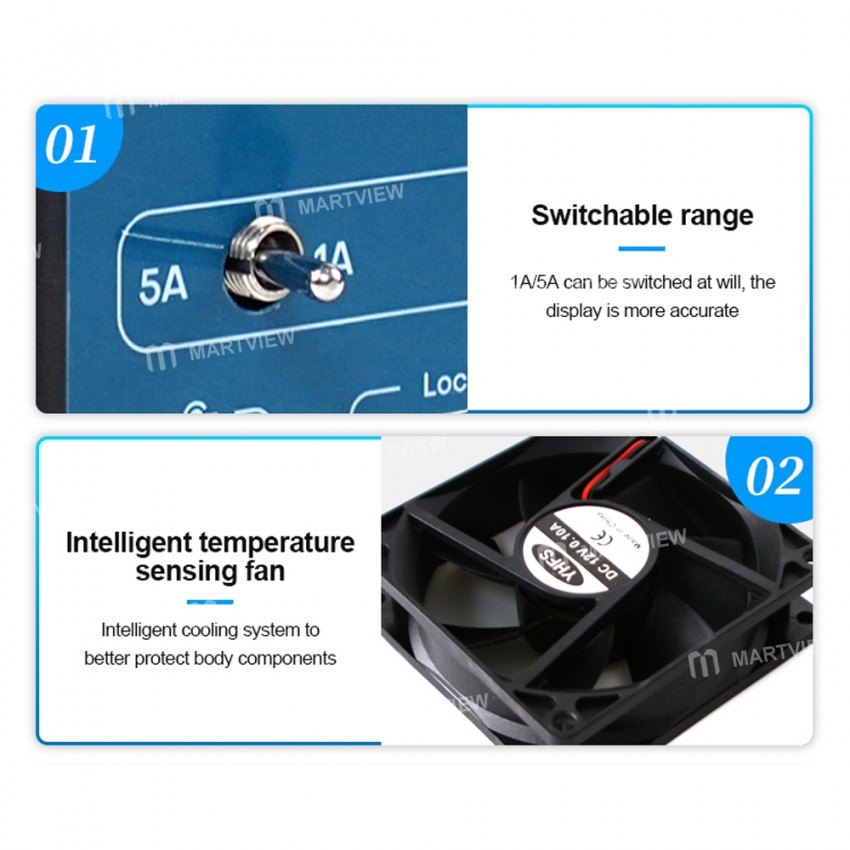

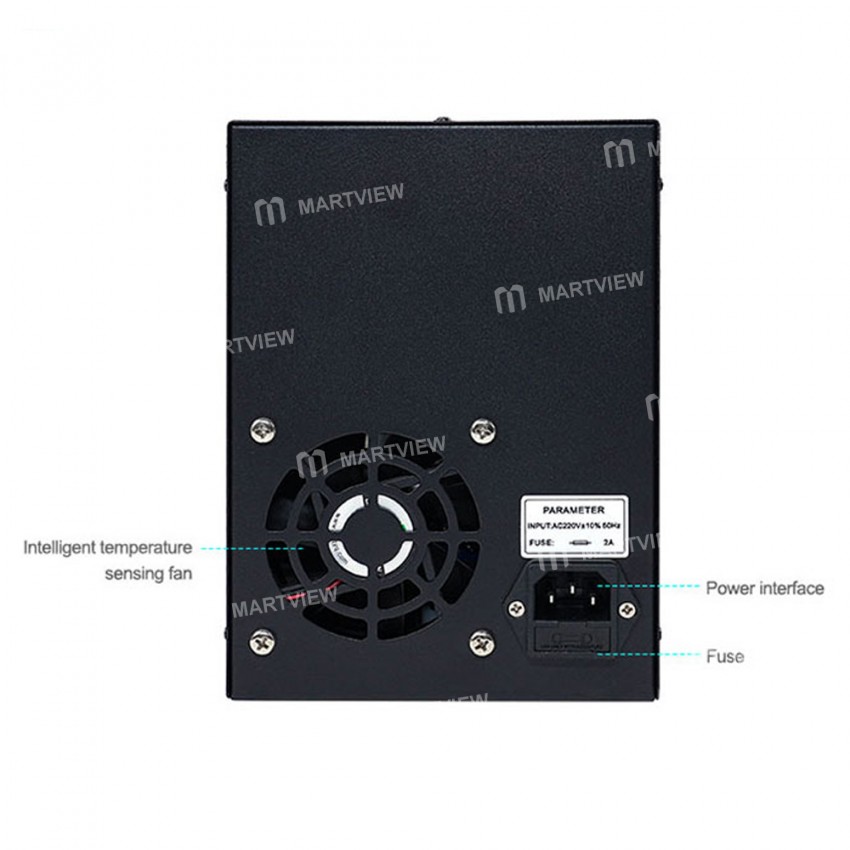

• Intelligent temperature sensing fan, intelligent cooling system to better protect body components

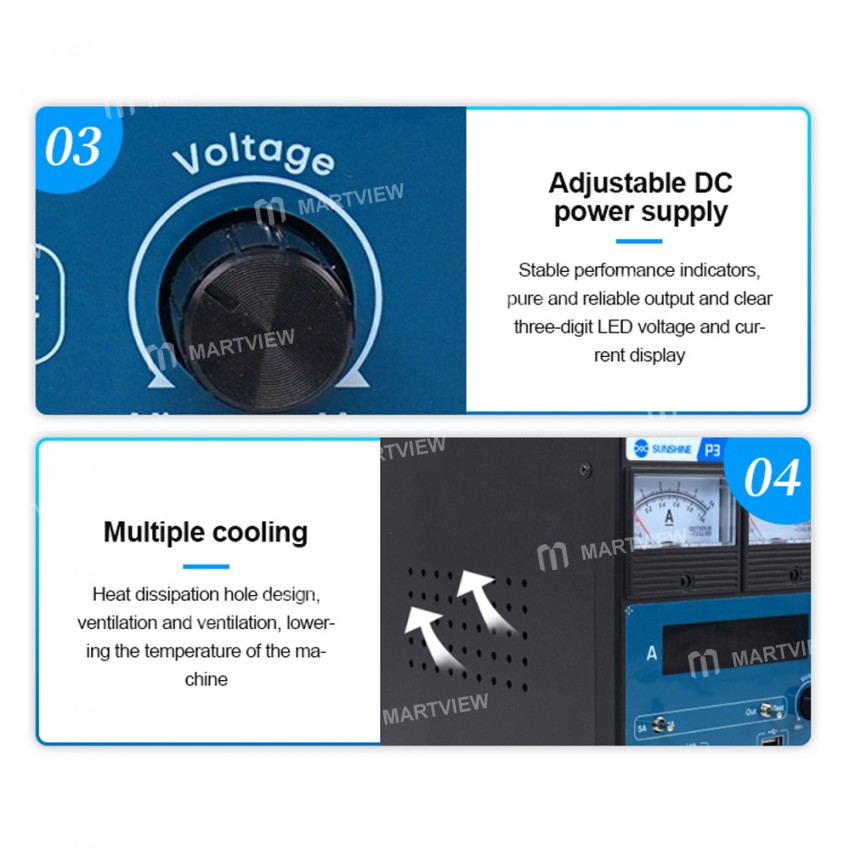

• Stable performance indicators, pure and reliable output, and clear three-digit LED voltage and current display

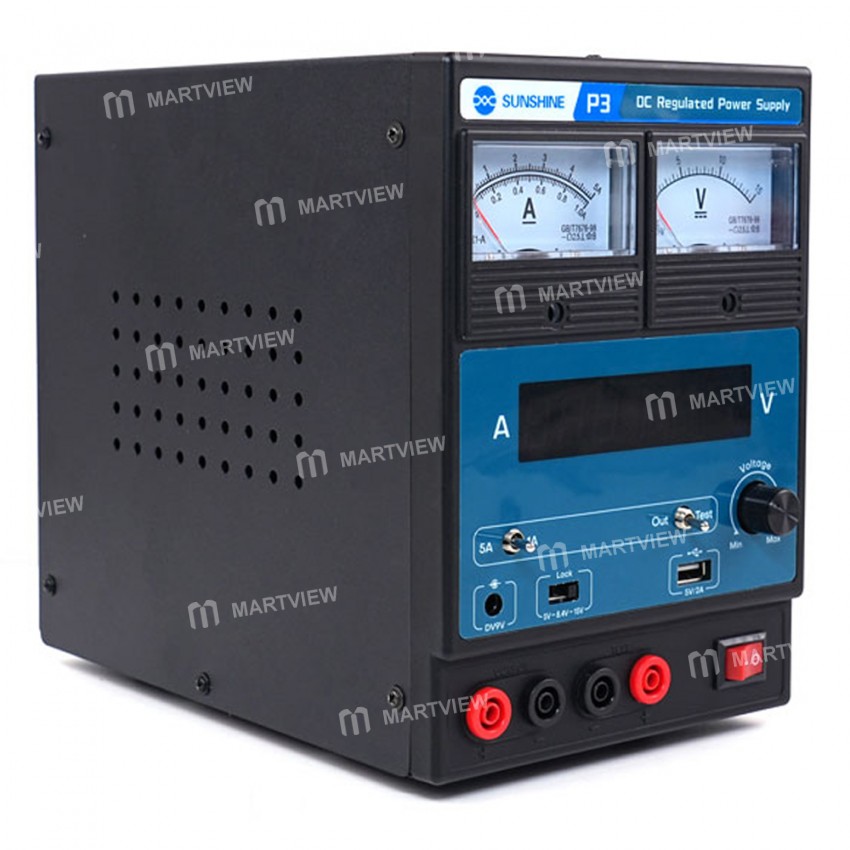

• Heat dissipation hole design, ventilation, and ventilation, and lowering the temperature of the machine

Specification:

• Brand: Sunshine

• Product name: DC-regulated voltage power supply

• Model: P3

• Net weight: ≈2.74kg

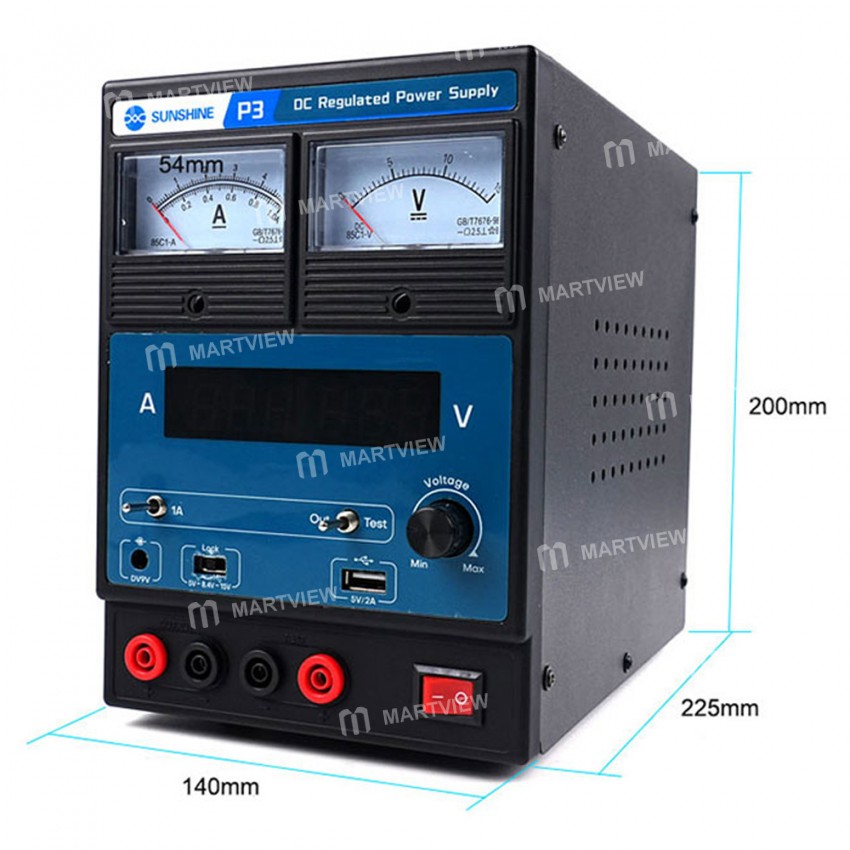

• Product Size: 140*225*200mm

• Package Size: 290*197*255mm

• Voltage: AC 220V±10%, 50Hz/AC 110V±10%, 60Hz

• Working conditions (Temperature): 0~40℃

• Working conditions (Relative Humidity): 80%

• Storage conditions (Temperature): -10~70℃

• Storage conditions (Relative Humidity): 35~45%

• Display method: LED display (resolution ±1%)

• The output voltage: Continuously adjustable between 5V~8.4~15V (resolution 0.1V)

• Voltage output accuracy: ±0.1V

• Voltage stability: <0.01%+3mV

• Load stability: <0.01%+3mV

• Recovery time: 100uS

• Ripple noise voltage: <0.1%Vrms

• Temperature coefficient: <300PPM/C

• Current stability: <0.01%+3mV

• Load stability: <0.01%+3mV

• Ripple noise current: <0.1%Vrms

Package includes:

• 1 x Power Supply

• 1 x Power Cord

• 1 x Fish Clip Wire
