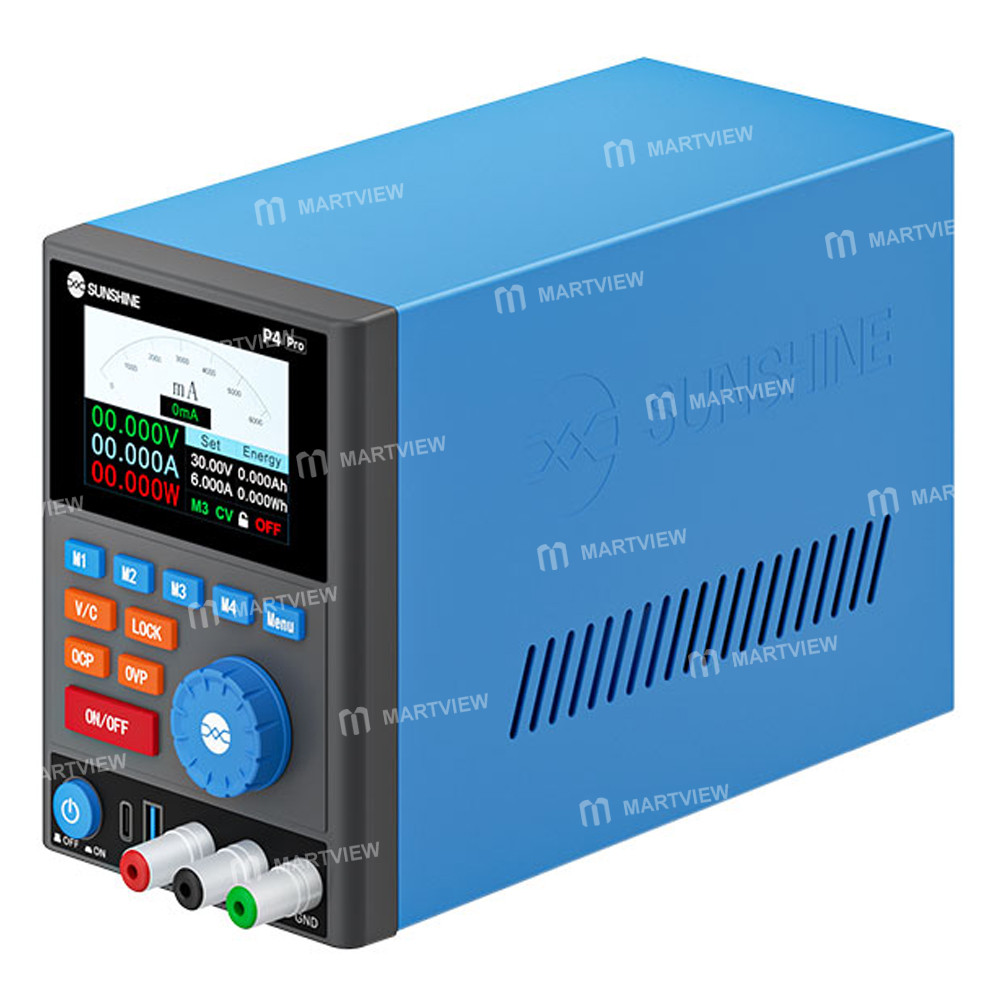

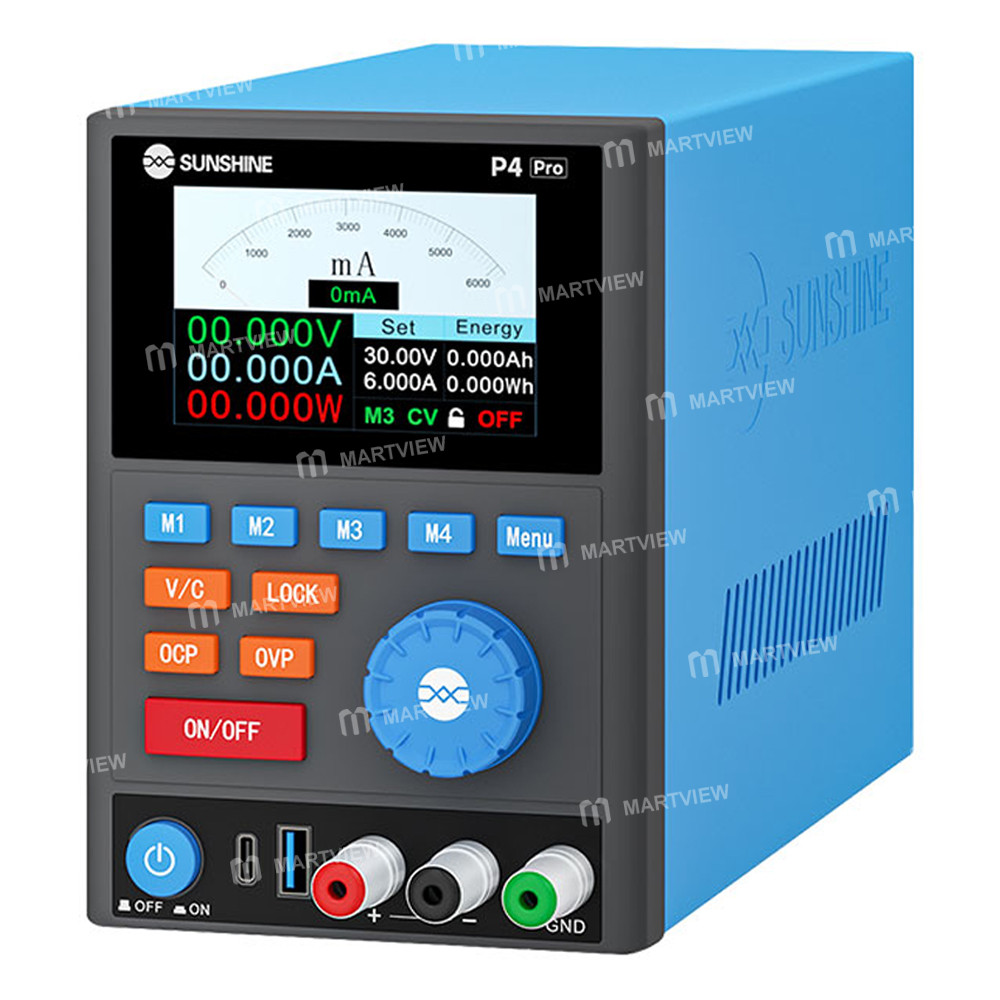

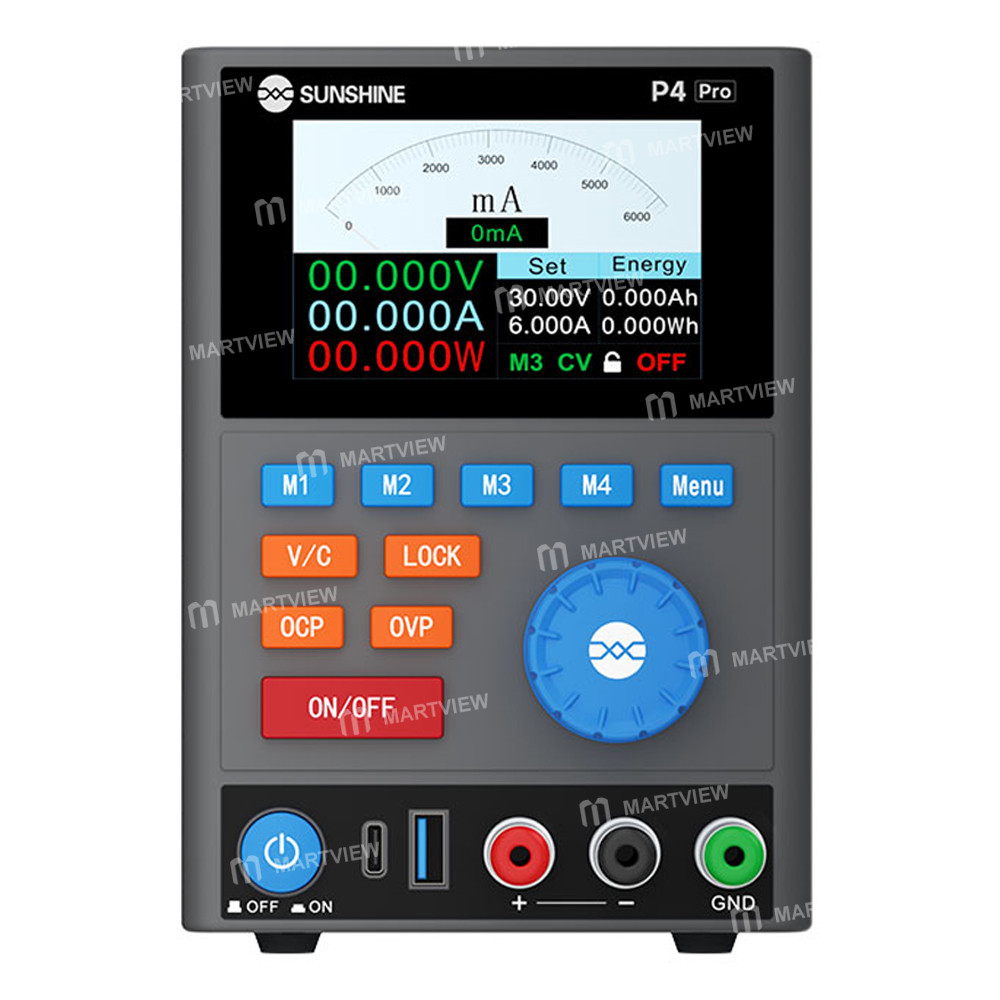

Sunshine P4 Pro 30V / 6A Smart DC Regulated Power Supply with Host Computer Functionality

Sunshine P4 Pro 30V / 6A Smart DC Regulated Power Supply with Host Computer Functionality

Features:

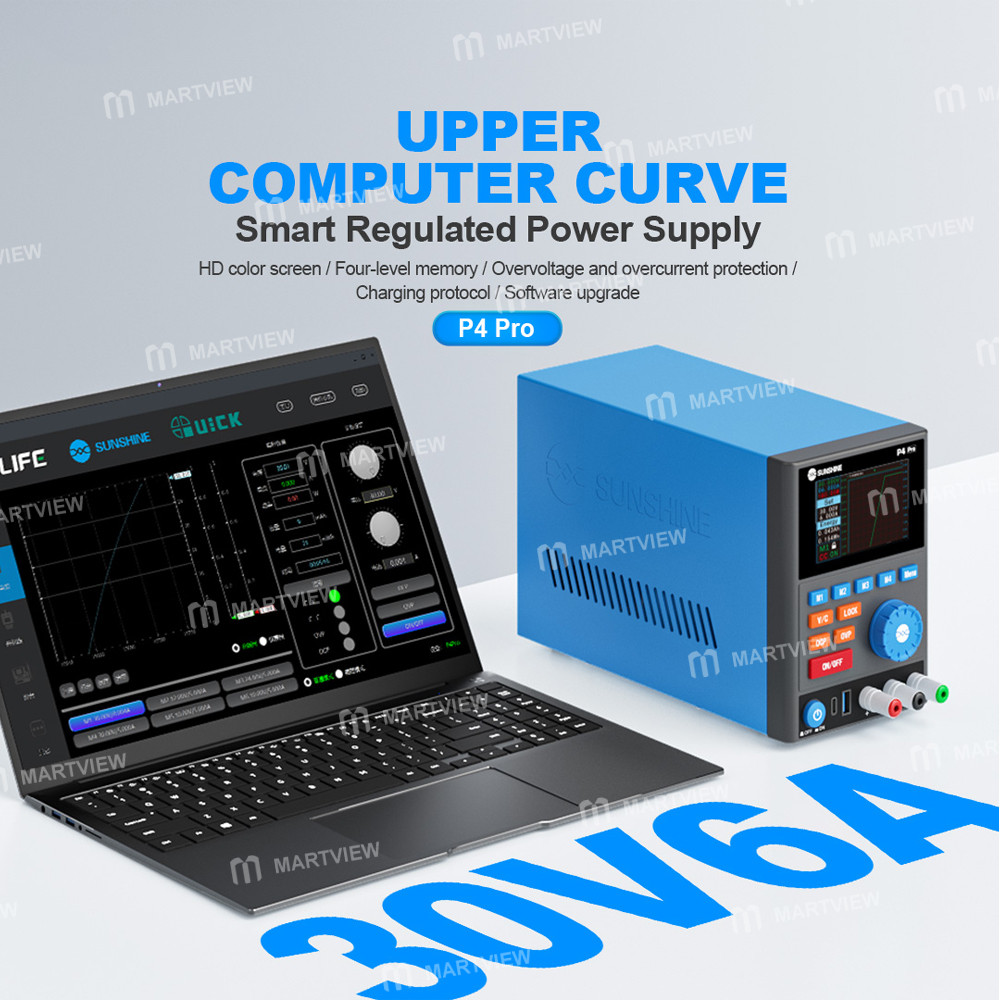

• P4 Pro upper computer curve smart regulated power supply, 30V/6A, four-level memory, over-voltage and over-current protection, charging protocol, software upgrade

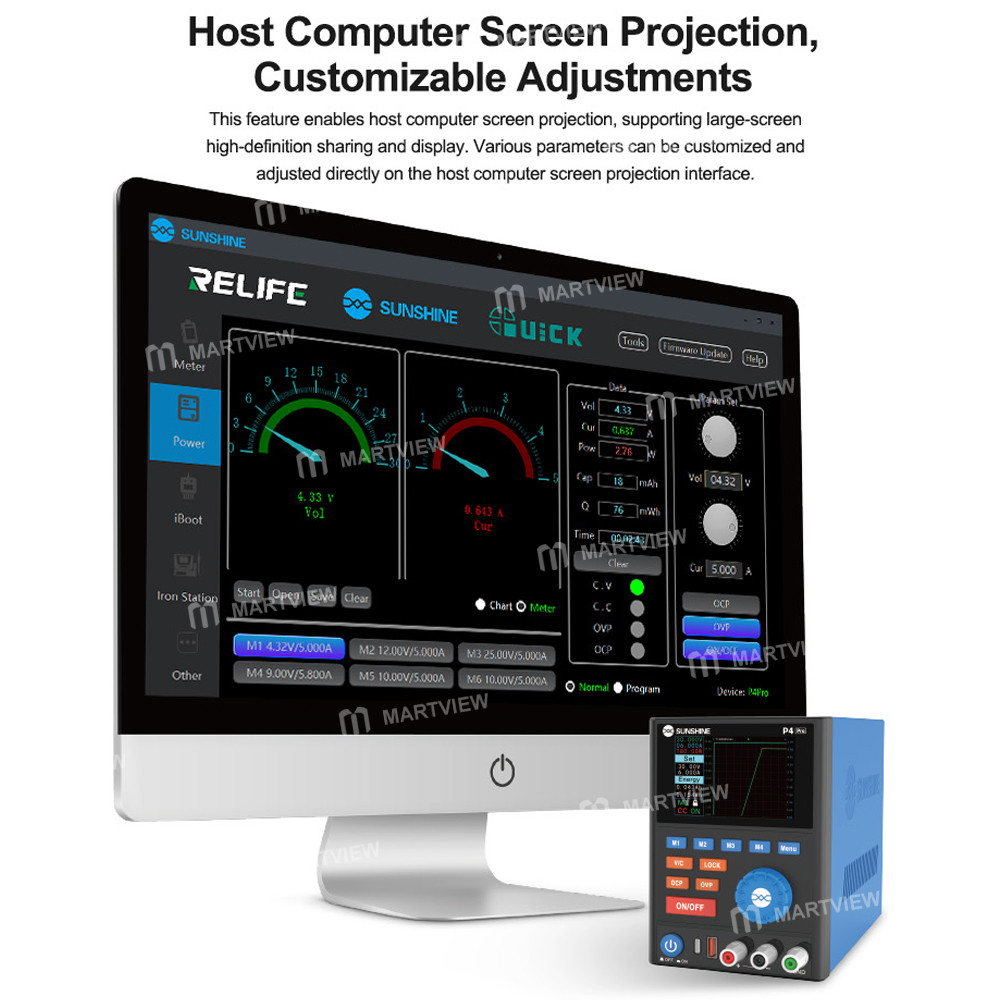

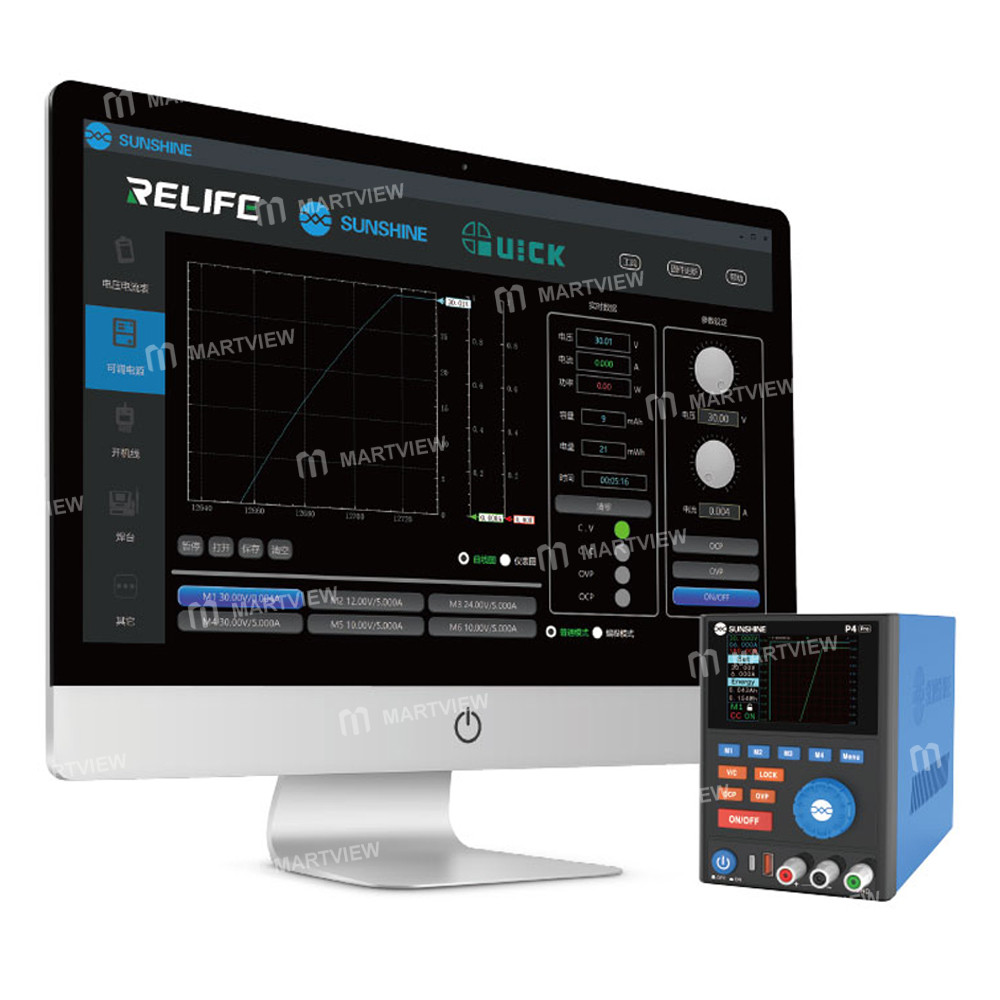

• Host Computer Screen Projection, Customizable Adjustments: This feature enables host computer screen projection, supporting large-screen high-definition sharing and display. Various parameters can be customized and adjusted directly on the host computer screen projection interface

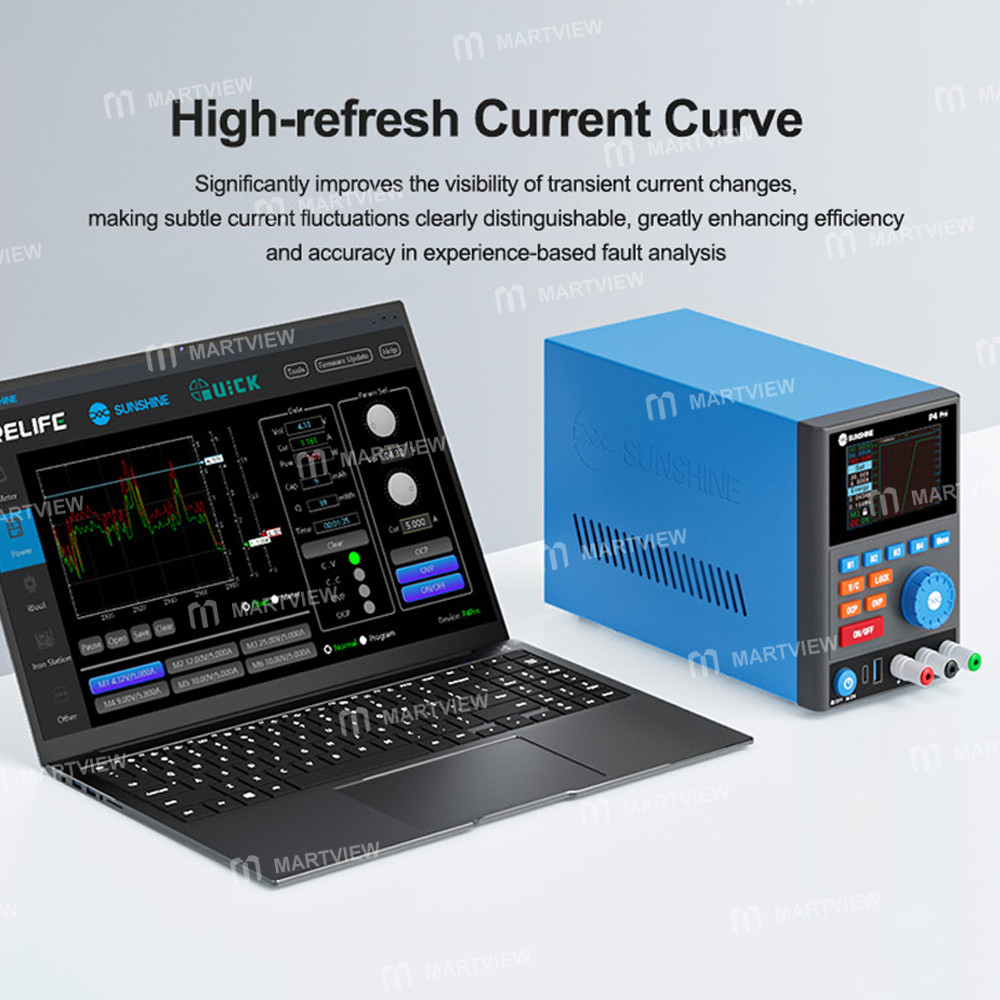

• High-Refresh Current Curve: Significantly improves the visibility of transient current changes, making subtle current fluctuations clearly distinguishable, greatly enhancing efficiency and accuracy in experience-based fault analysis

• 30V/6A High-frequency Output: Accurate values, adjustable DC regulated power supply

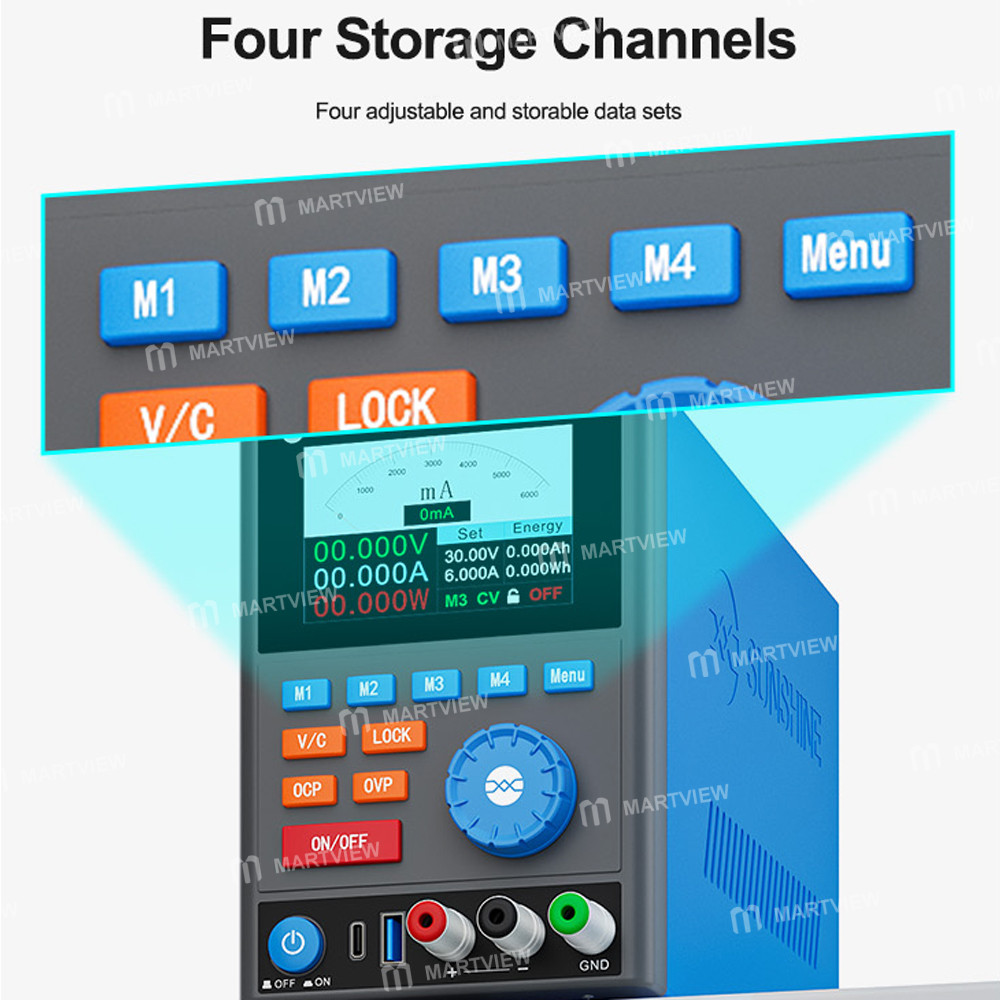

• Four Storage Channels: Four adjustable and storable data sets

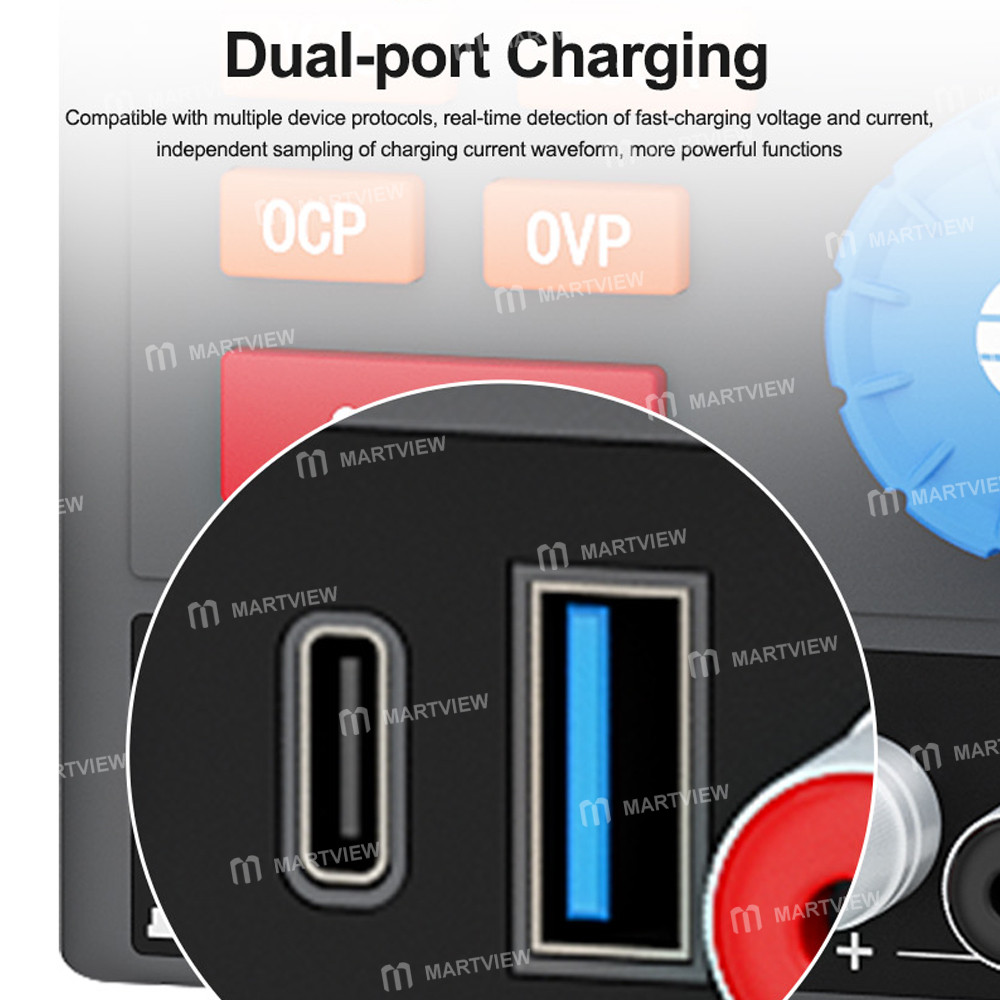

• Dual-port Charging: Compatible with multiple device protocols, real-time detection of fast-charging voltage and current, independent sampling of charging current waveform, and more powerful functions

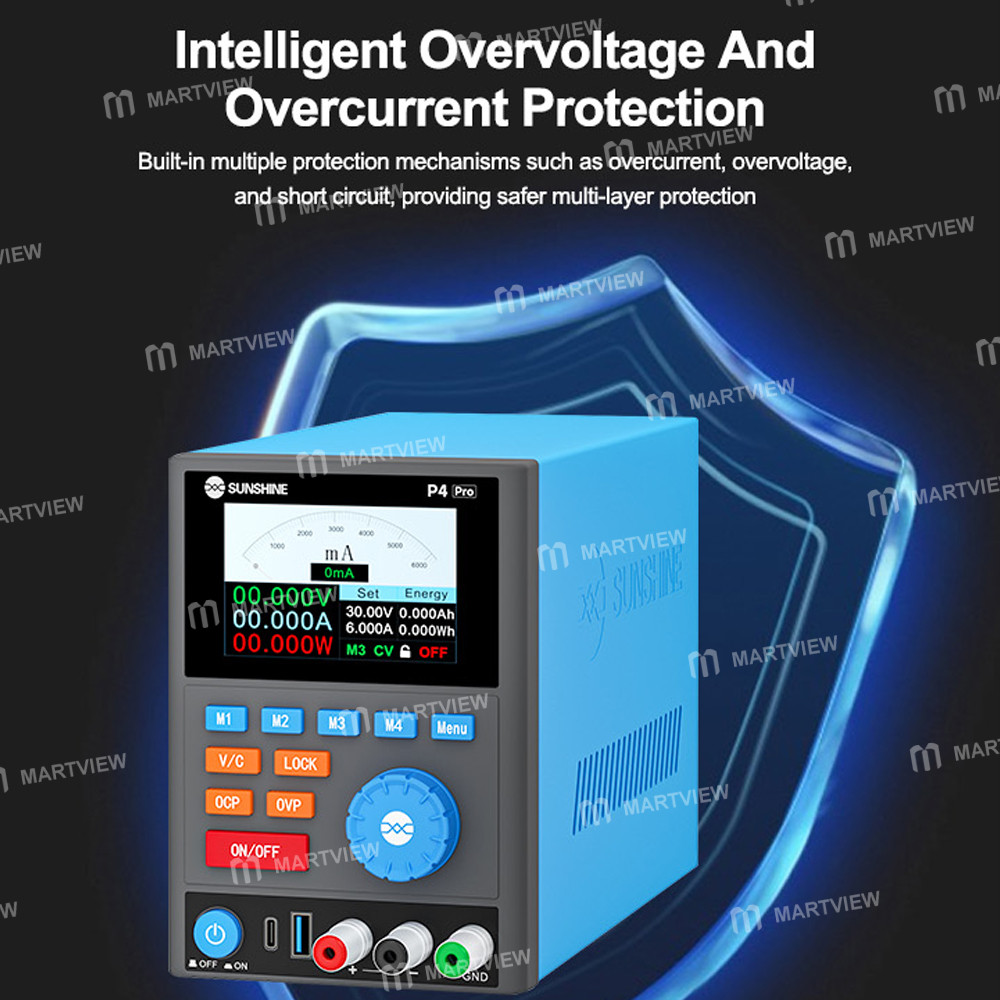

• Intelligent Overvoltage and Overcurrent Protection: Built-in multiple protection mechanisms such as overcurrent, overvoltage, and short circuit, providing safer multi-layer protection

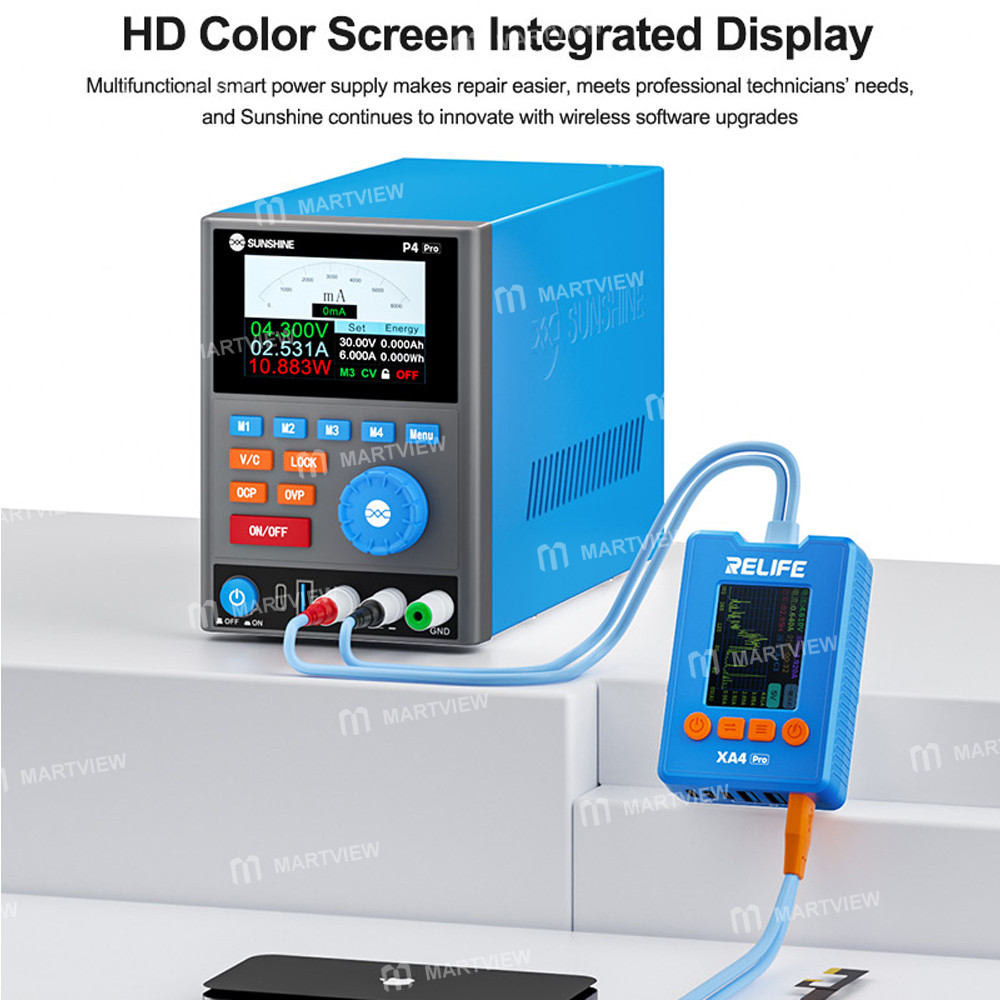

• HD Color Screen Integrated Display: Multifunctional smart power supply makes repair easier, meets professional technicians' needs, and Sunshine continues to innovate with wireless software upgrades

Specifications:

• Brand: SUNSHINE

• Product name: Digital-controlled DC power supply

• Model: P4 Pro

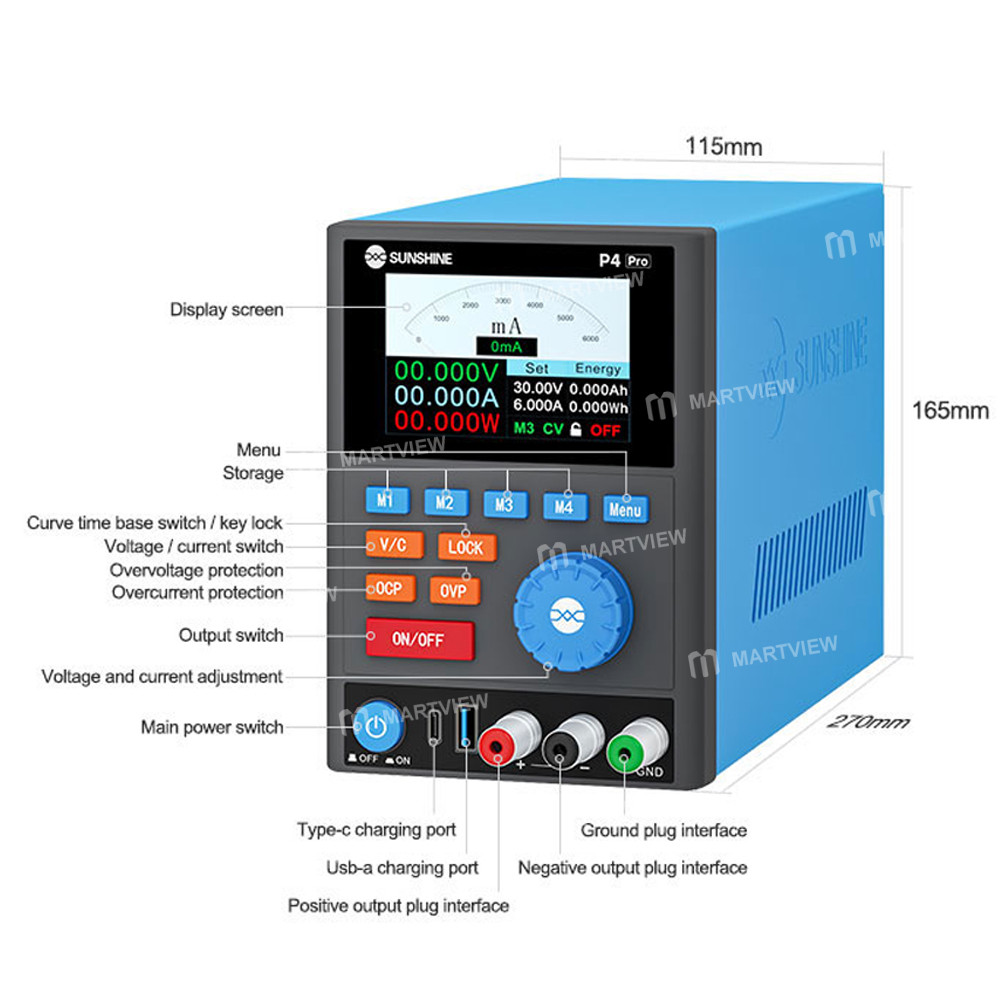

• Product size: 115*270*165mm

• Net weight: ≈ 3.8kg

• Voltage range: 0~30V

• Current range: 0~6A

• Load effect : ≤0.01%+2mV/≤0.02%+10mA

• Power effect: ≤0.01%+3mV/≤0.1%+3mA

• Output resolution: 10mV/1mA

• Setting accuracy(25°C+15°C): ≤0.5%+20mV/≤0.5%+5mA

• Ripple (20~20m): ≤2mVrms/≤3mArms

• Output temperature coefficient: 150ppm

• Readback resolution: 1mV/1mA

• Read the temperature coefficient: ≤100ppm+10mV/≤100ppm+5mA

• Response time(10%rated load): ≤100ms

• USB-C: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V@2.4A/AFC/FCP/SCP/HSCP

• USB-A: QC2.0/QC3.0/IP 5V@2.4A/AFC/FCP/SCP/HSCP

Package includes:

• 1 x Power Supply

• 1 x Test Cable

• 1 x Power Cable
