Sunshine SS-890B 20W Fiber Laser Frame Removal Marking engraving Machine with Intelligent Ranging Function

Sunshine SS-890B 20W Fiber Laser Frame Removal Marking engraving Machine with Intelligent Ranging Function

Features:

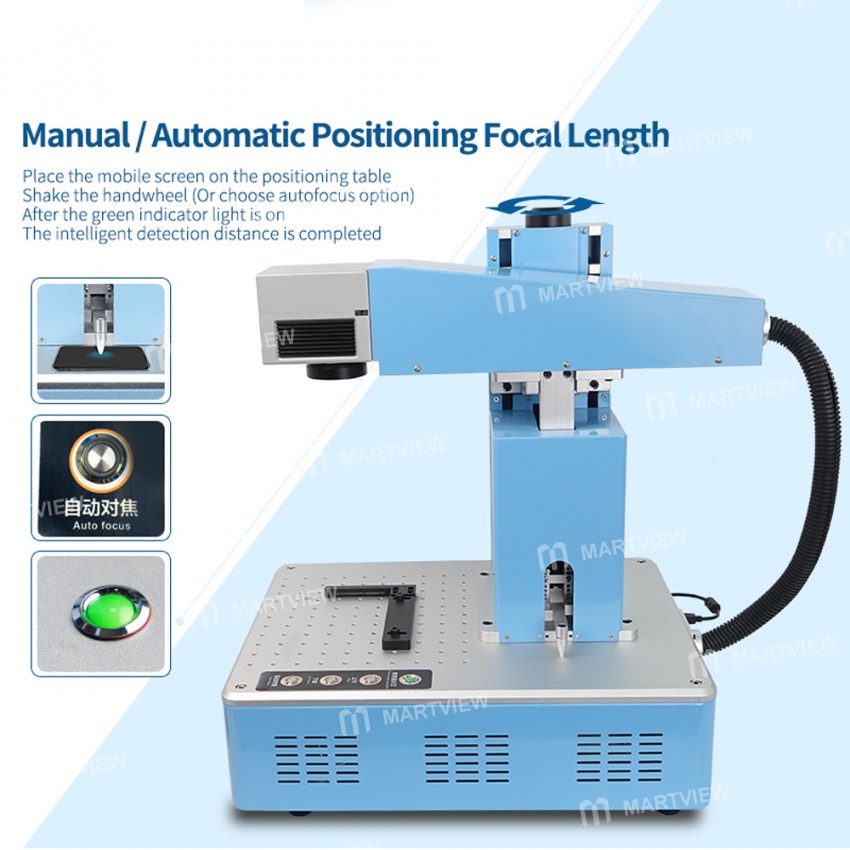

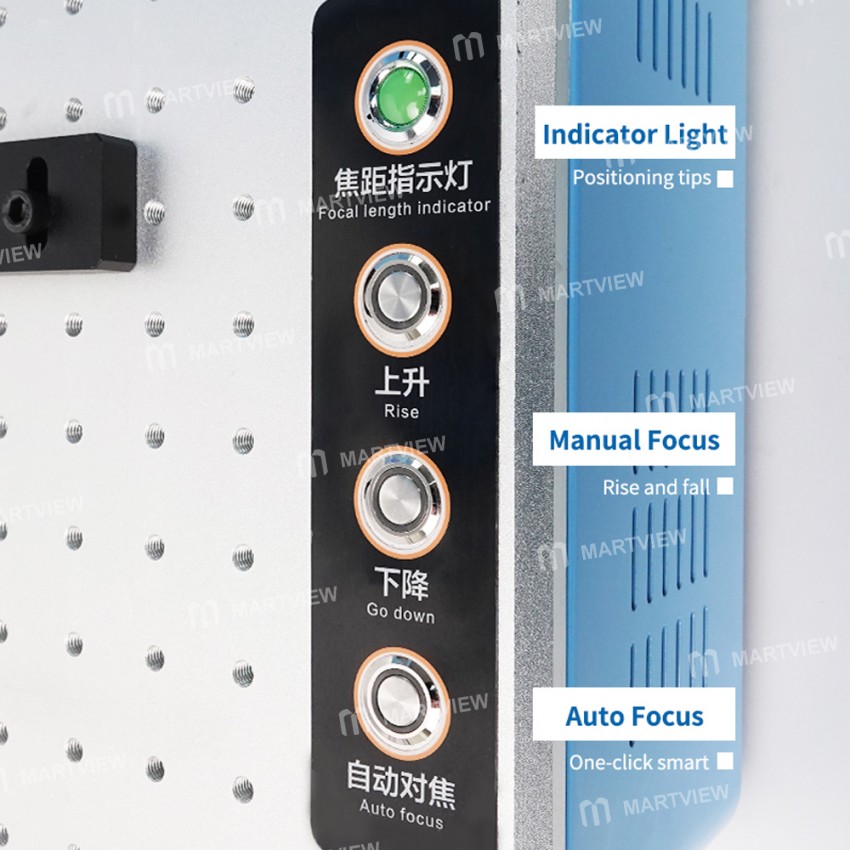

• Intelligent positioning and ranging, fast and accurate positioning

• Modern numerical control technology, strict control of every detail

• Disassemble the screen and remove the back cover to support more than 120 mobile phone models

• With a high-speed scanning galvanometer, the marking speed is fast, which is more than 4 times that of the YAG and DP semiconductor marking machines

Specification：

• Brand: SUNSHINE

• Product Name: Laser Frame Removal

• Marking Machine Model: SS-890B

• Product size:522 * 400 * 655mm

• Packing dimensions: 750*520*655mm

• Net weight:30kg

• Gross weight:42KG

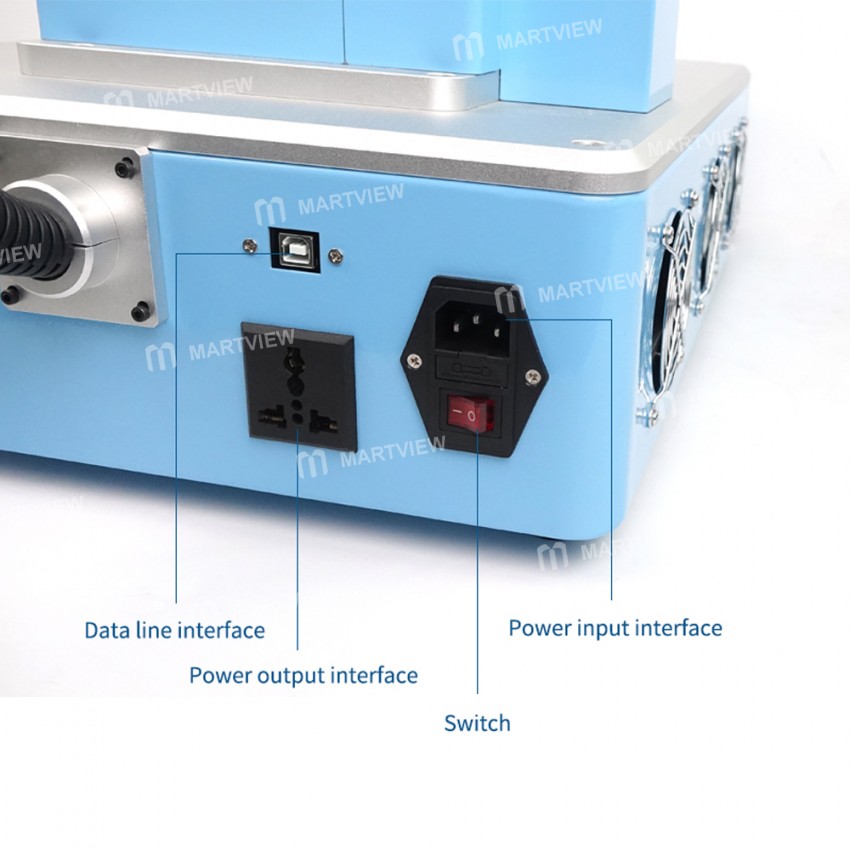

• Electricity demand:220V/50HZ/2.5A

• Power grid fluctuation:<±5%

• Power: < 250W (whole machine)

• Work temperature: 15 to 35℃

• Work humidity: 45 to 75%

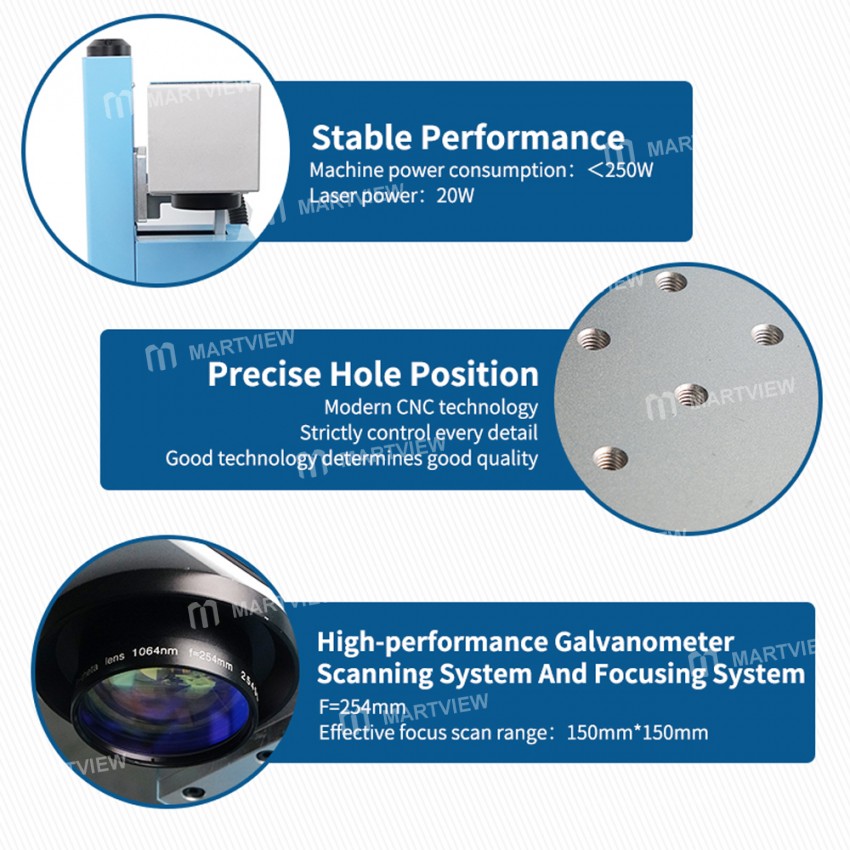

• Focal length of field mirror: F= 254MM (effective focusing range: 180X180mm)

• Marking depth: 0.015-0.5mm (adjustable depending on material)

• Linewidth: 0.05-0.01mm

• Marking speed: ess than 10000mm/s

• Repetitive accuracy: Fiber Laser

• Output mode: A curved surface with a small curvature; a fillable marker

• Marking function: English, Numbers, Punctuation, Chinese, Arbitrary Graphics, Barcode, etc.

• Laser power: 20W

Package includes:

• 1 x Heating Table
