Sunshine T-007 3-in-1 Motherboard Mid-level Test Fixture for iPhone 11 / 11 Pro / 11 Pro Max

Sunshine T-007 3-in-1 Motherboard Mid-level Test Fixture for iPhone 11/11 Pro/11 Pro Max

Features:

• Applicable to support iPhone 11/11 Pro/11 Pro Max motherboard detection/test failure/boot/display/touch/camera/flash/photosensitive distance/earpiece/speaker/connection/WiFi/facial recognition,etc

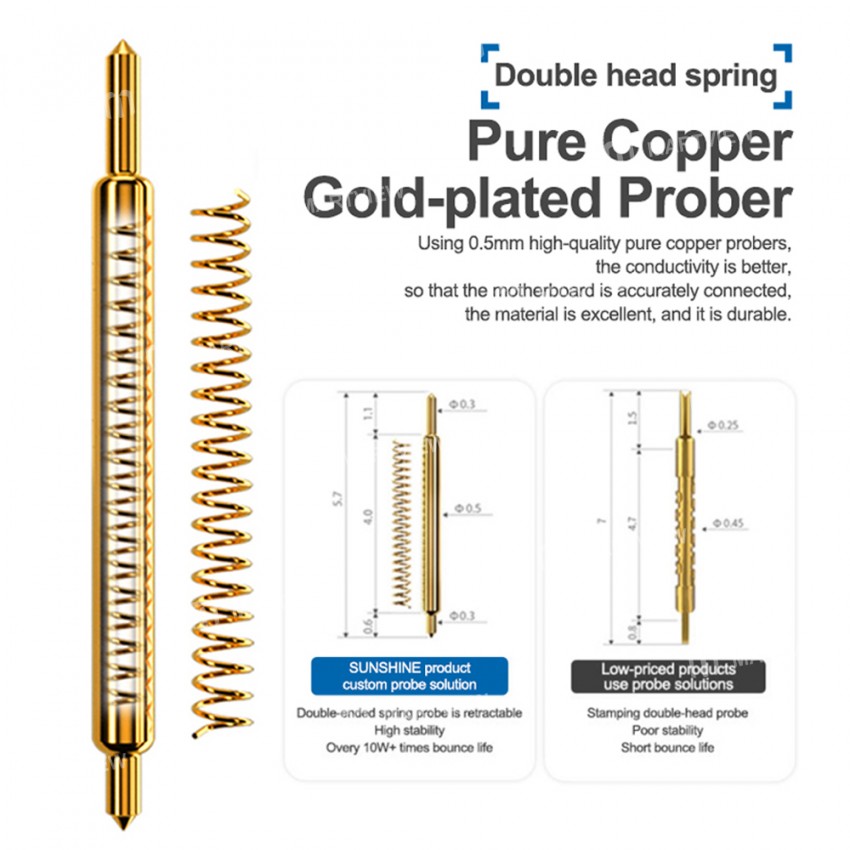

• Pure Copper gold-plated prober, using 0.5mm high-quality pure copper probers, the conductivity is better, so that the motherboard is accurately connected, the material is excellent, and it is durable

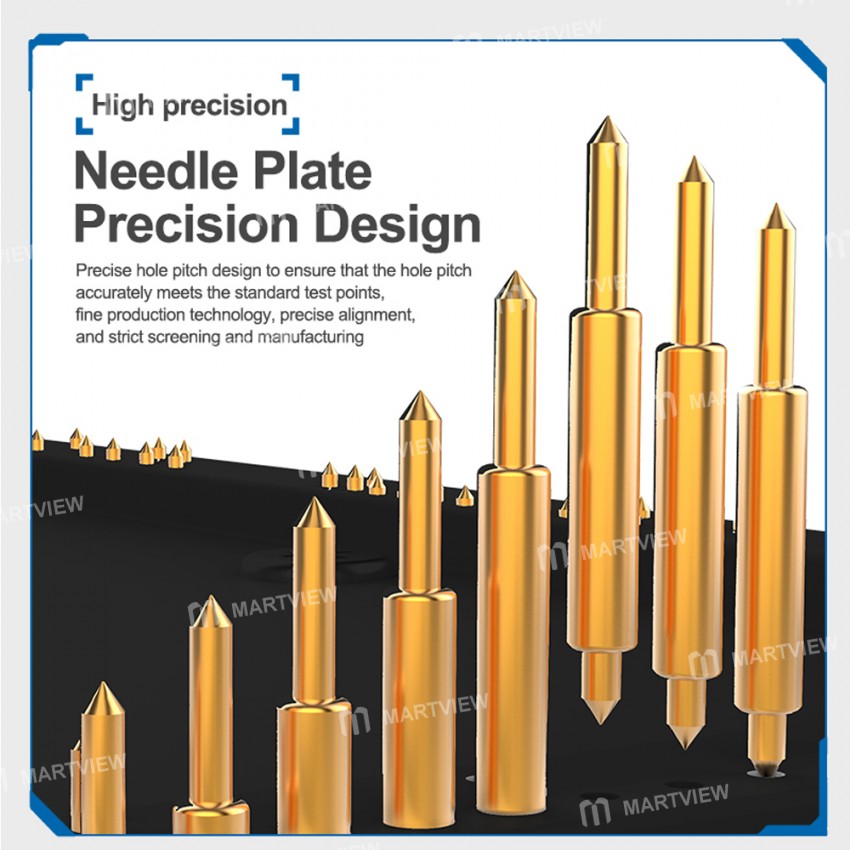

• Precise hole pitch design to ensure that the hole pitch accurately meets the standard test points, fine production technology, precise alignment, and strict screening and manufacturing

• CNC machining process, uses numerical control machinery and equipment for processing and production, effectively improving accuracy

• Spring buckle, simple operation, rapid rebound, timely feedback, easy pressing, no lag

• Hollow floor design measures the important voltage and signal of the baseband, and there is no baseband, no signal, and no serial number. It is convenient and quick to repair

• One-piece positioning column, the main board is placed without offset, precise positioning, and improves work efficiency

How to Use:

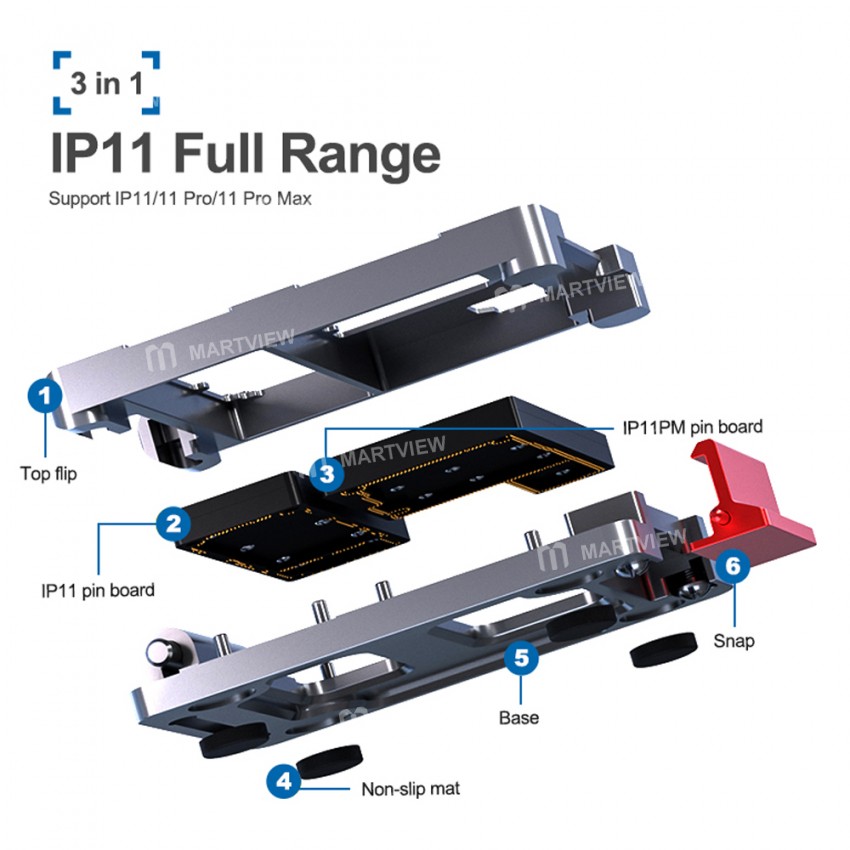

• Place the lower layer of the main board on the test frame(align with the positioning column)

• Place the test pin board corresponding to the main board

• Place the upper main board on the pin board

• Depress the cable and start the test

Package includes:

• 1 x Test fixture

• 2 x Probe module
