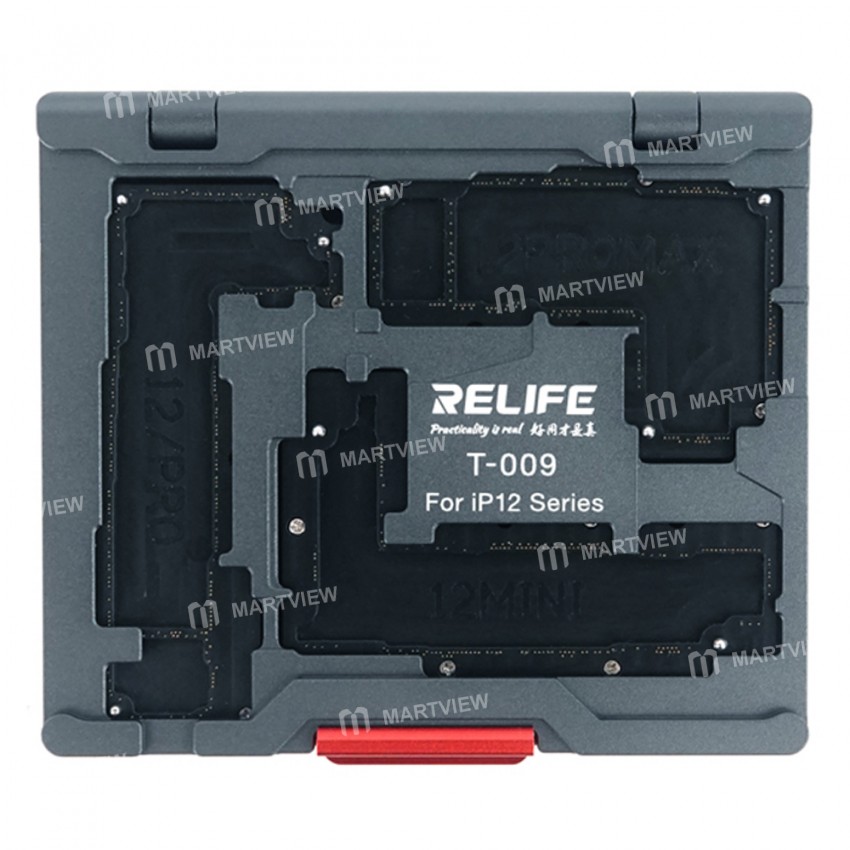

Sunshine T-009 4-in-1 Motherboard Mid-level Test Fixture for iPhone 12 Mini / 12 / 12 Pro / 12Pro Max

Sunshine T-009 4-in-1 Motherboard Mid-level Test Fixture for iPhone 12 Mini/12/12 Pro/12Pro Max

Features:

• Applicable to support iPhone 12/12 Pro/12 Mini/12 Pro Max motherboard detection/test failure/boot/display/touch/camera/flash/photosensitive distance/

• earpiece/speaker/connection/WiFi/facial recognition, etc.

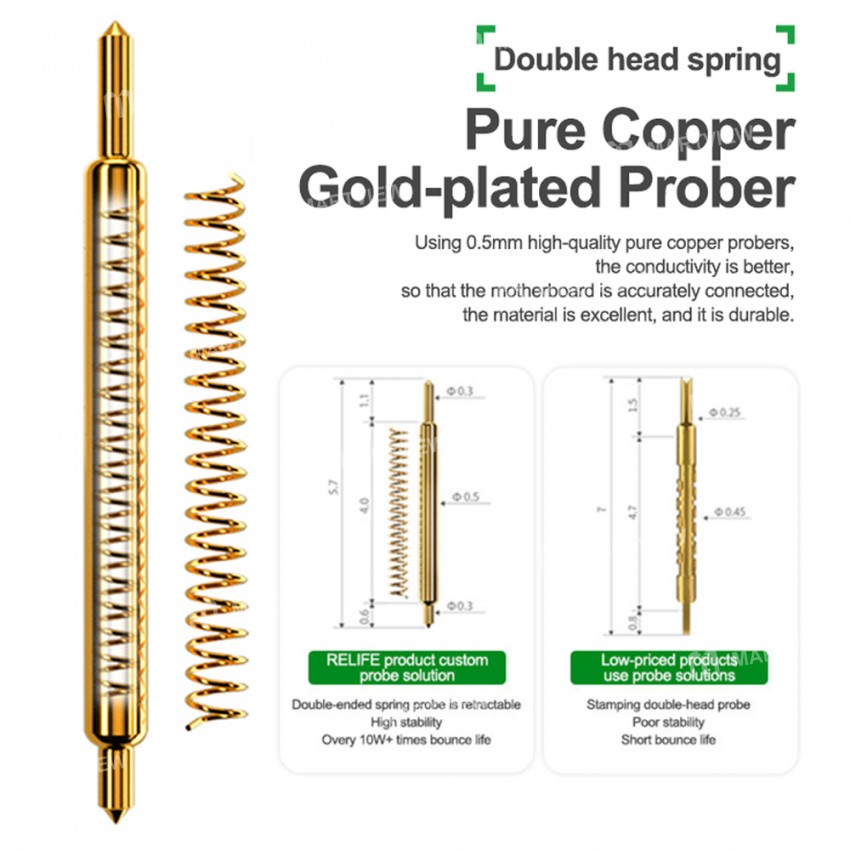

• Pure Copper gold-plated prober, using 0.5mm high-quality pure copper probers, the conductivity is better, so that the motherboard is accurately connected, the material is excellent, and it is durable

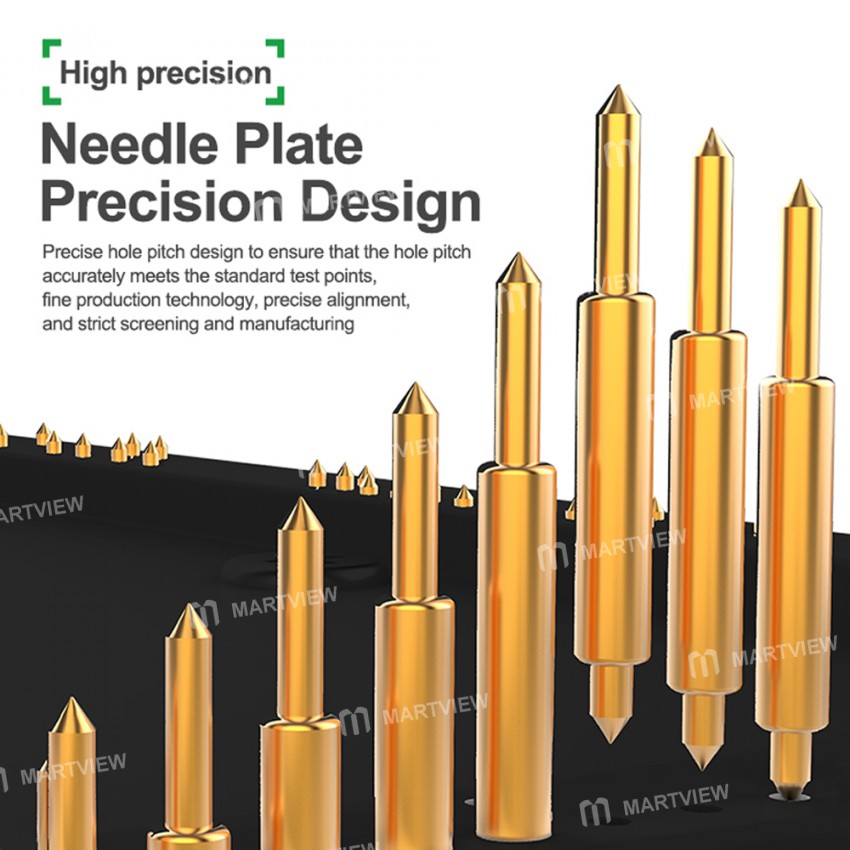

• Precise hole pitch design to ensure that the hole pitch accurately meets the standard test points, fine production technology, precise alignment, and strict screening and manufacturing

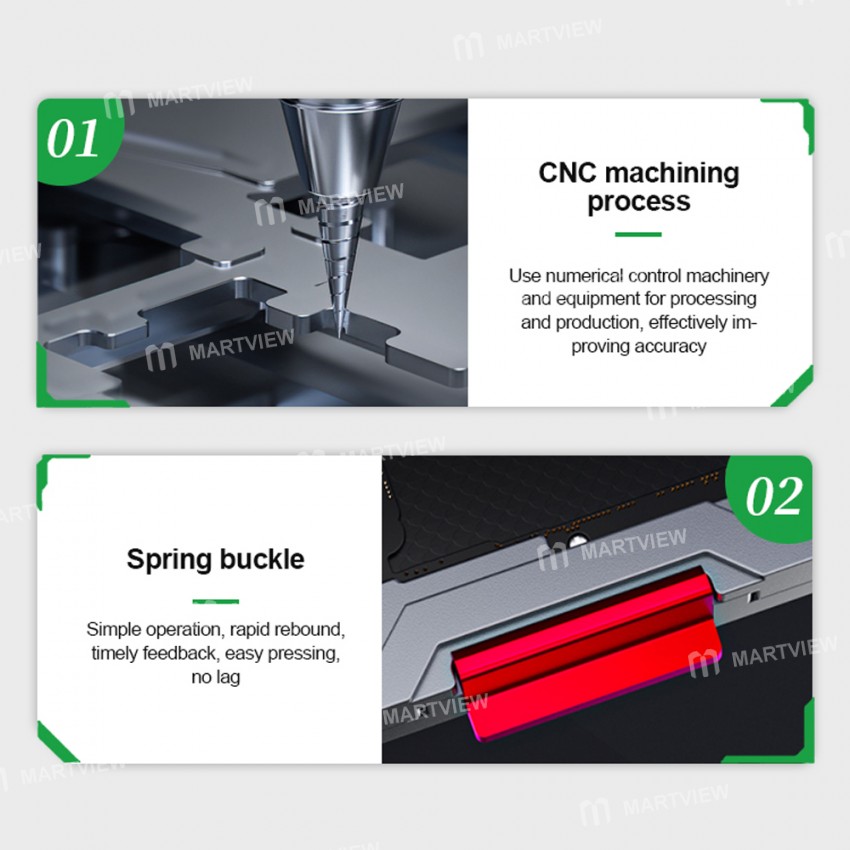

• CNC machining process, uses numerical control machinery and equipment for processing and production, effectively improving accuracy

• Spring buckle, simple operation, rapid rebound, timely feedback, easy pressing, no lag

• Hollow floor design measures the important voltage and signal of the baseband, and there is no baseband, no signal, and no serial number. It is convenient and quick to repair

• One-piece positioning column, the main board is placed without offset, precise positioning, and improves work efficiency

How to Use:

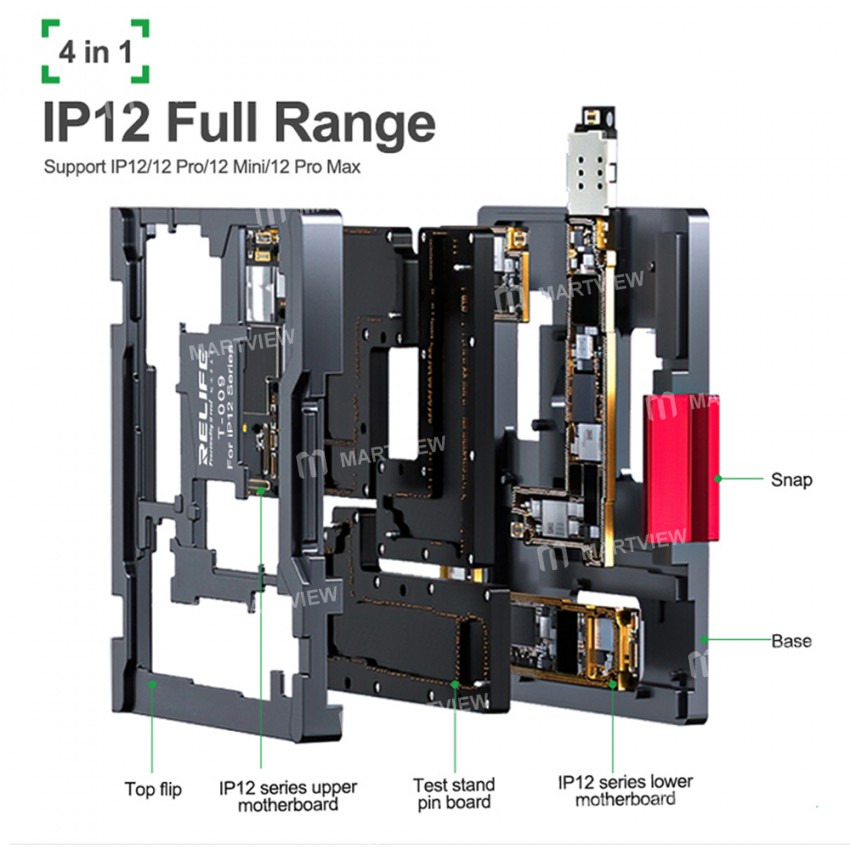

• Place the lower layer of the main board on the test frame(align with the positioning column)

• Place the test pin board corresponding to the main board

• Place the upper main board on the pin board

• Depress the cable and start the test

Package includes:

• 1 x Test fixture

• 3 x Probe module
