Sunshine TB-03 Infrared Thermal Imaging Analyzer for PCB Motherboard Fault Detector

Sunshine TB-03 Infrared Thermal Imaging Analyzer for PCB Motherboard Fault Detector

Features:

• Professional motherboard testing equipment, bid farewell to the traditional complex motherboard testing methods, testing faster and more accurate

• Support the detection of all models/brands of mobile phone motherboards and other products with motherboards, etc.

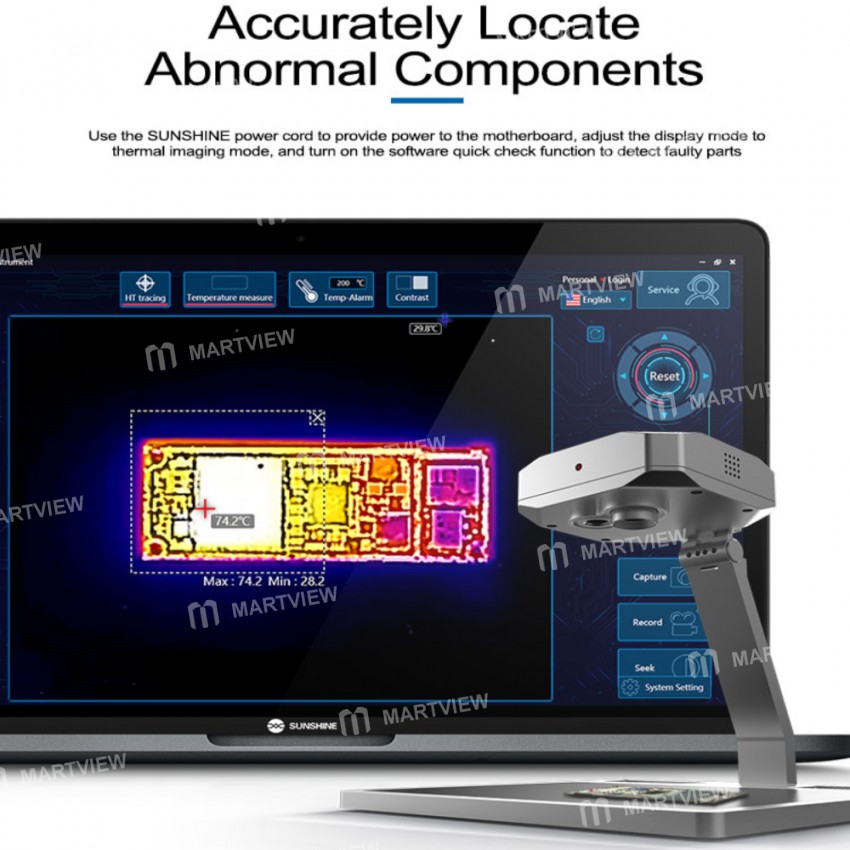

• Precise positioning

• One-click quick check

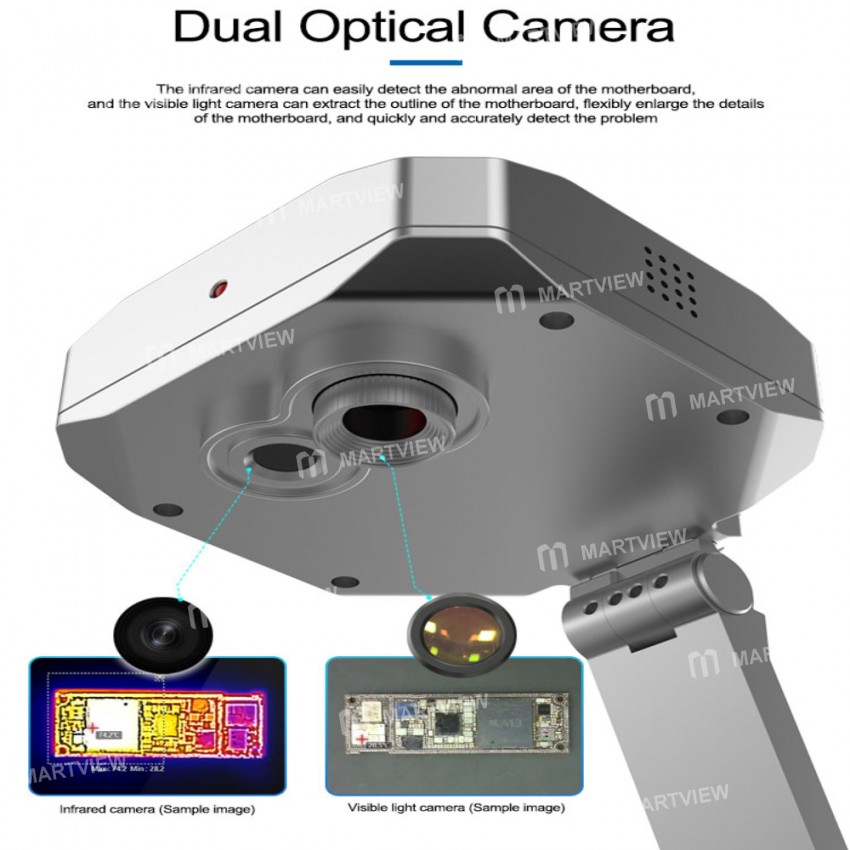

• Dual optical camera

• The infrared camera can easily detect the abnormal area of the motherboard, and the visible light camera can extract the outline of the motherboard, flexibly enlarge the details of the motherboard, and quickly and accurately detect the problem

• Real-time monitoring

• It is not only a short-circuit quick diagnosis instrument, but also an electron microscope, snapshot/video, can detect temperature alarm, the temperature can be manually adjusted according to the situation, desoldering the motherboard can monitor whether the temperature reaches the melting point,

• Support the detection of all models/brands of mobile phone motherboards and other products with motherboards, etc.

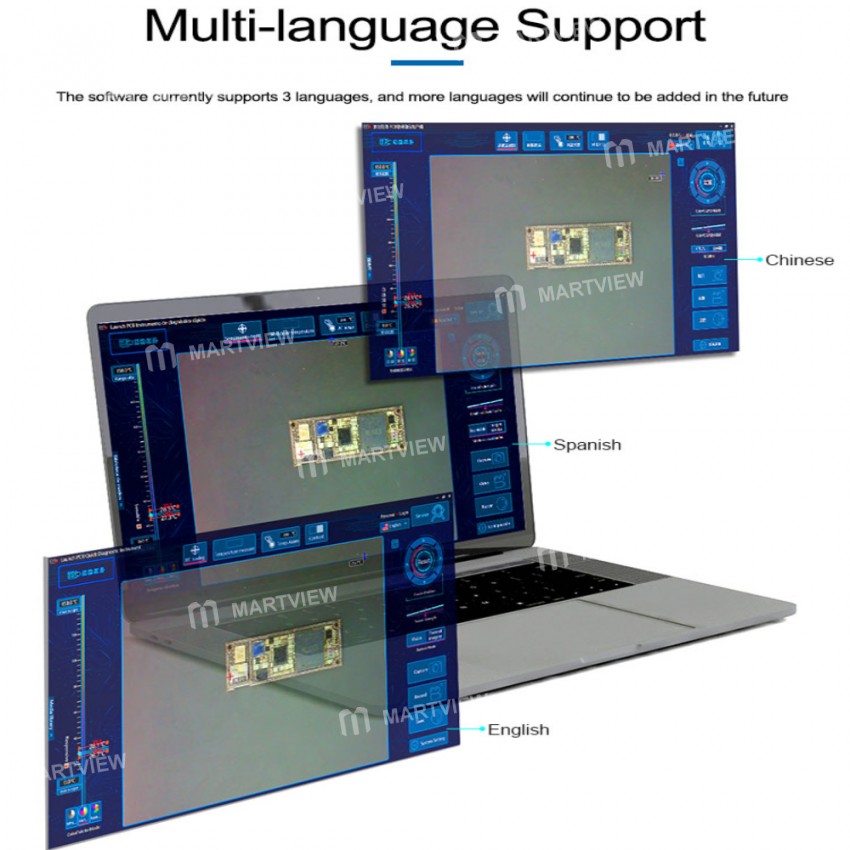

• The software currently supports 3 languages, and more languages will continue to be added in the future

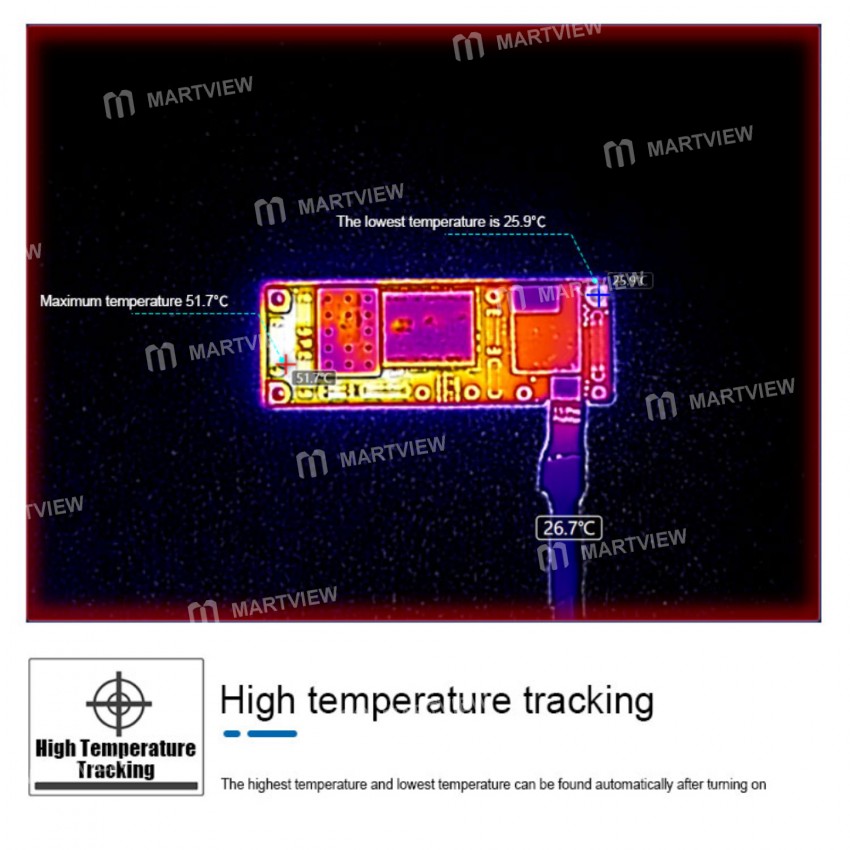

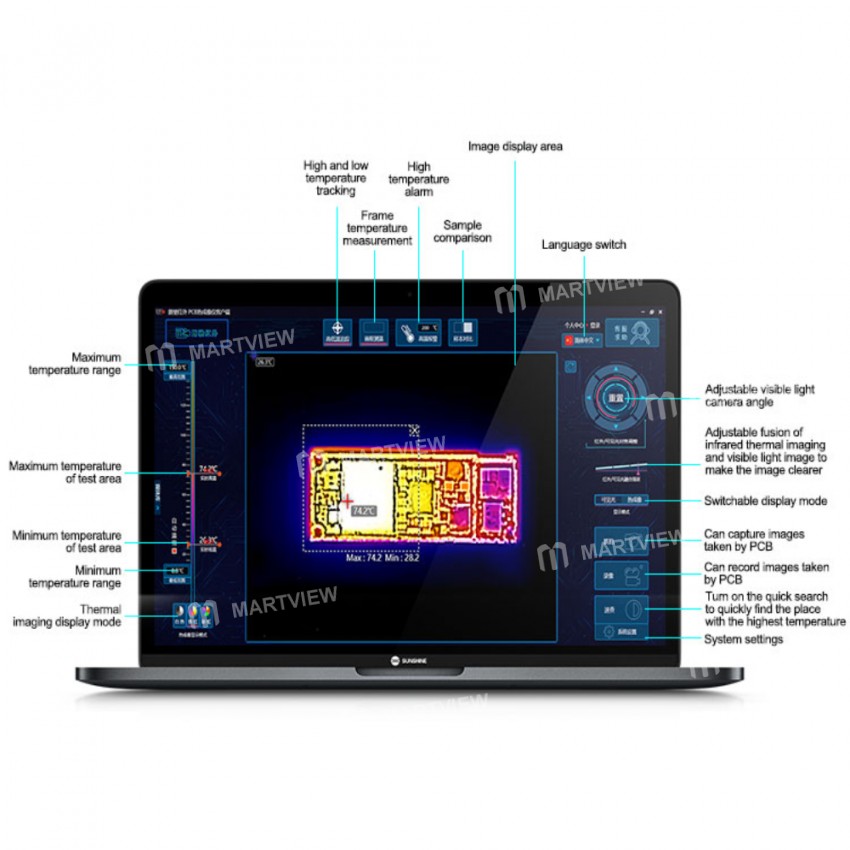

• High and low-temperature tracking

• Frame temperature measurement

• The adjustable visible light camera angle

• Adjustable fusion of infrared thermal imaging and visible light image to make the image clearer

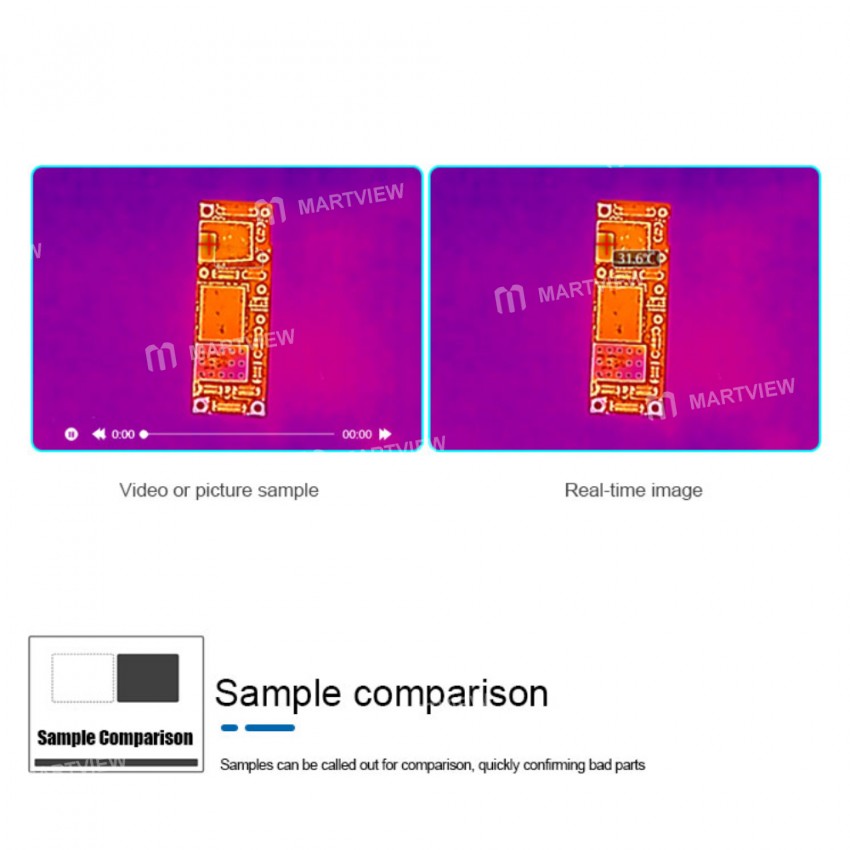

• Can capture images taken by PCB

• Can record images taken by PCB

• Turn on the quick search to quickly find the place with the highest temperature

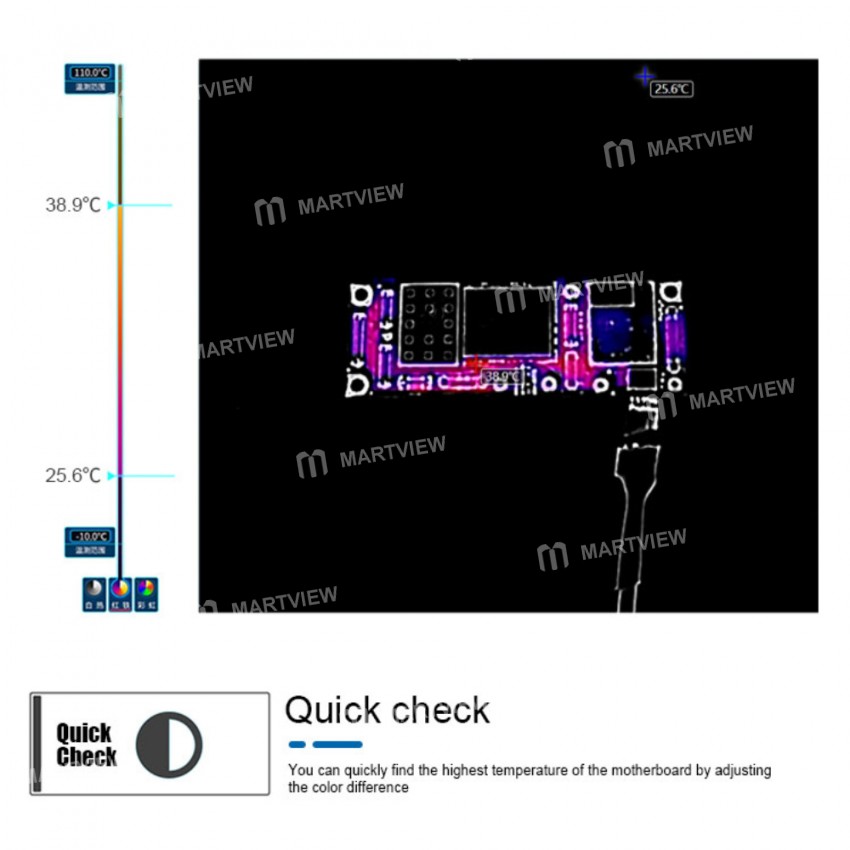

• You can quickly find the highest temperature of the motherboard by adjusting the color difference

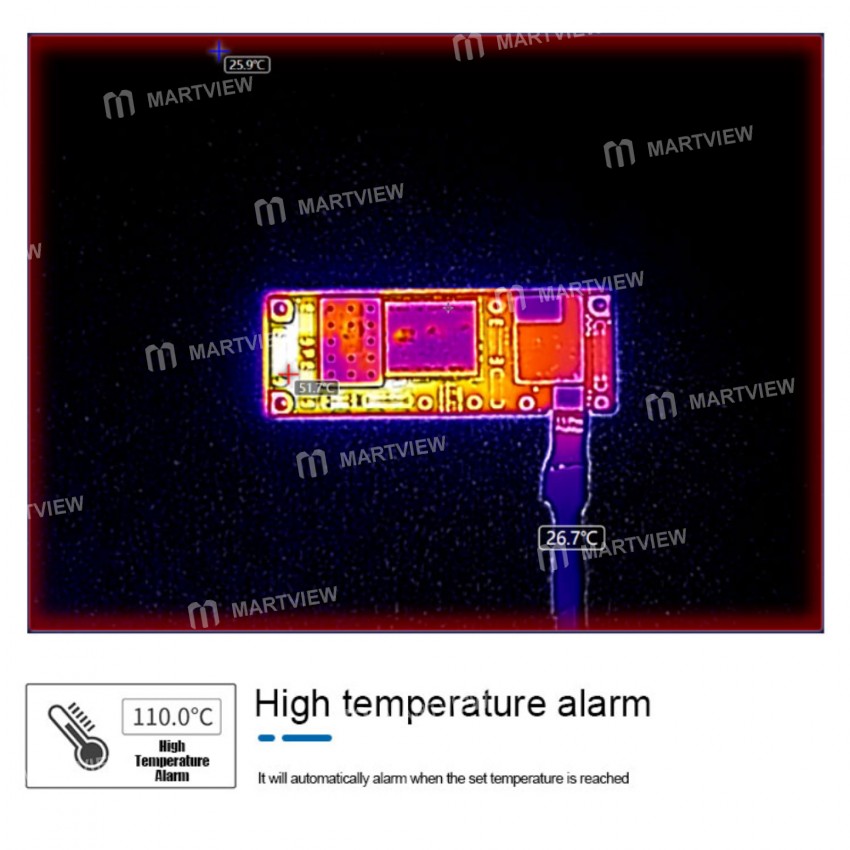

• It will automatically alarm when the set temperature is reached

• The maximum temperature and minimum temperature are displayed in the frame selection area, and up to 7 can be drawn at the same time

• Maximum temperature 51.7℃

• The lowest temperature is 25.9℃

• The highest temperature and lowest temperature can be found automatically after turning on

• Double light effect rapid diagnosis

Package includes:

• 1 x Sunshine TB-03 Infrared Thermal Imaging
• 1 x Power Cable
