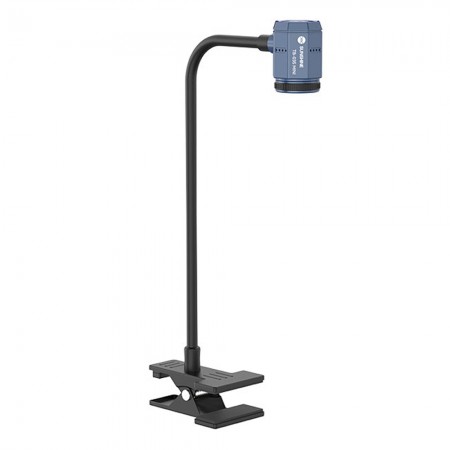

Sunshine TB-03S Mini Clamp-Type Infrared Thermal Imaging PCB Rapid Diagnosis Instrument

Sunshine TB-03S Mini Clamp-Type Infrared Thermal Imaging PCB Rapid Diagnosis Instrument

Features:

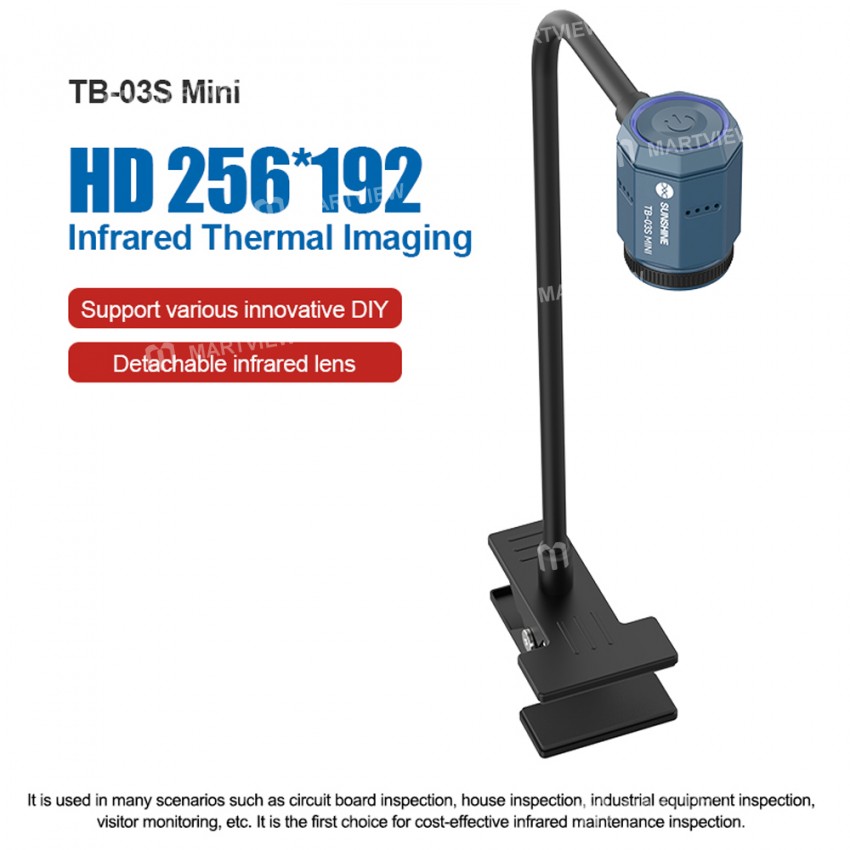

• TB-03S Mini HD Infrared thermal imaging supports various innovative DIY and detachable infrared lens

• It is used in many scenarios such as circuit board inspection, house inspection, industrial equipment inspection, visitor monitoring, etc

• 256*192 high-definition thermal imaging, with clearer details, supports a one-click quick search function and quickly and accurately locates the location of high-temperature components

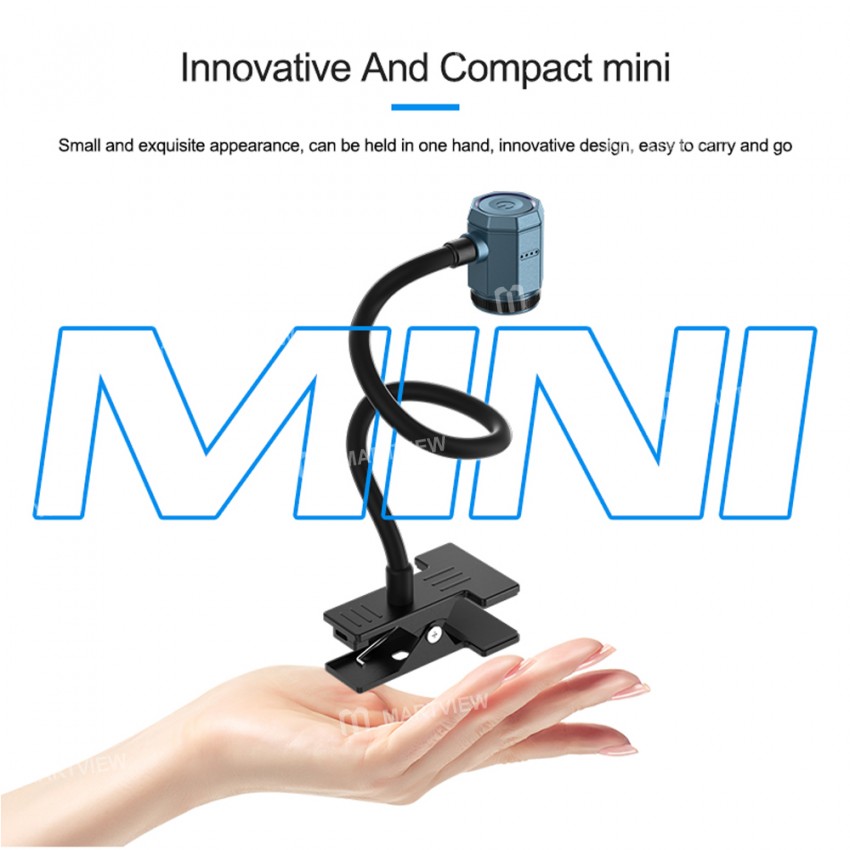

• Small and exquisite appearance, can be held in one hand, innovative design, easy to carry and go

• Switch to the "one-click quick diagnosis" mode to effectively solve the problems of traditional leakage detection, such as low efficiency and difficult operation. Even at the milliamp level, it can detect quickly and accurately, and the control is convenient and fast

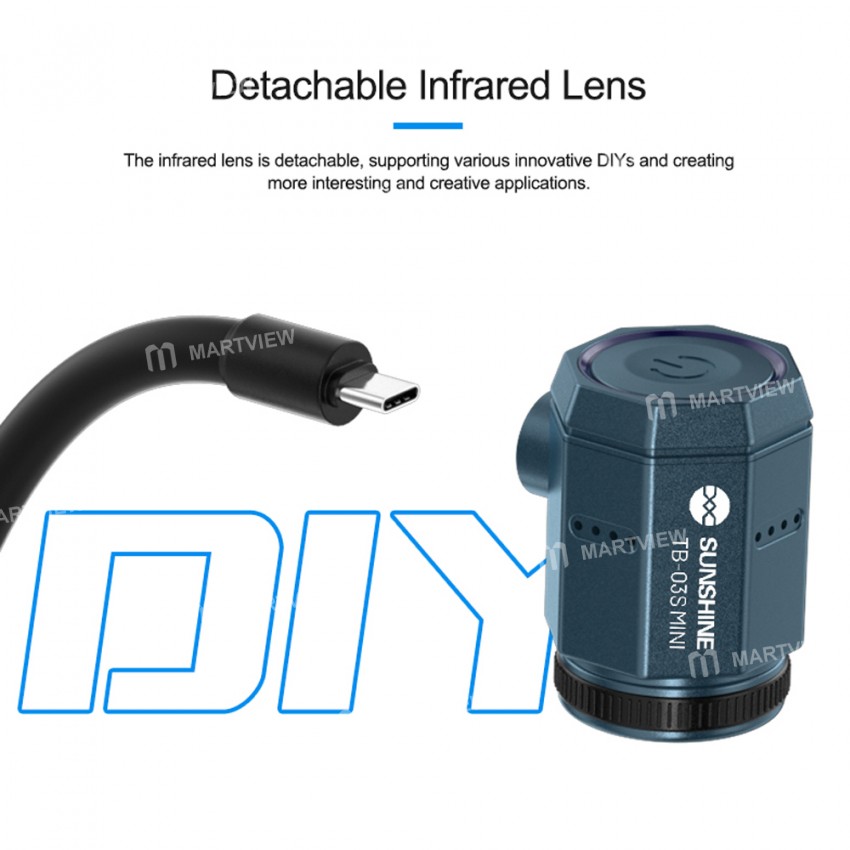

• The infrared lens is detachable, supporting various innovative DIYs and creating more interesting and creative applications

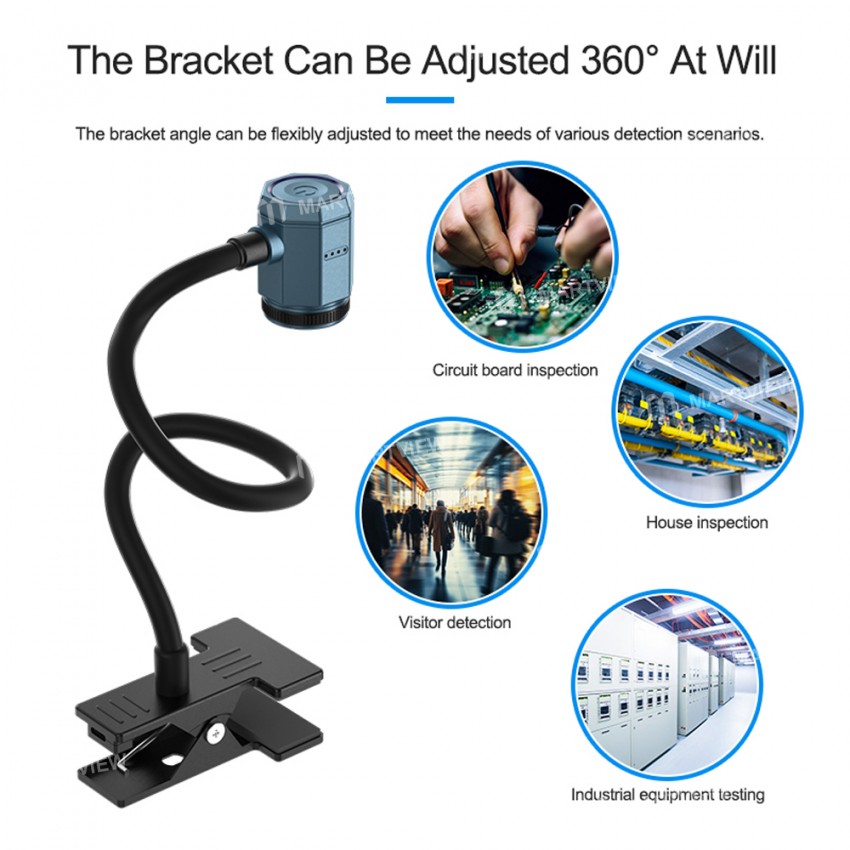

• The bracket can be adjusted 360° at will, and the bracket angle can be flexibly adjusted to meet the needs of various detection scenarios

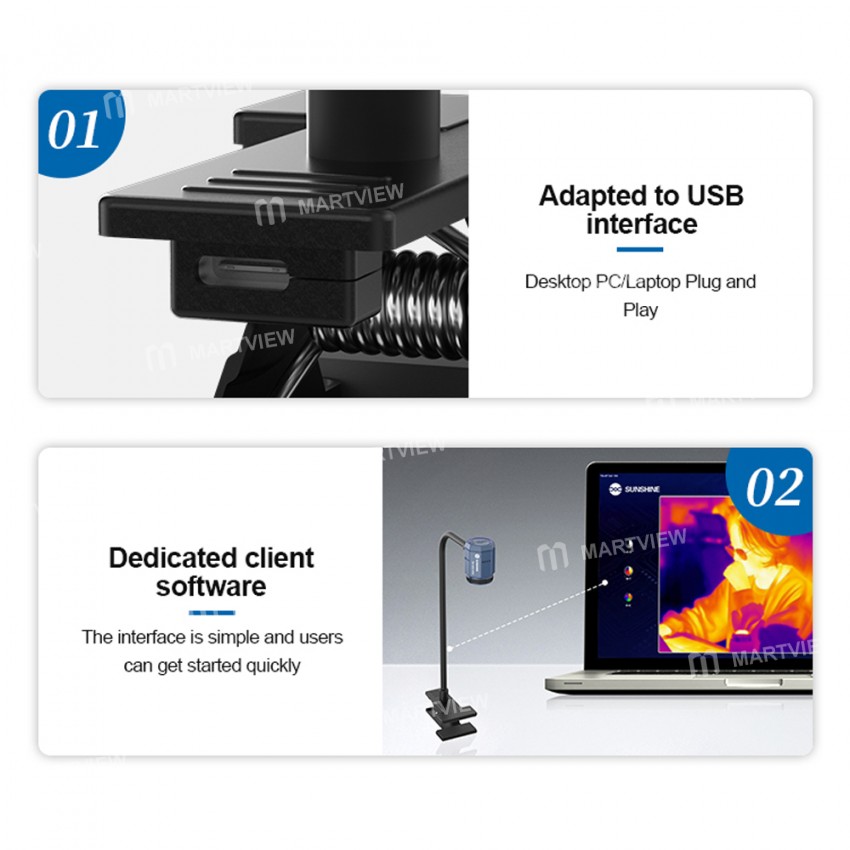

• Dedicated client software, the interface is simple and users can get started quickly

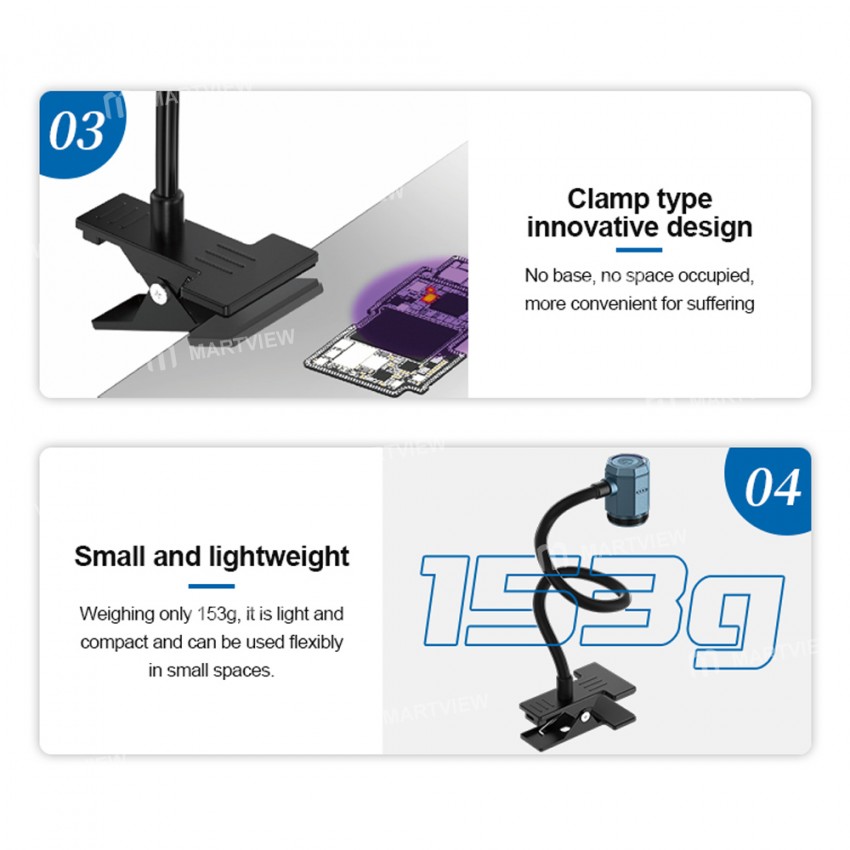

• Clamp-type innovative design, no base, no space occupied, more convenient for suffering

• The interface is simple and users can get started quickly

Specification:

• Brand: SUNSHINE

• Product Name: Infrared rapid diagnosis instrument

• Model: TB-03S Mini

• Net Weight: ≈153g (Lens≈38g/Bracket≈155g)

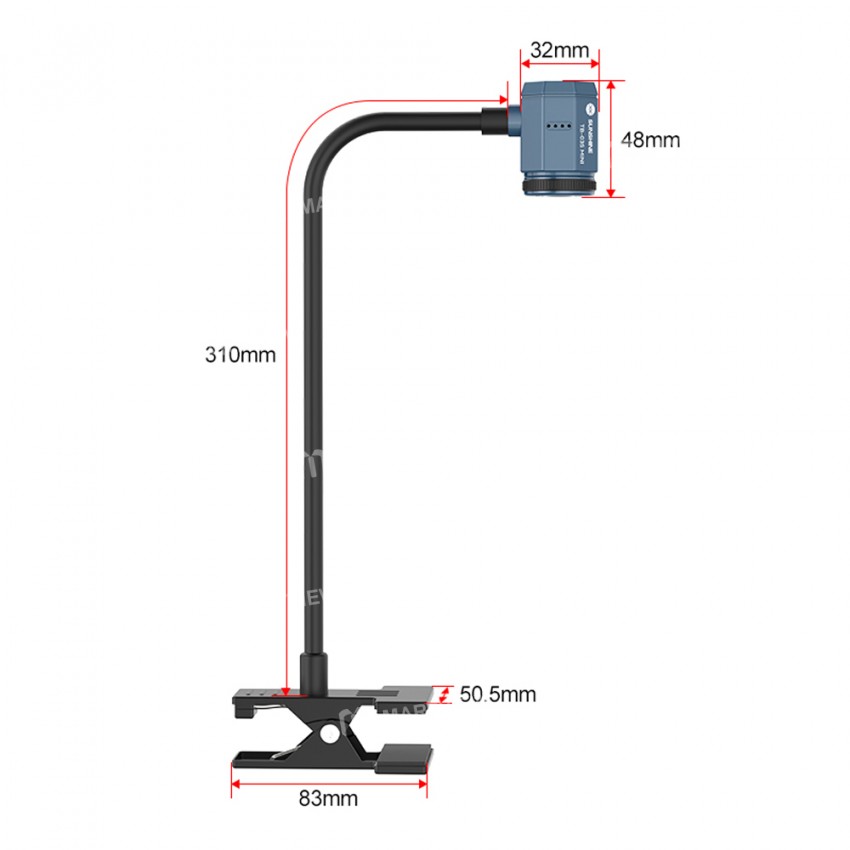

• Lens Size: 32*37*48mm

• Hose Length: ≈310mm

• Package Size: 120*205*88mm

• Resolution: 256*192

• Wavelength Range: 7.5μm~13.5μm

• Camera Angle: 25°*18°

• Display Mode: Infrared thermal imaging

• Connection Method: Type-C, USB 2.0

• Temperature Measurement Range: -20°C~550°C

• Temperature Measurement Distance: 5cm~25cm

• Support Platform: Desktop/Laptop Windows 7/10/11

• Supporting Software: Support online upgrade

Package includes:

• 1 x Lens

• 1 x Integrated Bracket
