Sunshine TB-10 Pro Handheld Infrared Thermal Imager + Multimeter for PCB Repair & Temp Measurement

Sunshine TB-10 Pro Handheld Infrared Thermal Imager + Multimeter for PCB Repair & Temp Measurement

Features:

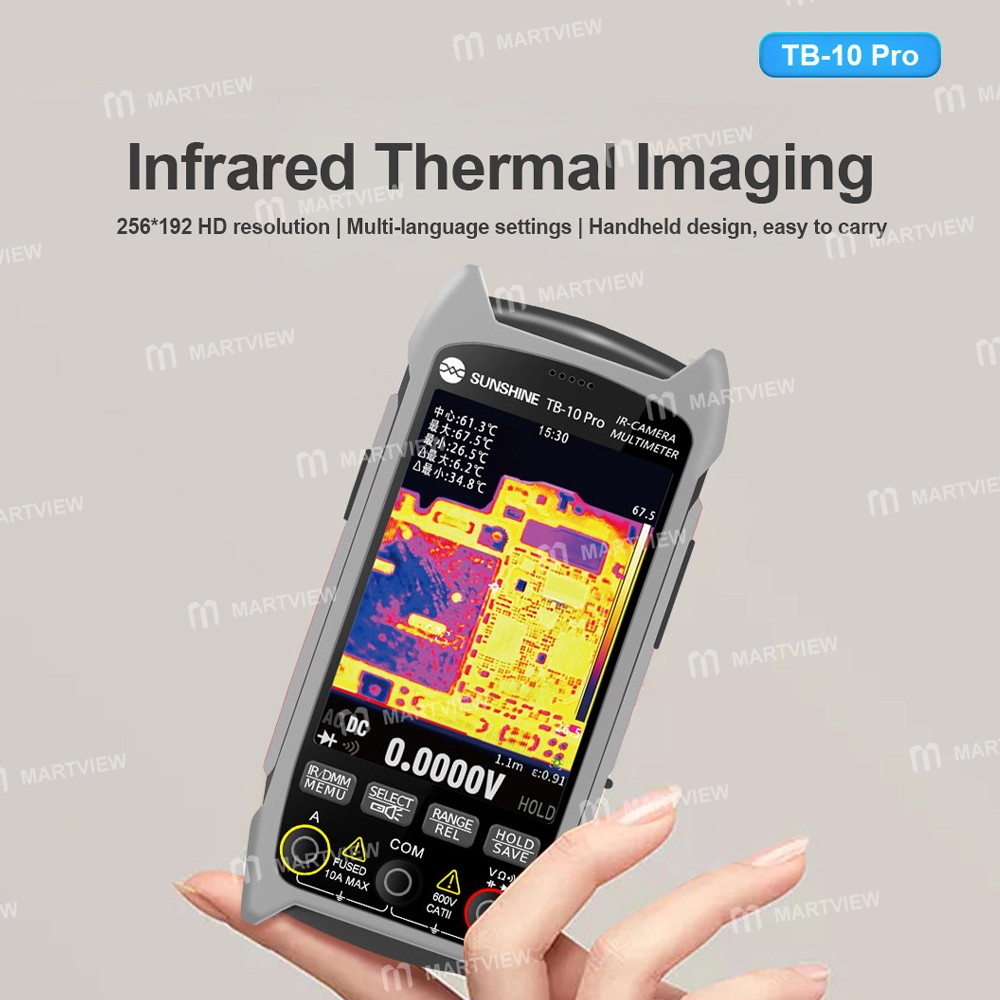

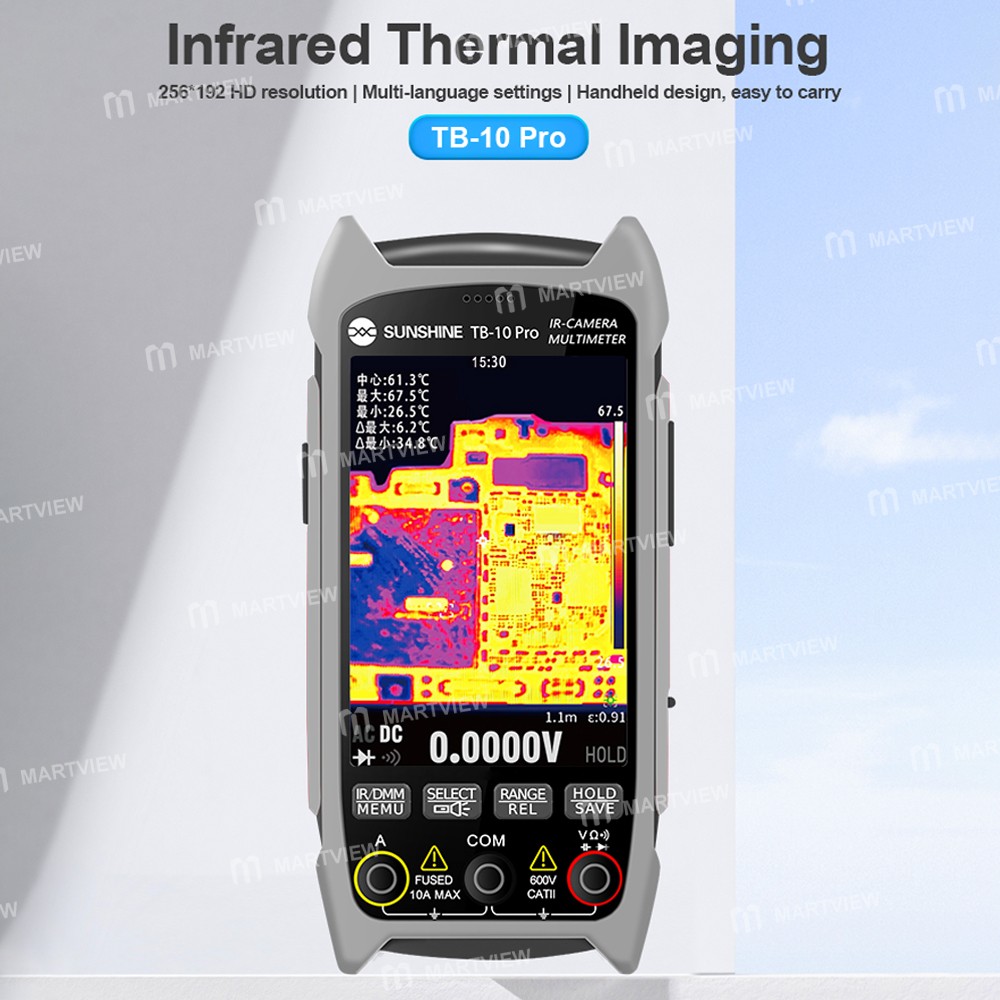

• TB-10 Pro infrared thermal imaging, 256*192 HD resolution, multi-language settings, handheld design, easy to carry

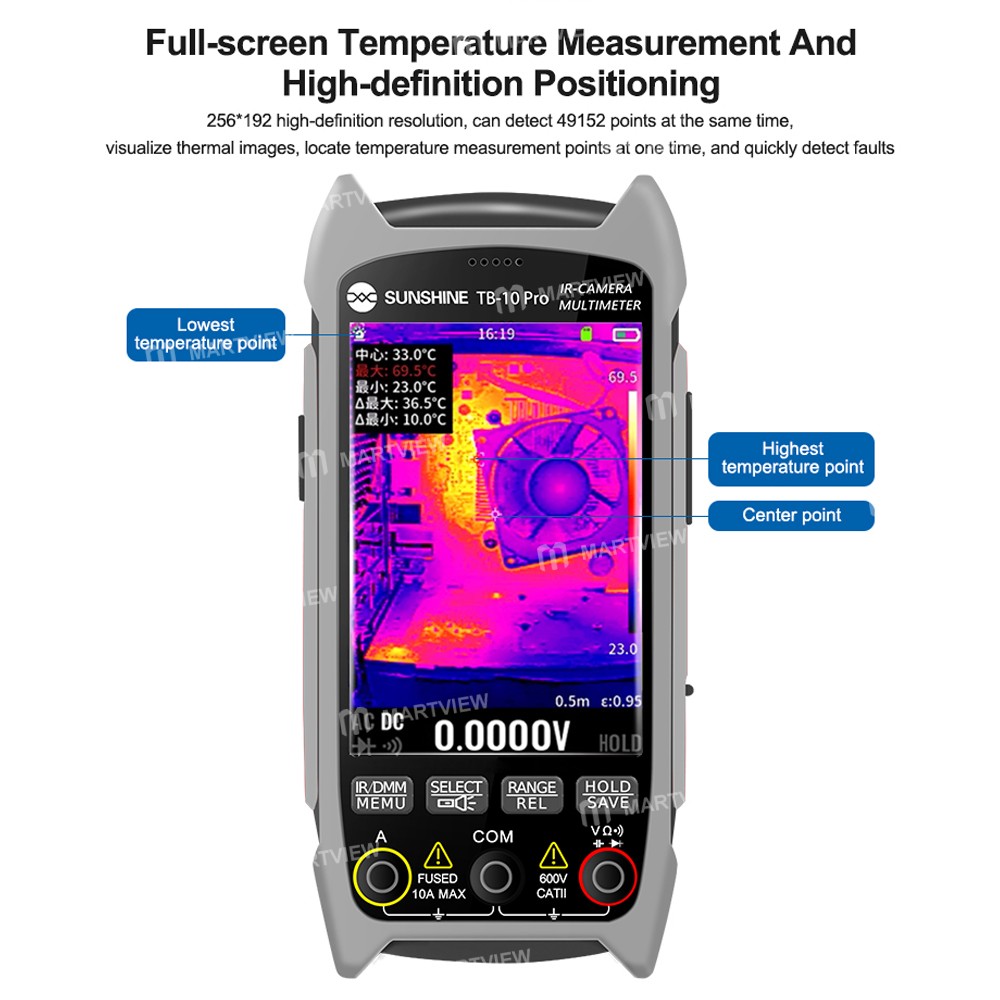

• Full-screen Temperature Measurement and High-definition Positioning: 256*192 high-definition resolution, can detect 49152 points at the same time, visualize thermal images, locate temperature measurement points at one time, and quickly detect faults

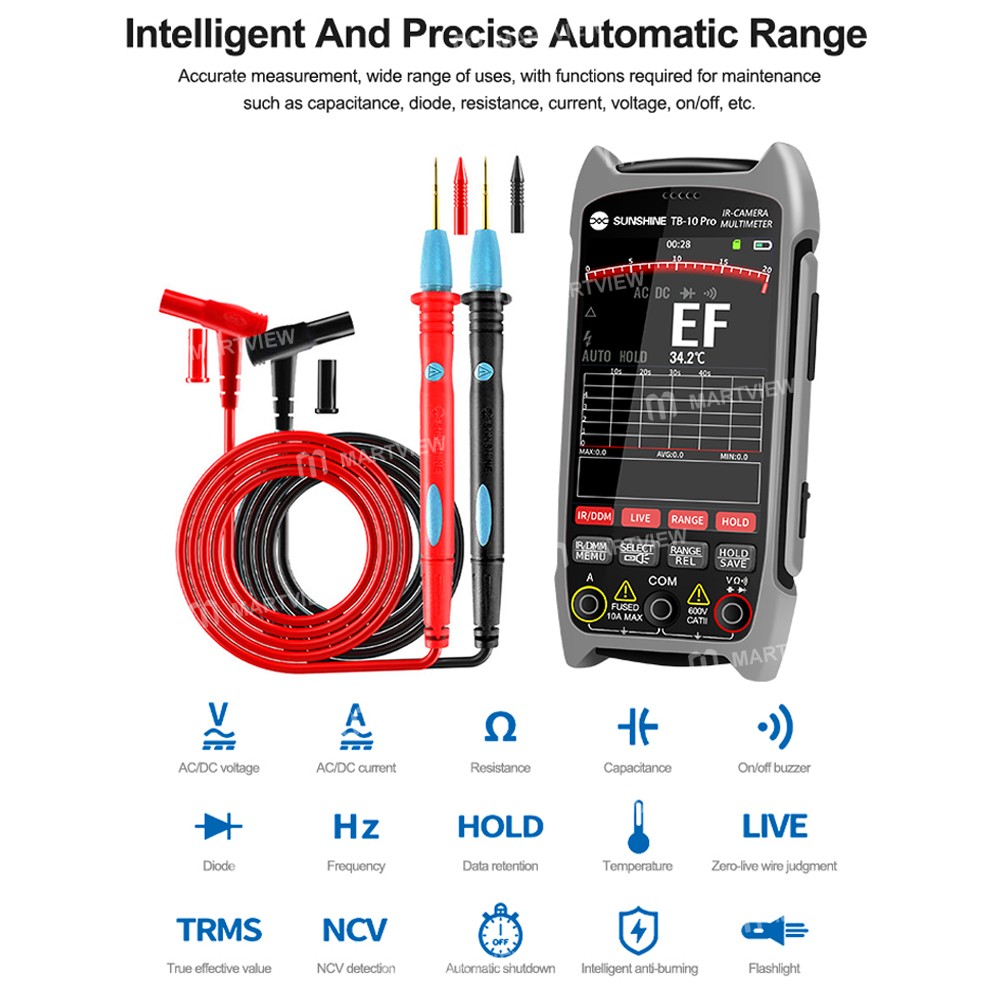

• Intelligent And Precise Automatic Range: Accurate measurement, a wide range of uses, with functions required for maintenance such as capacitance, diode, resistance, current, voltage, on/off, etc

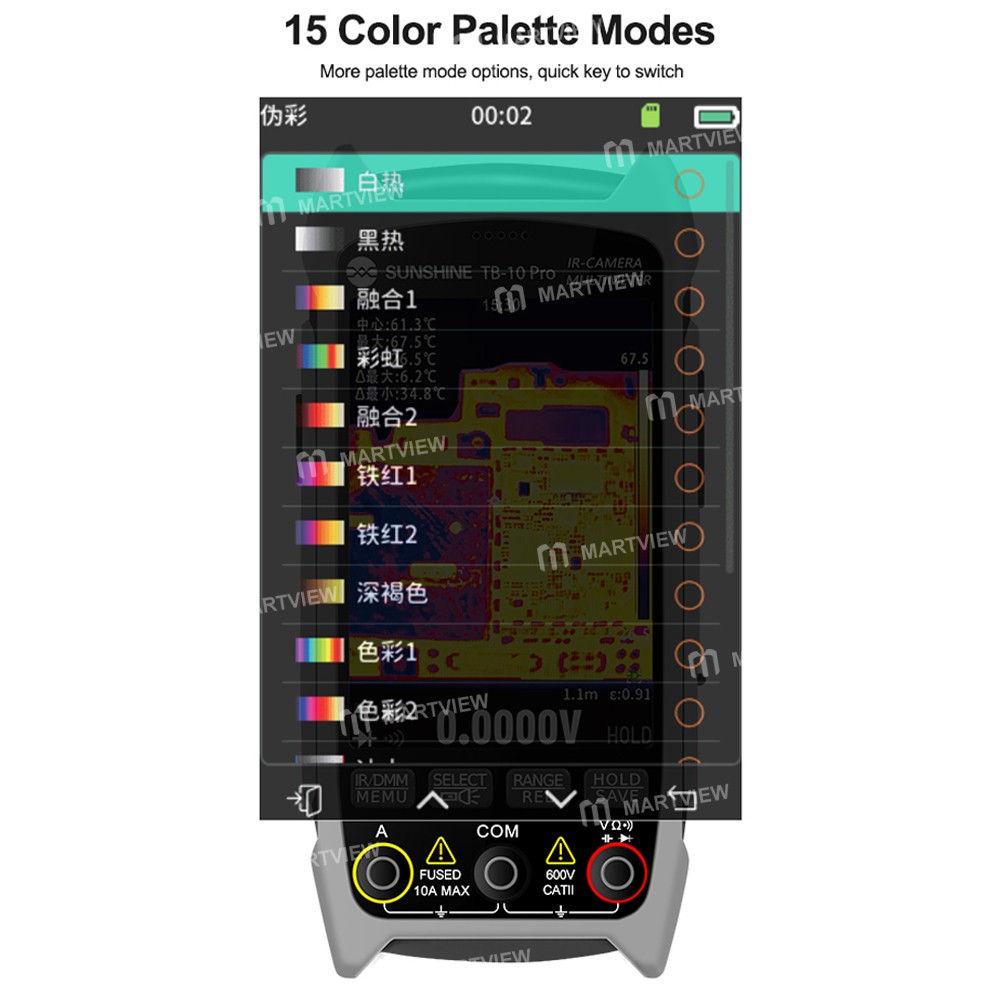

• 15 Color Palette Modes: More palette mode options, quick key to switch

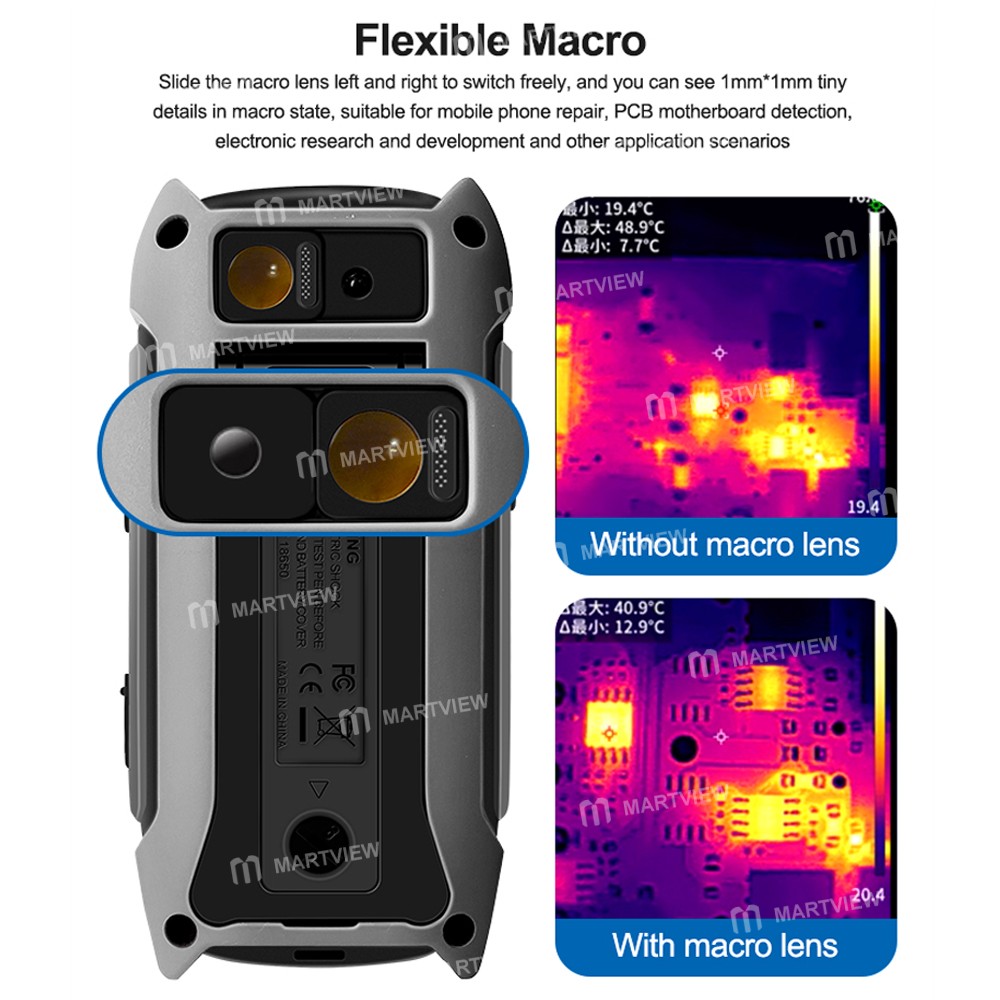

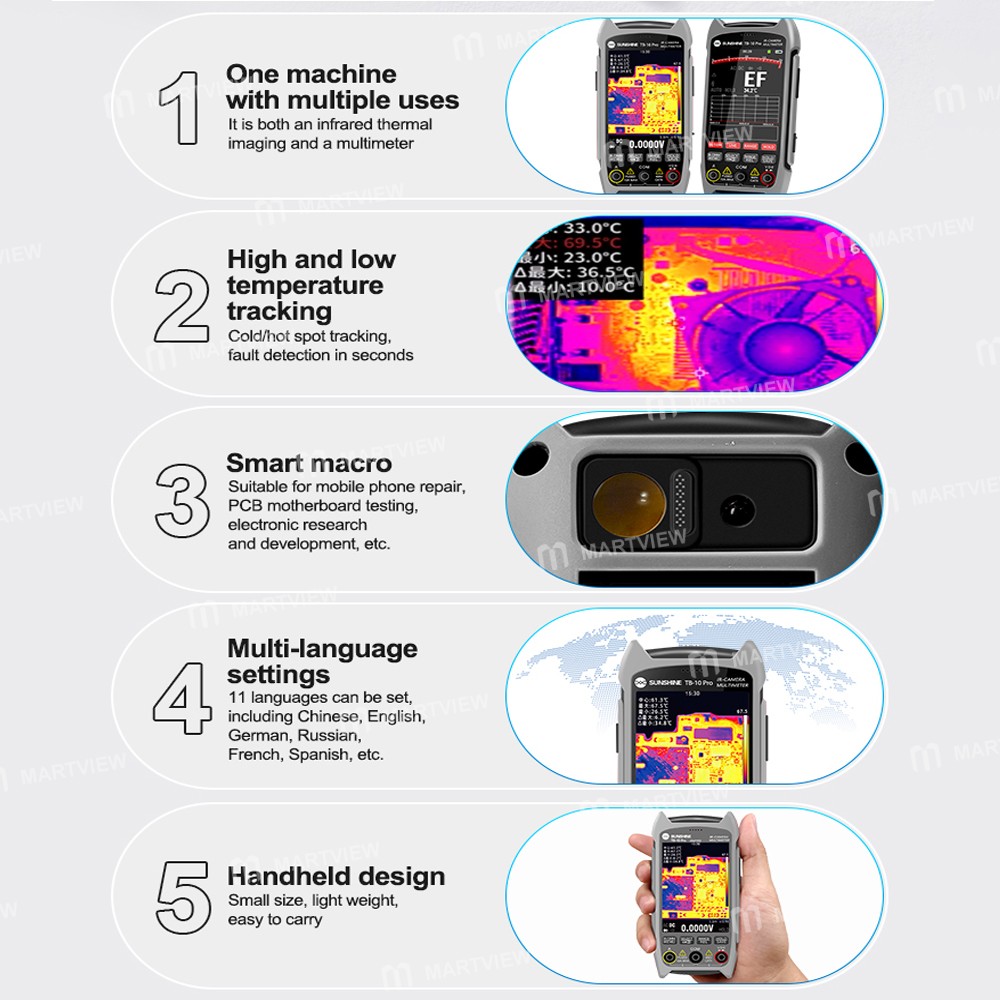

• Flexible Macro: Slide the macro lens left and right to switch freely, and you can see 1mm*1mm tiny details in the macro state, suitable for mobile phone repair, PCB motherboard detection, electronic research and development, and other application scenarios

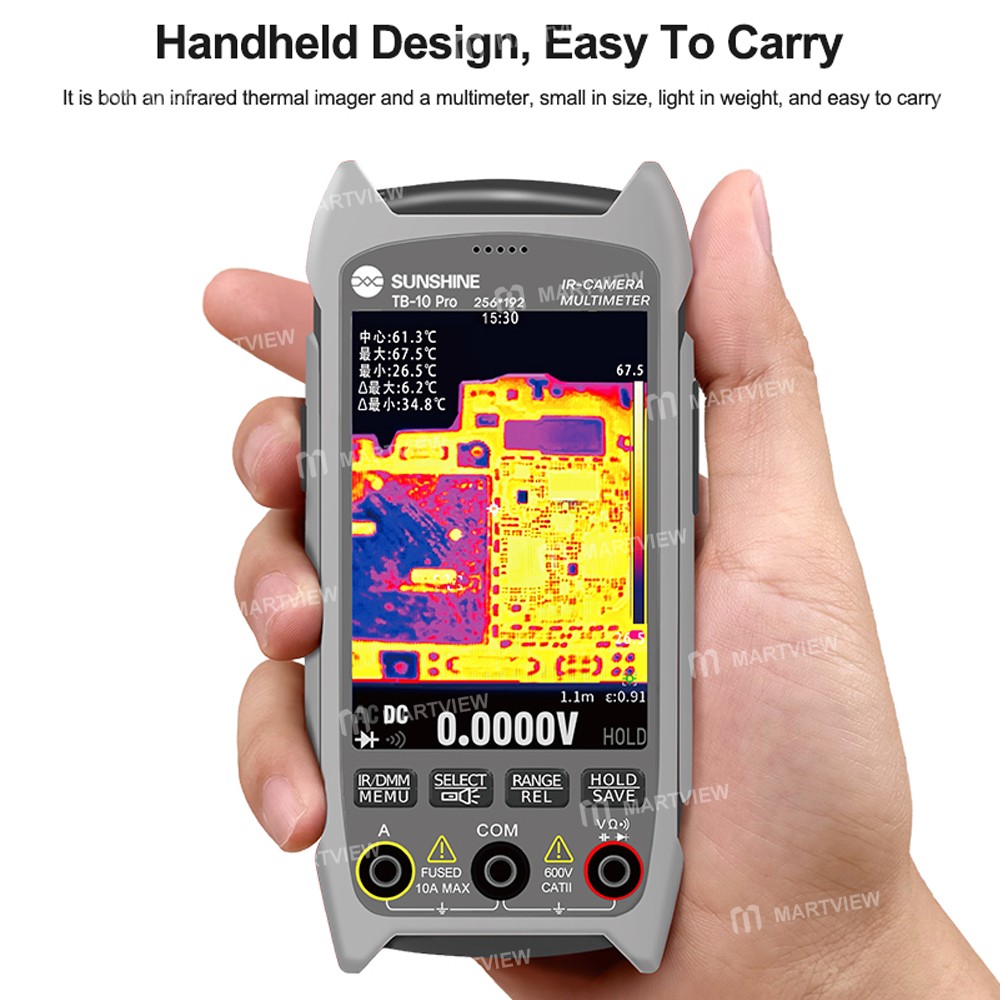

• Handheld Design, Easy to Carry: It is both an infrared thermal imager and a multimeter, small in size, light in weight, and easy to carry

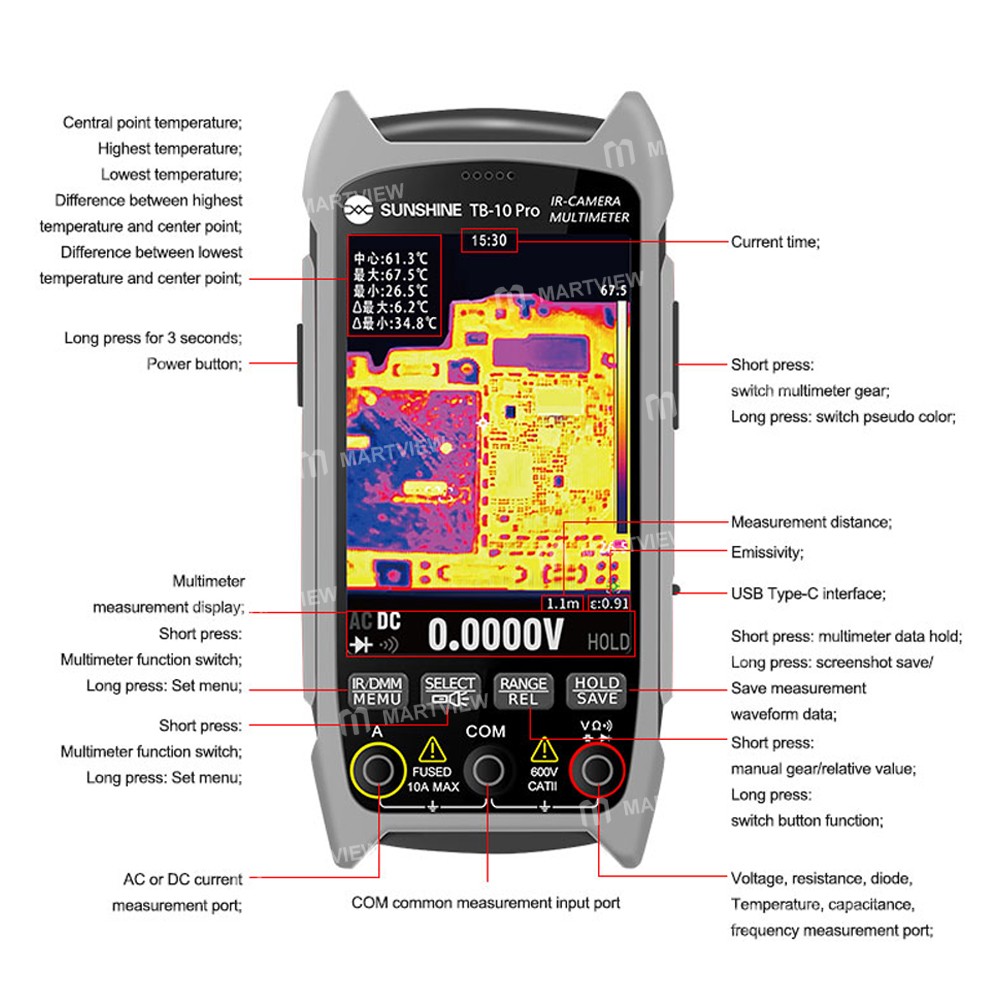

• Thermal Imaging Multimeter 2-in-1: Creative design of shortcut keys long/short, realizing more functional operations, small body with more comprehensive functions

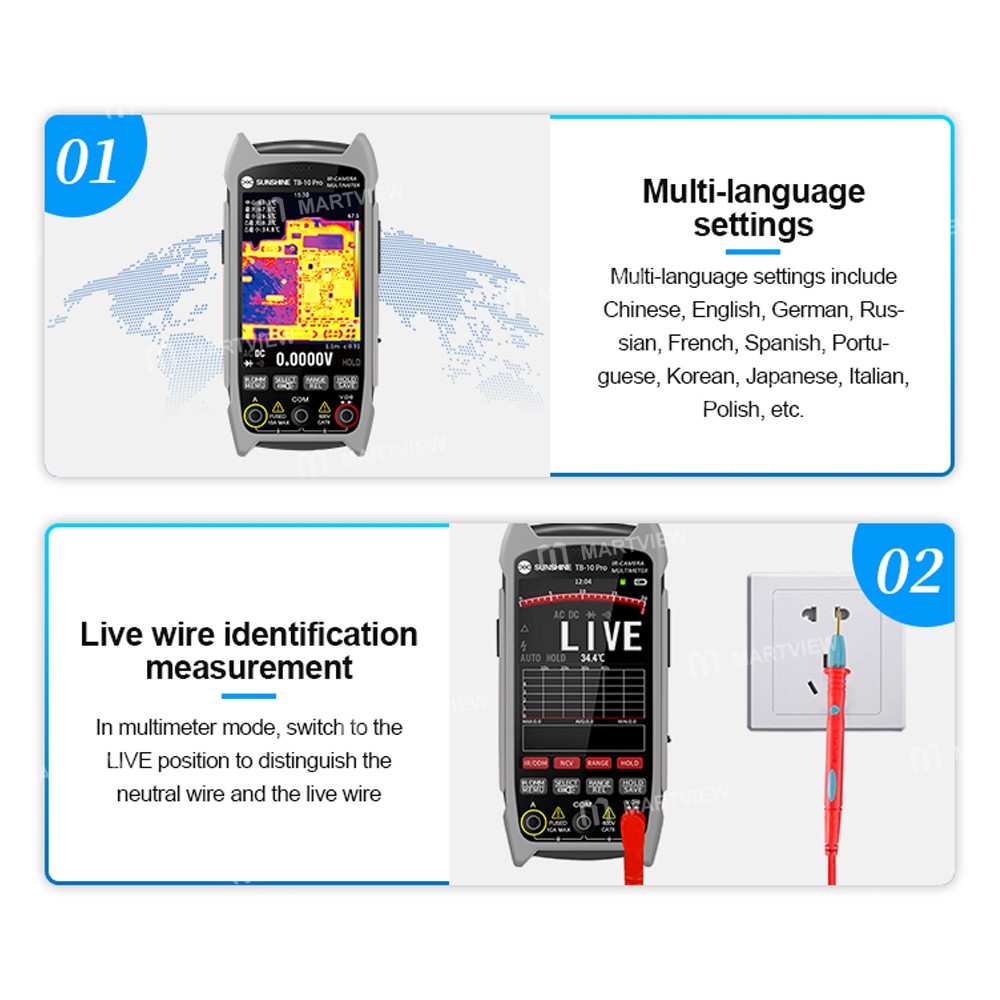

• Multi-language settings: Multi-language settings include Chinese, English, German, Russian, French, Spanish, Portuguese, Korean, Japanese, Italian, Polish, etc.

• Live wire identification measurement: In multimeter mode, switch to the LIVE position to distinguish the neutral wire and the live wire

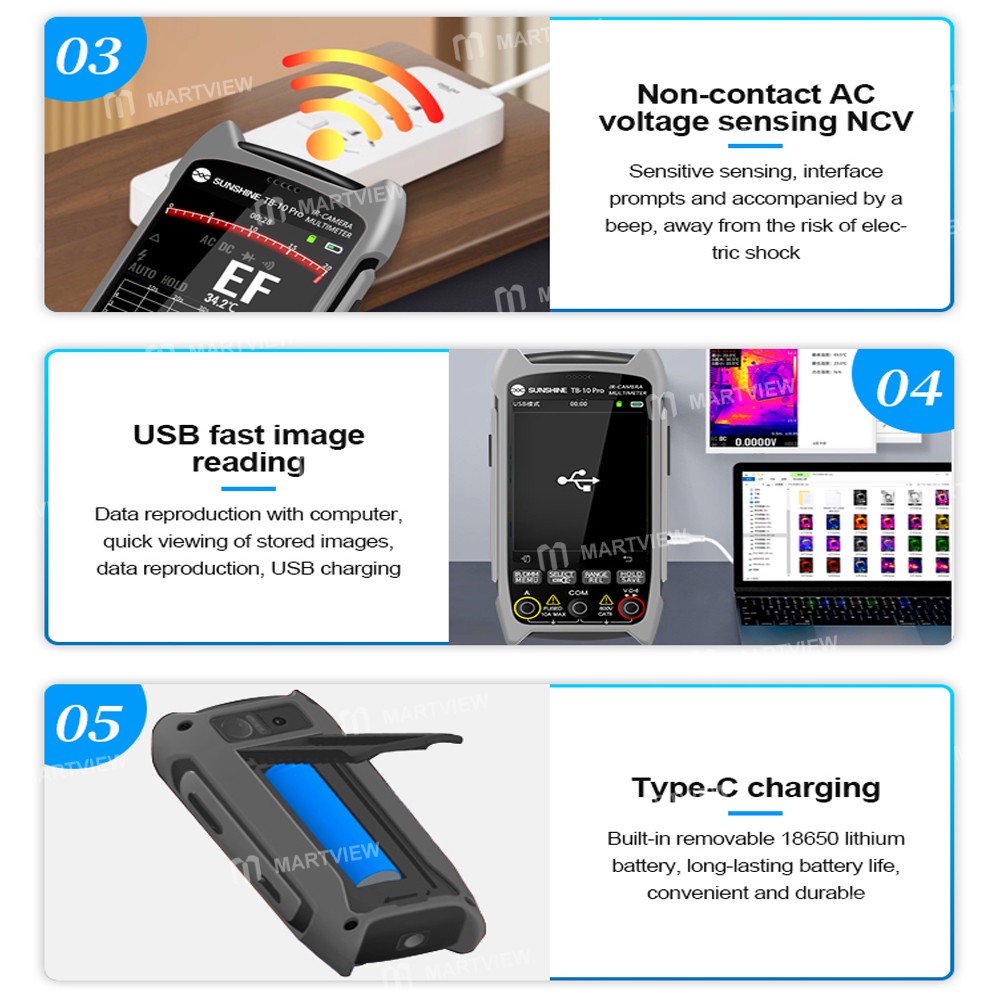

• Non-contact AC voltage sensing NCV: Sensitive sensing, interface prompts and accompanied by a beep, away from the risk of electric shock

• USB fast image reading: Data reproduction with computer, quick viewing of stored images, data reproduction, USB charging

• Type-C charging: Built-in removable 18650 lithium battery, long-lasting battery life, convenient and durable

Specification:

• Brand: SUNSHINE

• Name: Handheld Thermal Imager

• Model: TB-10 Pro

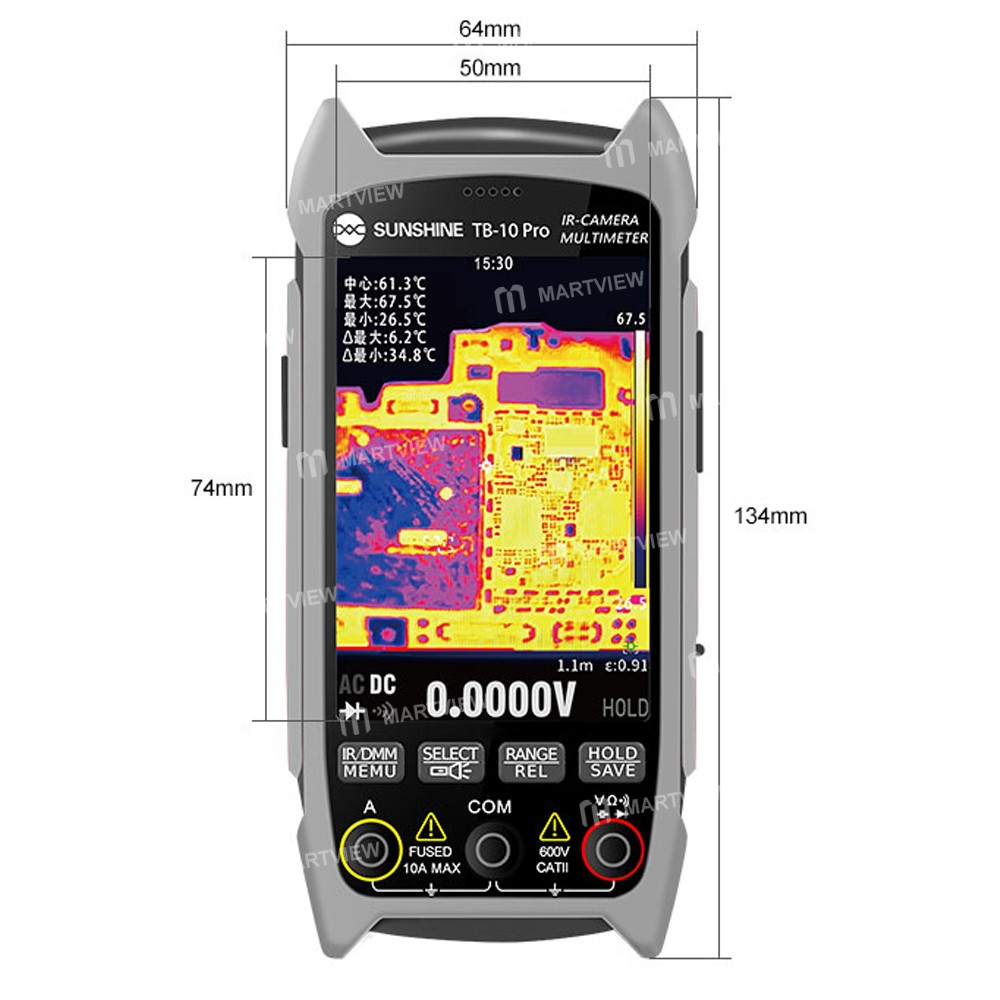

• Product size: 134*64*28mm

• Packing size: 146*175*55mm

• Net weight: 198g

• Display screen: 3.5-inch 320*480 resolution

• USB interface: Type-C USB

• TF card supports maximum capacity: 64G

• Image format: BMP file

• Battery: Removable 18650 lithium battery

• Storage temperature: -20~60℃ (-4~140℉)

• Operating temperature: 0~50℃ (32~122℉)

• Operating humidity: <85%RH (Non-condensing)

• Sensor: Uncooled vanadium oxide (VOx)

• Image capture frequency: 25Hz

• Module output pixels: 256*192

• Display image resolution: 427*320

• Field of view (FOV): 50.0°(H)*37.2°(V)

• Emissivity: 0.1~0.99 adjustable, default 0.95

• Temperature range: -20℃ to +550℃

• Mode: Automatic gain

• Color plate: White heat/black heat/fusion 1/rainbow/fusion 2/iron red 1/iron red 2/dark brown/color 1/color 2/ice fire/rain/green heat/red heat/dark blue

• Temperature measurement error: ±2℃ or ±2℉

• Display temperature accuracy: 0.1℃/0.1℉

• DC maximum input voltage: 1000V

• AC maximum input voltage: 750V

• Maximum current measurement: 10A

• Resistance maximum measurement value: 99.99MΩ

• Capacitance maximum measurement value: 199.99mF

• Duty cycle measurement range: 0.1%~99.9%

• Diode measurement range: OV~3V

• Maximum resistance value of continuity detection: 199.99Ω

• Display digital: 19999 words updated about 3 times per second

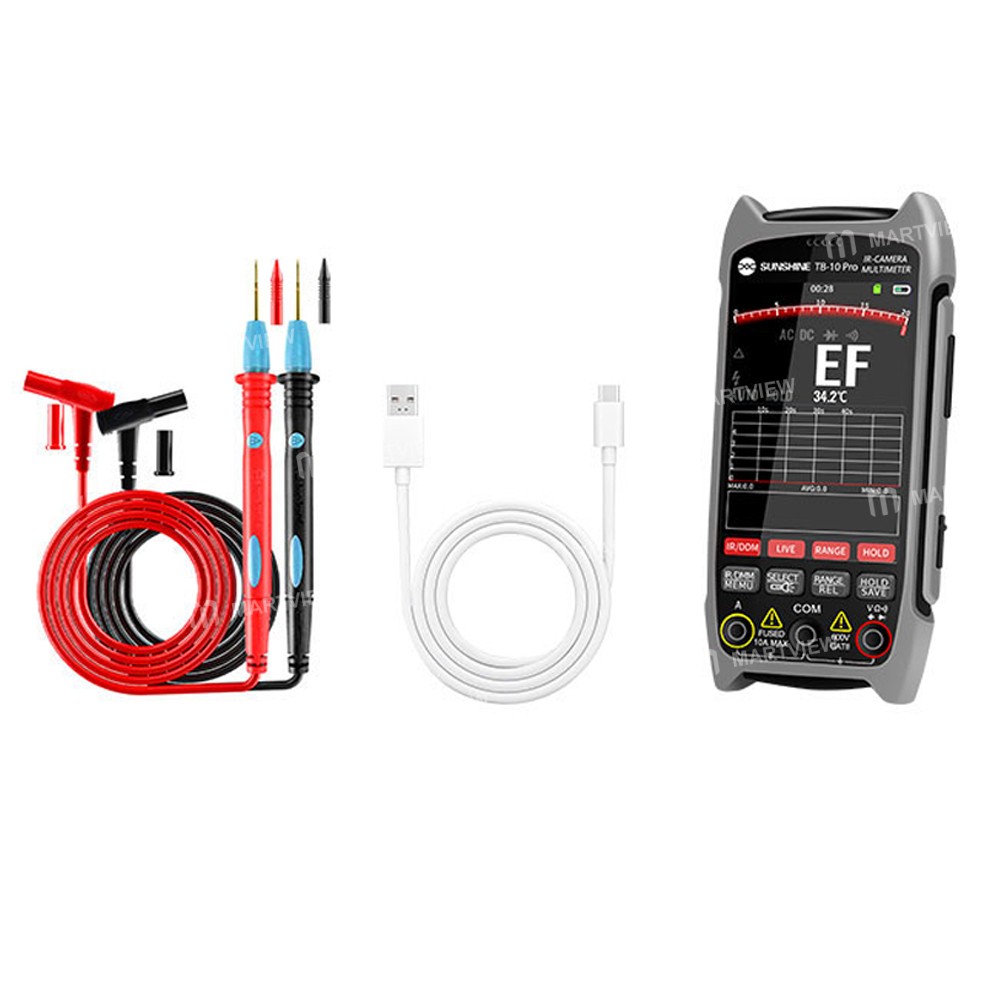

Package includes:

• 1 x Handheld Thermal Imager Multimeter (without TF Card)

• 1 x Type-C Cable

• 1 x Test Lead

• 1 x Fuse
