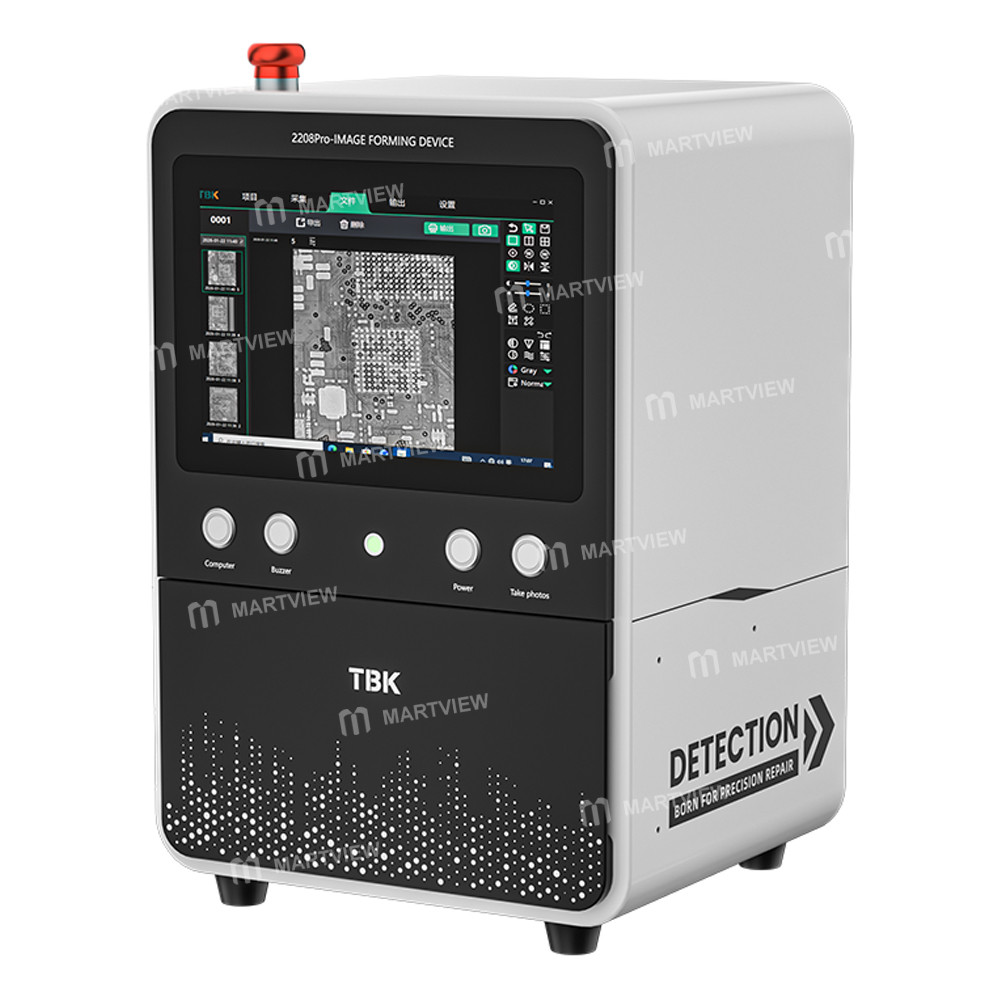

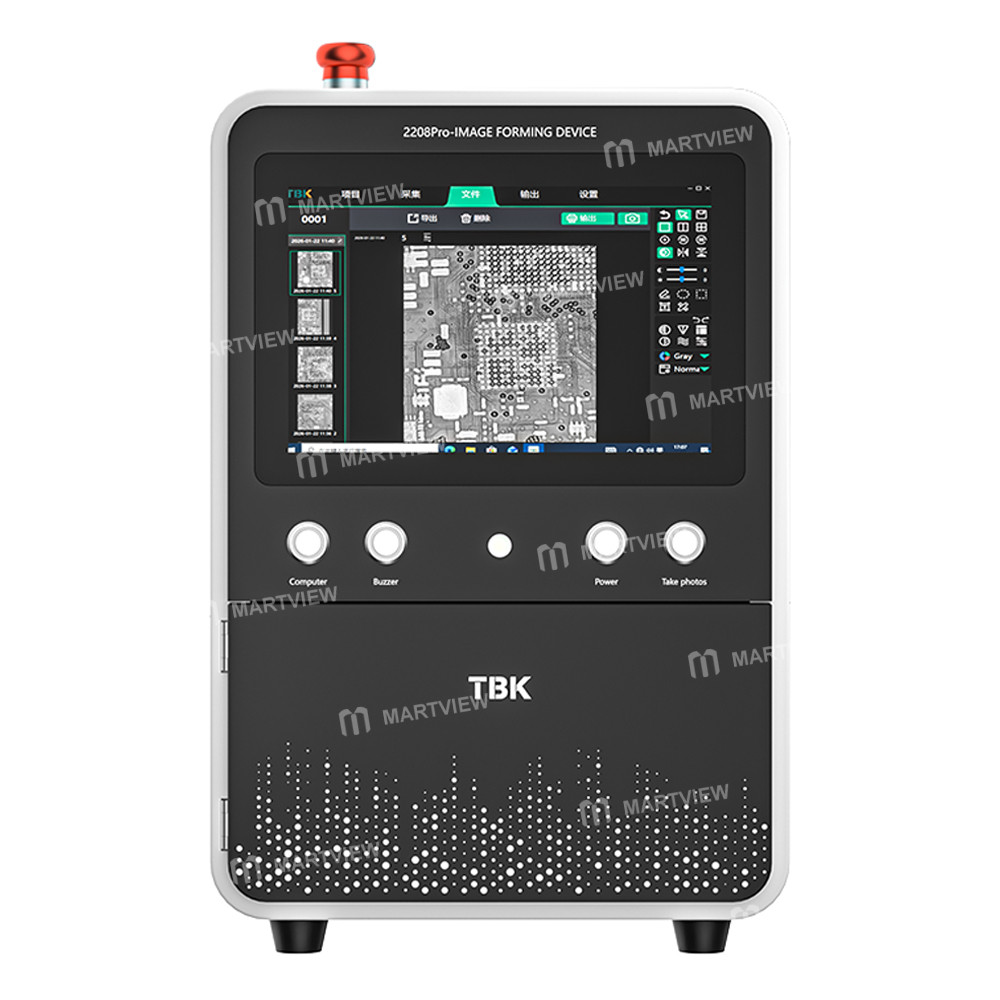

TBK 2208Pro Intelligent Imager for Testing Semiconductor Packaged Devices And Integrated Electronic Components

TBK 2208Pro Intelligent Imager for Testing Semiconductor Packaged Devices And Integrated Electronic Components

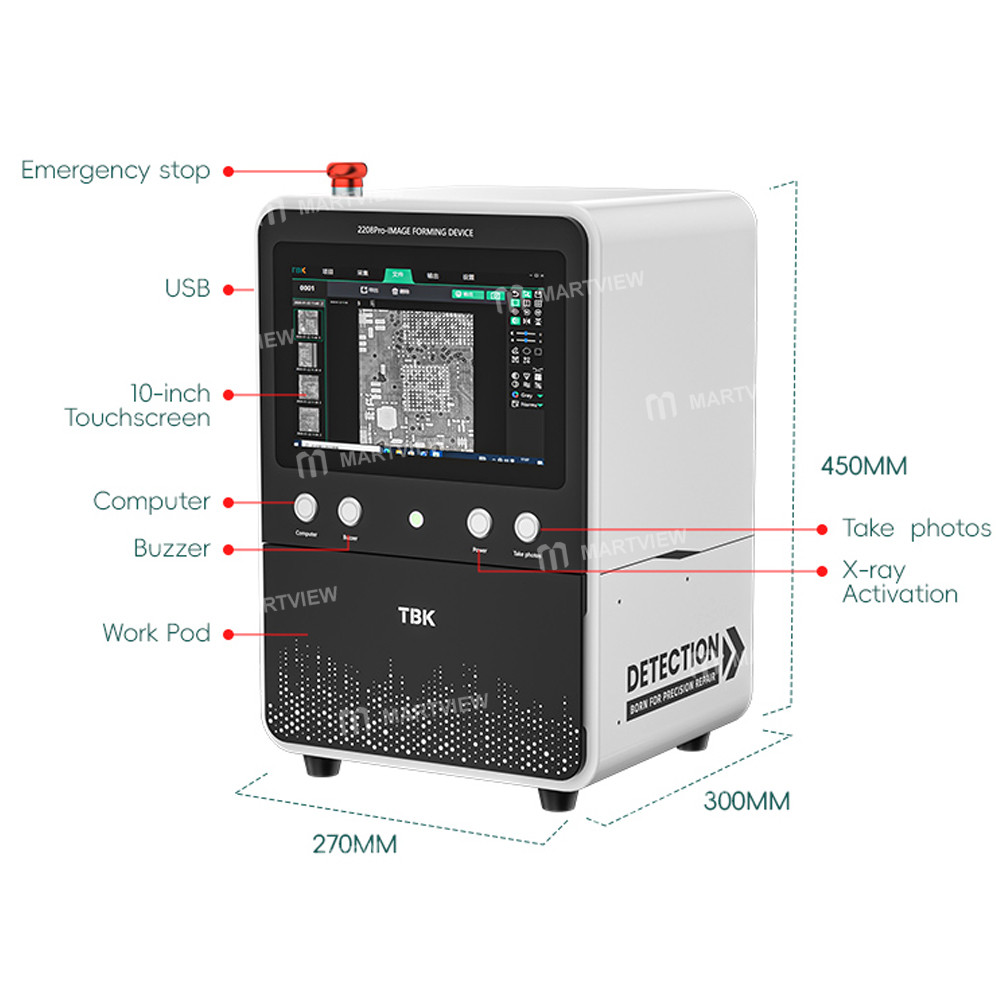

Features:

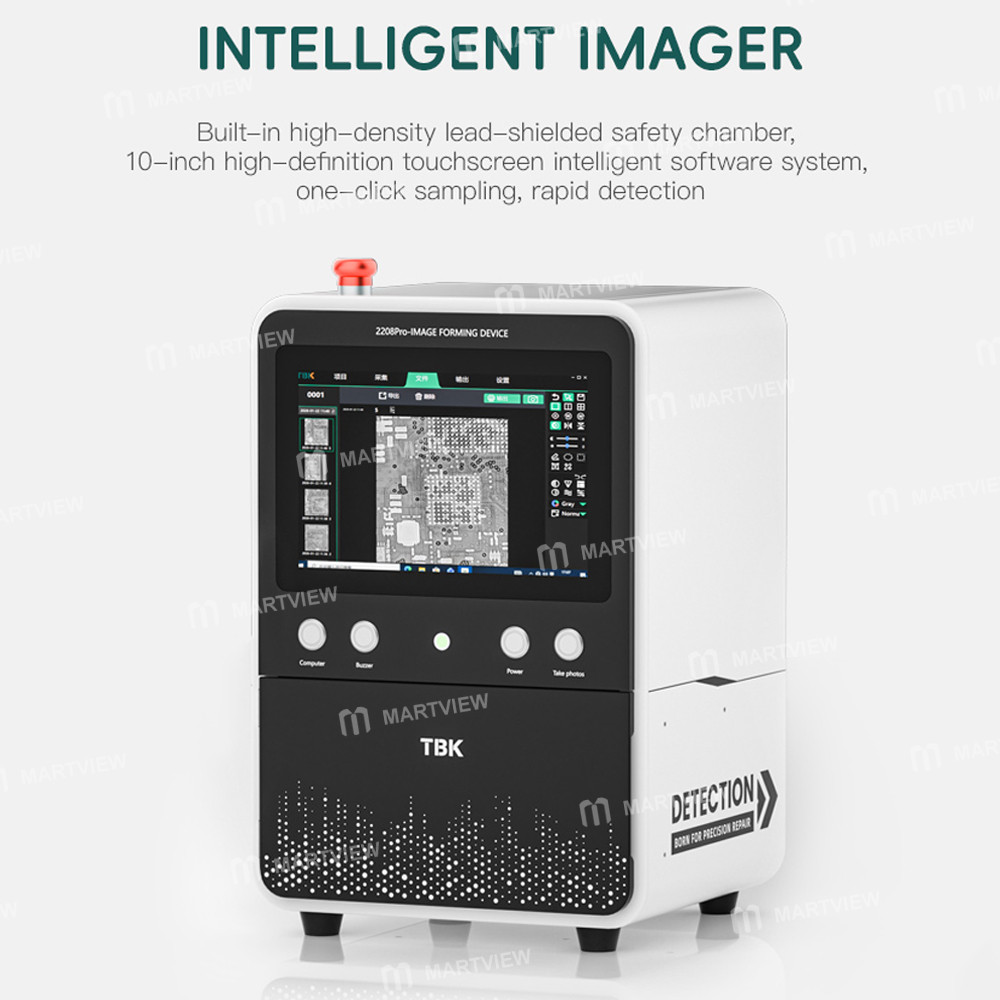

• Built-in high-density lead-shielded safety chamber, 10-inch high-definition touchscreen intelligent software system, one-click sampling, rapid detection

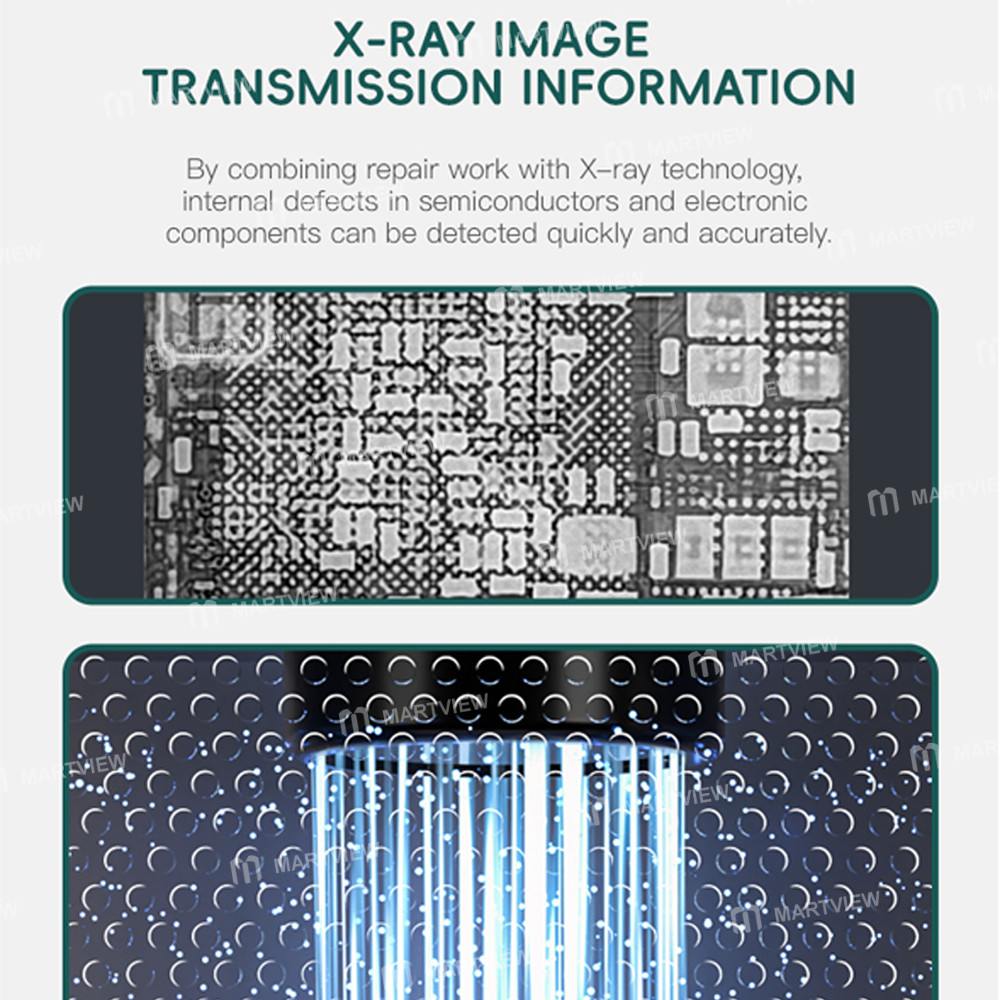

• By combining repair work with X-ray technology, internal defects in semiconductors and electronic components can be detected quickly and accurately

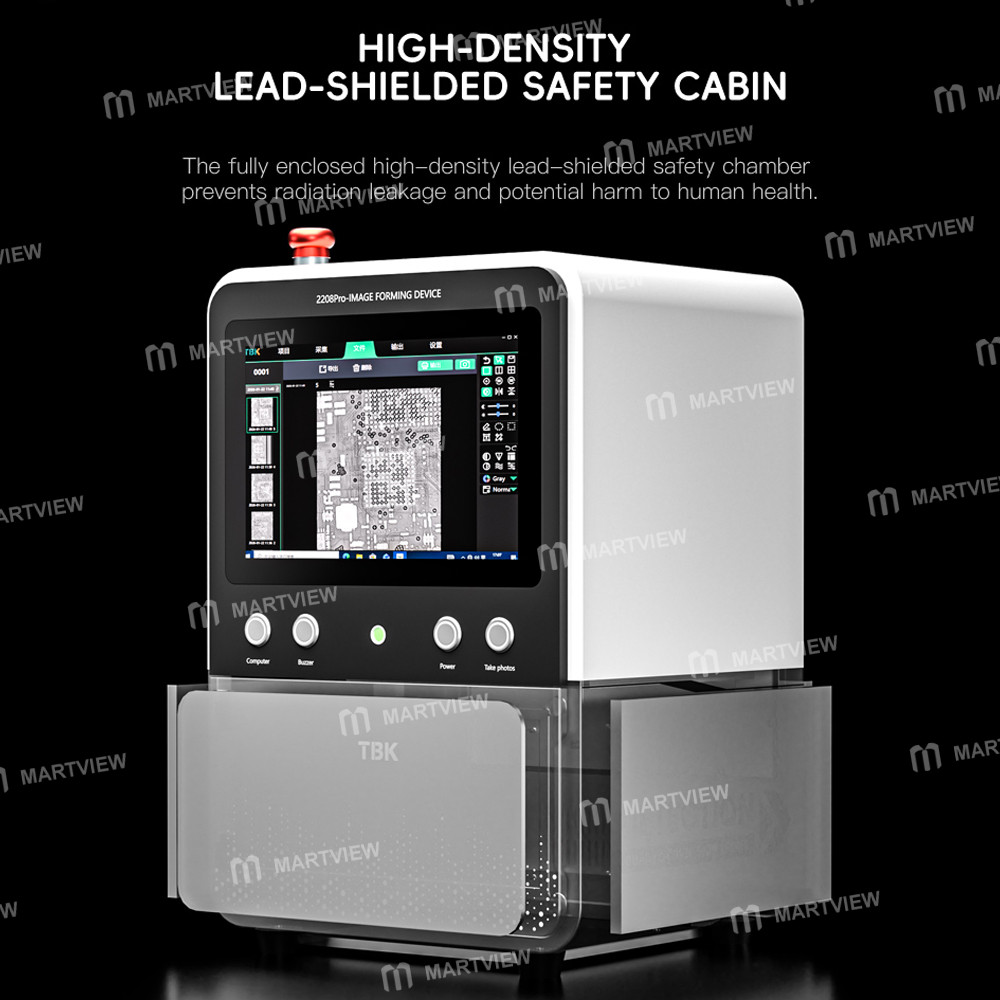

• The fully enclosed high-density lead-shielded safety chamber prevents radiation leakage and potential harm to human health

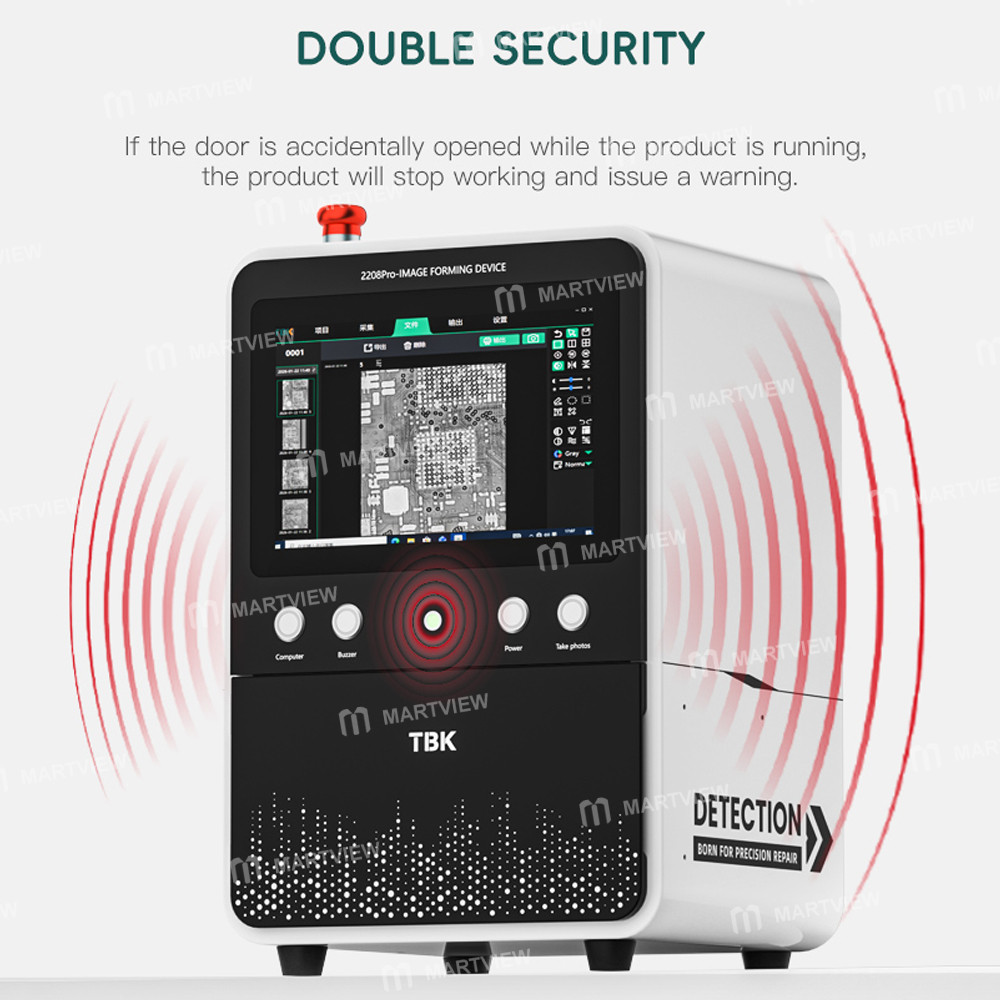

• If the door is accidentally opened while the product is running, the product will stop working and issue a warning

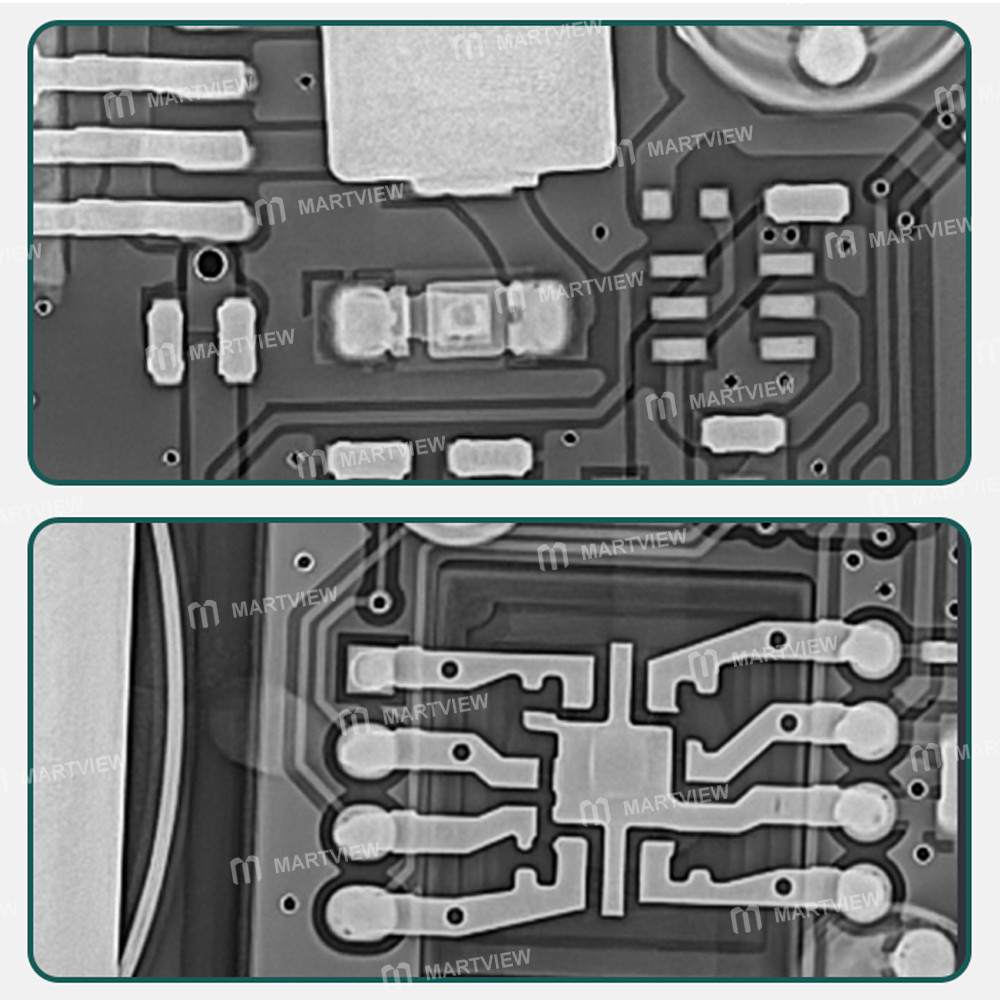

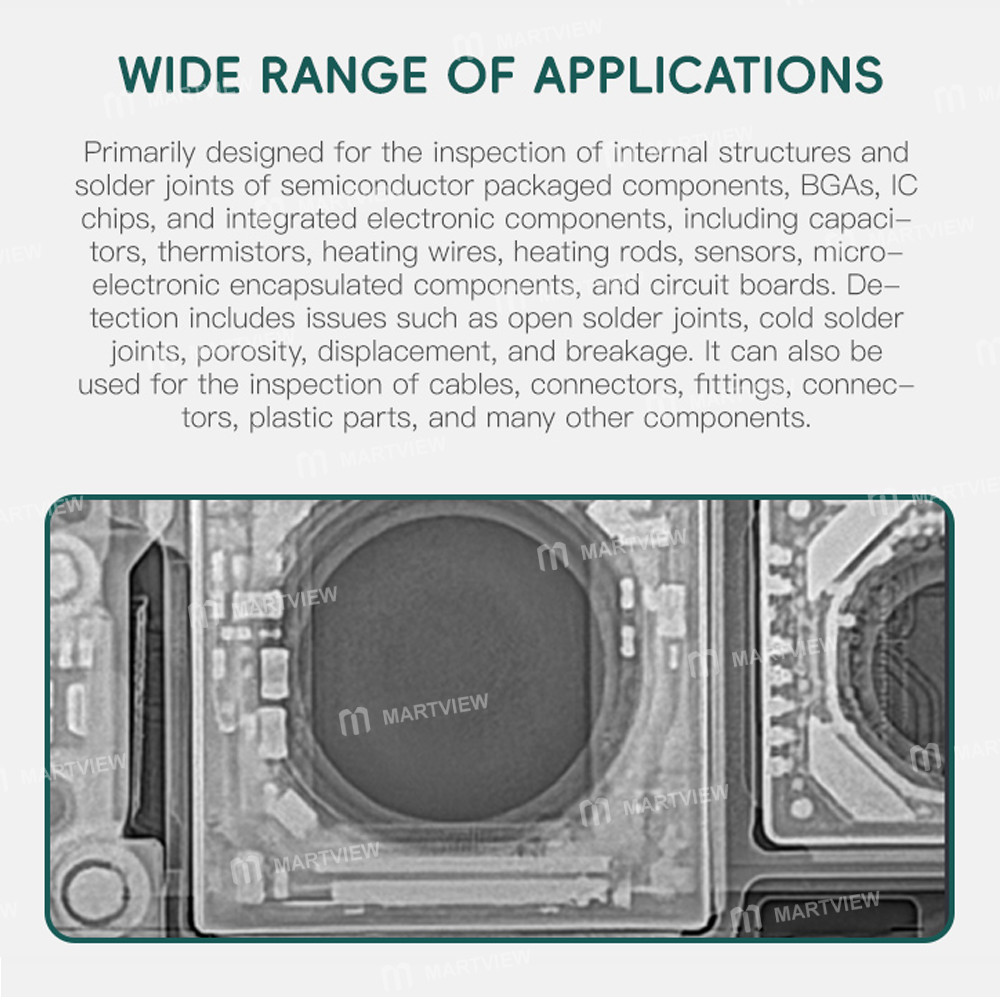

• Primarily designed for the inspection of internal structures and solder joints of semiconductor packaged components, BGAs, IC chips, and integrated electronic components, including capacitors, thermistors, heating wires, heating rods, sensors, microelectronic encapsulated components, and circuit boards

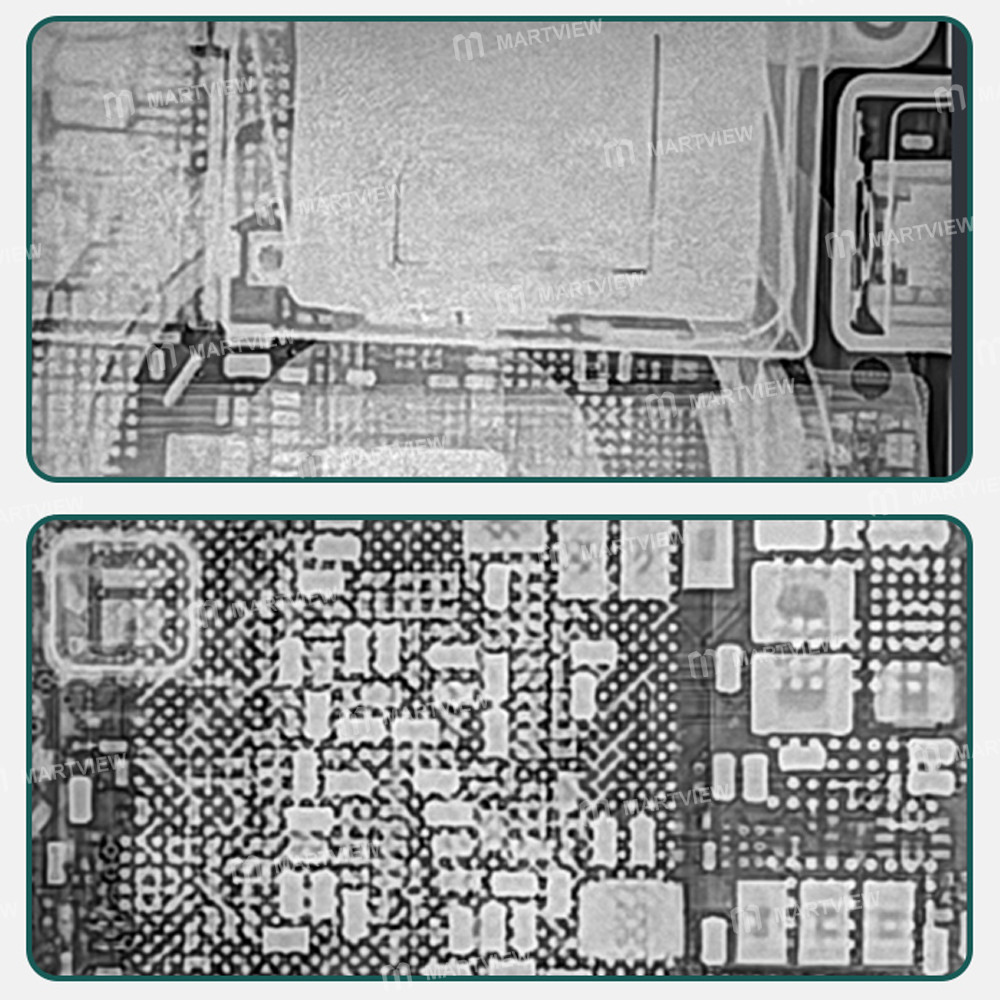

• Detection includes issues such as open solder joints, cold solder joints, porosity, displacement, and breakage. It can also be used for the inspection of cables, connectors, fittings, plastic parts, and many other components.

Advantage Detection:

• No disassembly required

• Clear internal motherboard circuitry

• Direct observation of solder joints

• Easy inspection of the motherboard, chips, etc.

• Internal heavy lead casing protection

• Wide range of applications

• Fast repair speed

Specifications:

• Brand: TBK

• Model: 2208Pro

• Voltage: AC 110V/220V

• Standby Power: 60W

• Exposure Power: 100W

• Pixel Diameter: 35μm

• Detector Area: 25*35mm

• Resolution: 688*834px

• Product Size: 300*270*450mm

• Net Weight: 17kg

Package includes:

• 1 x Intelligent Imager

• 1 x Power Cord

• 1 x Mouse
