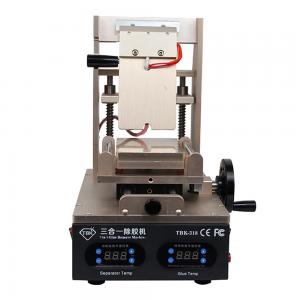

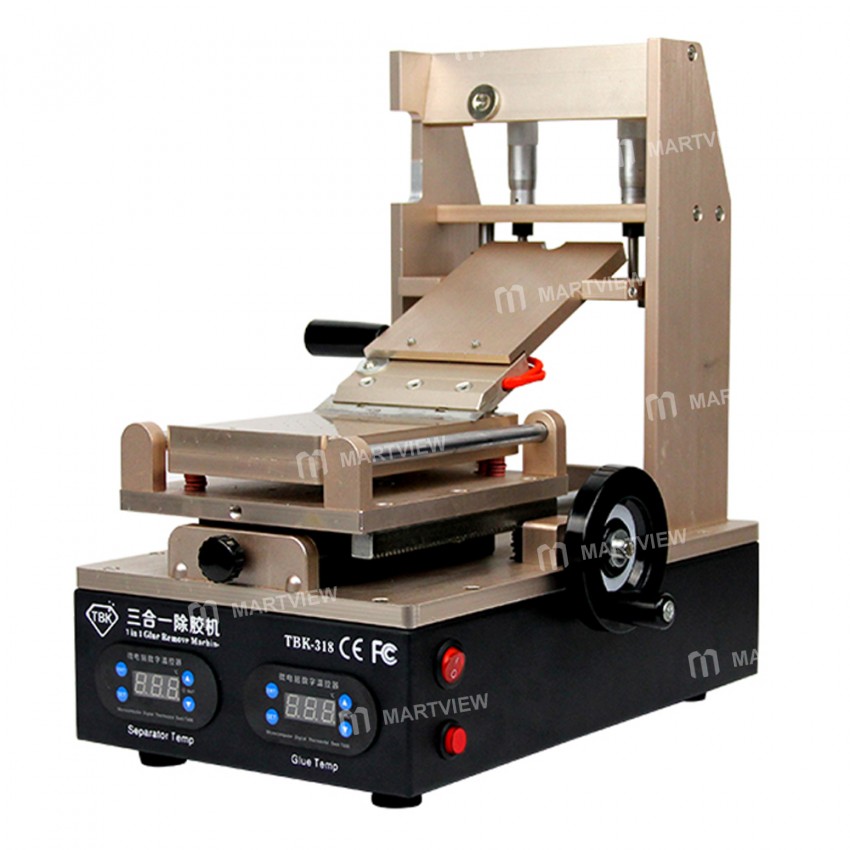

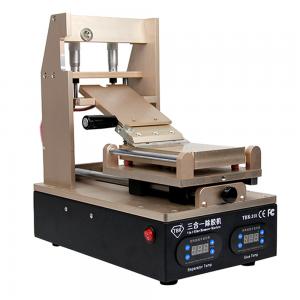

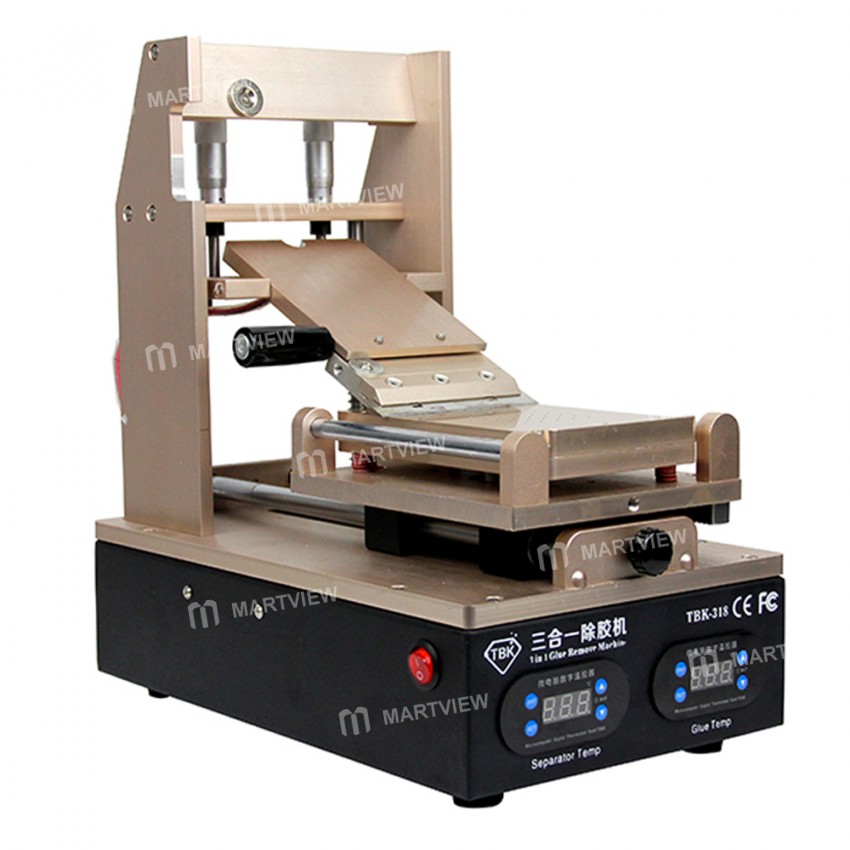

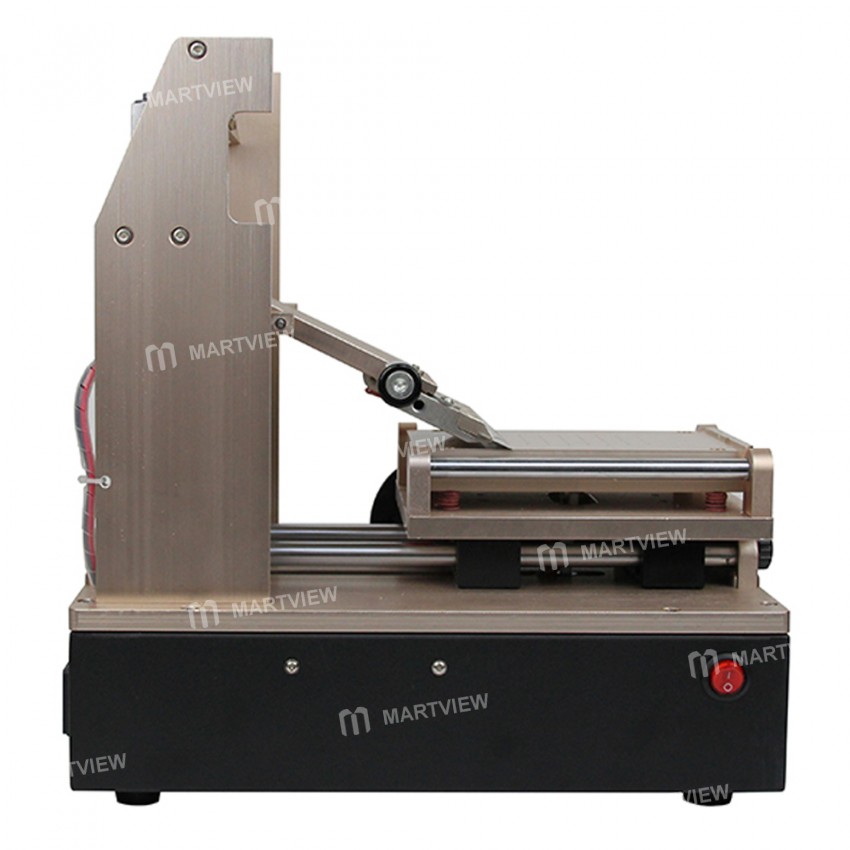

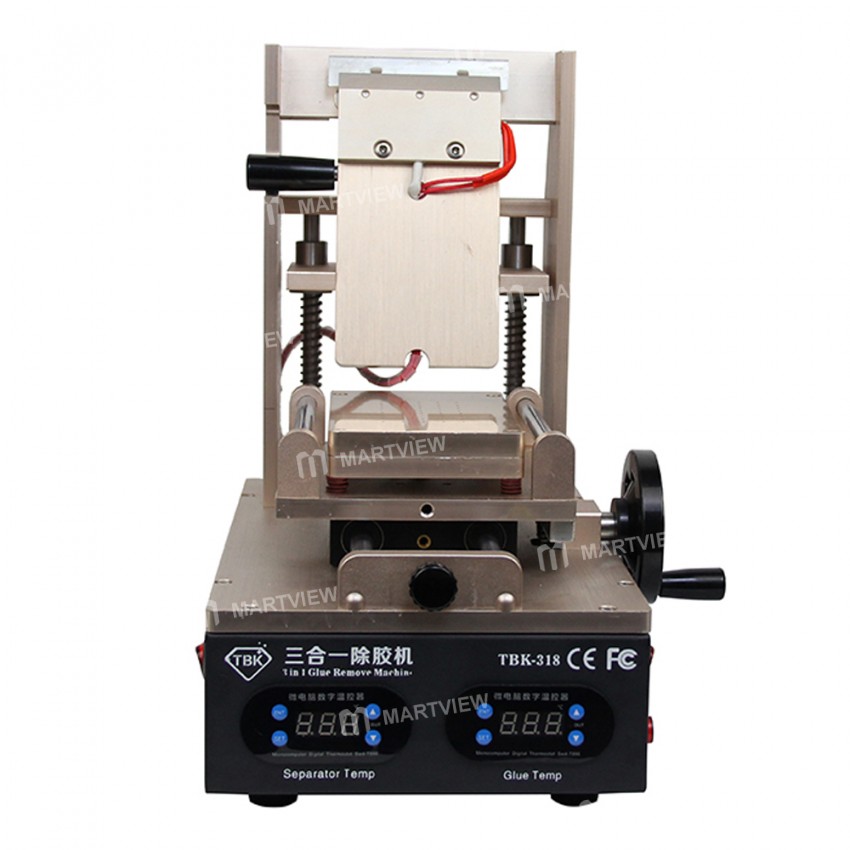

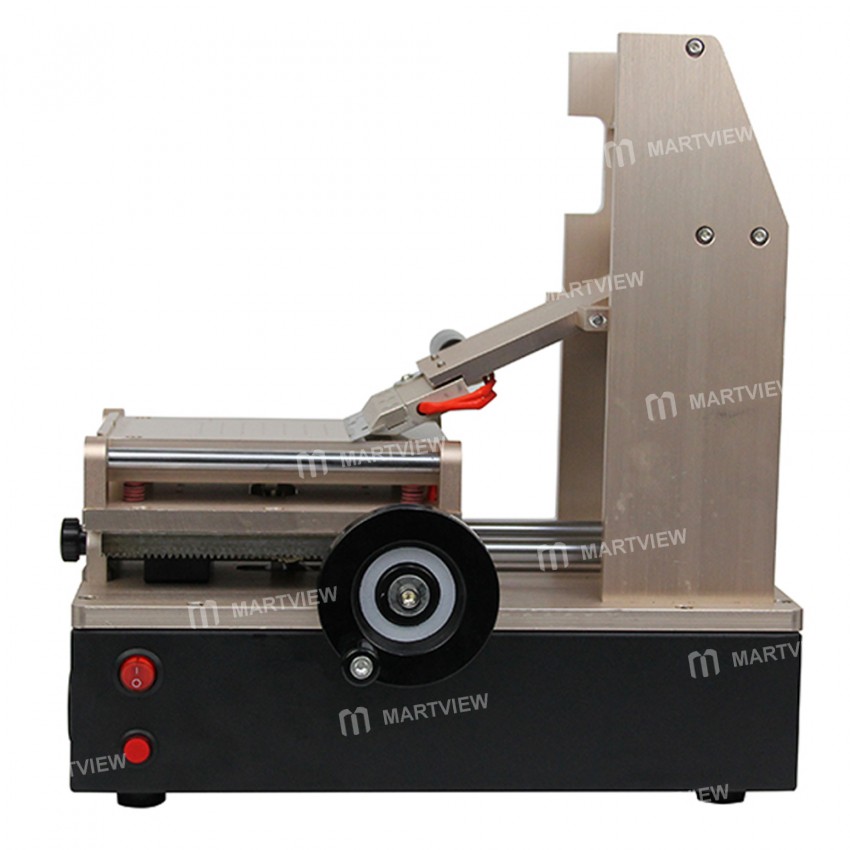

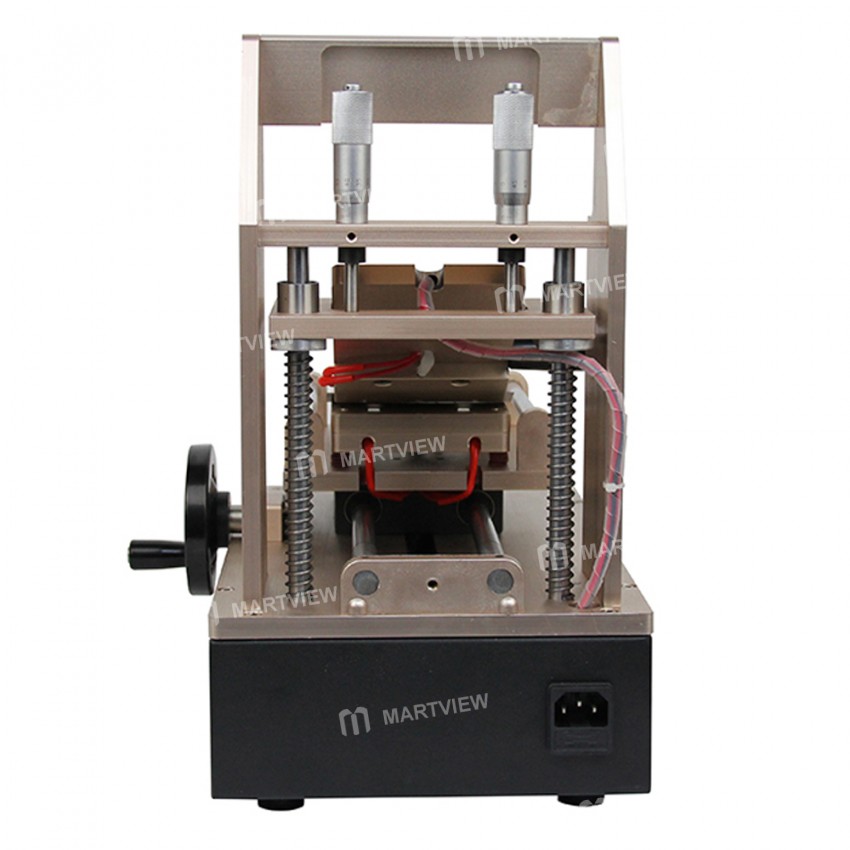

TBK-318 3-in-1 Mobile Phone LCD Screen Separator with Preheater and OCA Glue Polarizer

TBK-318 3-in-1 Mobile Phone LCD Screen Separator with Preheater and OCA Glue Polarizer

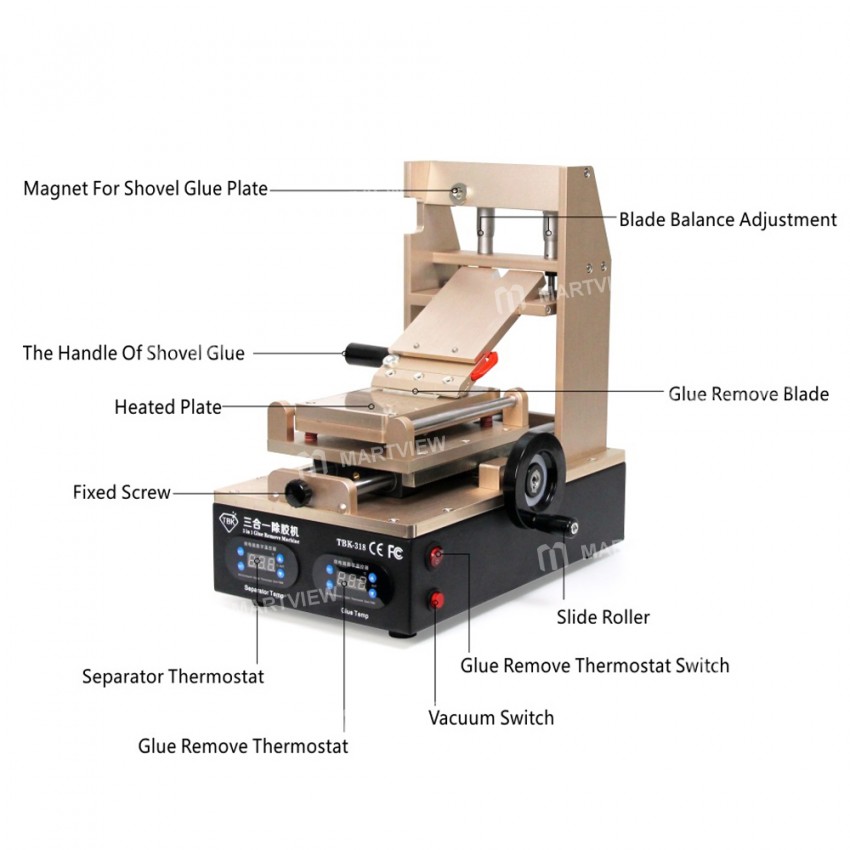

This is a 3 in 1 glue removal machine, which consists of a heated plate, vacuum manual separator, glue remover function, built-in vacuum pump, only need the plug-in power line, then you can use it.

Specifications:

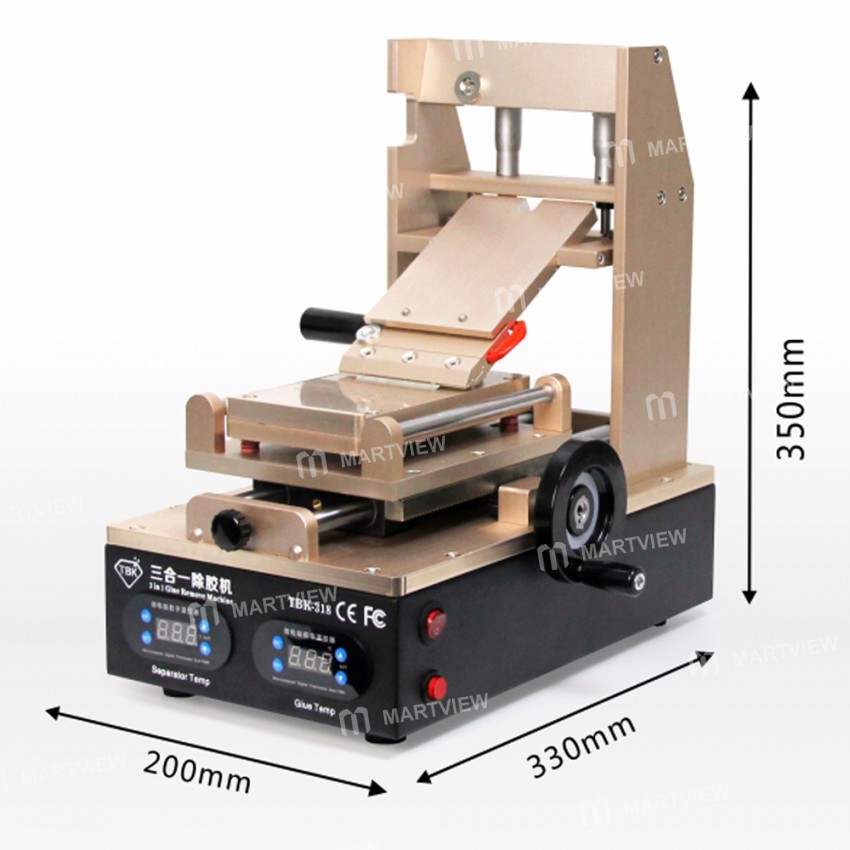

• Size:200*330*350mm

• Net Weight:9.5 kg

• Gross Weight:10.5kg

• Function:LCD Separate + OCA Glue remove + Polarizer remove + Preheater

• Working Voltage:AC 110V/AC 220V

• Power Supply:350w

• Used:For Mobile Phone LCD Repair/Refurbishing/Degumming

The operation steps of screen separation:

• Haul back the lower plate, lock the screw tightly(skid resistance).

• Turn on the thermostat switch on left, setting the temperature to 80 degrees.

• Put the silica gel on the heated plate holes to holes.

• Put downwards the screen onto the silica gel, tum on vacuum switch, the screen being sucked.

• Adjust steel wire to the height of pressing the glass exactly.

• Keep a constant speed to separate LCD and glass.

• Take off the LCD, the operation steps of screen separation is.

The operation steps of polarizer remove:

• Turn on the thermostat switch on right, setting the temperature to 180 degrees.

• Put downwards the screen onto the silica gel, turn on the vacuum switch, the screen is sucked.

• Put the blade on one end of the polarizer, push the plate, and then the polarizer will fall off.

• Turn down the vacuum switch and take out the screen.

Package includes:

• 1 x TBK-318

• 1 x Power cable
