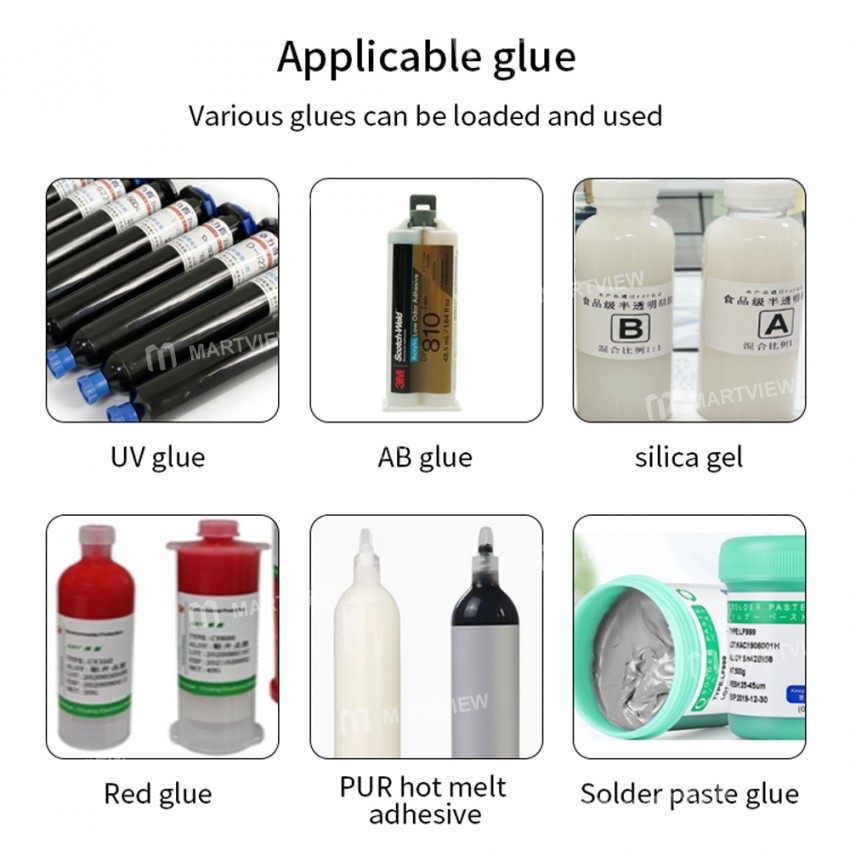

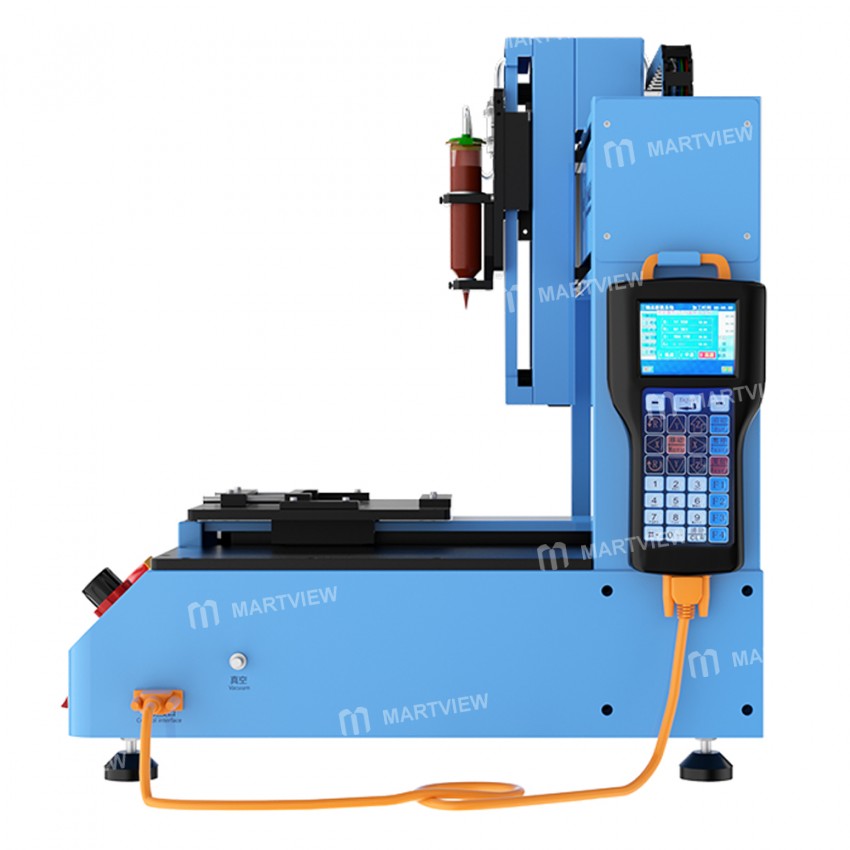

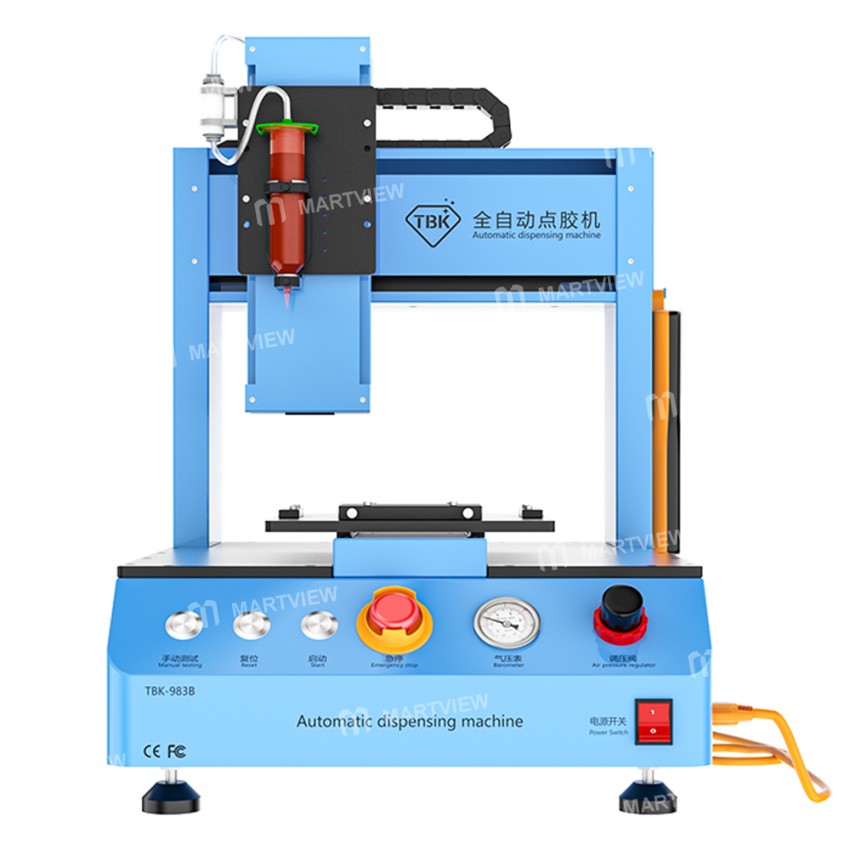

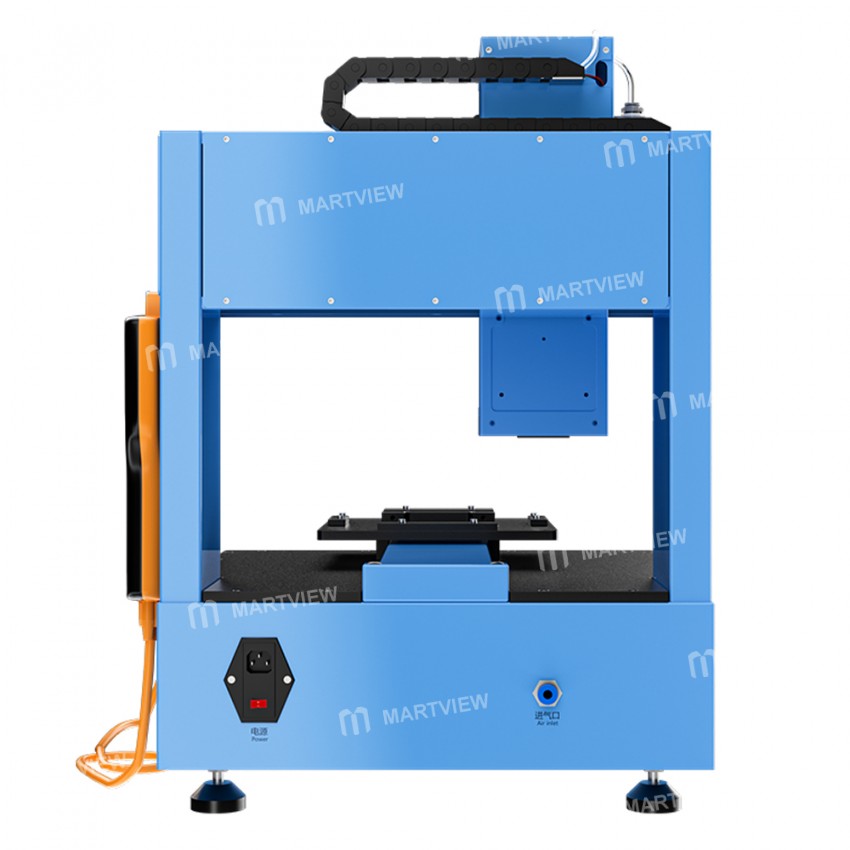

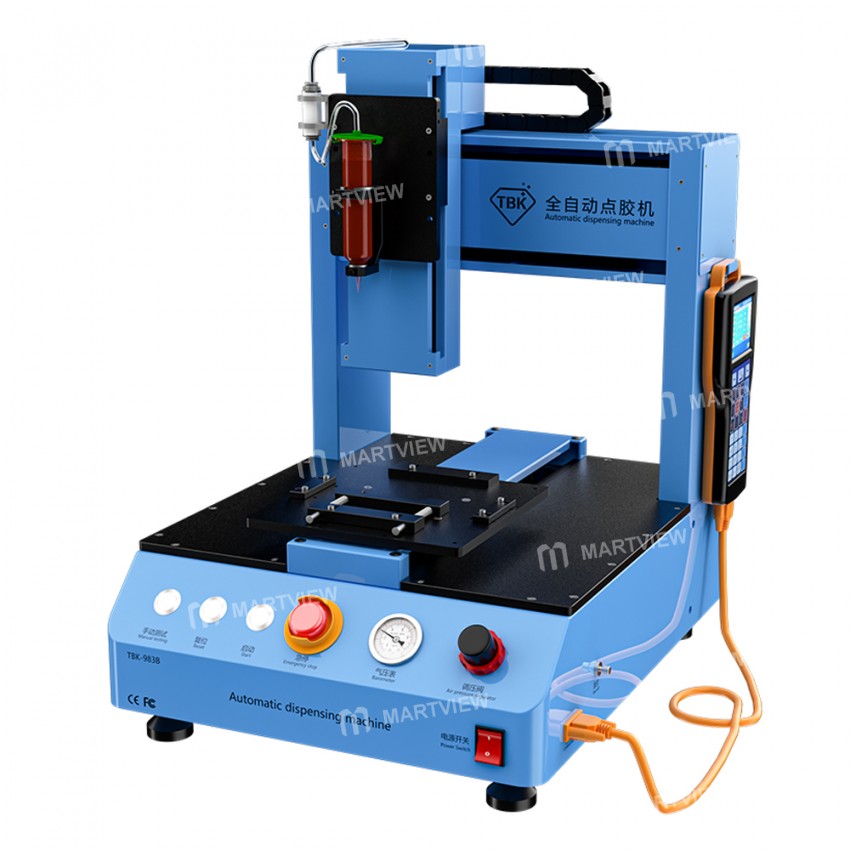

TBK-983B Multifunction Automatic Dispensing Machine for UV Glue / PUR Hot Melt Adhesive / Solder Paste

TBK-983B Multifunction Automatic Dispensing Machine for UV Glue/PUR Hot Melt Adhesive/Solder Paste

Features:

• Full automatic dispensing machine, suitable for gluing various dispensing products

• The dispensing accuracy is 0.02MM and the dispensing amount is 0.01ML

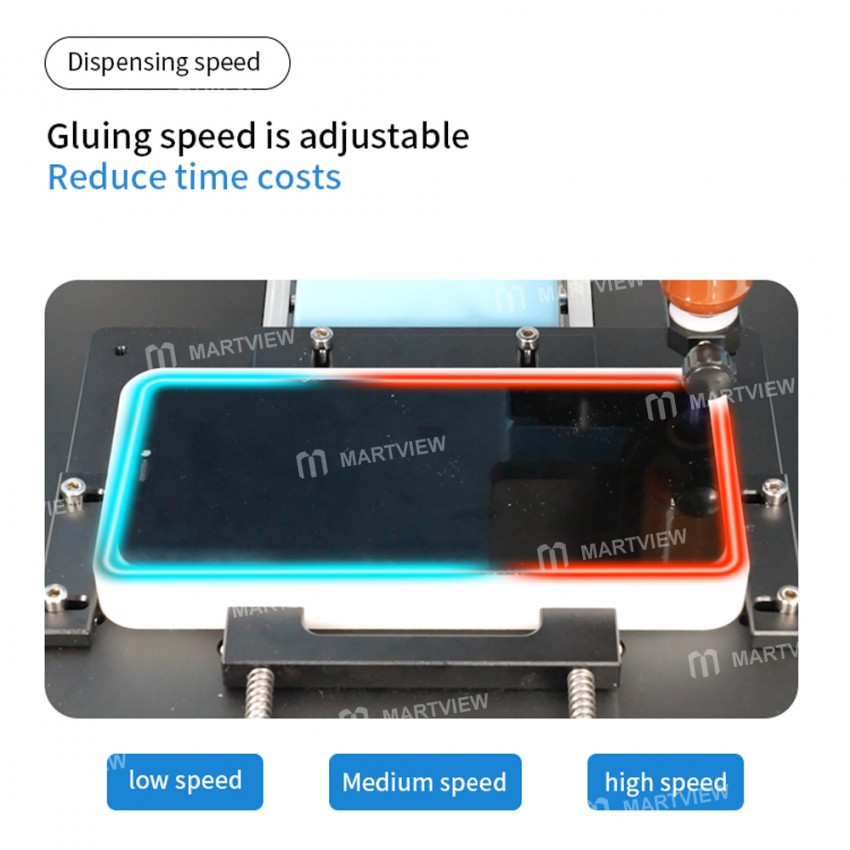

• The size, thickness, and speed of glue can be adjusted, and powerful process control, no wire drawing, no glue leakage, no glue dripping

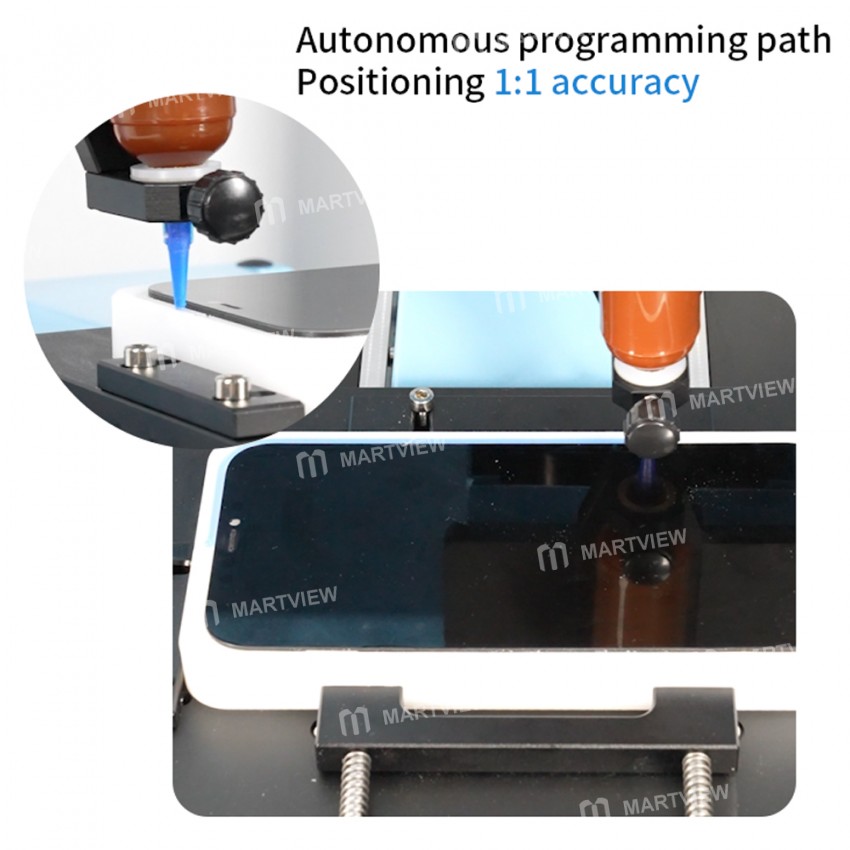

• Autonomous programming path, positioning 1:1 accuracy

• The pressure regulating valve controls the glue output, the glue is evenly and smoothly discharged

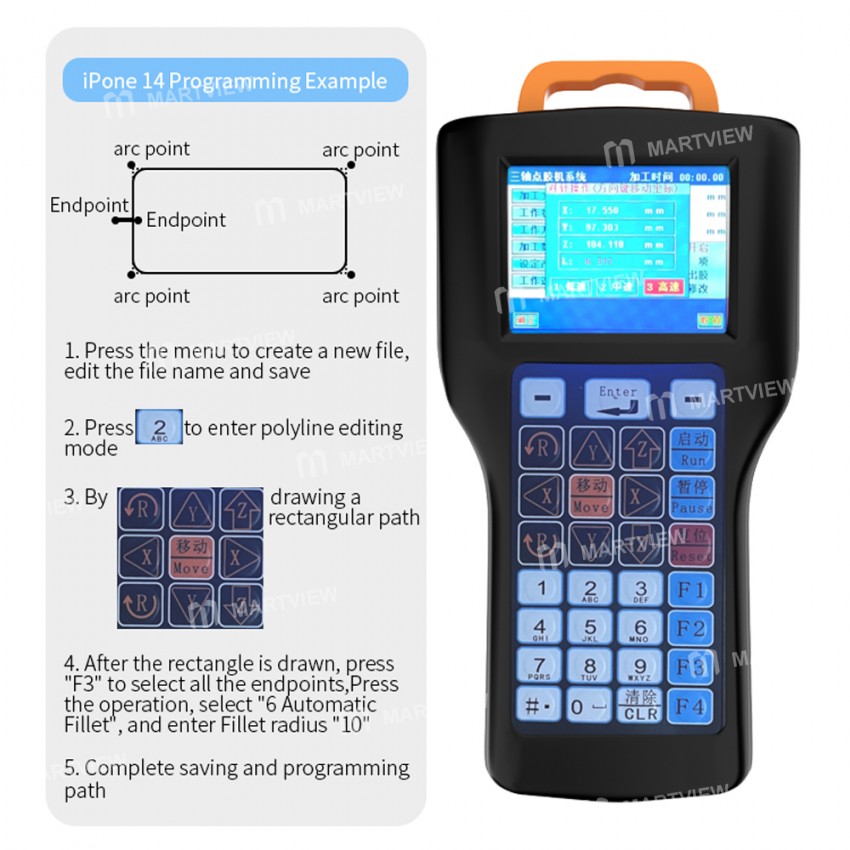

• Simple operation of autonomous programming

• Free one-to-one test, according to your needs, you can test the products that need gluing

Specification:

• Brand: TBK

• Model: 983B

• Voltage: 110V/220V

• External connection mode: RS232

• Control system: Motion control card

• Positioning accuracy: 0.02mm

• Drive mode: Stepping

• Program capacity: 1000 groups

• Net weight: 30kg

• Gross weight: 45kg

• XYZ Stroke: 200*200*100mm

• Product size: 500*400*560mm

• Package size: 570*440*640mm

• Control system: Motion control card or single-chip microcomputer

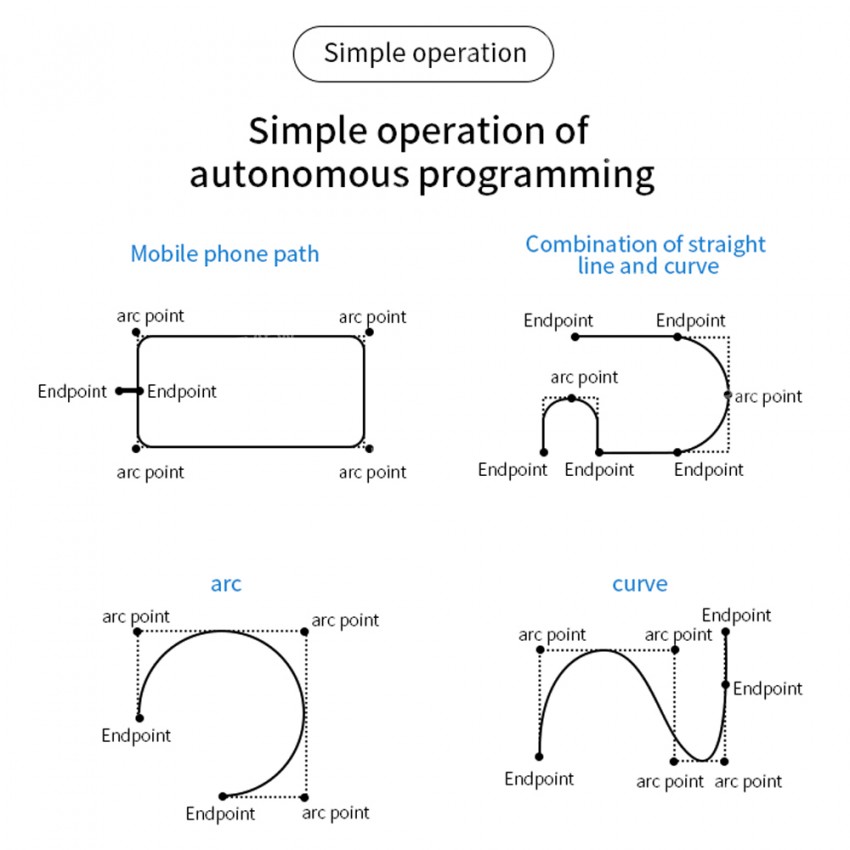

• Pointable trajectory: Point, line, circle, arc, continuous line segment

Package includes:

• 1 x Host

• 1 x Power cable
