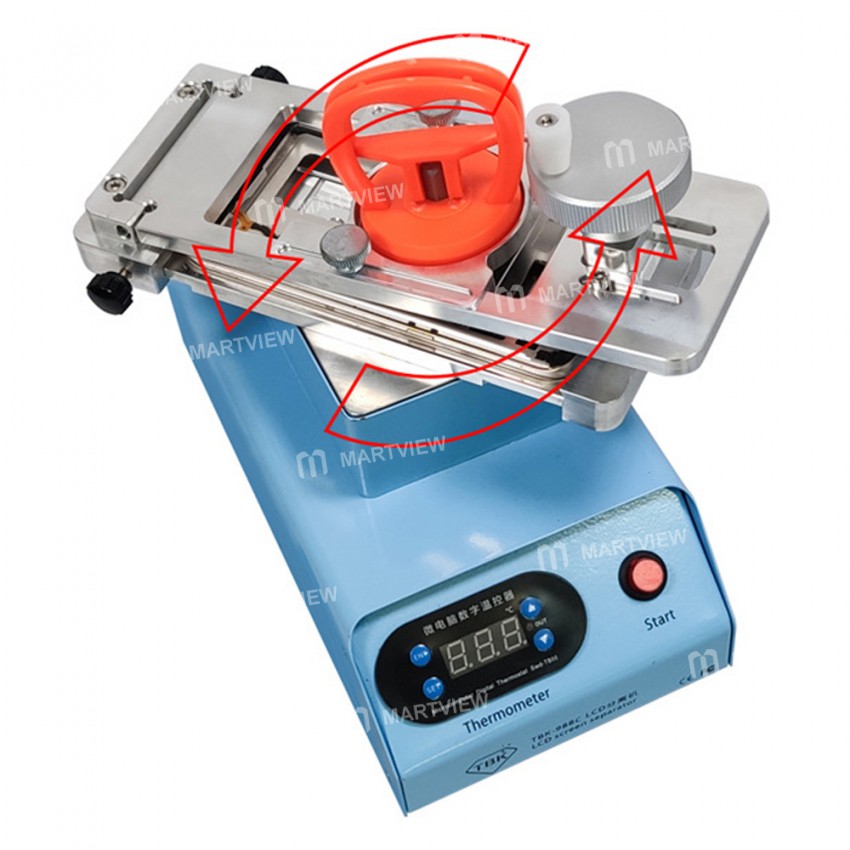

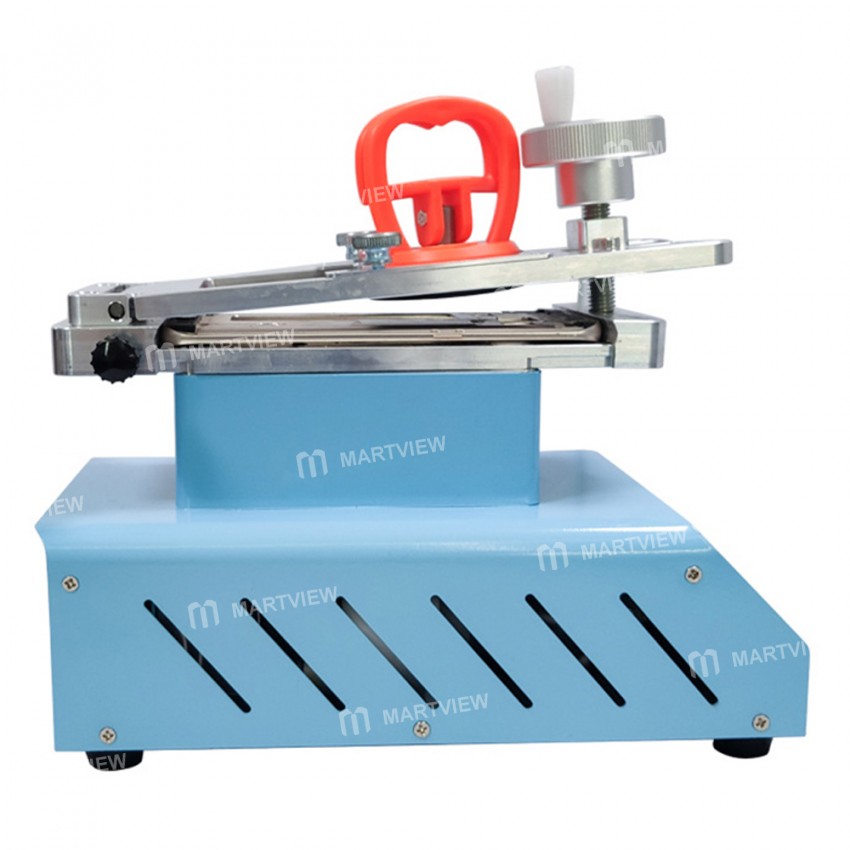

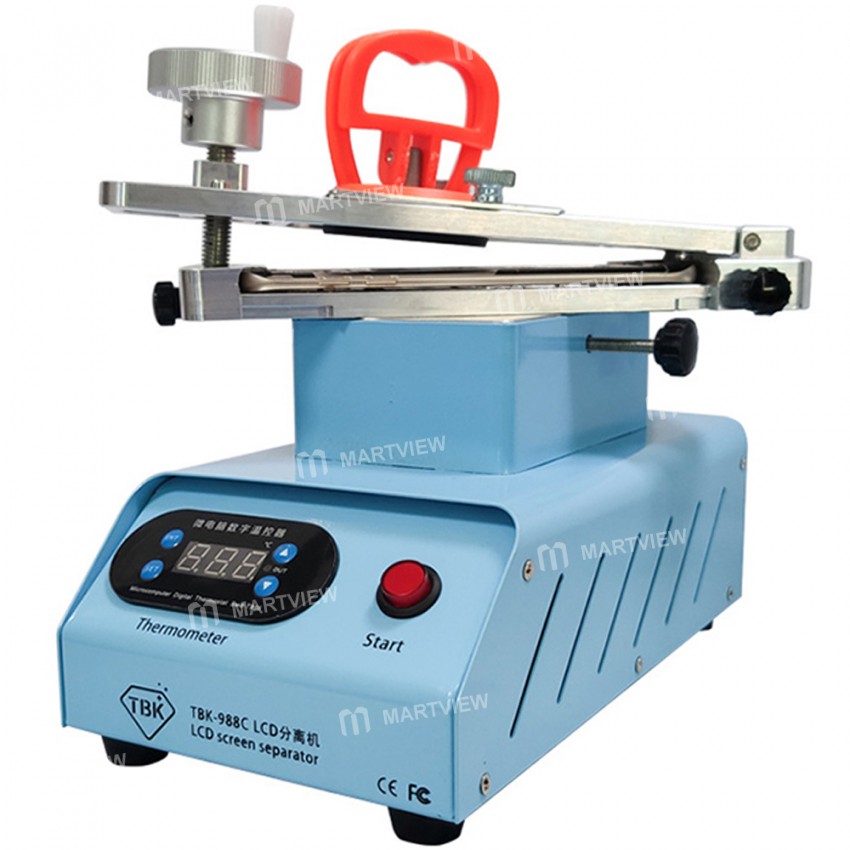

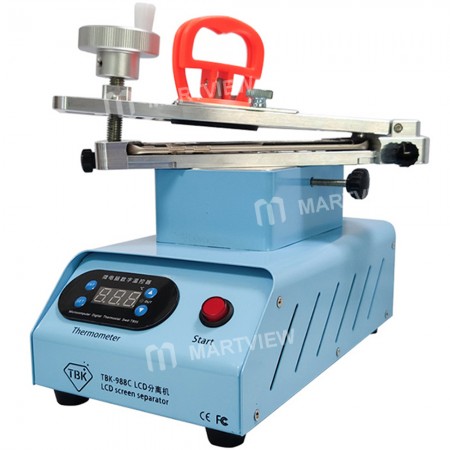

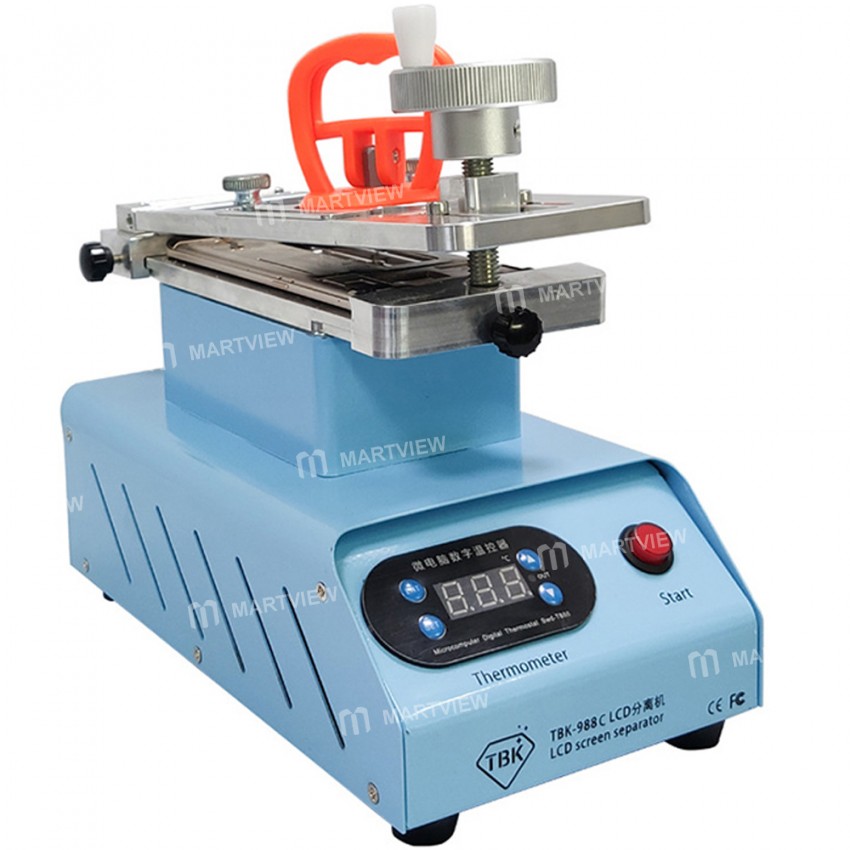

TBK-988C 360° Rotating LCD Glass Touch Screen Separator Machine For iPhone Android Phone

TBK-988C 360° Rotating LCD Glass Touch Screen Separator Machine For iPhone Android Phone

Specification：

• Product model: TBK-988C

• Production efficiency: manual cutting

• Brand: TBK

• Heating method: constant temperature heating

• Working voltage: AC220V/AC110V

• Adaptation size: all models under 7 inches

• Product power: 250 W.

• Packing size: 31*21*18cm

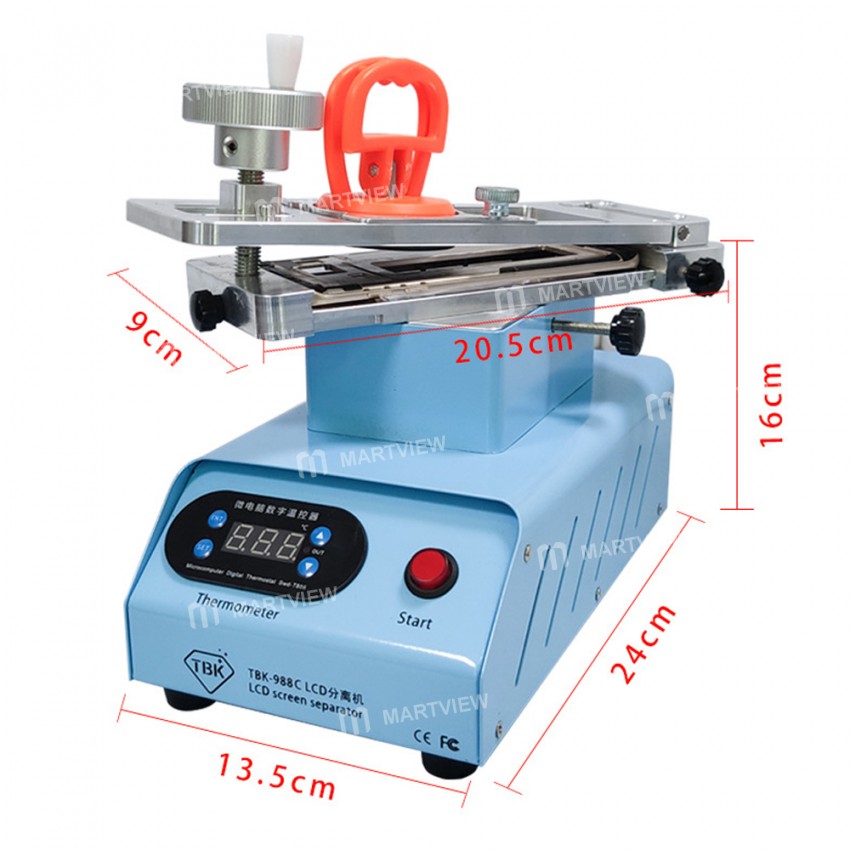

• Product size: 24*13.5*16cm.

• Product net weight: 3.2kg

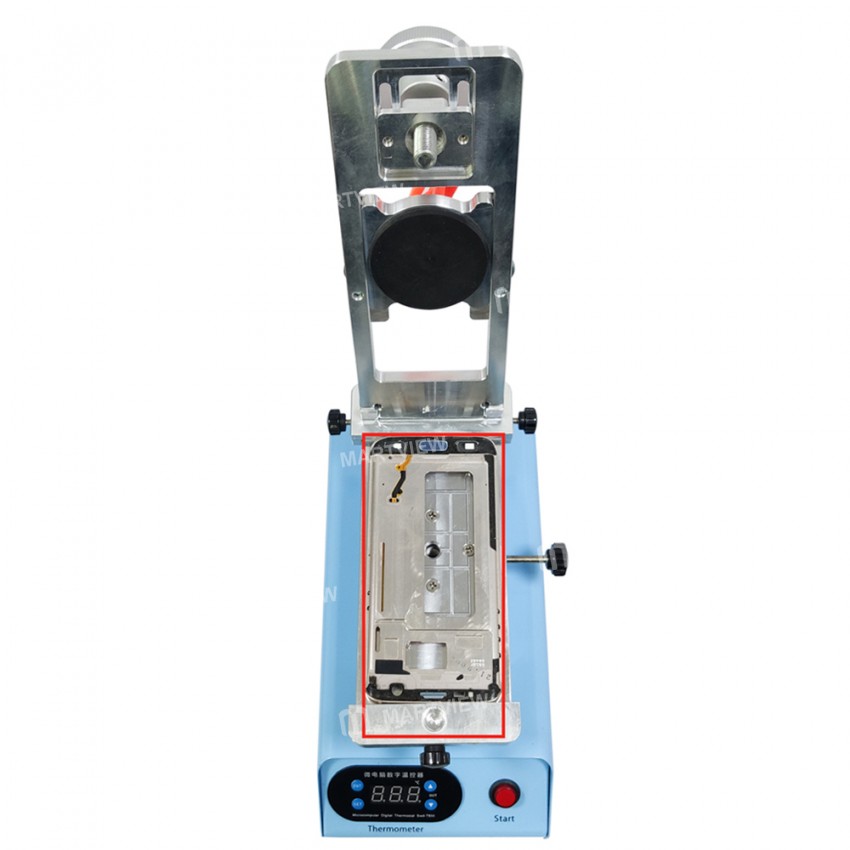

• Working area: 9*20.5cm

• Product gross weight: 4.5kg

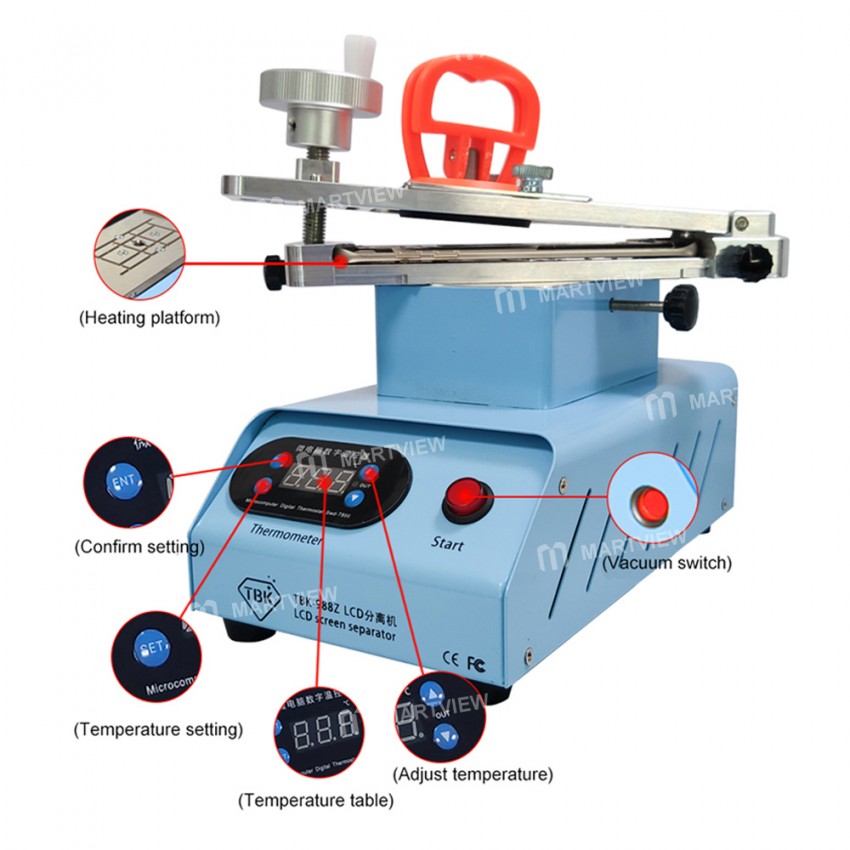

Operation steps:

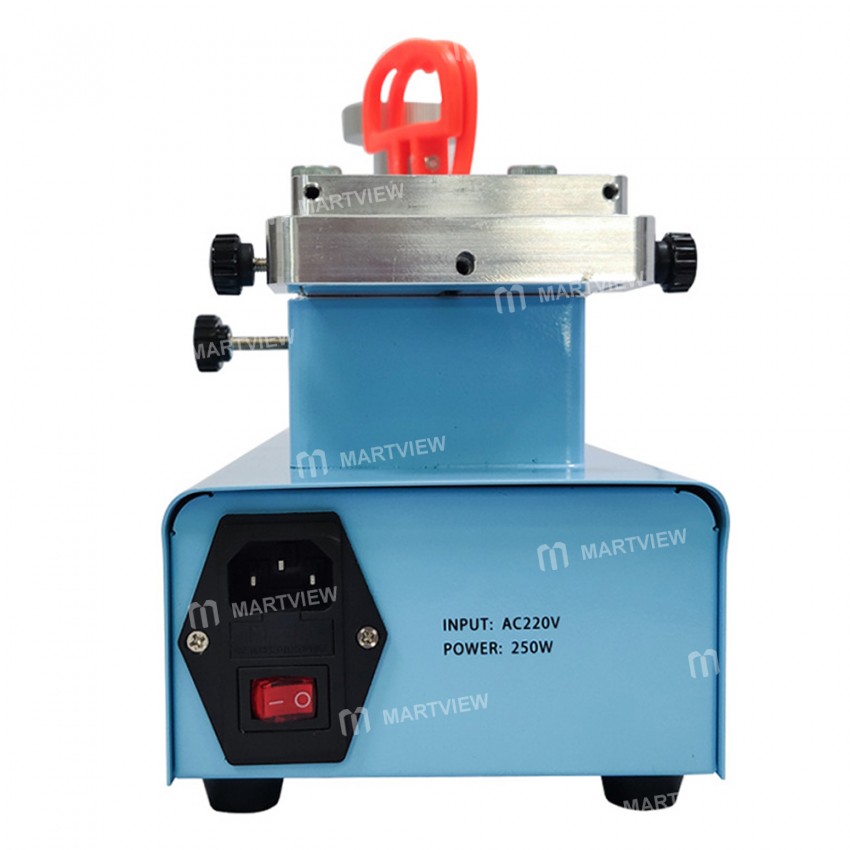

1. Turn on the power: Insert the power cord into the power port on the back of the separator, and turn on the power switch.
2. Preset temperature: Press the SET button to preset the temperature, press the up button to set the temperature at around 85 degrees, and press NET to save.
3. Prepare wire handle: Equipped with a wire handle to separate the screen.
4. Place the silicone anti-skid pad: Place it on the panel of the separator, align the rubber pad with the panel hole, or not use the silicone pad.
5. Preparation for screen separation: Put the screen to be separated into the center of the panel, press the start button to start vacuum adsorption, and make sure that the screen is sucked.
6. Start cutting screen: the screen can be preheated for 3-5 minutes to start cutting.
7. After separating the burst screen, turn off the power of the separator. If it is dry glue, you can tear it off directly by hand(Watch out for burns!!!). If it is water glue, it needs to be removed with a blade and a glue removal liquid.

Package includes:

• 1 x TBK-988C
