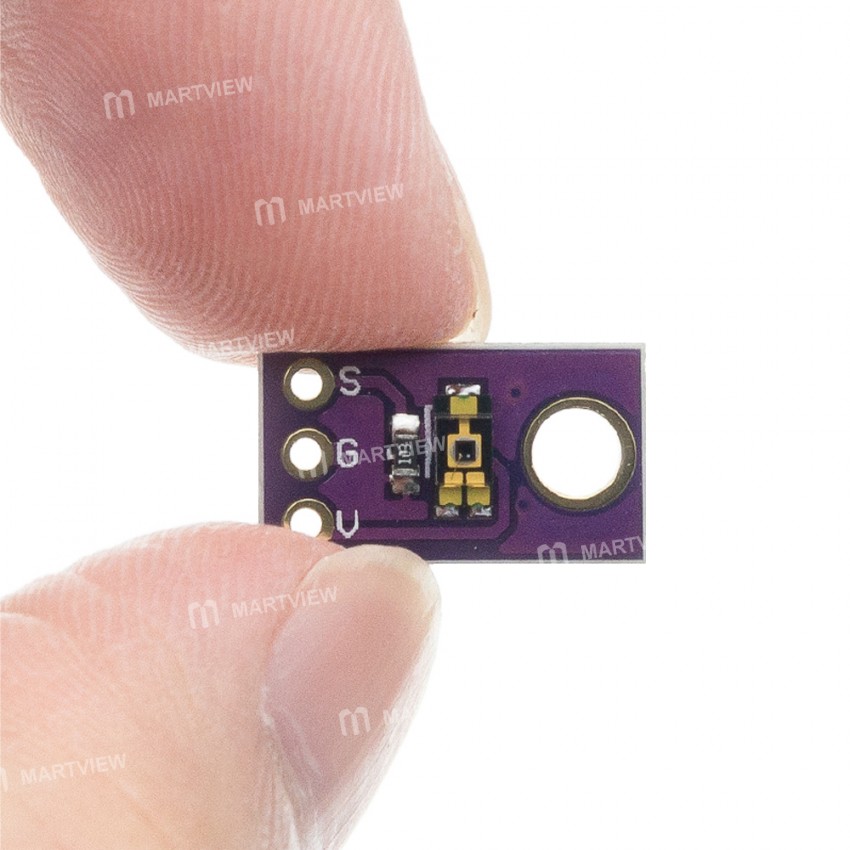

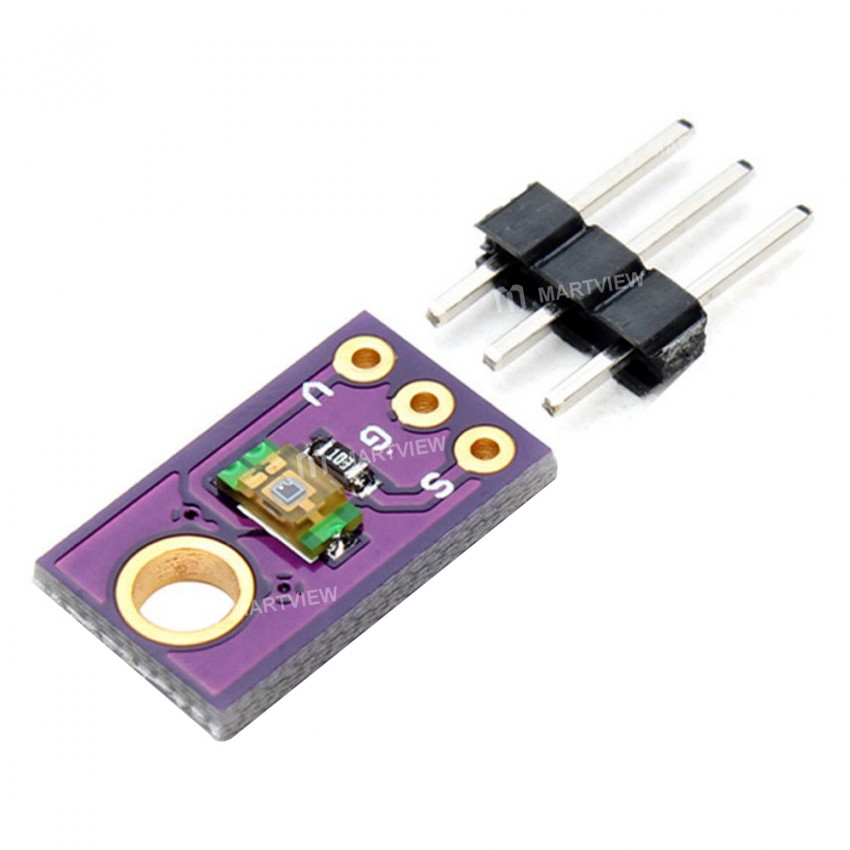

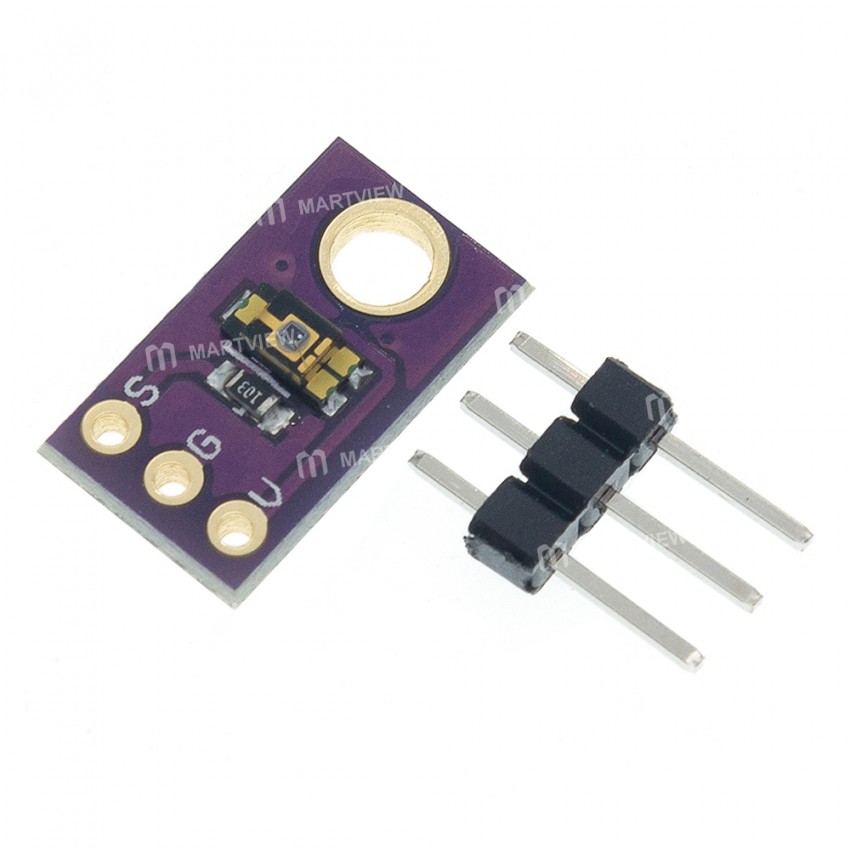

TEMT6000 Professional Environment Light Sensor Module for Arduino

TEMT6000 Professional Environment Light Sensor Module for Arduino

Features:

• TEMT6000 sensor maximum sensitivity of 570 nm, it has a plus or minus 60 ° wide half Angle of sensitivity

• Although the device is sensitive to ambient light, it inhibits infrared (IR) spectra, which can provide a similar higher visible spectrum response of the "eye"

• Working voltage: DC3.3-5.5V

• Working temperature: -40~85℃

• Illumination range:1~1000 LUx

• Output signal: analog voltage, in the range of 5 working voltage 0~5V

• Only sensitive to visible light, no additional filters are required

• Good linear output

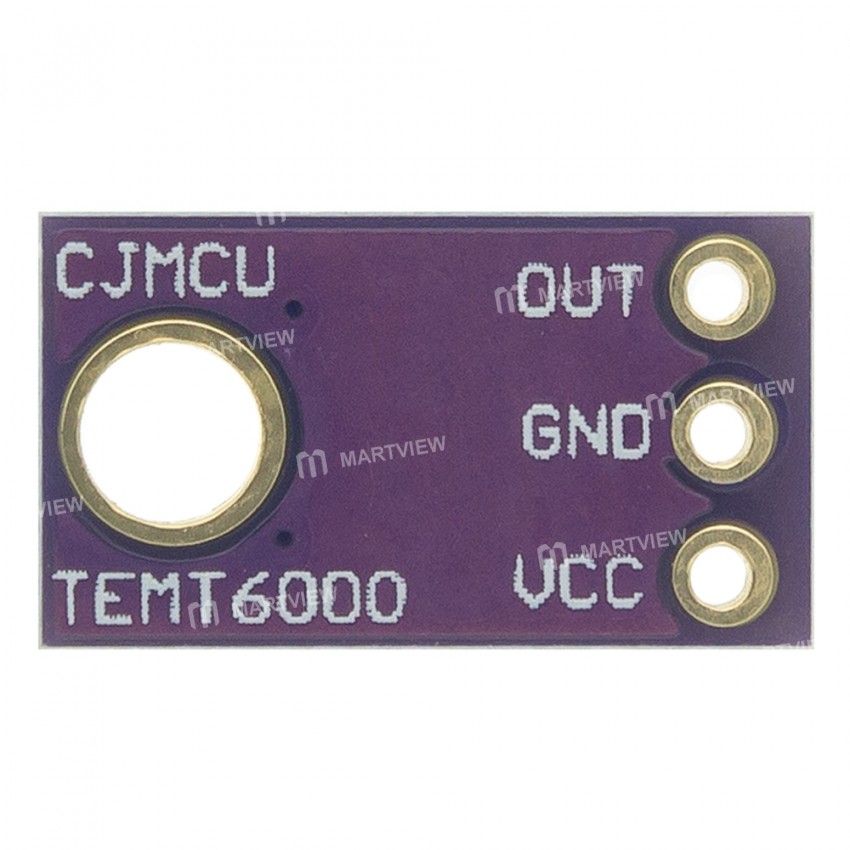

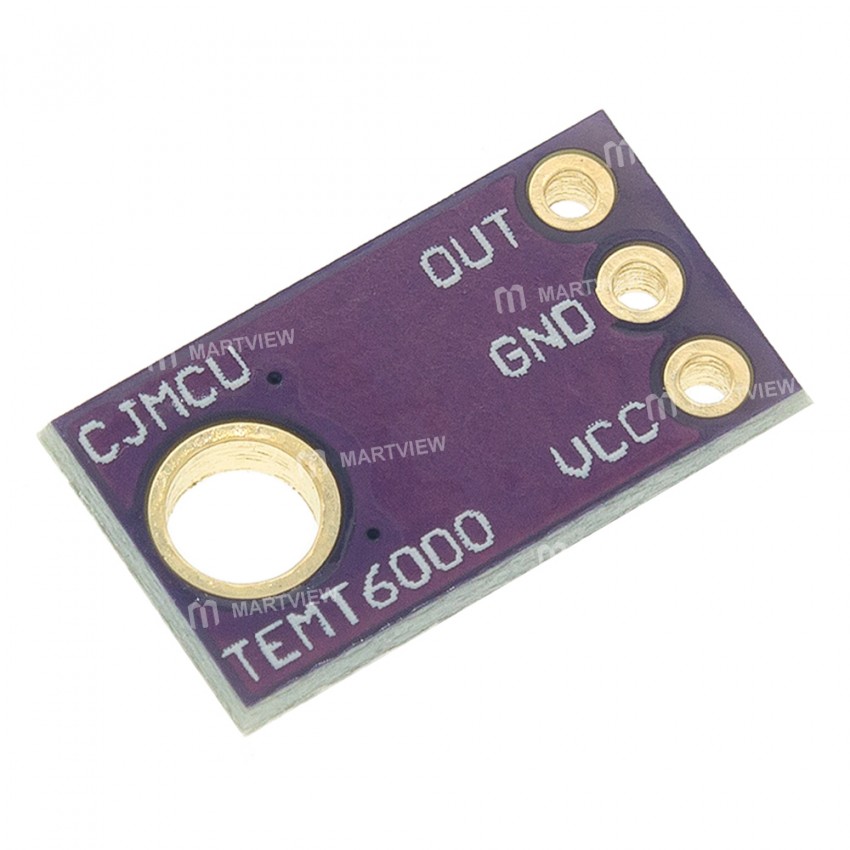

Pin definition:

• VCC: Positive power supply

• GND: Power negative

• OUT: Analog output

Package includes:

• 1 x Sensor module

• 1 x Pin
