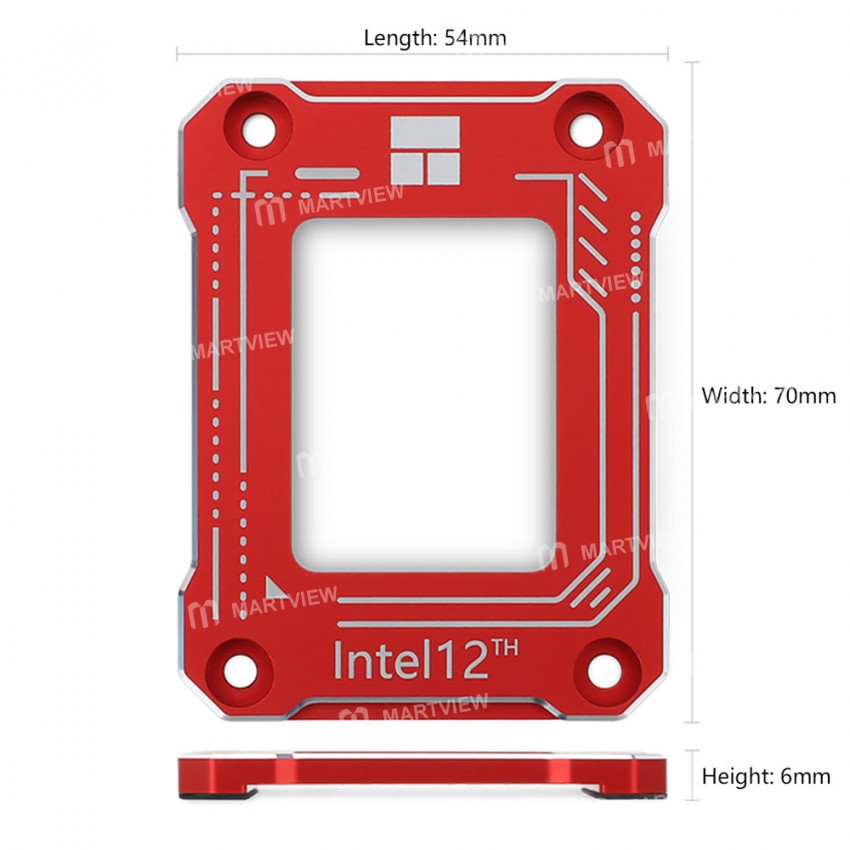

Thermalright LGA17XX-BCF Bending Correction Fixing Buckle for Intel 12 Generation CPU

Thermalright LGA17XX-BCF Bending Correction Fixing Buckle for Intel 12 Generation CPU

Features:

• Compared with other similar products, this product adopts four-sided flat pressure instead of multi-point pressure, precise positioning, avoiding capacitors, and is good for CPU fixation

• The contact surface with the motherboard is a flat bottom, and the original LOTES insulation protection pads of the same specification are used to reduce the pressure on the motherboard and further reduce signal interference

• The metal side is raised to reduce signal interference on the motherboard side

• Anode sandblasting is made of all-aluminum alloy CNC precision, multi-color optional

Installation Process:

• Place the motherboard horizontally on the desktop and open the CPU clip

• Use the included T20 Torx screwdriver to remove the upper part, and put the lower fastener aside

• Put the CPU into the socket

• Cover the improved buckle on the top cover of the CPU and move it slightly until it clicks into place

• Tighten the screws in half a circle on the opposite corners. Each screw takes turns in half a circle and a half circle in the diagonal order until the screw is on

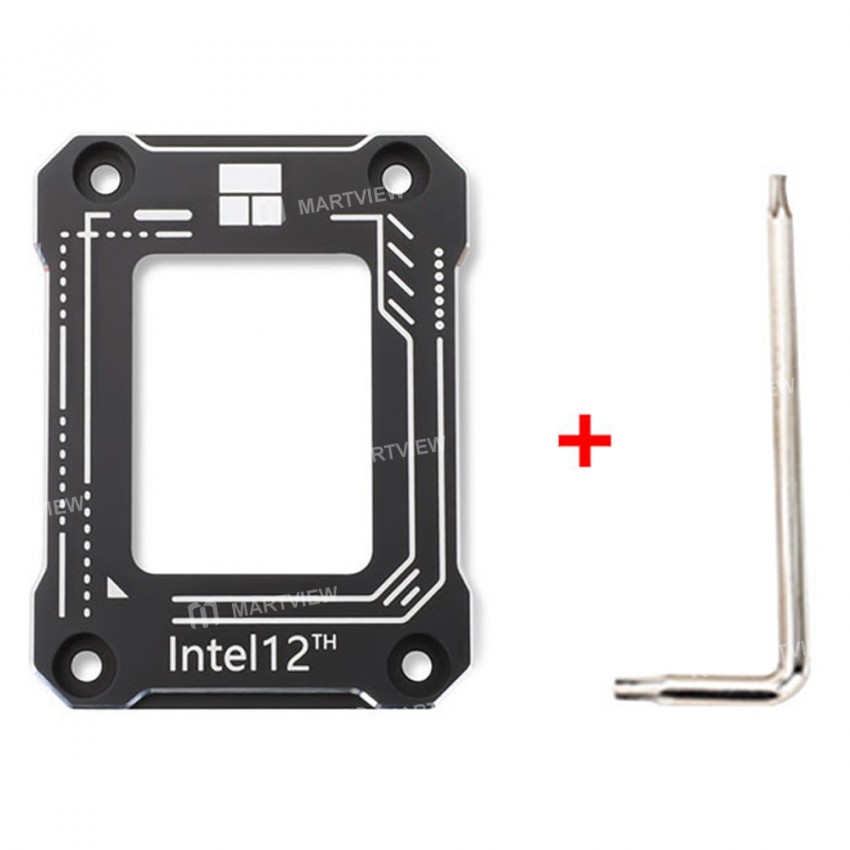

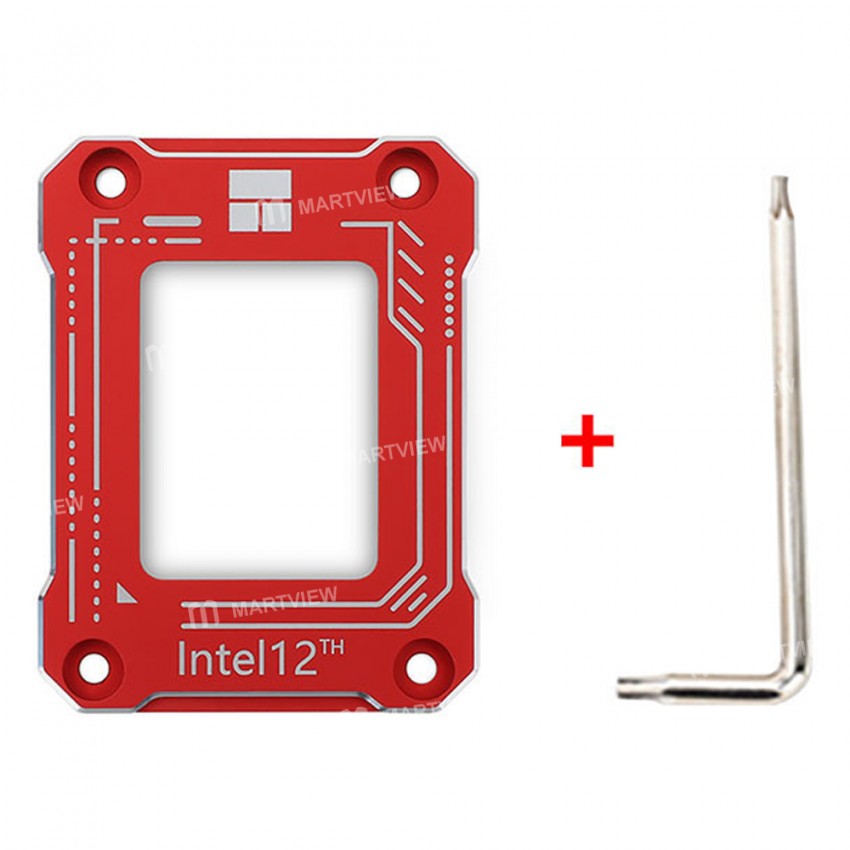

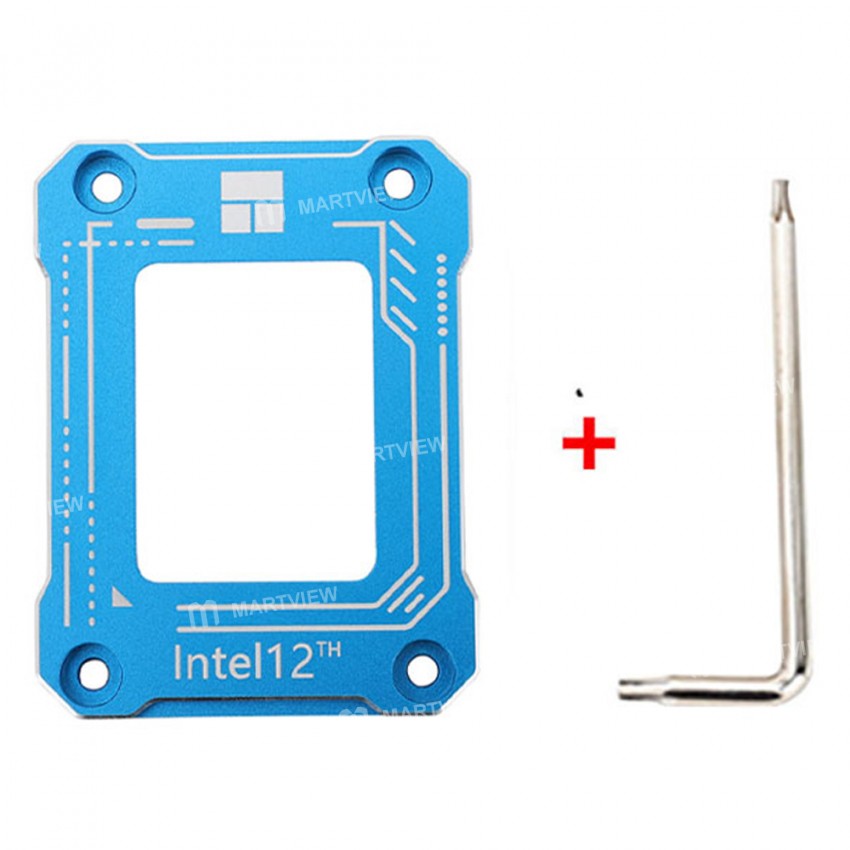

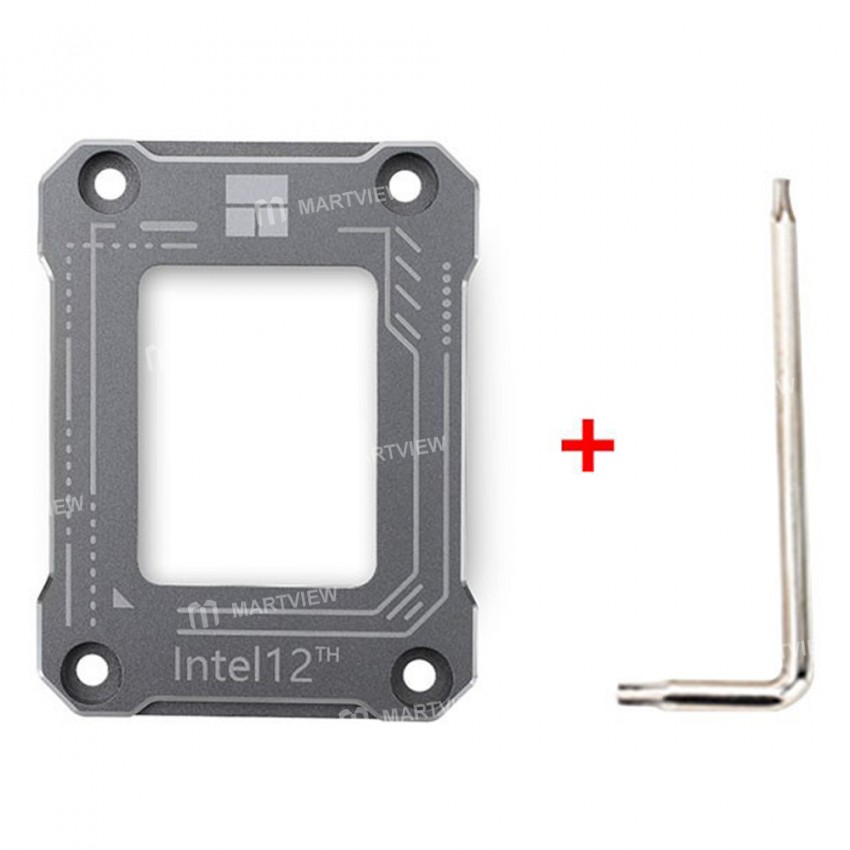

Package includes:

• 1 x Fixing Buckle

• 1 x Wrenches

Notes: This product only provides support for intel 12th generation CPU, the motherboard CPU socket is LGA1700 chipset is H610 B660 Z690 series
