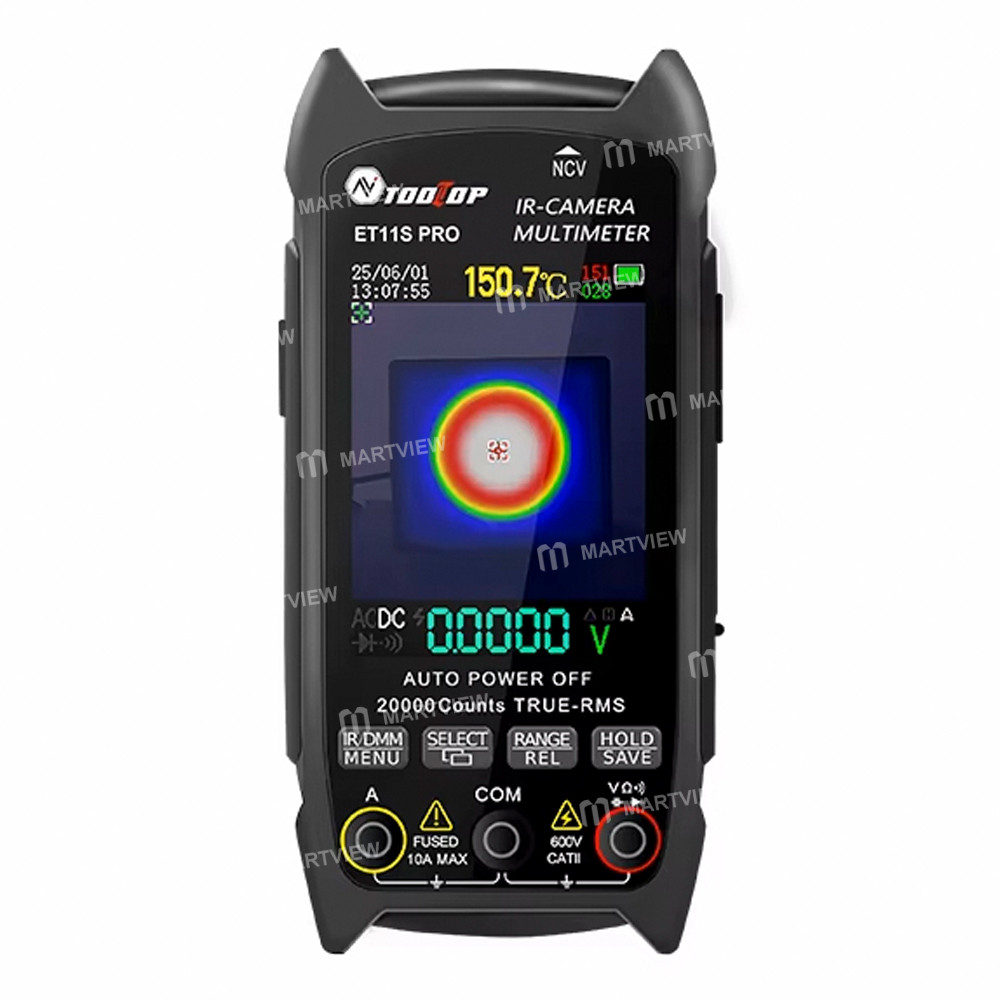

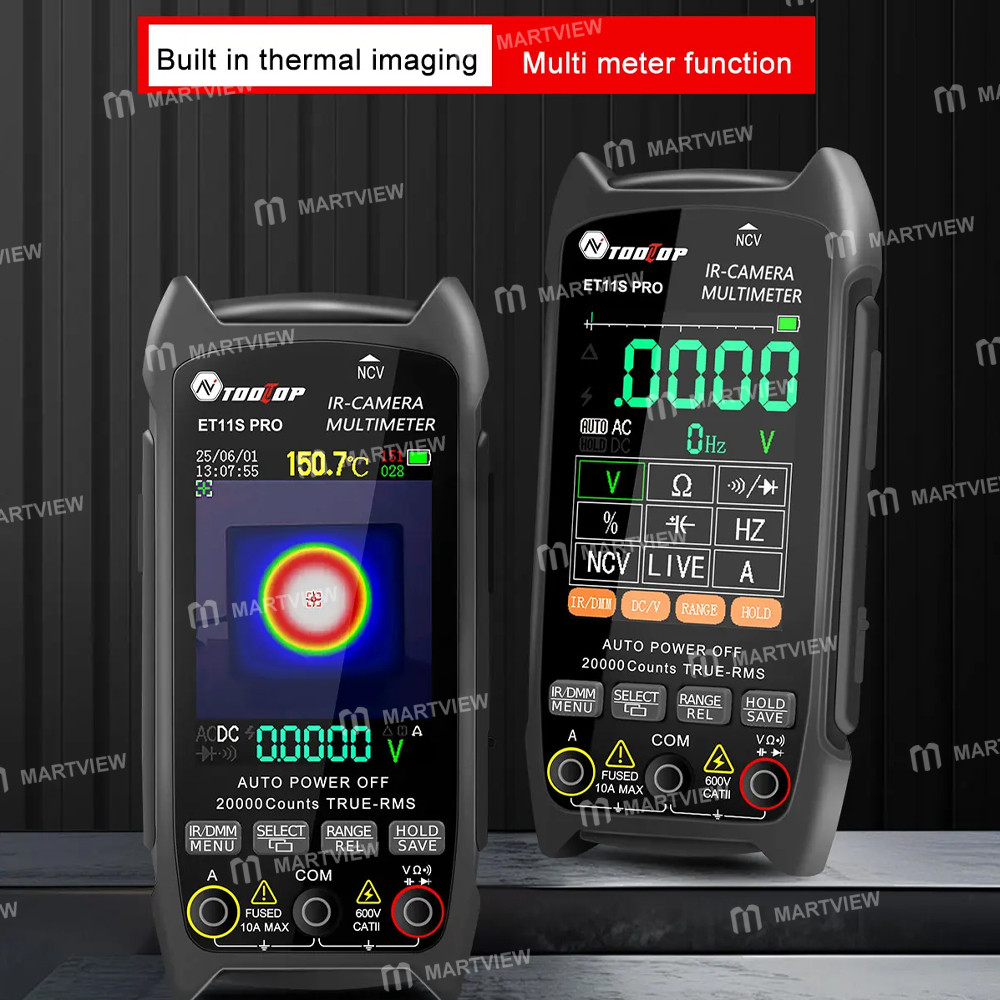

ToolTop ET11S PRO Handheld 2-in-1 Thermal Imaging + Digital Multimeter Support Dual-Mode Fusion

ToolTop ET11S PRO Handheld 2-in-1 Thermal Imaging + Digital Multimeter Support Dual-Mode Fusion

Features:

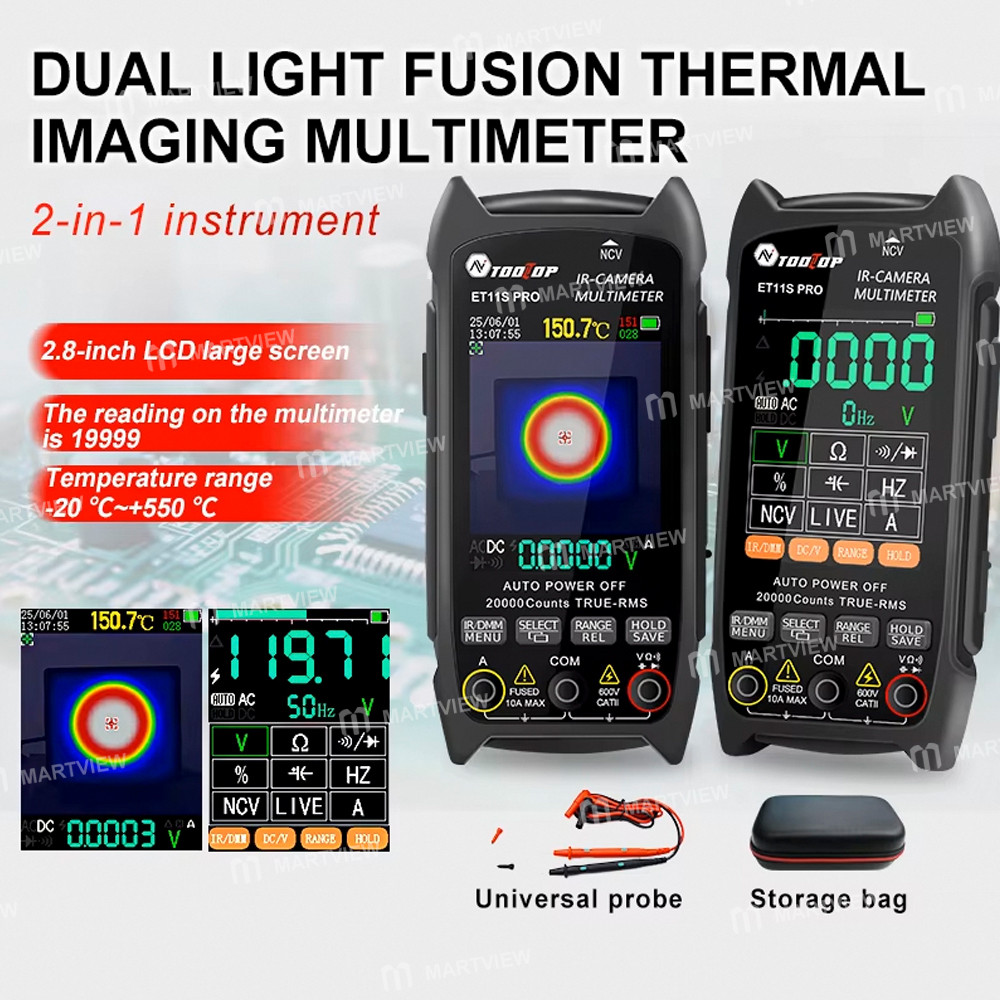

• Combining 240×240 visible resolution with a 32×32 infrared camera for seamless image and temperature integration, enabling quick, accurate device temperature monitoring

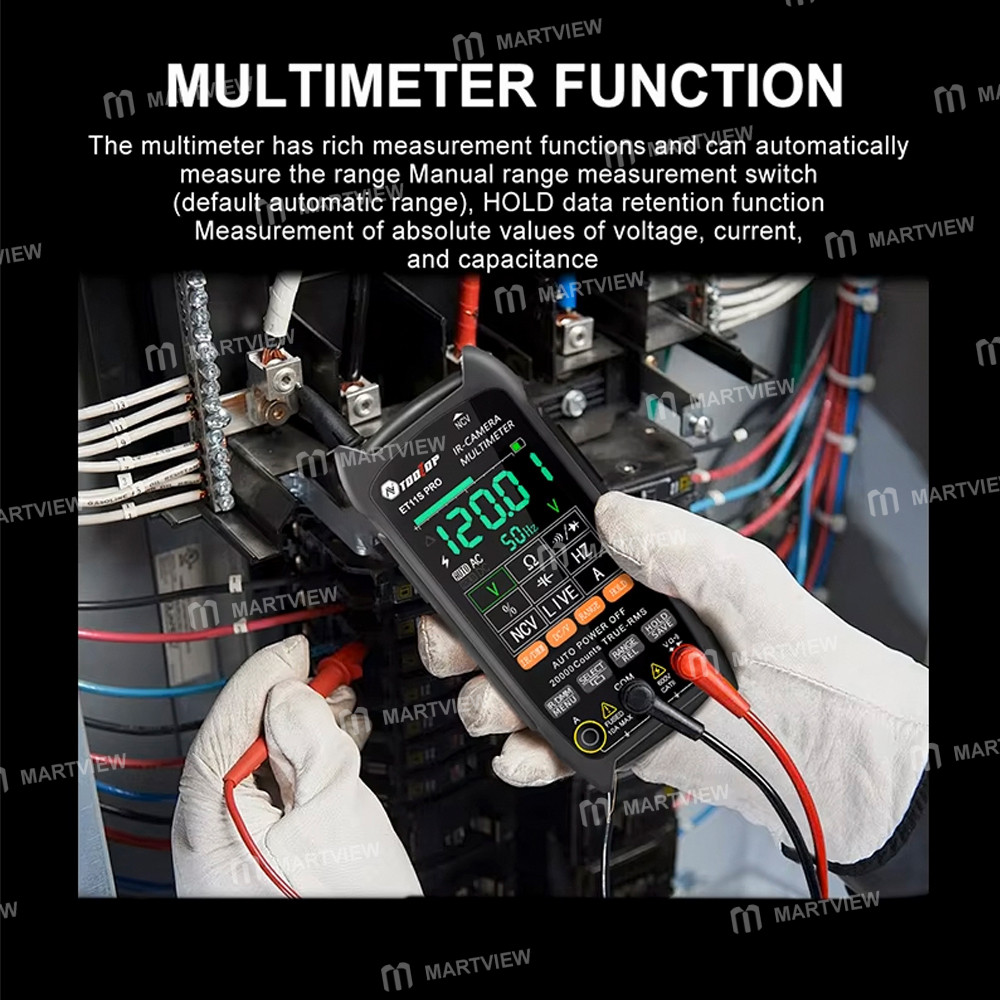

• 19999 counts High-precision True RMS multimeter, AC/DC current, voltage, resistance, capacitance, diode, buzzer, and duty cycle measurement.

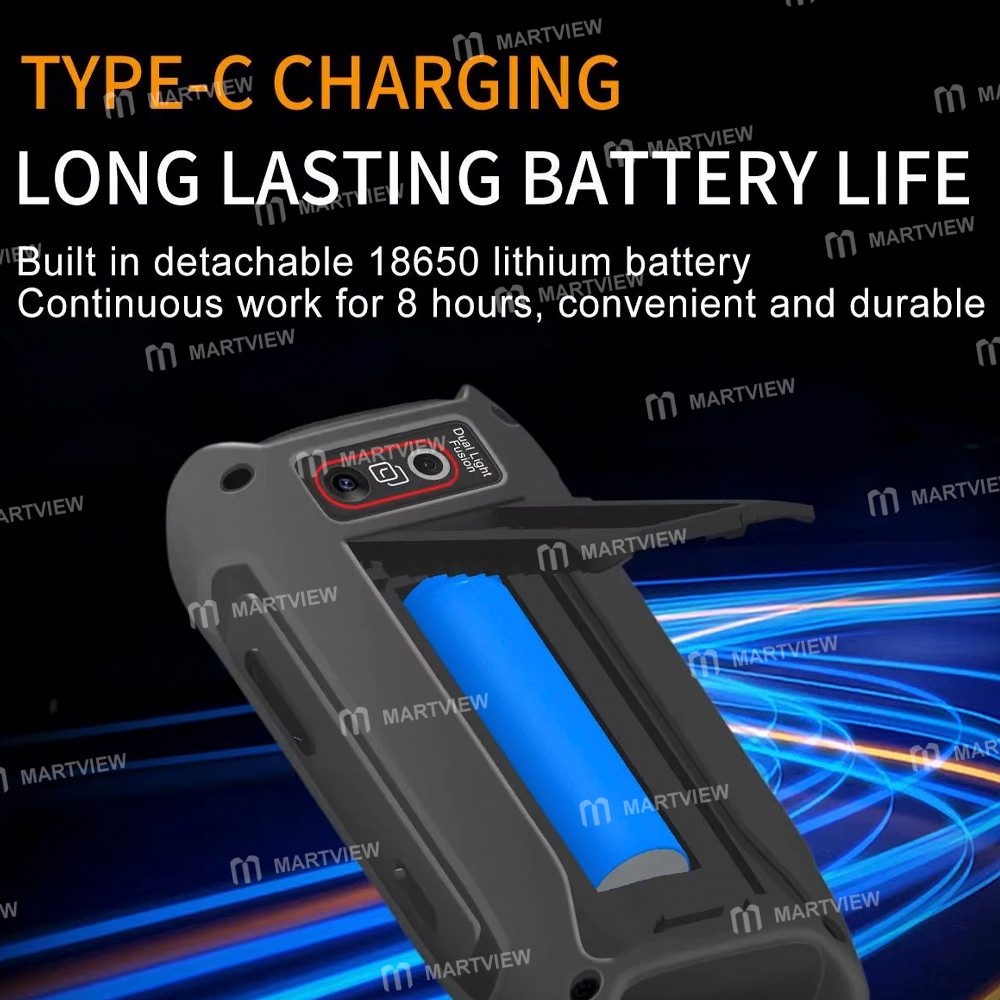

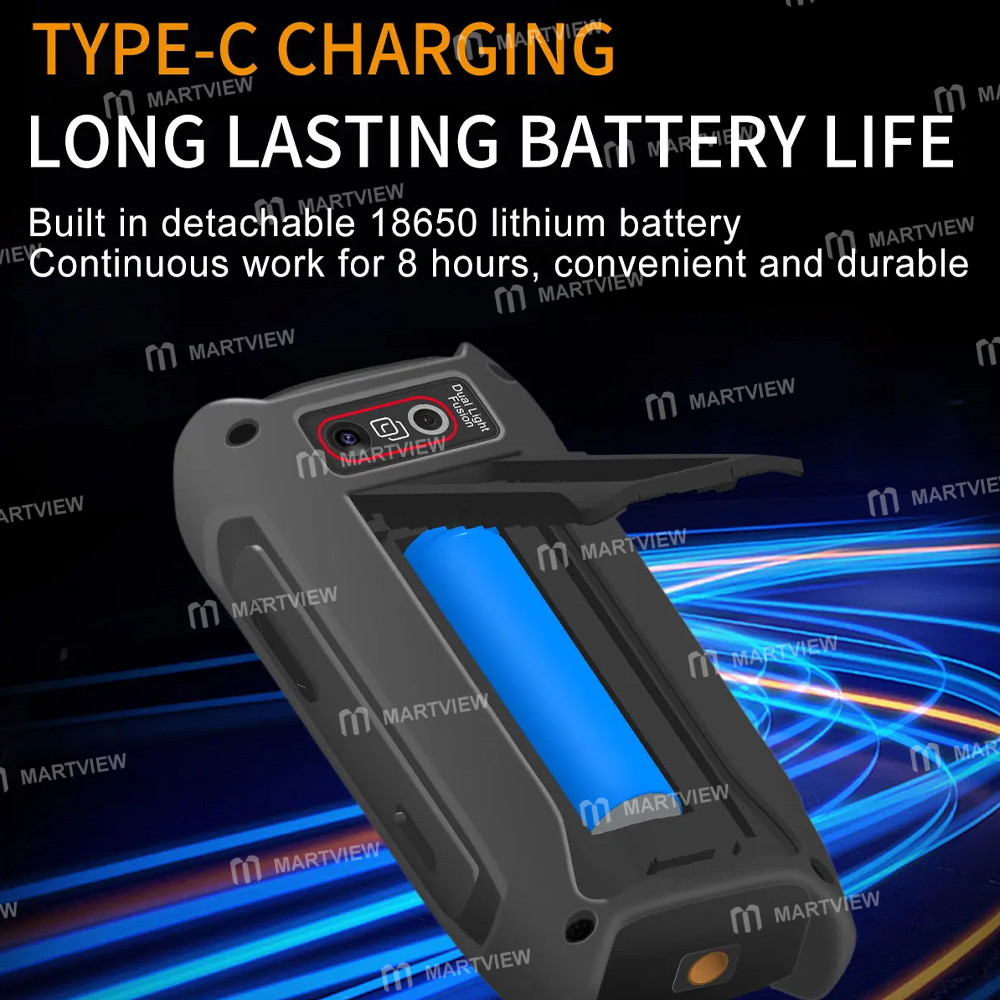

• Rechargeable battery supports 8 hours of continuous use. Universal 18650 design for easy replacement, preventing battery aging concerns.

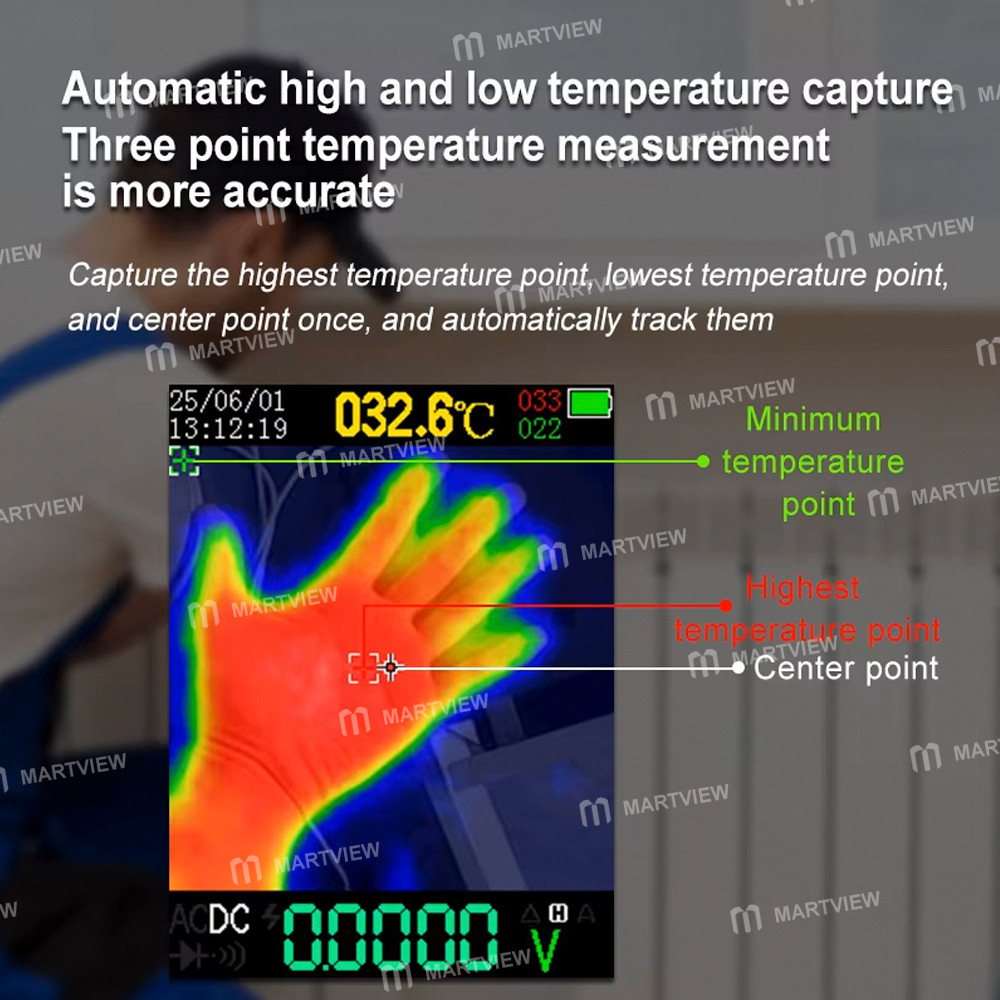

• Temperature range: -20°C to +550°C, with over-temperature alarm; automatic high/low temperature tracking.

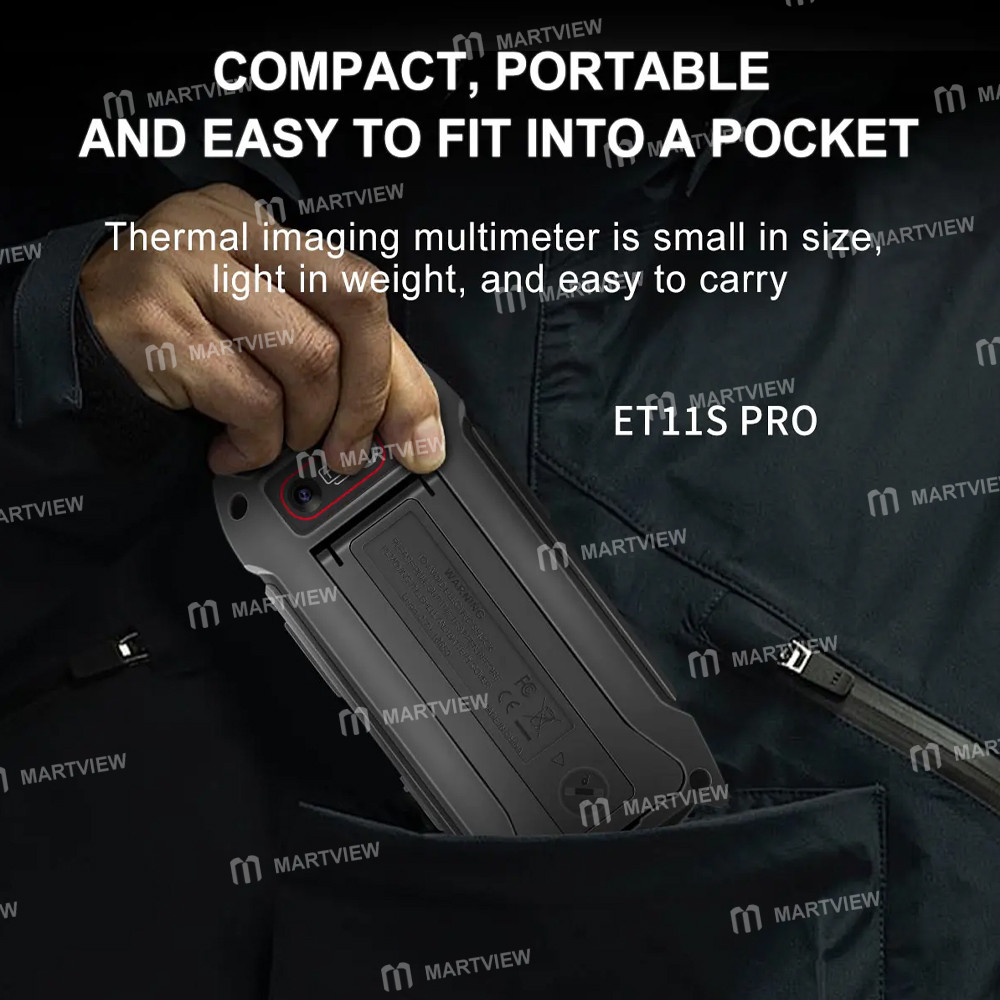

• Compact, lightweight design with a 2.8-inch large screen for easy portability.

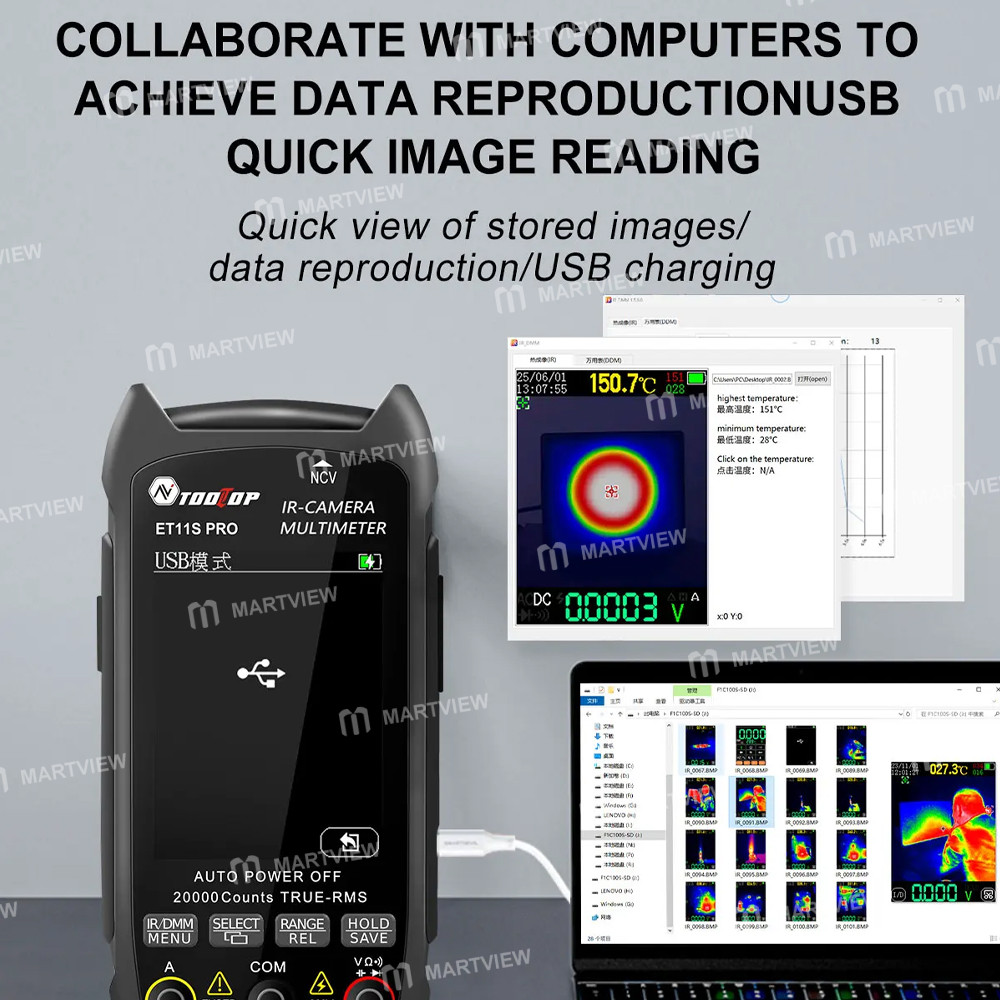

• Supports PC software for USB transfer and thermal image analysis

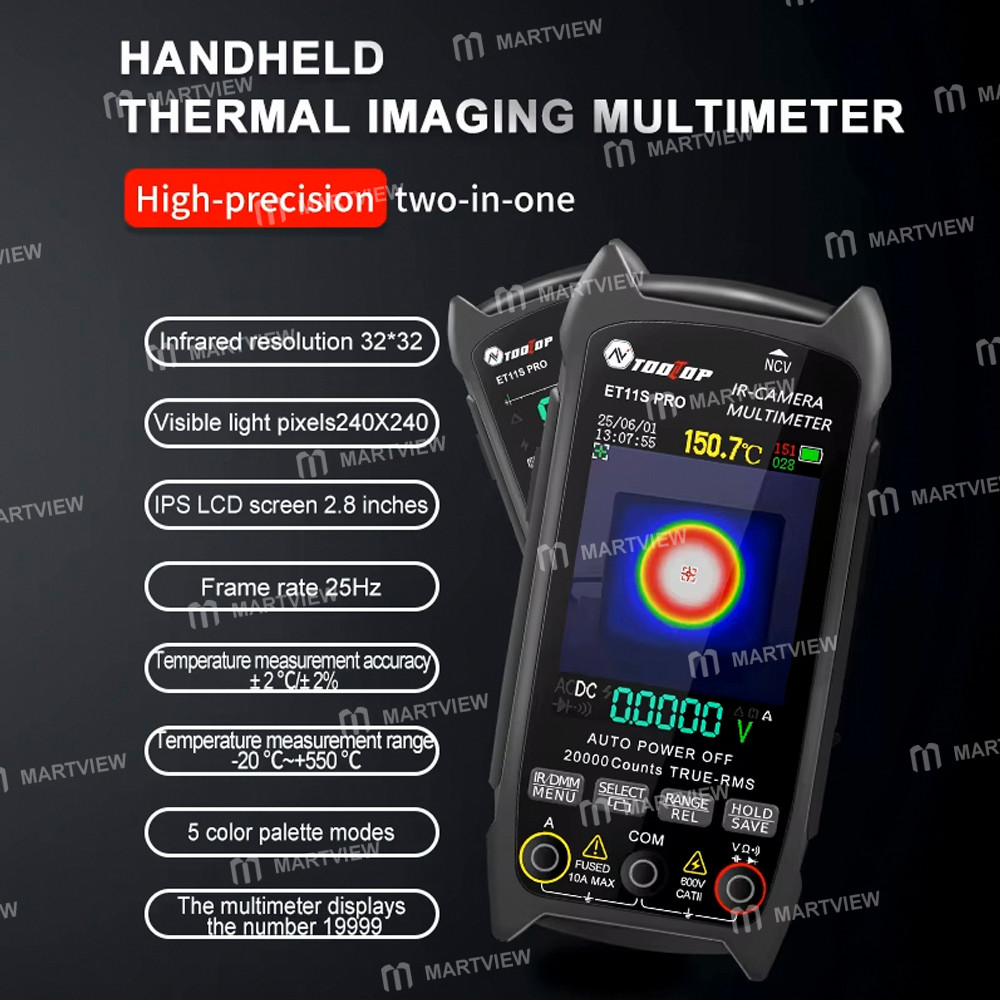

Specifications:

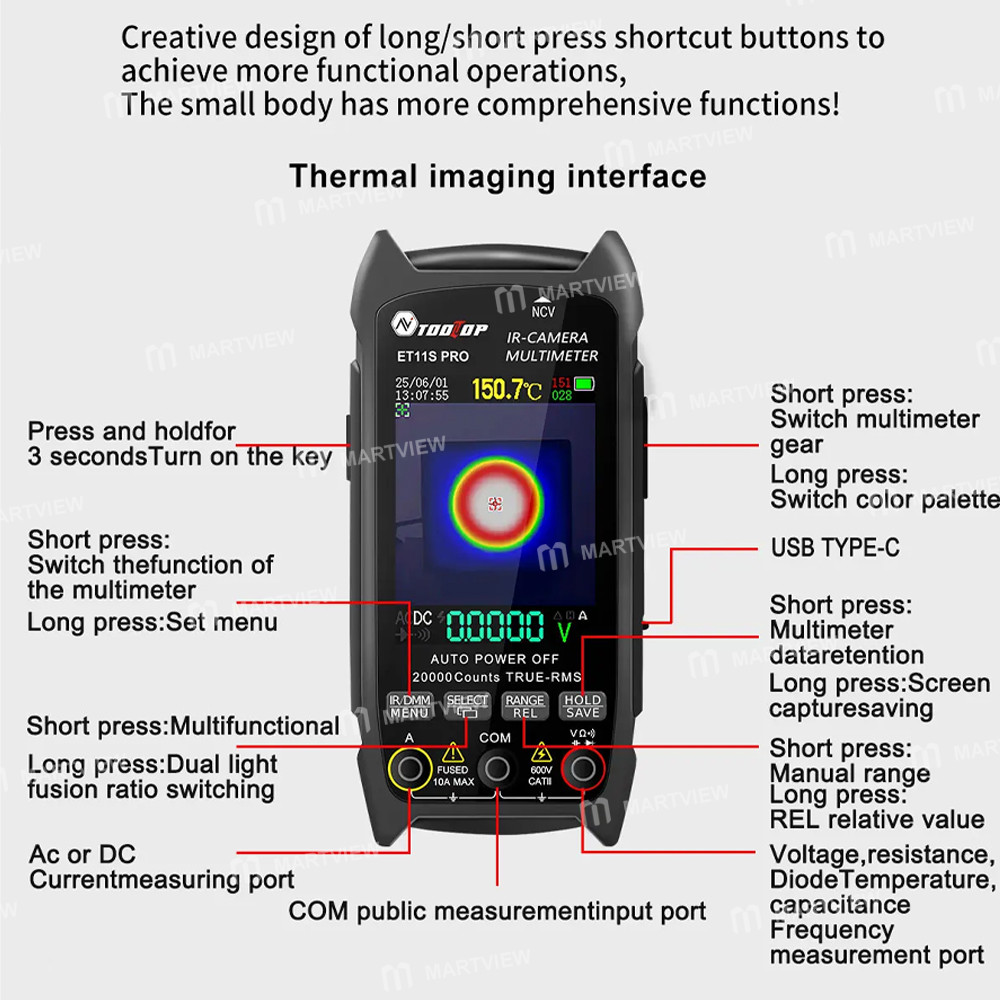

Thermal Imaging:

• Infrared resolution: 32x32

• Screen display resolution: 240x240

• Field of View (FOV): 33°(H) x 33°(V)

• Emissivity: 0.1~1.00 adjustable (0.95 by default)

• Infrared wavelength range: 8~14μm

• Temperature range: -20℃~550℃

• Temperature measurement error: ±2℃or ±2%

• Measurement resolution: 0.1℃/0.1℉

• Measuring distance: 0.3M~2M

• Visible light output pixels: 240x240

• Gain mode: Auto Gain

• Color palette: Iron Red, Rainbow, Fusion, White Heat, Red Heat

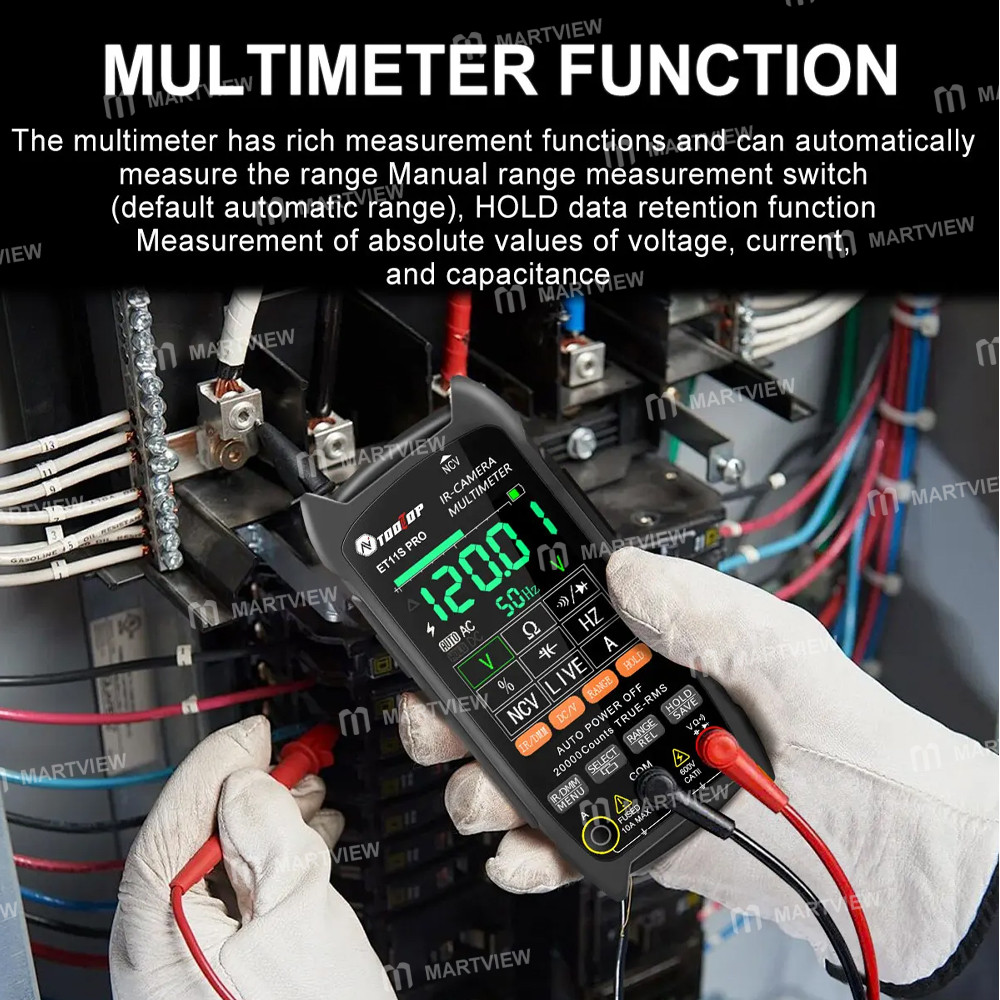

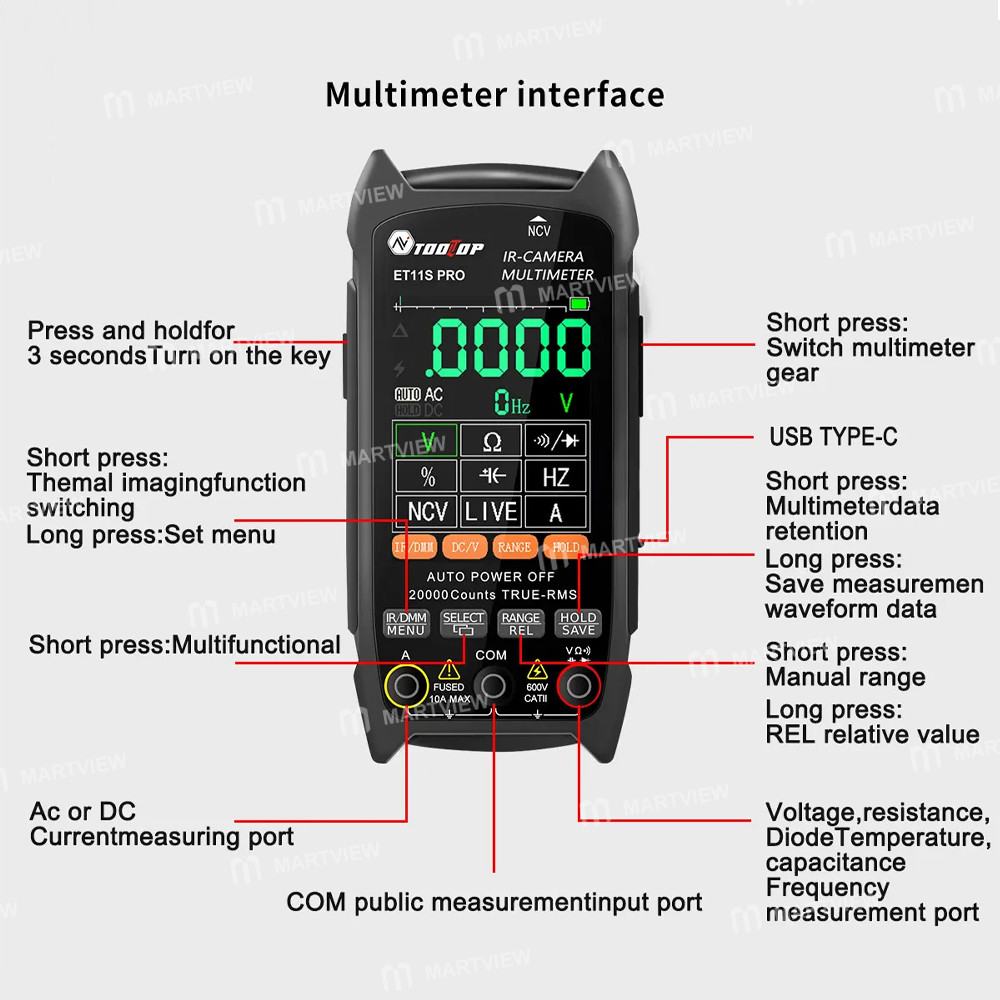

Multimeter:

• DC maximum input voltage: 1000V

• AC maximum input voltage: 750V

• Maximum current measurement: 10A

• The maximum resistance: 99.99MΩ

• The maximum capacitance: 199.99mF

• Duty cycle test range: 0.1% ~ 99.9%

• Diode test range: 0V ~3V

• Continuity test: 199.99Ω

• Display word count: 19999 counts, Updates 3/sec

Package includes:

• 1 x Multimeter

• 1 x USB Cable

• 1 x Test Cable
