Tooltop ET2202 Color Screen Auto Identification Voltage Car Storage Battery Tester

Tooltop ET2202 Color Screen Auto Identification Voltage Car Storage Battery Tester

Features:

• Support for battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance) function

• Can check the battery status and the discharging ability, by applying low-frequency signal will not damage the battery by applying large loading for discharging, support continuously

• Automatically identify 12.0V or 24.0V batteries, one-button selection of intelligent measurement

• Support input overvoltage, reverse polarity connection, high voltage connection protections, and poor contacts of test clip

• Convenient for engine temperature and air conditioning temperature measurement, more practical.

• 3.2-inch large LCD color screen for display functions status measuring results, the analog bar graph shows the battery lifespan after finishing tests

• The housing is made of TPR materials, is more comfortable to use, and has more comprehensive protections

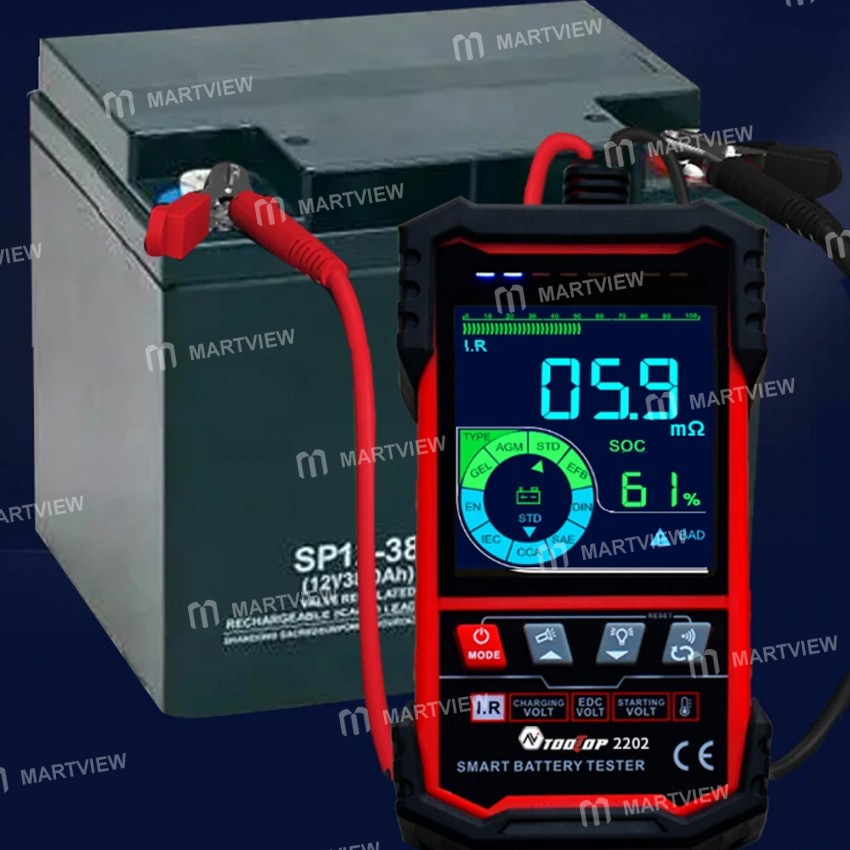

• Allow to connect batteries in cars, It does not need to take the battery out for a test

• Various types of batteries EN, IEC, CCA, SAE, DIN

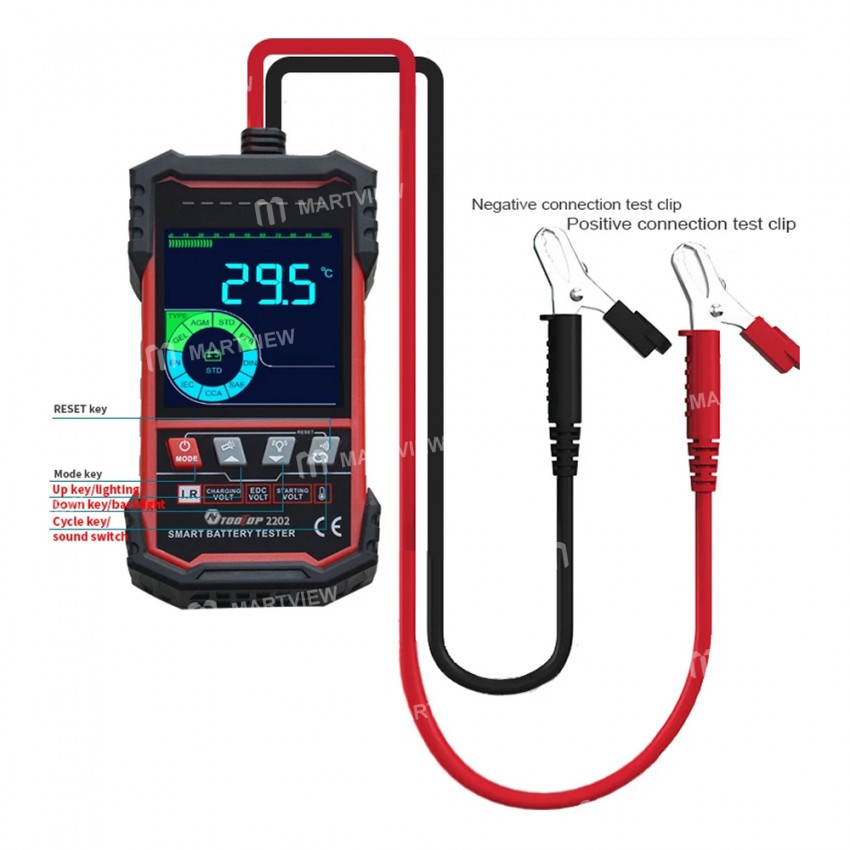

• All copper material of red and black wire clamp, more than 10000 occlusion tests, more reliable to use

Specification:

• Name: Intelligent Battery Tester

• Material: TPR+Plastics+Metal

• Type: ET2202

• Battery support: 12.0V/24.0V activated leadacid battery

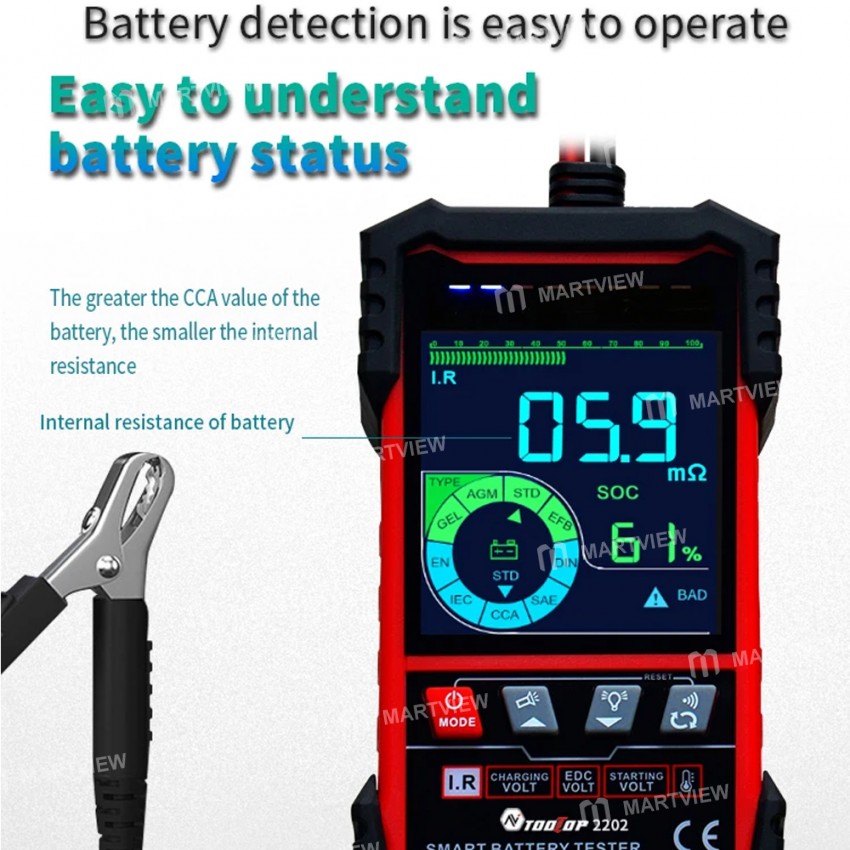

• Internal resistance measurement: Support

• Current of discharge: Support

• Analysis of lifespan: Support

• Electric quantity detection: Support

• Ability to start: Support

• Quality of battery: Support

• Function of lighting: Support

• Car starting test: Support

• Temperature detection: Support

• Vehicle charging capacity: Support

• Vehicle load measurement: Support

• Range CCA: 100-1999

• Range of capacity: ЗАН-250AH

• Test method: Four-wire Kelvin test

• Battery selection criteria: STD/AGM/GEL/EFB/EN/IEC/CCA/SAE/DIN

• Power supply: storage battery power supply/power supply

• Other: White backlight, overvoltage protections, reverse input protections

• Screen size: 55*57mm

• Package size: 216*145*49mm

Package includes:

• 1 x Tester

• 1 x Temperature Probes

• 1 x Power Cord
