Overview:

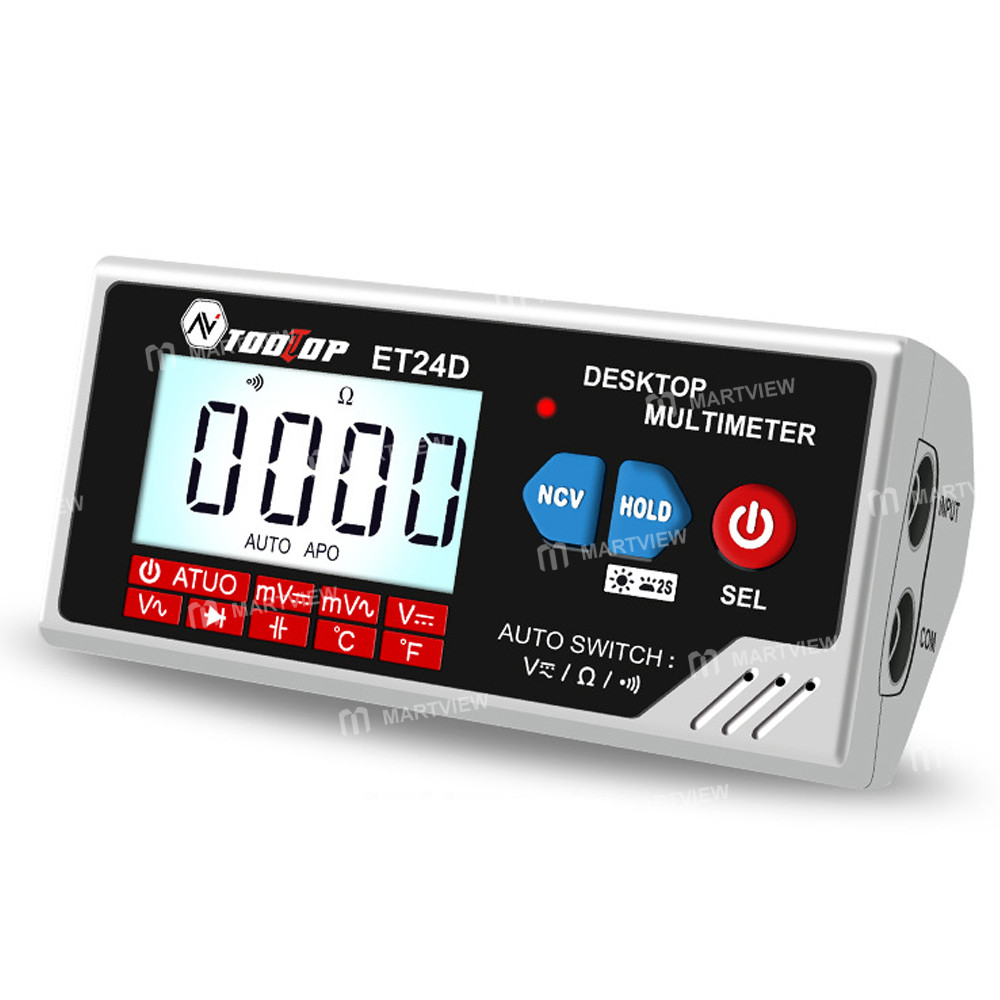

This product is a desktop intelligent multimeter with 5999 counts, driven by a rechargeable lithium battery and a boosted power supply. The meter is easy to carry, stable in performance, high in accuracy, clear in reading, simple to operate, and can be used without turning the dial. The meter will automatically identify the measured object to display the content, and can also select the function button to switch functions according to the usage to measure capacitance, diode, continuity test, temperature, etc. It is an excellent tool instrument and an ideal tool for maintenance inspection, factory, and home.

Features:

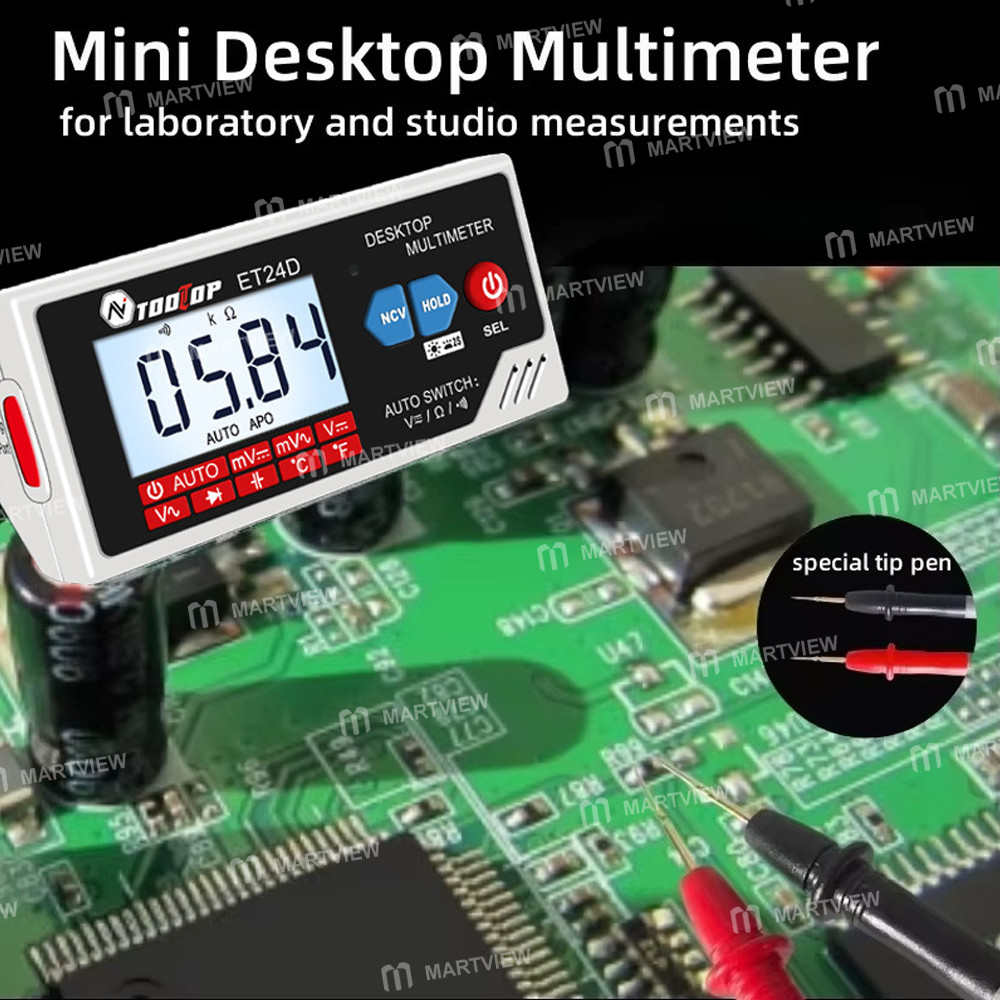

• Mini desktop multimeter with 6000 Counts True RMS, innovative and practical design making it an essential tool for your workspace.

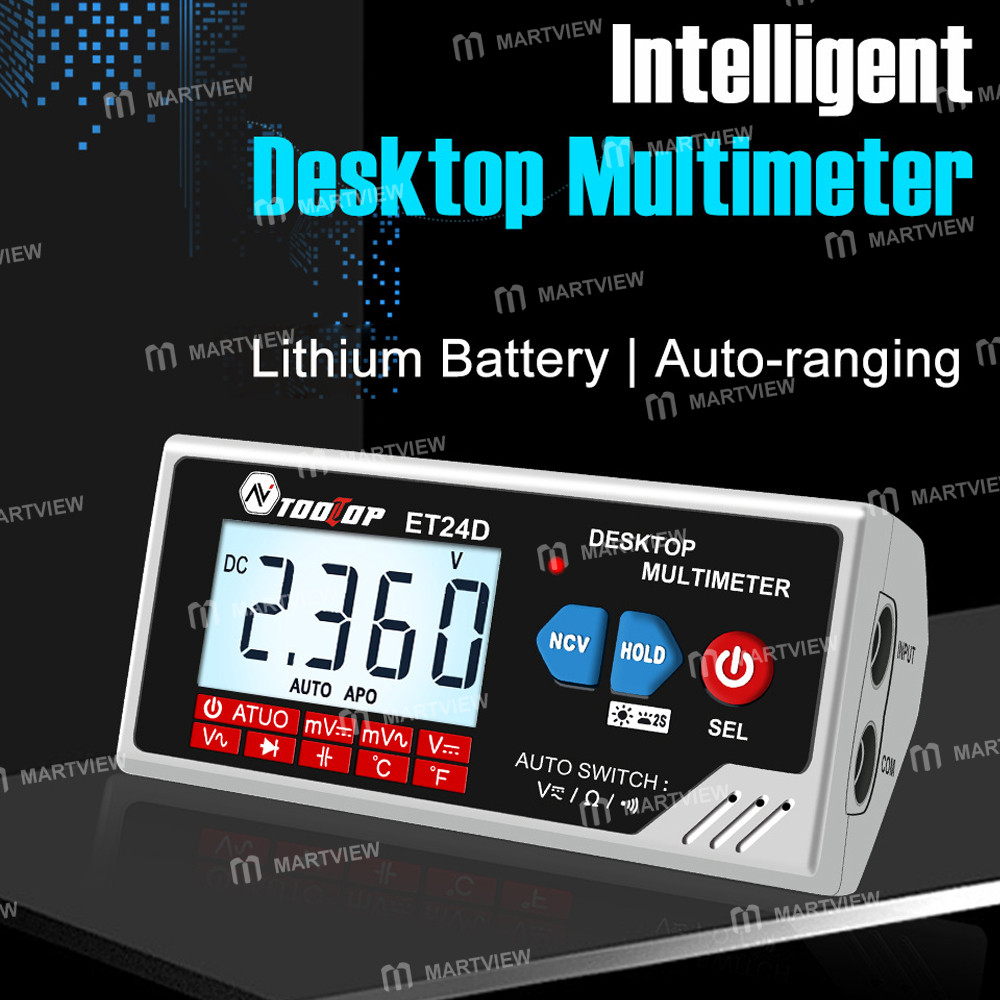

• Auto-Recognition & Auto-Range for simpler operation.

• Built-in Lithium Battery, with backlight display for easy readings

• Versatile Measurement Capabilities: AC voltage, DC voltage, resistance, on-off test, AC and DC millivolt voltage, diode, capacitance, temperature, and non-contact voltage (NCV)

Specifications:

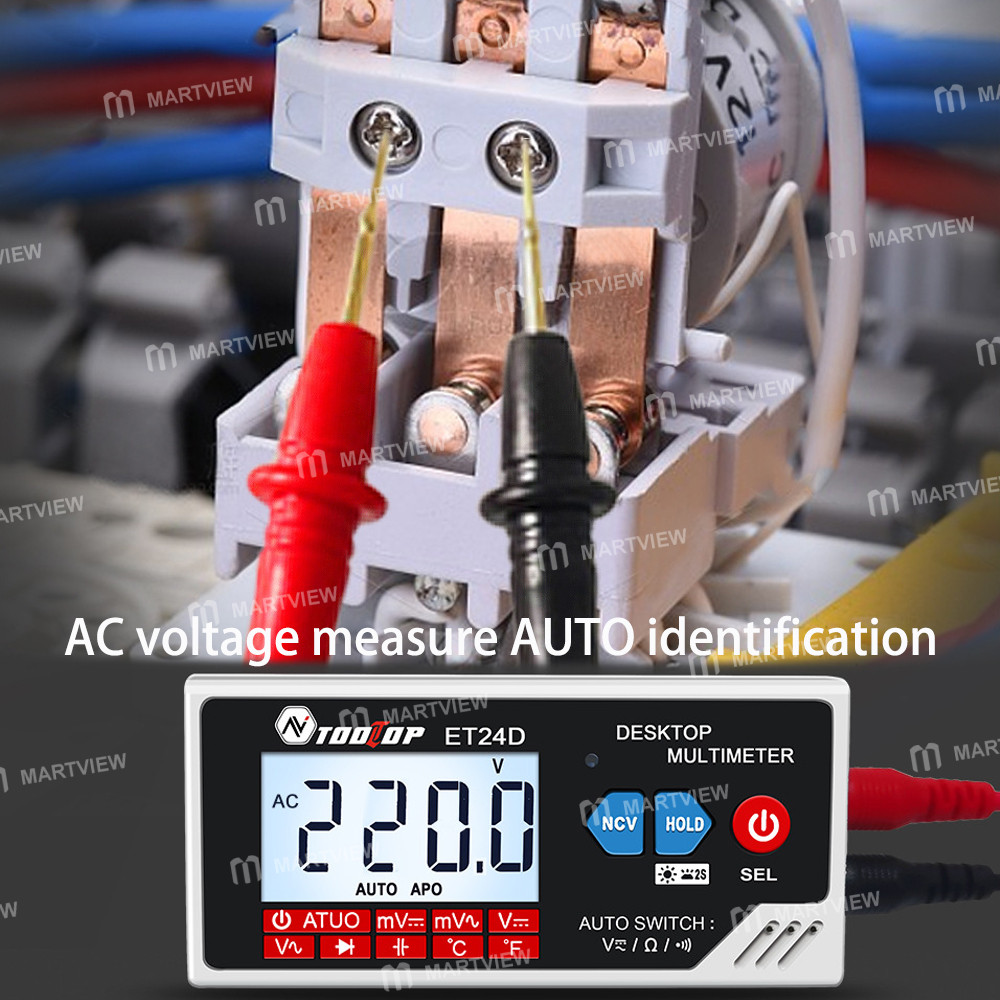

• AC voltage: 600mV/6V/60V/600V

• DC voltage: 600mV/6V/60V/600V

• Resistance: 6K/60KΩ/600KΩ/6MΩ/60MΩ

• Capacitance: 100nF/1μF/10μF/100μF/1mF-2mF

• Diode: Forward DC is about 1mA, open-circuit voltage is about 3V

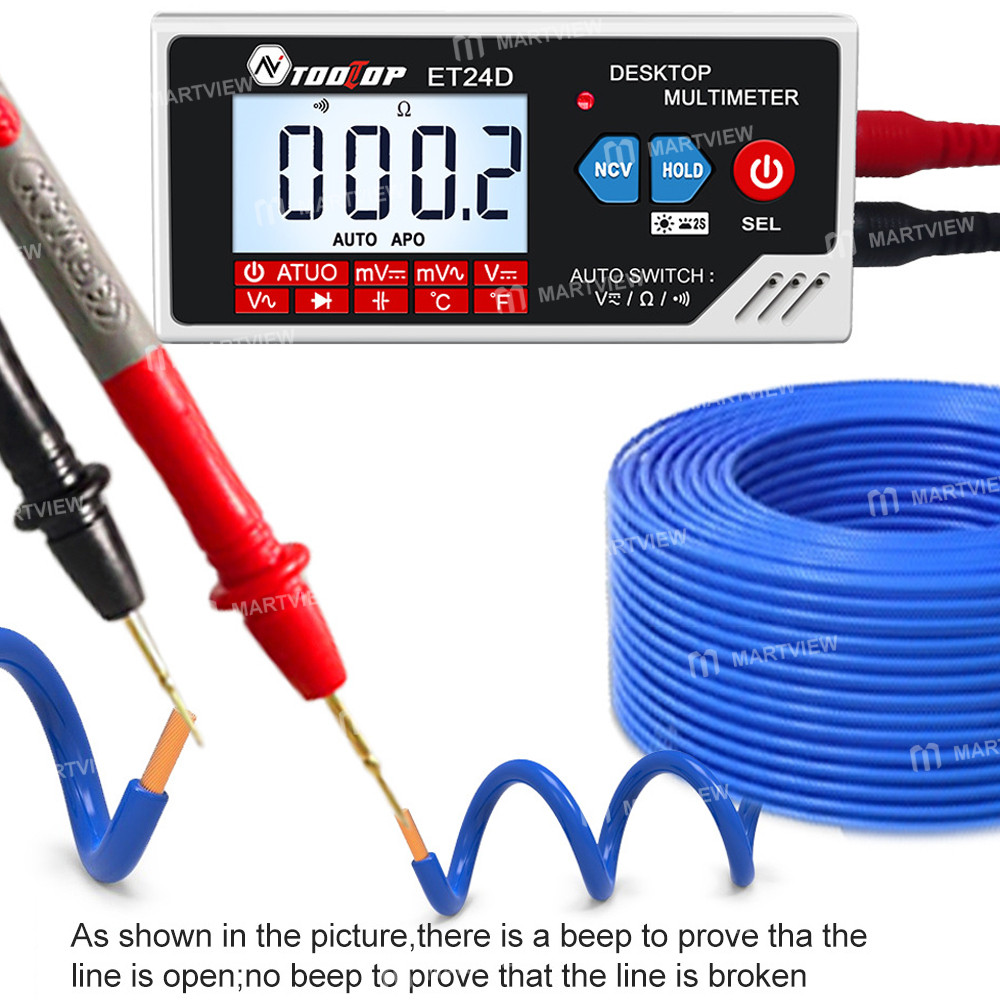

• On/OFF Test: Support

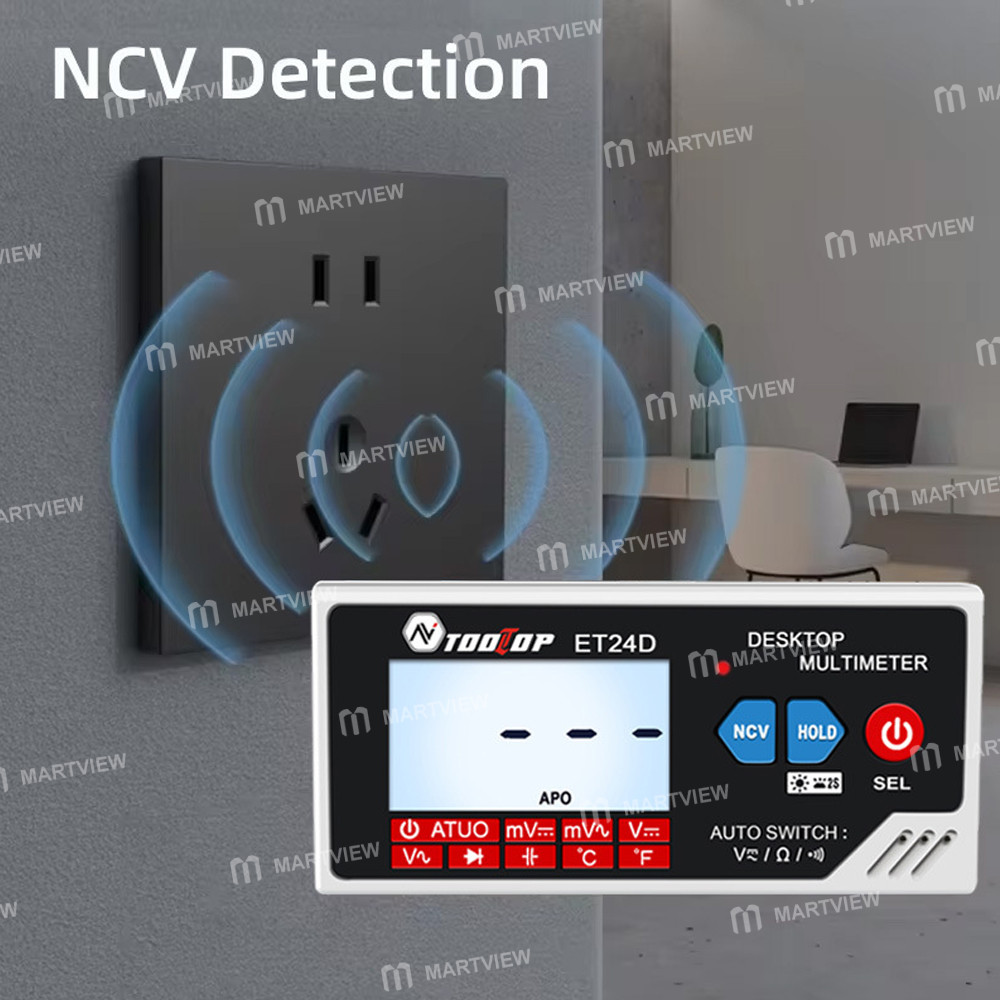

• NCV: Support

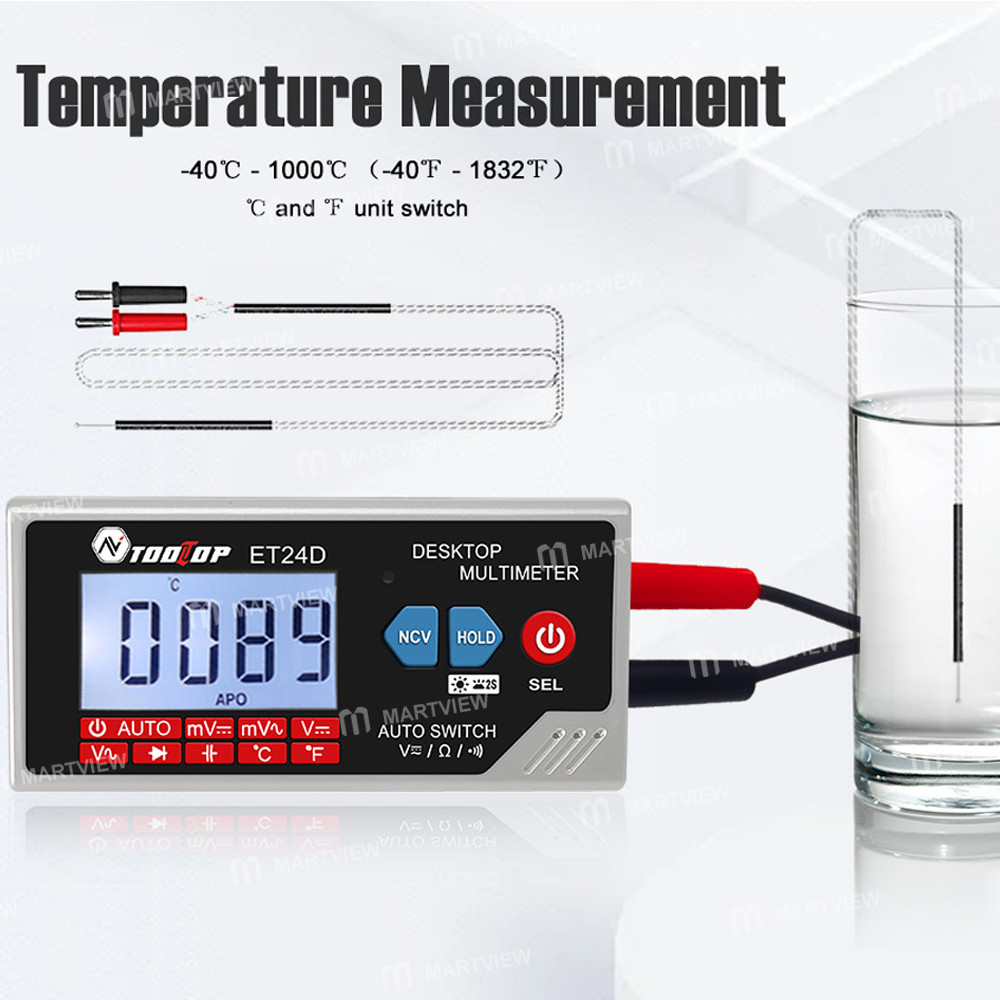

• Temperature: -40℃~1000℃/-10°F~1832°F

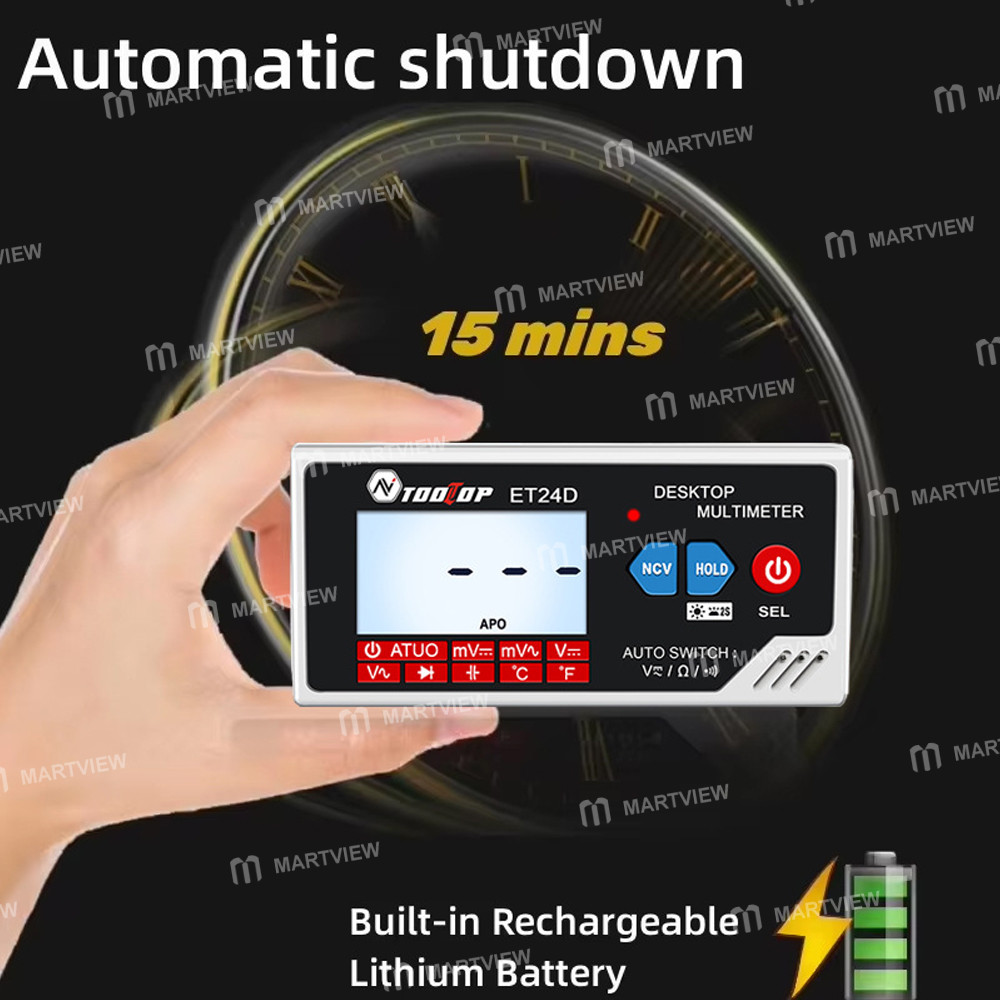

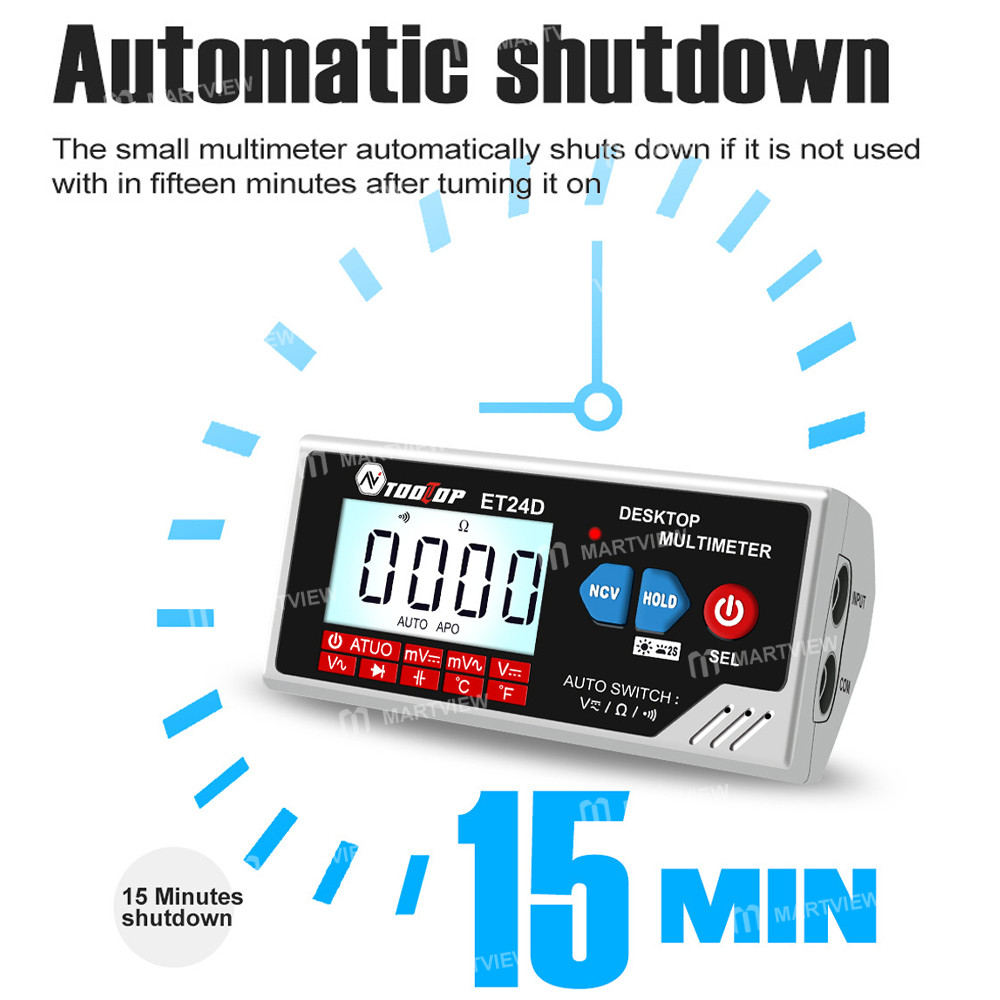

• Automatic shutdown: Support

• Display mode: LCD display

• Maximum display: 5999 (5 5/6) bit automatic polarity display

• Sampling rate: approximately 3 times per second

• Over range display: OL

• Working environment: 0-40℃, relative humidity <80%;

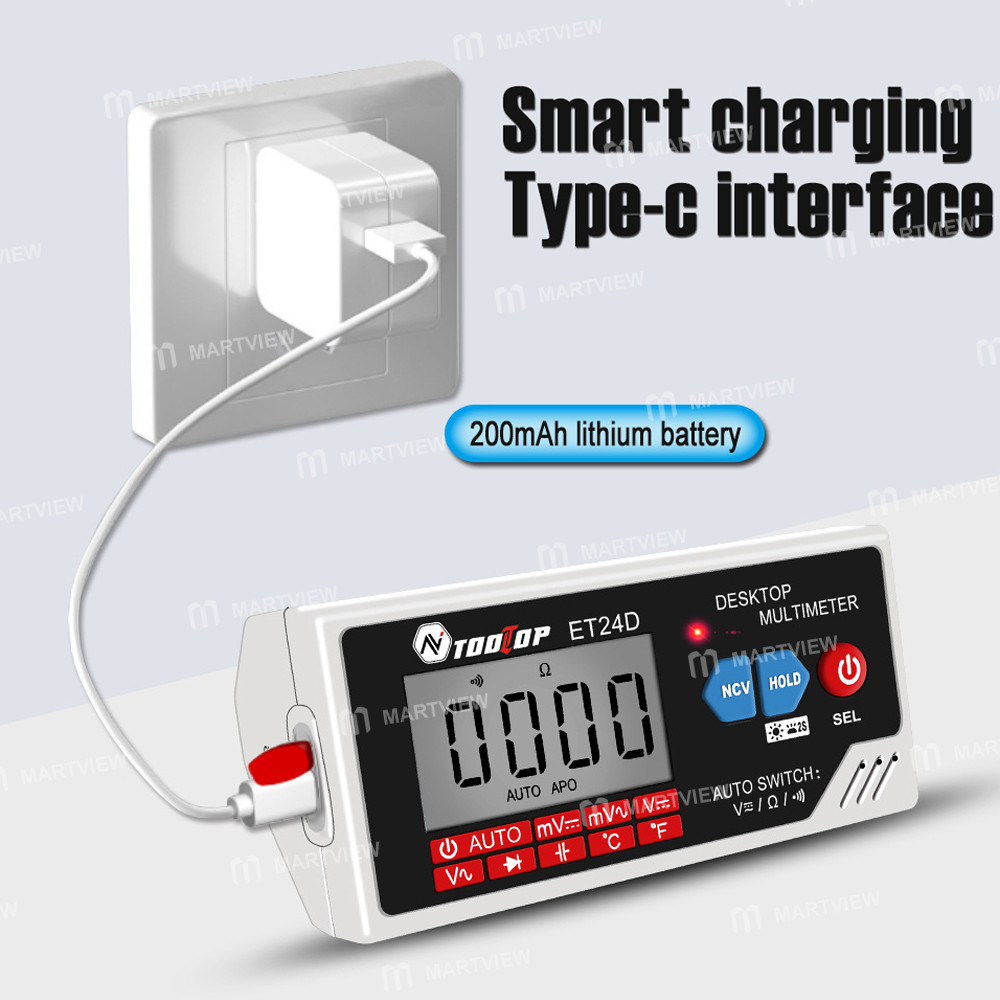

• Power supply: 3.7V 200mAh lithium battery

• Size: 96 × 45 × 42mm

Package includes:

• 1 x Multimeter

• 1 x Pair of probes

• 1 x Thermocouple
