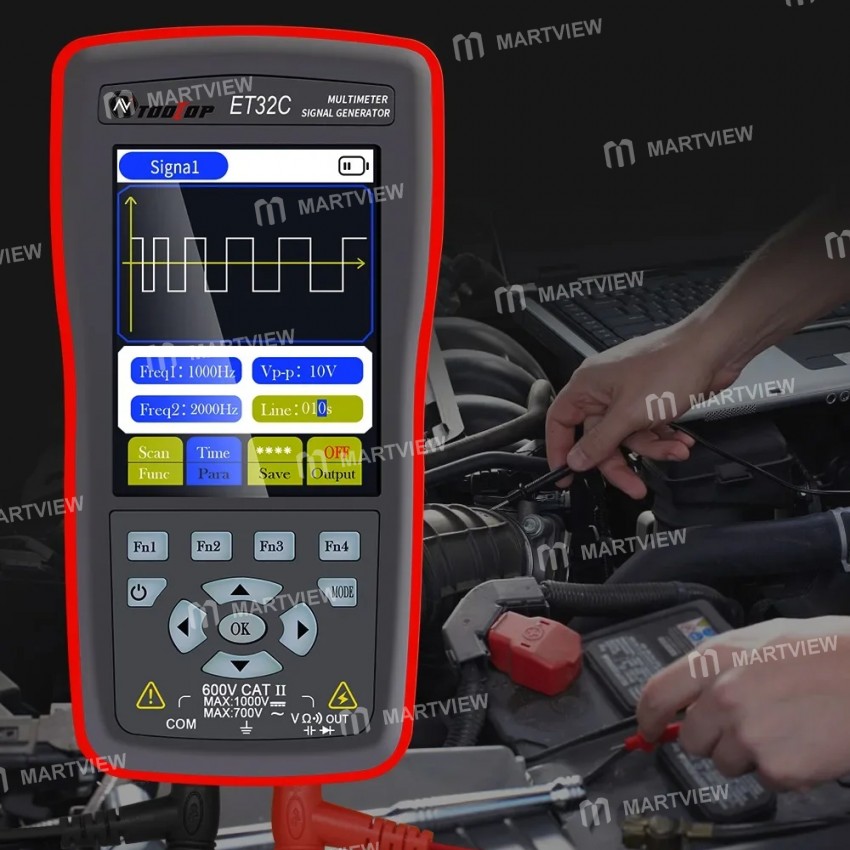

Tooltop ET32C 2-in-1 Car Signal Generator Multimeter

Tooltop ET32C 2-in-1 Car Signal Generator Multimeter

Features:

• Adjustable signal parameters: The output frequency of the signal generator is adjustable from 1HZ to 9999HZ; the output amplitude is adjustable from -12V to +12V

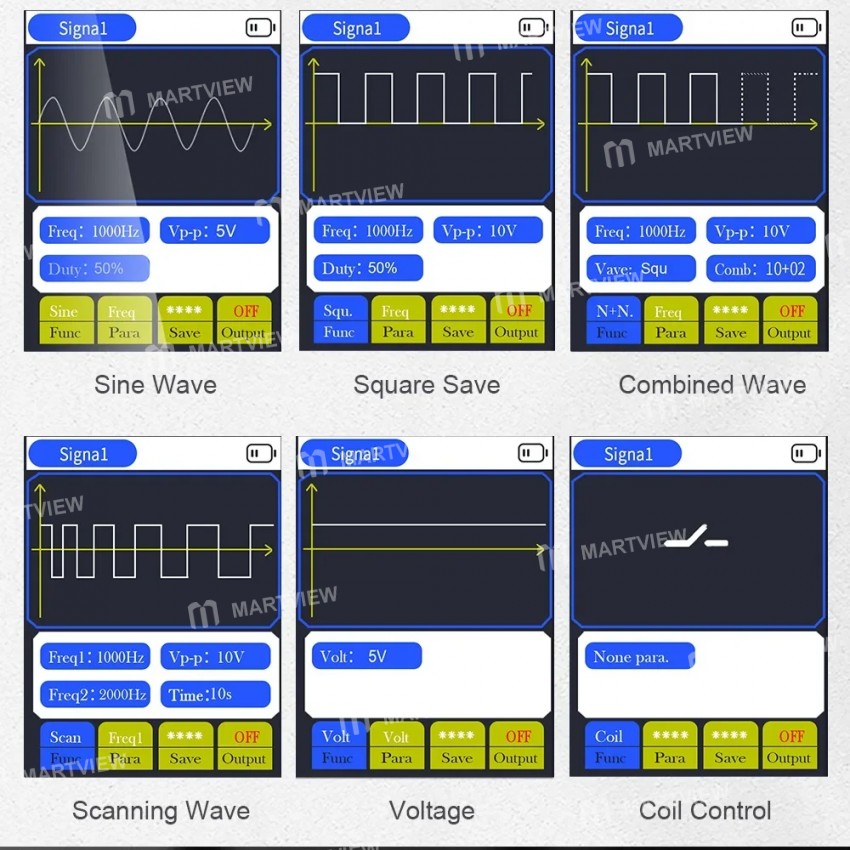

• Multiple signal output: It can output square wave, sine wave, combination wave (square wave N+N, sine wave N+N), scanning wave, and DC wave.

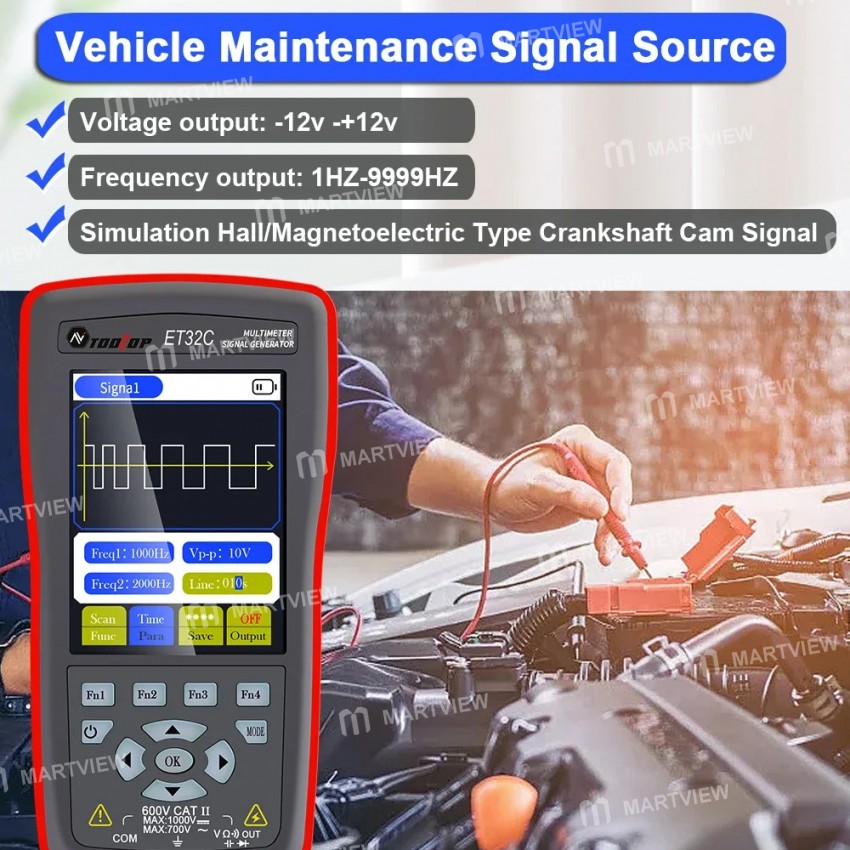

• Automotive signal simulator: Can simulate Hall-type and magnetoelectric crankshaft and cam signals. Supports crankshaft and cam signal simulation for gasoline and diesel vehicles

• Support magnetoelectric signal scanning or Hall signal scanning

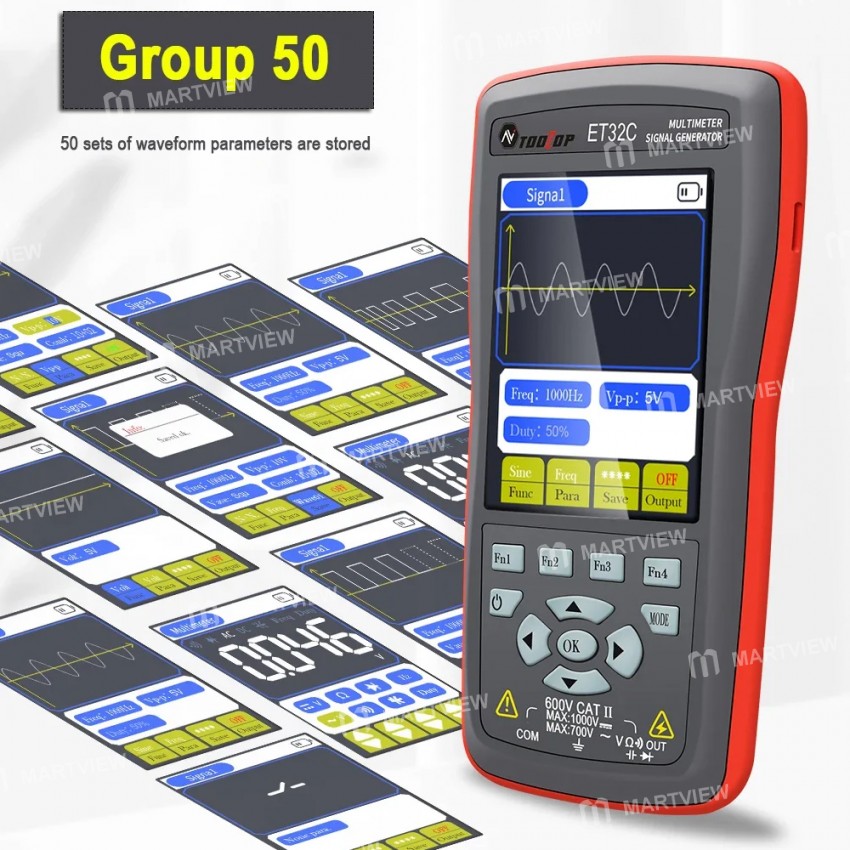

• Signal storage: The instrument supports 50 groups of signal waveform storage, and can store waveforms in specified locations

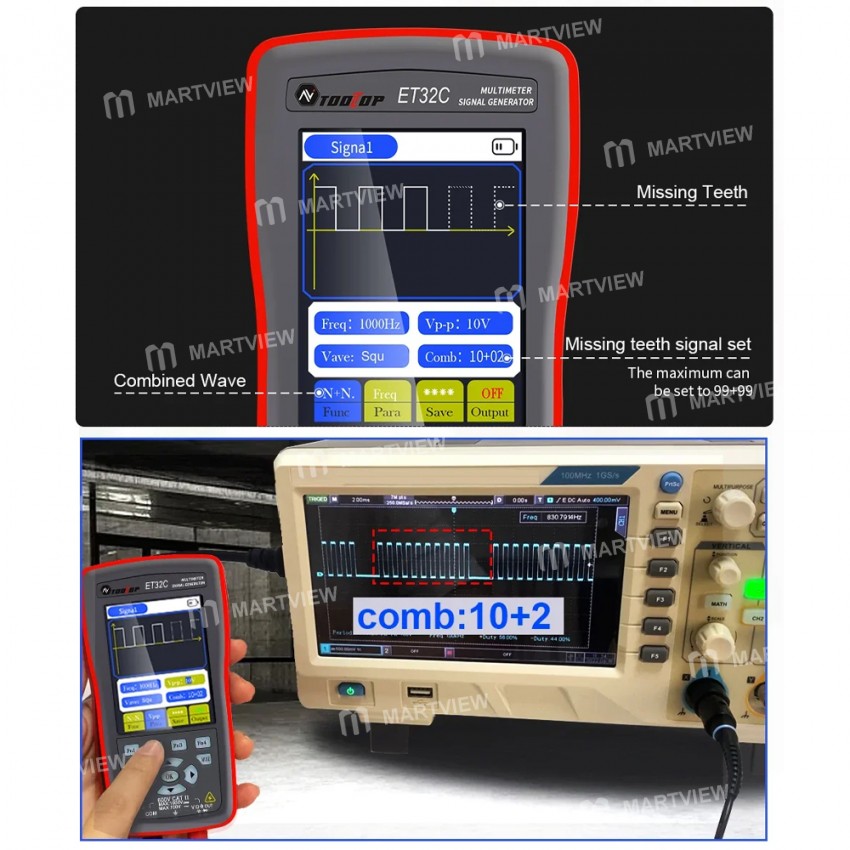

• Combined wave signal: The missing tooth signal can be set arbitrarily (for example, combined wave 58+2, 10+1) without connecting to a computer

• Scanning wave signal: It can output scanning wave to simulate the process of crankshaft cam signal running from low speed to high speed

• Analog voltage output :-12V to +12V adjustable, step value 1V

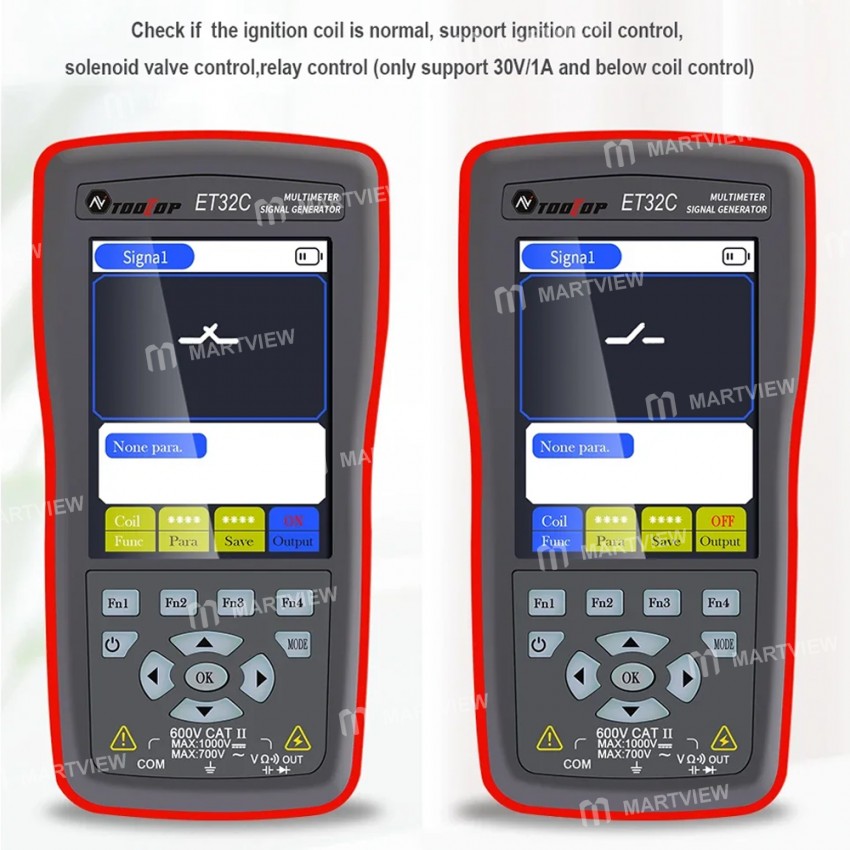

• Coil control: Supports ignition coil control, solenoid valve control, and relay control (only supports coil control of 30V/1A and below)

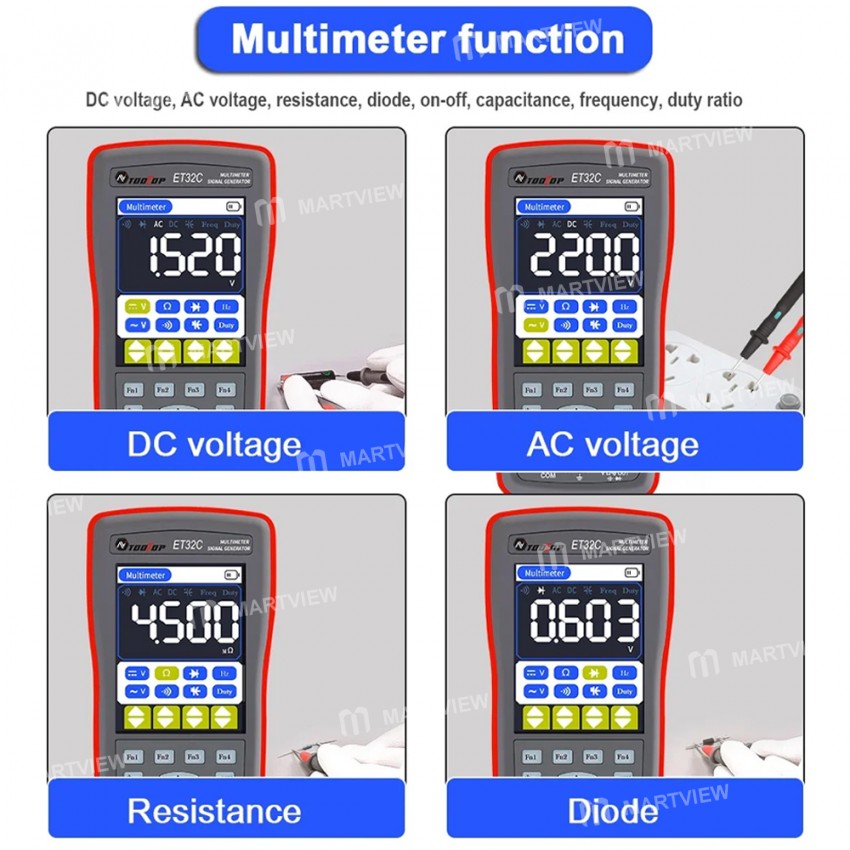

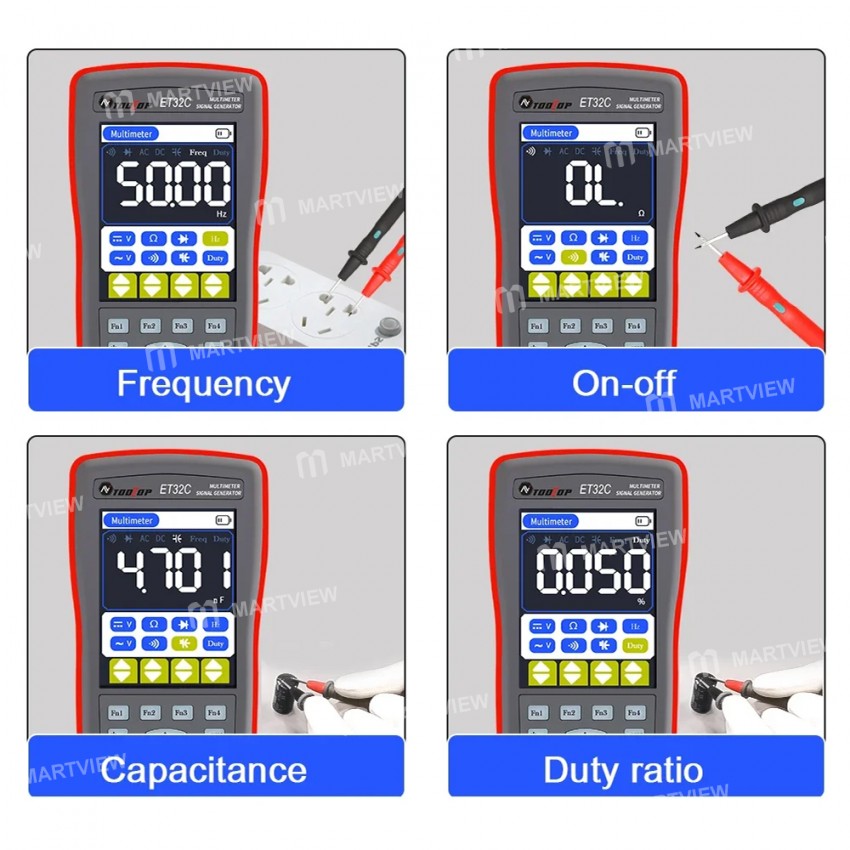

• Multimeter: Measure DC voltage, AC voltage, resistance, diode, continuity, capacitance, frequency, and duty cycle. Quantity function

• The internal power supply of the equipment is isolated to prevent electric shock

Specifications:

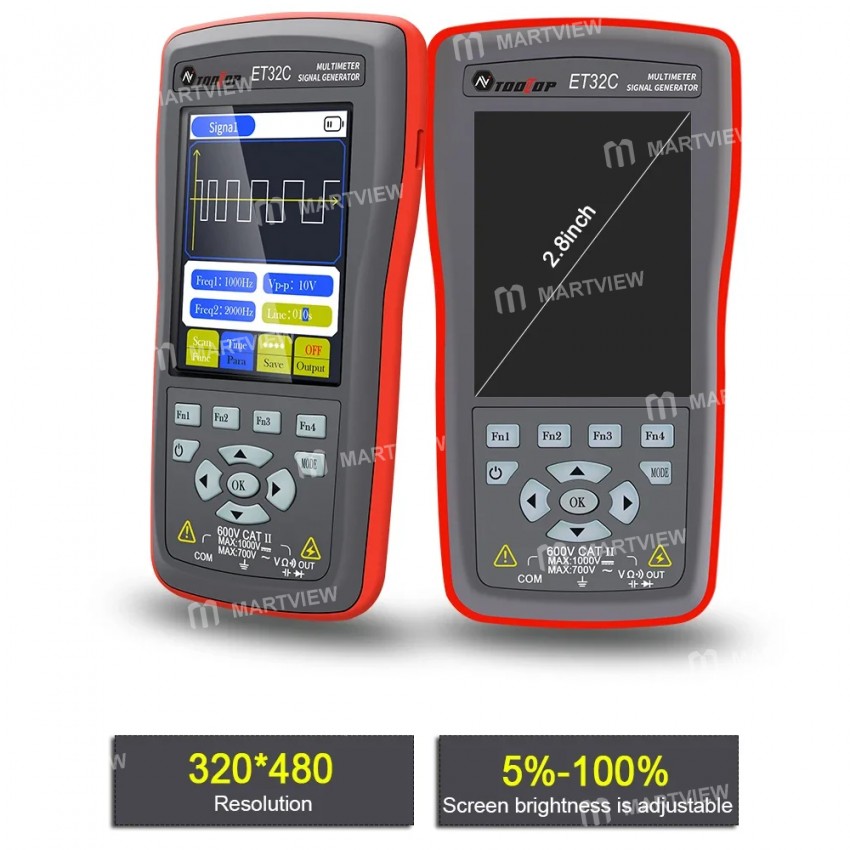

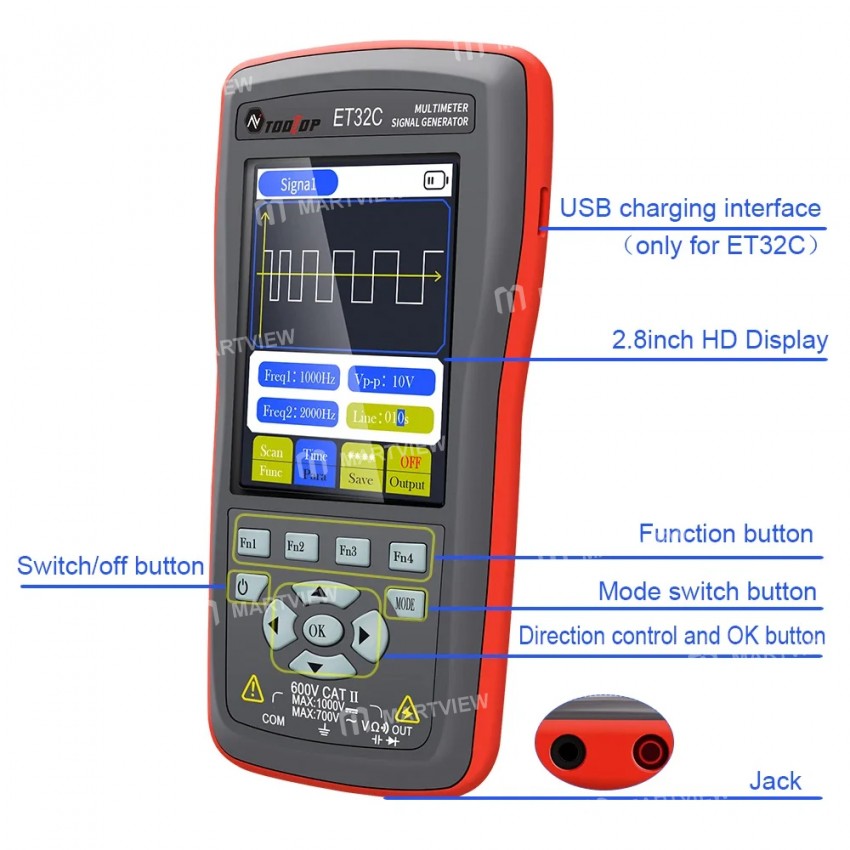

• Display screen: 2.8 inch 320 * 480 resolution

• Touch screen: Not supported

• USB interface: Type-C USB

• Battery: Built-in 4.2V lithium battery

• Storage temperature: -20~60 ℃ (-4~140 ℉)

• Working temperature: 0-50 ℃ (32-122 ℉)

• Working humidity: <85% RH (non-condensing)

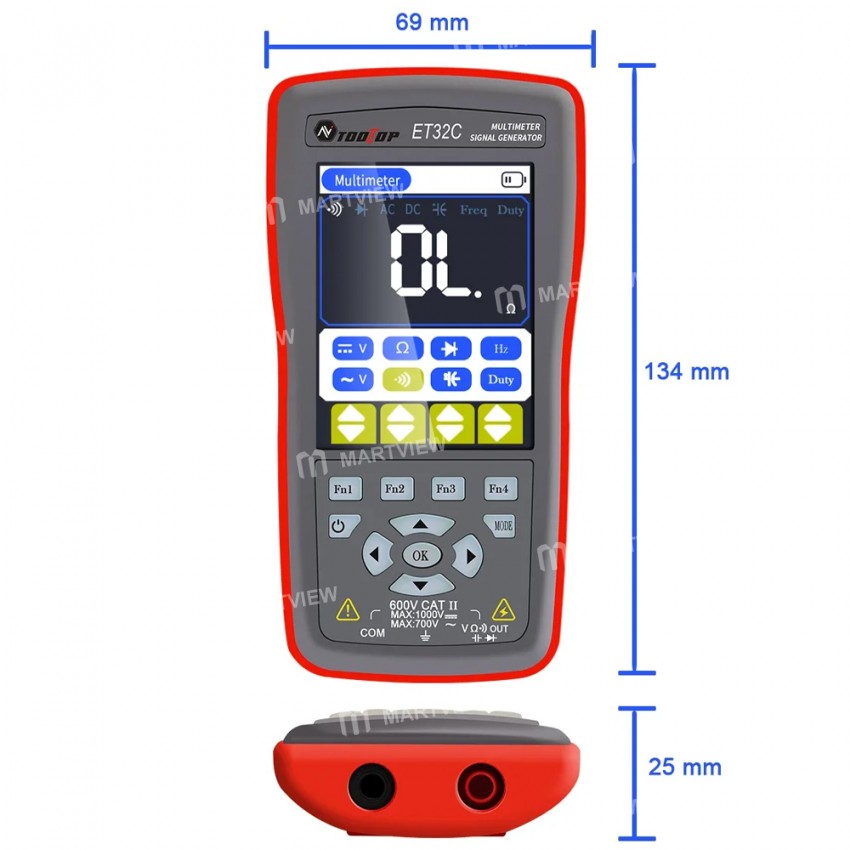

• Product size: 134*69*25mm

• Product weight: 125g (excluding accessories)

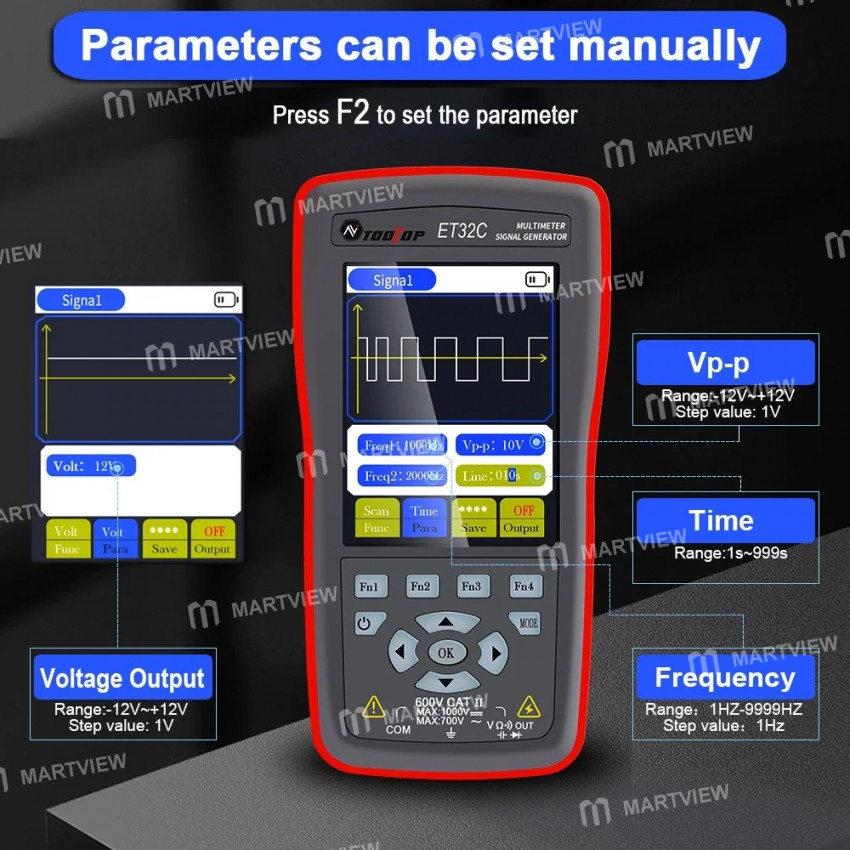

Signal generator parameters:

• Sine wave/square wave frequency range: 1Hz~9999Hz

• Sine wave/square wave frequency step: 1Hz

• Sine wave/square wave peak range: -12V~+12V

• Sine wave/square wave peak step: 1V

• Scanning wave scanning time range: 1s~999s

• Maximum number of combined wave combinations: 99+99

• Output voltage range: -12V to +12V

• Output voltage step: 1V

• Coil control power: Below 30V/1A

• Waveform storage: 50 sets

• Duty Setting: 1%~99%(only for square wave )

Multimeter parameters:

• Maximum DC input voltage: 1000V

• Maximum AC input voltage: 750V

• Maximum measured resistance: 40MΩ

• Maximum measured capacitance value of capacitance: 100uF

• Maximum frequency measurement: 50KHz

• Duty cycle measurement range: 0.1%~99.9%

• Diode measurement range: 0V~1.5V

• Maximum resistance value for on/off detection: 30Ω

• Display: 4000 counts

• Updated: 3 times per second

Package includes:

• 1 x Signal Generator Multimeter

• 1 x Test Leads

• 1 x Crocodile Clamp Wires

• 1 x USB Cable
