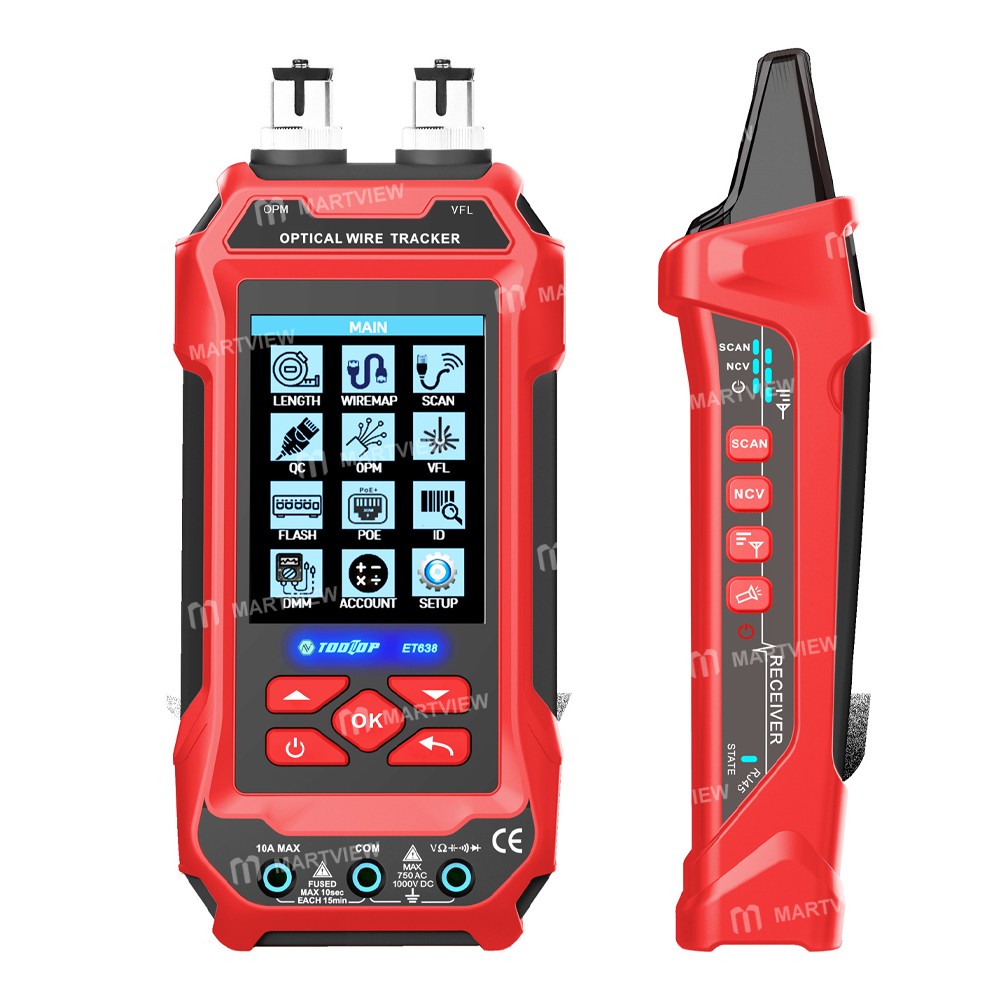

Tooltop ET636 / ET638 Multifuction Network Cable Tester + Optical Power Meter + Multimeter

Tooltop ET636/ ET638 Multifuction Network Cable Tester + Optical Power Meter + Multimeter

Features:

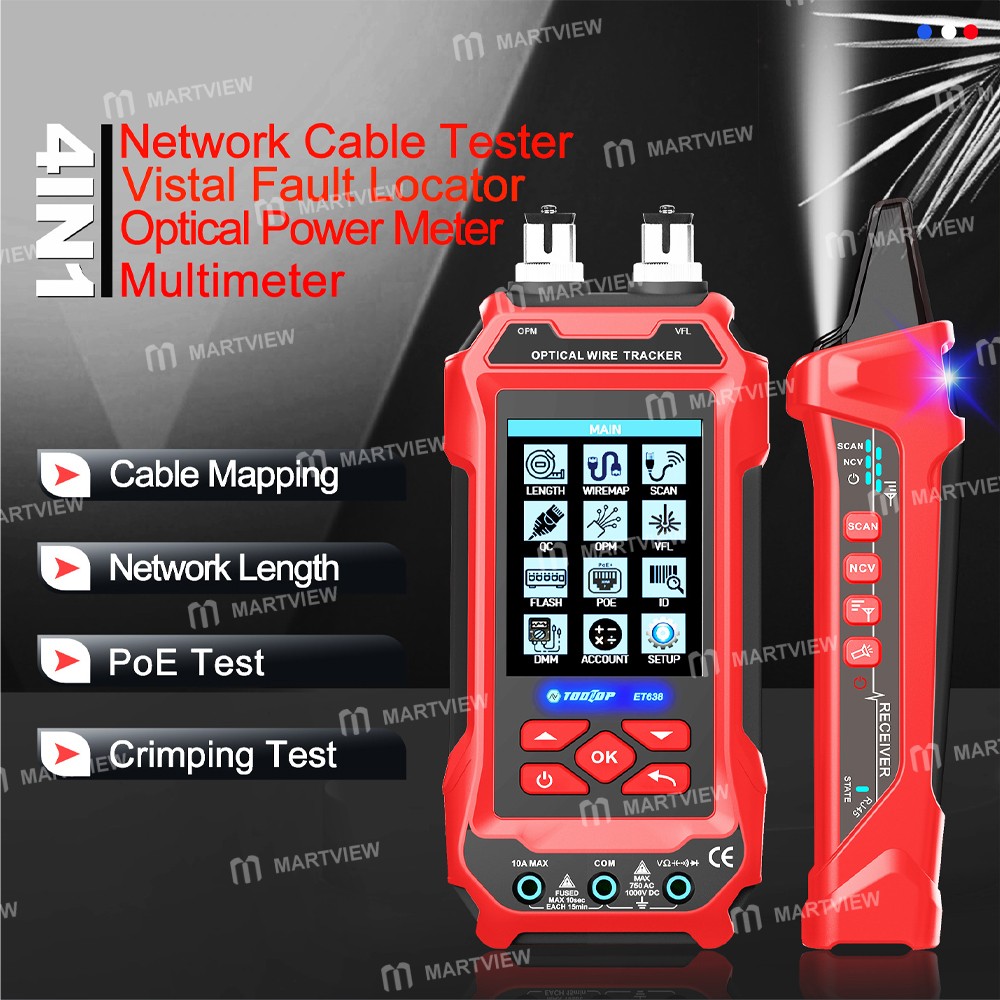

• 4-in-1 Multifunction Network Cable Tester + Optical Power Meter +10mW Red Light Pen + Visual Fault Locator + Multimeter (only ET638 has Multimeter function)

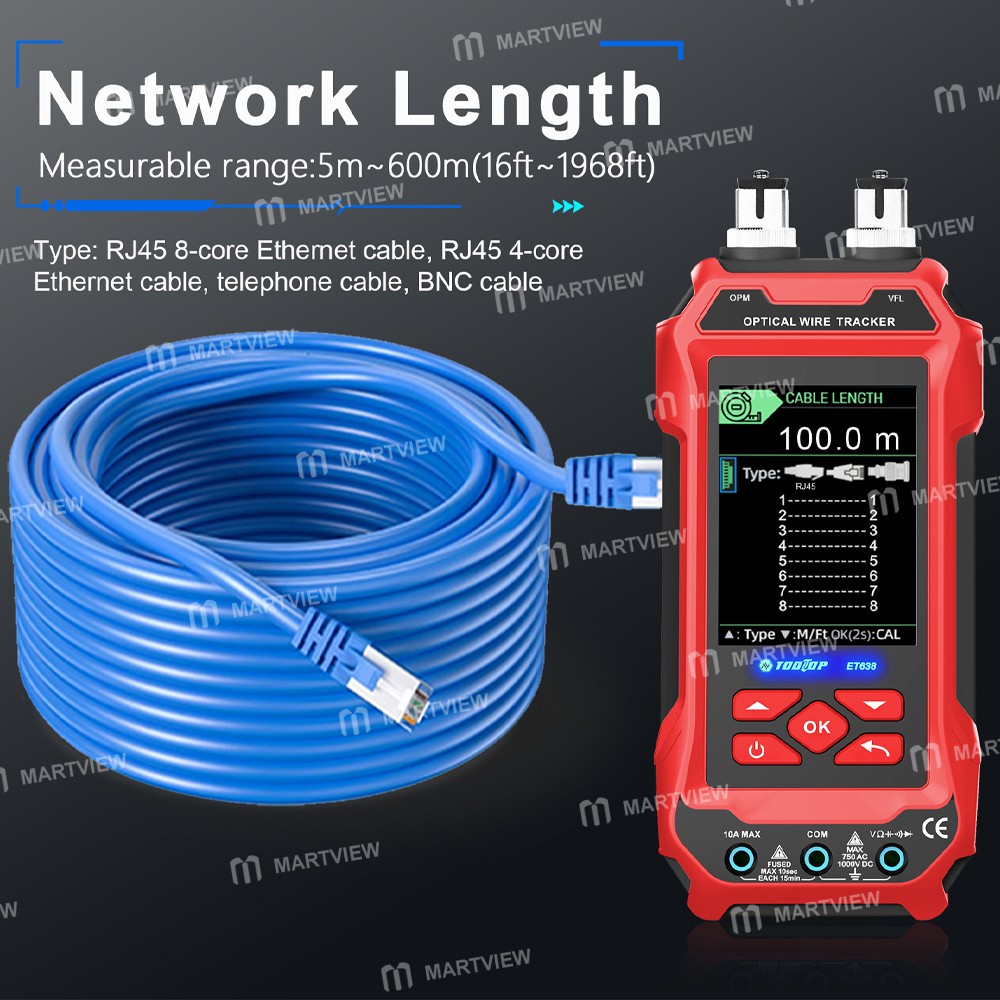

• Ethernet, telephone, and coaxial video cable length measurement, up to 600 meters

• Powerful network cable analysis function: open circuit, short circuit, crossover, and crystal head crimping test

• Professional multi-function multimeter displays up to 60,000 digits (only for ET638)

• 6dBm to -70dBm optical power meter design, compatible with ST, SC, and FC interfaces

• Equipped with red laser emission function, the optical fiber transmission distance can reach 10KM, for visual positioning of breakpoints

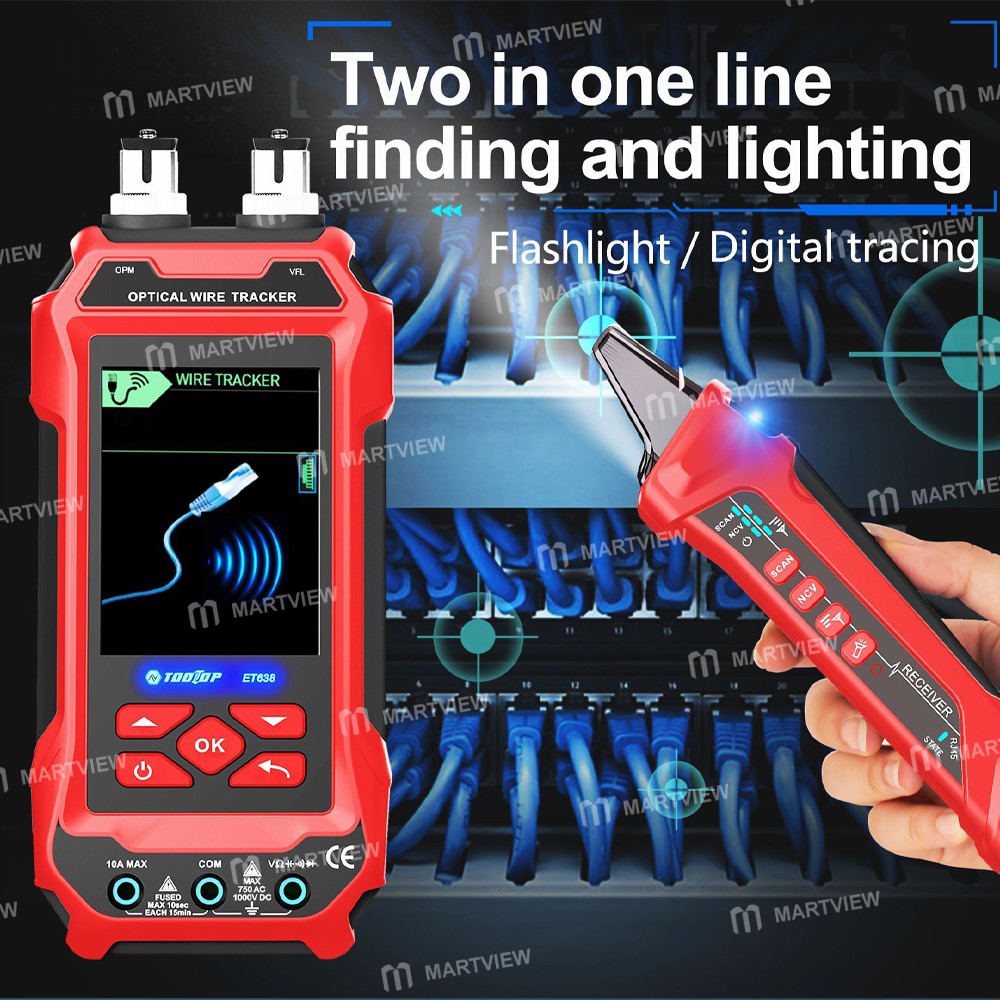

• Scan (line finding ), is noise-free and anti-interference, quickly finds the target line in complex lines, supports RJ45 BNC TEL Cable

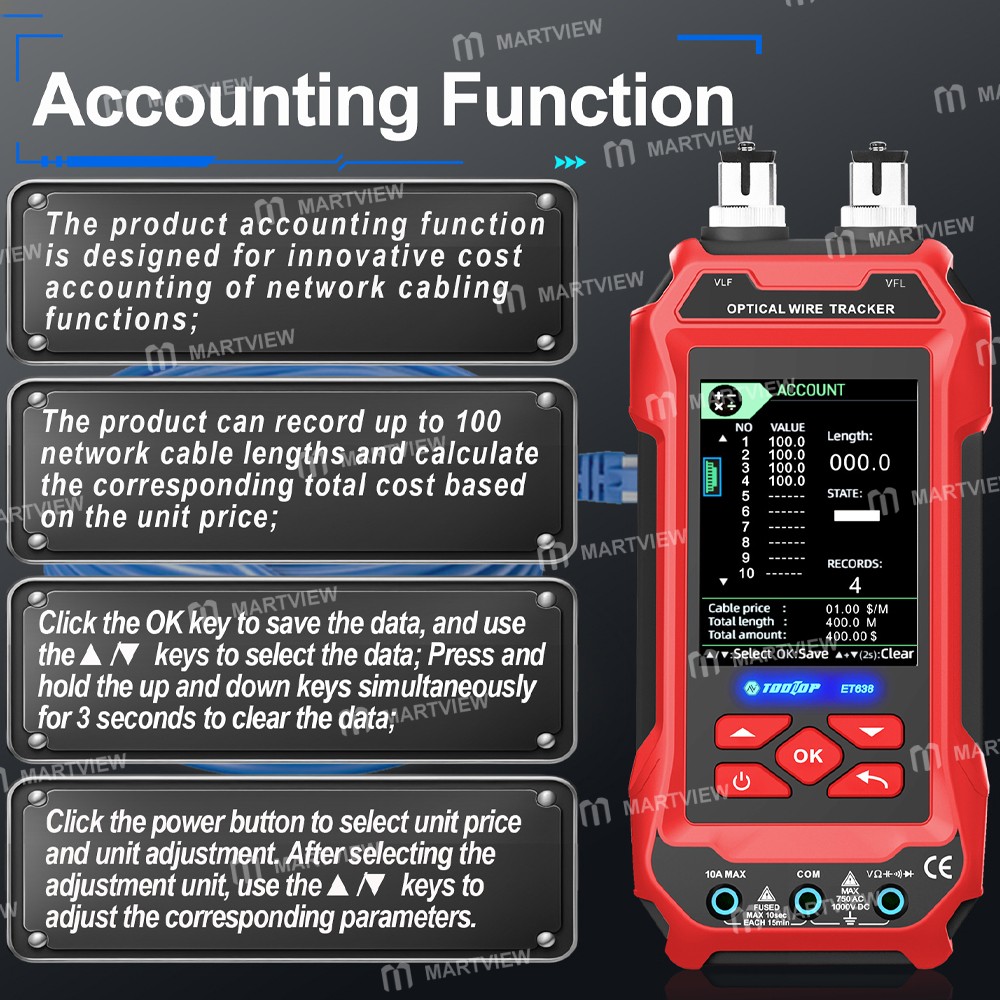

• Innovative engineering accounting function, which can retain up to 100 length records and calculate network costs

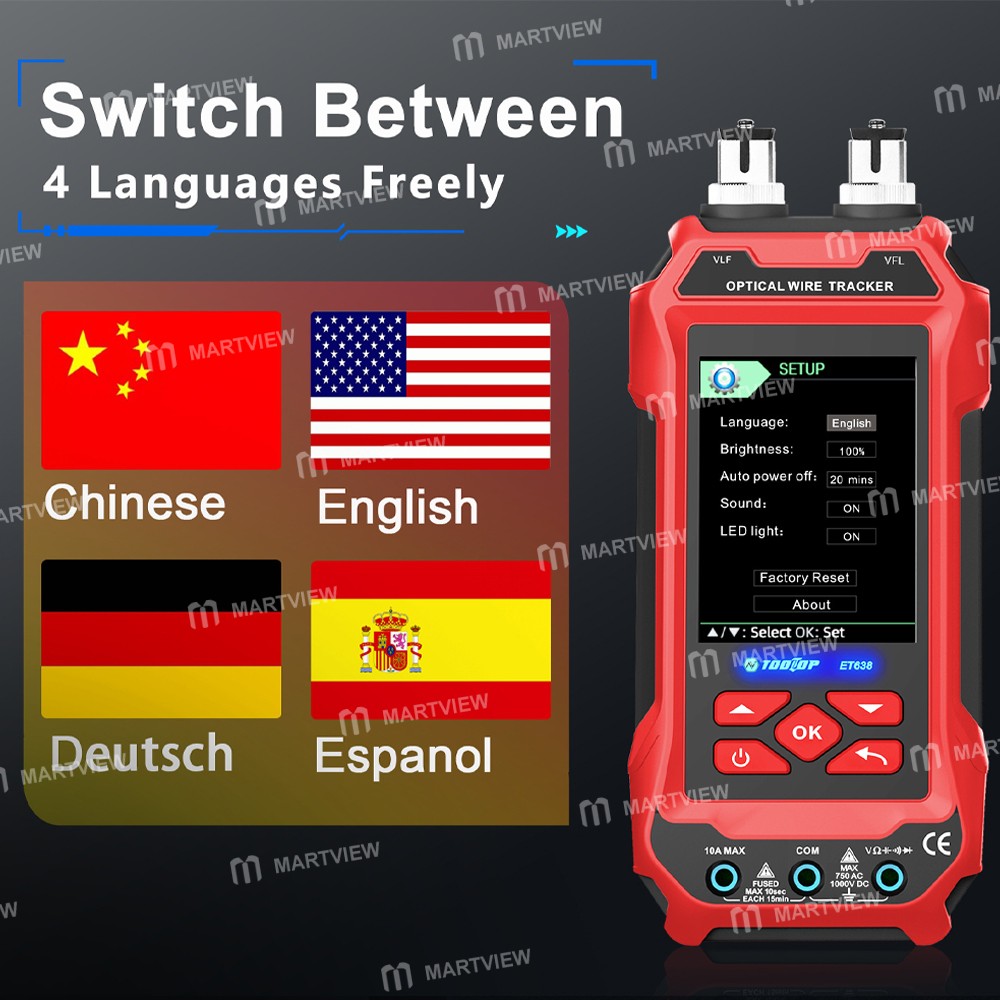

• Support Chinese, English, German, and Spanish display, more in line with user needs

• Both the host and the line finder are powered by rechargeable lithium batteries, more environmentally friendly and efficient

Specifications:

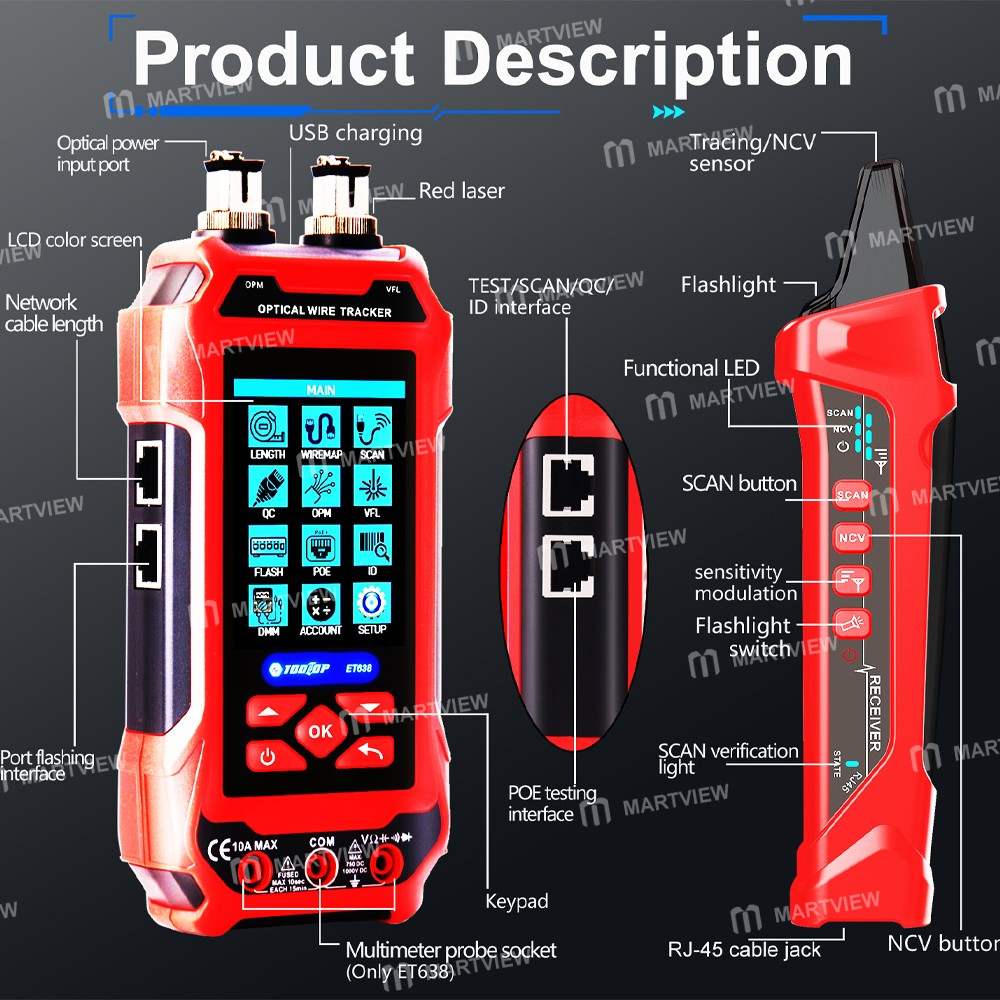

• Name: Multifunction Network Cable Tester

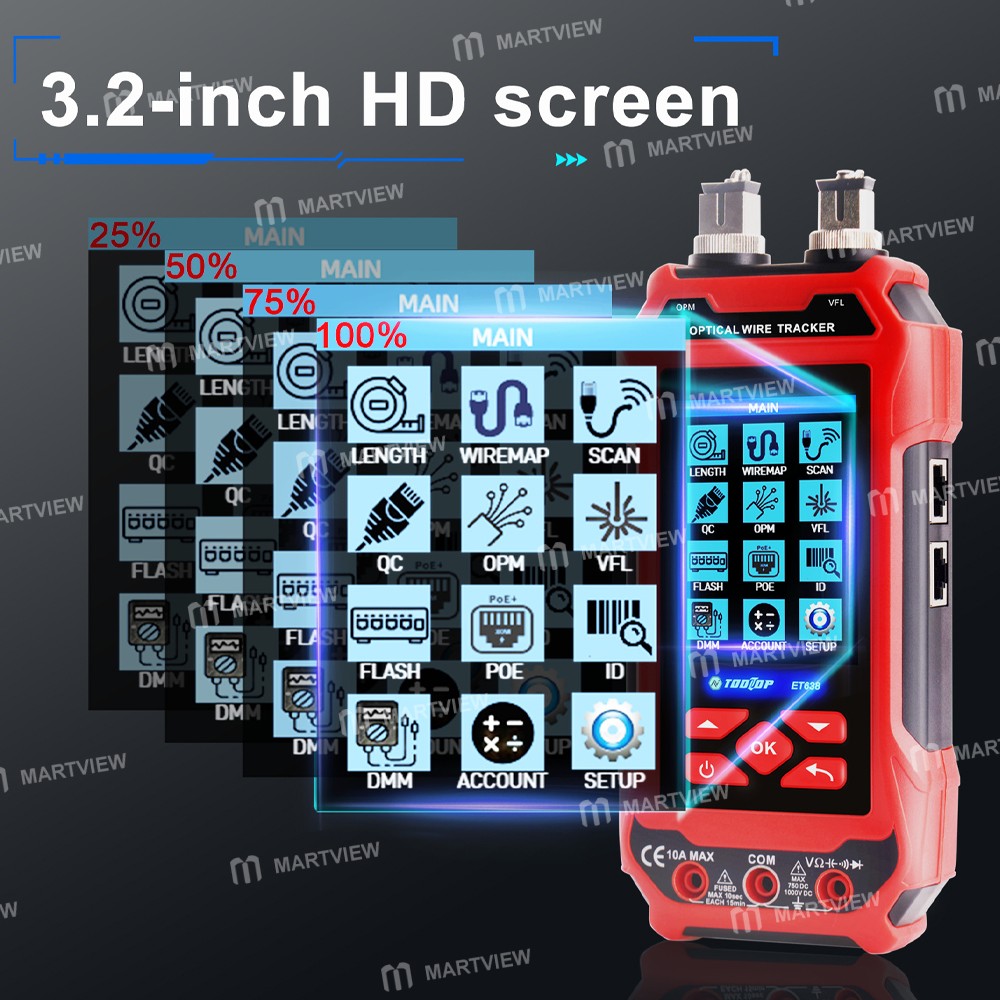

• Display: 3.2-inch 240*320 color screen

• Power supply: 1500mAH(Host) / 800mAH (Receiver) Lithium Battery

• Size：Host: 187 * 86 * 34mm / Receiver :197 * 47 * 36mm

Network Cable Tester:

• Cable Length: Network cable (600M), telephone line (400M), coaxial cable (400M)

• Length self-calibration: Support

• Digital Tracing: Digital mode (ET636) , Digital and vibration mode(ET638)

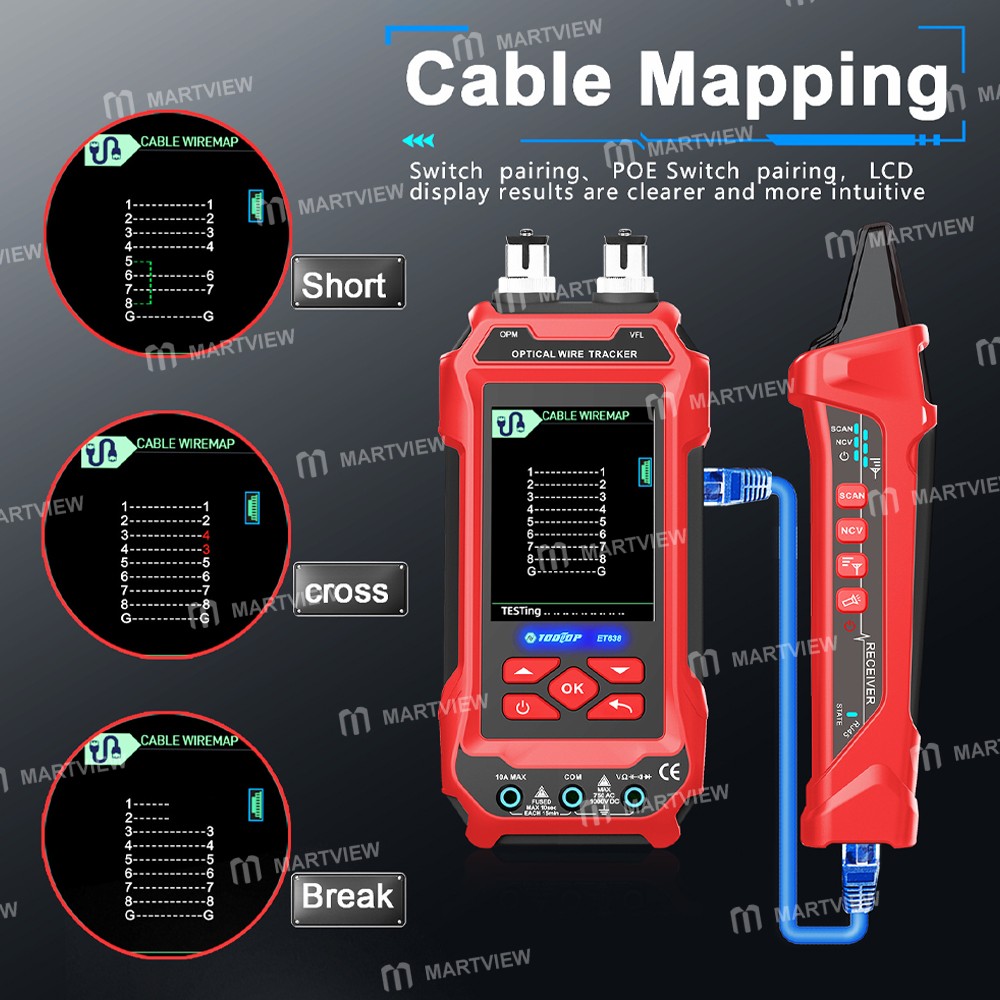

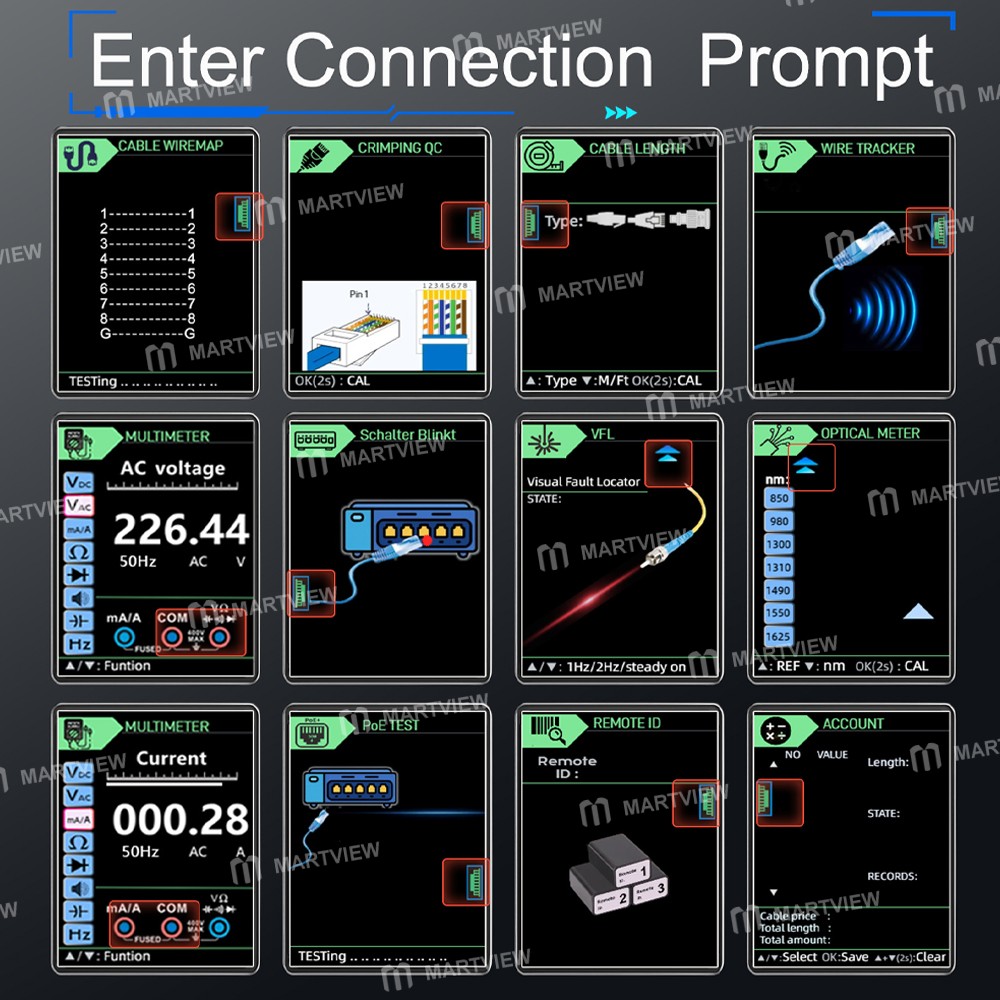

• Cable Mapping: Normal/Open/Short/Cross

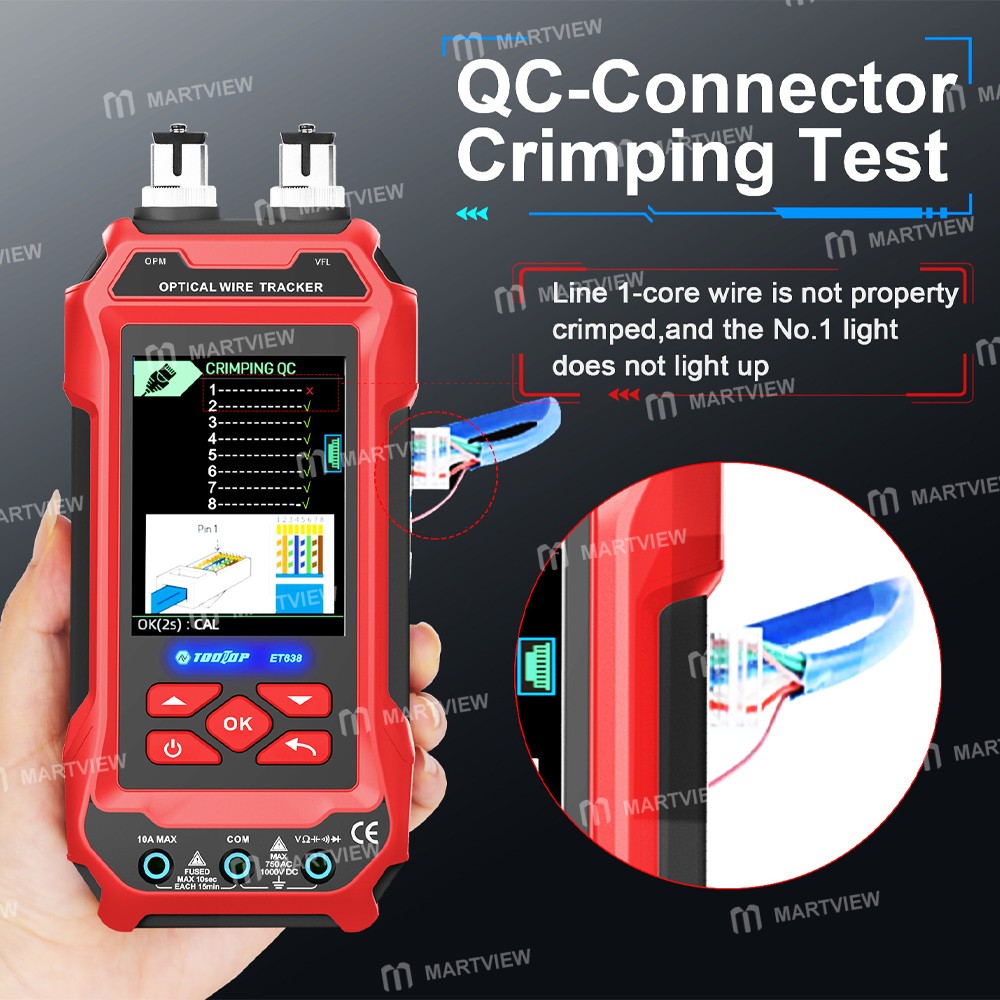

• QC Crimping: Support

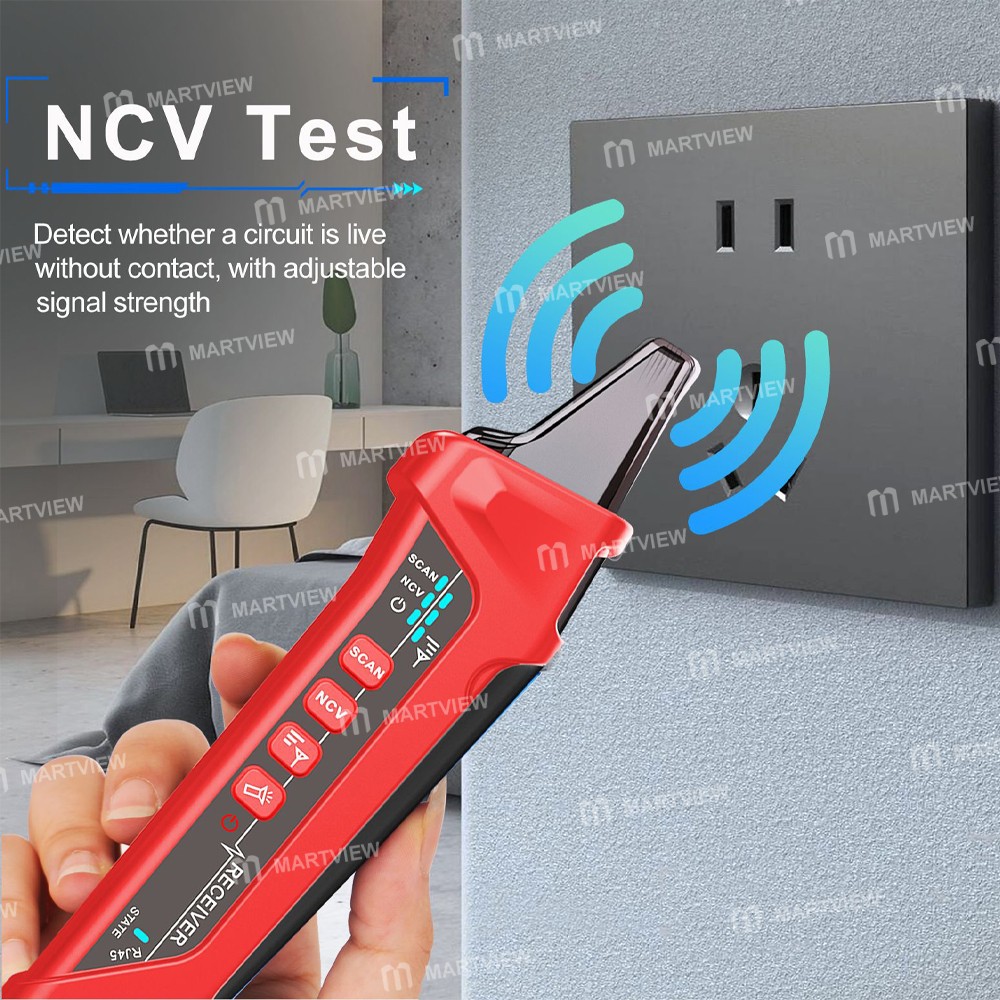

• NCV: Support

• Receiver: Sensitivity adjustable

• Switch Flash: 10M/100M/1000M

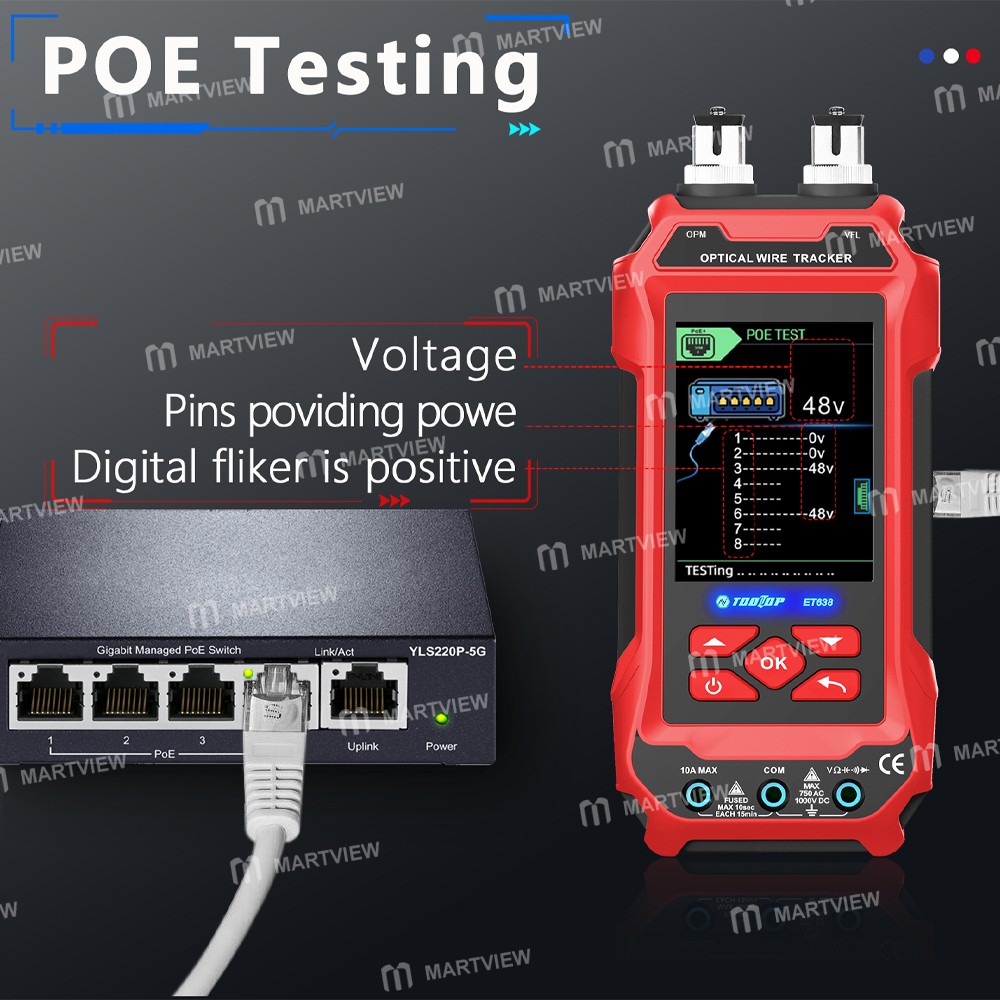

• POE Test: Voltage/polarity

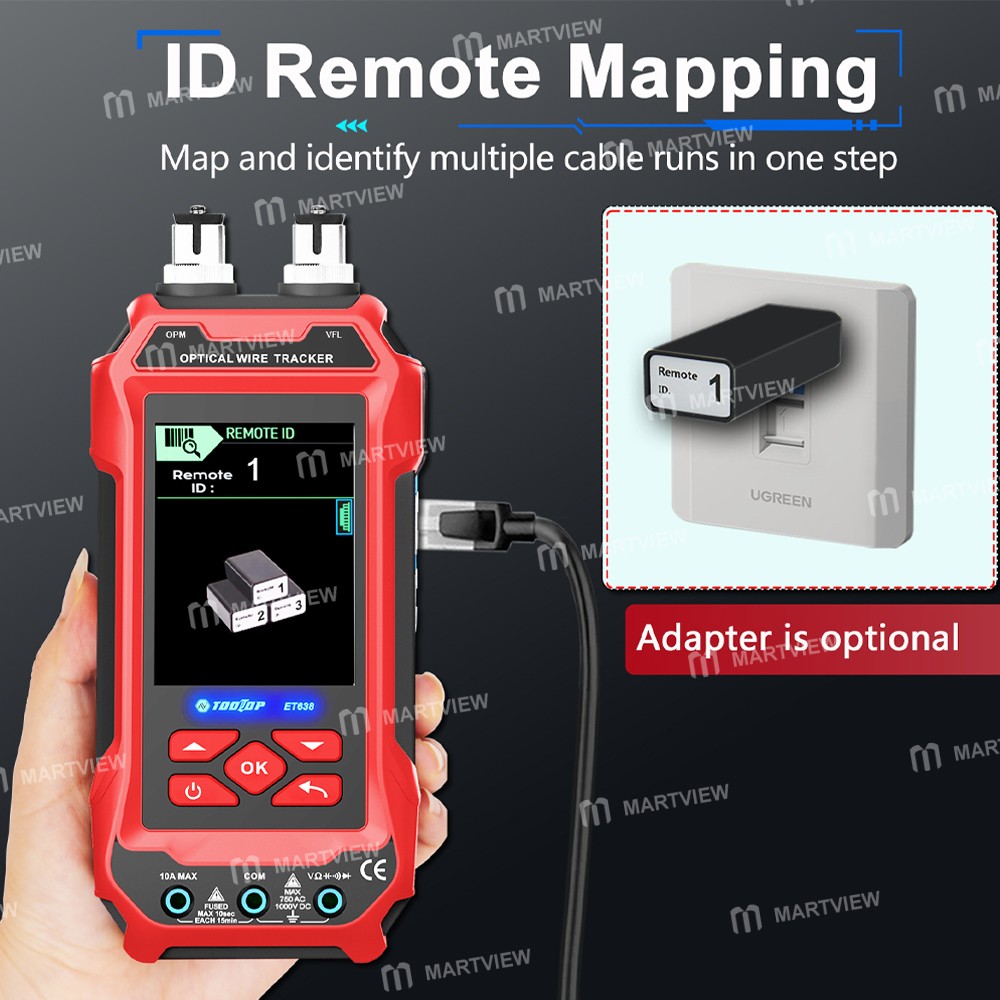

• Remote ID: ID1~15 (for option)

• Account: 100 records storage/unit price/amount

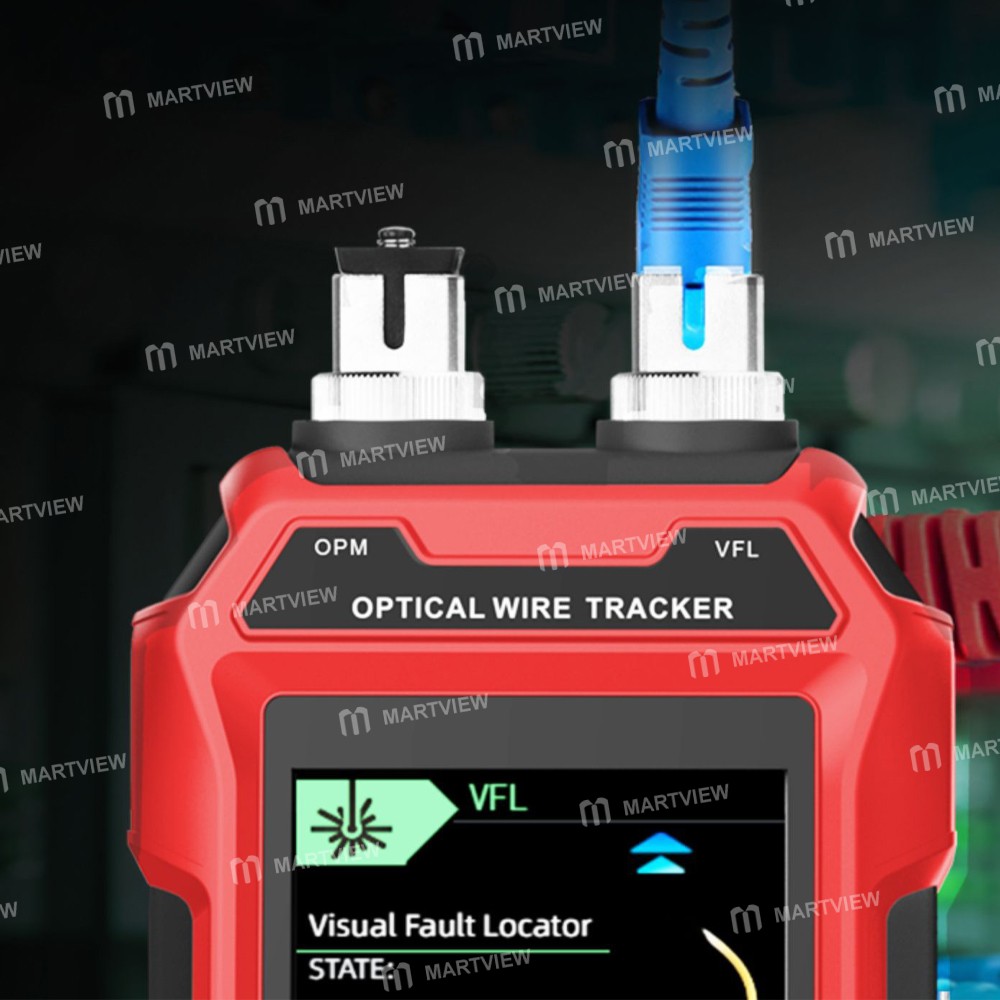

Visual Fault Locator(VFL): 10mW, about 10kM, ON 1Hz/2Hz/OFF

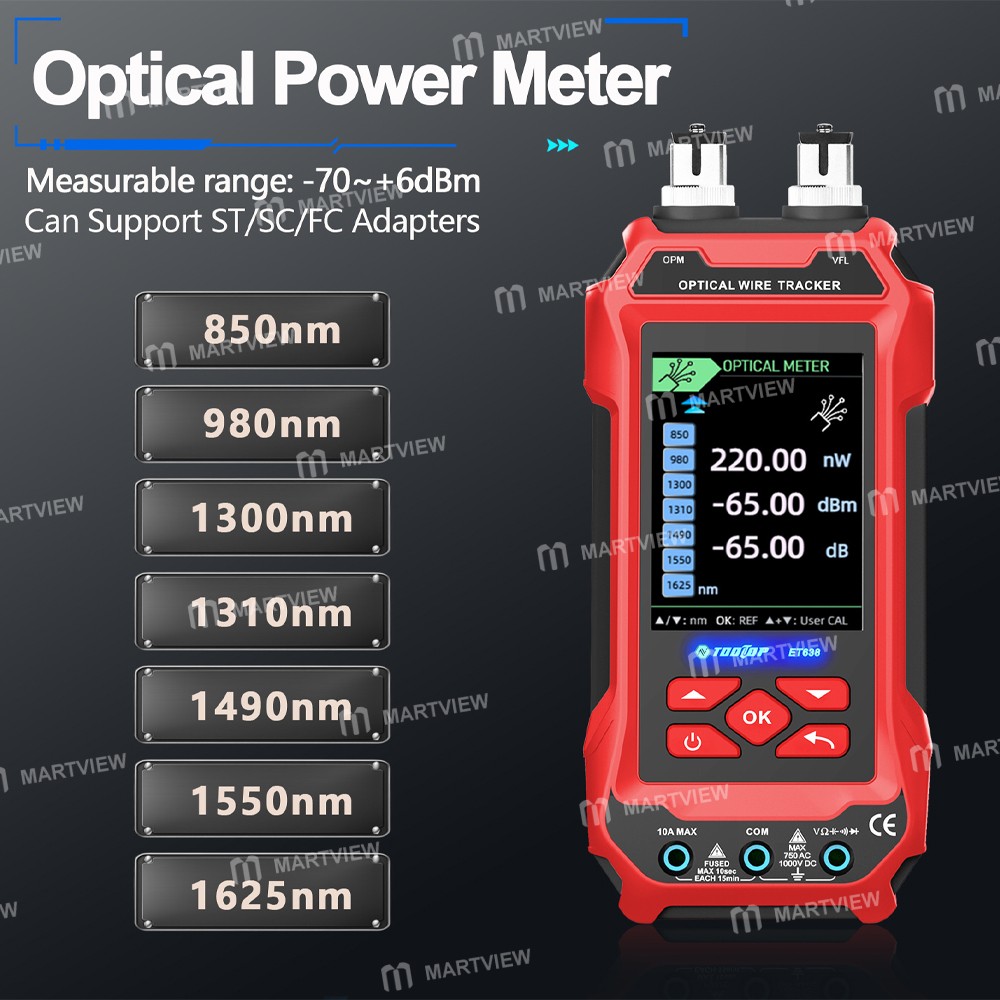

Optical Meter:

• Measurement range:-70.00~6.00 dBm

• Optical power display: mW/uW/nW/dBm/dB

• Interface: ST, SC, FC

• Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm

Multimeter: (only ET638)

• Display: 60000 counts

• DC Voltage: 600.00mV~1000V ±(0.5%+0.3)

• AC Voltage: 600.00mV~750V ±(0.8%+0.5)

• DC Current: 600.00mA~10A ±(1%+0.4)

• AC Current: 600.00mA~10A ±(1%+0.4)

• Resistance: 600.00Ω~60MΩ ±(1%+0.6)

• Capacitance: 6.0000nF~60MF ±(2%+0.6)

• Frequency: 6.0000Hz~6MHz ±(1%+0.1)

• Continuity: ＜10Ω

• buzzer sounds: Support

• Diode: Support

• Fuse: CE 5*20mm 10A/100V

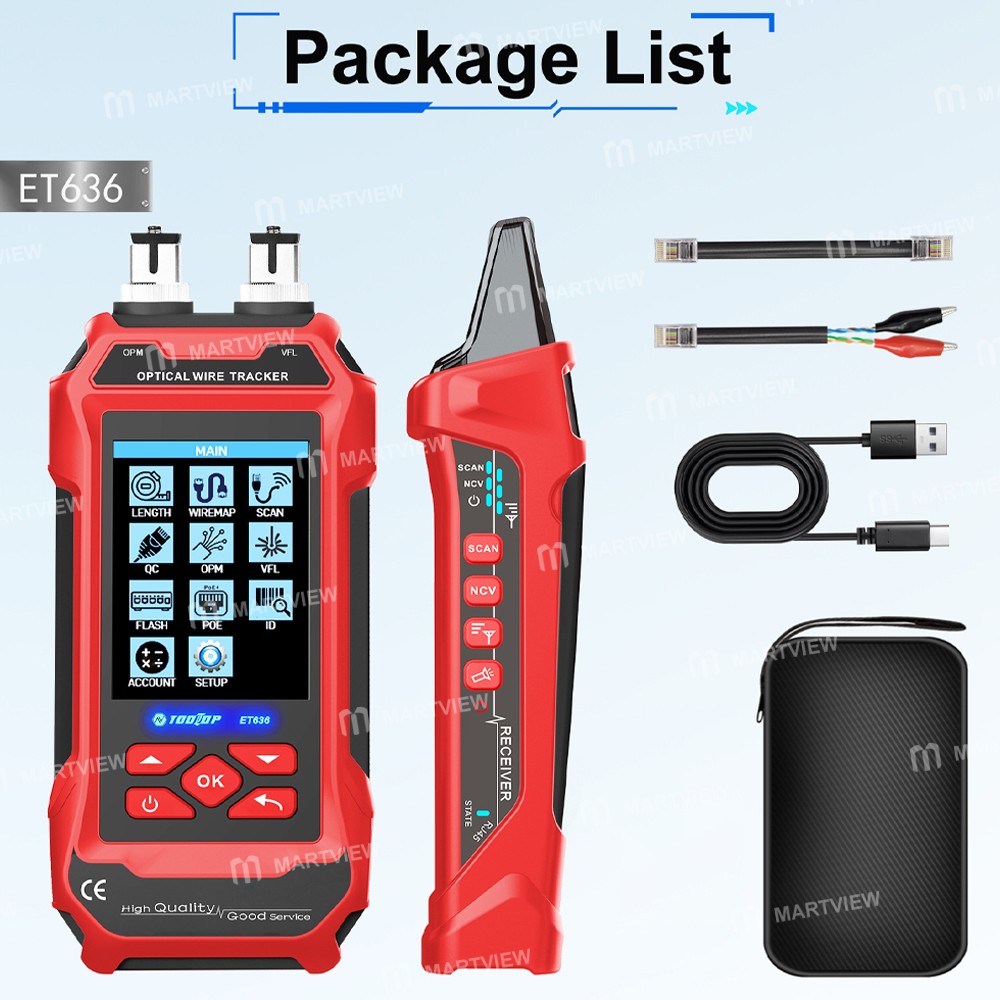

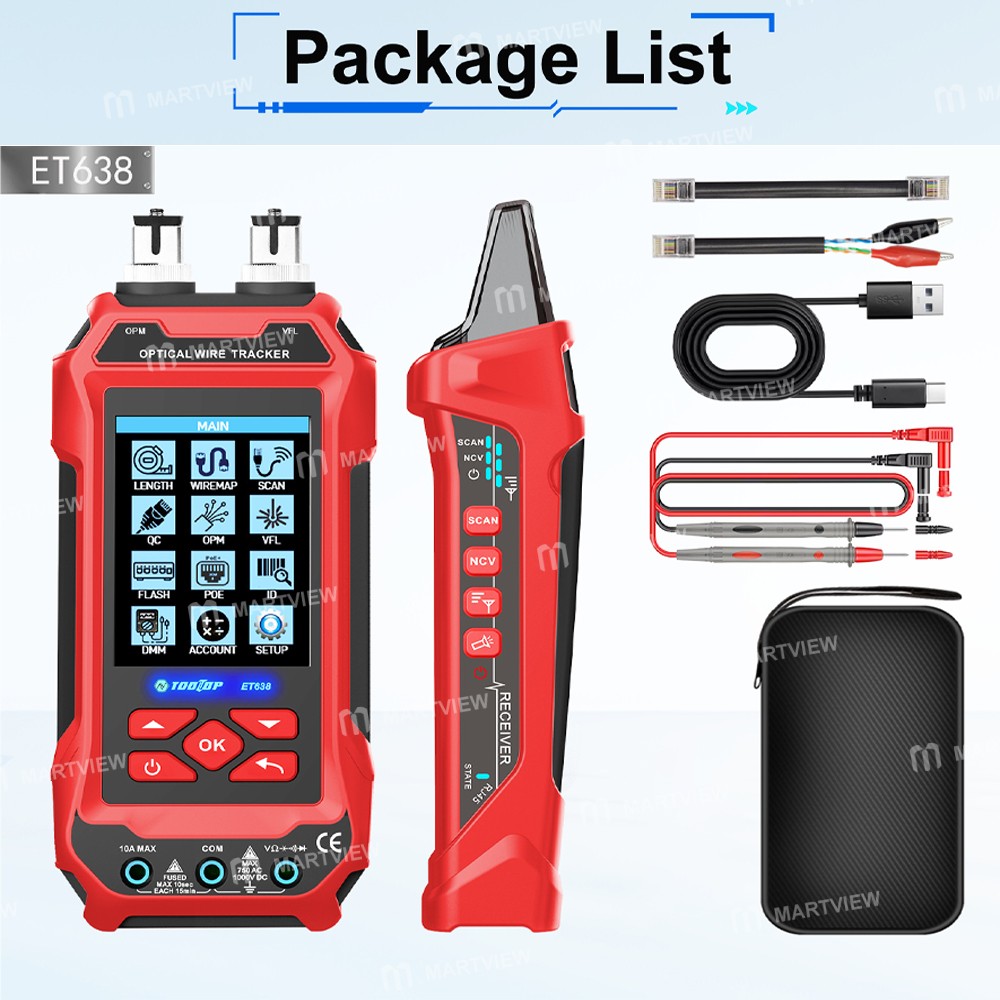

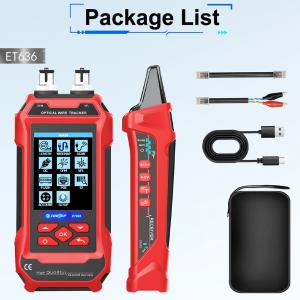

Package includes:

• 1 x Network Cable Tester

• 1 x Receiver

• 1 x USB Cable

• 1 x RJ45 Cable

• 1 x Crocodile Clip

• 1 x Multimeter Test Leads (only ET638)
