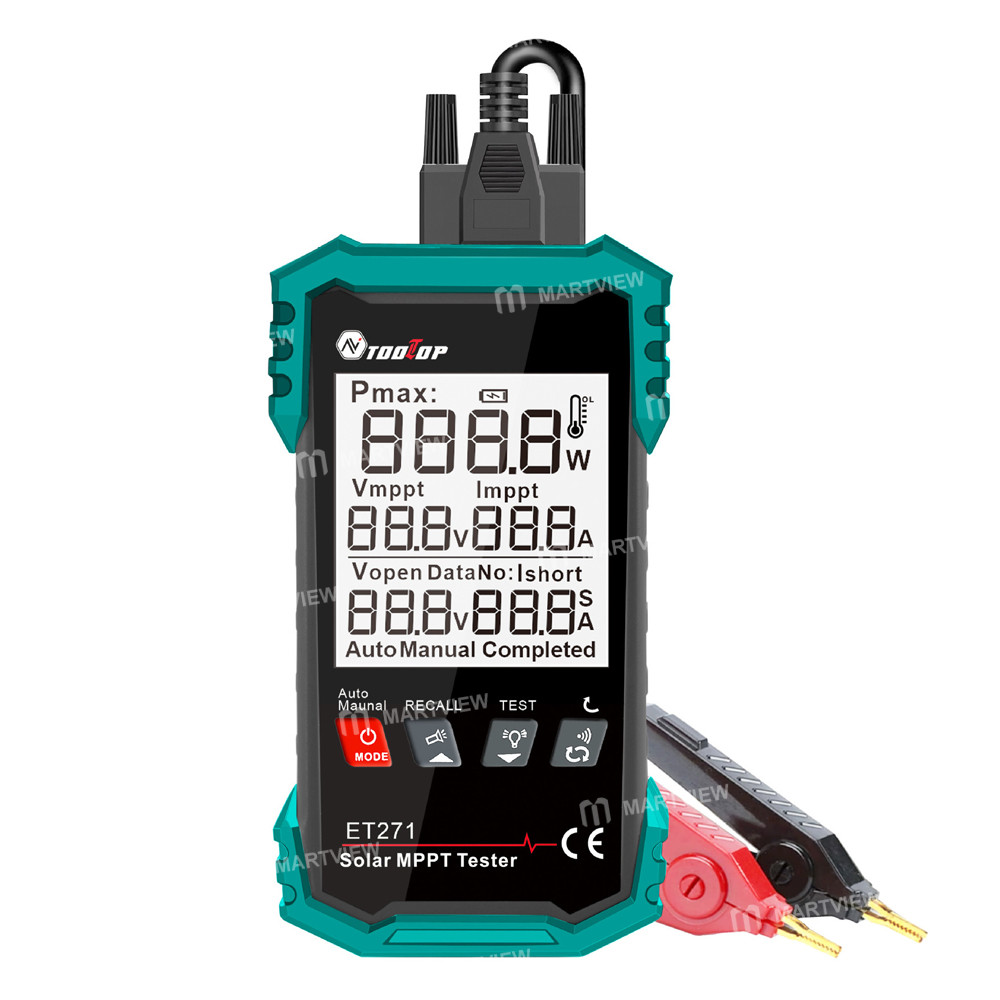

ToolTop ET721 Rechargeable Digital Display 2000W High-Power Solar MPTT Tester with Data Storage Function

ToolTop ET721 Rechargeable Digital Display 2000W High-Power Solar MPTT Tester with Data Storage Function

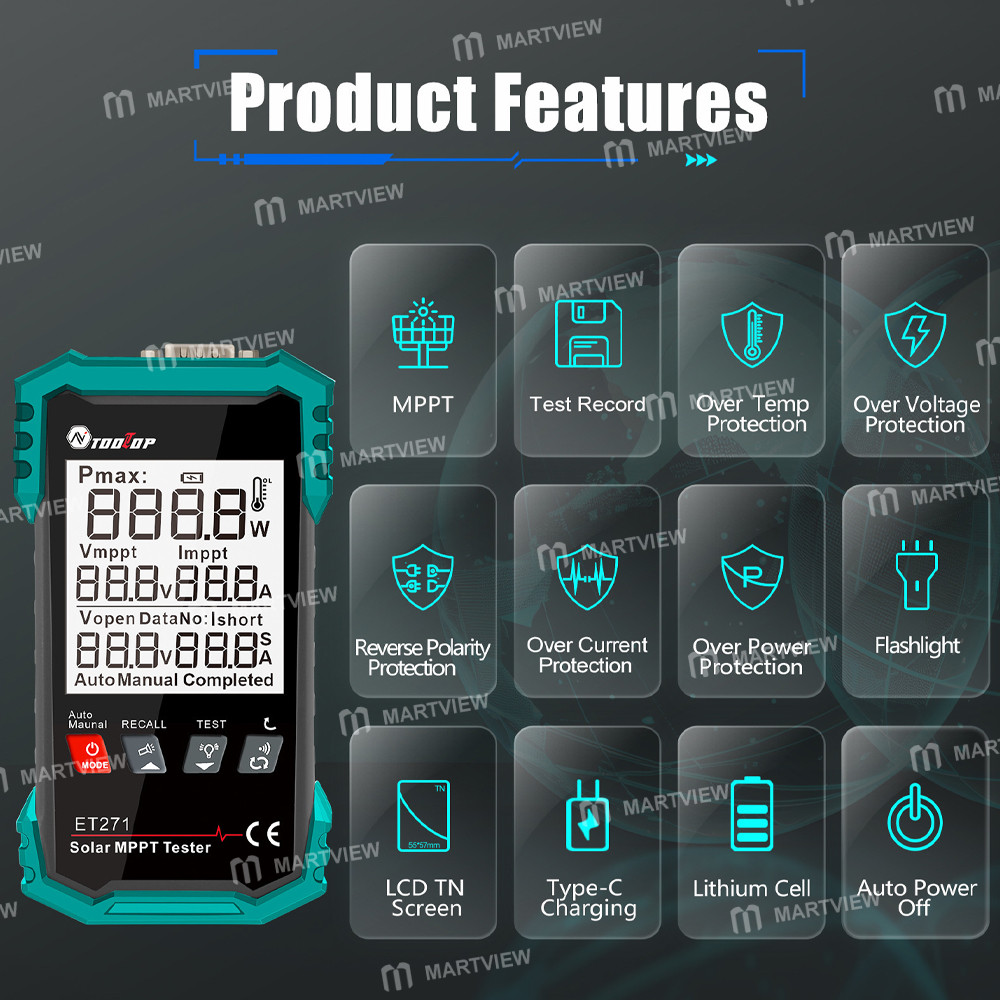

Features:

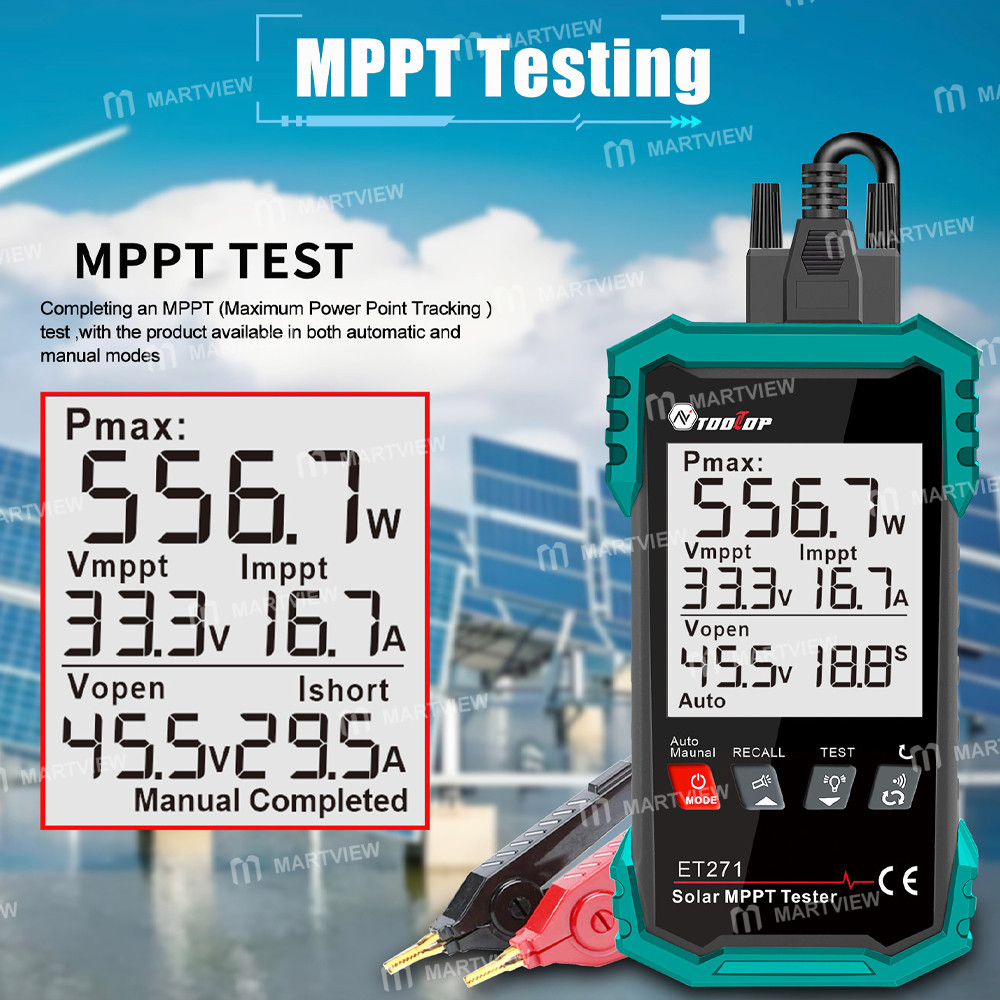

• Maximum Power Point Tracking (MPPT), including MPPT test data recording

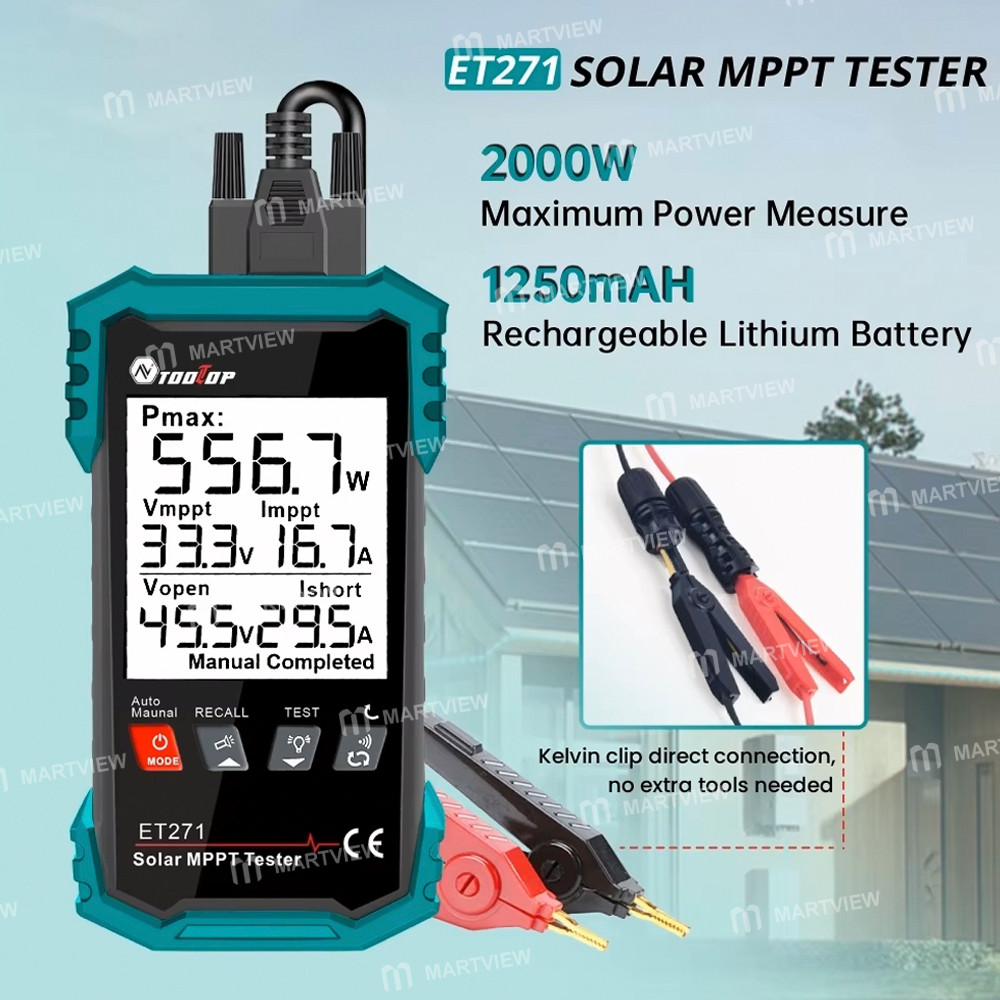

• Support testing of 2000W high-power photovoltaic modules measurement

• Accurately measures key parameters such as Pmax, Voc, and Isc (accuracy ±1.5%)

• Comprehensive protection against overvoltage, overcurrent, reverse polarity, and overtemperature

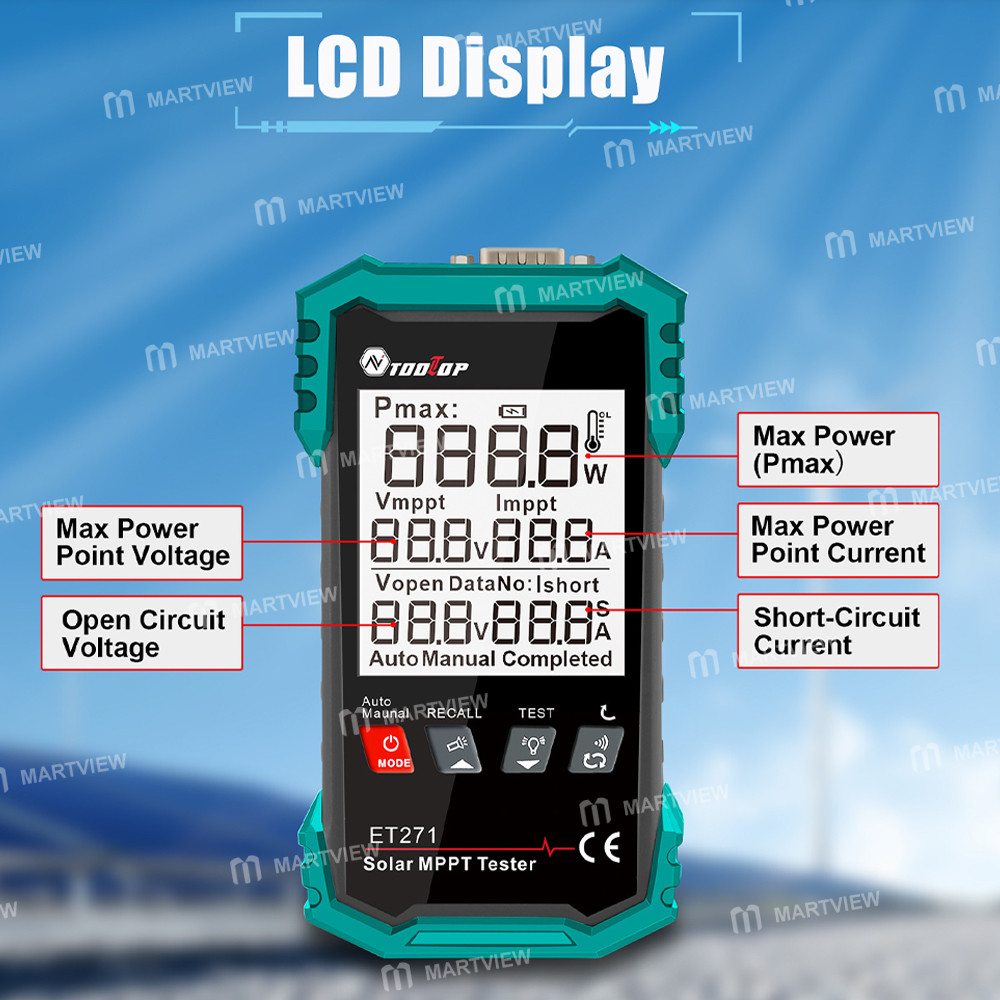

• Large 3.2-inch display, showing all measurement results on one screen

• Built-in high-capacity 1250mAh rechargeable lithium battery

• Suitable for PV module production, acceptance, and maintenance, enabling rapid fault diagnosis

Specifications:

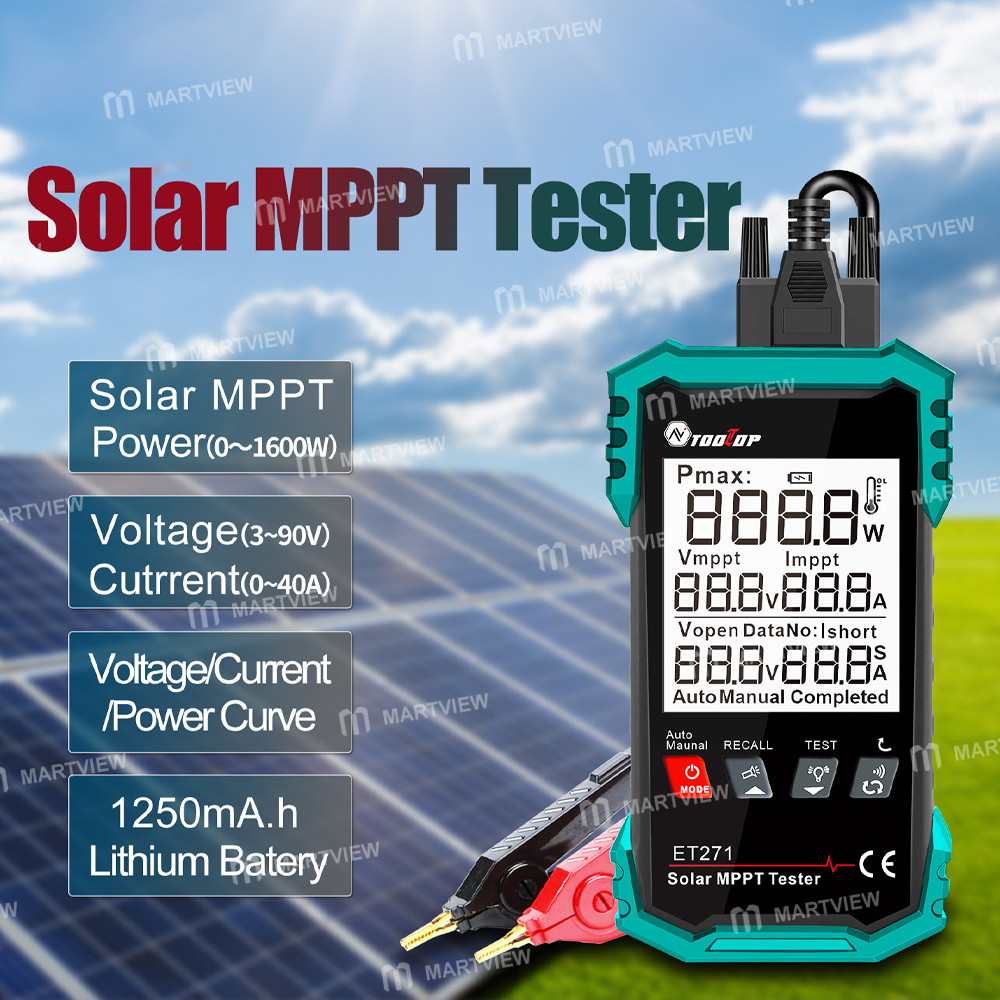

• Solar Voltage: 3~90.00V, ±1.5%+5

• Solar Current: 0~40.00A, ±1.5%+5

• Solar MPPT Power: 0~2000W, ±1%+5

• Sampling point: 200 digit group

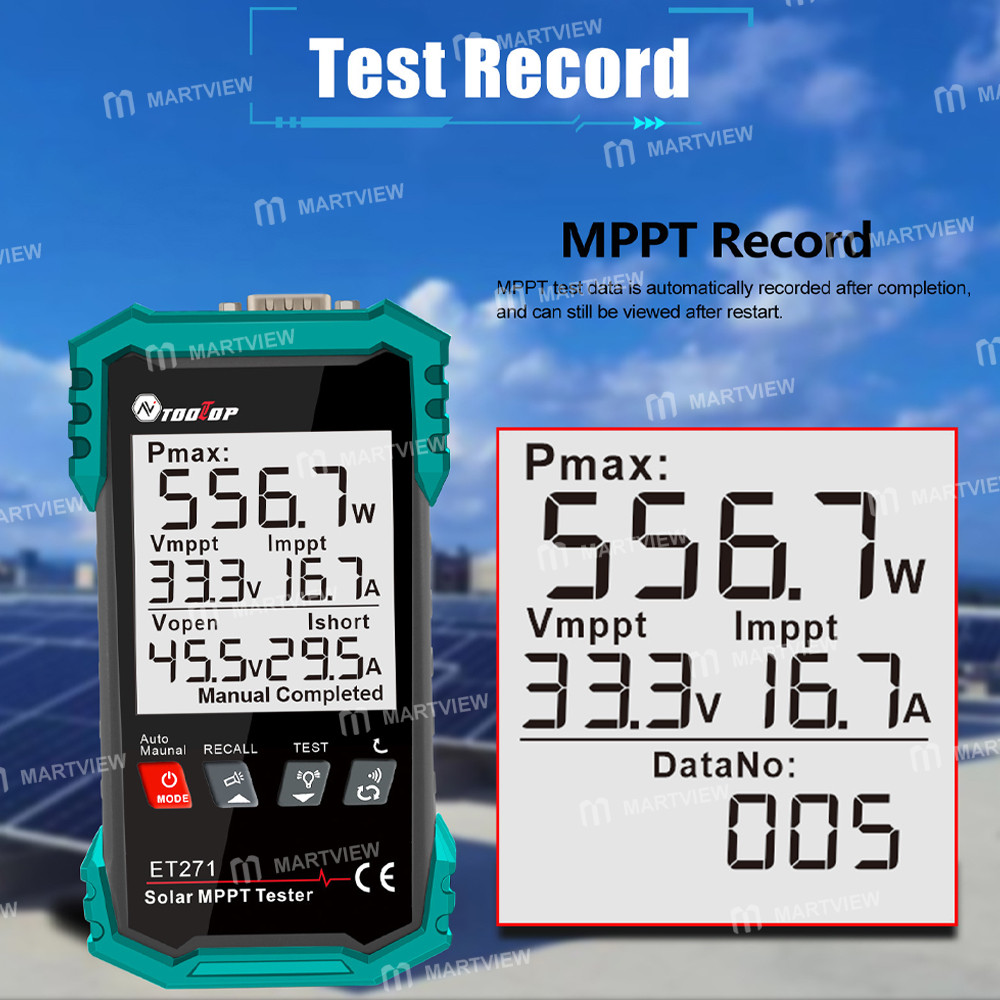

• Data record: 30

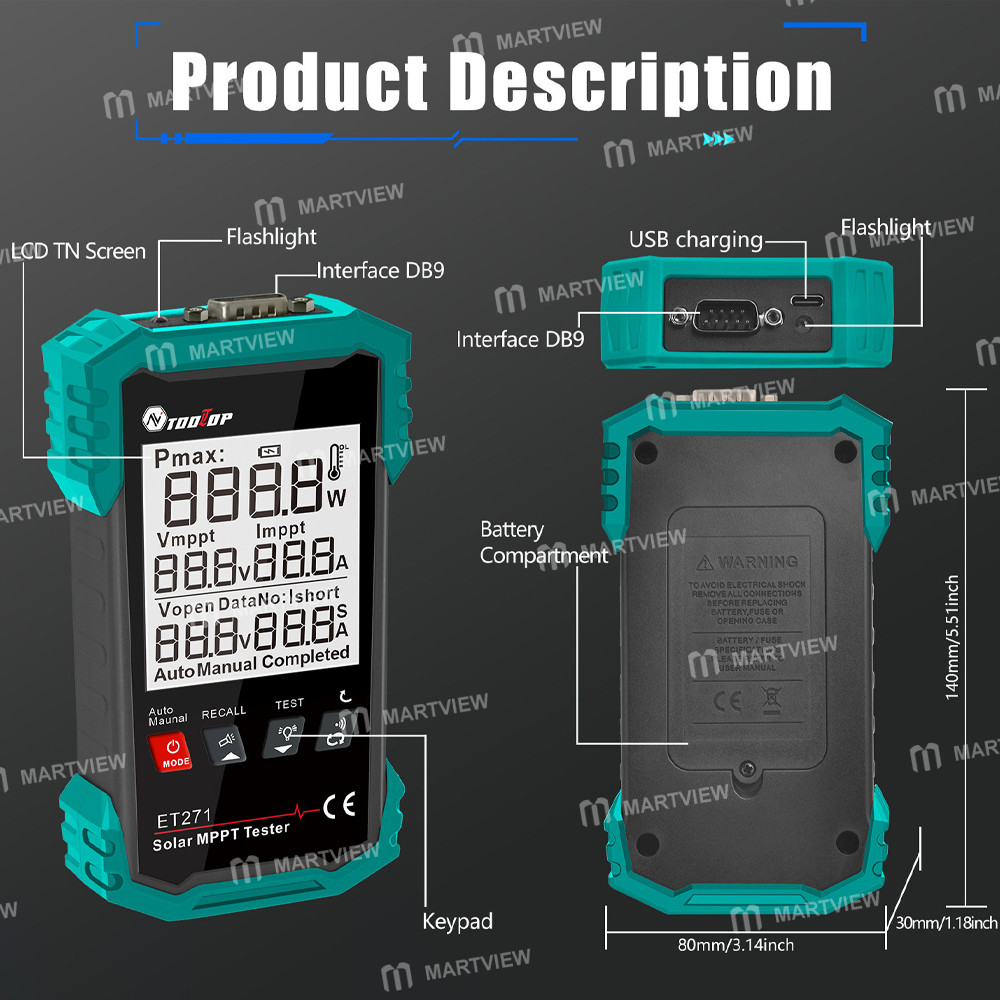

• Interface: DB9

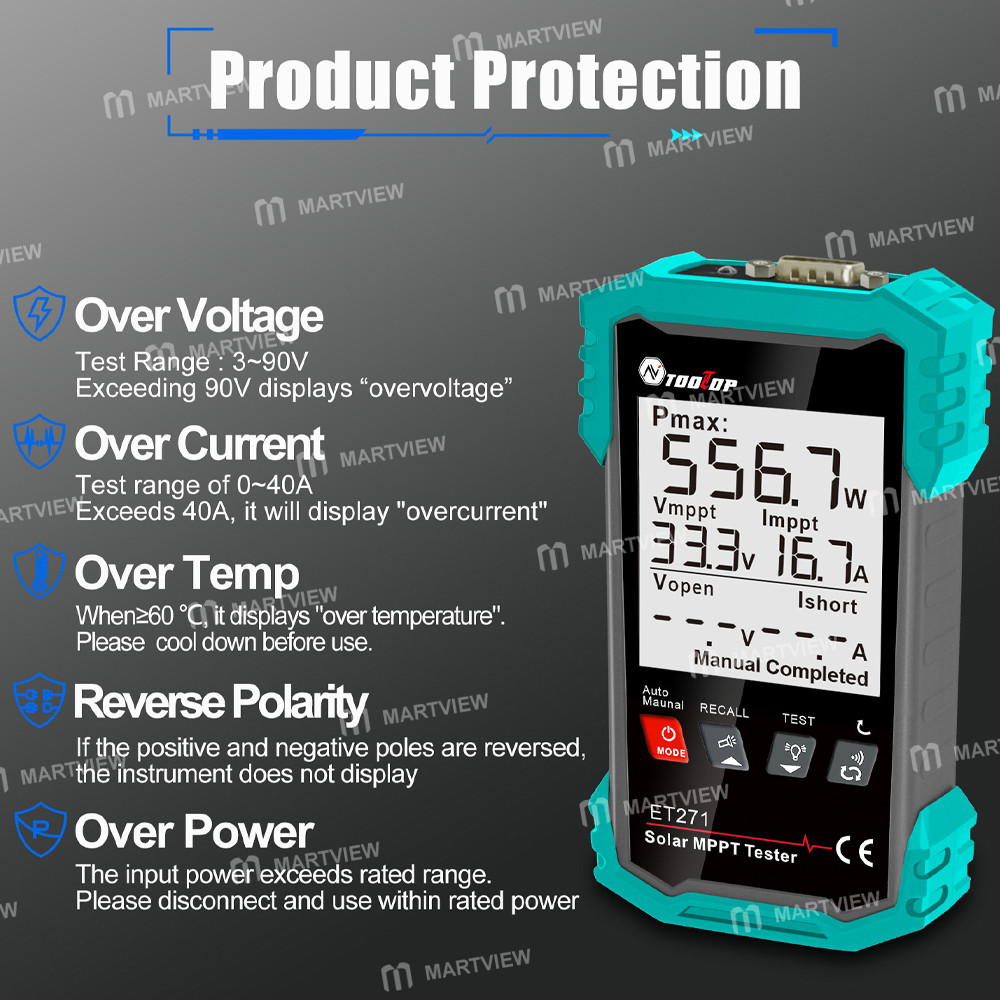

• Protect: Over-voltage/Over-reverse polarity/Over-current/Over-temperature protect

• Display: 3.2 inches

• Battery: Built-in 1250mAh rechargeable lithium battery

• Low Battery Detection Function: support

• Auto Power Off: Support

• Power: 5V/2A/10W or higher required; (Charger Not Included)

Package includes:

• 1 x Solar MPPT Tester

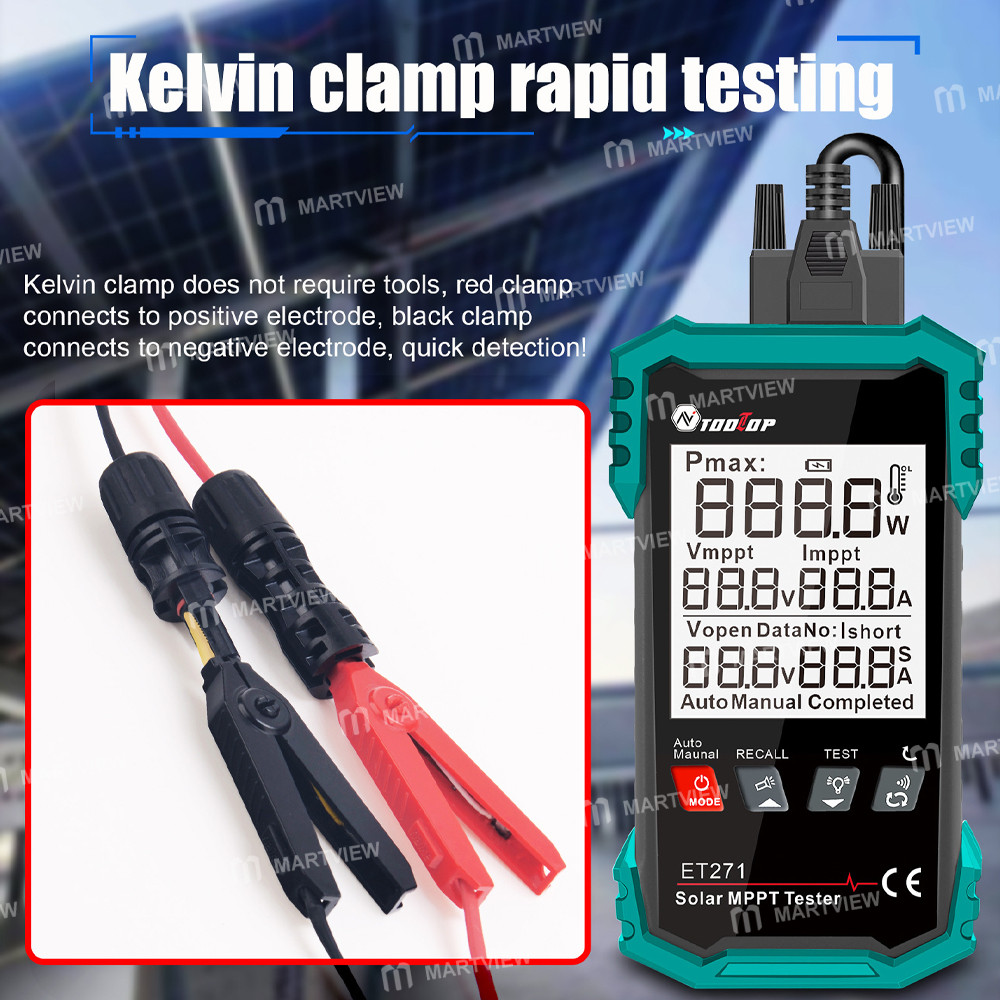

• 1 x Solar Test Clip

• 1 x USB Cable
