Tooltop ET8135 Portable Color Display Intelligent Auto Identification Burn-Proof Multimeter

Tooltop ET8135 Portable Color Display Intelligent Auto Identification Burn-Proof Multimeter

Features:

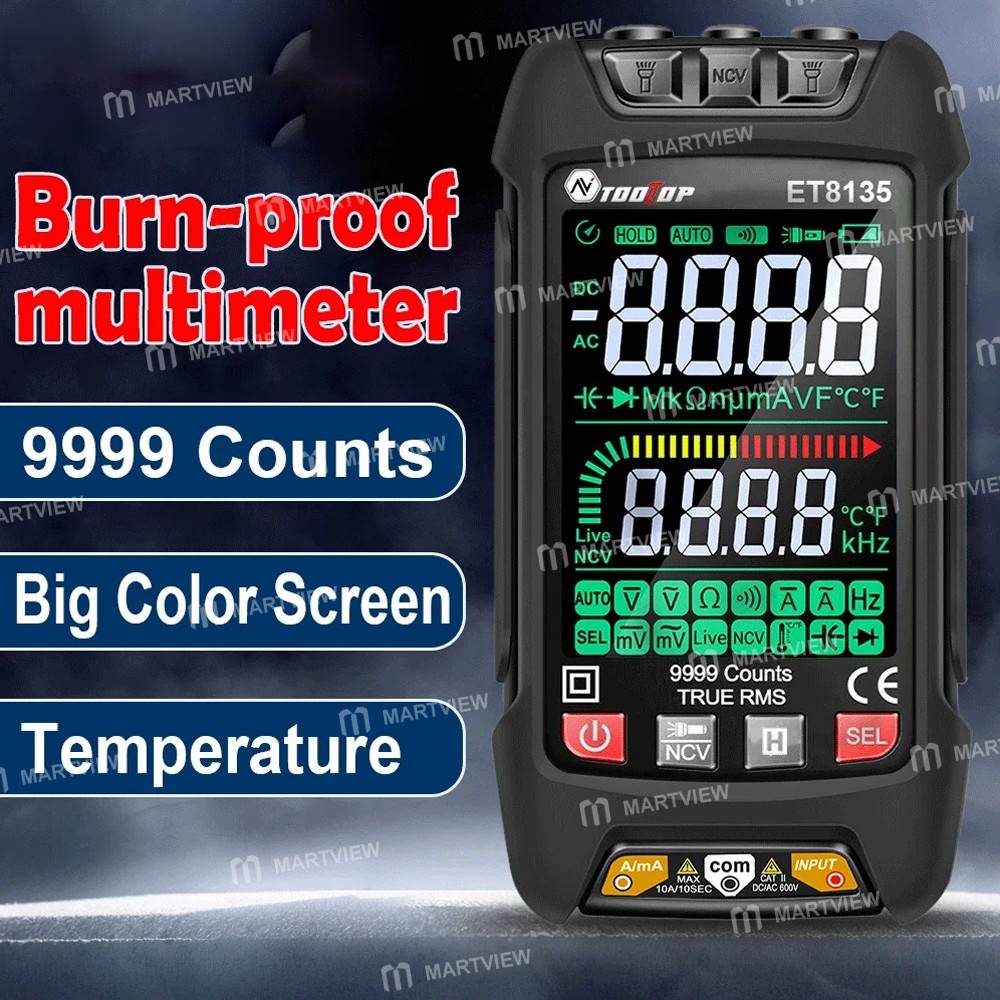

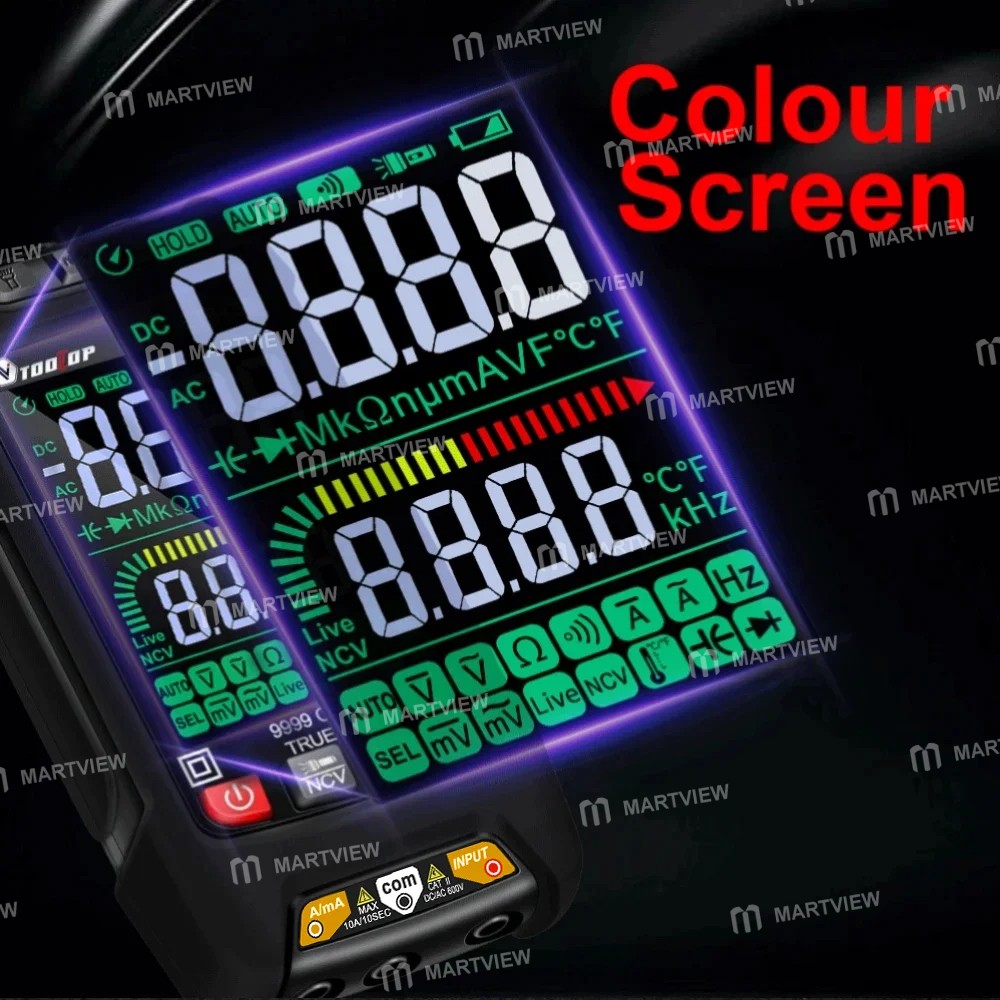

• Color Screen

• Auto-range measurement

• True RMS

• 9999 Counts display

• Full-range overload protection

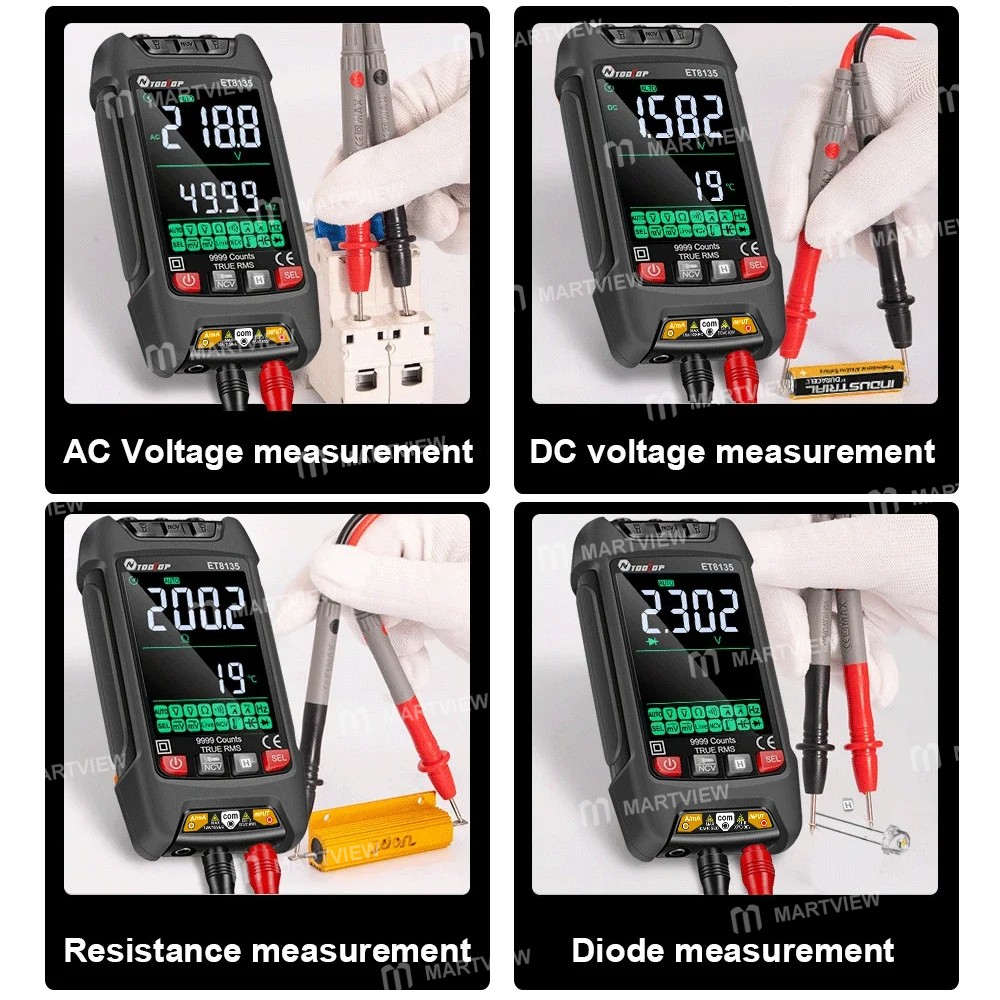

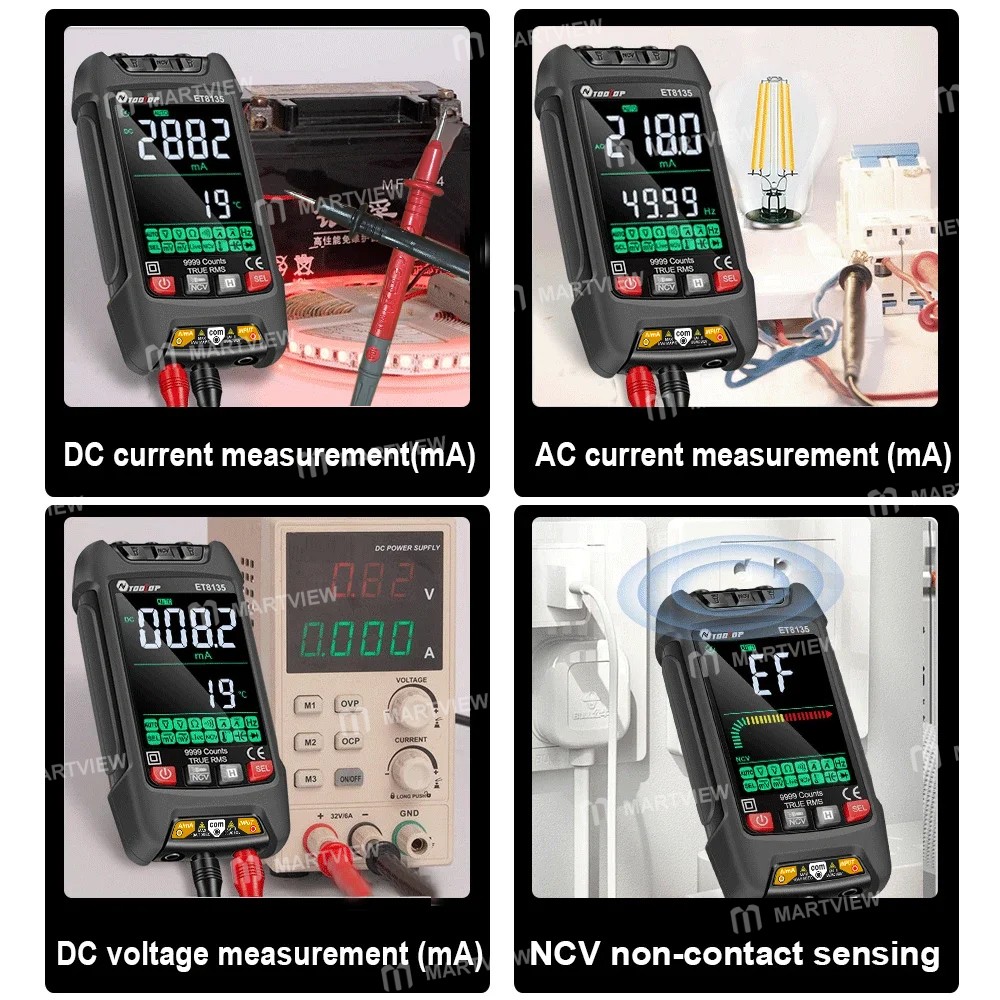

• DC/AC Voltage, DC/AC Current Measurement

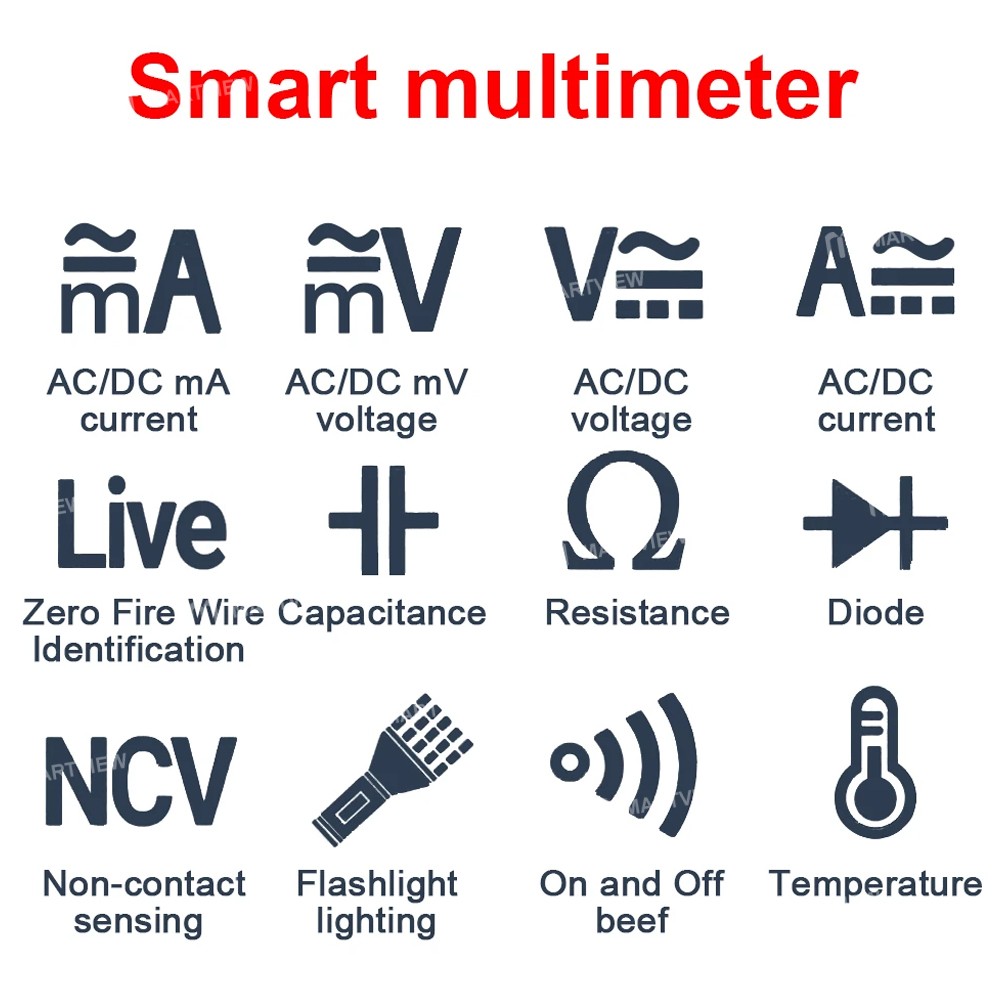

• Resistance/Diode/Capacitor/NCV/Frequency/Temperature Measurement

Specification:

• The maximum permissible voltage between the measurement terminal and ground: DC 1000V or AC 600V

• Display: Color LCD

• Maximum display value: 9999 digits

• Polarity indication: Automatic, with "_" indicating negative polarity

• Over-range display: "OL" or "OL"

• Sampling rate: Approximately 3 times per second

• Unit display: Functional with unit indication

• Auto power-off time: 15 minutes

• Power supply: 2*1.5V AAA batteries(Not included)

• Low battery indication: Support

• Operating temperature: 0°C to 40°C

• Storage temperature: -20°C to 60°C

• AC Current: 6000mA/10A

• DC Current: 6000mA/10A

• DC Voltage: 600.0mV/9.999V/99.99V/999.9V

• AC Voltage: 600.0mV/9.999V/99.99V/600.0V

• Line on-off Test: ＜50Ω

• Resistance: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ

• Diode Test: Open Circuit Voltage: Approximately 2.8V

• Capacitor: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

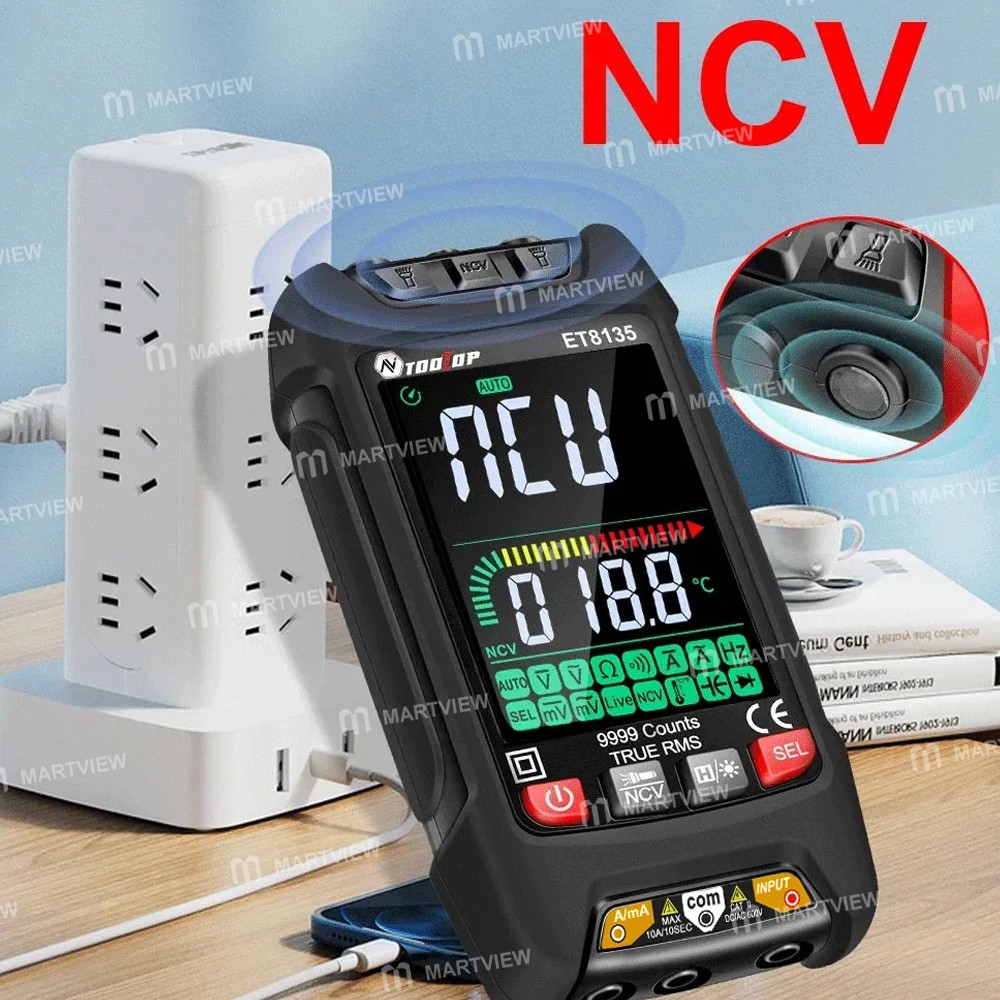

• NCV: Yes

• Temperature: -40~1000℃/-40~1832℉

• Frequency: 100Hz/1000Hz

• Backlight: Yes

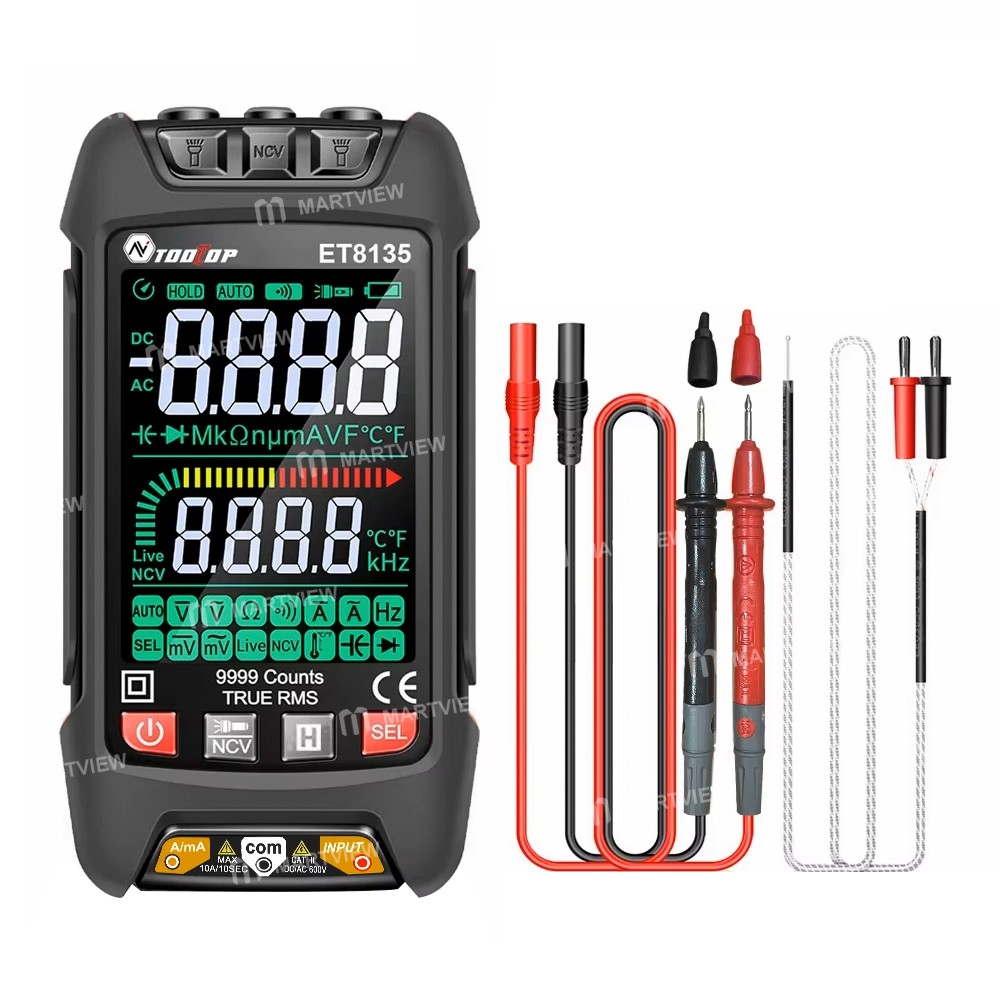

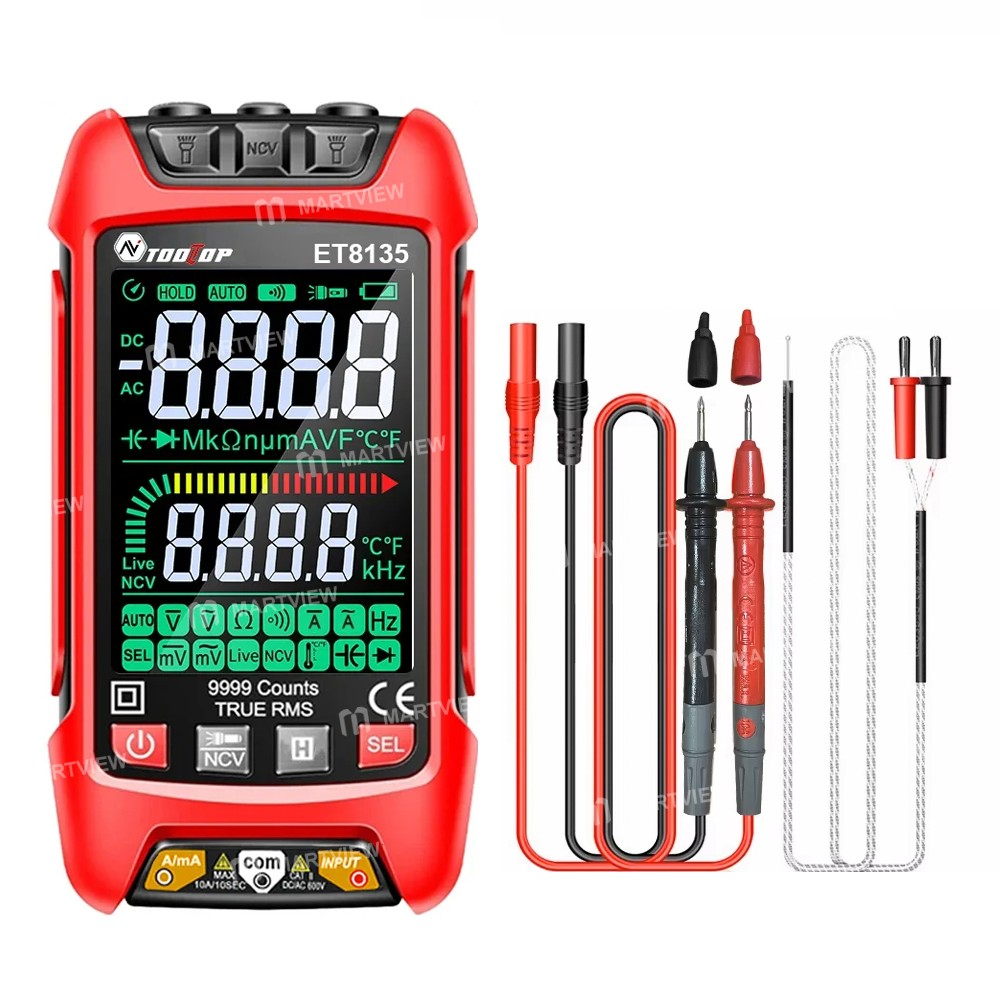

Package includes:

• 1 x Multimeter

• 2 x Test Leads

• 1 x Temperature Test Leads
