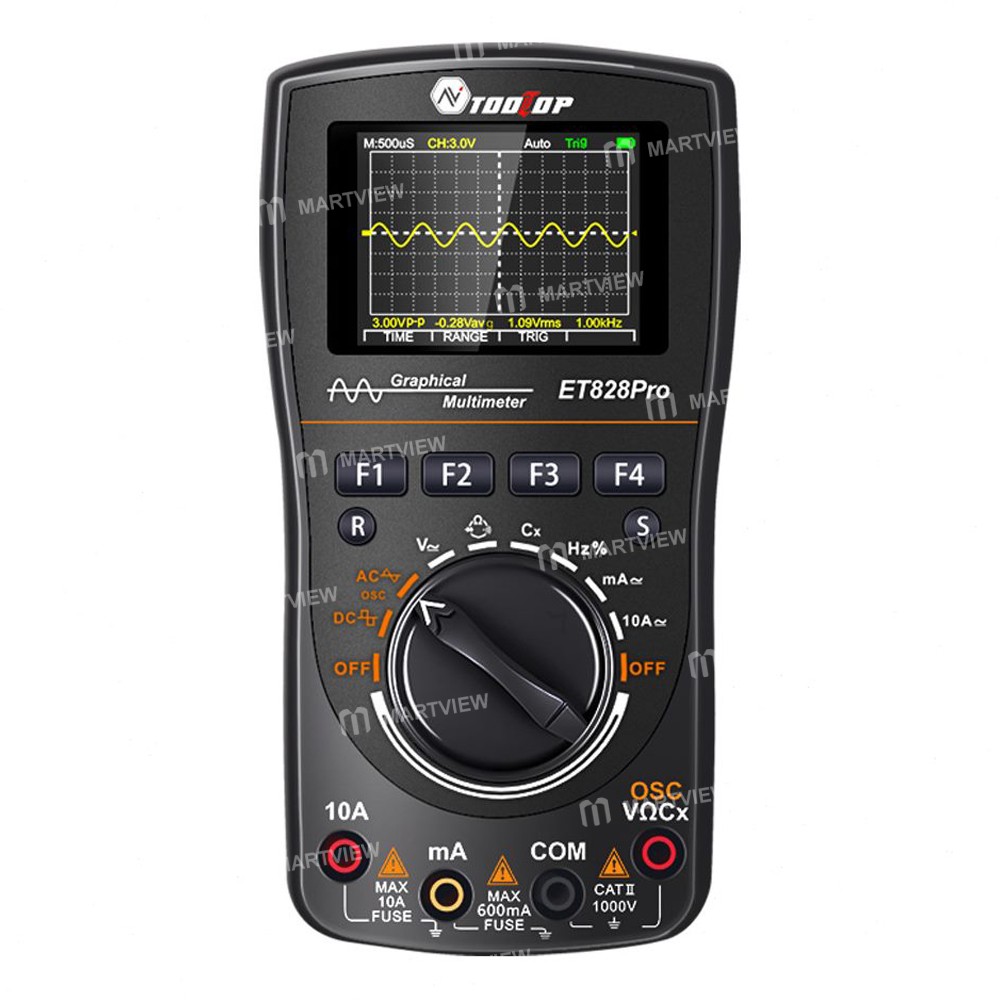

Tooltop ET828Pro 2-in-1 Digital Graphical Oscilloscope Multimeter Supports Waveform Storage

Tooltop ET828Pro 2-in-1 Digital Graphical Oscilloscope Multimeter Supports Waveform Storage

Features:

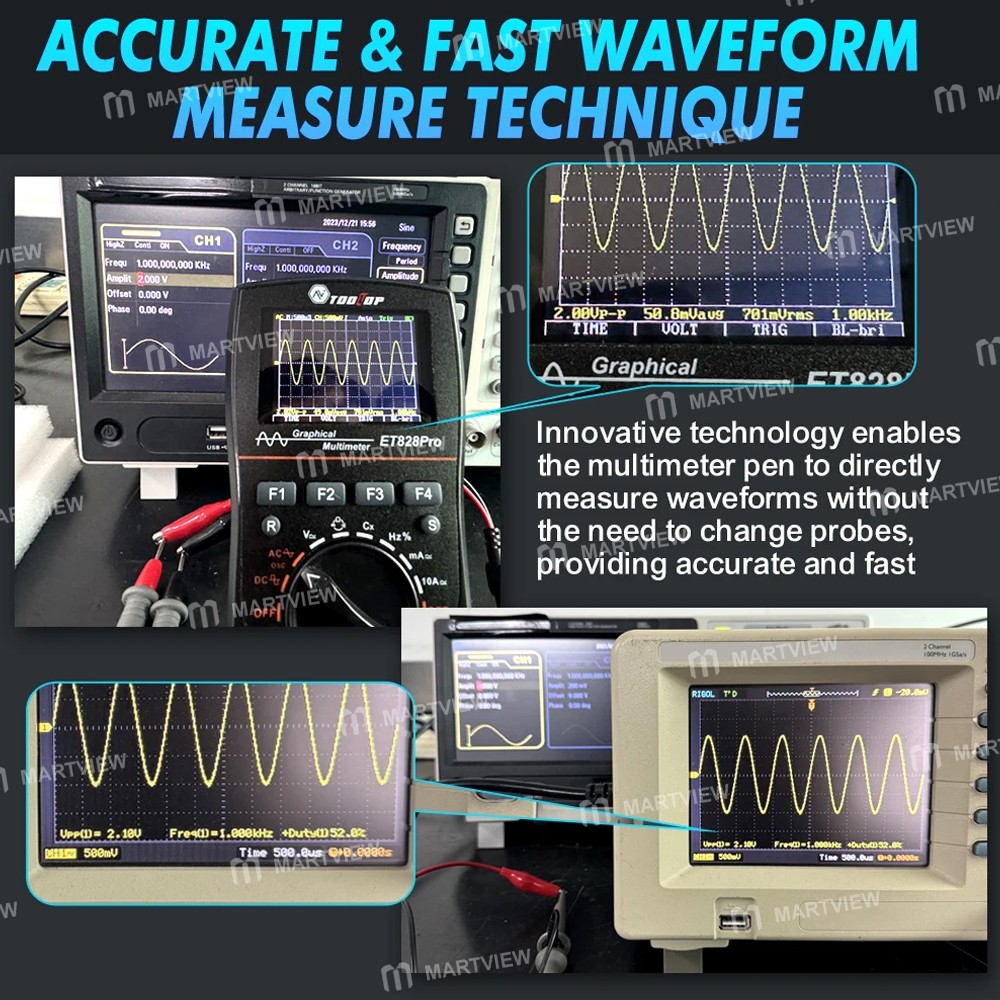

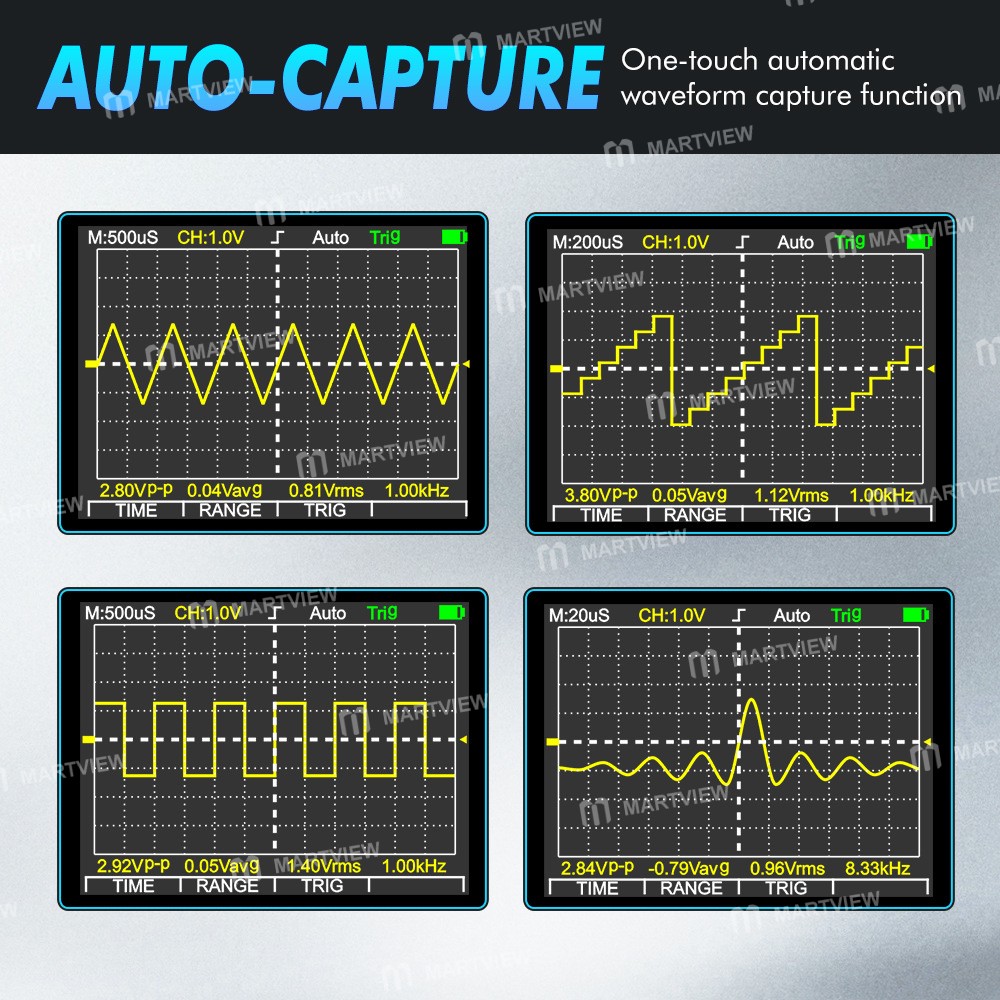

• One-button waveform capture, intelligent and easy to use, improves work efficiency

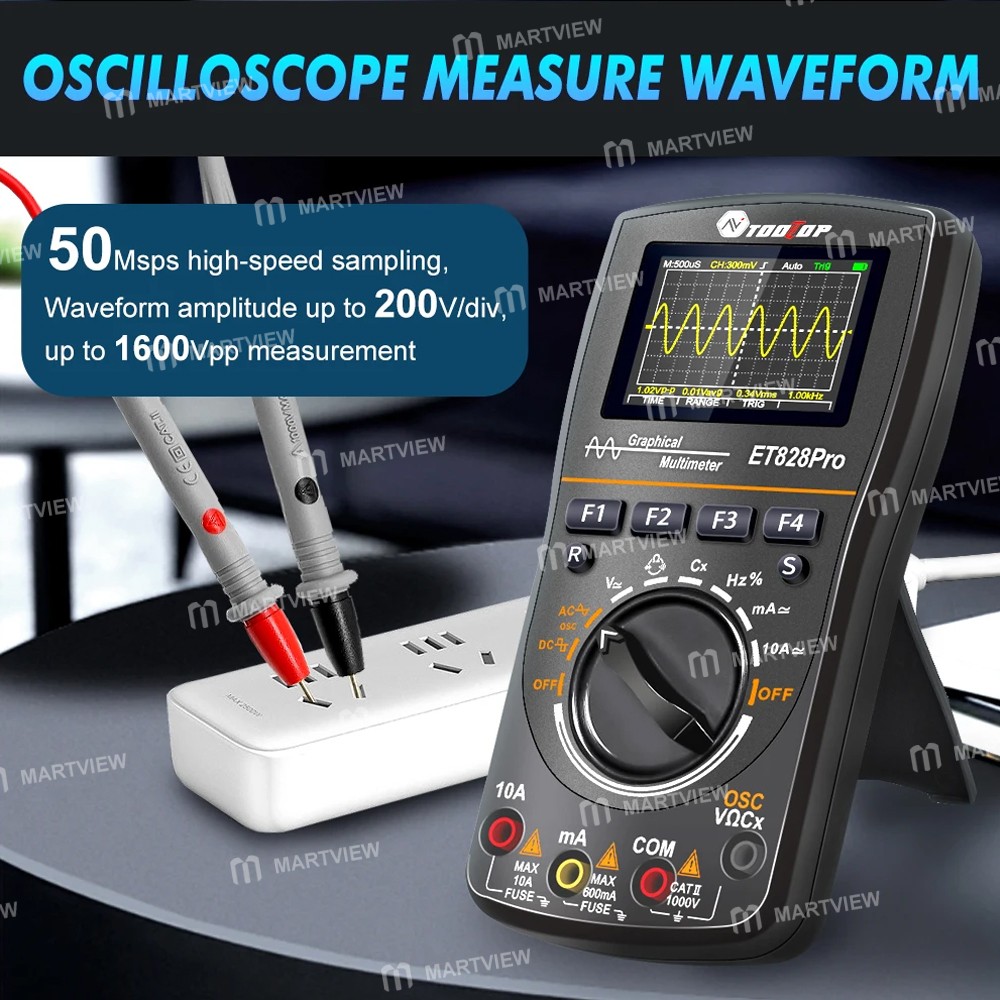

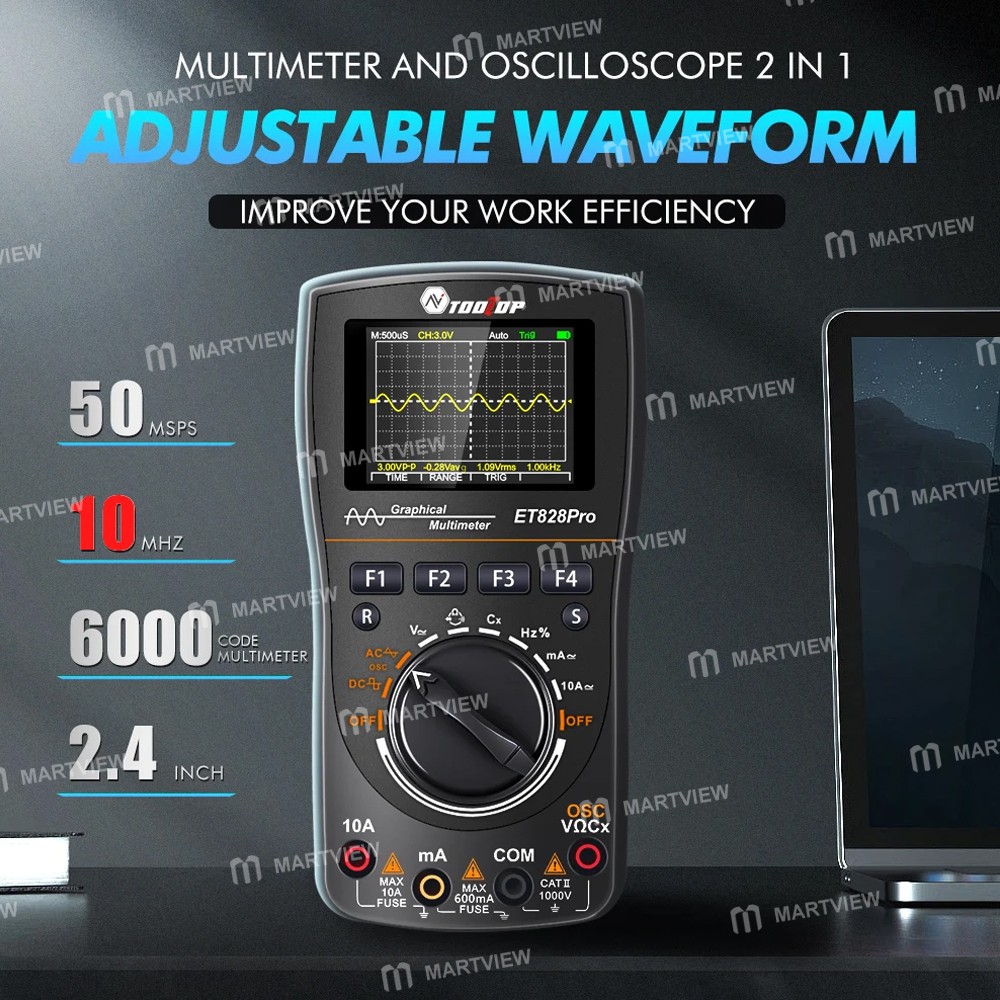

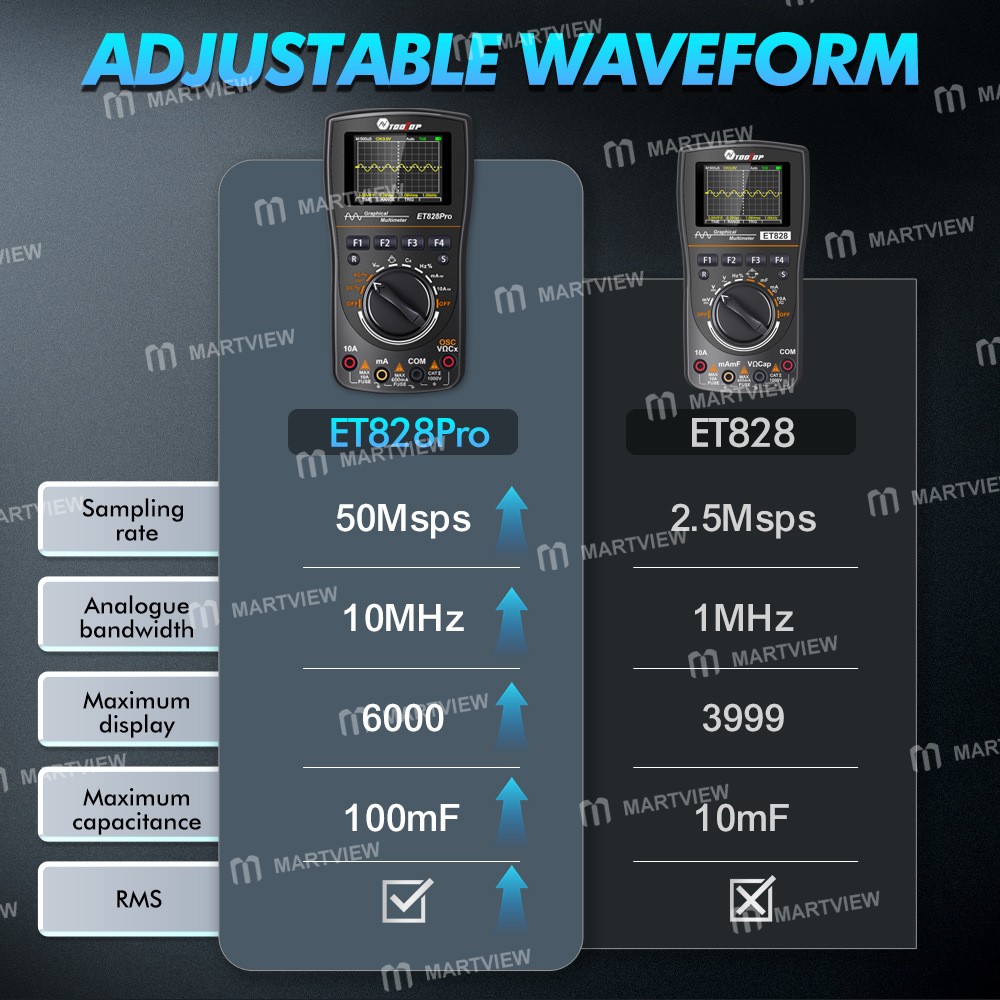

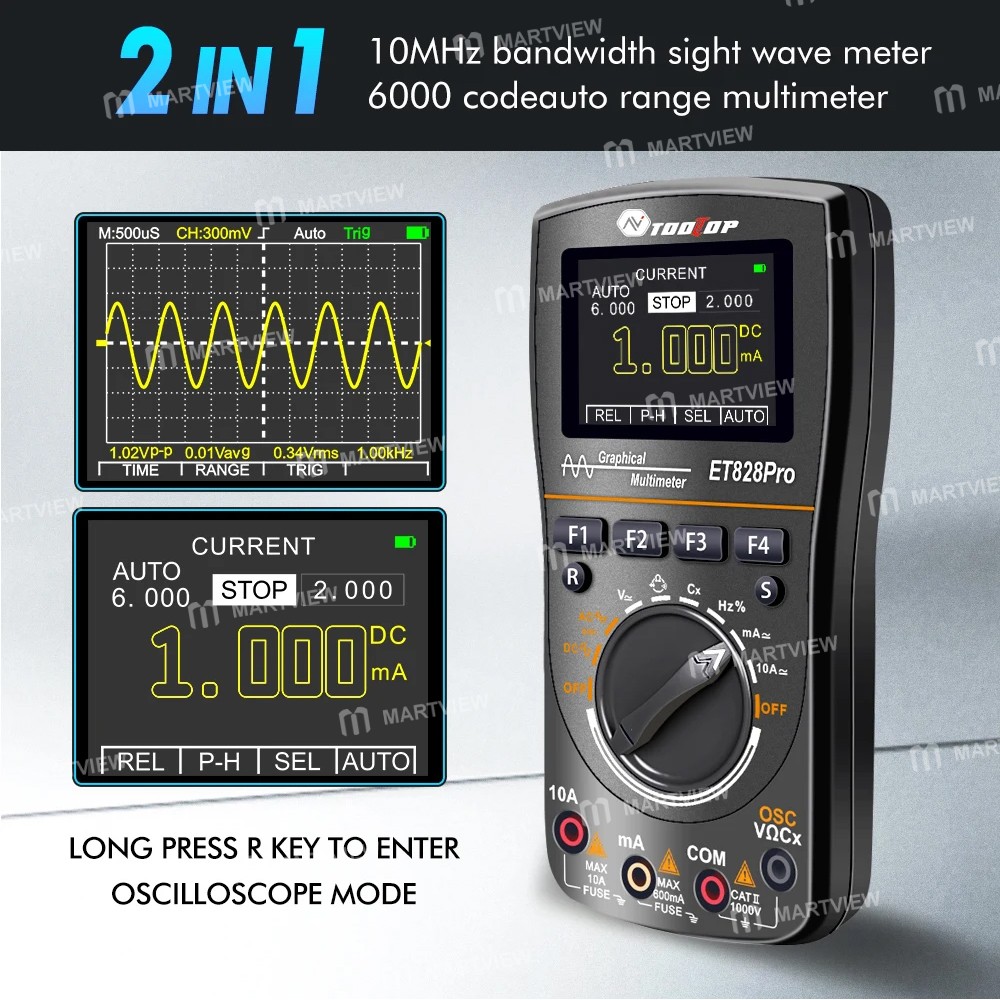

• 2-in-1: 50Msps high-speed sampling, 10MHz analog bandwidth Oscilloscope +  6000 counts display digital multimeter

• Powerful uses: it can be used in different applications such as DIY electrical design, car overhaul, production line, equipment maintenance, and power system

• Color screen display: 2.4-inch color screen, clear waveform display

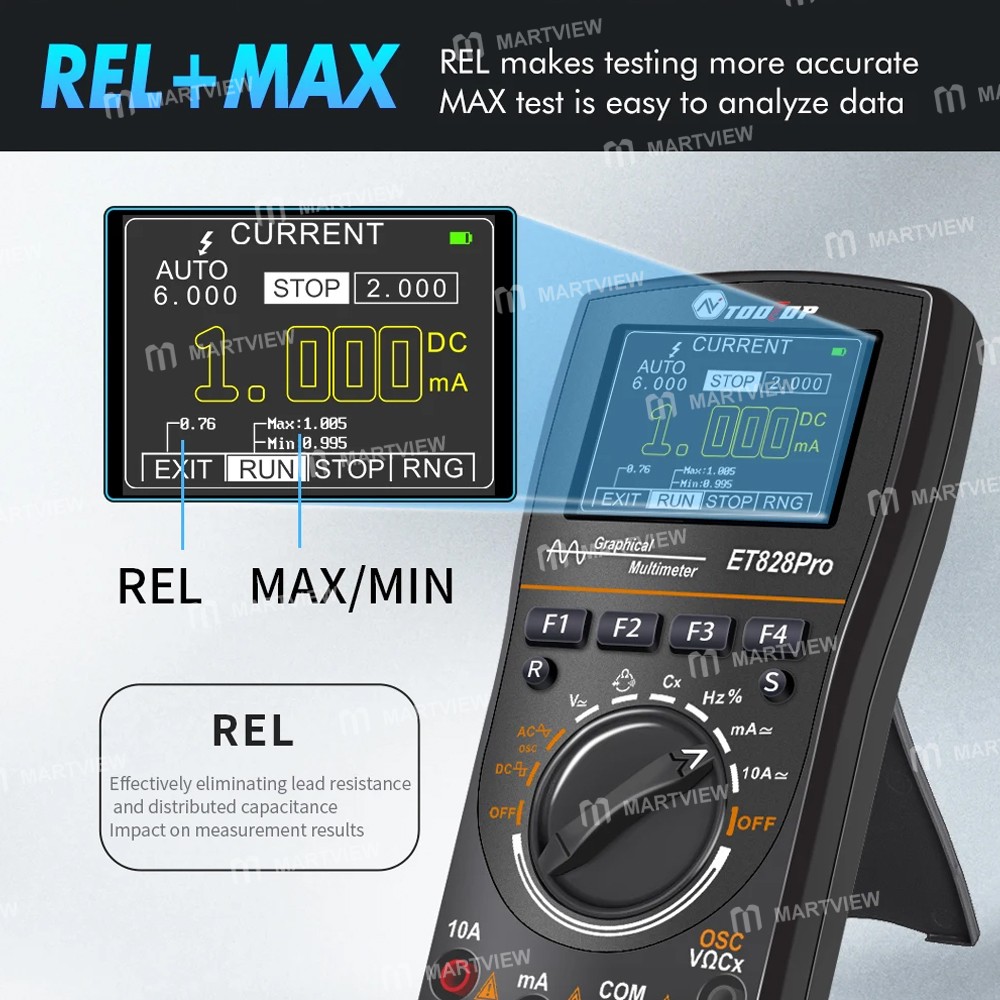

• Multi-function multimeter: 6000 counts display,  fast and accurate measurement of AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity

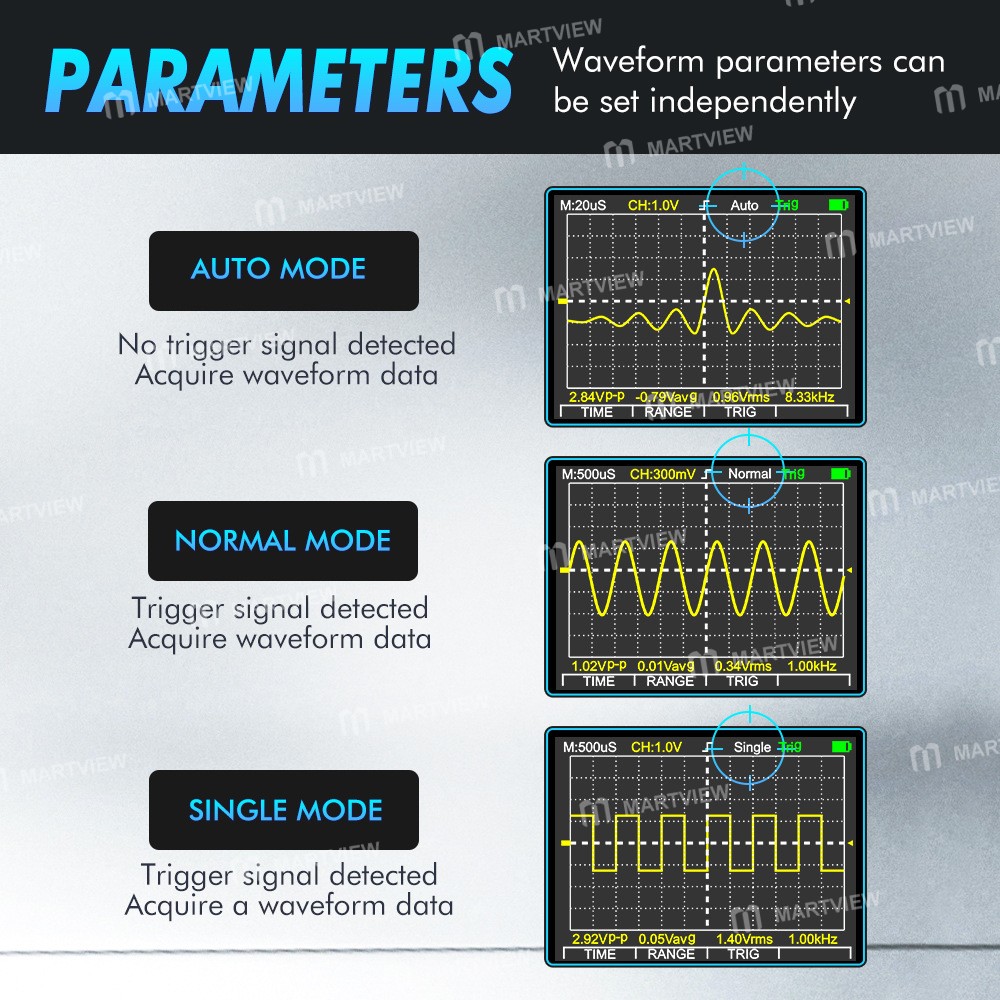

• Oscilloscope parameter independent setting: Auto/Normal/Single scanning modes, time base, amplitude, rising edge, falling edge, and level

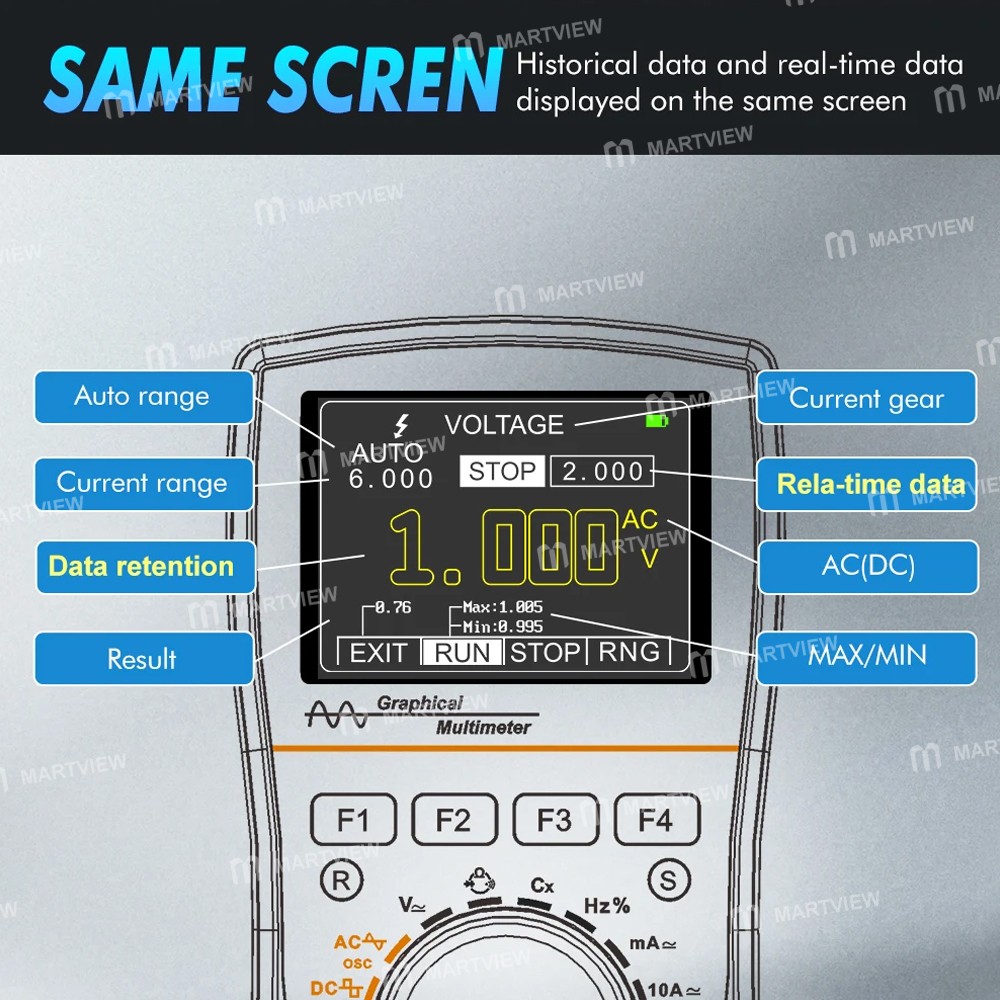

• Can store 100 sets of data and 10 sets of waveform. Historical data and real-time display can be displayed on the same screen, greatly facilitating the analysis of data

• Panel calibration and memory calibration coefficients do not need potentiometer adjustment and higher reliability

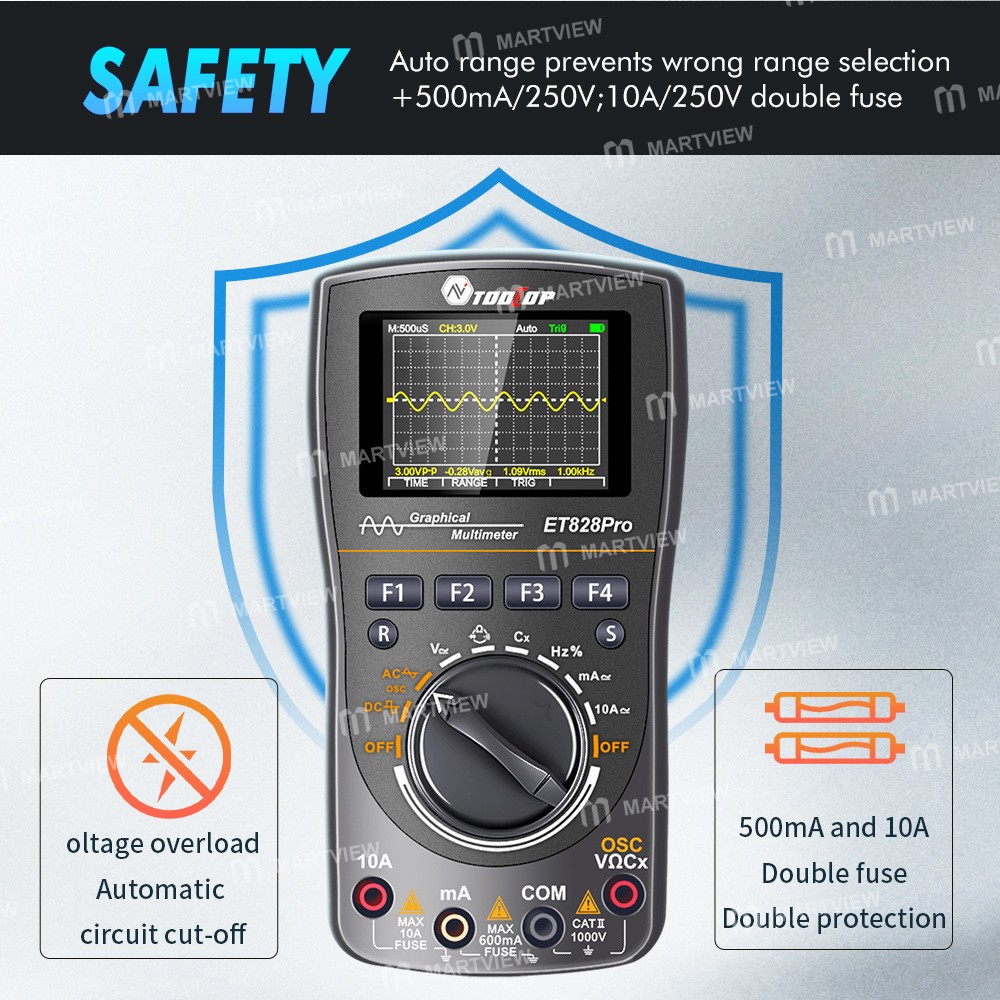

• Overload protection 500mA/10A double fuse, double protection meter

Specification:

• Display: 240 x 320 LCD Screen

• Display area: About 2.4 inches

• Backlight: White

• Input resistance: 10MΩ

• Battery: AA battery x 3(Not  included)

• Power consumption: About 80mA

• Use time: Low light about 5 hours

• Storage: 100 Data, 10 Waveforms

• Use: 0℃~40℃; <75% RH

• Storage: -10℃~60℃; <90% RH

• Size: 83*160*32(mm)

• Weight: About 195g (without battery)

Oscilloscope Characteristics:

• Analog bandwidth: 10MHz (limited to ACV oscilloscope)

• Maximum real-time sampling rate: 50Msps

• Number of channels: One

• Input impedance: about 10MΩ

• Vertical sensitivity range: 300mV - 100V/grid

• Time base range: 2.5us~10s/div

• Vertical amplitude accuracy: ±(5%+ 0.2div)

• Time base accuracy: ±(0.01% + 0.1div)

• Scan mode: Auto/Normal/Single

• Trigger edge selection: Rising edge/Falling edge

• Automatic setting: Automatically set the time base and vertical amplitude

• Automatic measurement function: Vpp, Vavg, Vrms, Hz

Multimeter Characteristics:

• DC voltage: 600mV/6V/60V/600V/1000V ±(1.5%+10dgt)

• AC voltage: 600mV/6V/60V/600V/750V ±(1.0%+10dgt)

• DC Current: 60mA/600mA/6A/10A ±(1.2%+10dgt)

• AC Current: 60mA/600mA/6A/10A ±(1.5%+10dgt)

• Resistance: 600.0Ω~60.00MΩ ±(1.0%+5dgt)

• Capacitance: 10nF~100mF ±(3.0%+5dgt)

• Frequency: 5Hz~10MHz ±(1.0%+5dgt)

• Diode test: Voltage is about 1.5V

• Continuity test: Judgment Resistance about <50Ω beep

• Fuse: 500mA/250V, 10A/250V

Package includes:

• 1 x Oscilloscope Multimeter (without Battery)

• 1 x Test Pen
