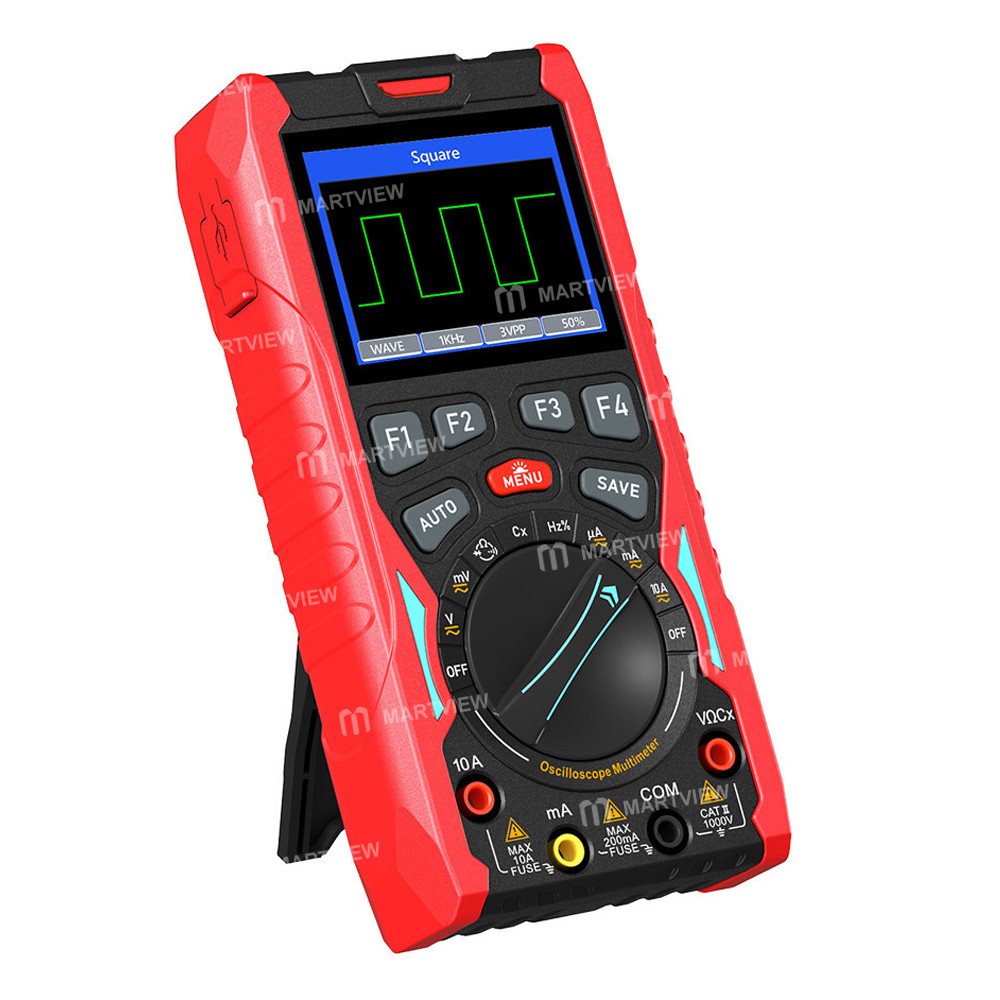

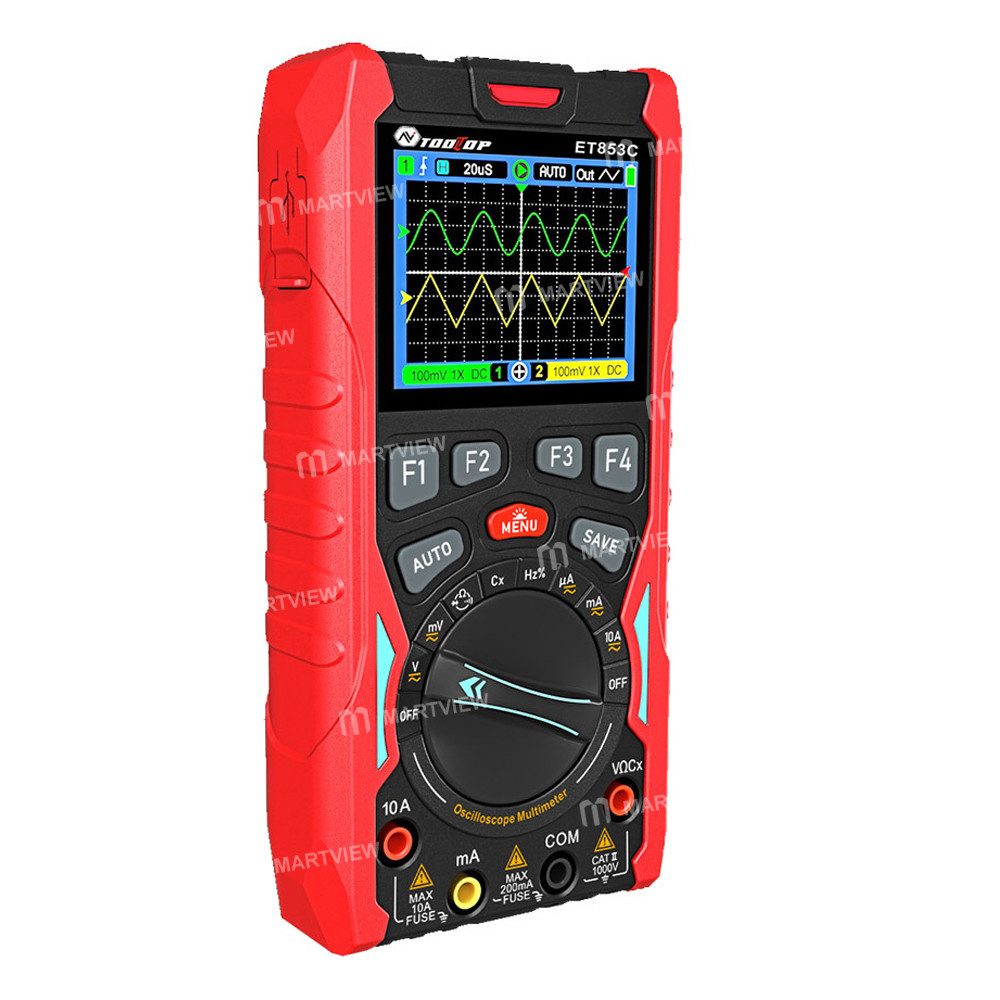

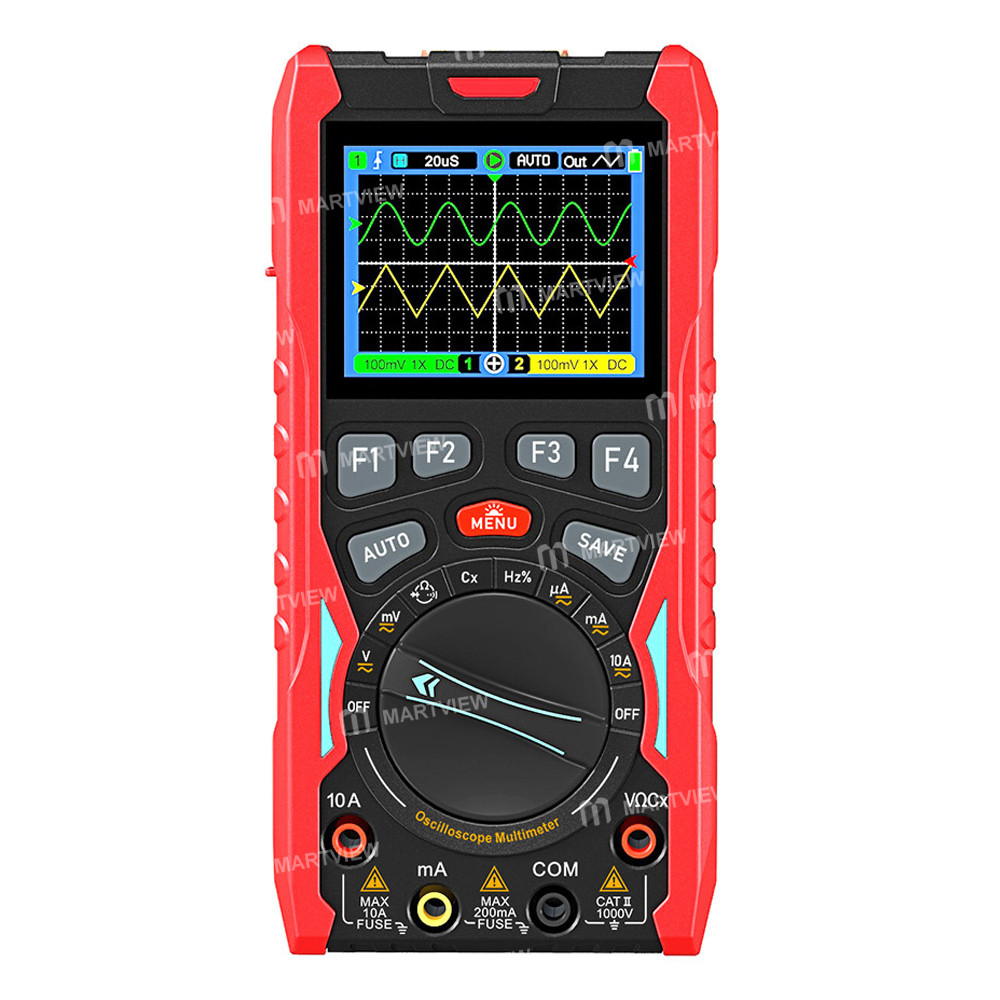

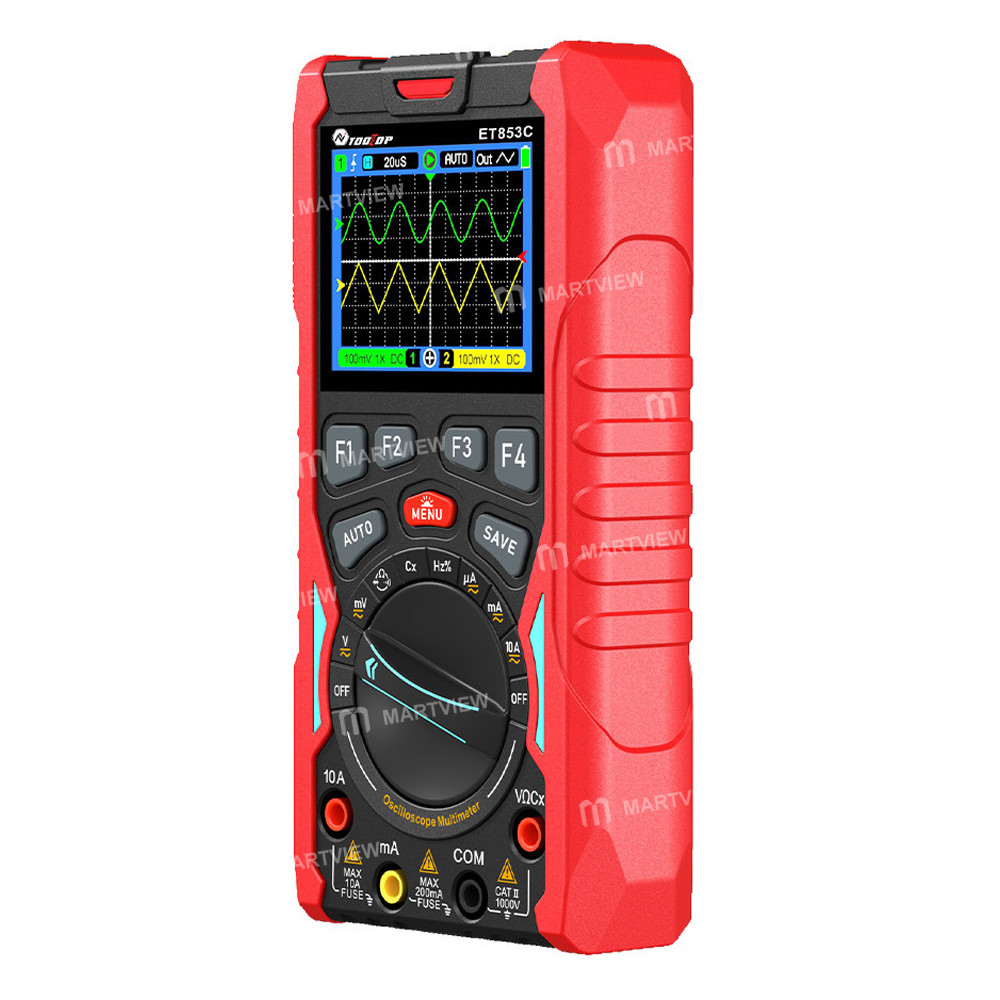

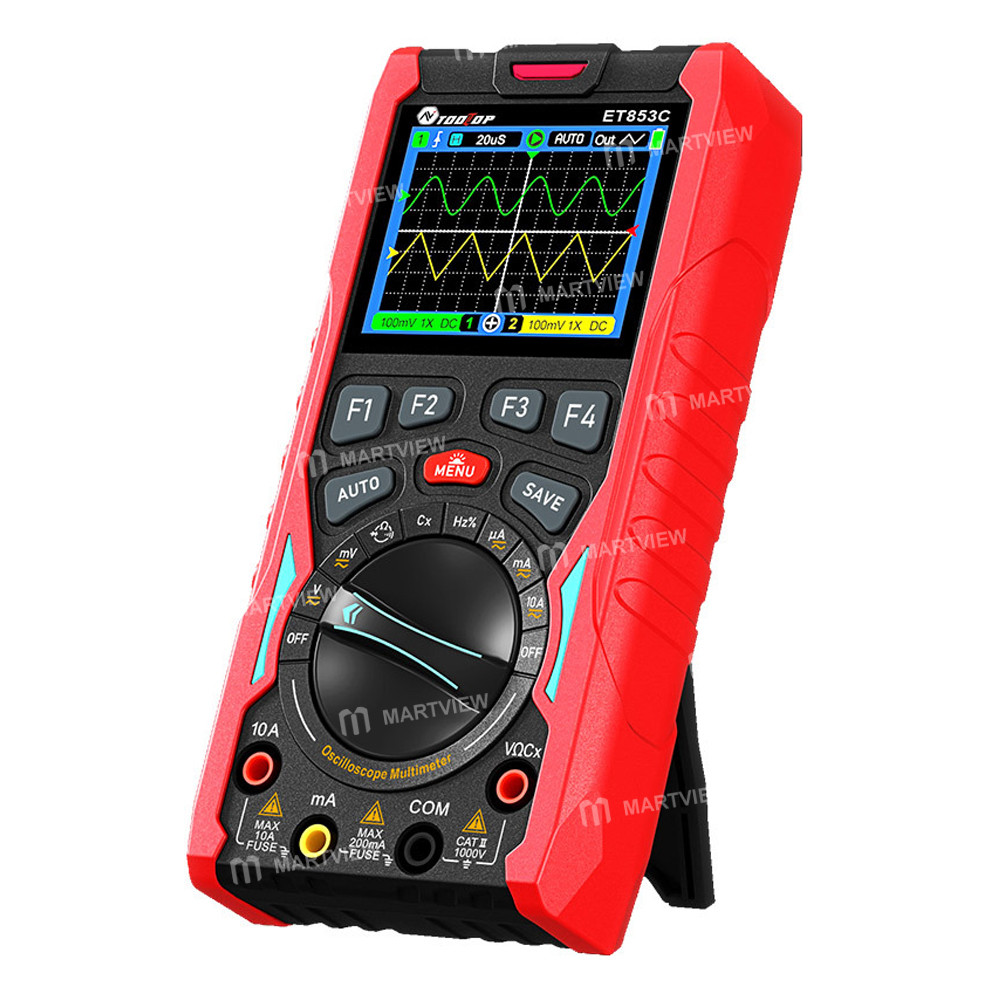

ToolTop ET853C Handheld 3-in-1 RMS Multimeter + Dual-Channel Oscilloscope + Signal Generator

ToolTop ET853C Handheld 3-in-1 RMS Multimeter + Dual-Channel Oscilloscope + Signal Generator

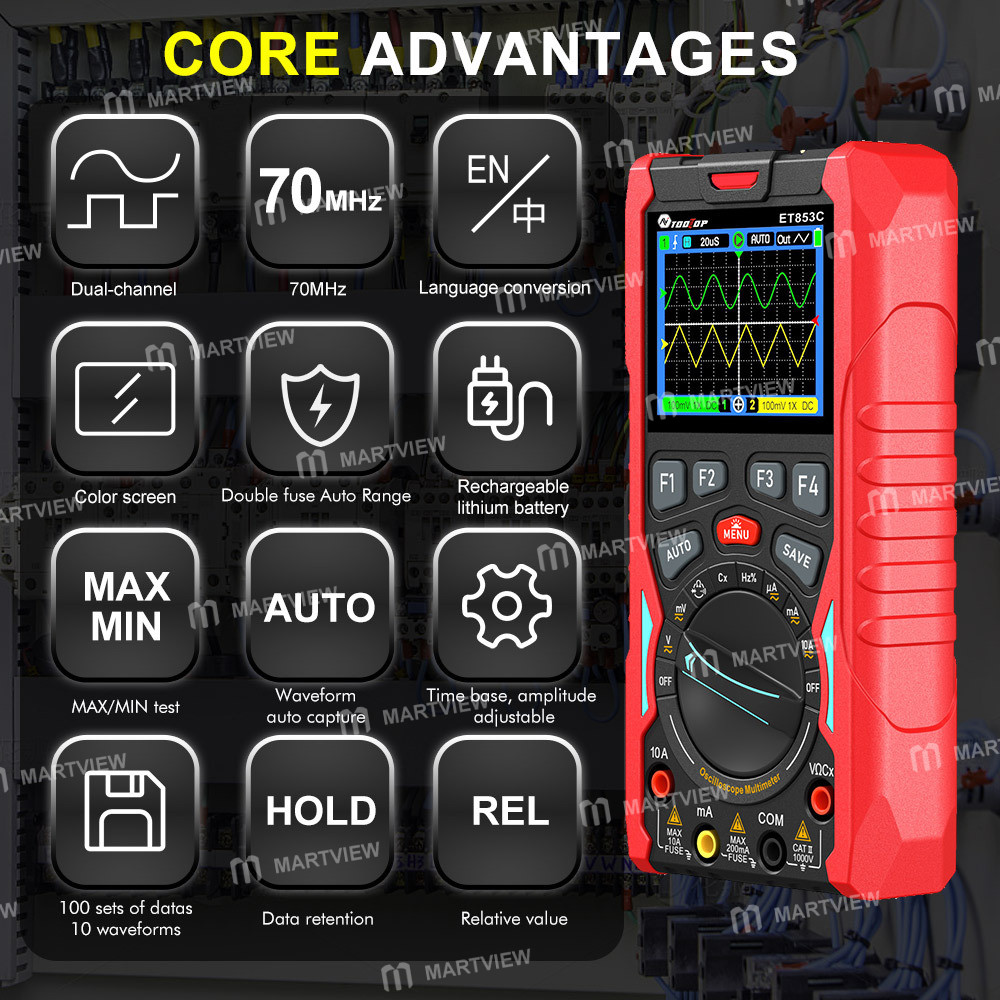

Features:

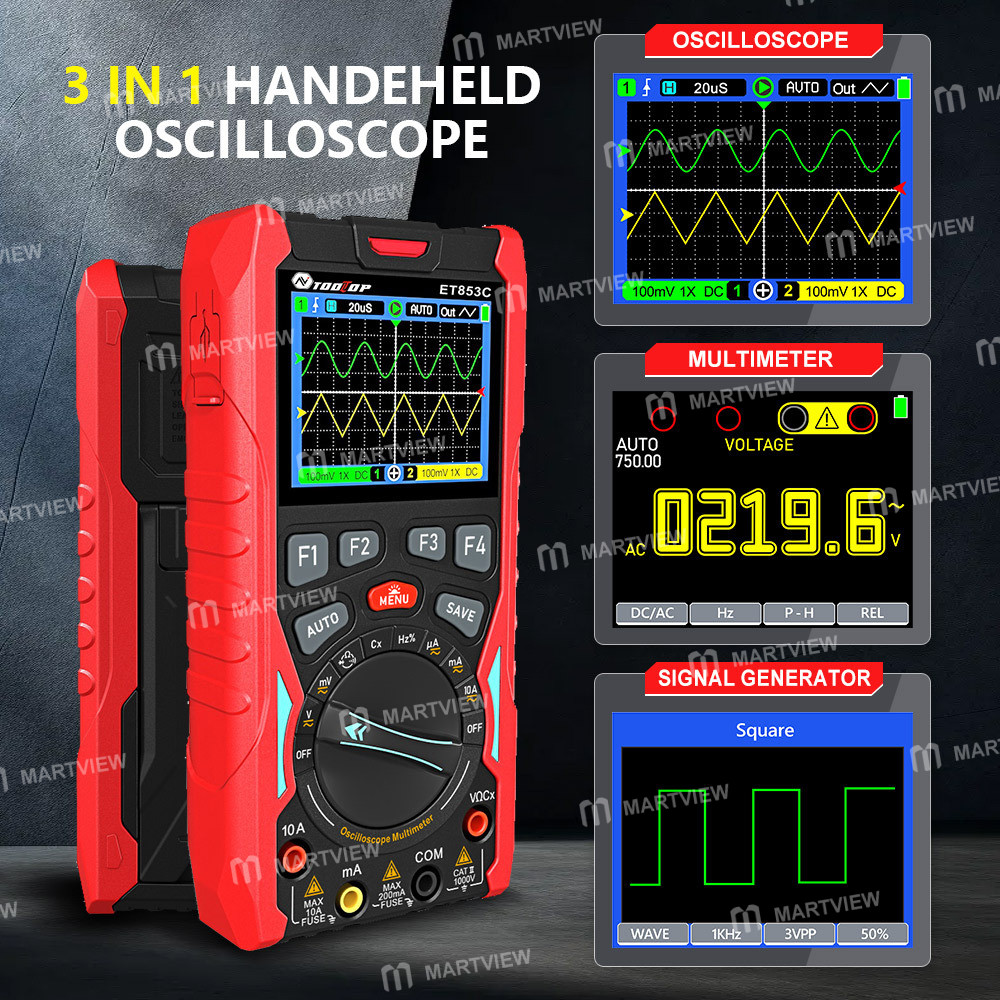

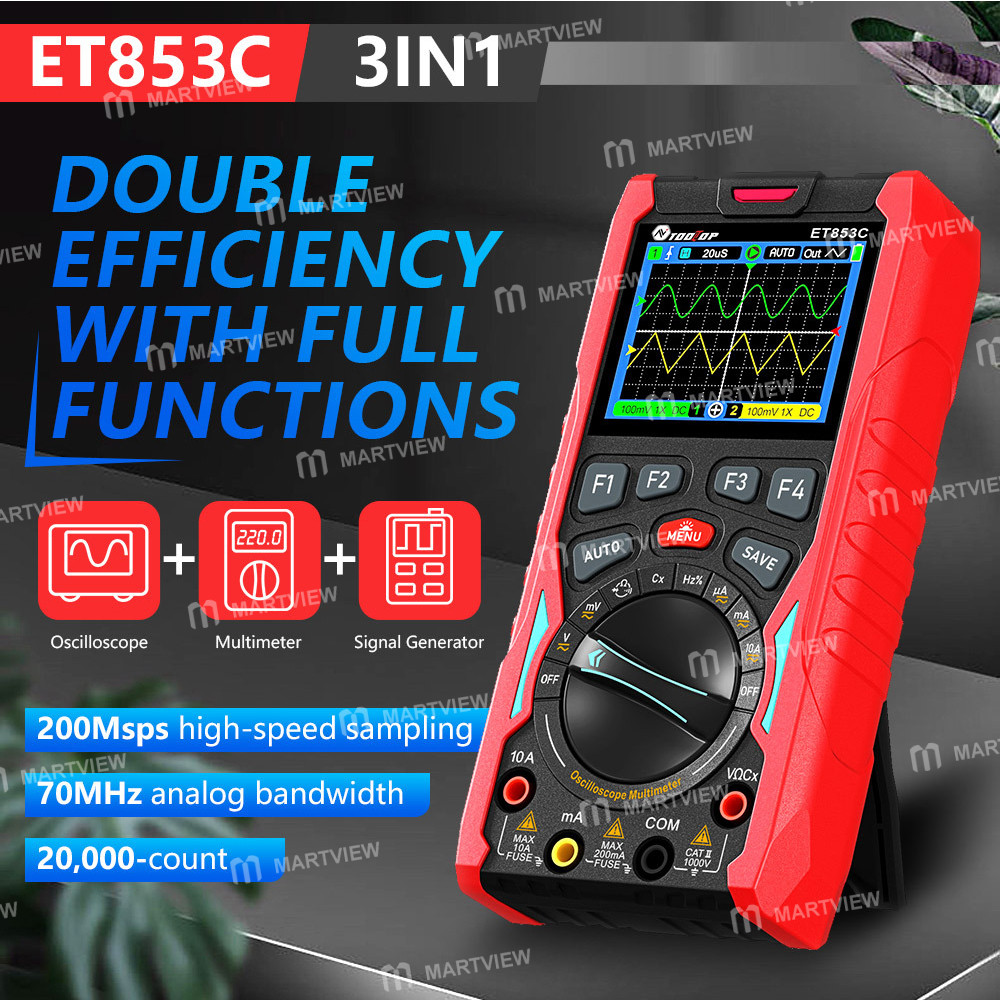

• Dual-channel Oscilloscope + Multimeter + Signal Generator 3-in-1

• 70MHz analog bandwidth with 200Msps high-speed sampling rate

• 20,000-count true RMS multimeter, AC DC current, AC DC voltage, resistance, capacitance, diode, buzzer, Duty Cycle, frequency

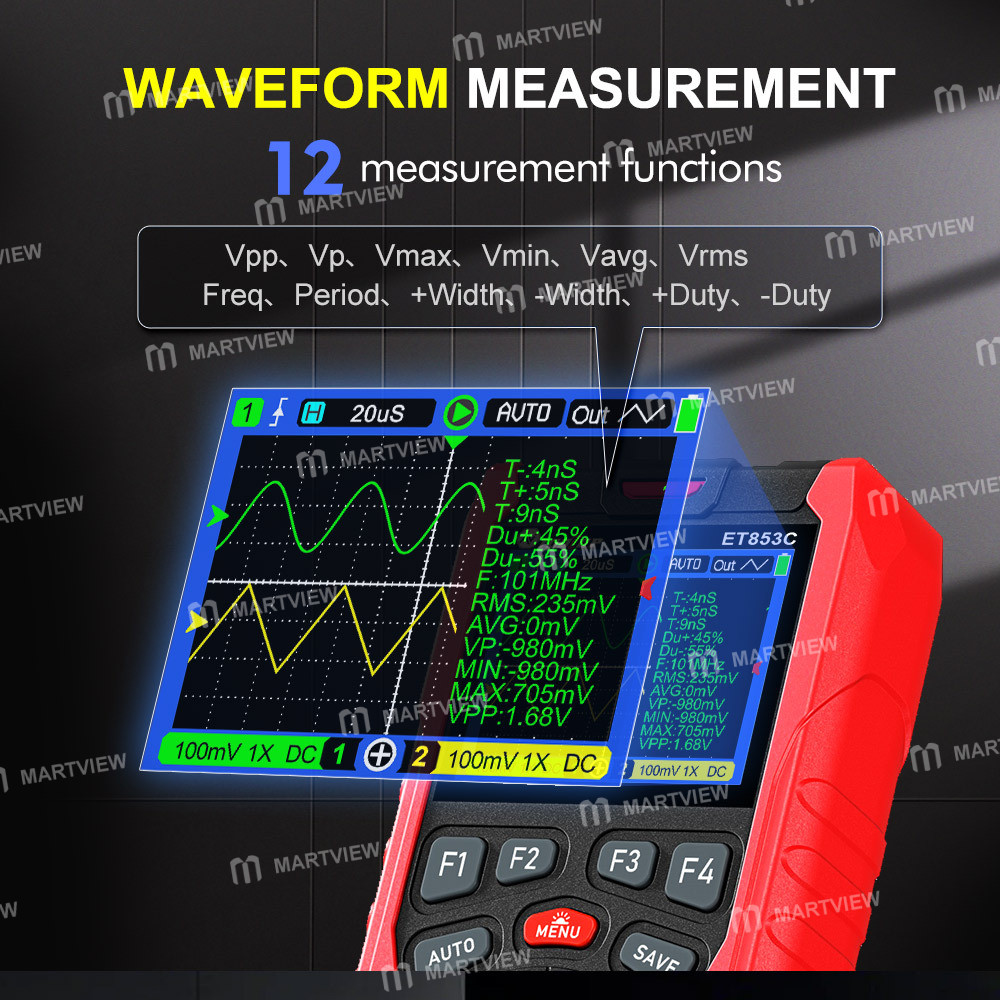

• 12 Waveform Parameter Measurement: Vpp, Vp, Vmax, Vmin, Vavg, Vrms, Freq, Period, +Width, -Width, +Duty, -Duty

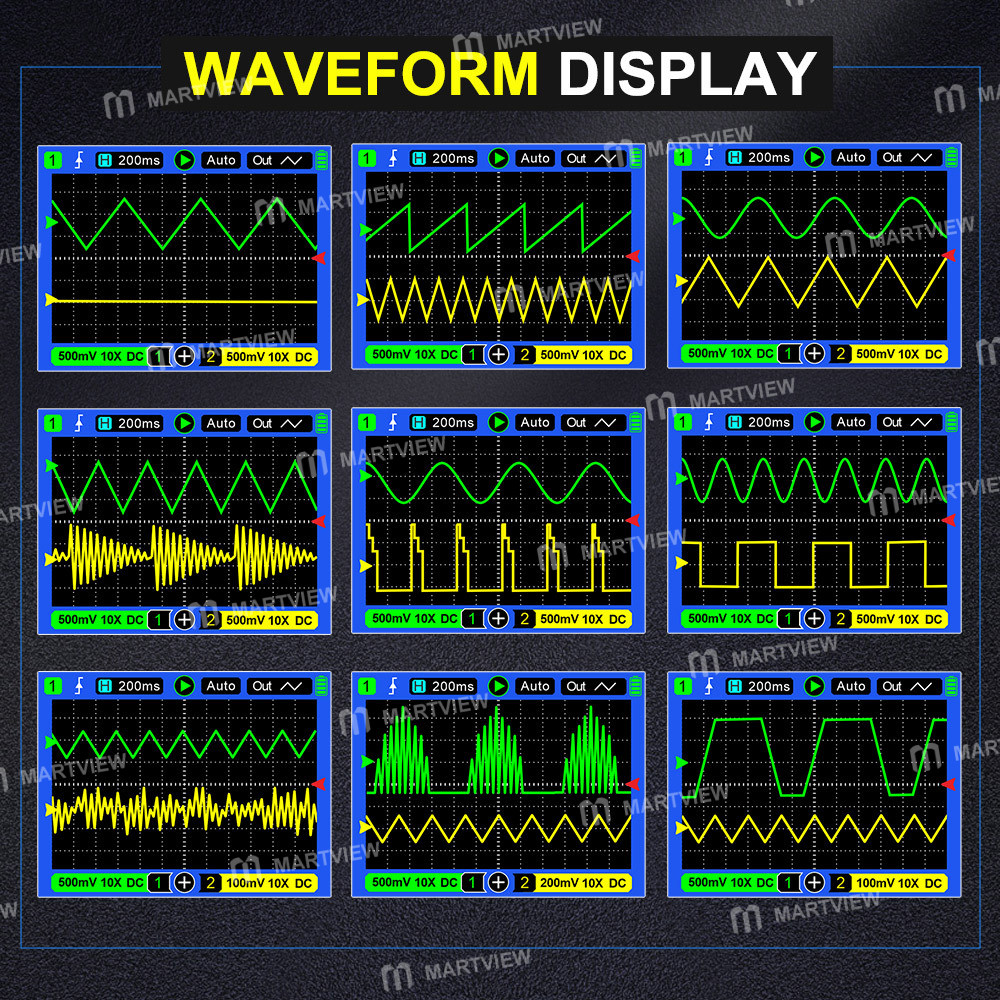

• Support square wave, sine, and triangle wave signal outputs, and output amplitude adjustable.

• Built-in rechargeable 18650 battery 2000mAh, detachable design for easy battery replacement, battery life of about 4 hours

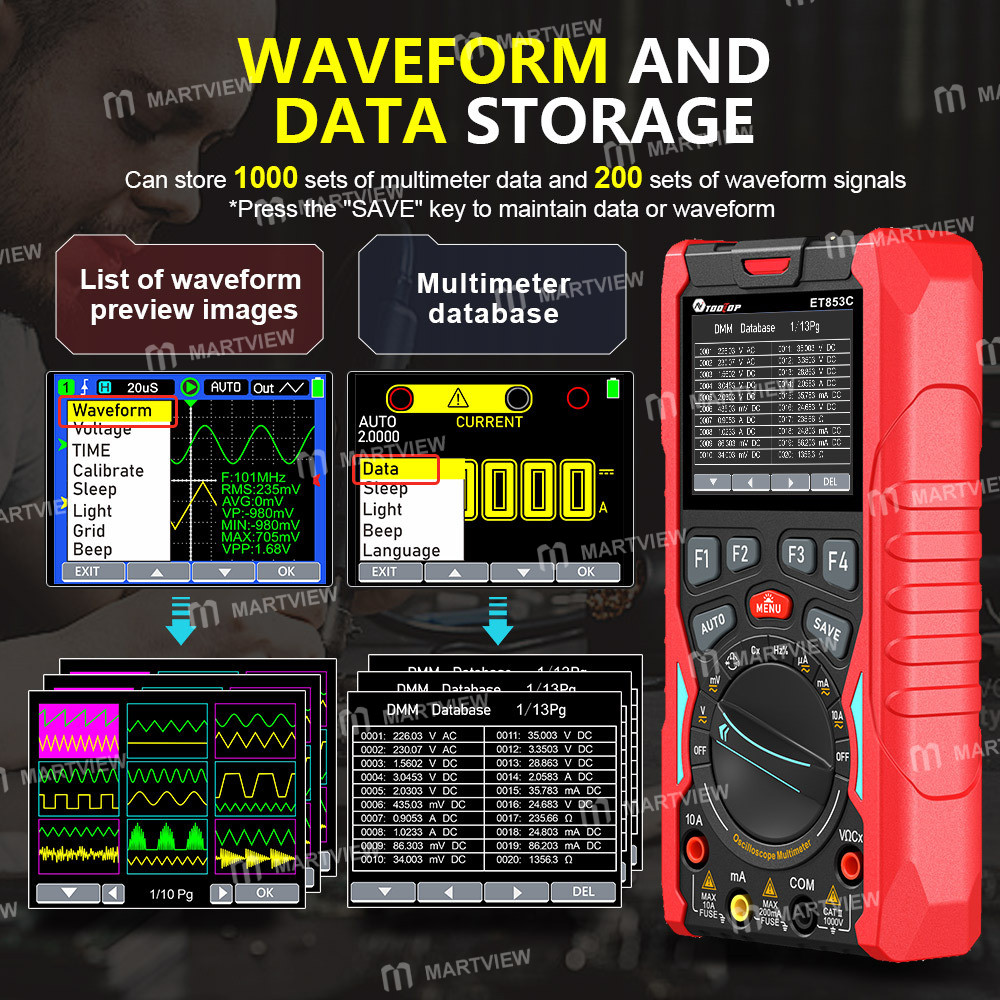

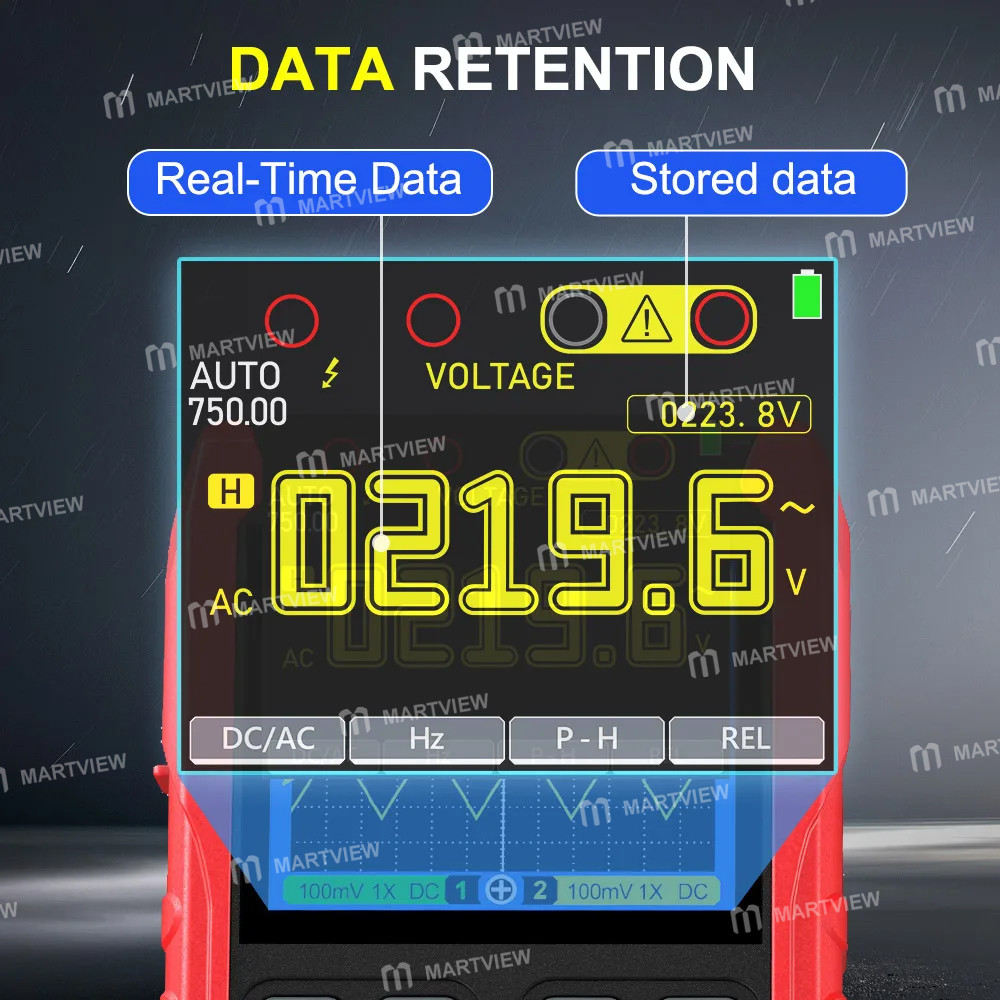

• Can store 1000 sets of multimeter data and 200 sets of waveform signals

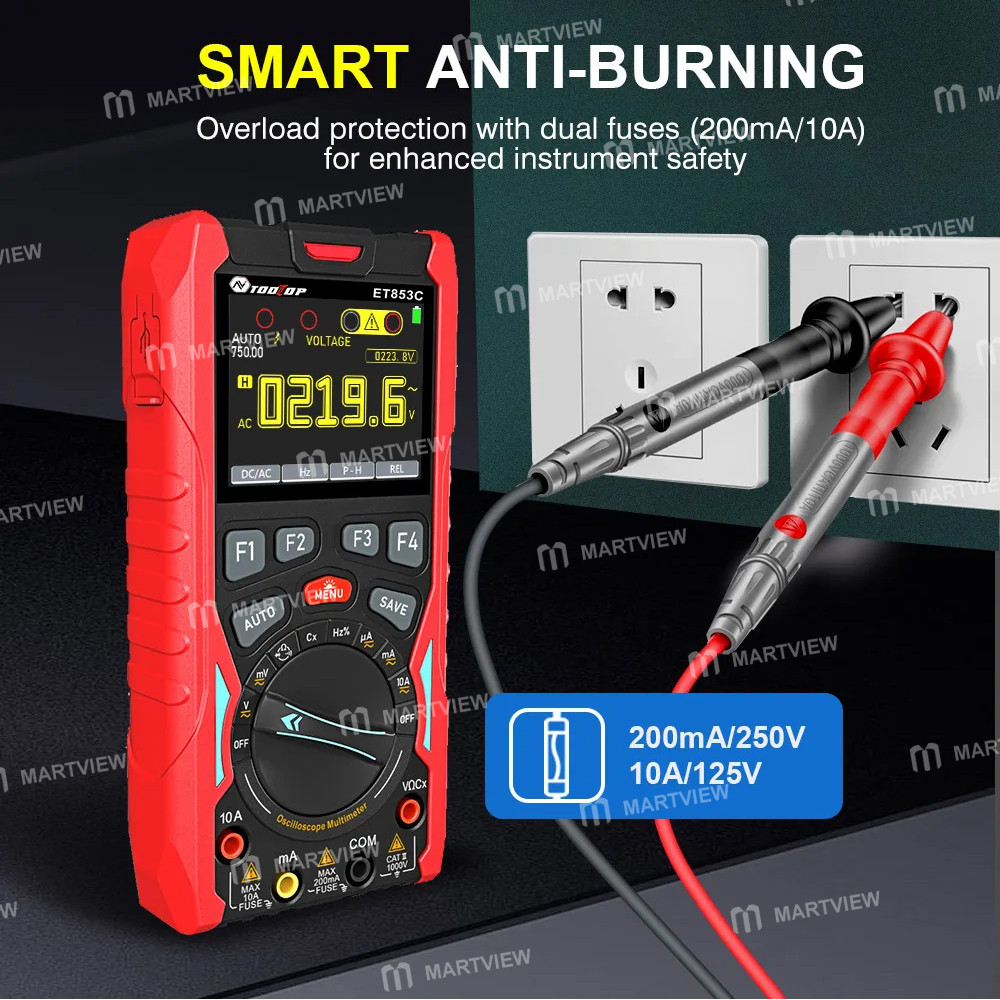

• Intelligent anti-burn, overload protection with dual fuses (200mA/10A) for enhanced instrument safety

Specifications:
General Characteristics:

• Display: 320x240 TFT color screen

• Backlight Brightness: Adjustable

• Battery: 18650 lithium battery

• Continuous Use Time: Approx. 4 hours

• Charging Standard: 5V

• Charging Port: Type-C

• Input Impedance: 10MΩ

• Auto Sleep: 5-60 minutes or disabled

• Storage Capacity: 1000 DMM records, waveform records

• Storage Conditions:-10℃~+60℃; <90%RH

• Operating Environment: 0℃~+40℃; <75%RH

• Dimensions: 83*160*32mm

• Weight: About 220g

Oscilloscope:

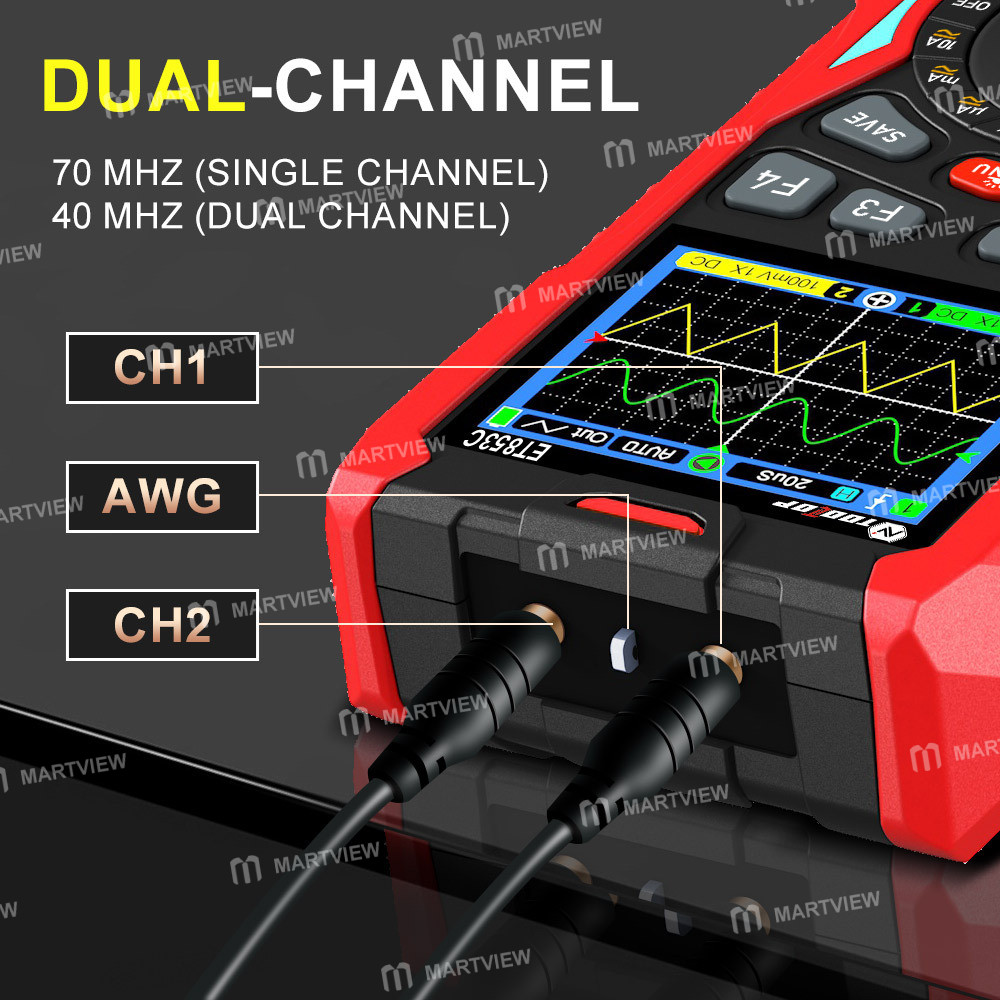

• Analog Bandwidth: 70 MHz (single channel), 40MHz(dual channel)

• Maximum Equivalent Sampling Rate: 200MspS

• Number of Channels: 2

• Input Impedance: Approx. 1MΩ

• Time Base Range: 6ns/div~50s/div

• Time Base Accuracy: ±(0.01% + 0.1div)

• Vertical Sensitivity Range: 50 mV/div to 10 V/div at MCX input

• Vertical Amplitude Accuracy: ±(5%+ 0.2div)

• Scan Modes: Auto/Normal/Single

• Trigger Edge Selection: Rising/ Falling

• Coupling Modes: DC/AC

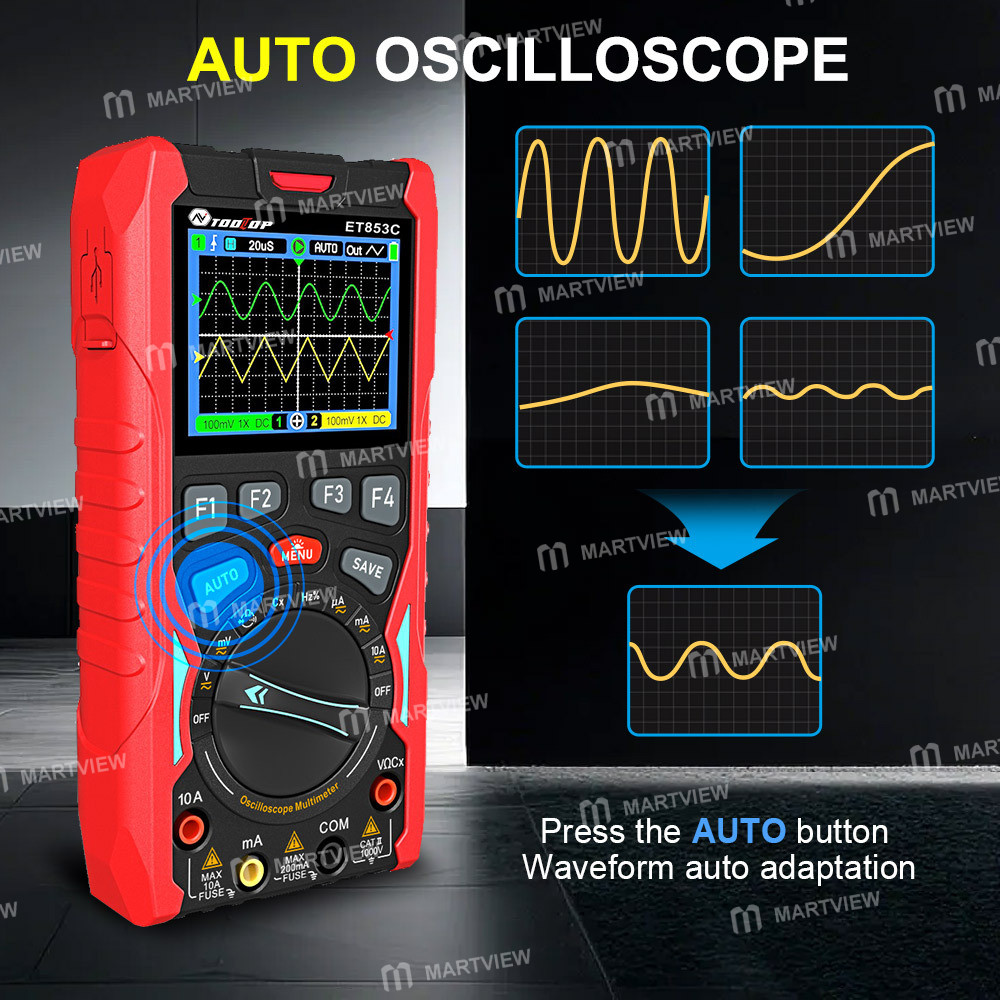

• Auto Setup: Automatically sets the time base and vertical amplitude

• Voltage Measurement Parameters: Vp, Vmax, Vmin, Vpp, Vavg, Vms

• Time Measurement Parameters: Freg, Period, +Width, -Width, +Duty, -Duty

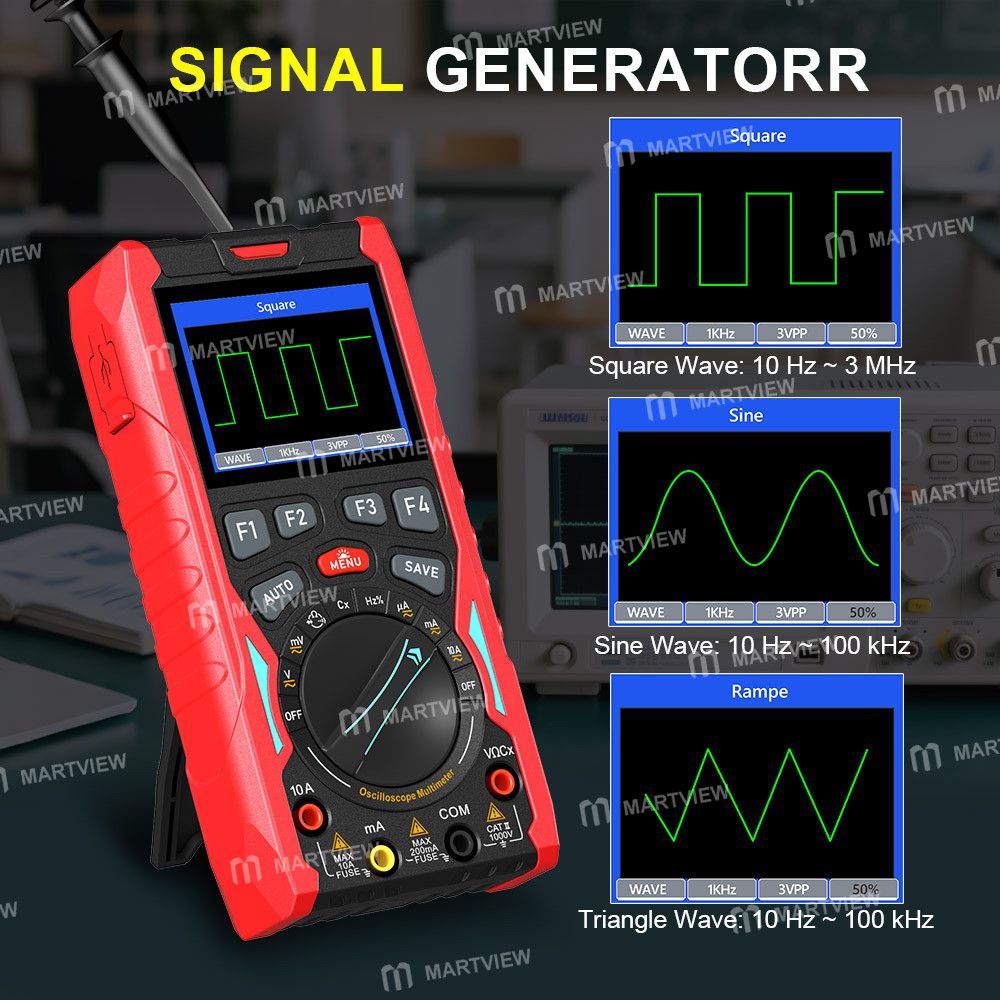

Signal Generator:
Output Frequency

• Sine Wave: 10Hz to 100kHz (stepped in 1-2-3-5 sequence)

• Triangle Wave: 10Hz to 100kHz (stepped in 1-2-3-5 sequence)

• Square Wave: 10Hz to 3MHz (stepped in 1-2-3-5 sequence)

• Output Amplitude: 3Vpp, 2Vpp, 1Vpp, 0.5Vpp, 0.2Vpp, 0.1Vpp, 0Vpp

Multimeter:

• DC Voltage: 20.000mV / 200.00mV / 2V/20V / 200V / 1000V

• AC Voltage (True RMS): 20.000mV / 200.00mV / 2V / 20V / 200V / 750V

• DC Current: 200.00uA / 2000.0uA / 20.000mA / 200.00mA / 2A/10A

• AC Current (TrueRMS): 200.00uA / 2000.0uA / 20.000mA /200.00mA/2A/10A

• Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ (Values above 50MΩ are for reference only)

• Capacitance: 9.999nF / 99.99nF / 999.9nF / 9.999uF / 99.99uF / 999.9uF / 9.999mF / 99.99mF

• Frequency: 1.000Hz~20.000MHz(Above 20M for reference only)

• Diode Test: Open-circuit voltage Approx.3V, maximum test current Approx.2mA

• Continuity Test: Threshold resistance approx. 50Ω

• Fuse Ratings: 200mA / 250V, 10A/, 125V

Package includes:

• 1 x Oscilloscope

• 2 x Probes

• 1 x Test Leads

• 1 x USB Cable
