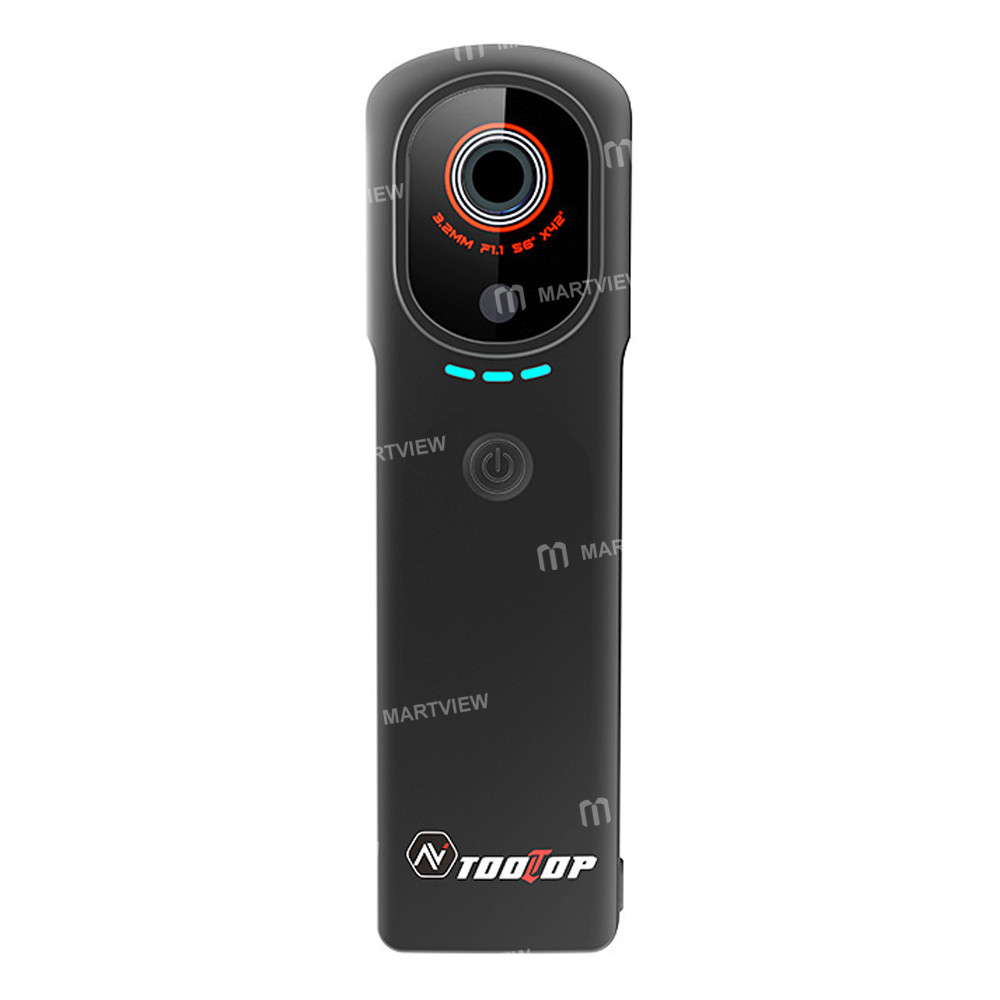

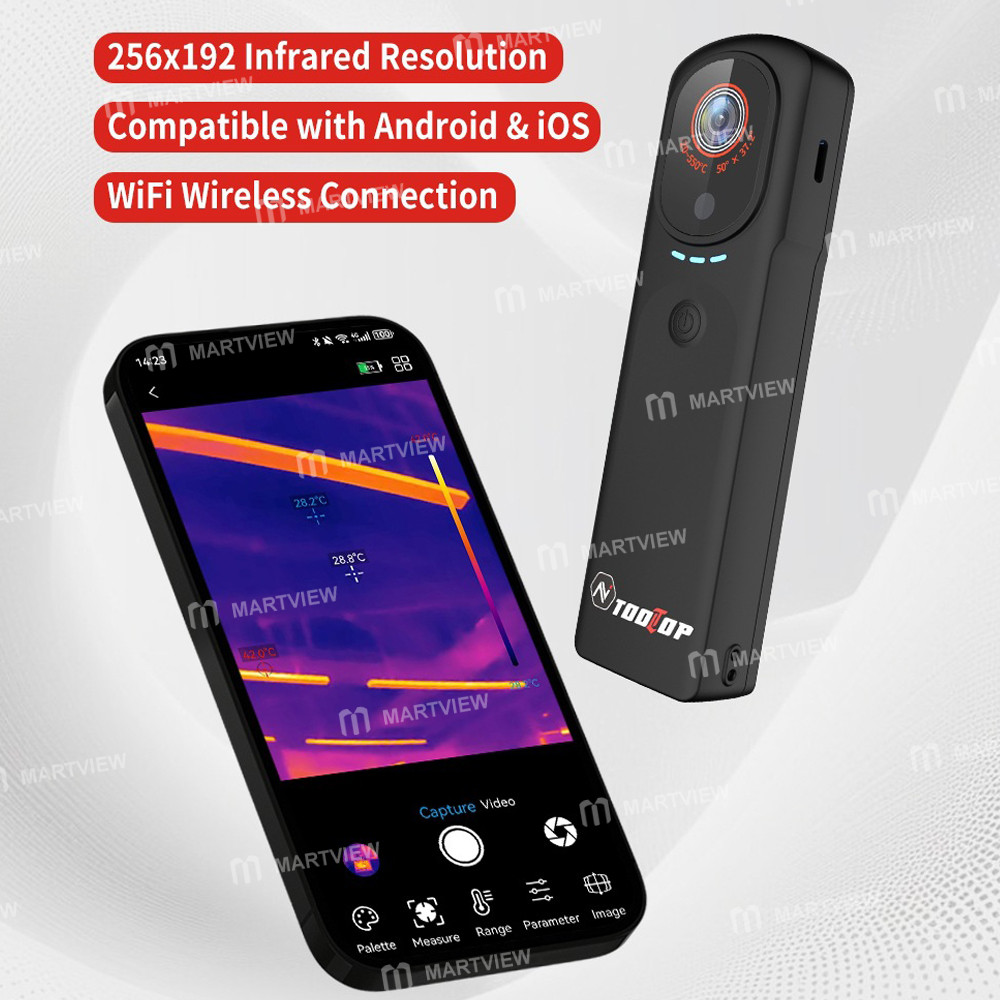

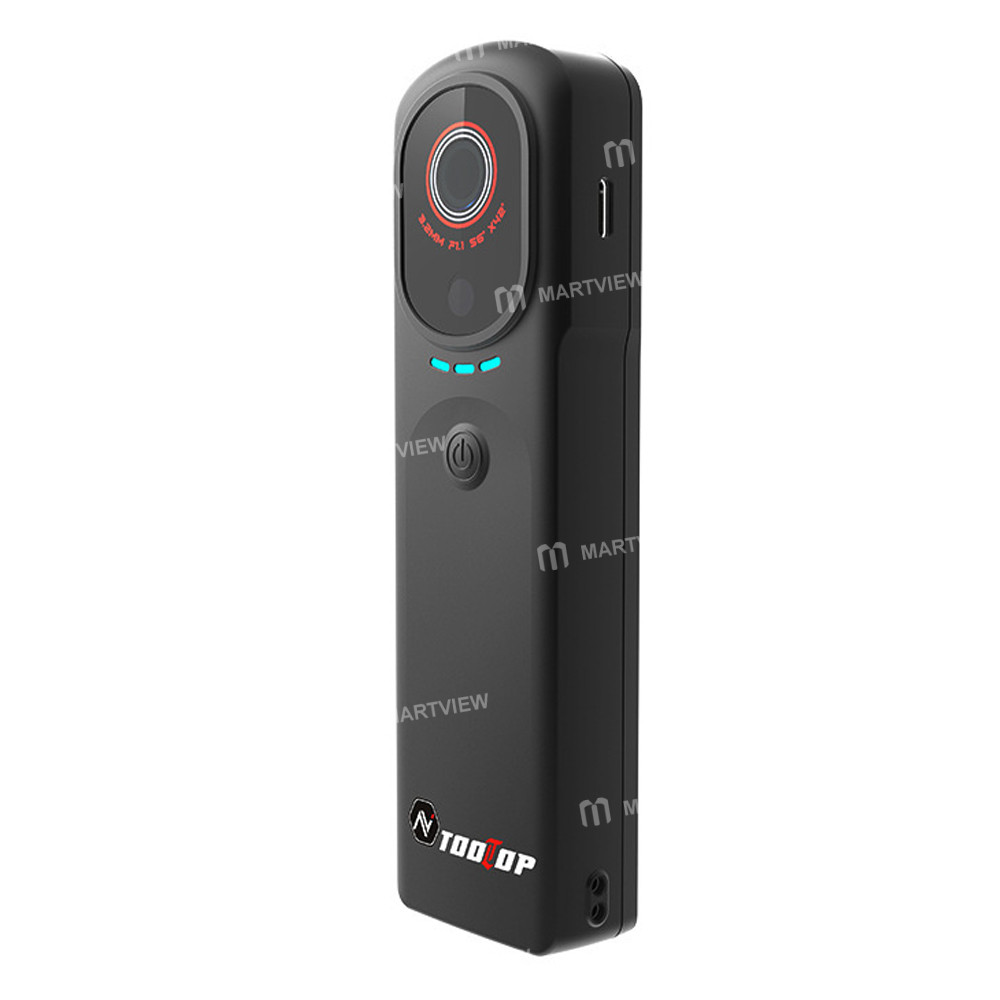

ToolTop T9 Wireless WiFi Thermal Imaging Camera with Visible Light Compatible with Android & iOS

ToolTop T9 Wireless WiFi Thermal Imaging Camera with Visible Light Compatible with Android & iOS

Features:

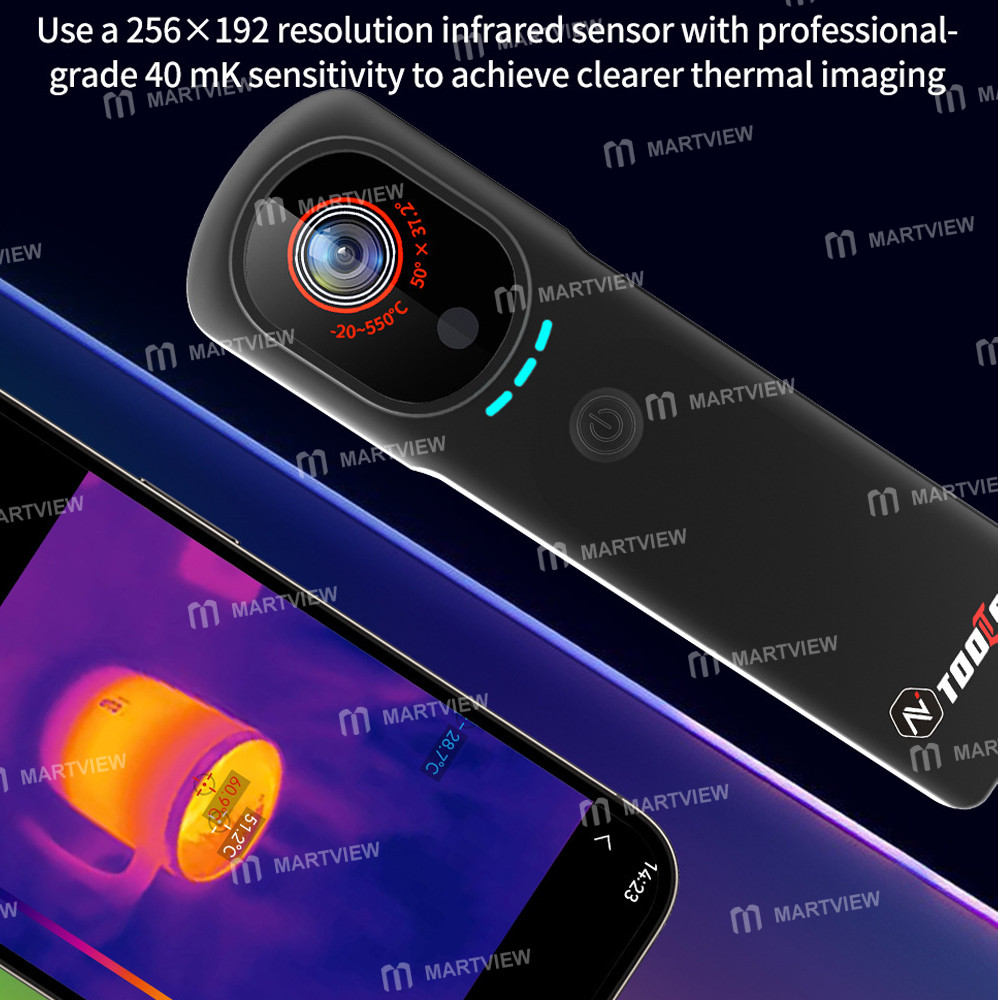

• 256x192 high-resolution infrared sensor with professional-grade 40mK sensitivity

• Dual mode imaging, infrared + visible camera 2 in1, with visible resolution 1600×1200

• Compatible with Android & IOS System

• WiFi Wireless image transmission within 10m

• -20~550°C tempmeasurement range

• Real-time temp tracking/alarm

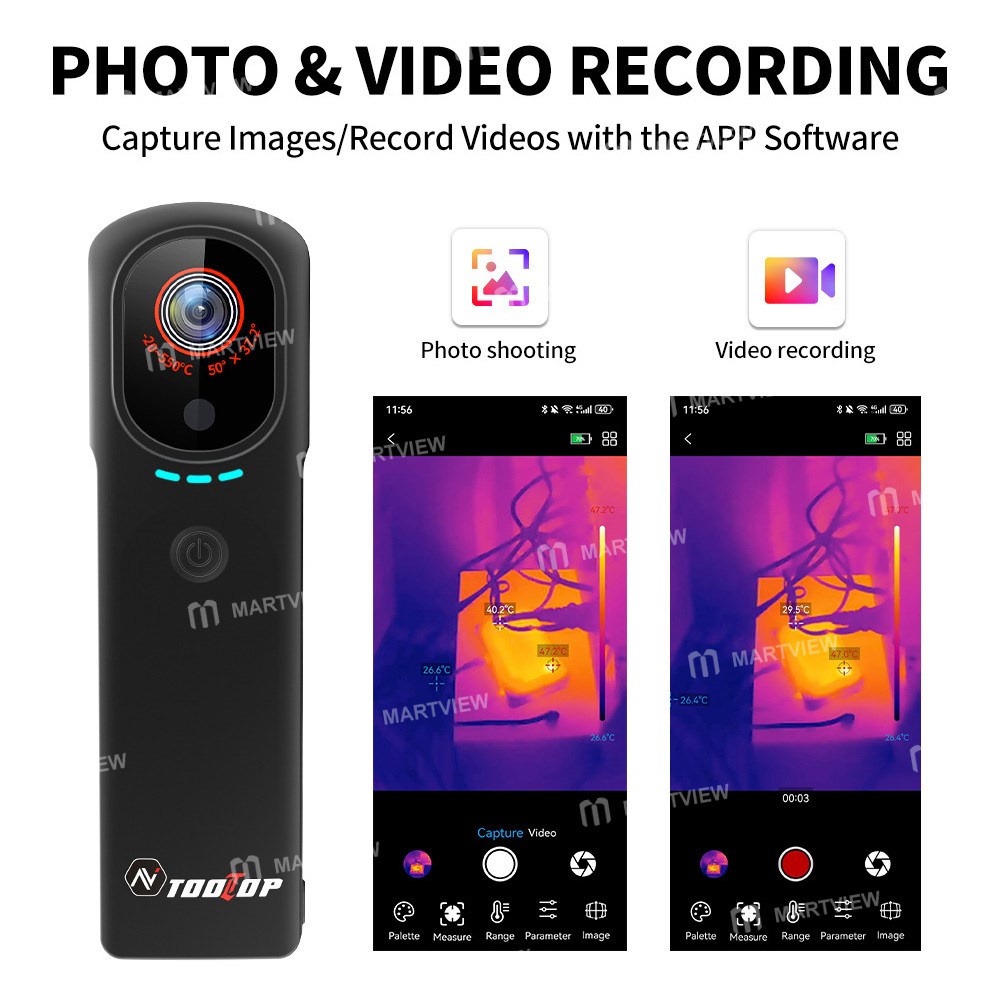

• Photo/video recording

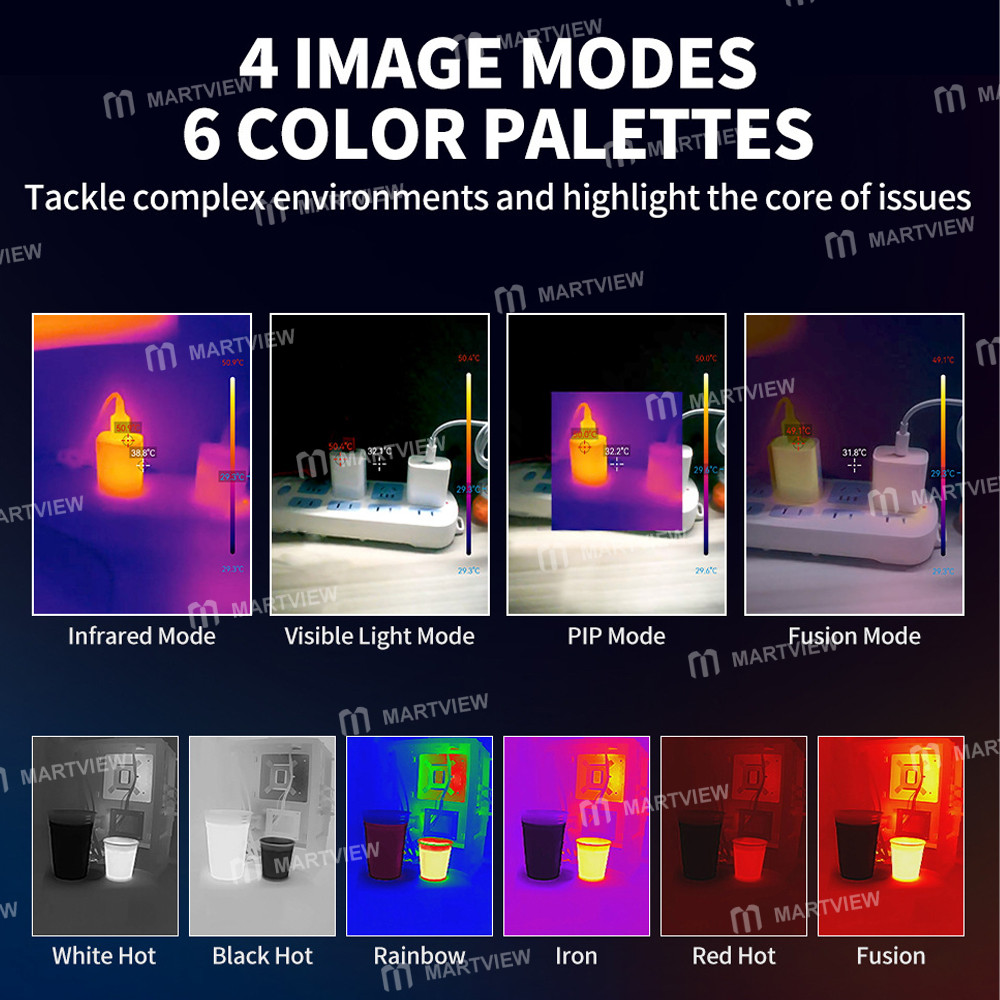

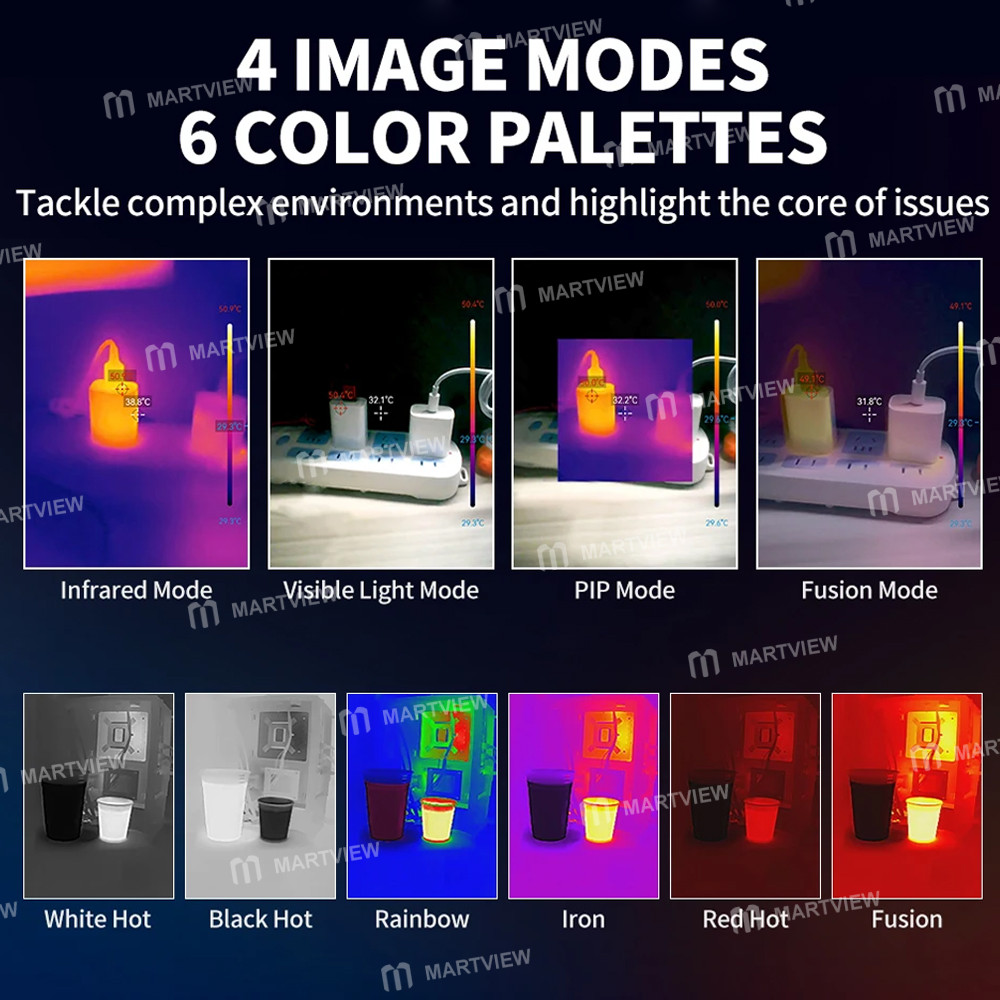

• Support 4 image modes: Infrared Mode/Visible Light Mode/PIP Mode/Fusion Mode

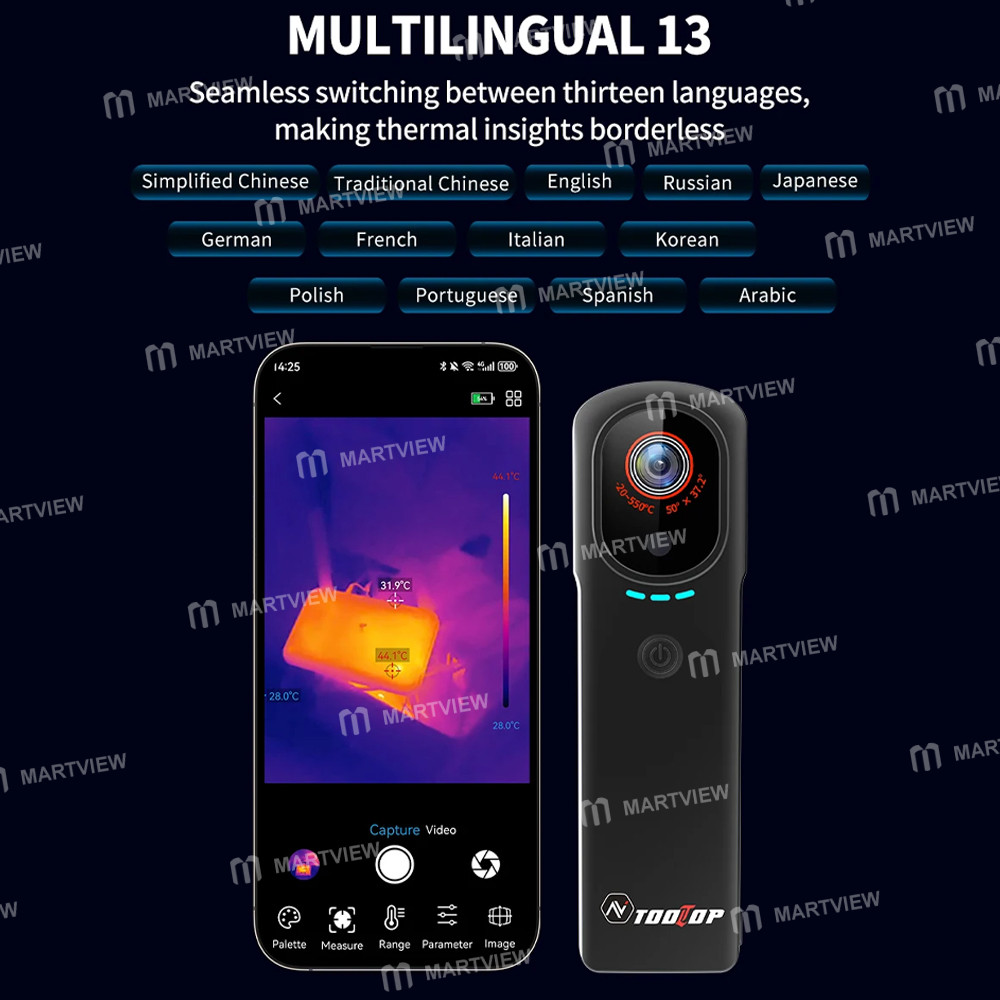

• Support 13 Languages: Simplified Chinese, Traditional Chinese, English, Russian, German, French, Italian, Korean, Polish, Portuguese, Spanish, Japanese, Arabic

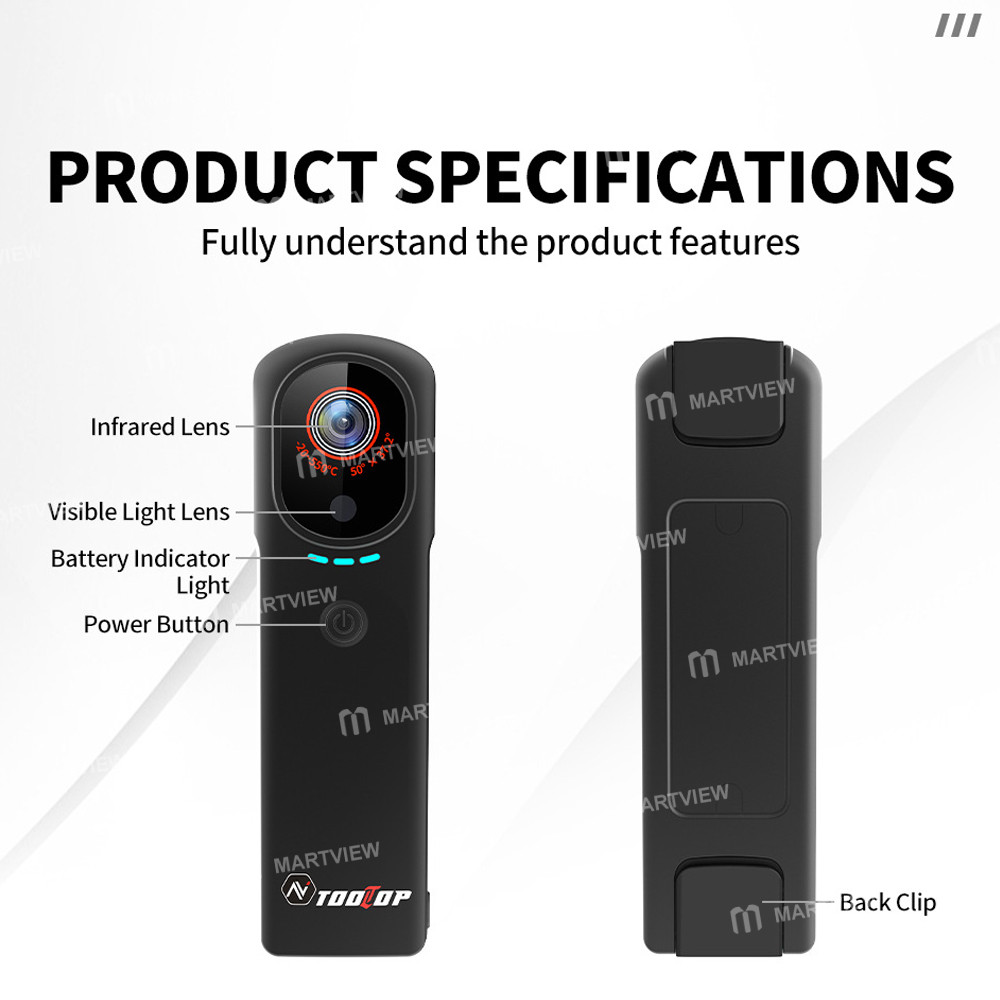

Specifications:

• Model: T9

• Infrared Sensor Resolution: 256x192

• Visible Resolution: 1600x1200

• Temperature Range: -20°C~550°C

• Measurement Sensitivity: 0.1°C

• Measurement Accuracy : ±2°C or ±2% of reading (Whichever is greater)

• Emissivity: 0.01~1.00

• Infrared Wavelength Range: 8~14μm

• Pixel Size: 12μm

• Foacal Length: 3.5mm

• Frame Rate: 25Hz

• Thermal Sensitivity: ≤40mK(@25 °C, F#1.0)

• Field of View (FOV): 50°x37.2°

• Temperature Units: °C/°F/K

• Temperature Display: Displays 3 groups: Point temperature, line/surface average temperature,max temperature, min temperature

• Temperature Analysis: 3 points, 3 lines, 3 areas (regions)

• Isotherm Lines: Support

• Center Point Temperature Measurement: Support

• High/Low Temperature Tracking: Support

• High/Low Temperature Alarm: On-screen marker alarm / Audio alarm

• Color Palettes: White Hot, Black Hot, Rainbow, Iron Red, Red Heat, Fusion

• Image Modes: Infrared Mode, Visible Light Mode, Fusion Mode, Picture-in-Picture Mode

• Photo/Video Recording: Support

• Image Format: JPEG

• Video Format: MP4

• Data Interface: Type-C

• Languages: Supports 13 Languages

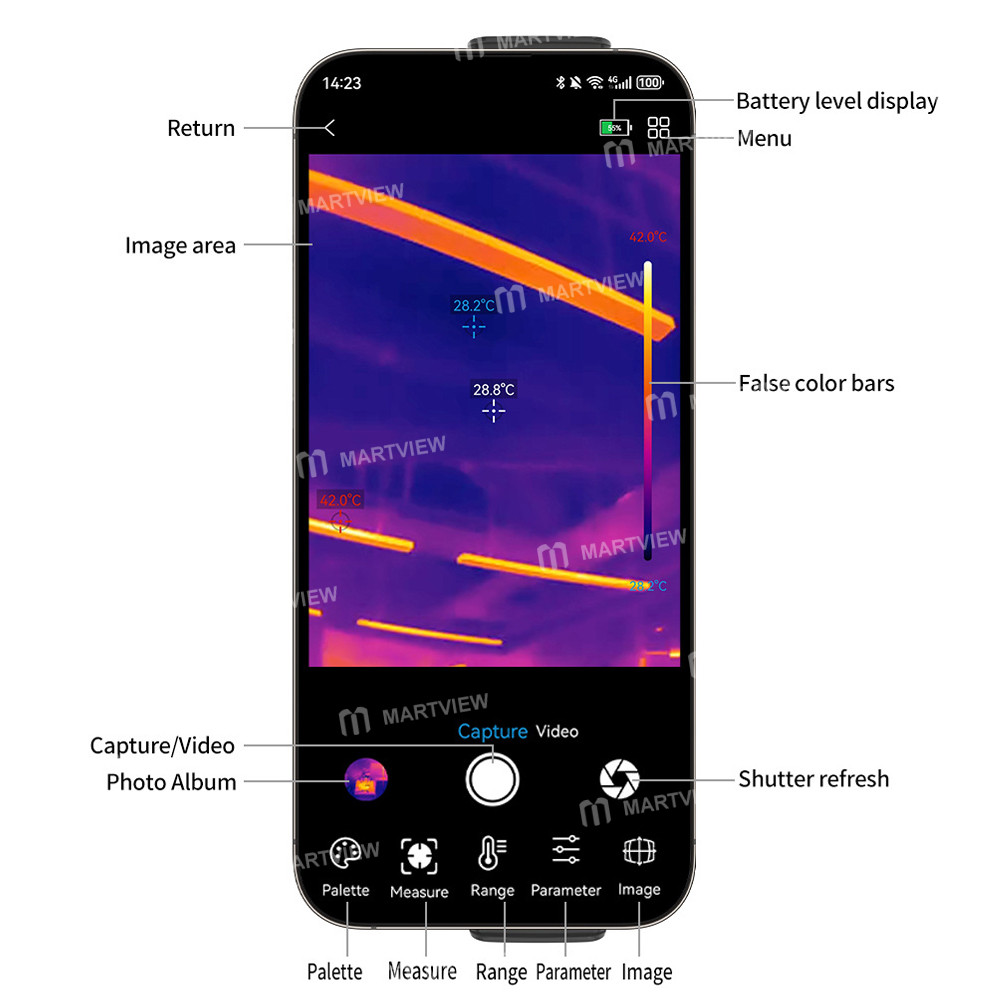

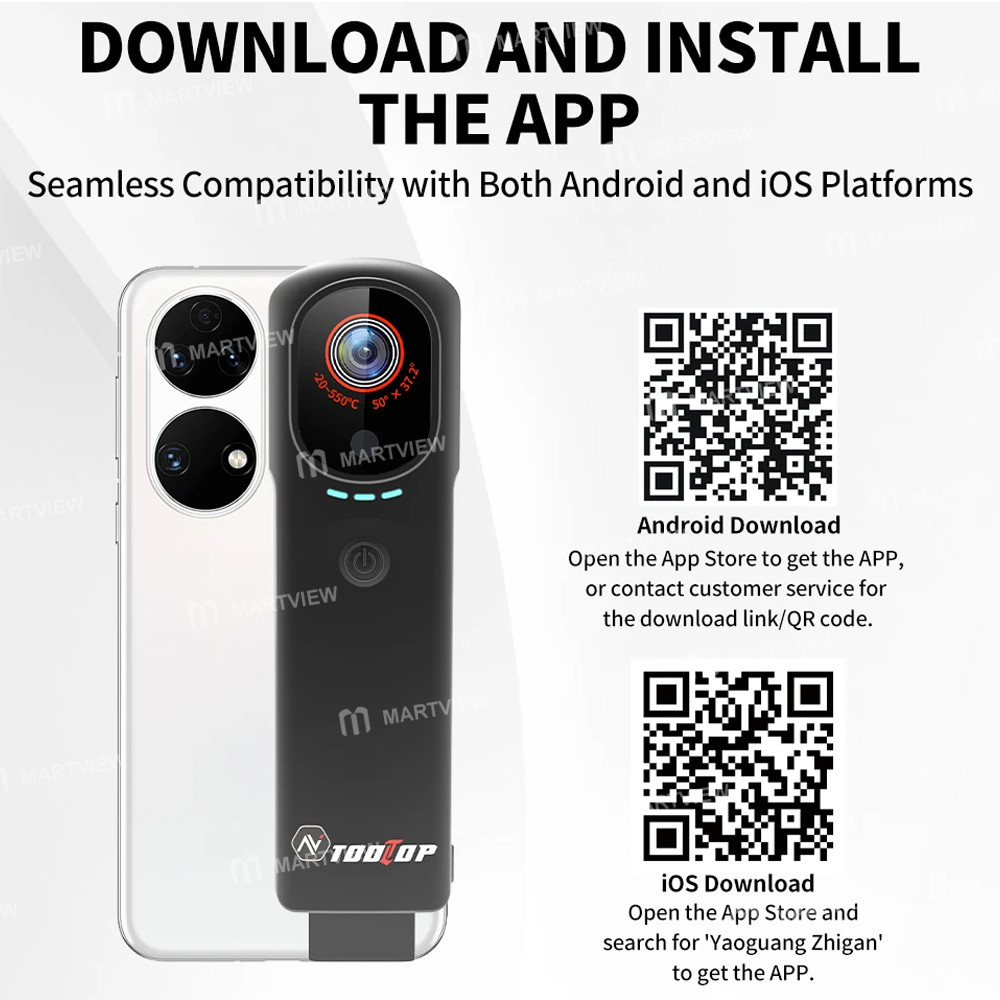

• Mobile App support: Android 7.0/iOS 12.0 and above

• Battery: 1100mAh Li-polymer battery (Non-removable)

• Charging Time: ≤ 2h

• Operating Time: ≥2.5h

• Operating Temperature: -10~50°C

• Operating Humidity: 10%~90%RH (Non-condensing)

• Storage Temperature: -20~60°C

• Power Consumption: ≤1.4W

• Certifications: CE, FCC, ROHS

• Product Dimensions: 136.6*41*21.55mm

• Product weight: 205g

Package includes

• 1 x Thermal Camera

• 1 x Data Cable
