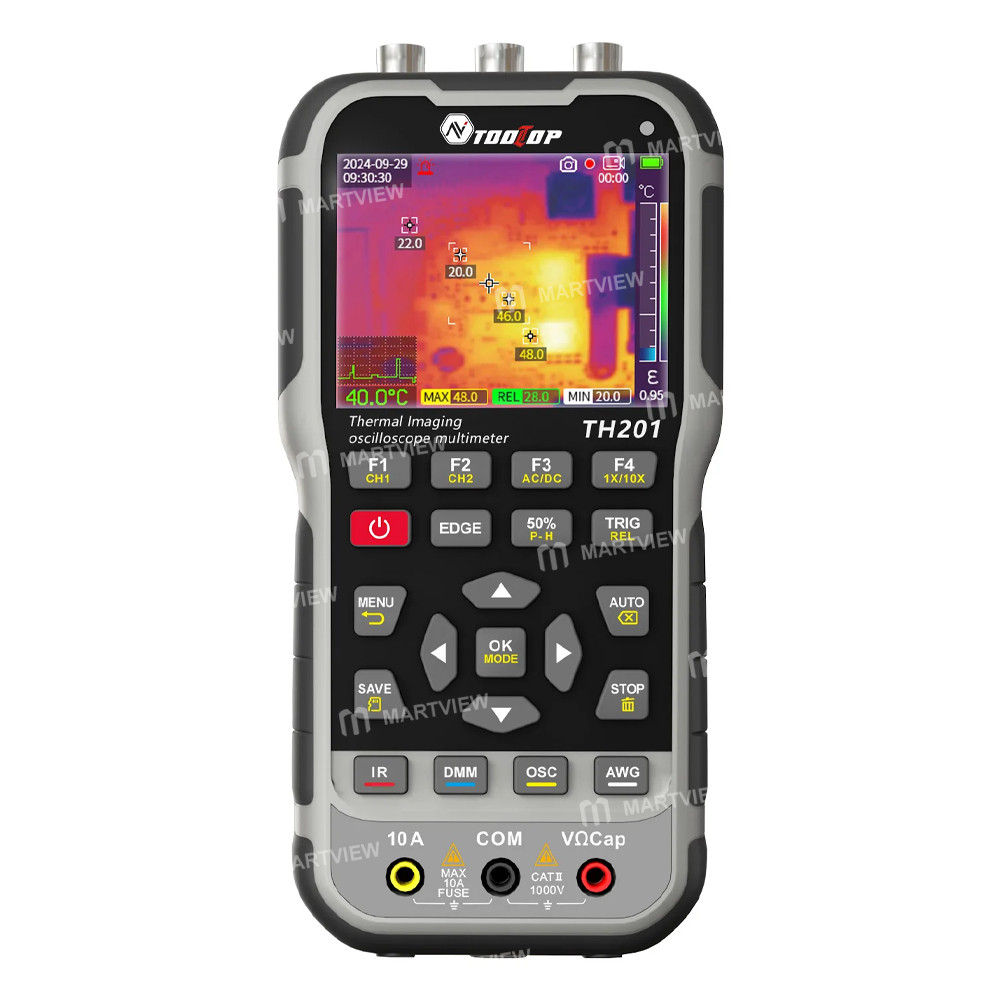

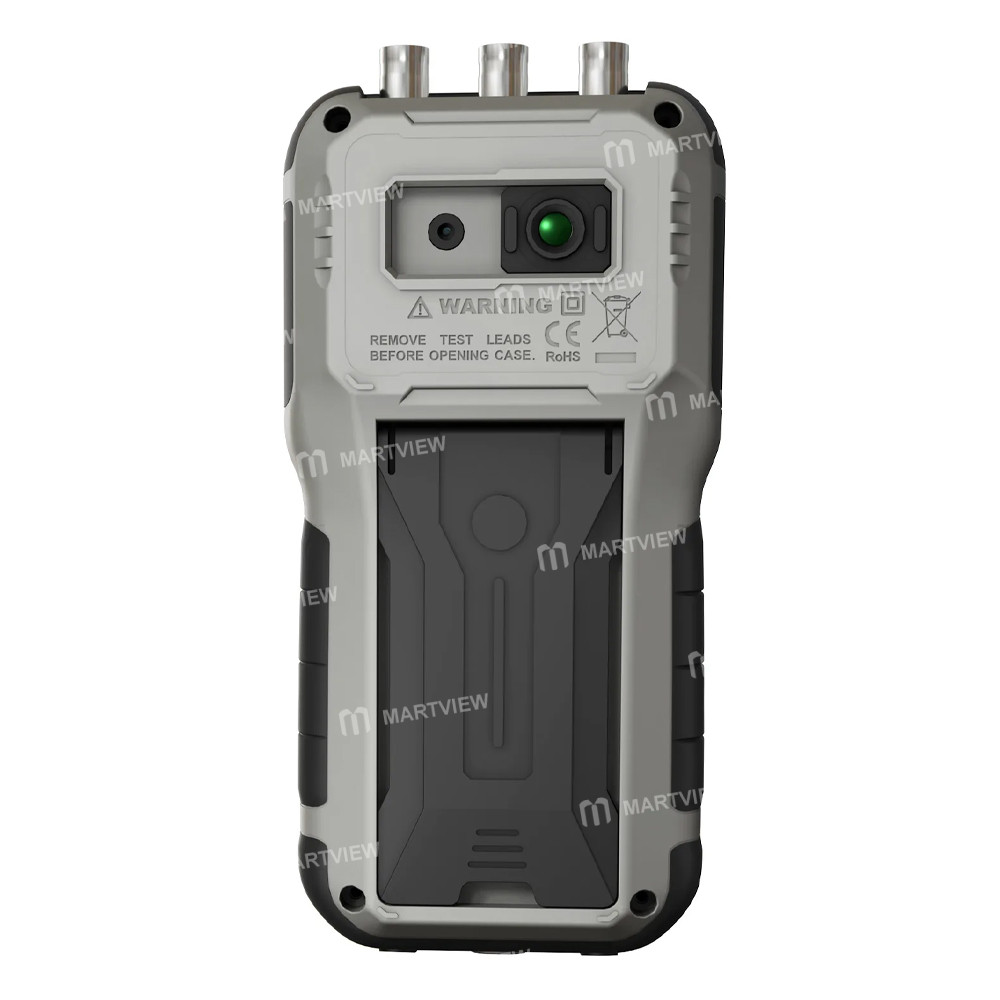

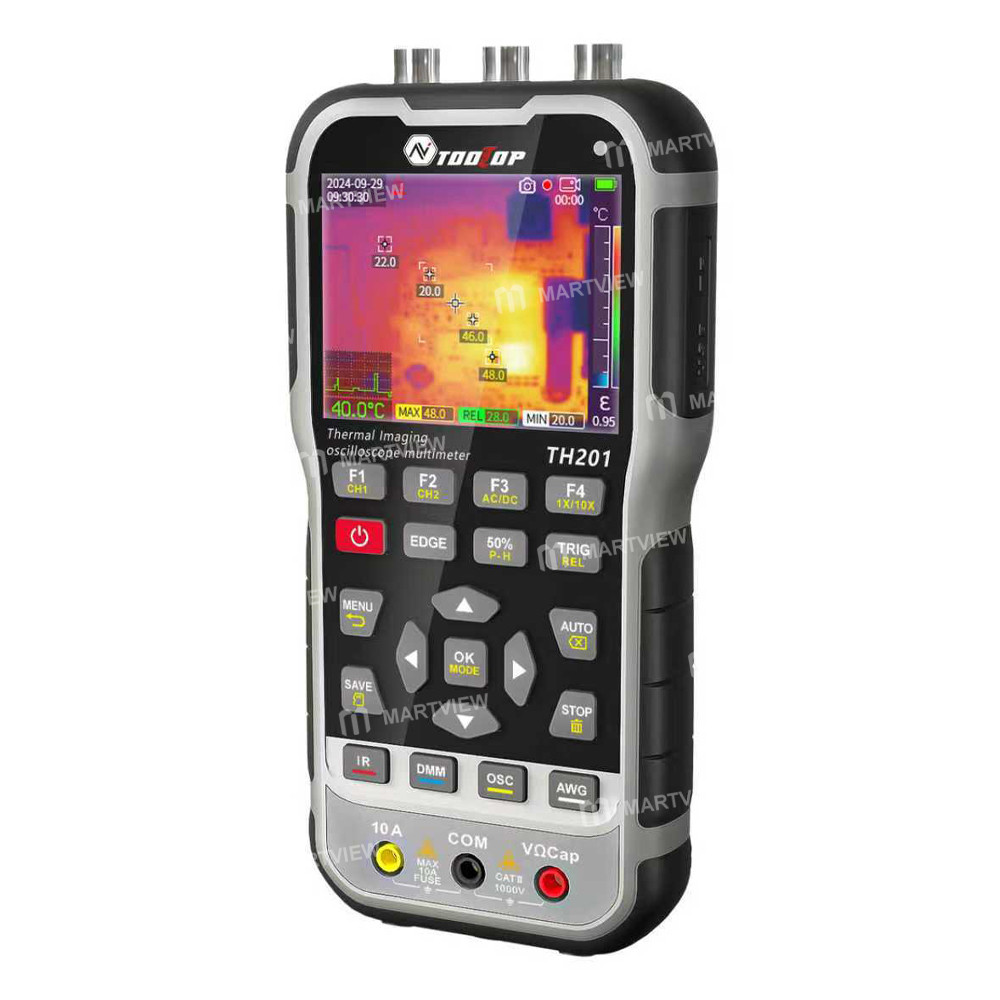

ToolTop TH201 4-in-1 Thermal Imaging + Dual-Channel Oscilloscope + Multimeter + Signal Generator

ToolTop TH201 4-in-1 Thermal Imaging + Dual-Channel Oscilloscope + Multimeter + Signal Generator

Features:

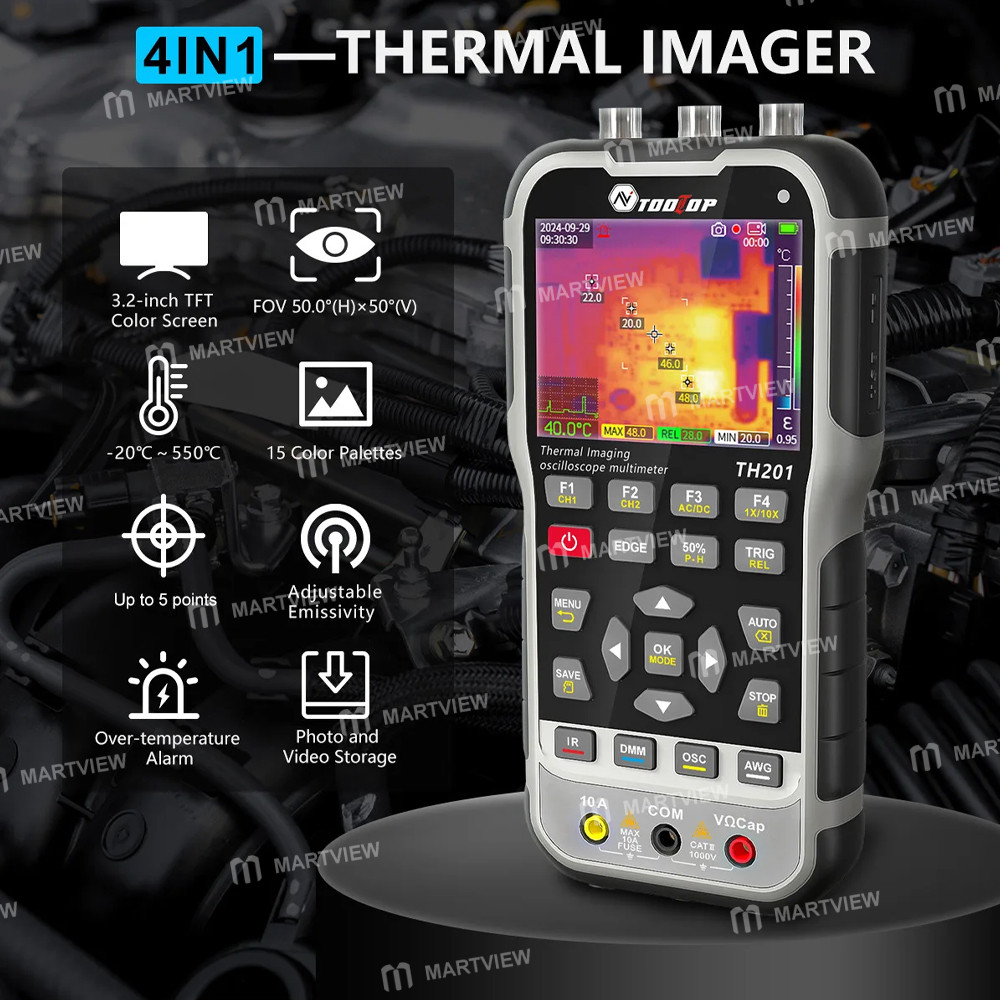

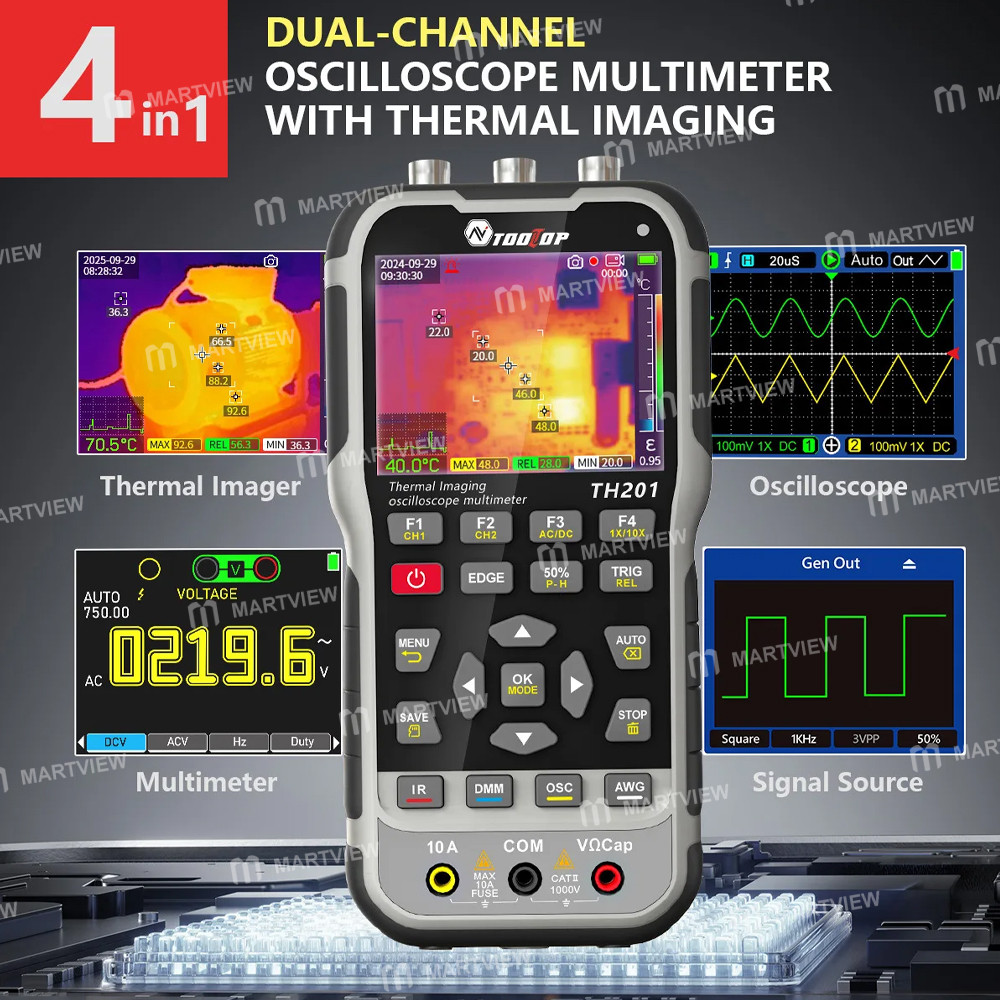

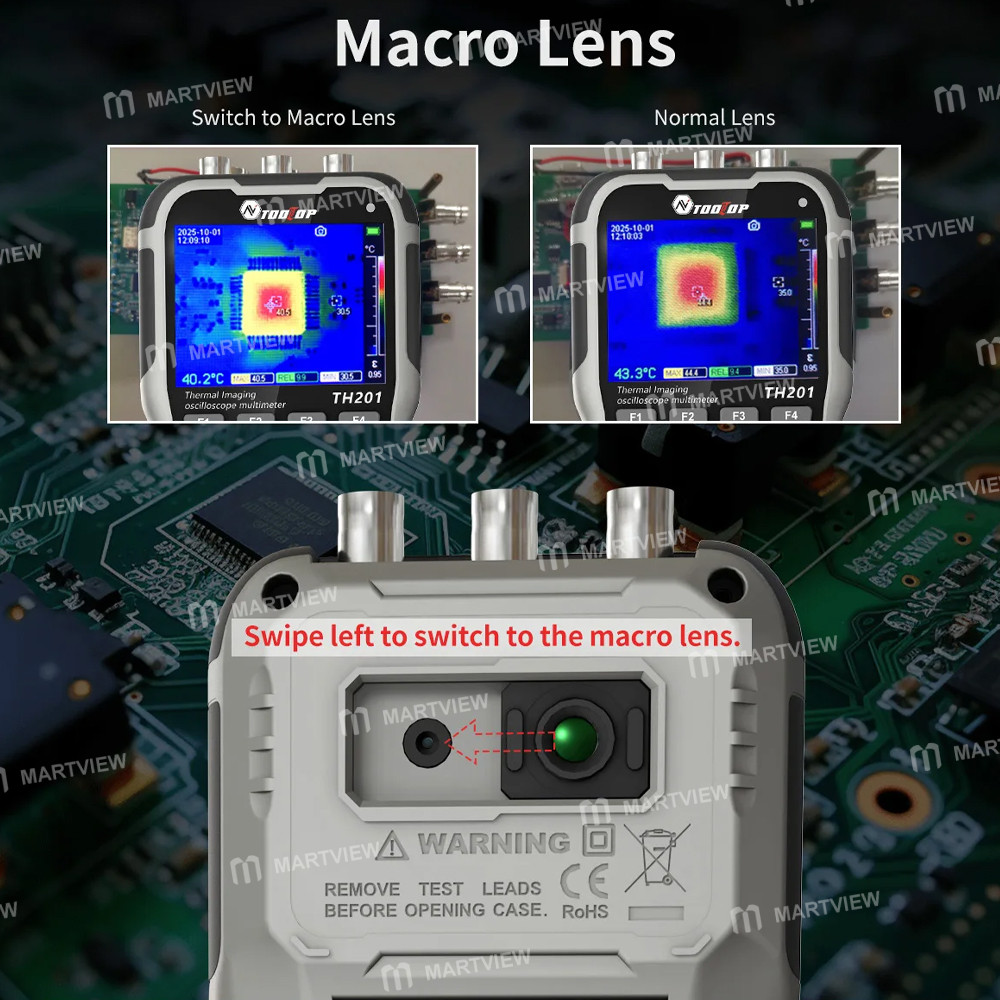

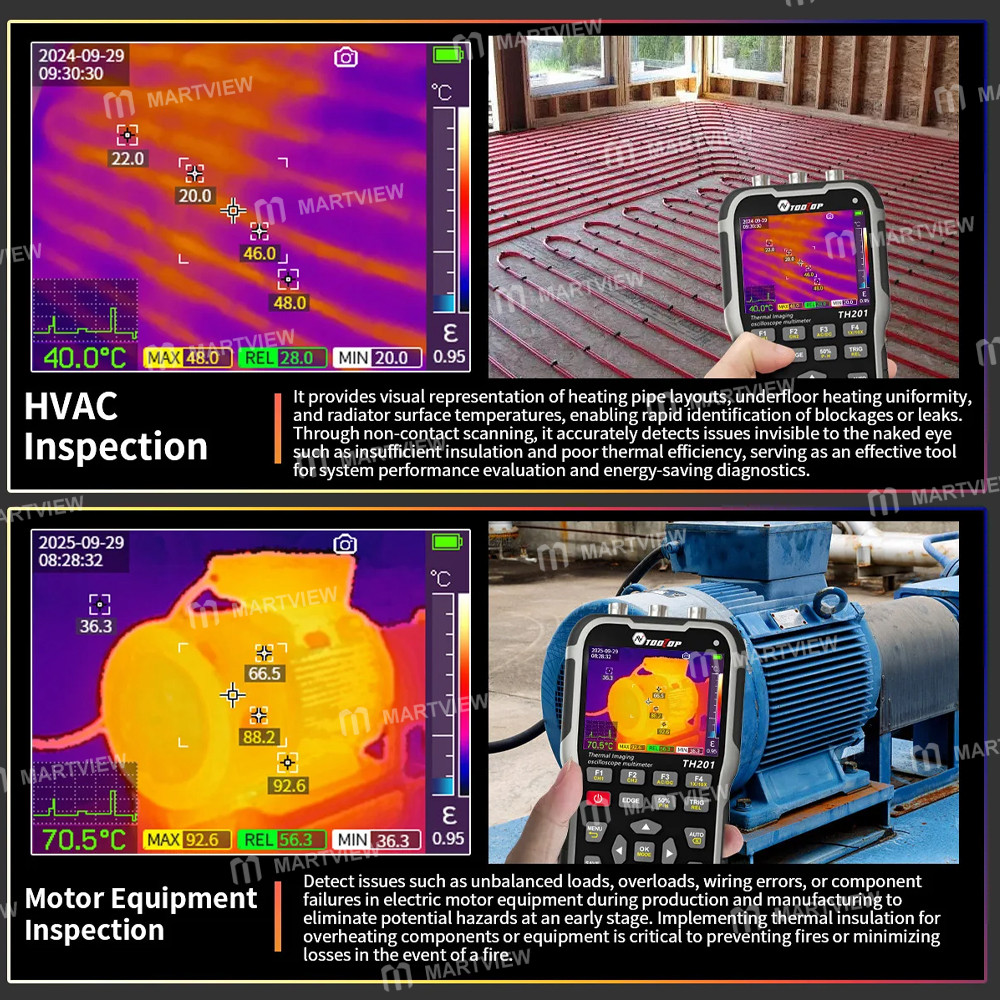

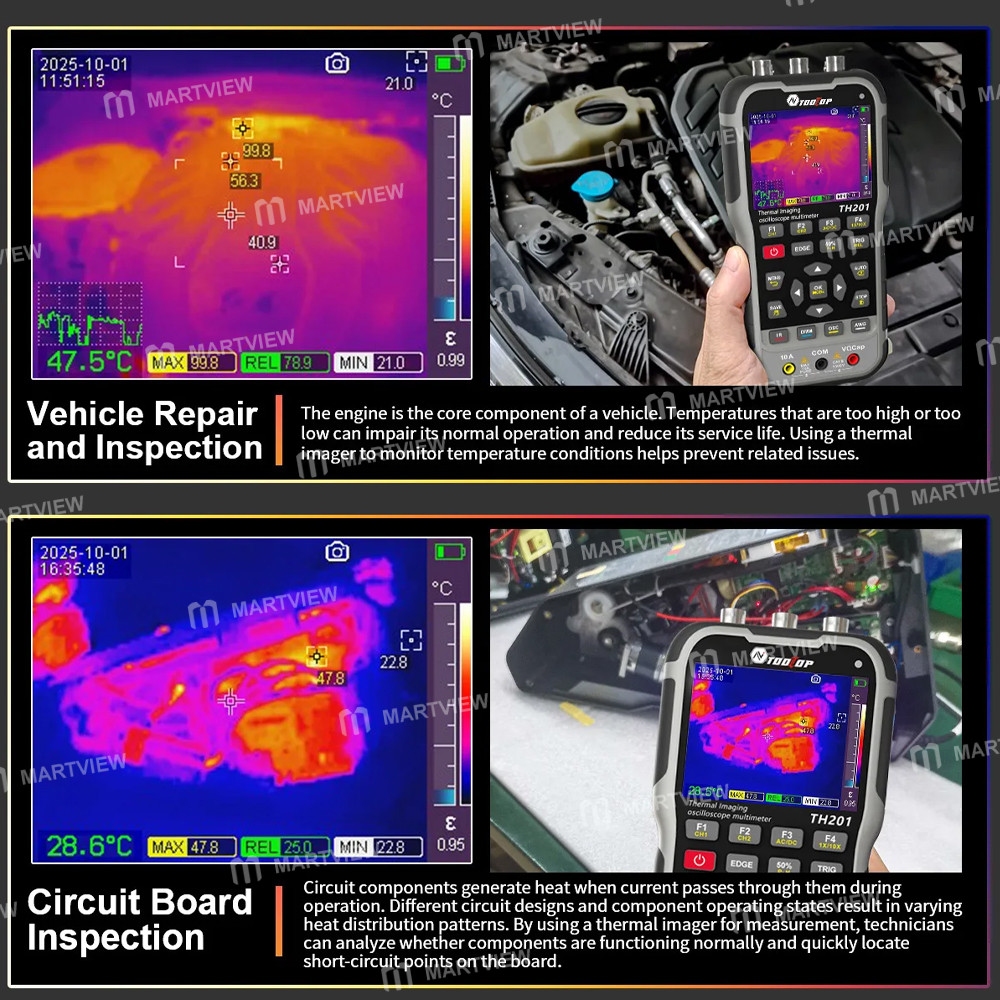

• Enhance ISR 288*240 Resolution, infrared sensor 96*96. With a macro lens for 3cm close-range PCB inspection. Real-time temperature profile recording improves inspection efficiency

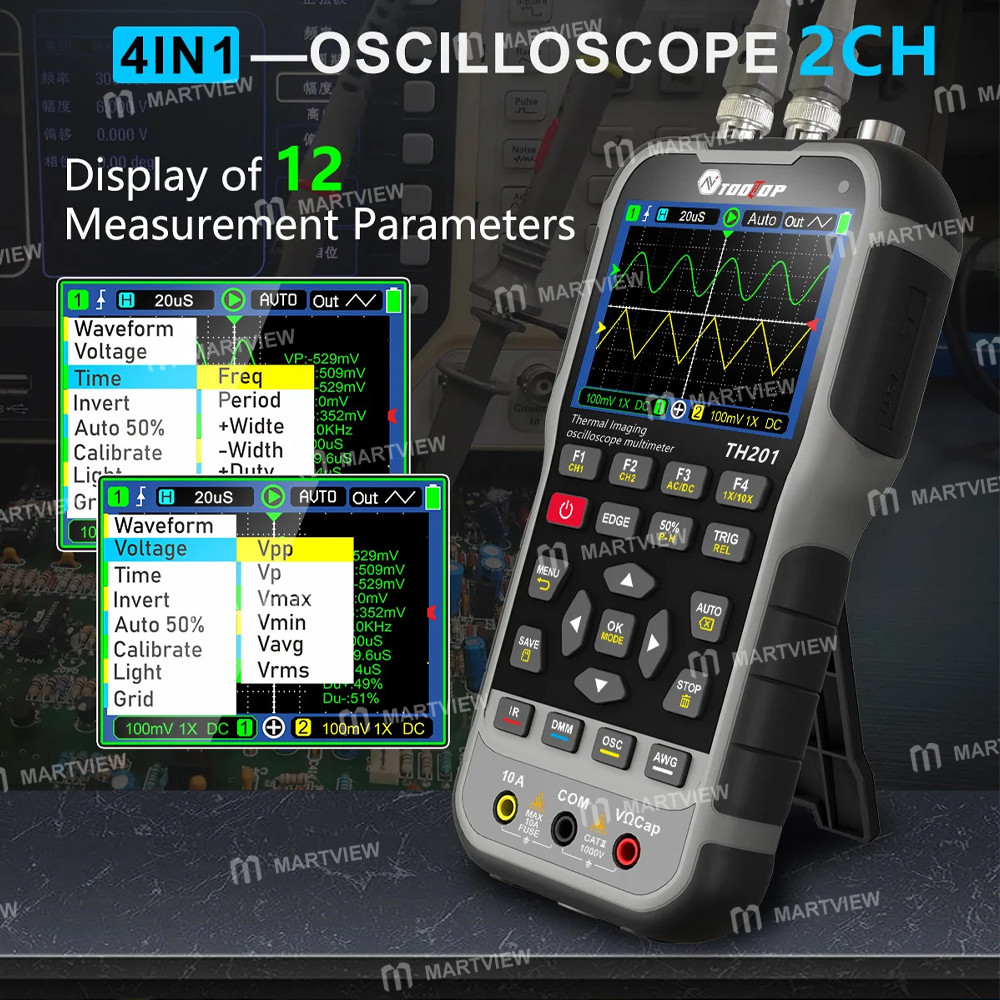

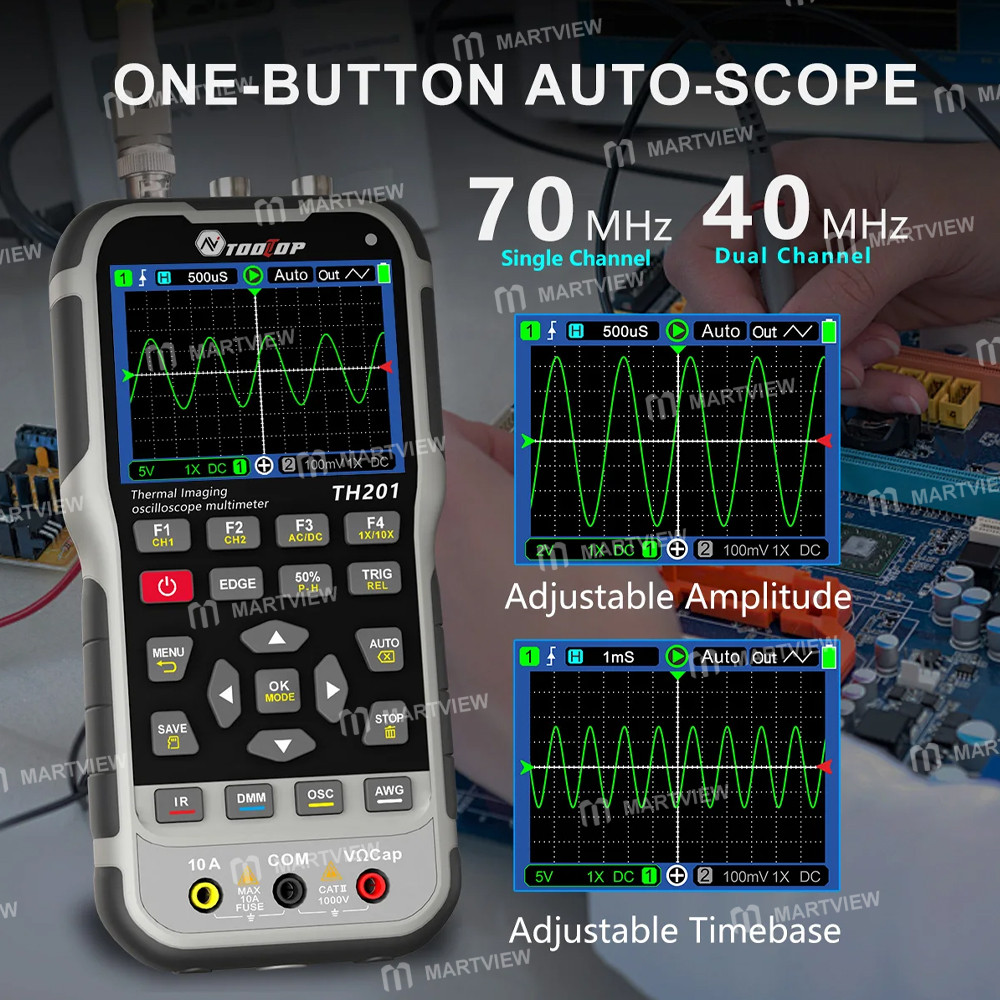

• Dual-channel Oscilloscope: 200MSa/s high-speed sampling, 70MHz analog bandwidth, 12 customizable waveform parameters (Such as time base), making circuit debugging more efficient

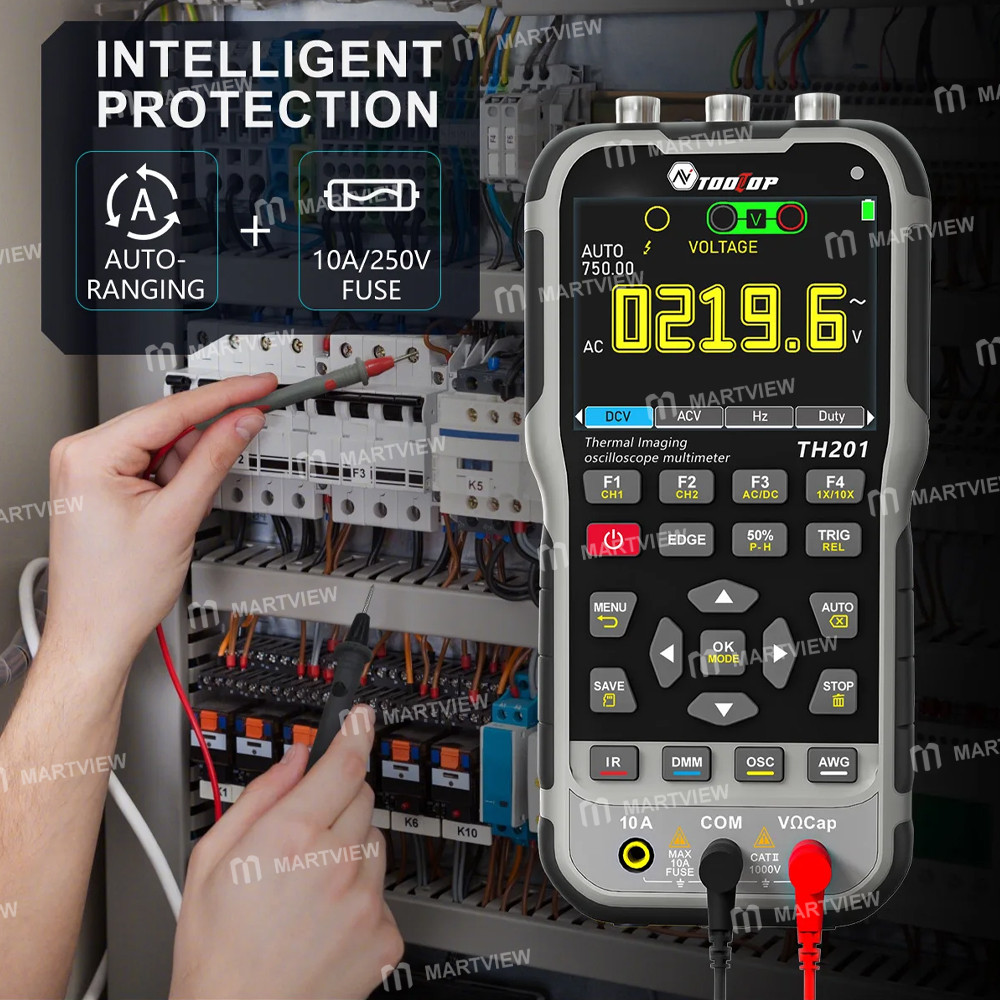

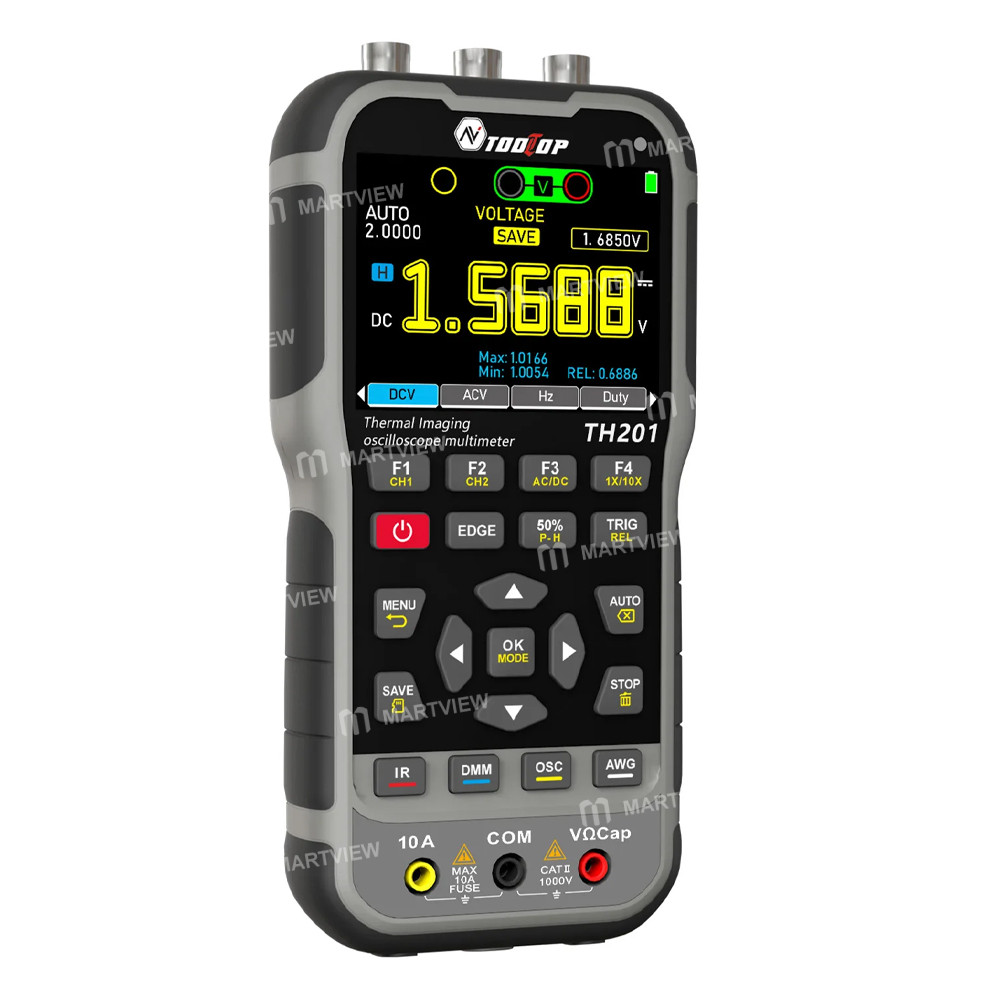

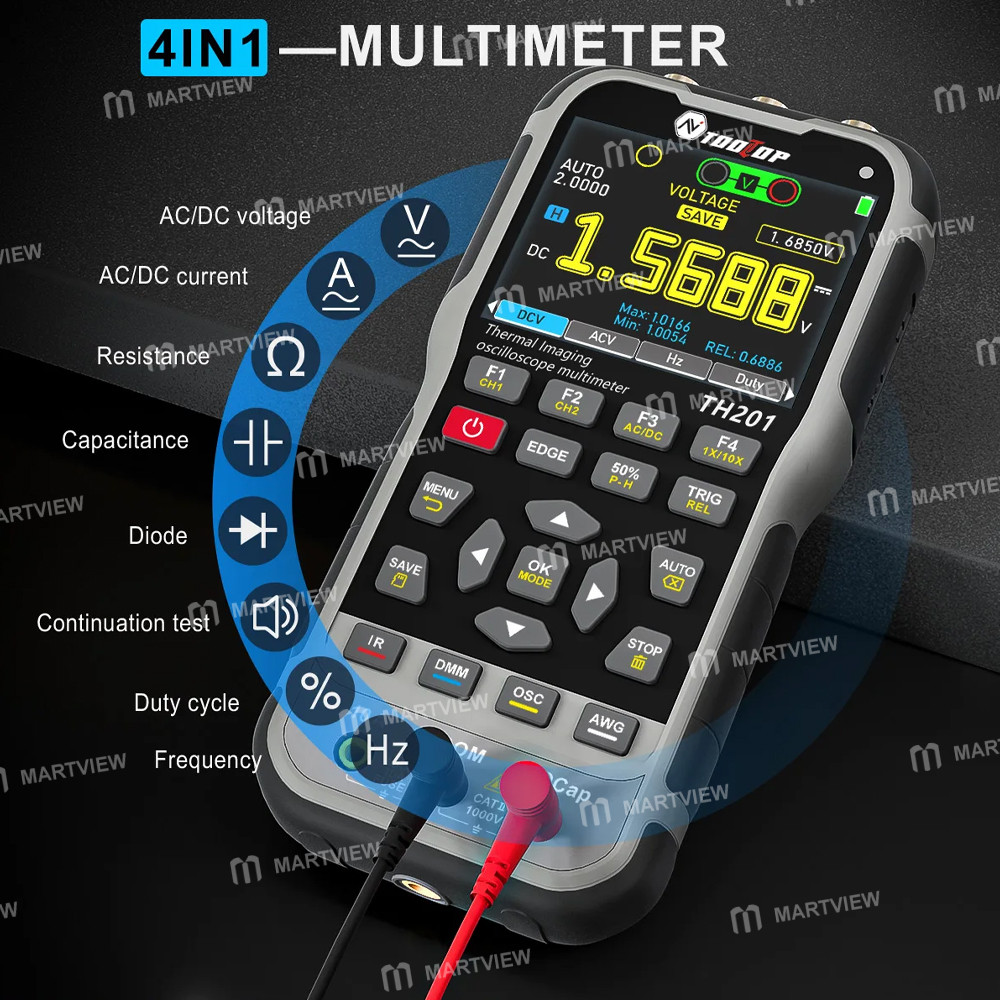

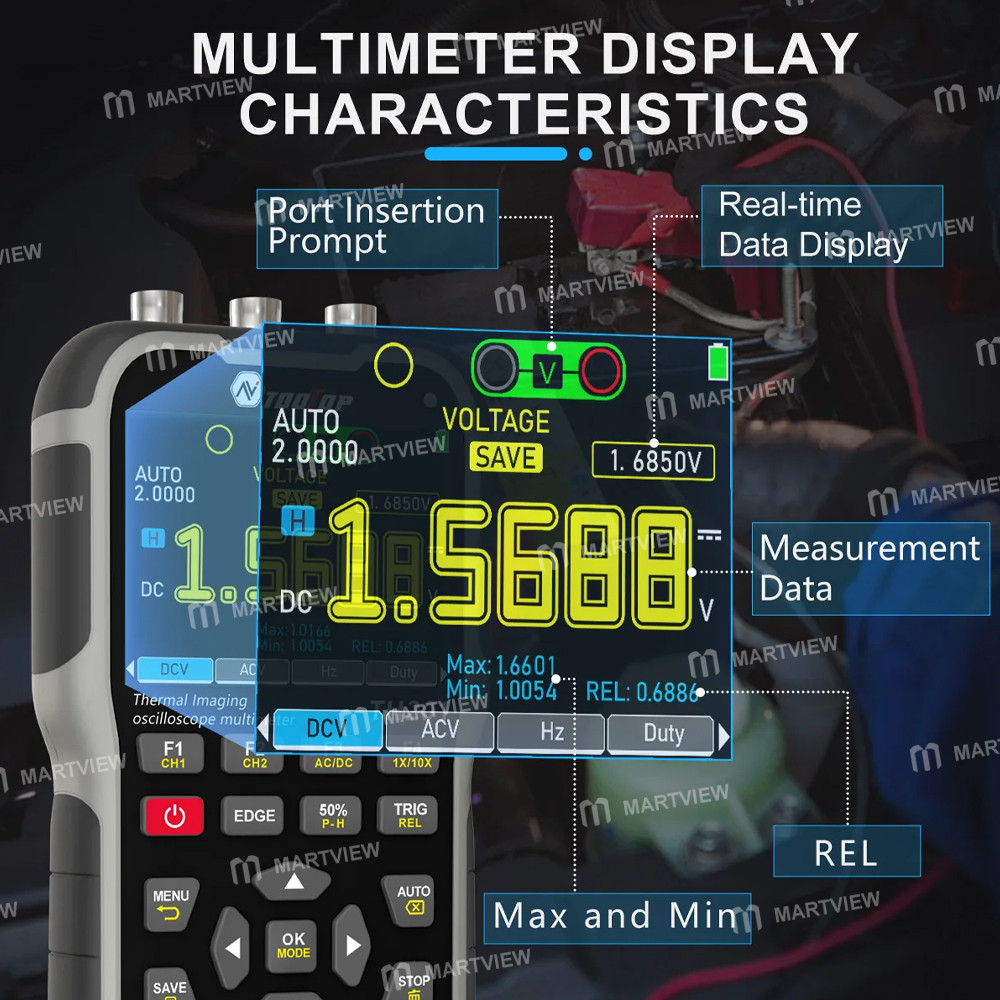

• 20,000 Counts True-RMS Multimeter: Supports Voltage/Current/Resistance/Capacitance/Frequency/Duty Cycle/Diode/Continuity and relative value measurements, minimizes lead resistance and interference for more reliable results

• 3.2-inch large display: 320x240 resolution, wide-view TFT color screen with 8 levels of adjustable brightness. Readouts and waveforms are clear at a glance

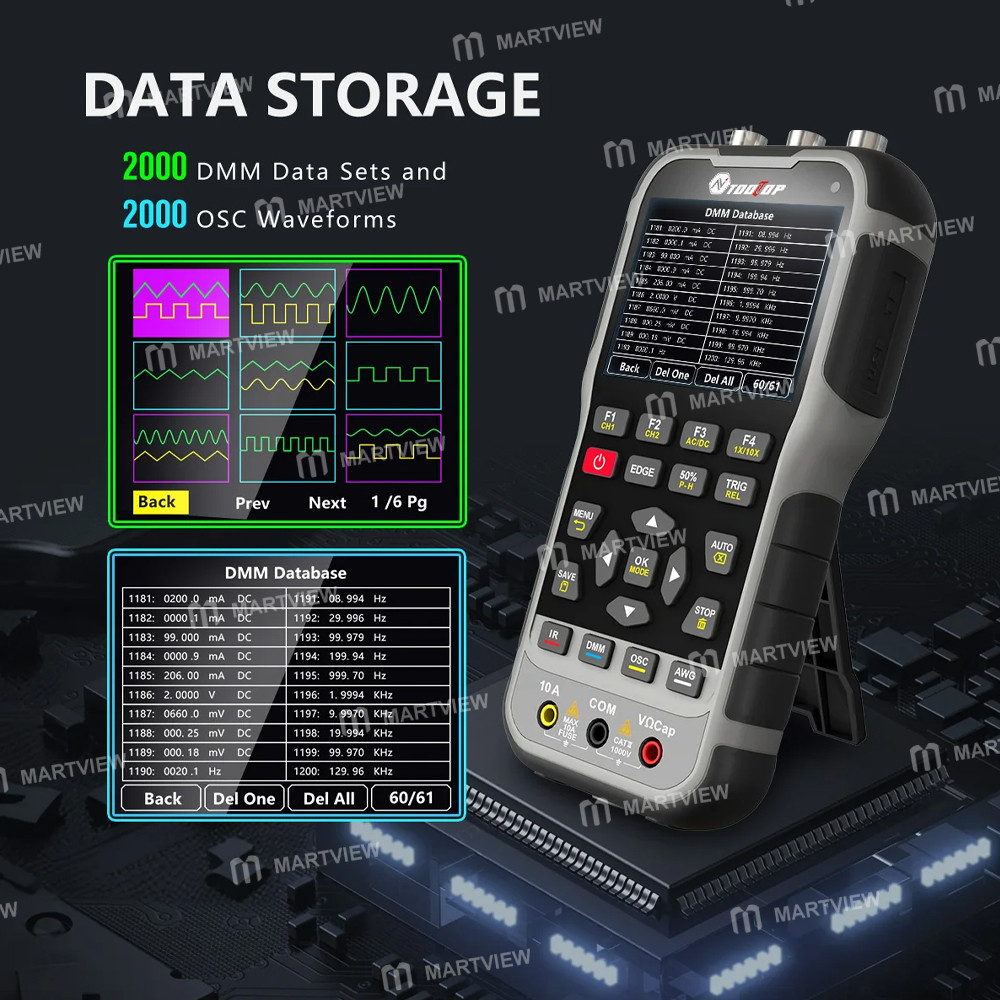

• 4GB Built-in Storage: Stores up to 2,000 data multimeter sets or 2,000 waveforms and supports saving thermal images, videos, and analysis. Facilitating experimental recording and data analysis.

• 3000mAh Lithium Battery: Rechargeable battery with a long battery life of approximately 5 hours, perfect for field measurements

Specifications:
Thermal Imager:

• Sensor Type: Uncooled IR (vox)

• Display Resolution: 288 (H) x 240 (V)

• Infrared Sensor: 96x96

• Image Capture Rate: 20Hz

• Temperature Range: -20°C~+550°C

• Measurement Accuracy: ±2°C or ±2%

• Emissivity: 0.01~0.99

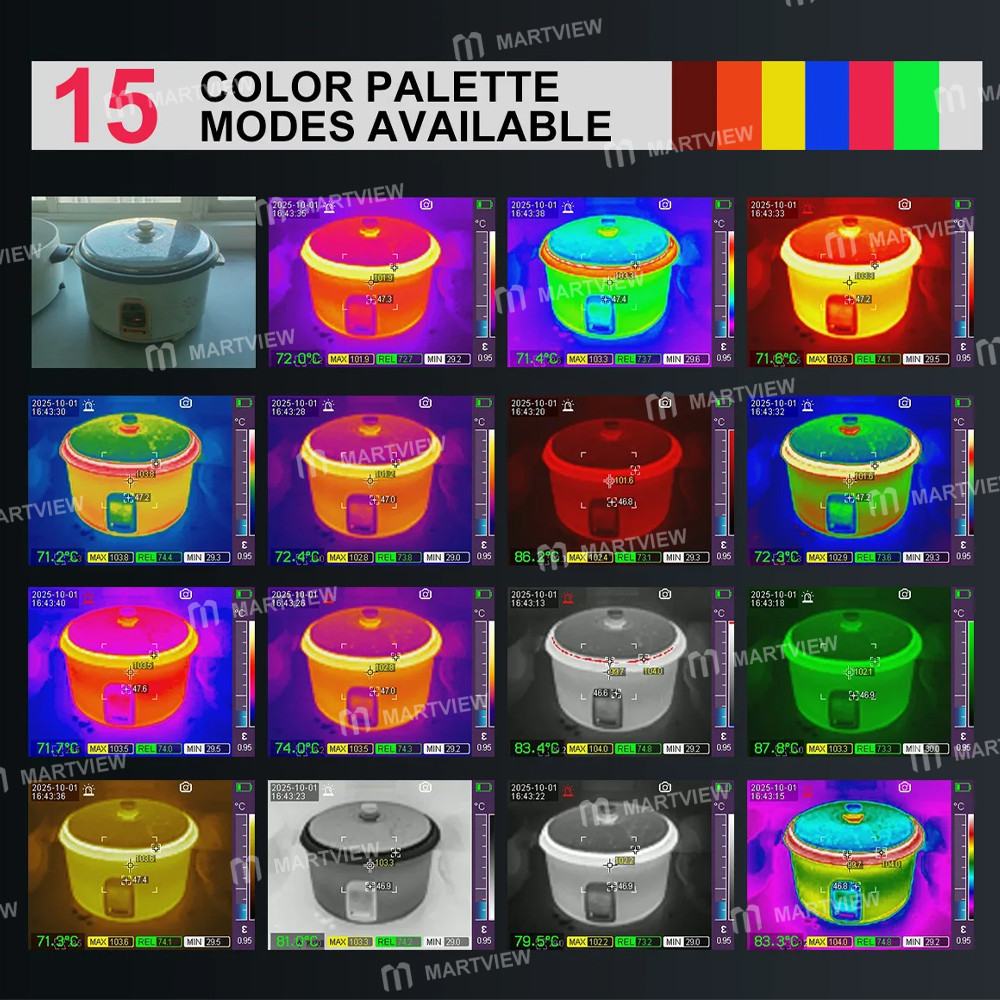

• Palette: White Hot, Black Hot, Fusion1, Fusion 2, Iron 1, Iron 2, Deep Blue, Color 1, Color 2.Lava, Rain, Green, Red Hot.Deep Purple

• Field of View (FOV): 50.0°(H) x 50.0°(V)

• Focus: 1.35 mm (Fixed, Non-adjustable)

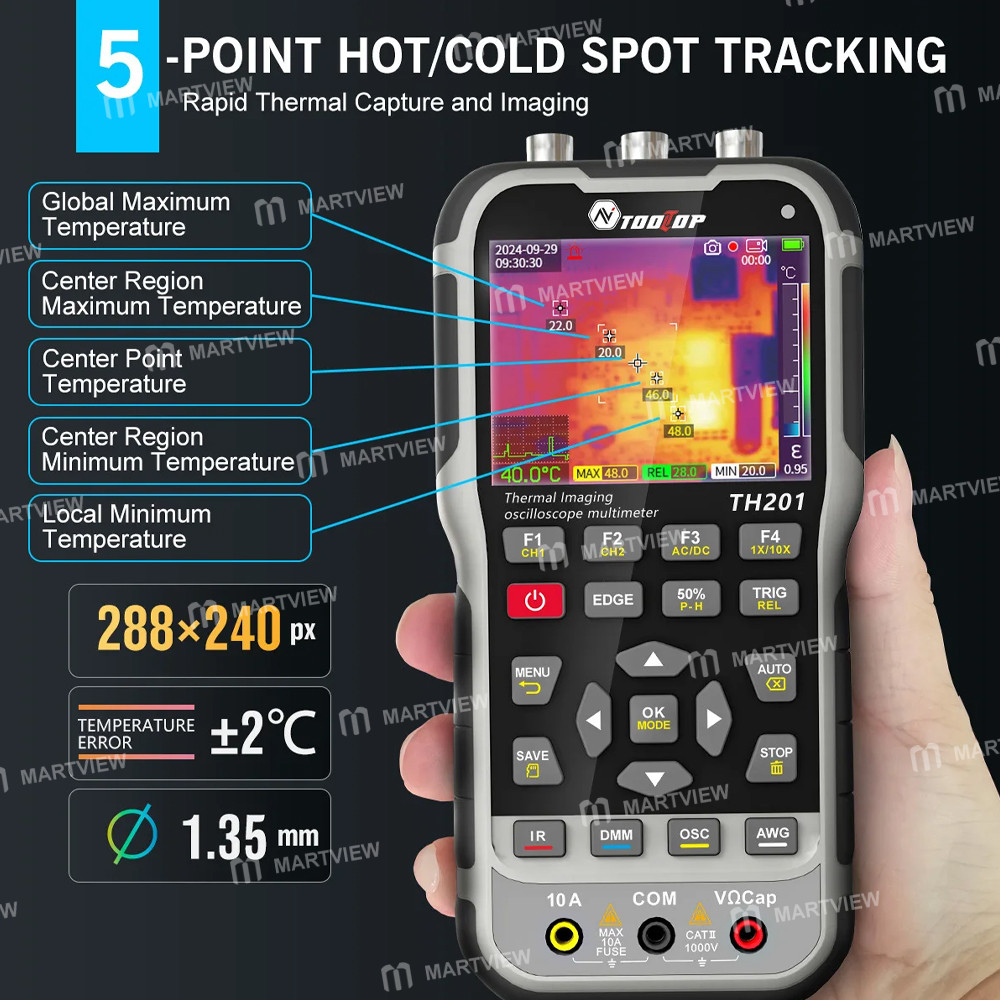

• Measurement Points: 5 (Center, Highest, Lowest, Area max, Area min)

• Image Format: JPG (Photo),  AVI (Video)

• Storage Capacity: TF card

Oscilloscope:

• Analog Bandwidth: Single Channel: 70MHz; Dual Channel: 40MHz

• Maximum Real Time Sampling Rate: 200MSa/s

• Channels: 2

• Storage Depth: 2K

• Vertical Resolution: 8-bits

• Coupling Mode: DC/AC

• Input impedance: Approx. 1MΩ

• Trigger Mode: Auto, Normal, Single

• Trigger Edge Selection: Rising / Falling edge

• Vertical Sensitivity Range: 10mV/div ~ 10V/div

• Vertical Accuracy: ±(5%+ 0.2div)

• Voltage Measurement: Vpp, Vp, Vmax, Vmin, Vavg, Vrms

• Time Measurement: Freg, Period, +Width、-Width, +Duty, -Duty

• Non-Linearity: ±1bit

• Attenuation: Vertical ±4.0, Horizontal ±6.0

• Time Base Range: 6ns/div-50s/div, adjustable in 1-2-5 steps

• Horizontal Accuracy: ±(0.01% + 0.1div)

• Automatic Measurement Accuracy: ±(5%+ 0.2div)

Multimeter:

• Display: 20000 Counts

• DMM Measurement Speed: 3 times/second

• DC Voltage: 200.00mV / 2.0000V / 20.000V / 200.00V / 1000.0V

• AC Voltage (True RMS): 200.00mV / 2.0000V / 20.000V / 200.00V / 750.0V

• DC Current: 2000.0mA / 10.000A

• AC Current (True RMS): 2000.0mA / 10.000A

• Resistance: 200.00Ω / 2.0000kΩ / 20.000kΩ / 200.00kΩ / 2.0000MΩ / 20.000MΩ / 200.00MΩ

• Capacitance: 9.999nF / 99.99nF / 999.9nF / 9.999uF / 99.99uF / 999.9uF / 9.999mF / 99.99mF

• Frequency: 9.999Hz~9.9999MHz (Input ≥ AC 500mVpp; Higher frequency requires higher input voltage)

• Diode Test: Open-circuit voltage Approx.3V, maximum test current Approx. 2mA

• Continuity Test: Buzzer sounds at <50Ω; displays OL at ≥200Ω

• Auto Range Switching: Applicable to all measurement functions

• Over-range Indication: O.L (Overload)

• Dynamic Data Window: Continuously refreshes to display real-time measurement data

• Fuse: 10A/250V

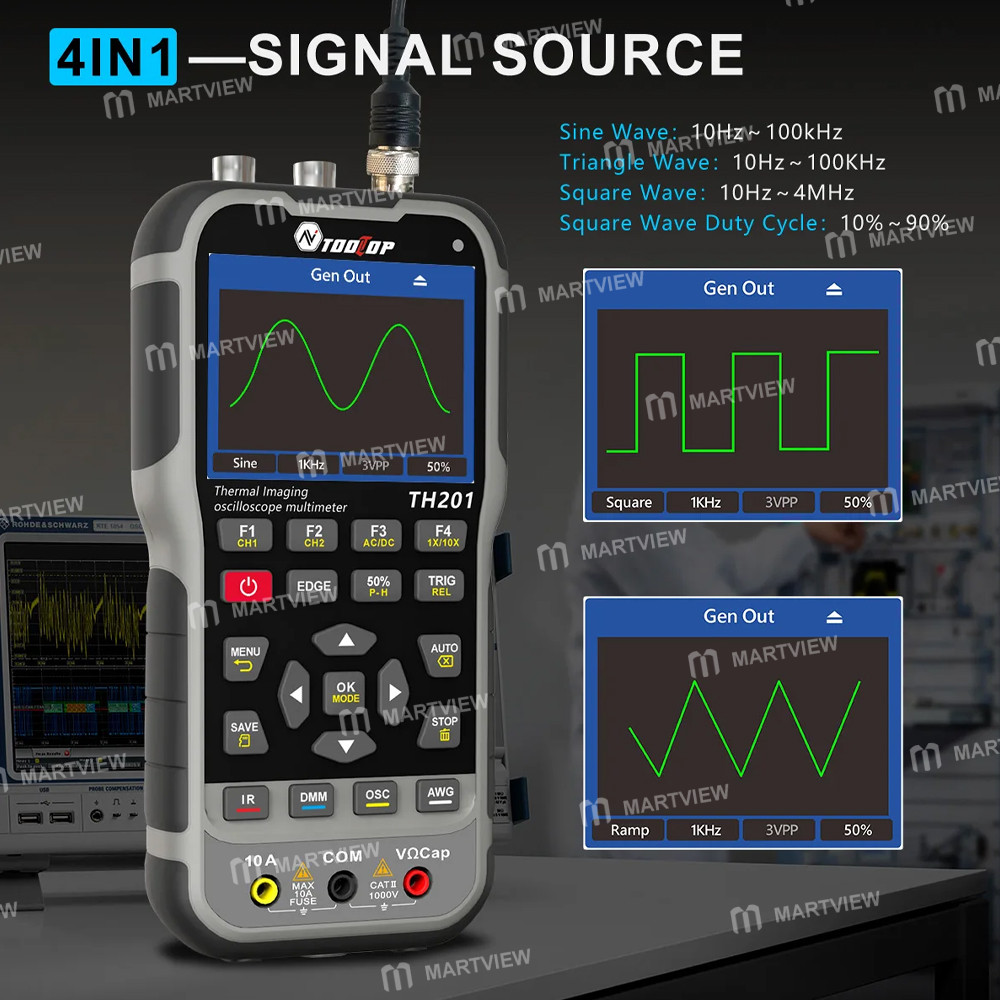

Signal Source:
Waveform Frequency

• Sine Wave: 10Hz-100kHz (1-2-3-5 step mode)

• Triangle Wave: 10Hz-100kHz (1-2-3-5 step mode)

• Square Wave: 10Hz-4MHz (5MHz for reference only)(1-2-3-5 step mode)

• Square Wave Duty Cycle: 10%~90% (Adjustable in 10% increments, 1-2-3-5 step mode)

• Output Voltage: 3Vpp (Output impedance approx.50Ω)

Other Parameters:

• Display: 320x240; 3.2-inch TFT color screen

• Backlight Brightness: 1-8 levels adjustable

• Battery: 3000mAh rechargeable lithium battery

• Low Battery Indicator: Support

• Operating Time: About 5 hours

• Operating Environment: 0℃~+40℃; <75%RH

• Overall Dimensions: 173mmx89mmx38mm

• Silent Mode: Supported

• Auto Power-off: 5min-60min or disabled

• Power: DC 5V/2A ( Charger not included)

• Storage Capacity: DMM: 2000 records; OSC: 2000 waveforms

• Storage Environment: -10℃~+60℃; <90%RH

• Weight: 296g

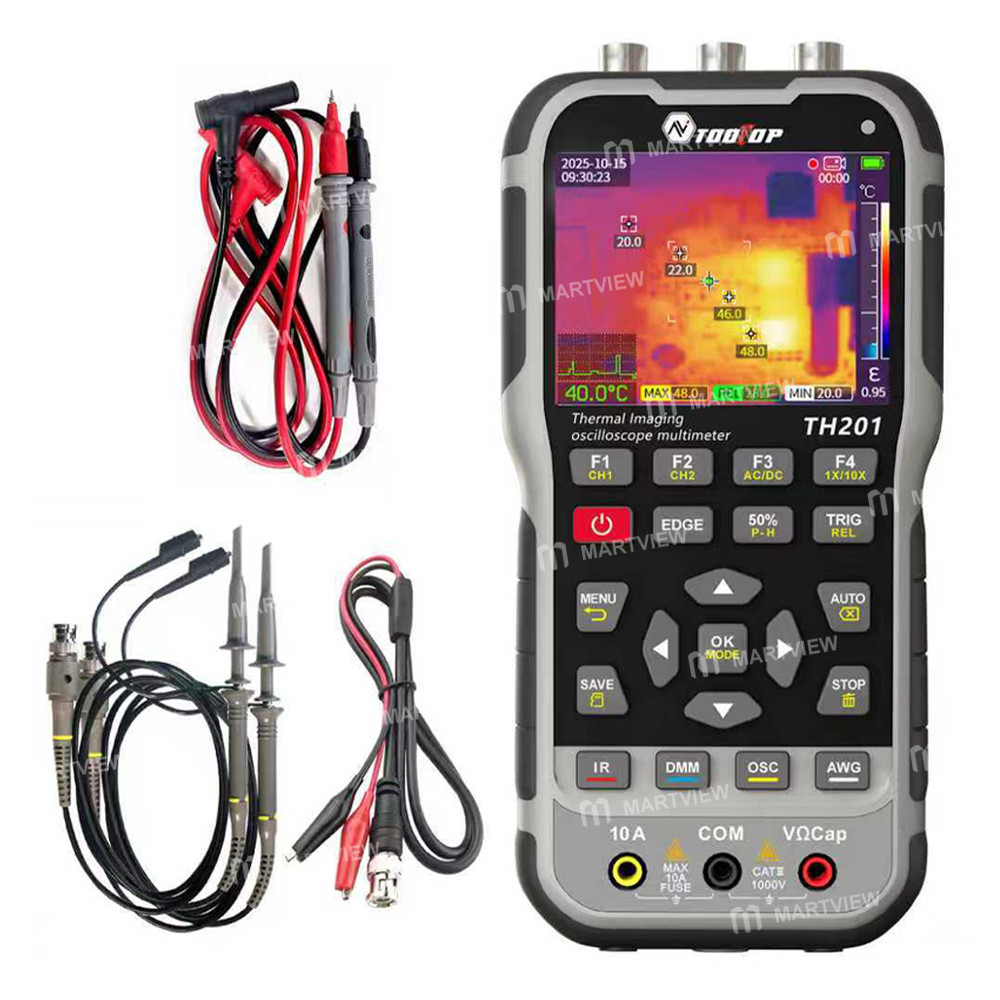

Package includes:

• 1 x Oscilloscope

• 2 x Oscilloscope Probes

• 1 x Test Leads

• 1 x BNC to Alligator Clip Cable

• 1 x USB Cable
