TTL to RS485 Module for Microcontroller Development RS-485 Communication

TTL to RS485 Module for Microcontroller Development RS-485 Communication

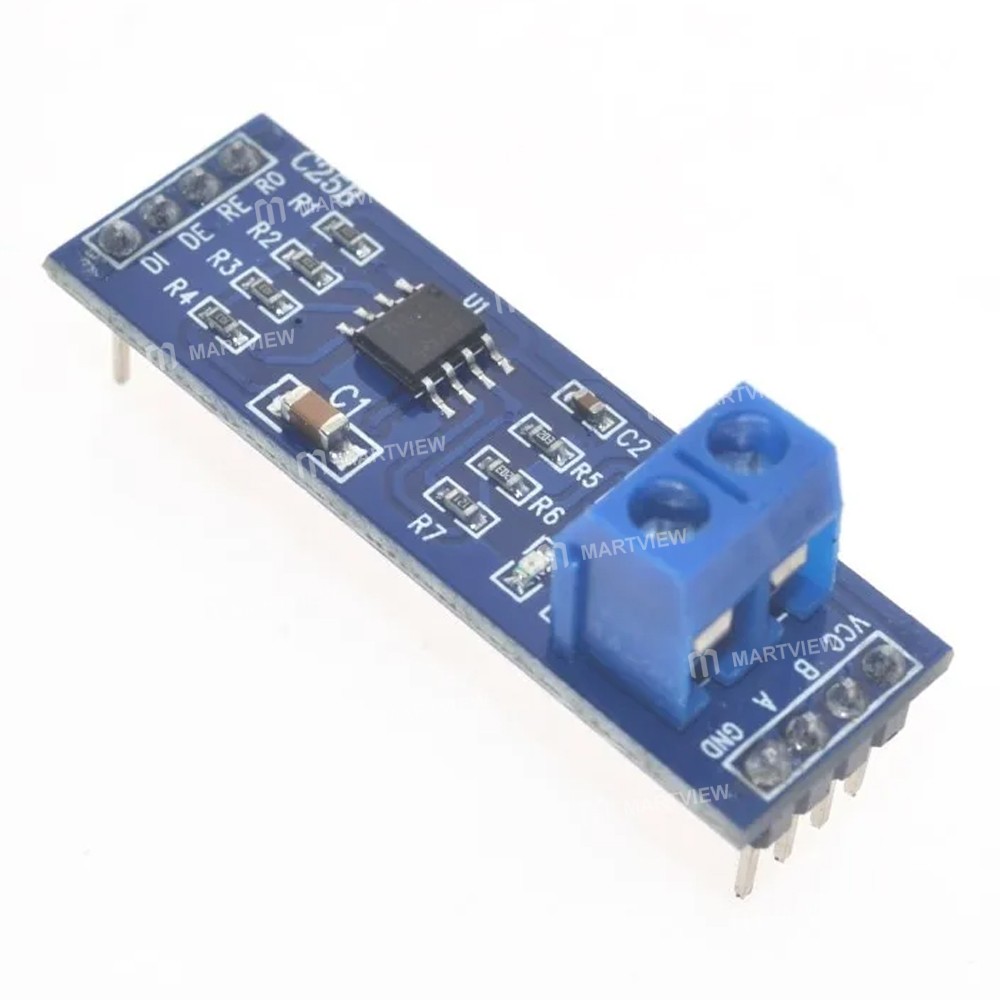

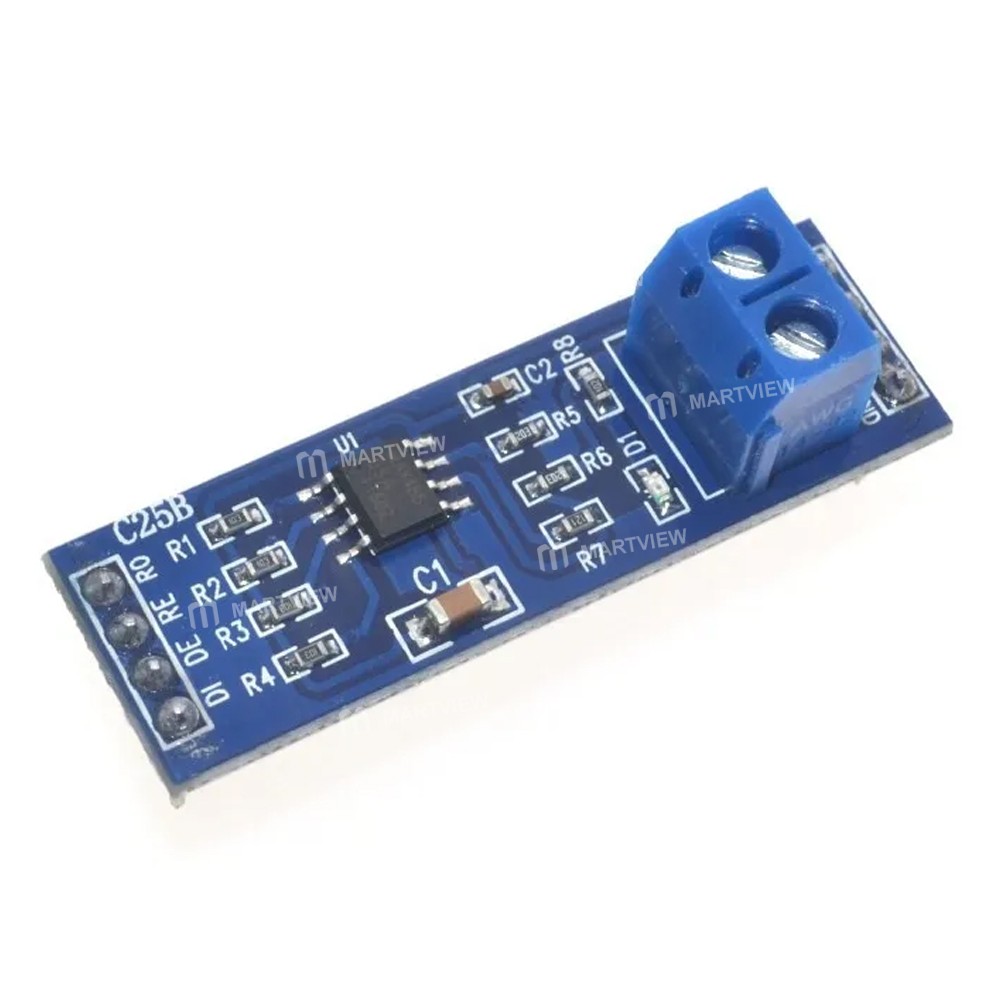

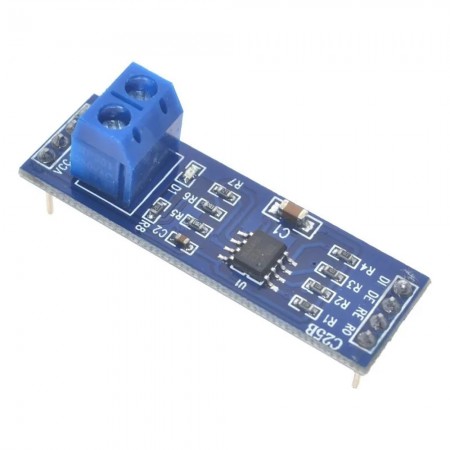

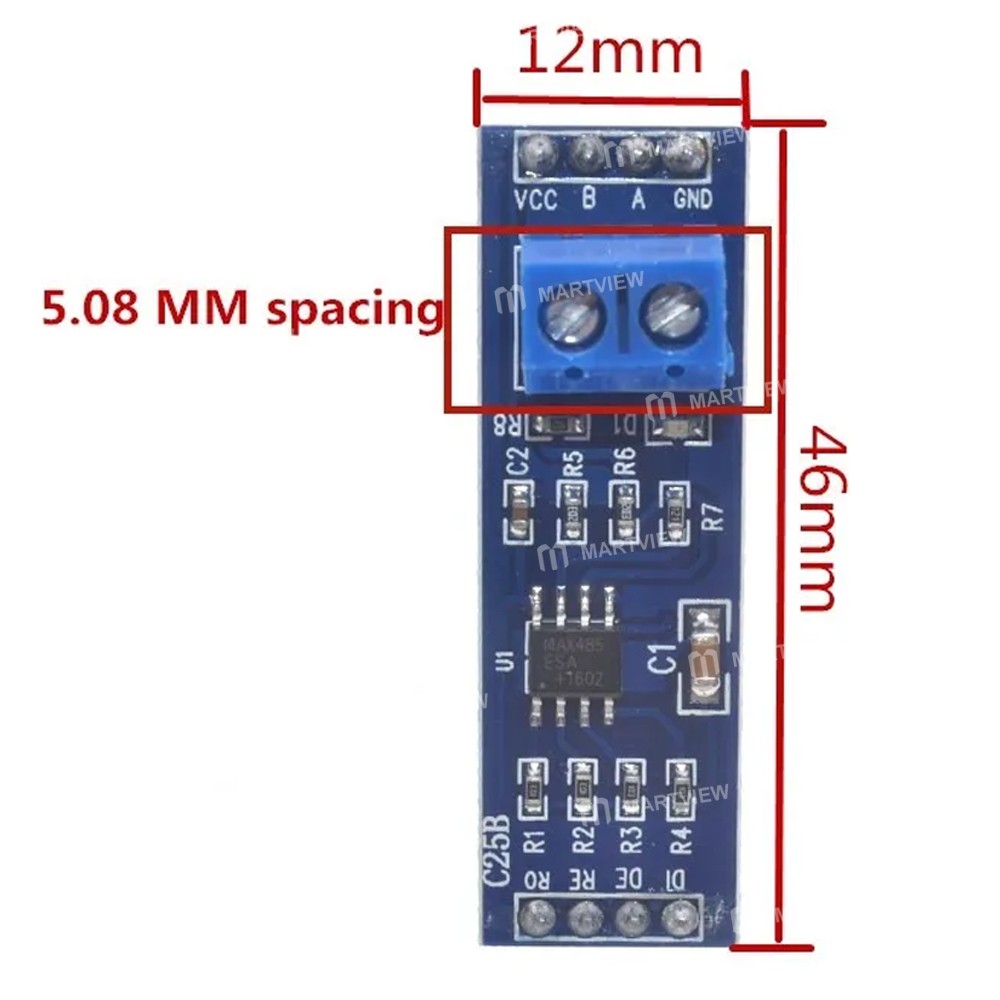

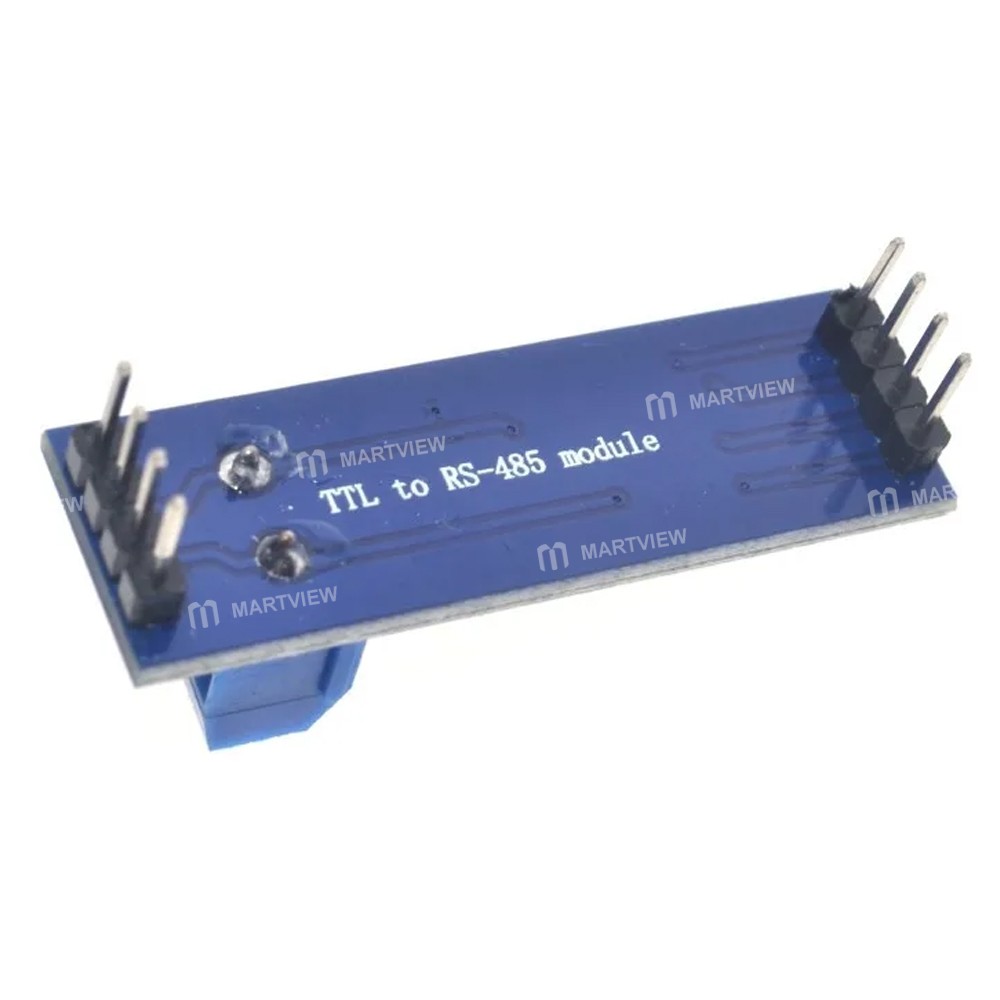

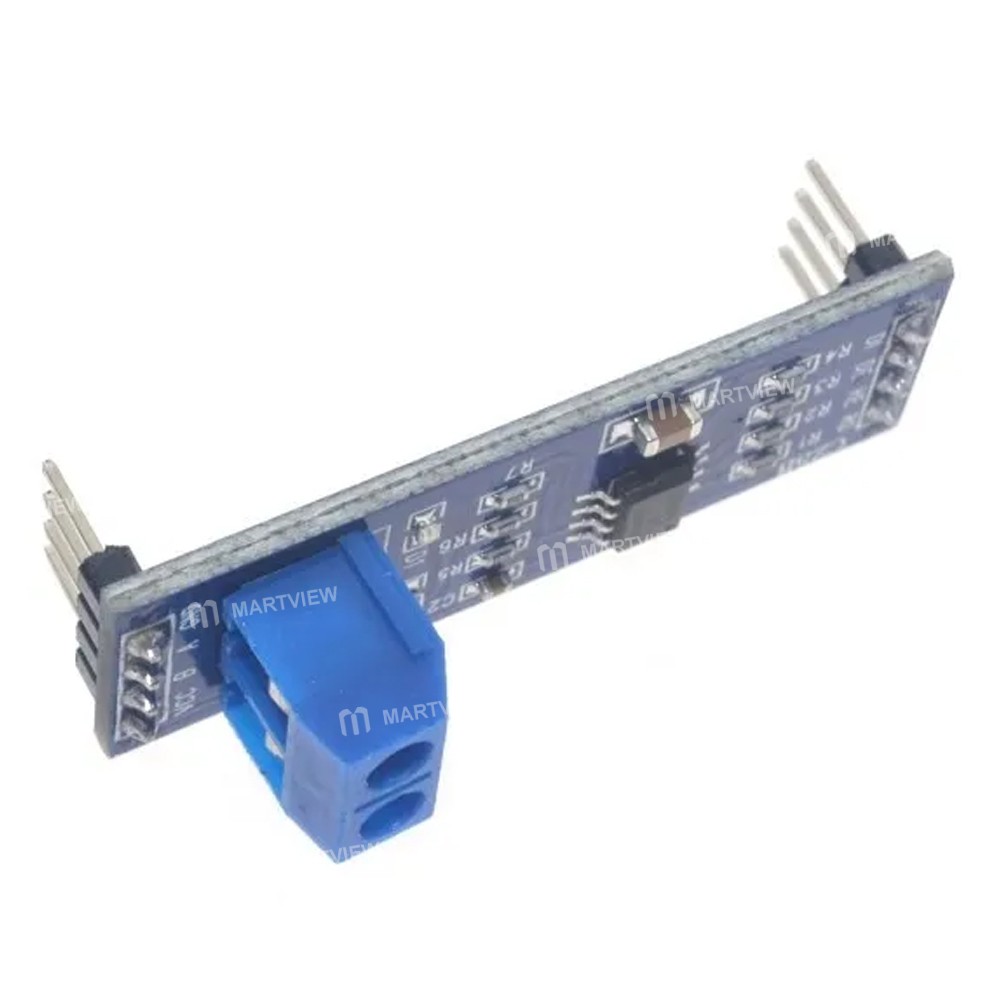

The on-board MAX485 chip is a low-power, swing-rate-limited transceiver for RS-485 communication, and the on-board connects to a 5.08(mm) pitch 2P terminal block, which is convenient for RS-485 communication wiring. All pins of the chip have been pinned out and can be operated by the microcontroller control

Pin Definition:

• RO: Receiver output

• RE: Receiver output enable

• DE: Driver output enable

• D1: Driver input

• VCC: 5V power supply

• A: Receiver in-phase input and driver in-phase output

• B: Receiver inverting input and driver inverting output

• GND: Ground

Package includes:

• 1 x Module
