Tuoli TL-X9H 7-inch Automatic Intelligent Vacuum UV Film Curing Machine for Mobile Phone Screen

Tuoli TL-X9H 7-inch Automatic Intelligent Vacuum UV Film Curing Machine for Mobile Phone Screen

Features:

• Environmentally friendly and low power consumption/suitable for ultraviolet sterilization/suitable for UV film

• Strong light efficiency/Curved straight screen wrinkle-free/Fast curing/Light weight/Full coverage

• Vacuum bonding/digital display/accelerated curing/timer function/compact and convenient/light weight

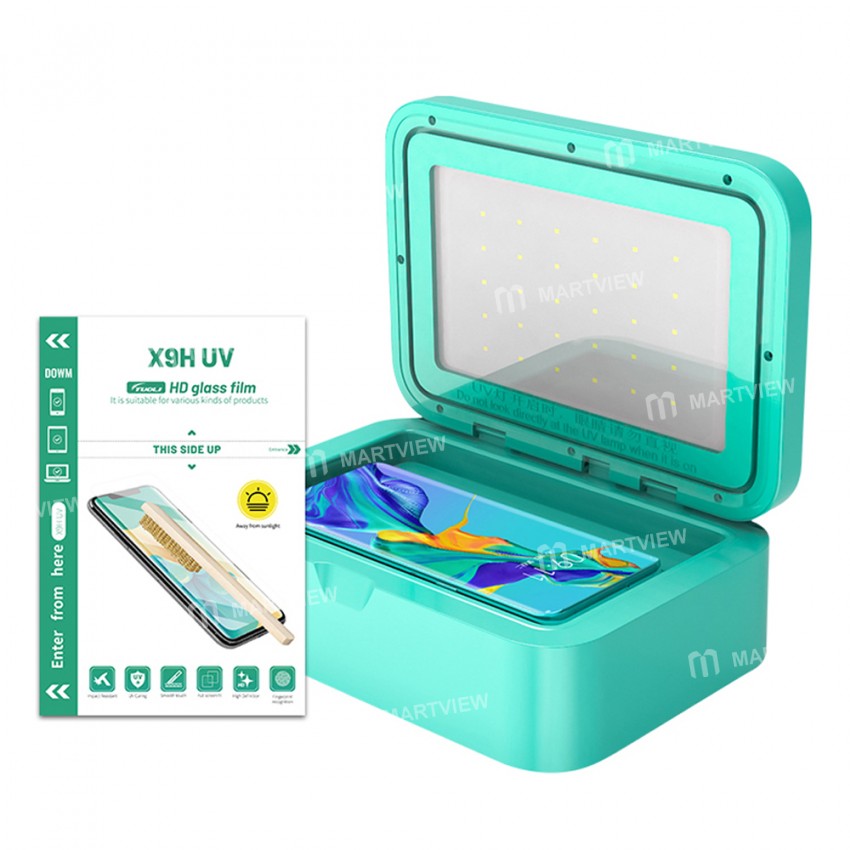

• Vacuum negative pressure sticking is suitable for different models. It is specially developed for curved screens. It fits closely and bids farewell to warping troubles. It is suitable for curved straight screens, cover plates, OCA lamination, anti-wrinkle LCD curing, etc.

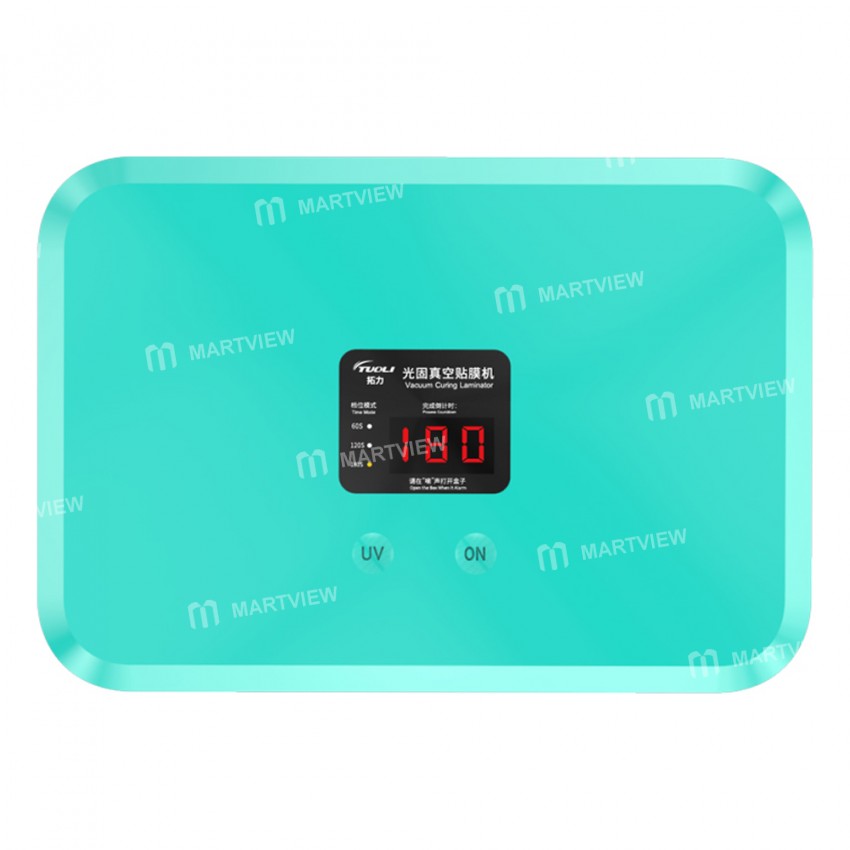

• Digital display timing function, 3-stage adjustable curing time, suitable for different thickness materials

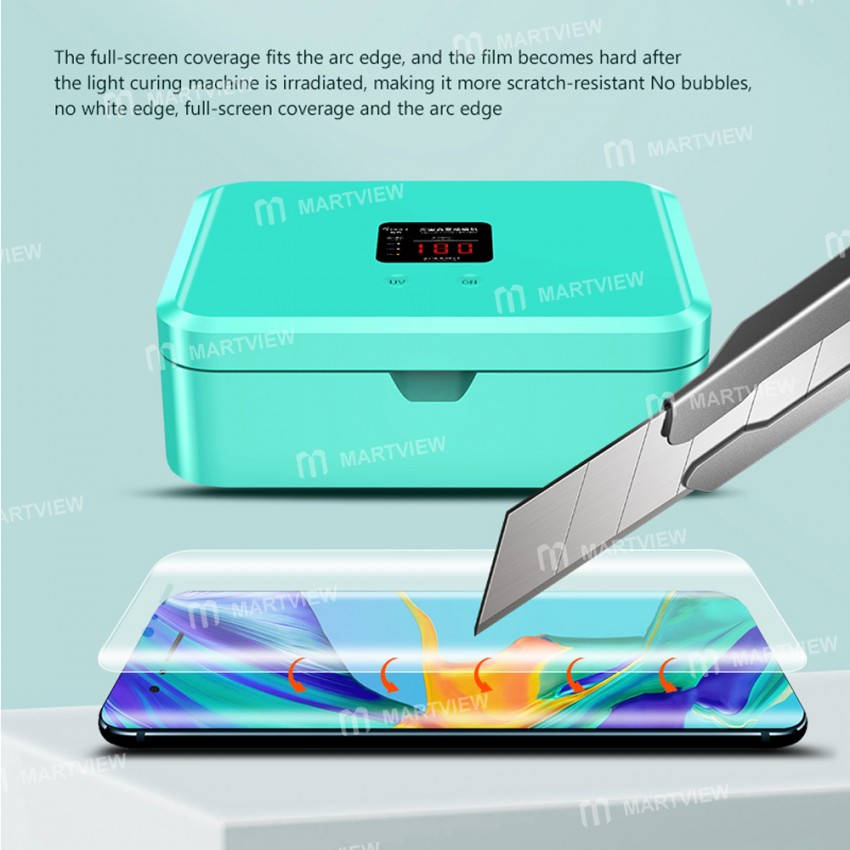

• With the vacuum laminating machine, the adhesion is firmer after curing, and the surface feels smooth

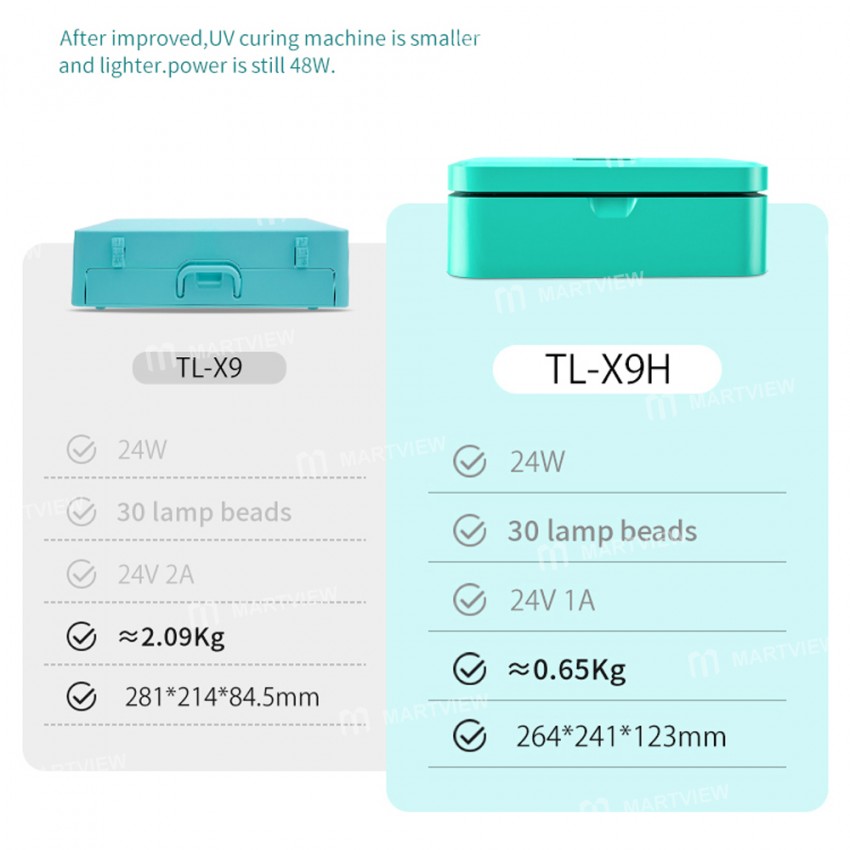

• The light effect is unchanged, the size is smaller, the same power is 24W, the latest laminating machine, after improvement, is now smaller in size and lighter in weight

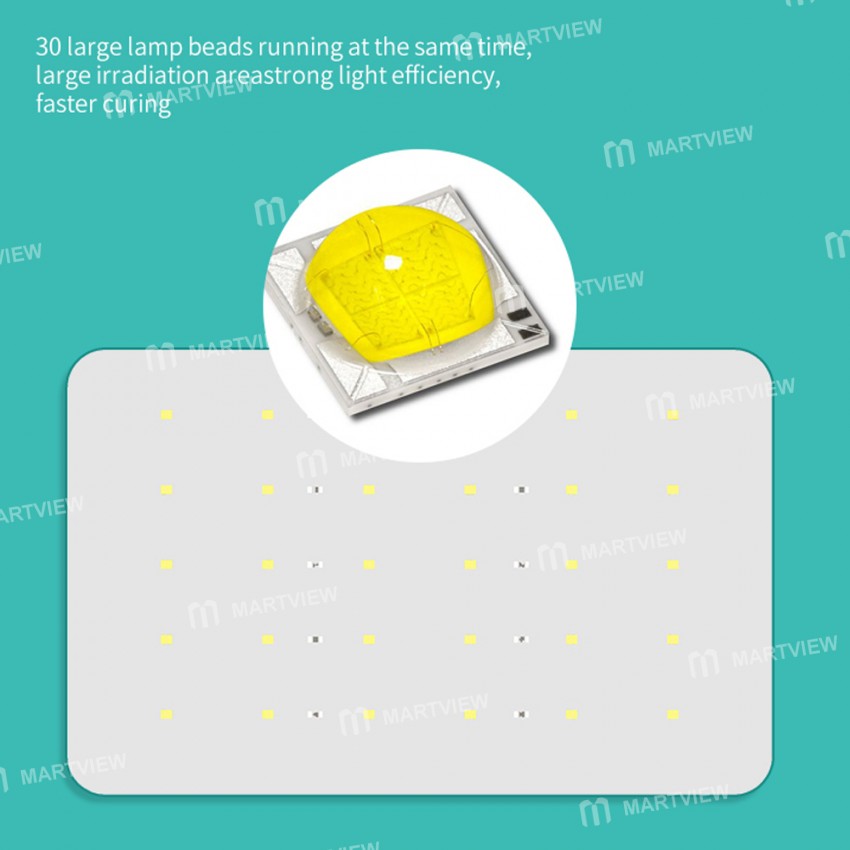

• 30 high-quality lamp beads run at the same time, with a large irradiation area, strong light efficiency, and faster curing

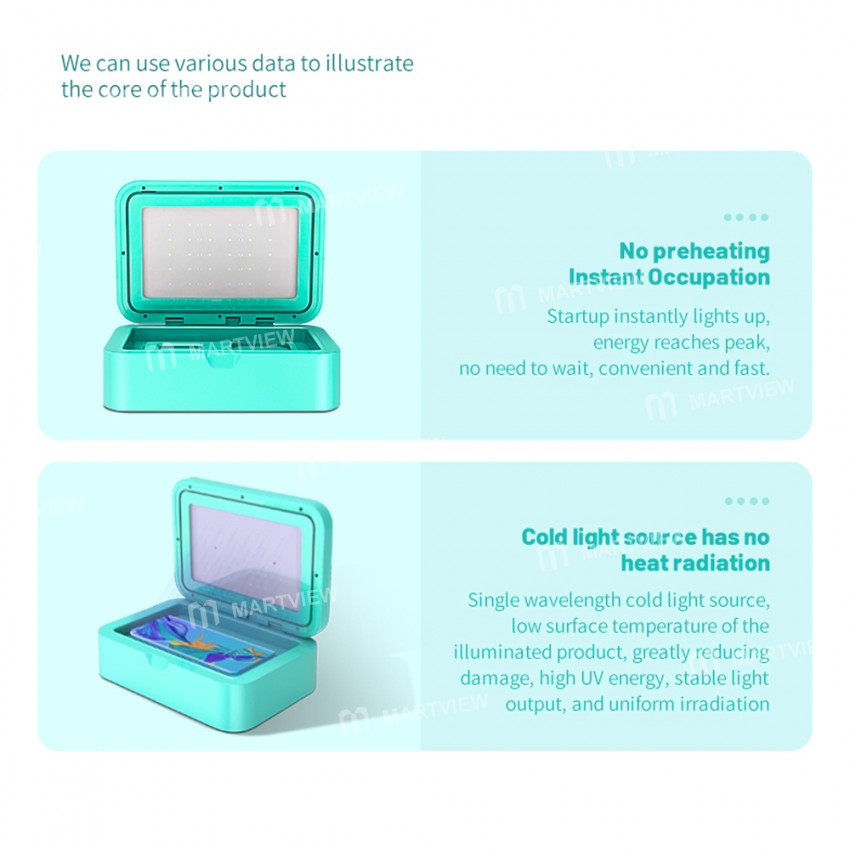

• Instant use, no need to preheat, turn on instantly, the energy reaches the peak, no need to wait, convenient and fast

• The cold light source, no heat radiation, the low surface temperature of the illuminated product, greatly reducing damage, high UV energy, stable light output, uniform irradiation

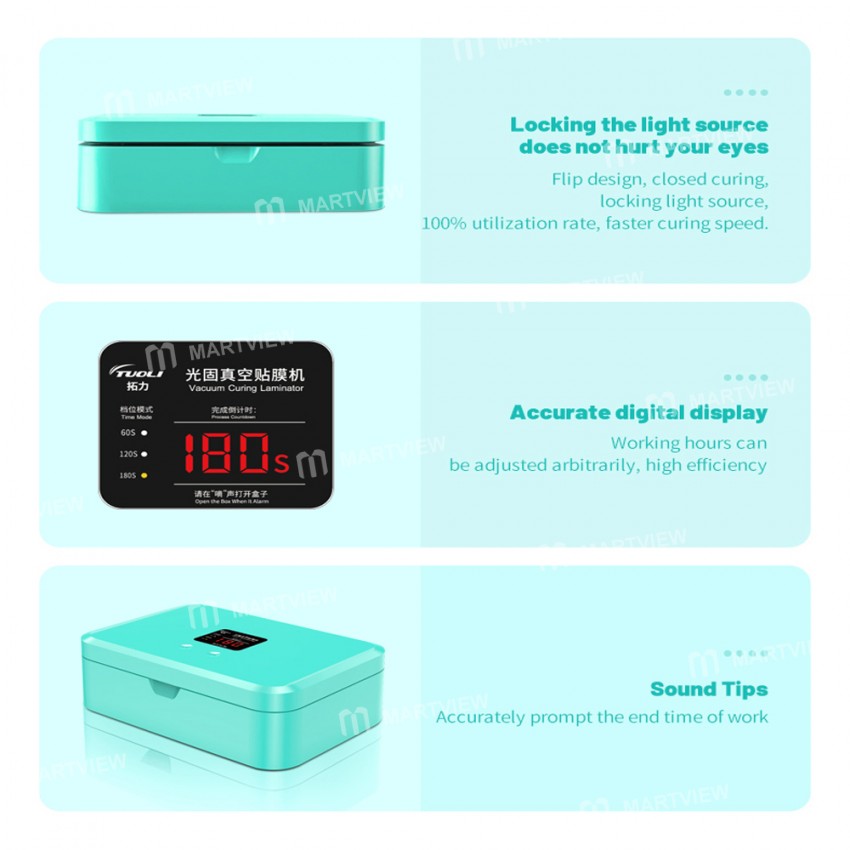

• Locking the light source does not hurt the eyes, clamshell design, closed curing, locking the light source, the utilization rate is 100%, and the curing speed is faster

• Built-in buzzer, an accurate reminder of work end time

Specification:

• Product name: UV vacuum laminating machine product

• Model: TL-X9H

• Product color: Green

• Voltage: 24V

• Rated power: 24W

• Number of lights: 30

• Optical band: 365+395

• Net weight: 0.65kg

• Energy: 60S/120S/180S≈600J/1200J/2000J

• Product size: 230*160*75mm

• Packing size: 264*241*123mm

Package includes:

• 1 x UV curing machine

• 1 x Power cable
