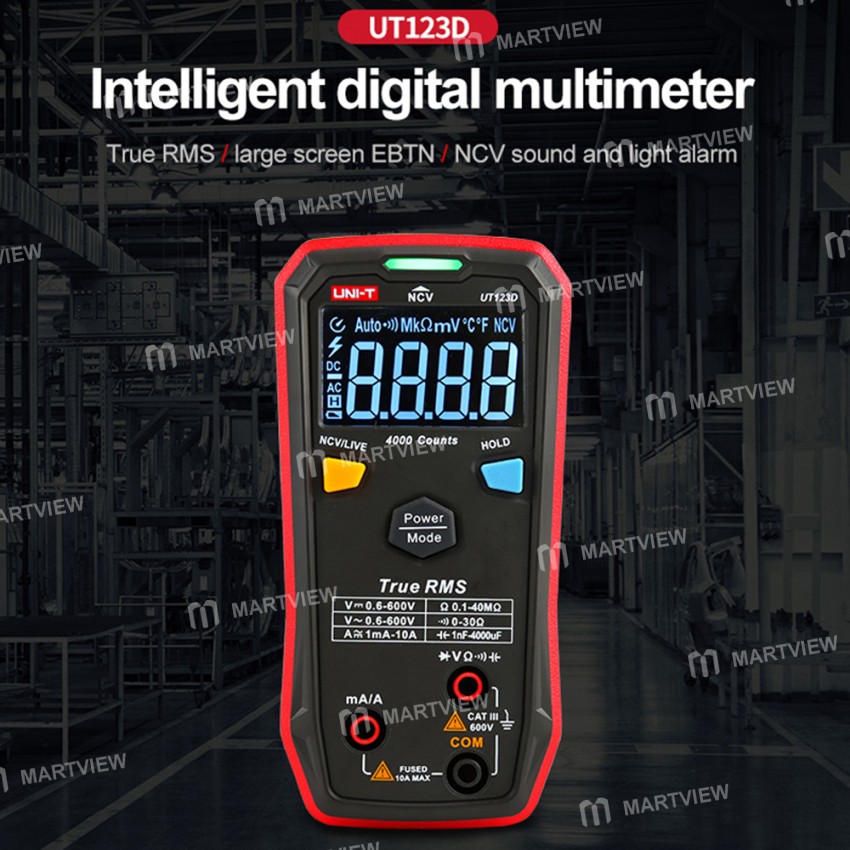

UNI-T UT123D Auto Range True RMS EBTN Display DC / AC Smart Digital Multimeter

UNI-T UT123D Auto Range True RMS EBTN Display DC/AC Smart Digital Multimeter

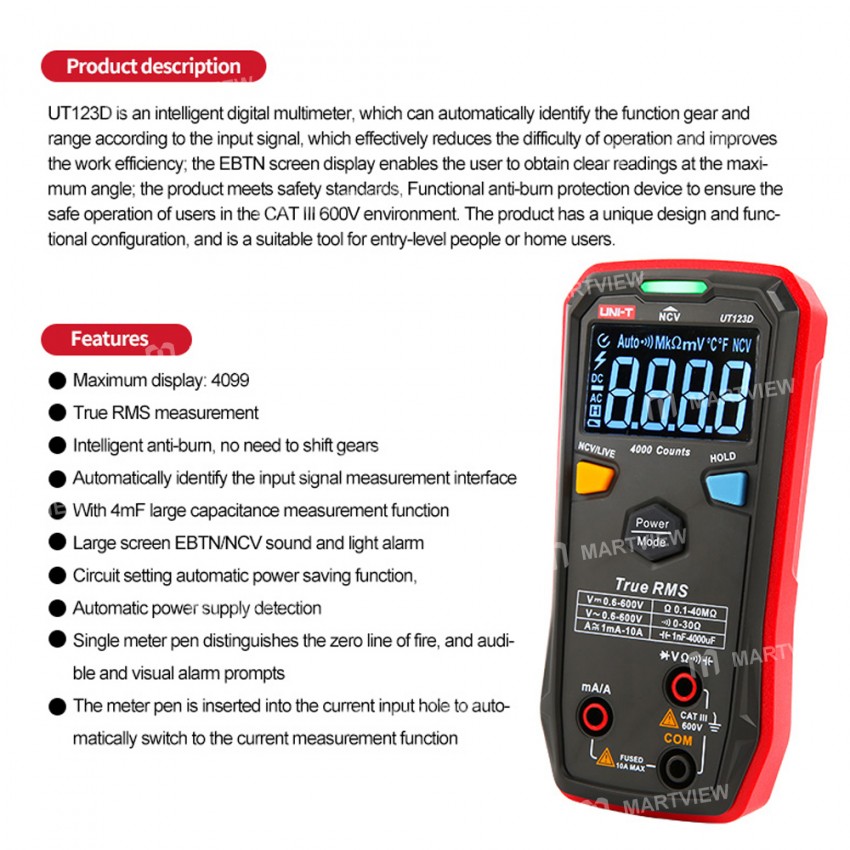

Features:

• UT123D is an intelligent digital multimeter, which can automatically identify the function gear and range according to the input signal, which effectively reduces the difficulty of the operation and improves the work efficiency

• The EBTN screen display enables the user to obtain clear readings at the maximum angle

• The product meets safety standards, a functional anti-bum protection device to ensure the safe operation of users in the CAT Ill 600V environment

• The product has a unique design and functional configuration and is a suitable tool for entry-level people or home users

• Maximum display:4099

• True RMS measurement

• Intelligent anti-bum,no need to shift gears

• Automatically identify the input signal measurement interface

• With 4mF large capacitance measurement function

• Large screen EBTN/NCV sound and light alarm

• Circuit setting automatic power saving function,

• Automatic power supply detection

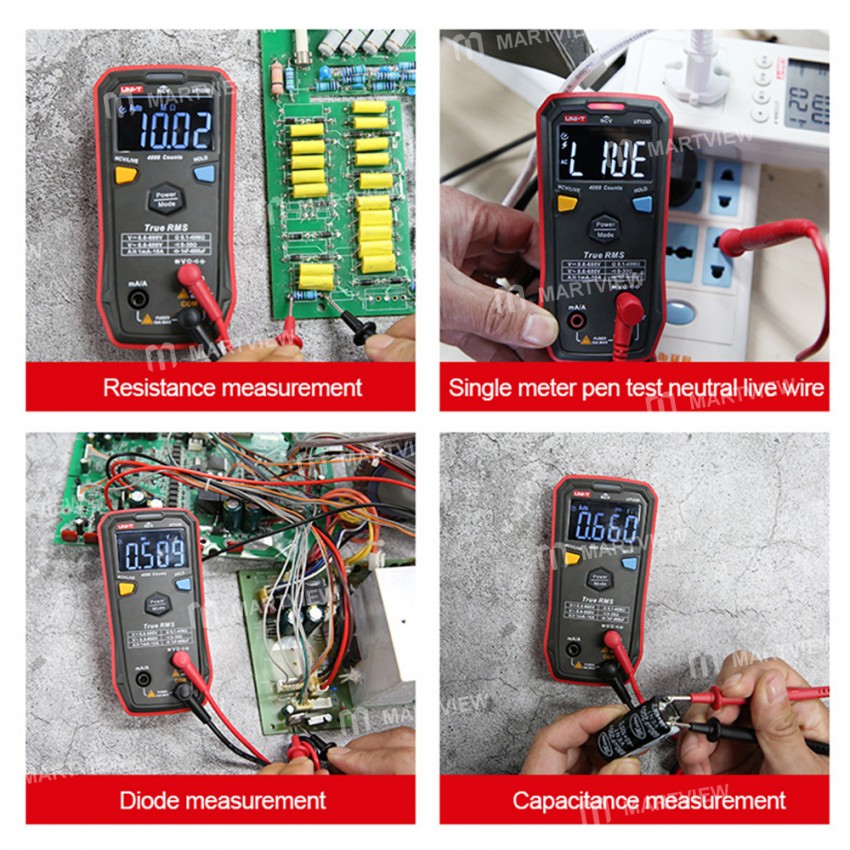

• Single meter pen distinguishes the zero line of fire, and audible and visual alarm prompts

• The meter pen is inserted into the current input hole to automatically switch to the current measurement function

Specification:

• DC voltage: 4.000~600V ±(0.5%+3)

• AC voltage: 4.000~600V ±(1.0%+5)

• AC current: 999.9mA~9.999A ±(1.2%+3)

• DC current: 999.9mA~9.999A ±(1.0%+3)

• Resistance: 400Ω~40.00MΩ ±(1.0%+2)

• Capacitance: 40.00nF~4000uF

• Maximum display: 4099

• True RMS: Yes

• Diode: Yes

• On-off/buzzer: Yes

• NCV: Yes

• LIVE: Yes (Distinguish the zero line of fire)

• Auto range: Yes

• Low voltage display: Yes

• Automatic shut-down: Yes

• Weight: 137g

• Power supply: AAA 1.5V battery x2 (not included)

• Size: 130*65*28mm

Package includes:

• 1 x Multimeter(Without battery)

• 1 x Test line
