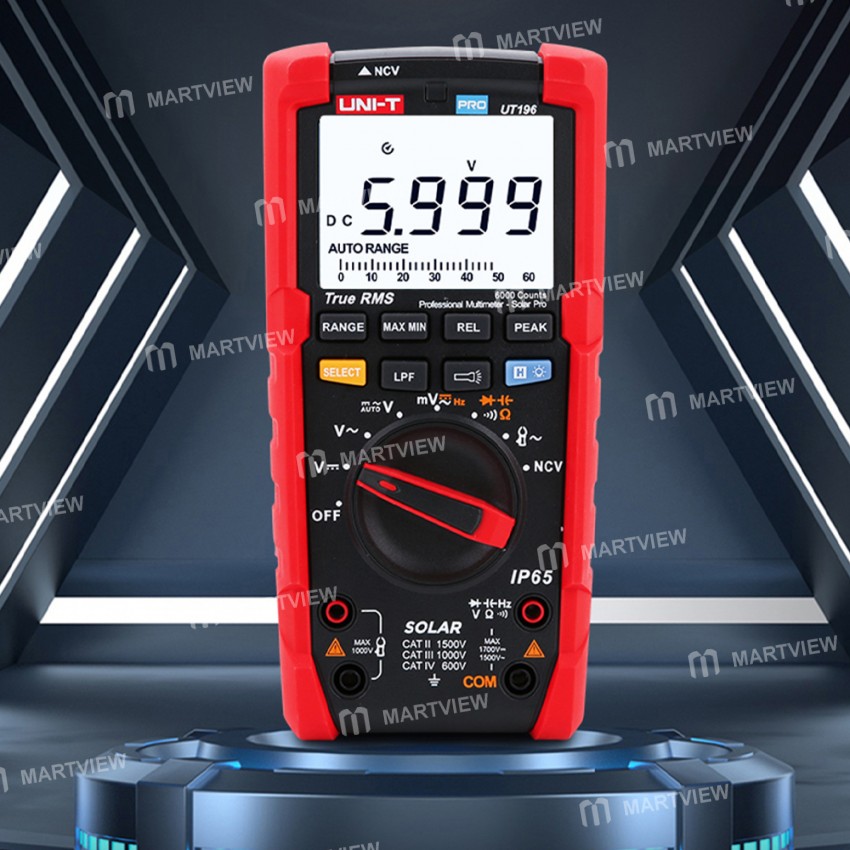

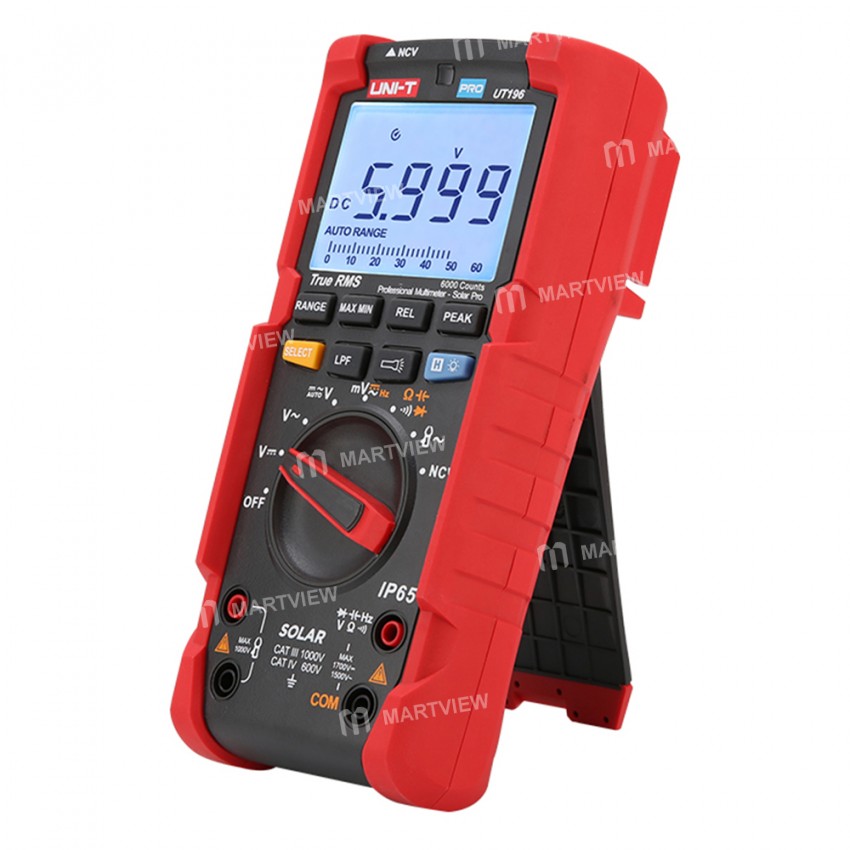

UNI-T UT196 1500V AC / DC Voltage True RMS Professional Digital Multimeter with Peak Hold

UNI-T UT196 1500V AC / DC Voltage True RMS Professional Digital Multimeter with Peak Hold
Features:

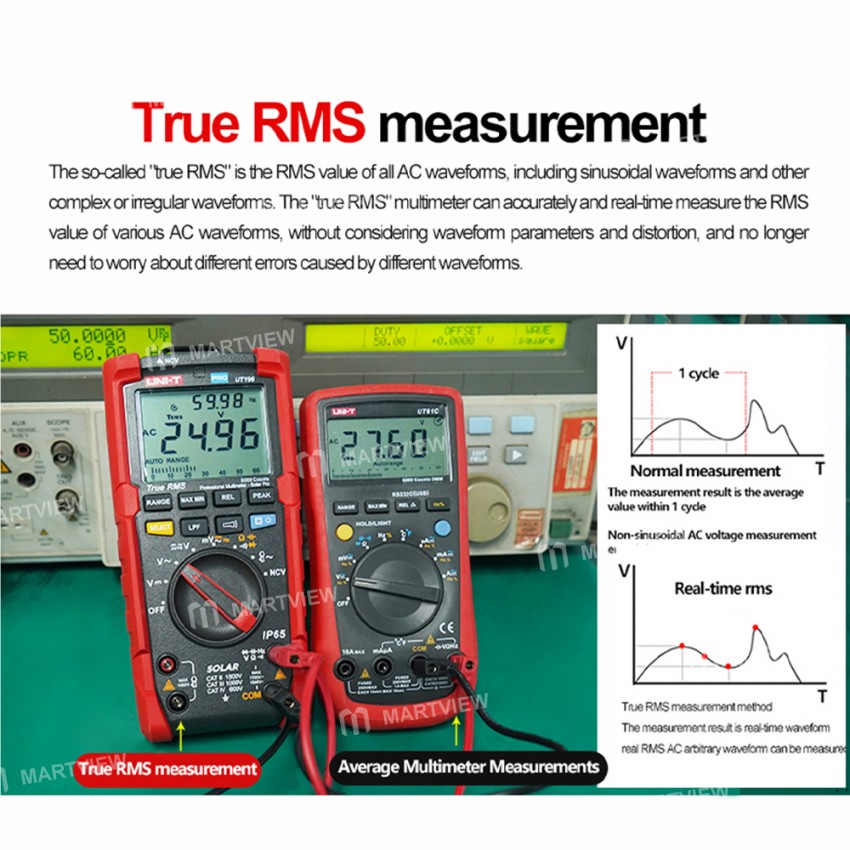

• True RMS, display digits:6000

• 1700V DC voltage measurement, suitable for voltage measurement of photovoltaic array systems

• 1500V AC voltage measurement, suitable for voltage measurement of large motors such as mines

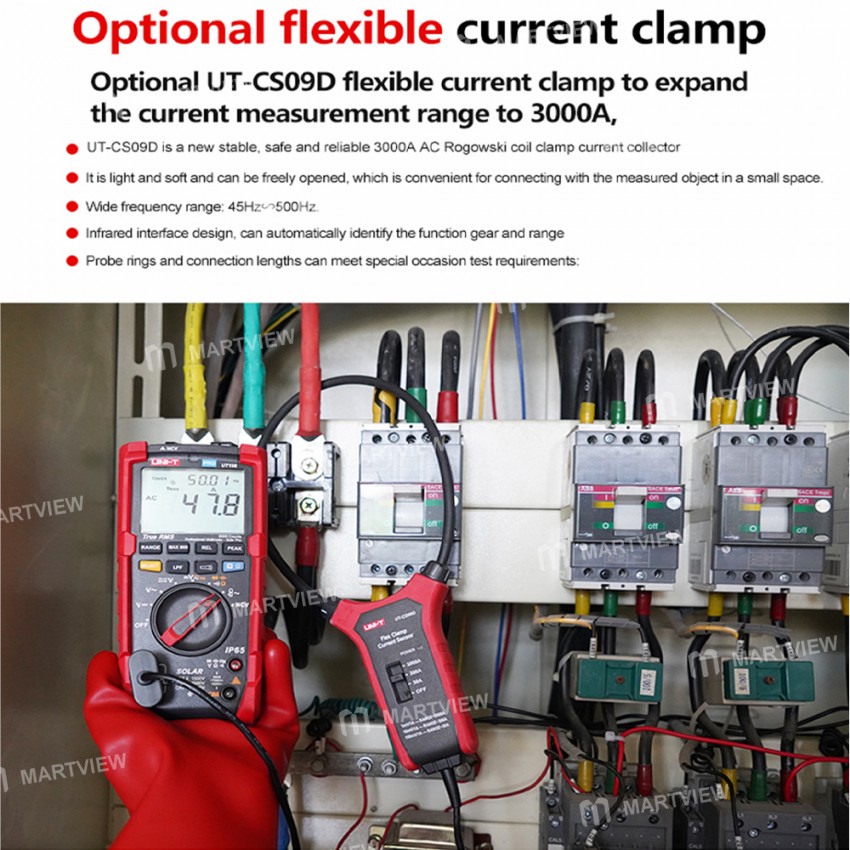

• Optional flexible current clamp to extend the current measurement range to 3000A

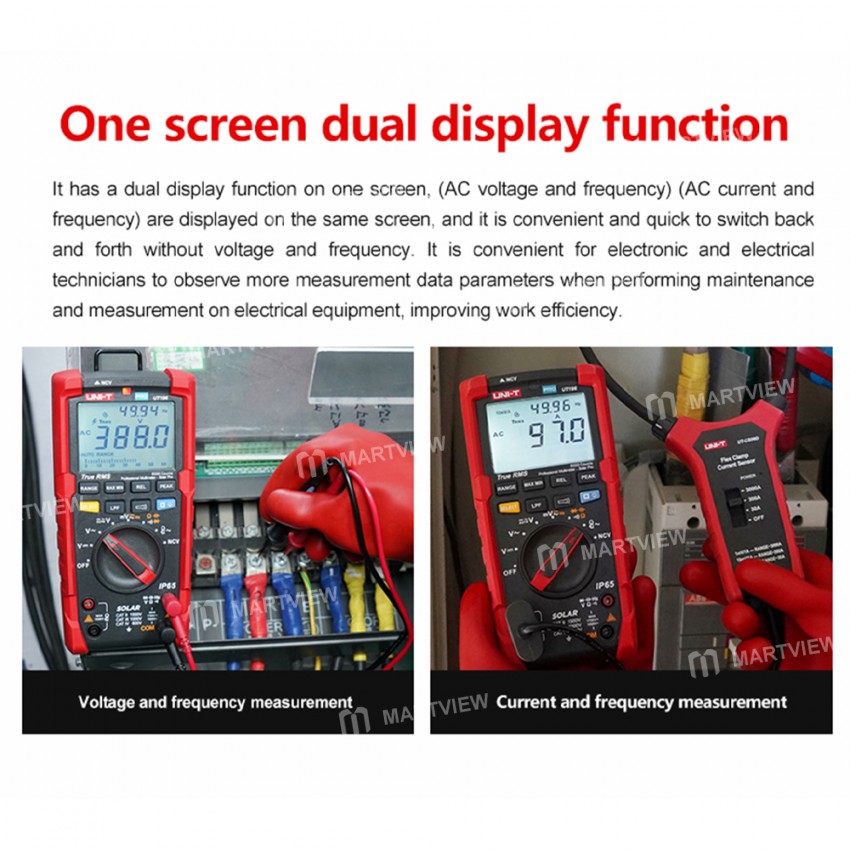

• AC voltage and frequency, AC current and frequency are displayed on the same screen

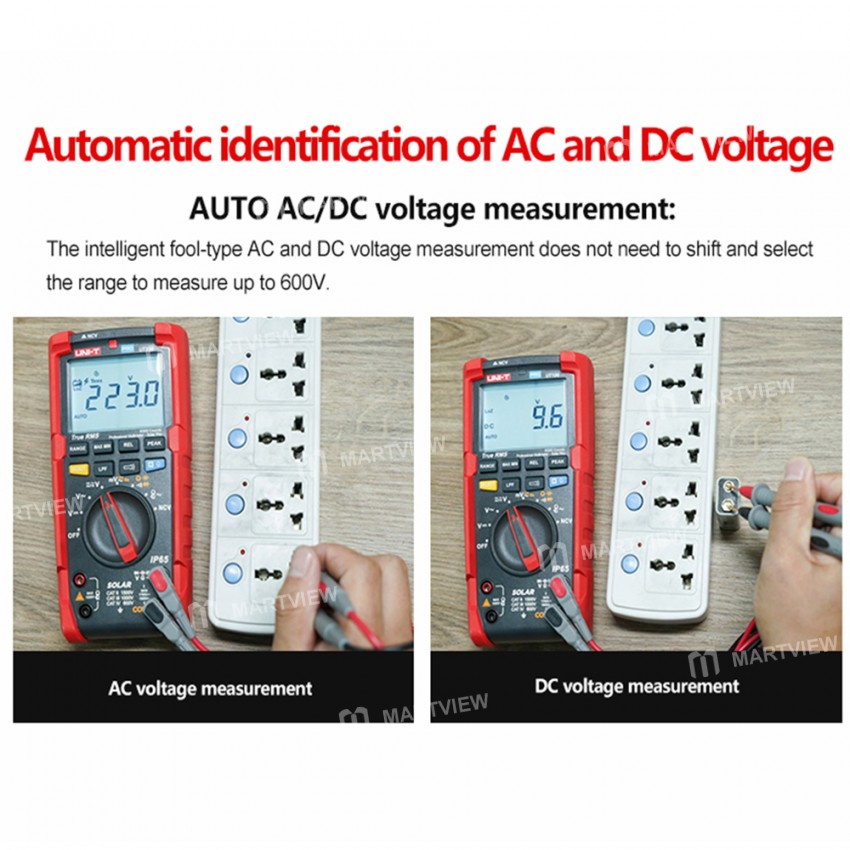

• Automatic identification of AC and DC voltage (low impedance)

• ACV ACA frequency response:45~1kHz

• With NCV non-contact electrical inspection function

• With backlight and flashlight

• Auto/manual range switching/analog bar:51 segments;

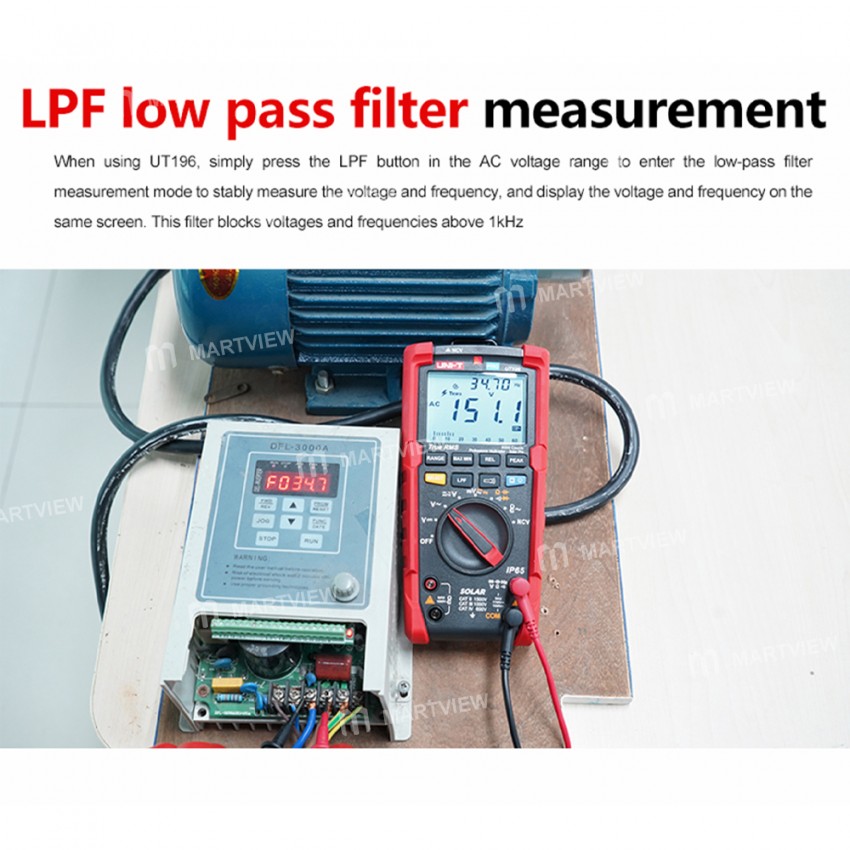

• Low-pass filter function(cutoff frequency:1KHz)

• Waterproof and dustproof grade: IP65

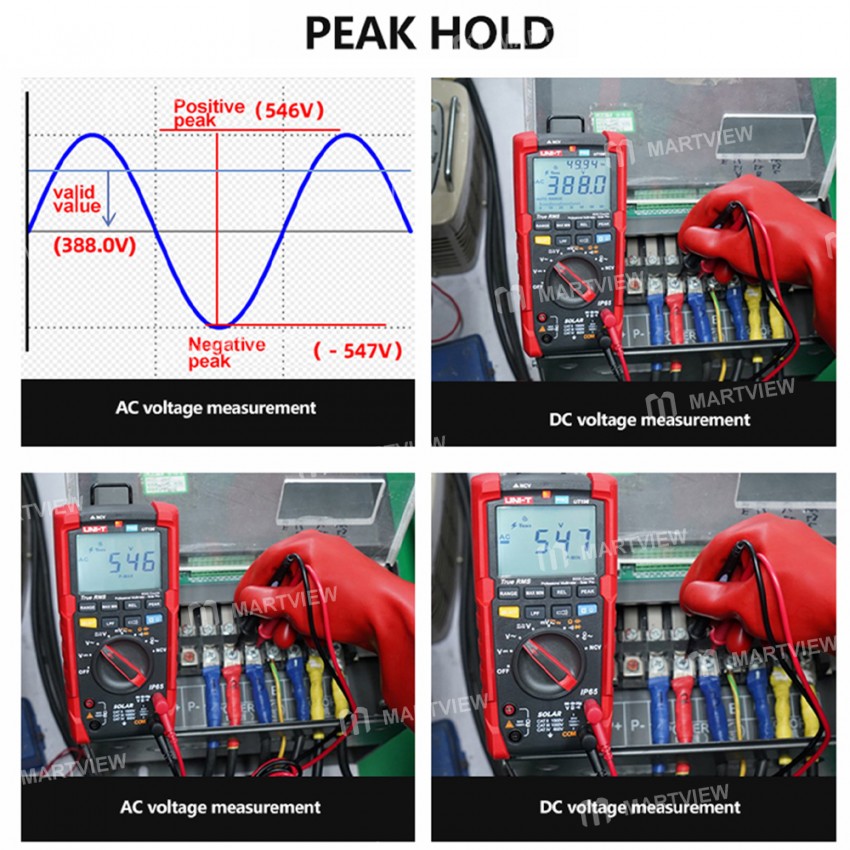

• Peak Hold

Specification:

• Model: UT196

• DC voltage(V): 600.0mV/6.000V/60.00V/600.0V/1700V ±(0.2%+5)

• AC voltage(V): 600.0mV/6.000V/60.00V/600.0V/1500V ±(0.8%+3)

• AC and DC voltage: 600V ±(2.0%+3)

• Frequency(Hz): 60.00Hz/600.0Hz/6.000kHz/60.00kHz/600.0kHz/1.000MHz ±(0.08%+4)

• Resistance(Ω): 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ ±(0.8%+2)

• Capacitance(F): 60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF ±(1.9%+5)

• Max display: 6000

• Dual display: Yes

• Autoranging: Yes

• NCV test: Yes

• Diode Test: Yes

• On and off beep: Yes

• Relative value measurement: Yes

• Maximum value: Yes

• Minimum value: Yes

• Peak Capture(PEAK): Yes

• Low Pass Filtered Measurements: Yes

• Sound and light prompt: Yes

• Low voltage display: About 7.5V

• Data retention: Yes

• Analog strip: Yes

• Automatic shut-down: About 15 minutes: Yes

• Flashlight: Yes

• IP protection class: IP65

• Drop test: 2M

• Safety level: CATⅡ1500V/CATⅢ1000V/CAT IV 600V

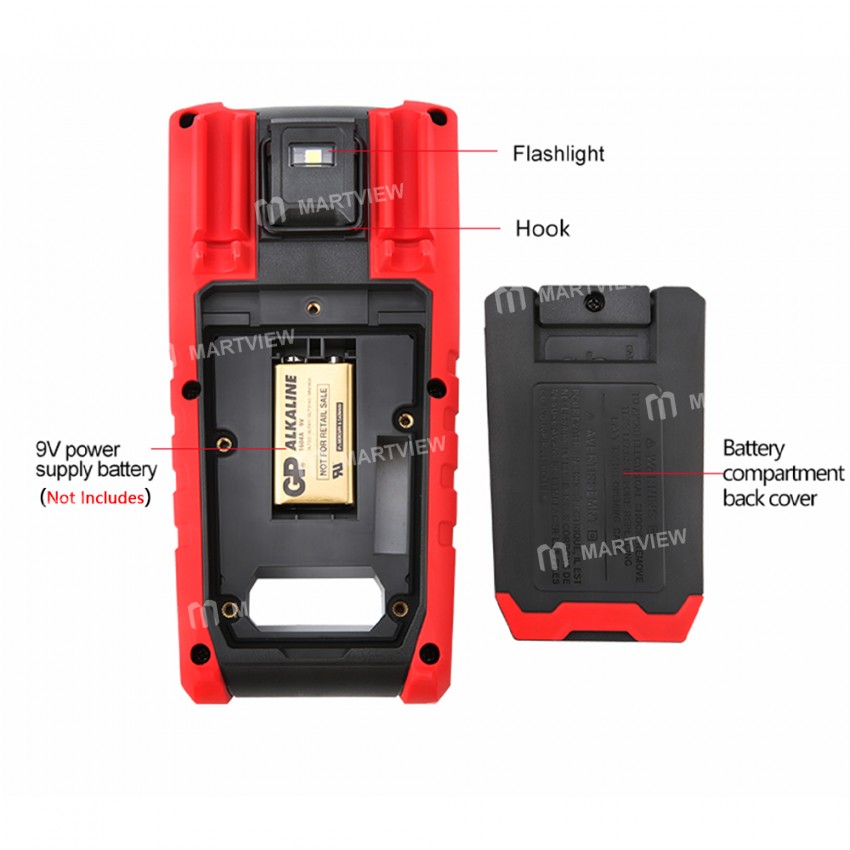

• Power supply: 9V 6F22 (Not includes)

• Body color: Red+Gray

• Body weight: 485g

• Dimensions: 195*95*58mm

Package includes:

• 1 x Multimeter(without Battery)

• 1 x Test Cable
