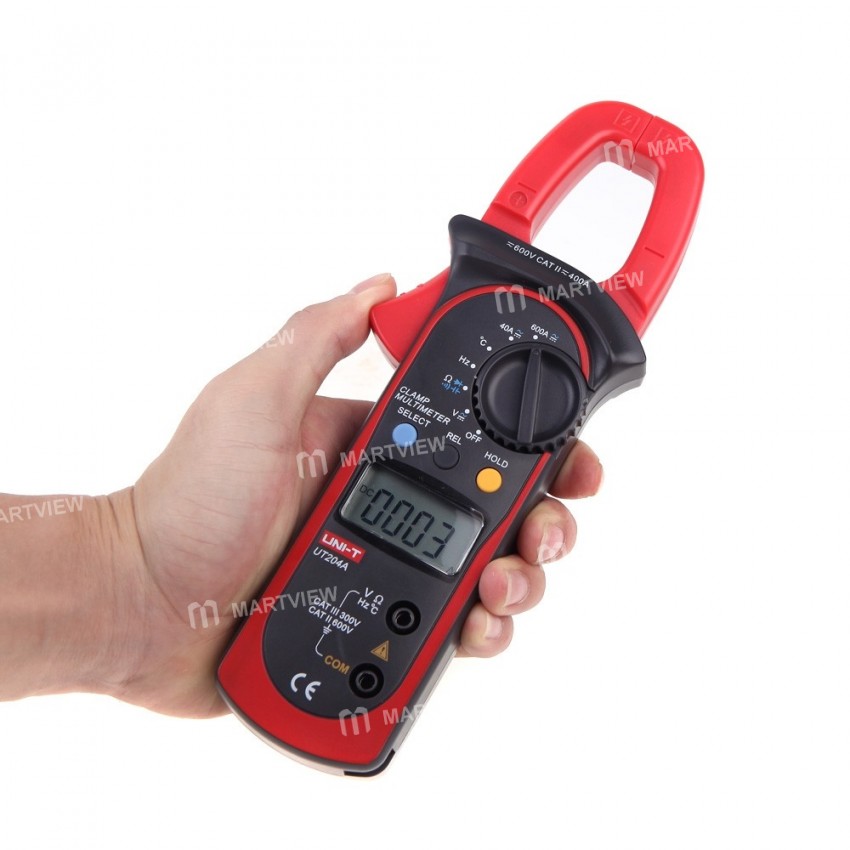

UNI-T UT204A Digital Handheld Clamp Multimeter – AC / DC Voltmeter Tester (DMM)

Digital UT204 Auto/Manual True RMS AC/DC Clamp Meter
The Digital UT204 is a versatile clamp meter capable of measuring AC/DC voltage and current, resistance, frequency, continuity, diode checks, duty cycles, and temperature.

Features:
• Summary: Auto‑ranging, data hold, sleep mode, full icon display, low‑battery indicator, maximum value hold, high input impedance, 3999‑digit display, True RMS measurement.

• Auto‑ranging, Data Hold function, Sleep mode, Full icon display
• Low battery display, Maximum value hold
• Input Impedance for DC Voltage Measurement: ≥10 MΩ
• Maximum display count: 3999
• AC/DC voltage measurement
• Resistance measurement
• Temperature measurement
• Diode check
• True RMS capability
• Continuity test

• DC Voltage: 400 mV / 4 V / 40 V / 400 V / 600 V (±0.8% + 1)
• AC Voltage: 4 V / 40 V / 400 V / 600 V (±1% + 5)
• DC Current: 40 A / 400 A (±2% + 3)
• AC Current: 40 A / 400 A (±2.5% + 5)
• Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ (±1% + 2)
• Frequency: 10 Hz ~ 1 MHz (±0.1% + 3)
• Duty Cycle: 0.1% ~ 99.9%
• Power: 9 V battery (not included)
• LCD size: 36 × 18 mm

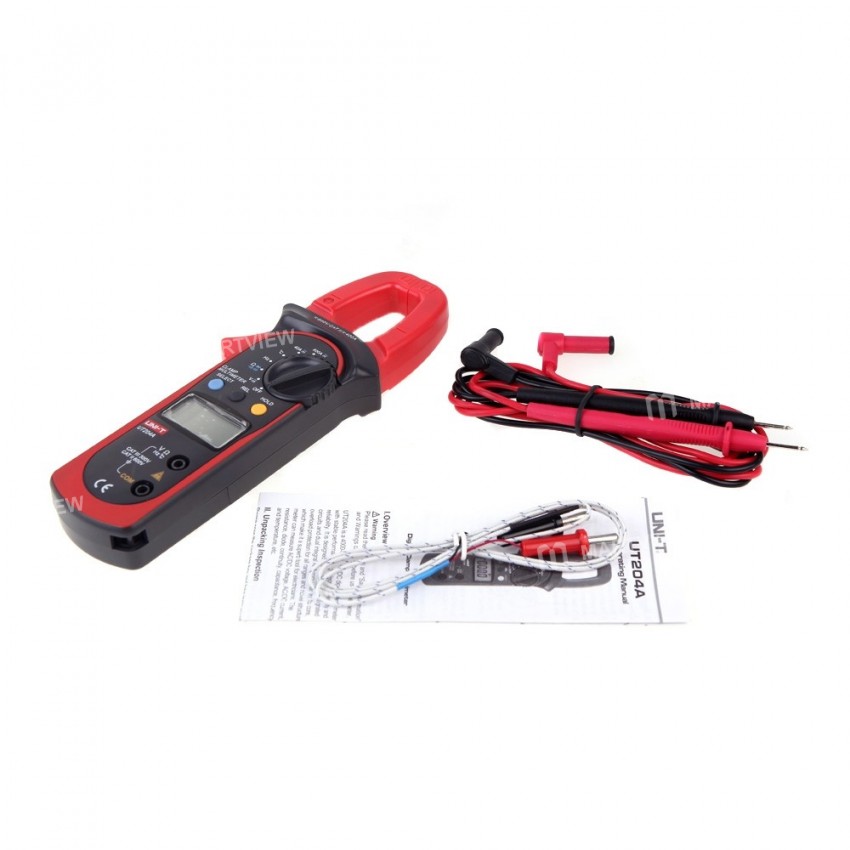

• 1 × UT204 Clamp Meter
• 1 × Test leads
• 1 × User manual
