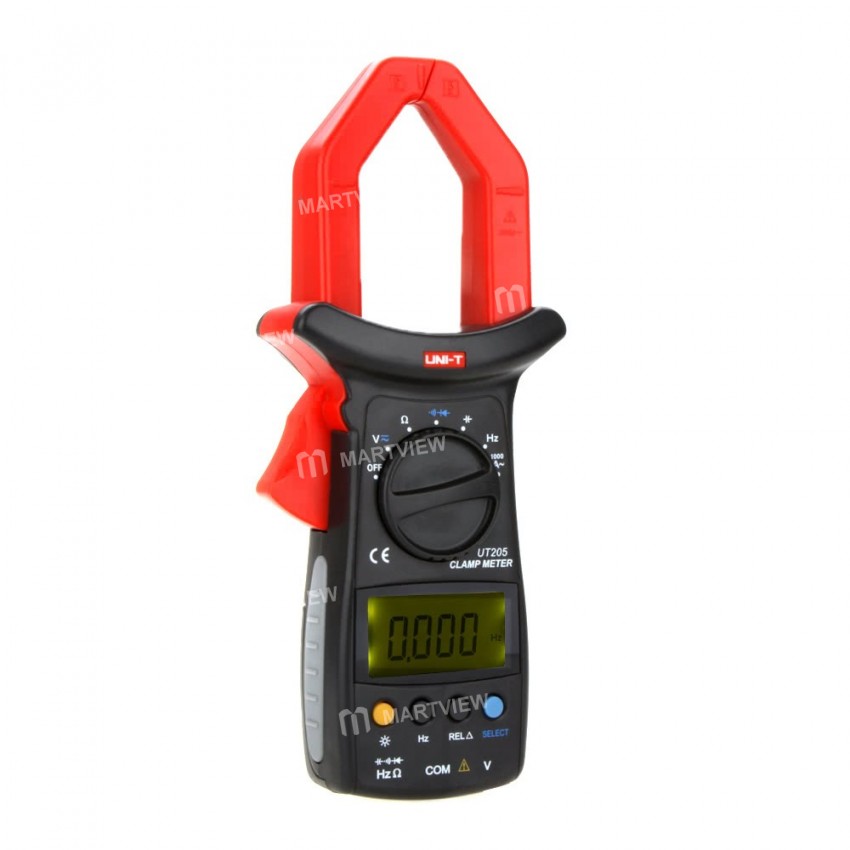

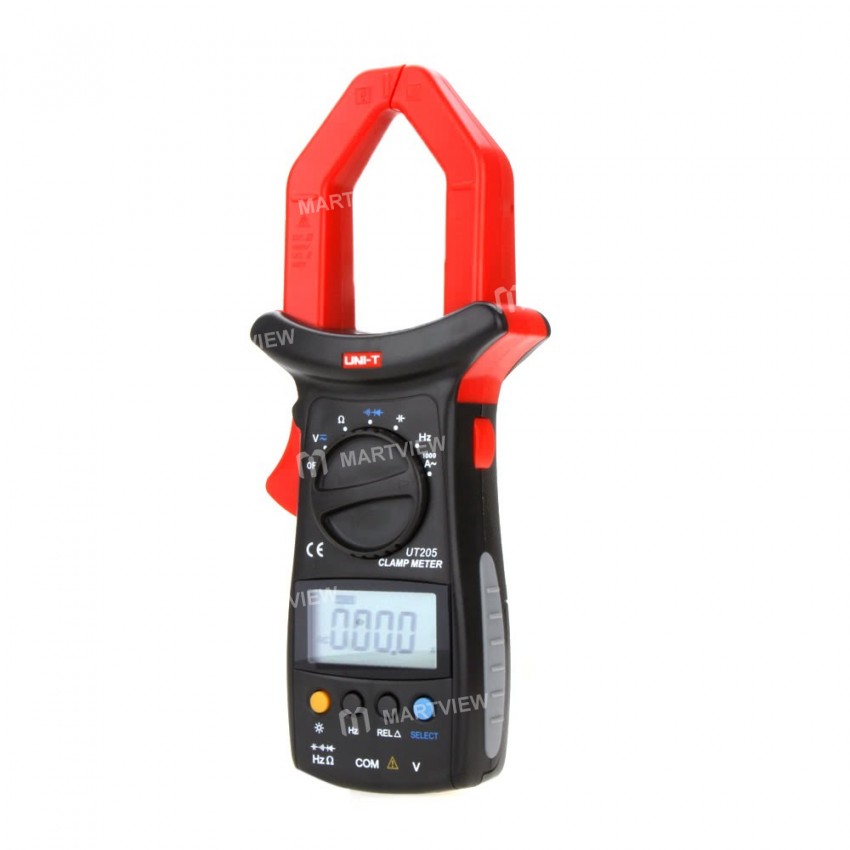

UNI-T UT205 Auto‑Range Digital Clamp Multimeter – Resistance Measurement with LCD Backlight

UNI-T UT205 Auto Range Resistance Digital Clamp Multimeter with LCD Backlight

Features:
Key Highlights: 3999‑digit display, auto‑range, diode test, continuity buzzer, data hold, backlight, 40 mm jaw, 10 MΩ input impedance, sleeping function, low‑battery indicator.

• Display Count: 3999
• Relative measurement: ✔
• Auto Range: ✔
• Diode test: ✔
• Continuity buzzer: ✔
• Low Battery Indication: ✔
• Data Hold: ✔
• Duty Ratio: 0.1%~99.9%
• Full Icon Display: ✔
• Sleeping function: ✔
• Input Impedance: 10MΩ
• Backlight: ✔

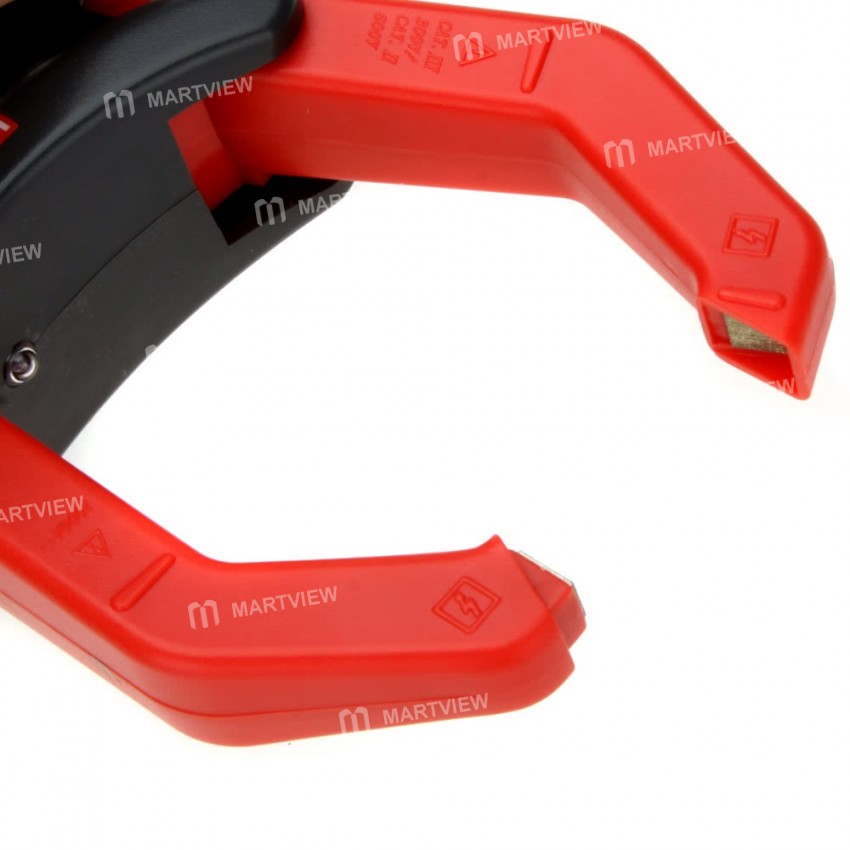

• Jaw Size: 40 mm

• DC Voltage (V): 400 mV/4 V/40 V/400 V/600 V ±(0.8%+1)
• AC Voltage (V): 4 V/40 V/400 V/600 V ±(1.2%+5)
• AC Current (A): 400 A/1000 A ±(1.5%+5)
• Resistance (Ω): 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ ±(1%+2)
• Frequency (Hz): 10 Hz~10 MHz ±(0.1%+3)
• Capacitance: 40 nF/400 nF/4 µF/40 µF/200 µF ±(3%+5)
• Product Size: 260 × 104 × 52 mm
• Power: 9 V Battery (6F22) – not included
• LCD Size: 52 × 27 mm

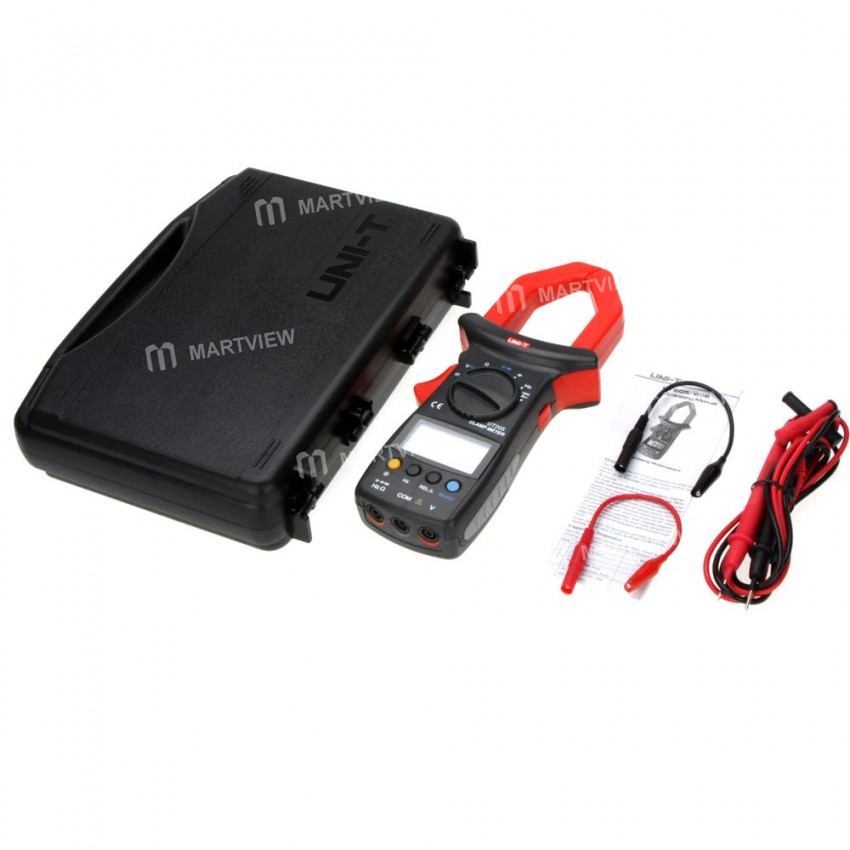

• 1 × UNI‑T UT205 Digital Clamp Multimeter

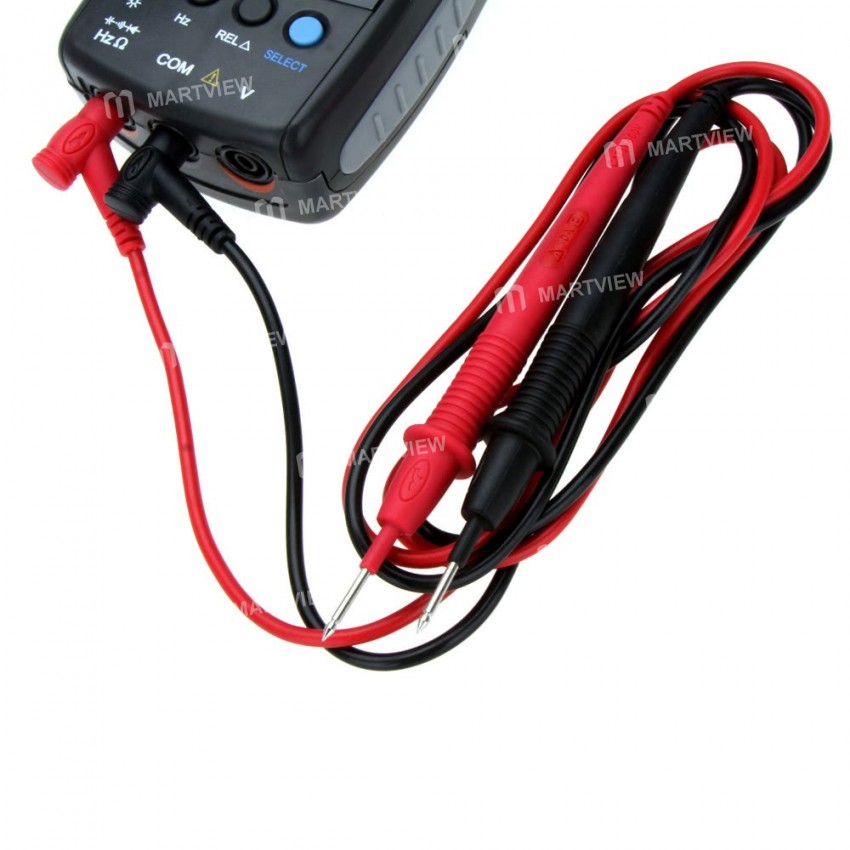

• 1 × Test Lead
• 1 × Carrying Bag
• 1 × English Manual
