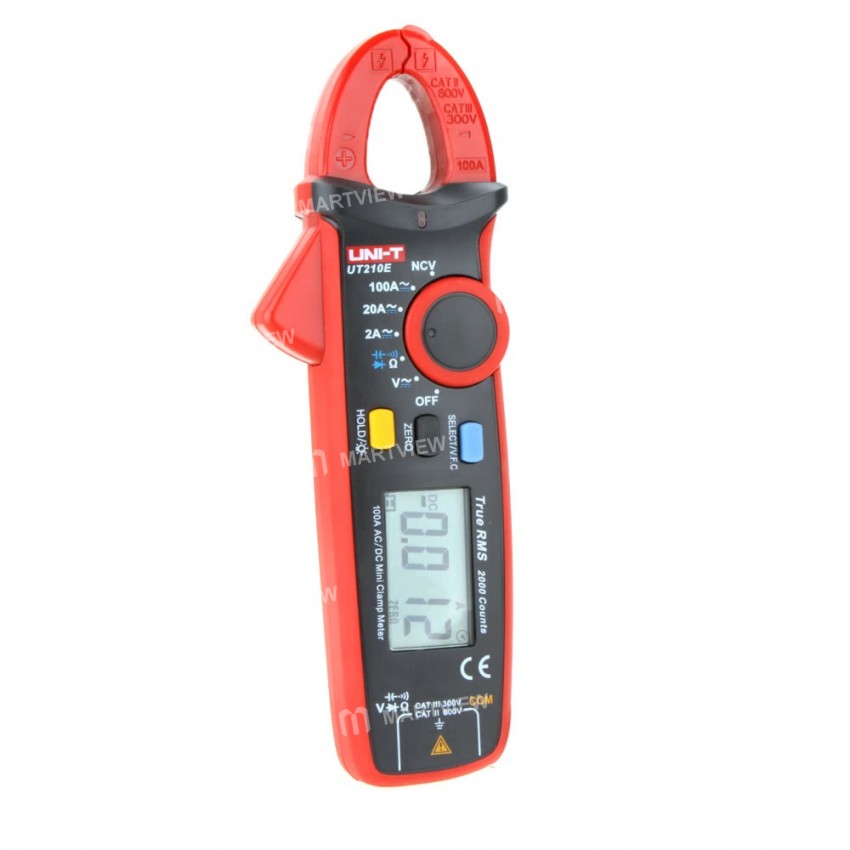

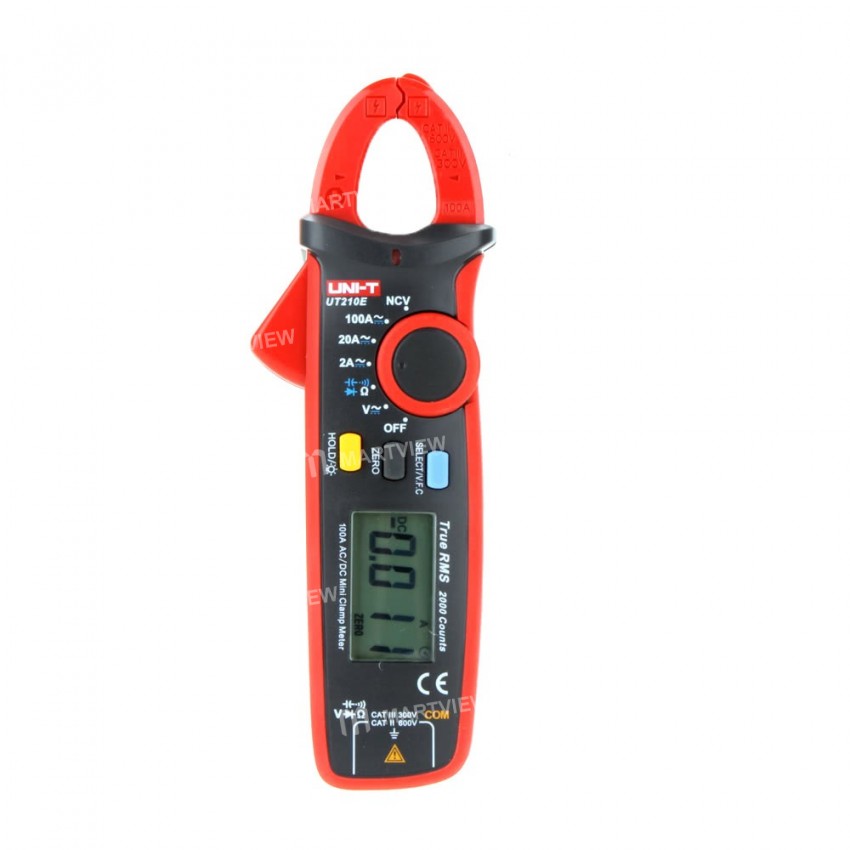

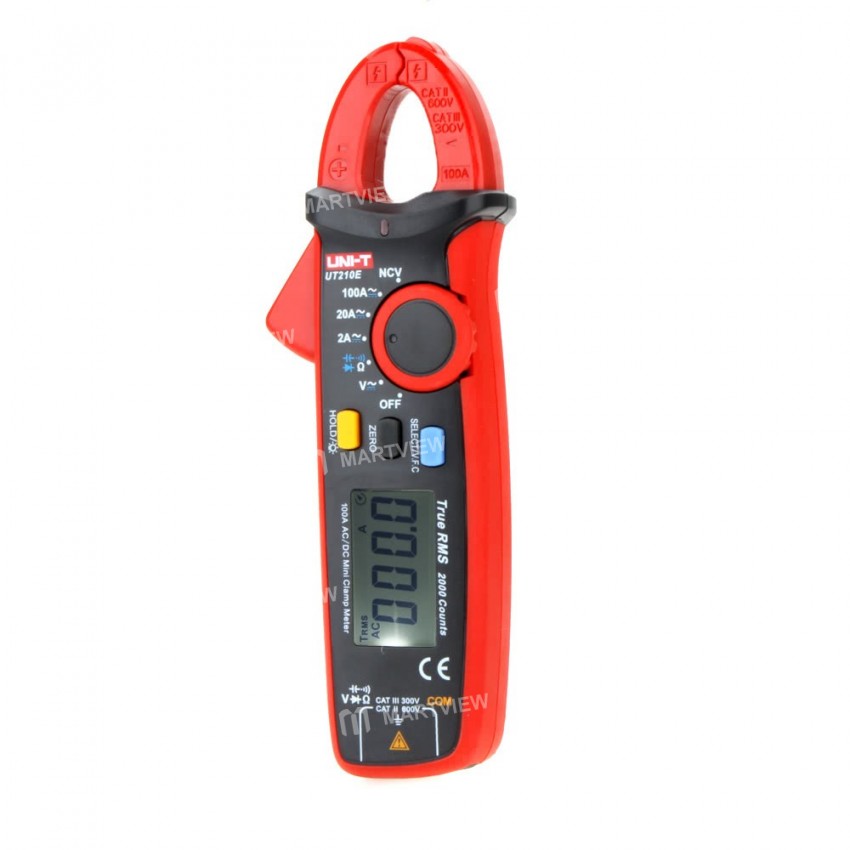

UT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size.
It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC .
It has the design of full range of overload protection ,along with the unique exterior design, which makes it a more remarkable new practical electric testing instrument.
UT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil,defense, power, foundry, circuit of power equipment inspection, and maintenance and repairs.
AC Current (A) : 2A/20A/100A ±(2.5%+5)
DC Current (A) : 2A/20A/100A ±(2%+3)
AC Voltage (V) : 2V/20V200V/600V ±(1.0% + 3)
DC Voltage (V) : 200mV/2V/20V200V/600V ±(0.7%+3)
Resistance (Ω) : 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1.0%+2)
Capacitance (F) : 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4%+5)
Display Count: 2000
Auto Range: √

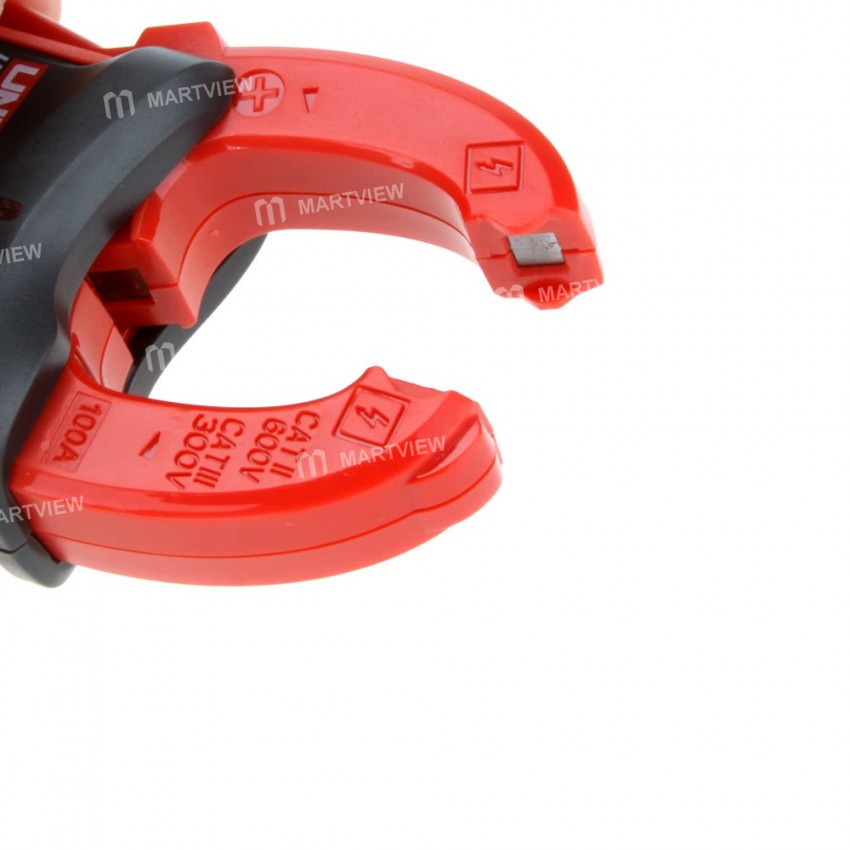

Jaw Capacity: 17mm
True RMS: √
Diode: Around 3.0V
Data Hold: √
Zero Mode: √
LCD Backlight: √
Auto Power Of: Around 15 Minutes
Continuity Buzzer: √
Low Battery Indication: ≤2.5V
Input Protection: √
Input Impedance for DCV: ≥10MΩ
Product Net Weight: 170g
Product Size: 175mm * 60mm * 33.5mm

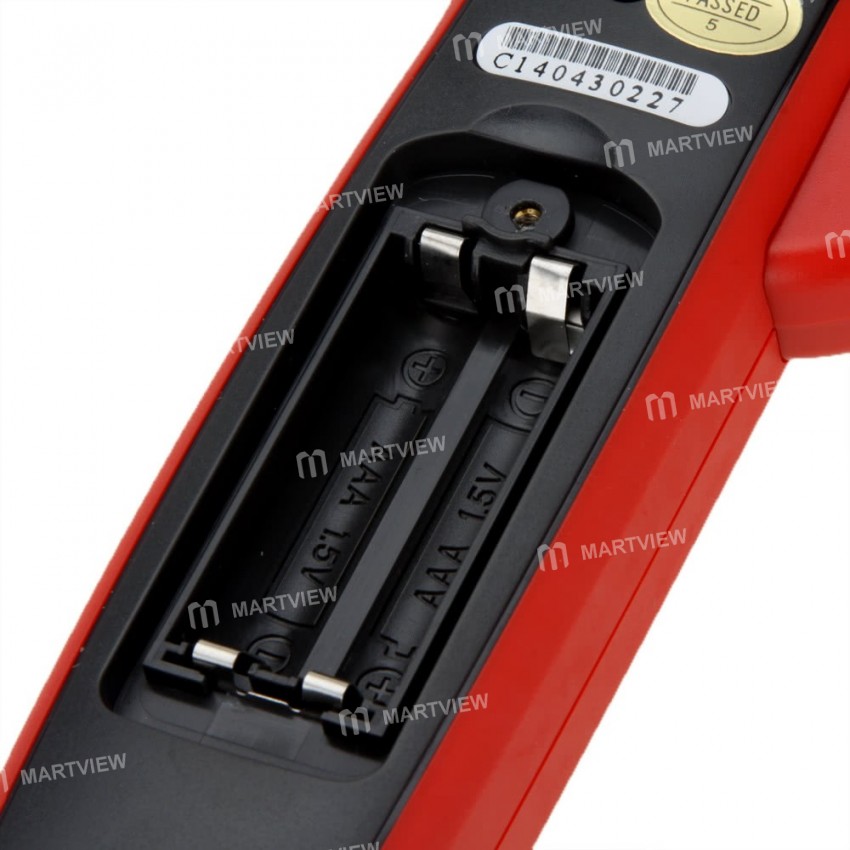

Power: AAA 1.5V x 2 (not included)
LCD Size: 39.3mm * 21.5 mm
