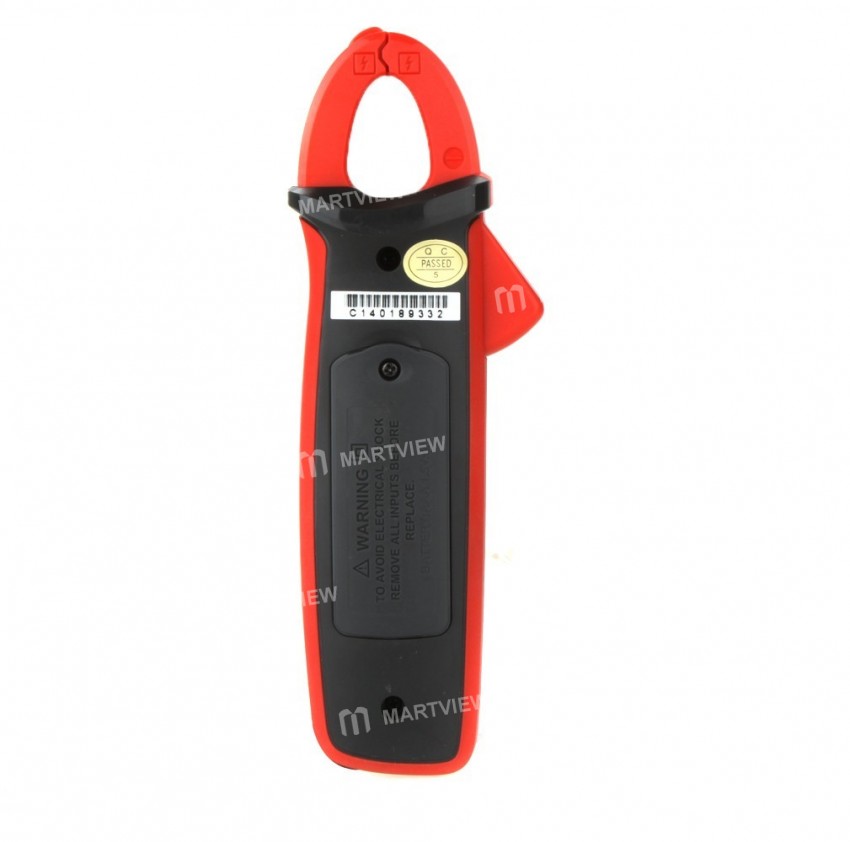

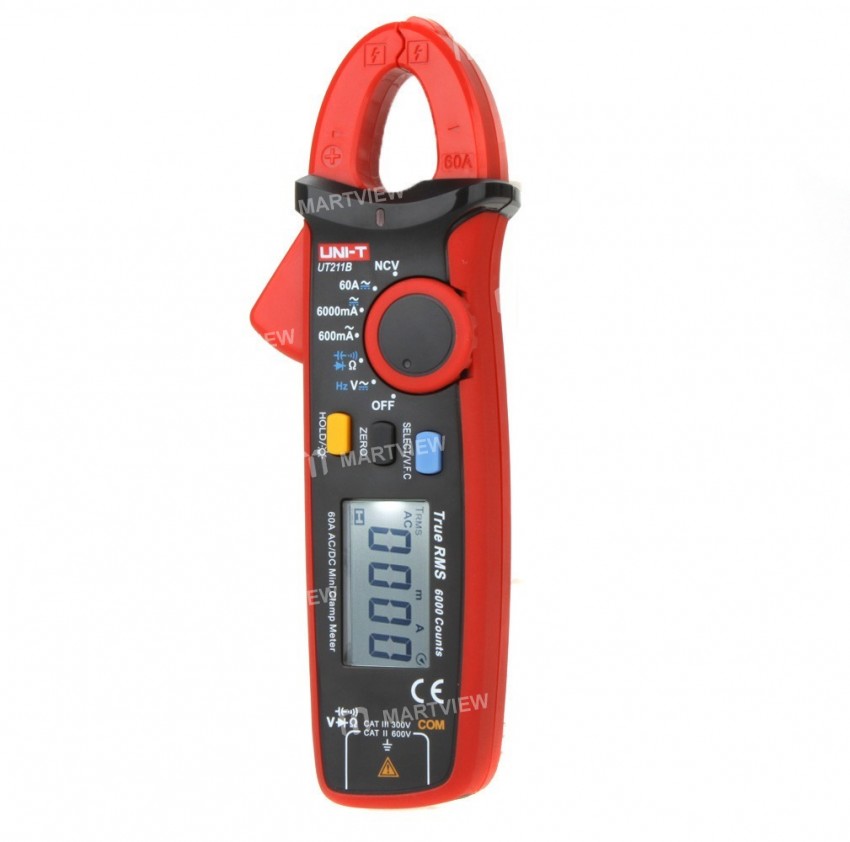

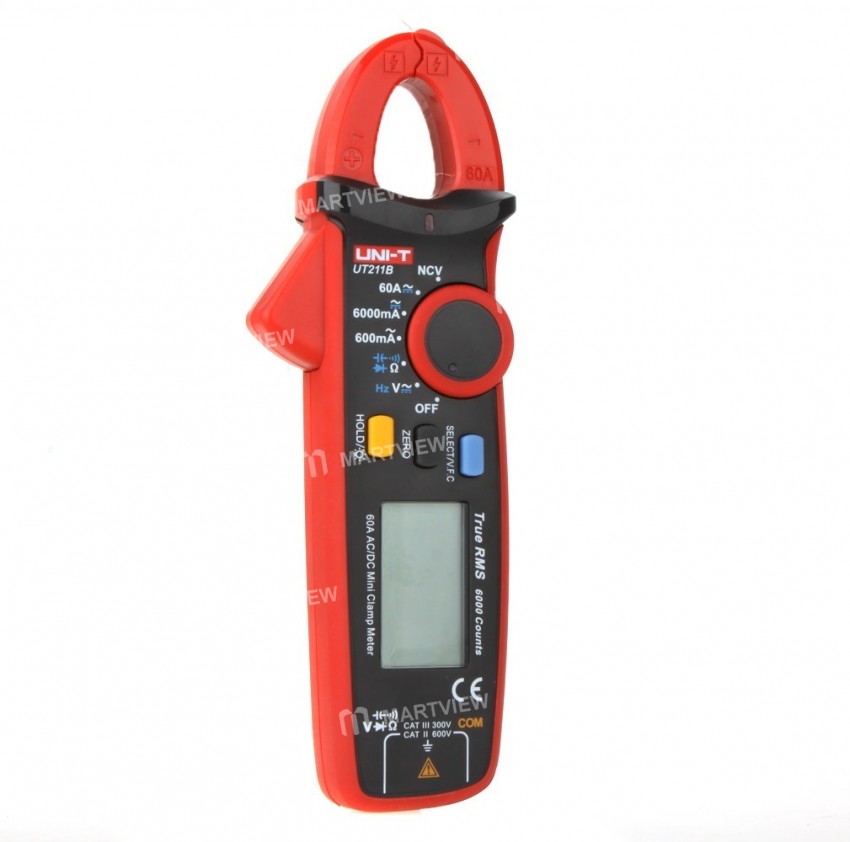

UNI-T UT211B 60A High‑Resolution True RMS Clamp Meter with VFC NCV Test Tool

UNI‑T UT211B 60A High‑Resolution True RMS Clamp Meter with VFC & NCV Test Tool

Features:

• High‑resolution 1 µA AC/DC, True RMS, 60 A clamp range, VFC & NCV functions.
• Maximum AC resolution: 1 µA
• Maximum DC resolution: 1 µA
• Basic ACI accuracy: ±1.5 %
• Auto‑range with 5,999‑count display
• True RMS measurement
• VFC (frequency conversion) function
• NCV (non‑contact AC voltage) testing
• Zero mode
• Data hold
• LCD backlight
• 17 mm jaw for dense cables
• Auto power‑off (≈15 min) and low‑battery indication (≤2.5 V)
• CE (EU) and ETL (North America) compliance

• Display count: 6,000
• Auto‑range: supported
• True RMS: supported
• Diode test (≈3.0 V): supported
• VFC: supported
• NCV: supported
• Data hold: supported
• Zero mode: supported
• LCD backlight: supported
• Auto power‑off: ≈15 minutes
• Continuity buzzer: supported
• Low‑battery indication: ≤2.5 V
• Input protection: supported
• DCV input impedance: ≥10 MΩ
• AC current: 600 mA / 6 A / 60 A ± (1.5 % + 10 %)
• DC current: 6 A / 60 A ± (2 % + 3 %)
• AC voltage: 6 V / 60 V / 600 V ± (0.8 % + 3 %)
• DC voltage: 0.6 V / 6 V / 60 V / 600 V ± (0.7 % + 3 %)
• Resistance: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8 % + 2 %)
• Capacitance: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF ± (4 % + 5 %)

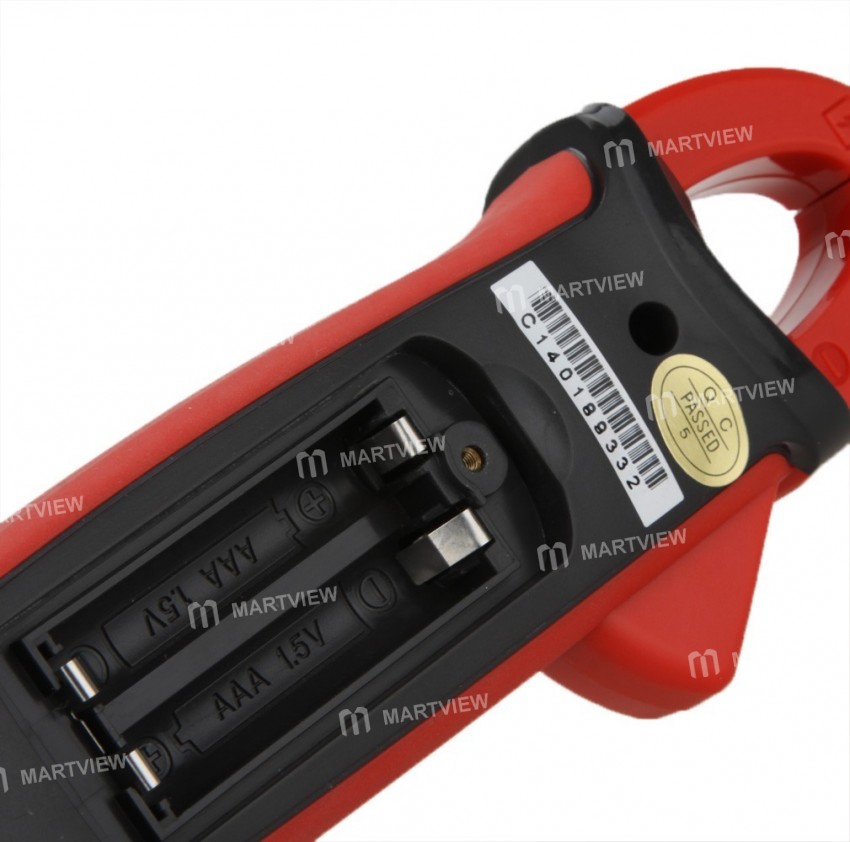

• Power: 2 × AAA 1.5 V (batteries not included)
• LCD size: 39.3 mm × 26.5 mm
• Product dimensions: 175 mm × 60 mm × 33.5 mm

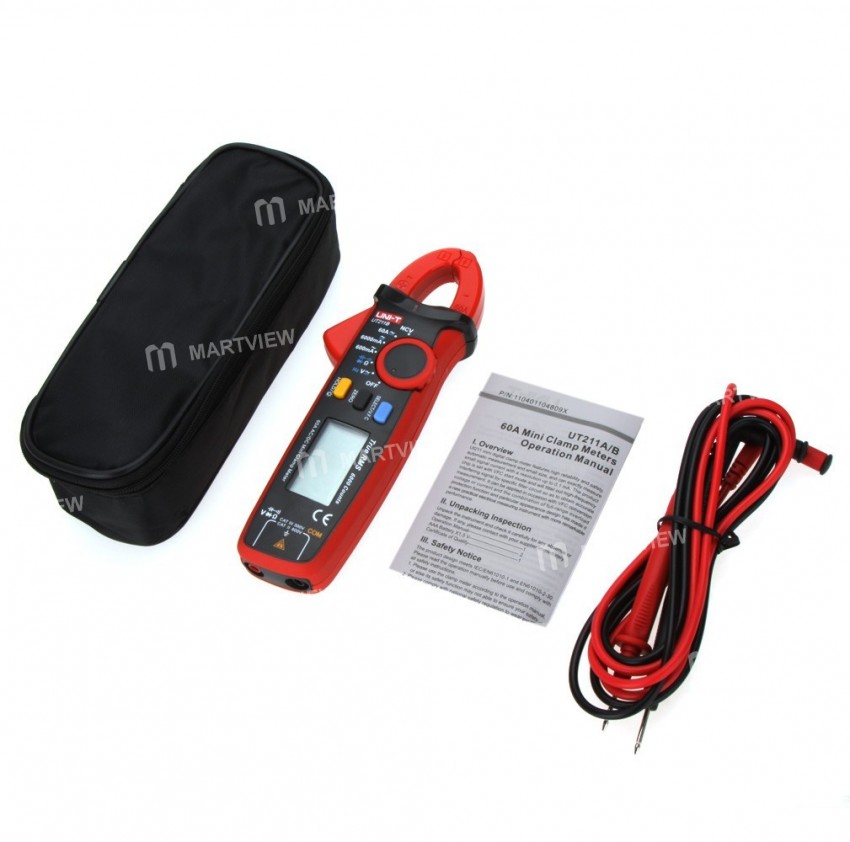

• 1 × UT211B
