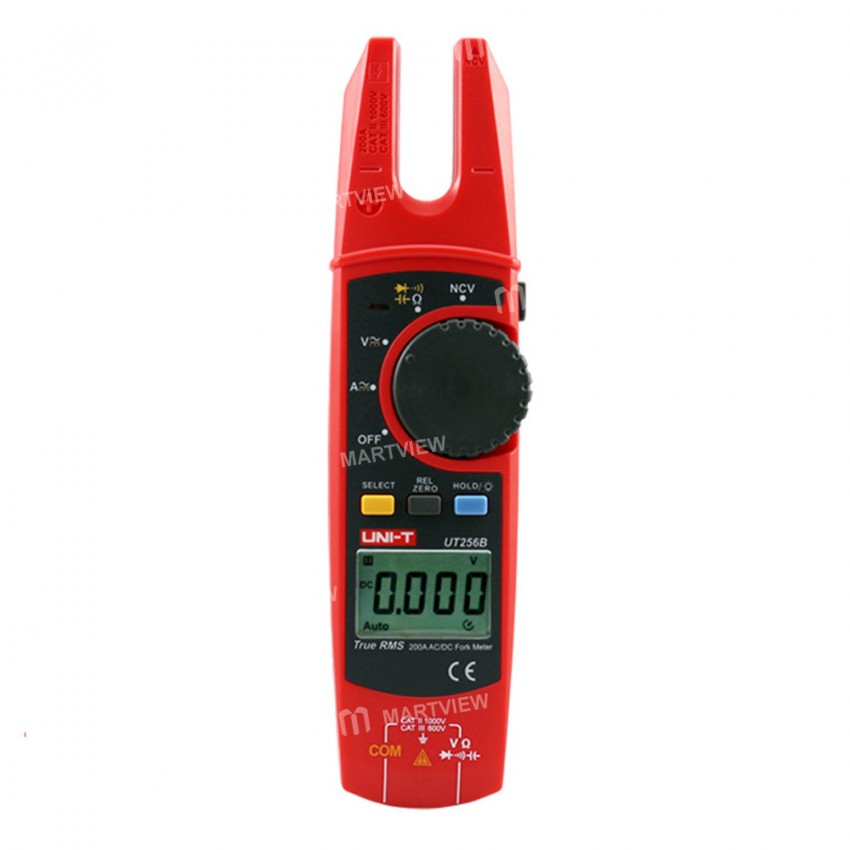

UNI-T UT256B 200A True RMS Auto Rang AC / DC Digital Fork Clamp Multimeter

UNI-T UT256B 200A True RMS Auto Rang AC/DC Digital Fork Clamp Multimeter

Features:

• Auto range

• 6000 display count

• True RMS

• 99 sets of data storage

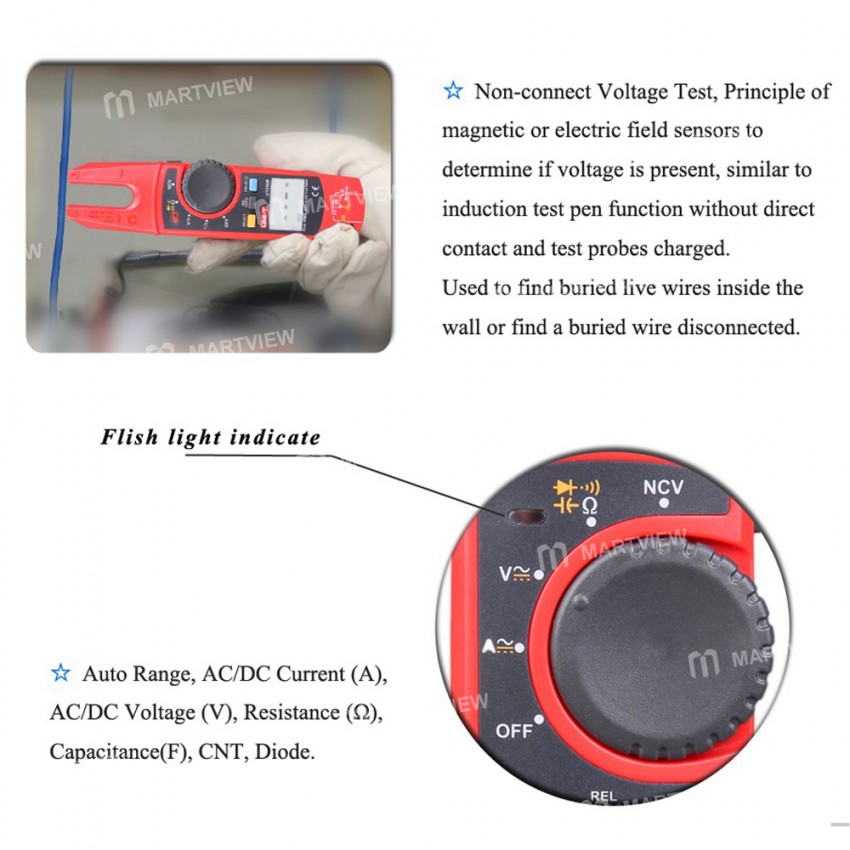

• NCV voltage testing

• Relative mode

• Data hold

• LCD backlight

• Flashlight

• Auto power off

• Zeroing function

• UT256 series is an AC/DC fork meter with high reliability, high security, auto range, and mini shape

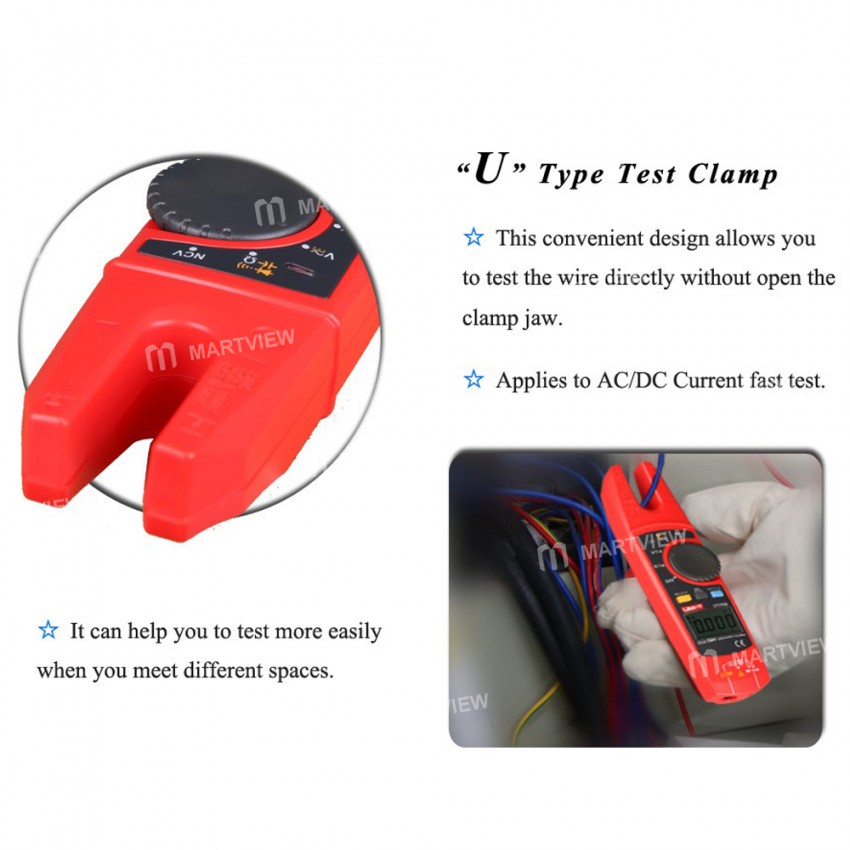

• Its appearance adopts a creative design so that wires to be tested can be stuck by the jaw directly instead of after the jaw is pressed to open

• It can measure AC/DC current provided with a true RMS function

• The flashlight on the meter is specially designed for smooth measurement under darkness

• Full-range overload protection and a distinctive appearance design make it a new-generation practical electrical measuring meter with better performance

Specification:

• Model: UT256B

• AC(A):0~200A ±(2.5%+5)

• DC(A):0~200A ±(2.5%+5)

• AC Voltage: 6V/60V/600V/750V ±(1.2%+3)

• DC Voltage: 600mV/6V/60V/600.0V/600V/1000V ±(0.8%+3)

• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+2)

• Capacitance (F) 60nF/600nF/6uF/60uF/600uF/6mF/60mF ±(4%+20)

• Max Display: 5999

• Auto Range: Yes

• True RMS: Yes

• Diode Test: About 3.0V

• NCV: Yes

• Data Hold: Yes

• Null Measurement: Yes

• Relative Measurement: Yes

• LCD Backlight: Yes

• Auto Power-off: About 15 mins

• Continuity Buzzer: Yes

• Low Battery Indication: ≤2.4V

• Input Protection: Yes

• Input Impedance: ≤10MΩ

• General Characteristics

• Power Supply: AAA 1.5V x 2

• LCD Size: 36.5mm x 24mm

• Product Color: Red+Grey

• Product Weight: 163.7g

• Product Size: 210*53*35mm

Package includes:

• 1 x Multimeter(Without battery)

• 1 x Test line

• 1 x Bag
