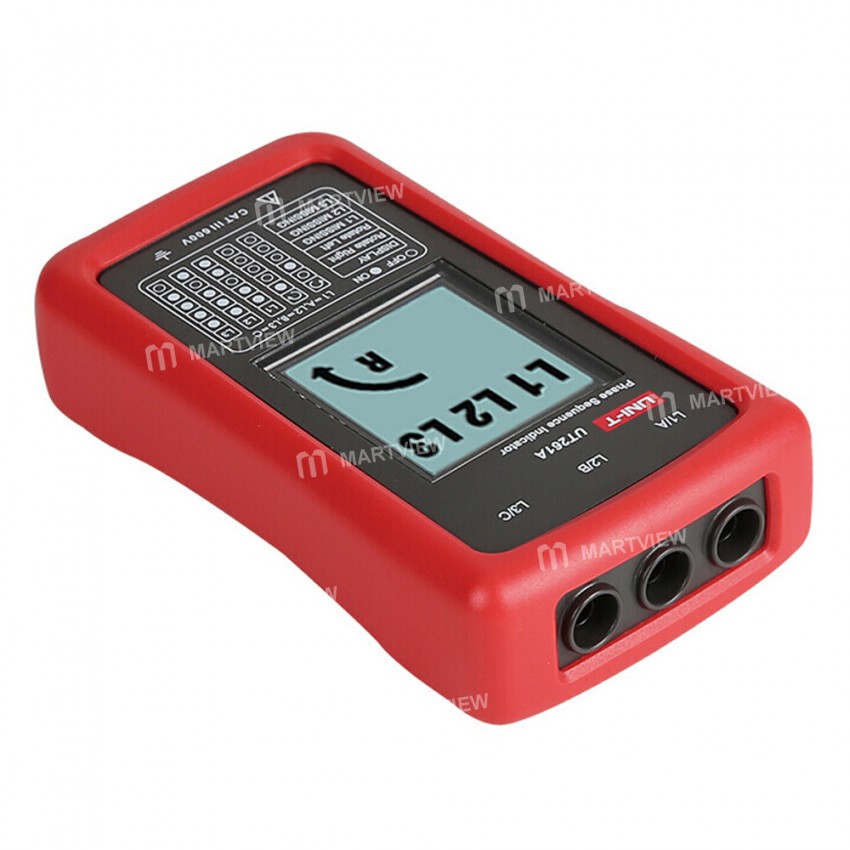

UNI-T UT261A AC 40-690V Phase Sequence and Motor Steering Meter

UNI-T UT261A AC 40-690V Phase Sequence and Motor Steering Meter

Features:

• UT261 series is used for determining the 3-phase power phase sequence and missing phase indication

• UT261A can measure AC voltage of 40~700V respectively

• This device can operate in the frequency range of 15~400Hz

• UT261A are durable devices that can withstand impact from 2 meters of height

• Suitable for AC 40-690V three-phase power system, working frequency range 15Hz-400Hz, ample measuring range allows the UT261A to be properly compatible with a variety of three-phase power industry electrical equipment to complete the detection of phase sequence.

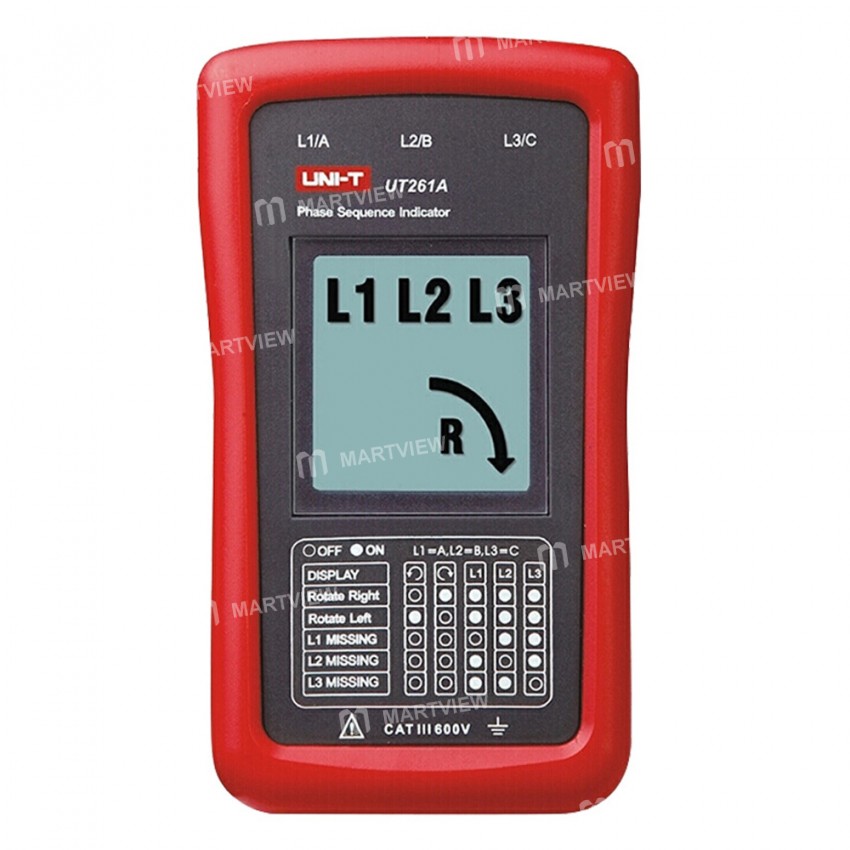

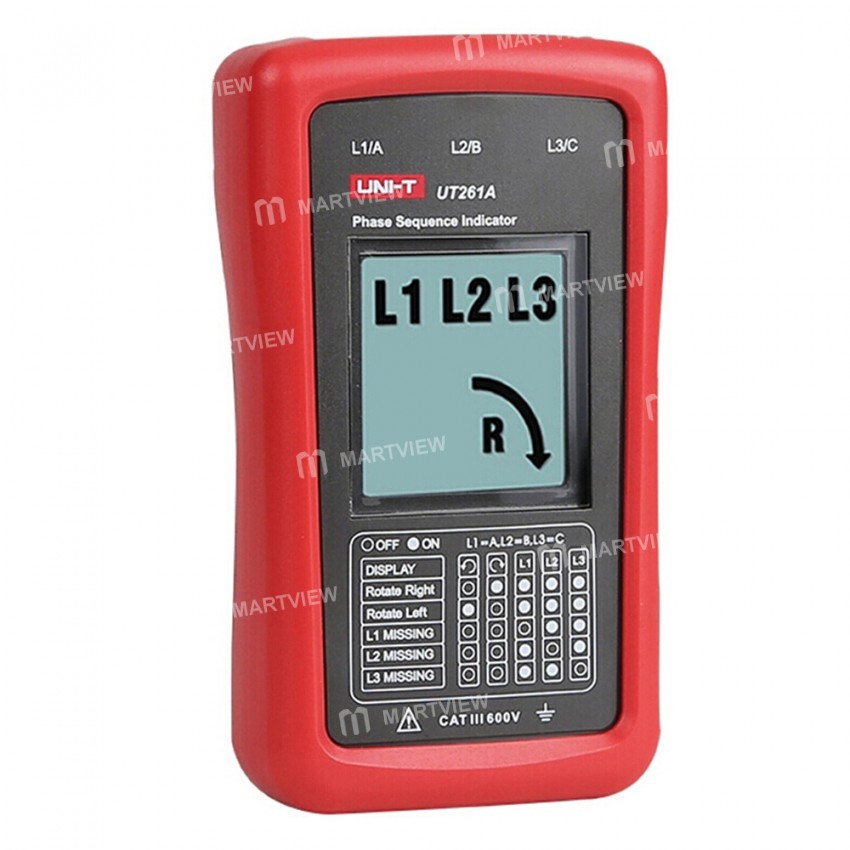

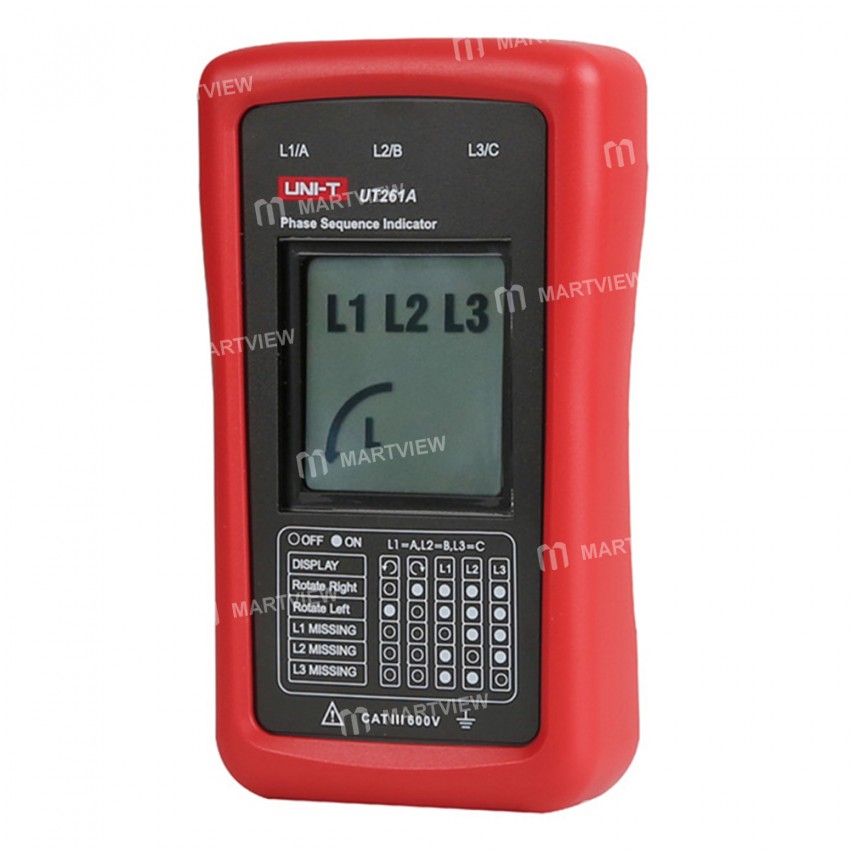

• The LCD display clearly indicates the 3 phase lines and the direction of phase sequence rotation, only need to connect the line, without any key operation, and intuitively displays the phase / out of phase / inverse phase status, the LCD is also attached to the bottom of the corresponding indication table, easy to observe

• Equipped with CAT Ⅲ 600V safety grade and double insulation protection design to ensure the safety of the user and meter during use

• No batteries or external power supply, directly through the measured circuit power supply, greatly saving the use of cost and working time, and in a long time detection, do not need to worry about power supply problems

Specification:

• Model: UT261A

• AC Voltage: 40V~690V

• Frequency: 15Hz~400Hz

• Working Voltage: <3mA

• Phase Sequence Indication: LCD

• Missing Phase Indication: LCD

• Power: No Battery Required

• Product Color: Red and Grey

• Product Weight: 180g

• Product Size: 70*75*30mm

Package includes:

• 1 x Phase Sequence Indicator
