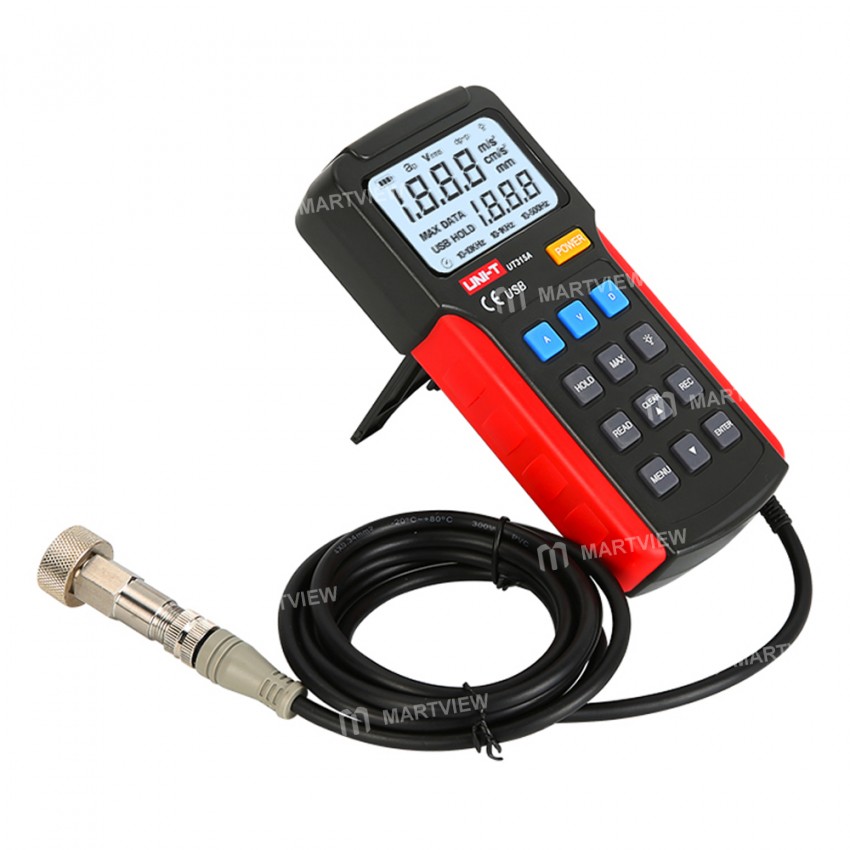

UNI-T UT315A Handheld Industrial Measuring Fault Digital Vibrometer

UNI-T UT315A Handheld Industrial Measuring Fault Digital Vibrometer

Features:

• Highly accurate and precise

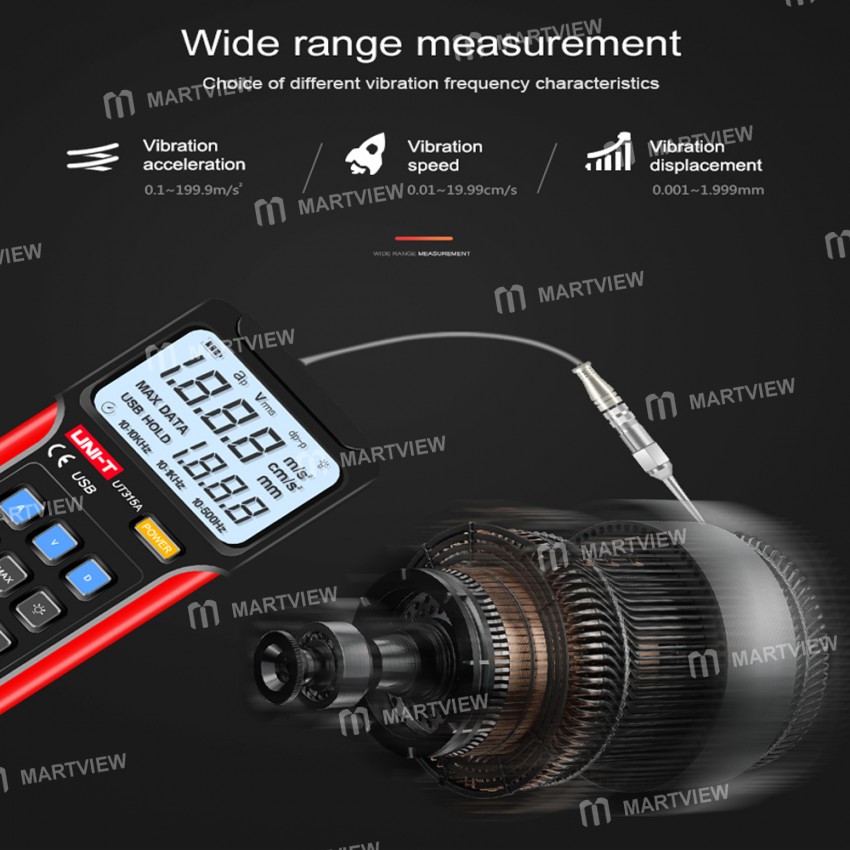

• Measures acceleration, velocity, displacement

• Can select different vibration frequency characteristics

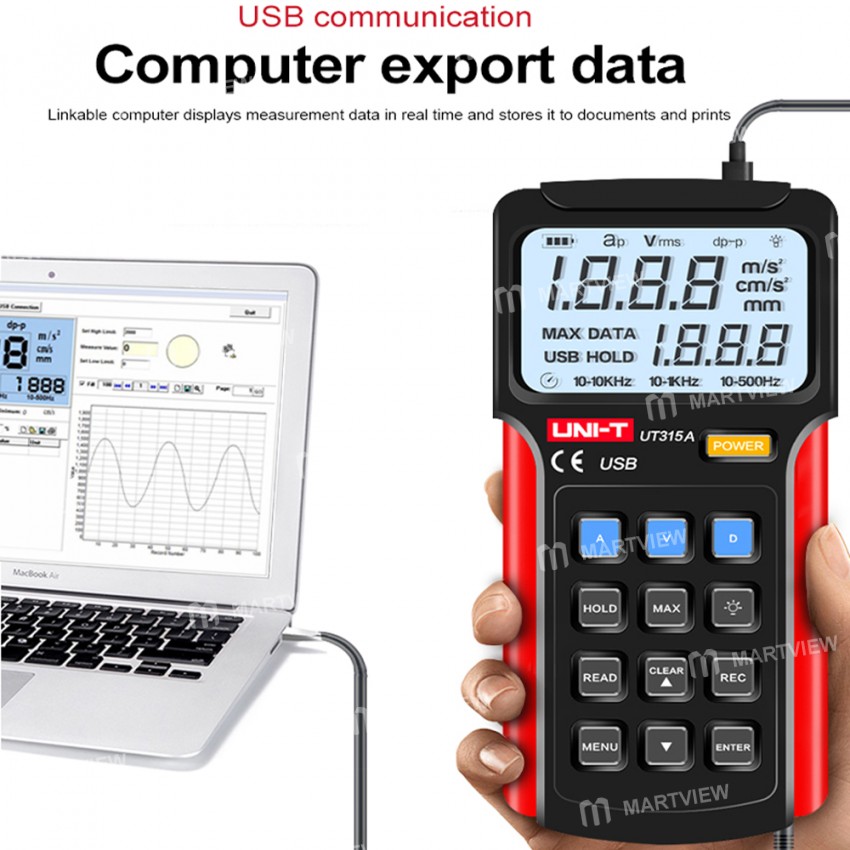

• MAX mode, data storage, USB interface

• Auto power off, low battery indication

• Data hold

Specifications:

• Model: UT315A (Separate type)

• Vibration acquisition: Piezoelectric accelerometer

• Acceleration measurement range:0.1～199.9m/s²

• Speed measurement range：0.01～19.99cm/s

• Displacement measurement range:0.001-1.999mm

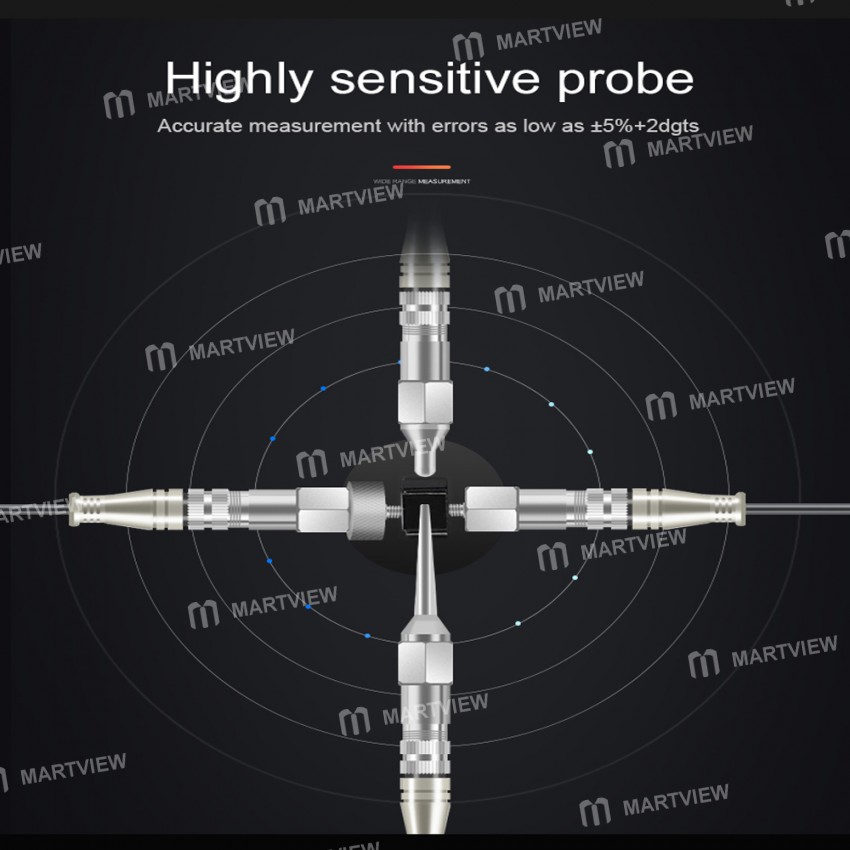

• Measurement error:±5%+2dgts

• Acceleration measurement frequency range:10Hz~10000Hz

• Speed measurement frequency range:10Hz~1000Hz

• Displacement measurement frequency range:10Hz~500Hz

• Digital retention: Yes

• Low voltage prompt Maximum: Yes

• Data readback: Yes

• Data transmission: Yes

• LCD backlight: Yes

• Data storage:1999 group

• LCD display:3-digit display

• Display refresh cycle:1 second

• Powered by:9V battery

• Automatic shut-down: No operation for about 10 minutes

• Battery Life: Ordinary zinc-manganese battery is used continuously for about 3 hours: the alkaline battery is used continuously for about 8 hours

• Battery indicator: Low voltage prompt

• Size:66x80x30mm

• Weight:395g

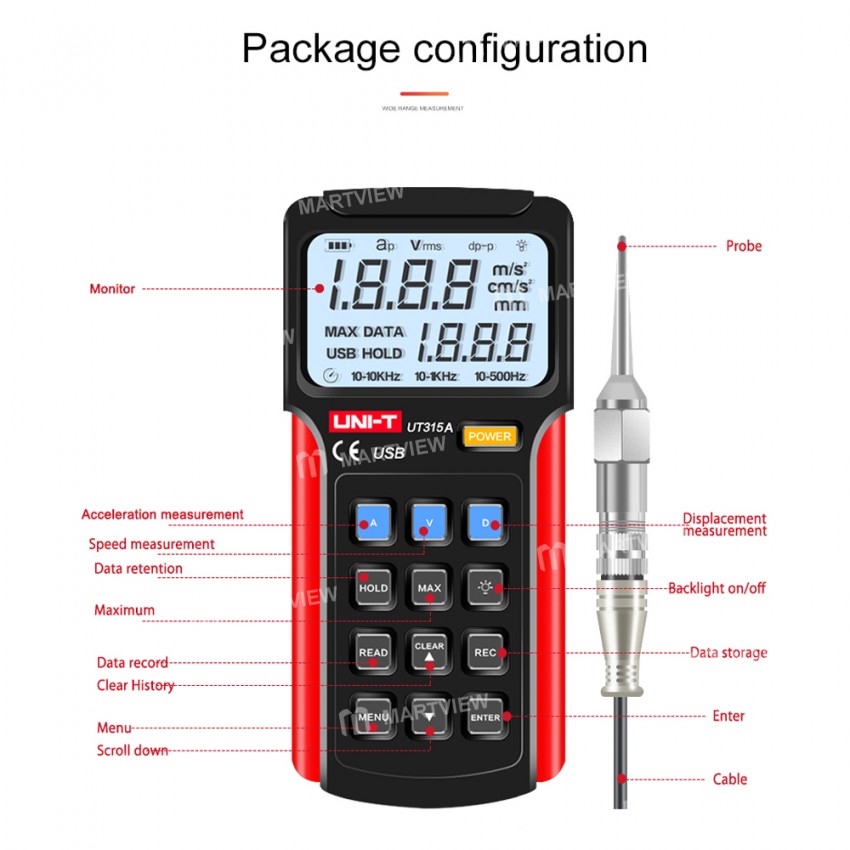

Package includes:

• 1 x Host(No Battery)
• 1 x USB data cable
• 1 x Probe cable
• 1 x Probe handle
